Loss functions Part II

Designing Machine Learning Workflows in Python

Dr. Chris Anagnostopoulos

Honorary Associate Professor

Probability scores

clf = GaussianNB().fit(X_train, y_train)

scores = clf.predict_proba(X_test)

array([[3.74717371e-07, 9.99999625e-01],
       [9.99943716e-01, 5.62841678e-05],
       ...,
       [9.99937502e-01, 6.24977552e-05]])

[s[1] > 0.5 for s in scores] == clf.predict(X_test)

Probability scores

Threshold	False Positive	False Negative
0.0	178	0
0.25	66	17
0.5	35	37
0.75	13	57
1.0	0	72

ROC curves

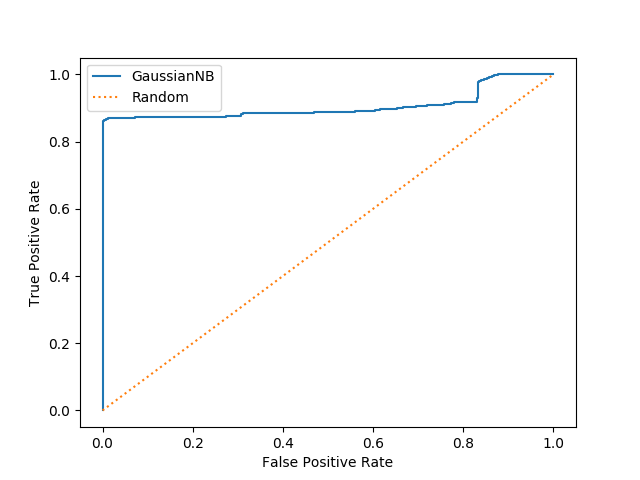

A plot of FPR against TPR shows a curve approaching the upper left hand side and top border. A diagonal line is also displayed.

fpr, tpr, thres = roc_curve(
    ground_truth,
    [s[1] for s in scores])
plt.plot(fpr, tpr)
plt.xlabel('False Positive Rate')
plt.ylabel('True Positive Rate')

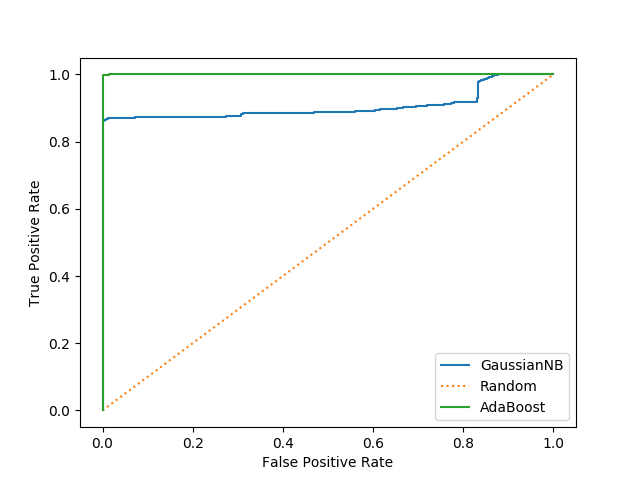

As before, a plot of FPR against TPR shows a curve approaching the upper left hand side and top border. A diagonal line is also displayed.

An additional curve is shown here for GaussianNB which is lower than AdaBoost for the entire range of FPR.

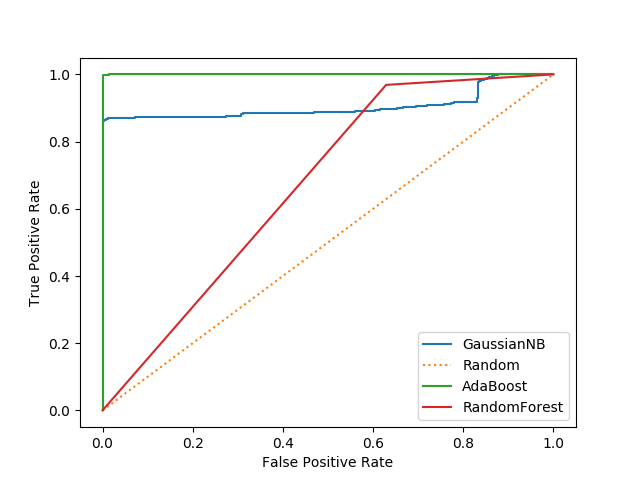

Yet another curve is shown here, that of a random forest, which is lower than GaussianNB for small values of FPR, but higher than GaussianNB for larger values.

AUC

clf = AdaBoostClassifier().fit(X_train, y_train)
scores_ab = clf.predict_proba(X_test)
roc_auc_score(ground_truth, [s[1] for s in scores_ab])

0.9999

Cost minimisation

def my_scorer(y_test, y_est, cost_fp=10.0, cost_fn=1.0):
    tn, fp, fn, tp = confusion_matrix(y_test, y_est).ravel()
    return cost_fp*fp + cost_fn*fn

t_range = [0.0, 0.25, 0.5, 0.75, 1.0]
costs = [
   my_scorer(y_test, [s[1] > thres for s in scores]) for thres in t_range
]

[94740.0, 626.0, 587.0, 507.0, 2855.0]

Each use case is different!
