Beyond 95%

Improving Your Data Visualizations in Python

Nick Strayer

Instructor

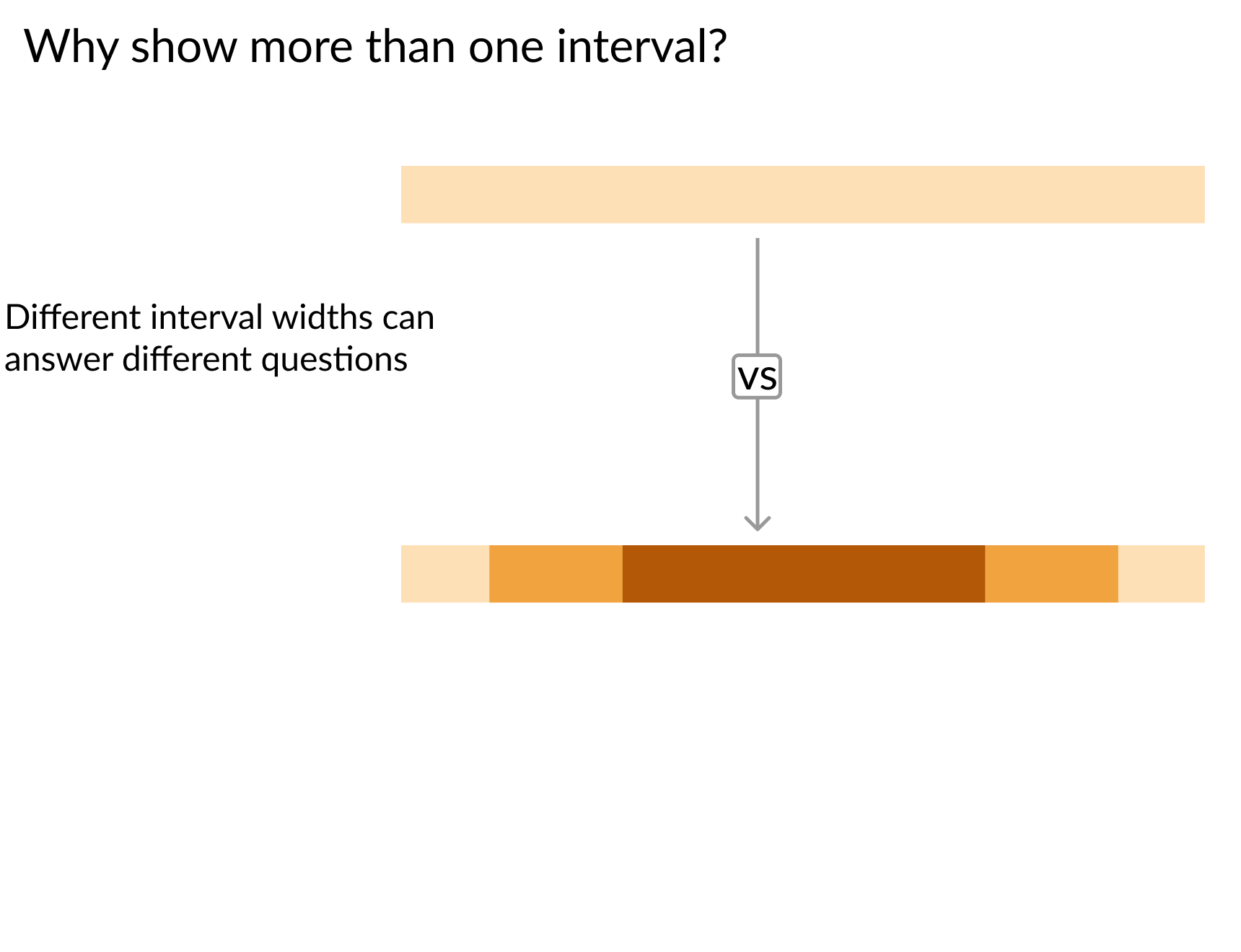

Solid single-level confidence band on top with arrow pointing to three-tiered band beneath

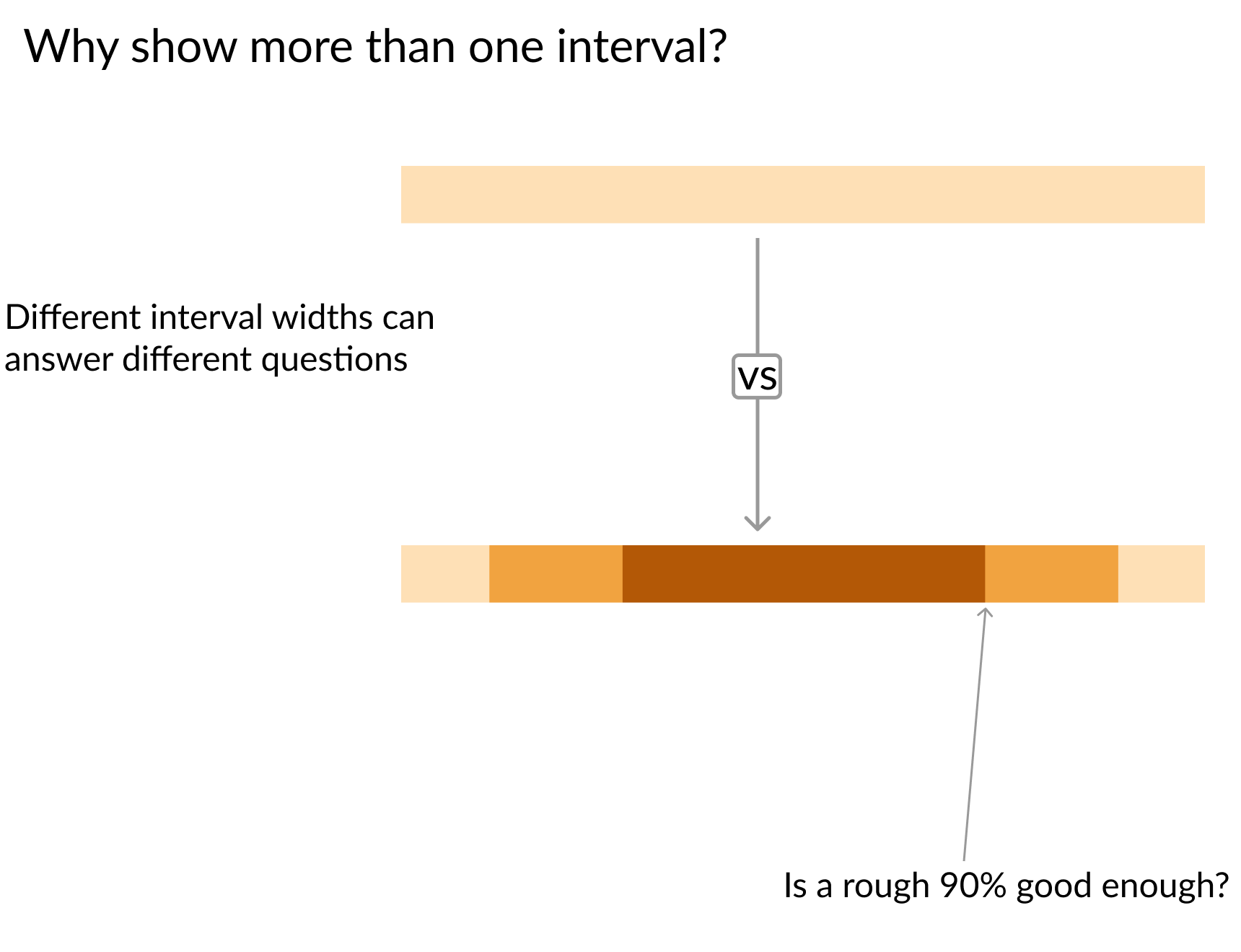

Solid single-level confidence band on top with arrow pointing to three-tiered band beneath and arrow pointing to 90% level of lower band

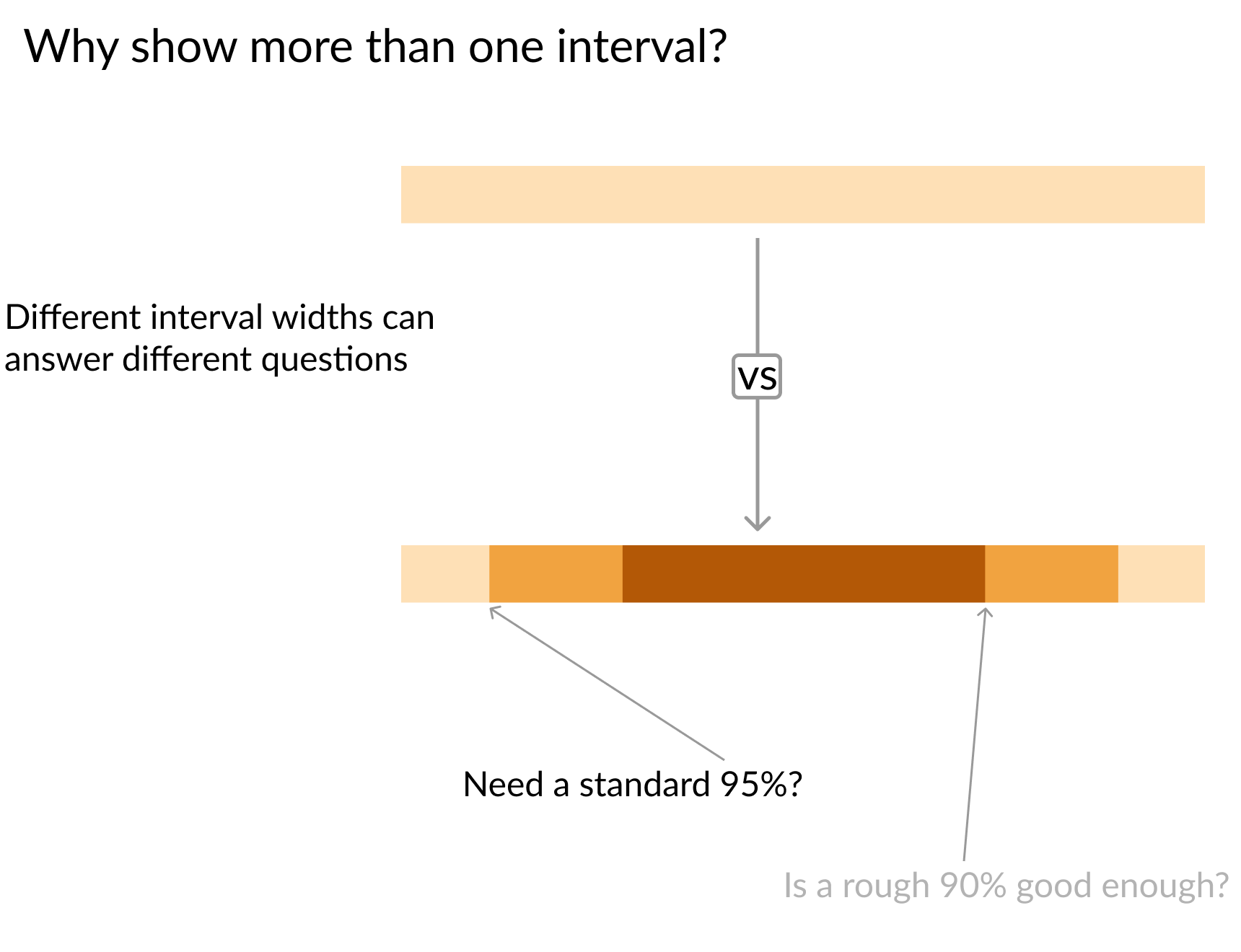

Solid single-level confidence band on top with arrow pointing to three-tiered band beneath and arrow pointing to 95% level of lower band

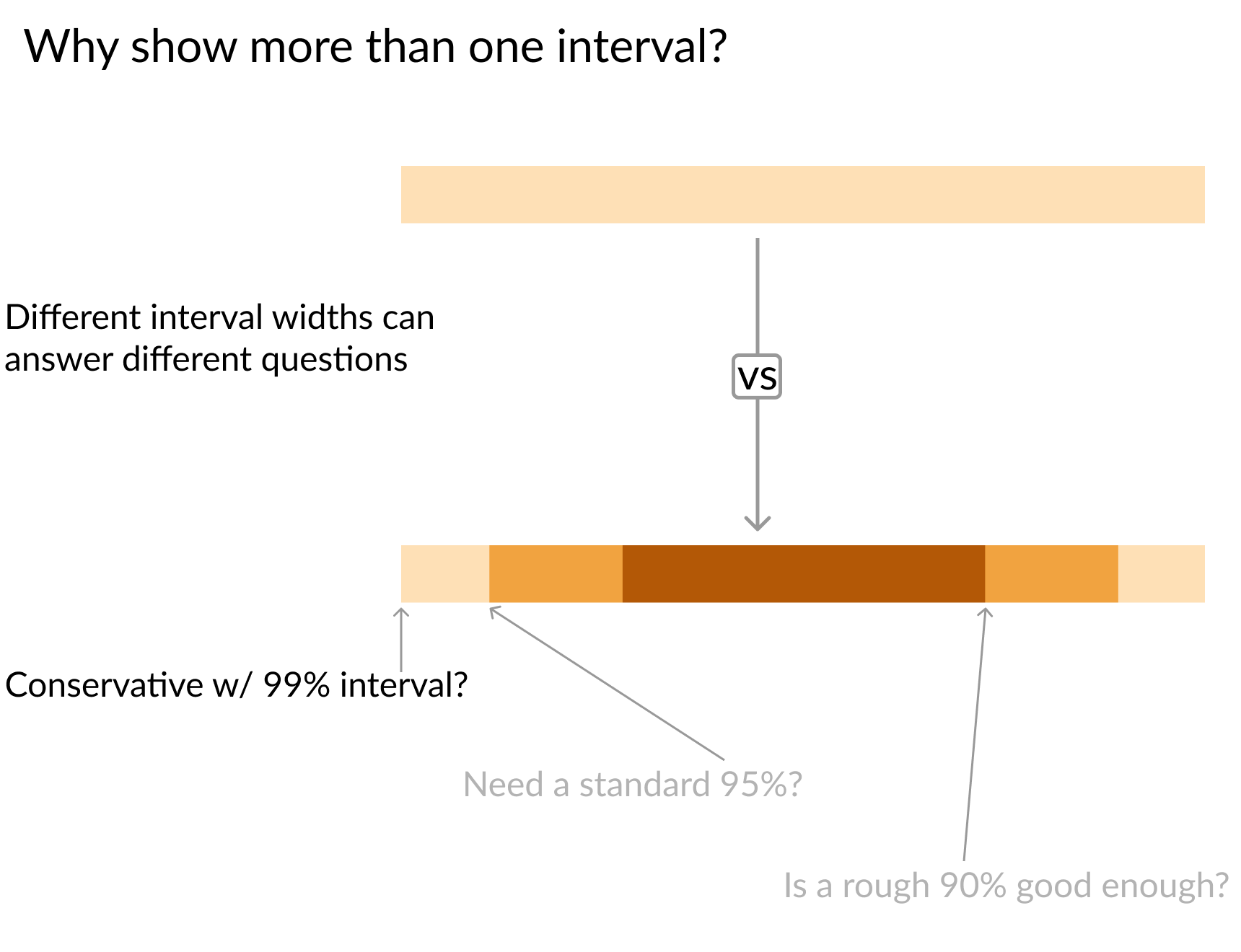

Solid single-level confidence band on top with arrow pointing to three-tiered band beneath and arrow pointing to 99% level of lower band

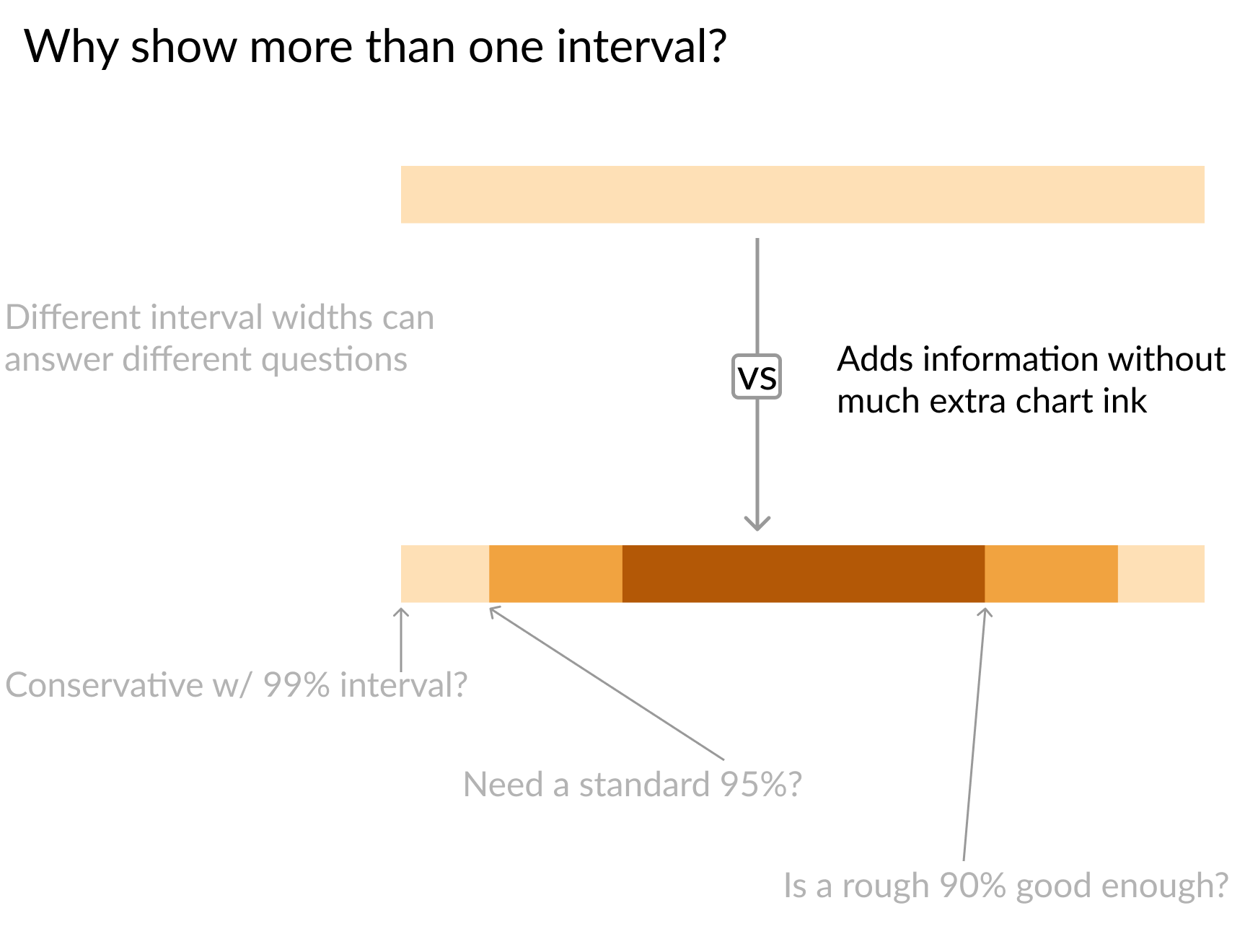

Solid single-level confidence band on top with arrow pointing to three-tiered band beneath

# Interval size setup
sizes    = ['99%', '95%', '90%']
Z_scores = [2.58,   1.96,  1.67]
colors   = ['#fee0b6','#f1a340', '#b35806']



for size, z, color in zip(sizes, Z_scores, colors):

    plt.hlines(y = data.y,
               # Calculate lower and upper boundaries
               xmin = data['est'] - z*data['std_err'],
               xmax = data['est'] + z*data['std_err'],
               # Color by interval size
               color = color,

               # Make line thicker for visibility
               linewidth = 7,

               # Label line so legend text is clear
               label = size)

plt.plot('est', 'y', 'ko', data = data, label = 'Point Estimate')
plt.legend()

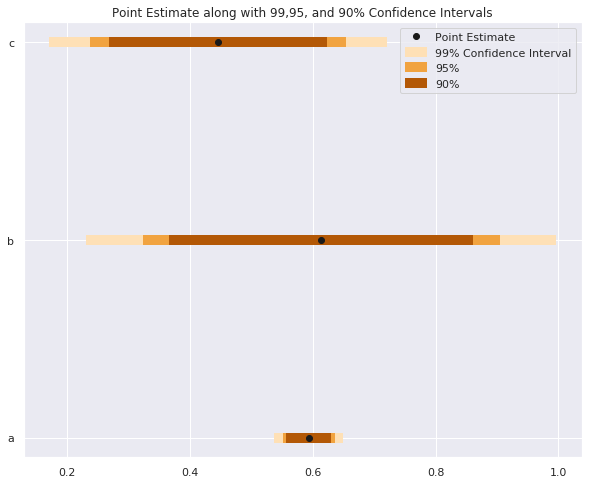

Three horizontal confidence bands with colors indicating the 90, 95, and 99% confidence intervals

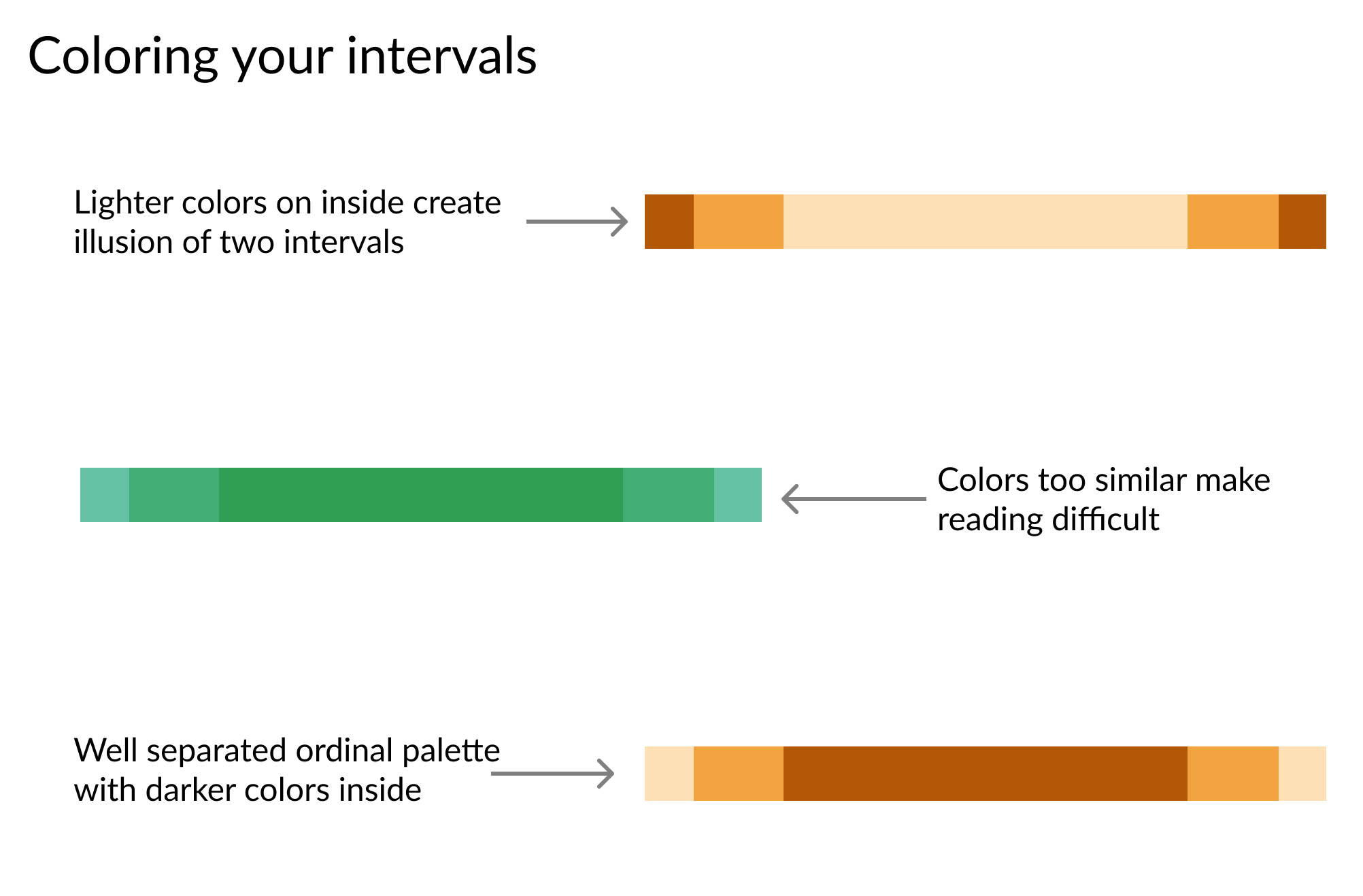

Three confidence intervals with the top using darker colors for outside intervals, the middle one using very similar shades, and the final one using darker colors for inside intervals

widths   = [    '99%',     '90%']
z_scores = [     2.58,      1.67]
colors   = ['#99d8c9', '#41ae76']

for percent, Z, color in zip(widths, z_scores, colors):
    # Set color to distinquish bands
    plt.fill_between(
        x=data.day,
        y1=data['mean'] - Z*data['std_err'],
        y2=data['mean'] + Z*data['std_err']
        color=color,

        # Lower opacity so grid can show through
        alpha=0.5,

        # Give each band id for the legend
        label=percent)

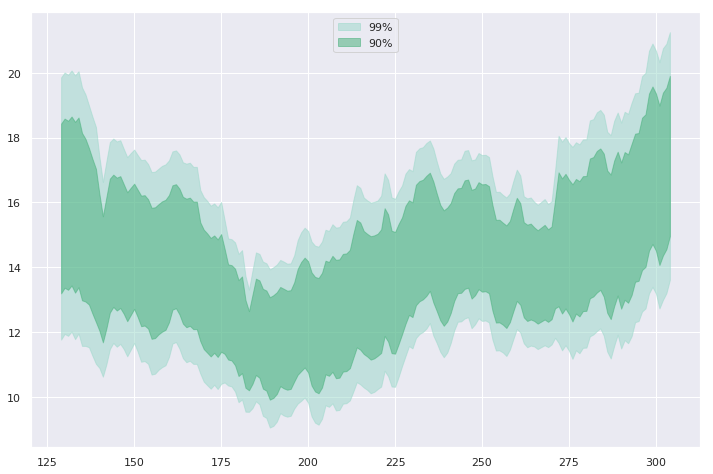

Two confidence bands overlaid with the smaller darker band inlaid within, the larger and lighter band

sizes = ['99% Confidence Interval', '95%', '90%']

# Set up different line widths for intervals
widths   = [   5,     10,    15]
Z_scores = [2.58,   1.96,  1.67]

for size, z, width in zip(sizes, Z_scores, widths):
    plt.hlines(
        y = data.y, label = size,
        xmin = data['est'] - z*data['std_err'],
        xmax = data['est'] + z*data['std_err'],
        color = 'grey'

        # Adjust line thickness by interval
        linewidth = width)

plt.plot('est', 'y', 'wo', data = data, label = 'Point Estimate')
plt.legend()

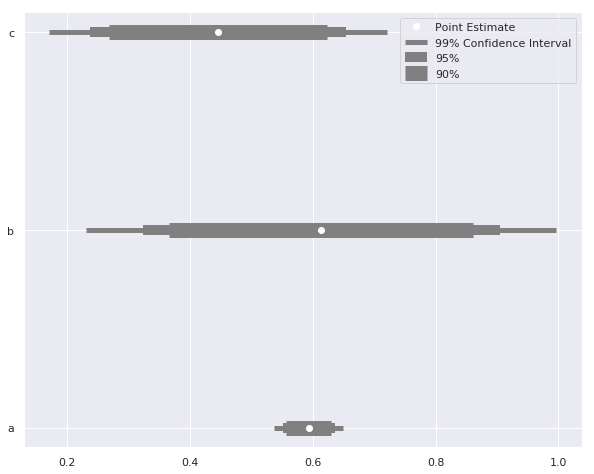

Three three level confidence intervals with the inner intervals occupying the thickest band and decreasing in band thickness as intervals go outward

Let's expand our boundaries!
