Informed Search: Coarse to Fine

Hyperparameter Tuning in Python

Alex Scriven

Data Scientist

Informed vs Uninformed Search

So far everything we have done has been uninformed search:

Uninformed search: Where each iteration of hyperparameter tuning does not learn from the previous iterations.

This is what allows us to parallelize our work. Though this doesn't sound very efficient?

Informed vs Uninformed

The process so far:

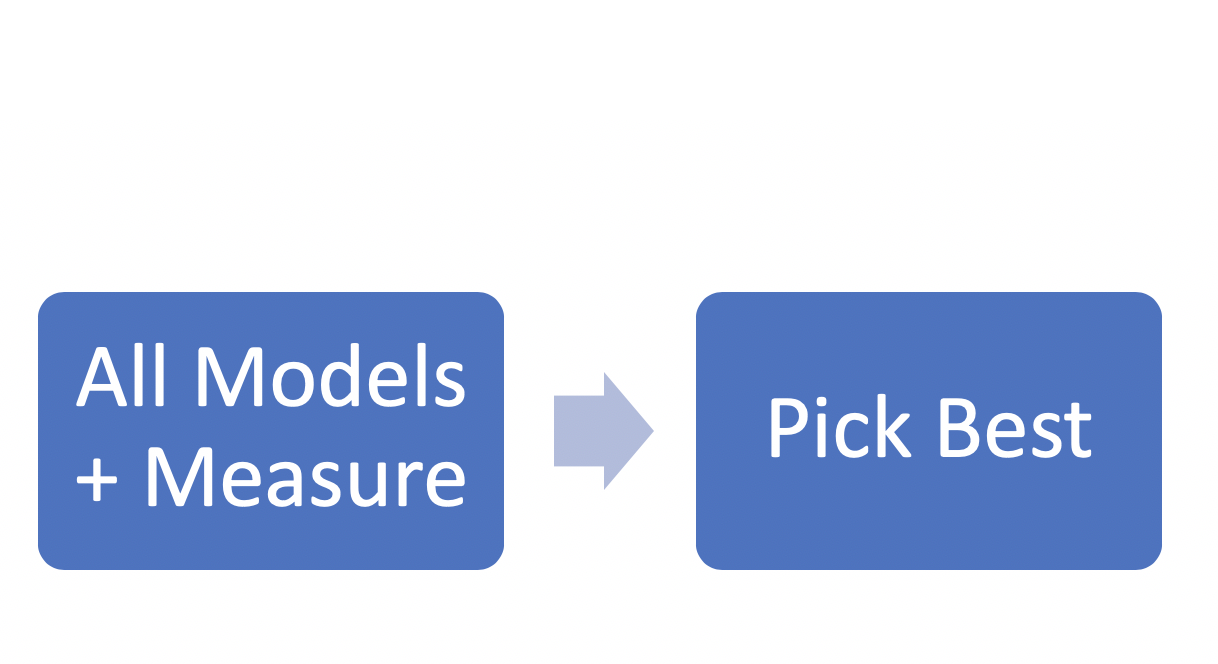

uninformed process map

An alternate way:

informed process map

Coarse to Fine Tuning

A basic informed search methodology:

Start out with a rough, random approach and iteratively refine your search.

The process is:

Random search
Find promising areas
Grid search in the smaller area
Continue until optimal score obtained

You could substitute (3) with further random searches before the grid search

Why Coarse to Fine?

Coarse to fine tuning has some advantages:

Utilizes the advantages of grid and random search.
- Wide search to begin with
- Deeper search once you know where a good spot is likely to be
Better spending of time and computational efforts mean you can iterate quicker

No need to waste time on search spaces that are not giving good results!

Note: This isn't informed on one model but batches

Undertaking Coarse to Fine

Let's take an example with the following hyperparameter ranges:

max_depth_list between 1 and 65
min_sample_list between 3 and 17
learn_rate_list 150 values between 0.01 and 150

How many possible models do we have?

combinations_list = [list(x) for x in product(max_depth_list, min_sample_list, learn_rate_list)]
print(len(combinations_list))
134400

Visualizing Coarse to Fine

Let's do a random search on just 500 combinations.

Here we plot our accuracy scores:

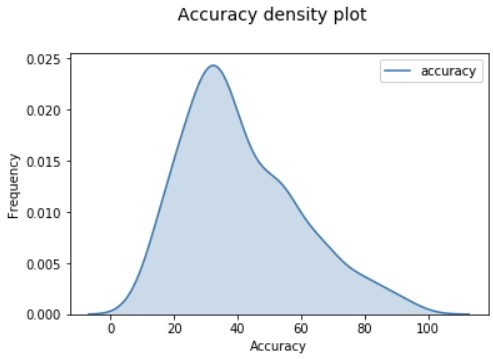

accuracy density plot of models

Which models were the good ones?

Visualizing Coarse to Fine

max_depth	min_samples_leaf	learn_rate	accuracy
10	7	0.01	96
19	7	0.023355705	96
30	6	1.038389262	93
27	7	1.11852349	91
16	7	0.597651007	91

Let's visualize the max_depth values vs accuracy score:

max depth vs accuracy score scatter plot

Visualizing coarse to Fine

min_samples_leaf better below 8

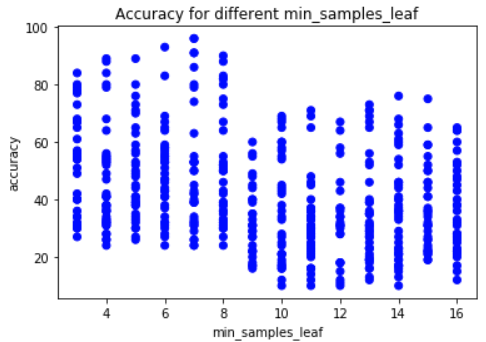

min samples leaf vs accuracy score scatter plot

learn_rate worse above 1.3

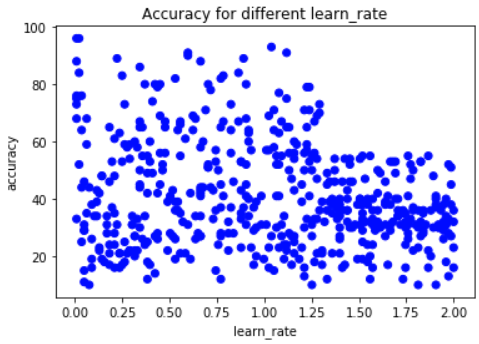

learn rate vs accuracy score scatter plot

The next steps

What we know from iteration one:

max_depth between 8 and 30
learn_rate less than 1.3
min_samples_leaf perhaps less than 8

Where to next? Another random or grid search with what we know!

Note: This was only bivariate analysis. You can explore looking at multiple hyperparameters (3, 4 or more!) on a single graph, but that's beyond the scope of this course.

Let's practice!
