Covariance and the Pearson correlation coefficient

Statistical Thinking in Python (Part 1)

Justin Bois

Teaching Professor at the California Institute of Technology

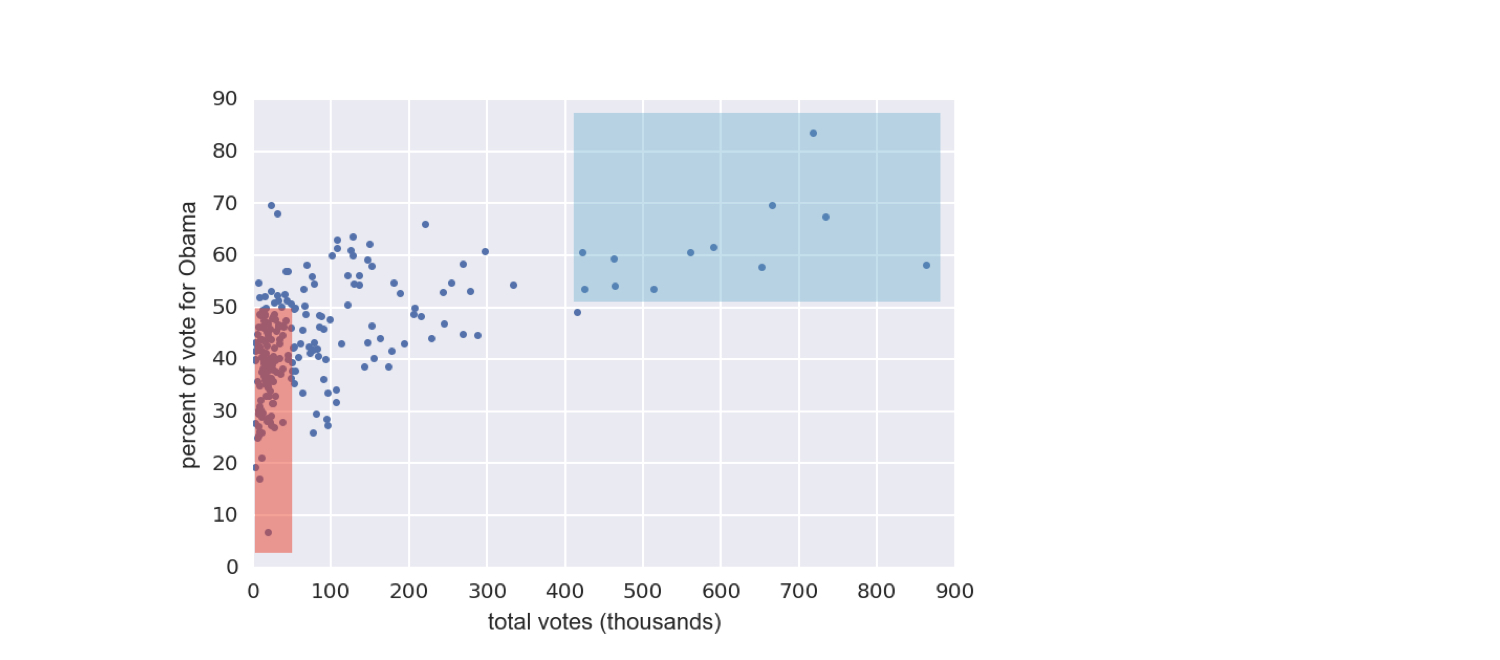

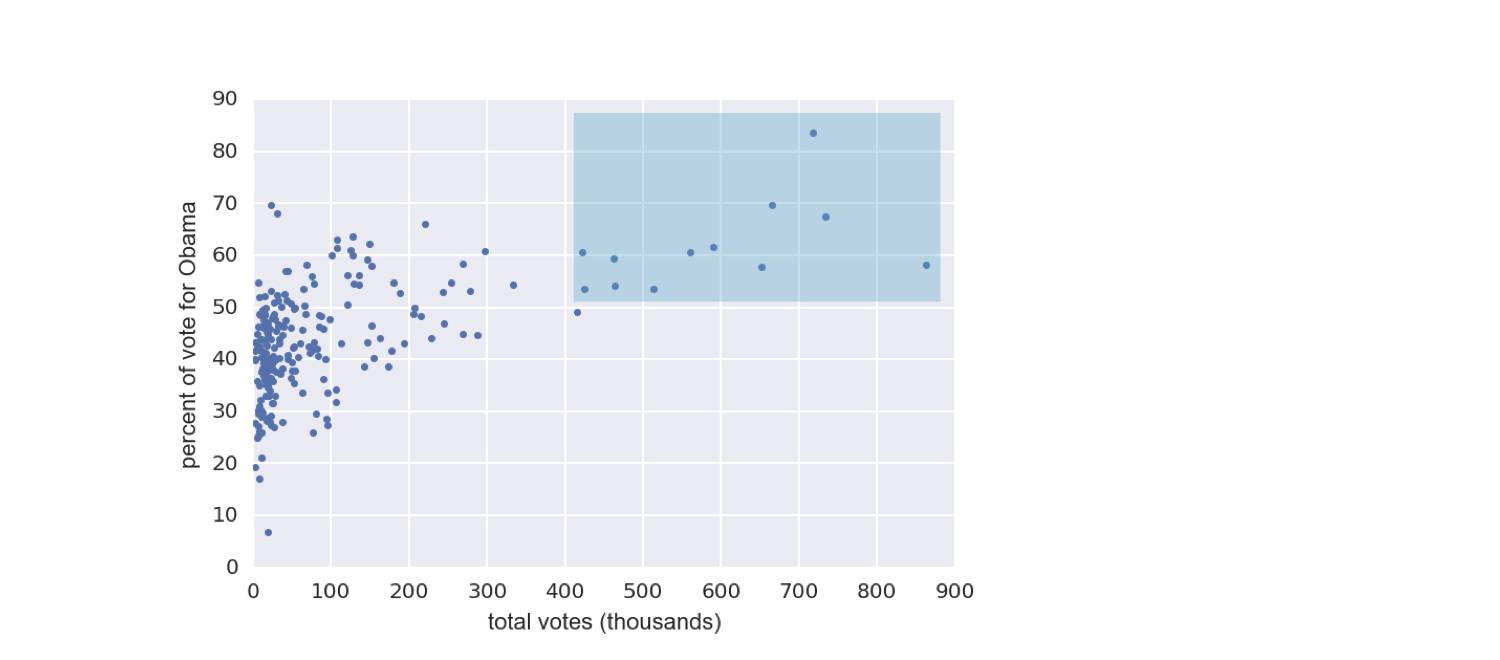

2008 US swing state election results


¹ Data retrieved from Data.gov (https://www.data.gov/)

2008 US swing state election results


¹ Data retrieved from Data.gov (https://www.data.gov/)

2008 US swing state election results


¹ Data retrieved from Data.gov (https://www.data.gov/)

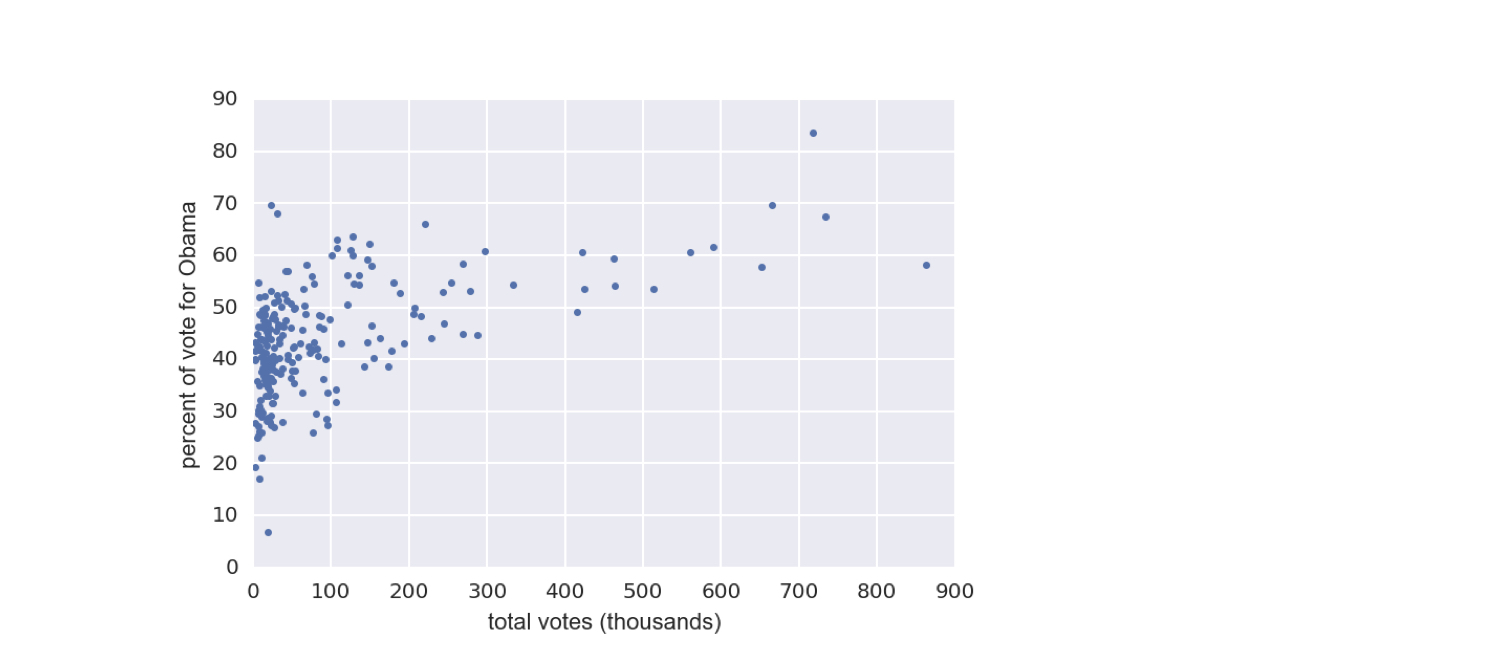

Generating a scatter plot

_ = plt.plot(total_votes/1000, dem_share,
             marker='.', linestyle='none')
_ = plt.xlabel('total votes (thousands)')
_ = plt.ylabel('percent of vote for Obama')

Covariance

A measure of how two quantities vary together

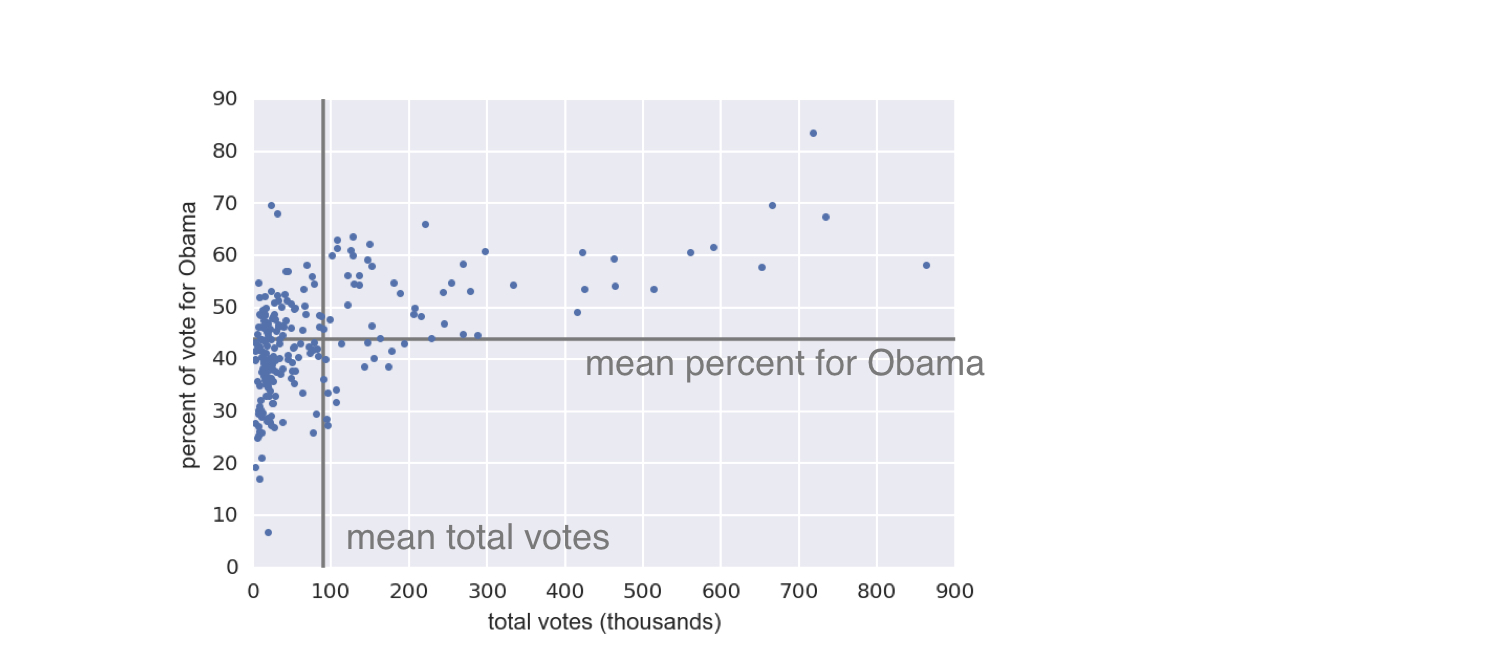

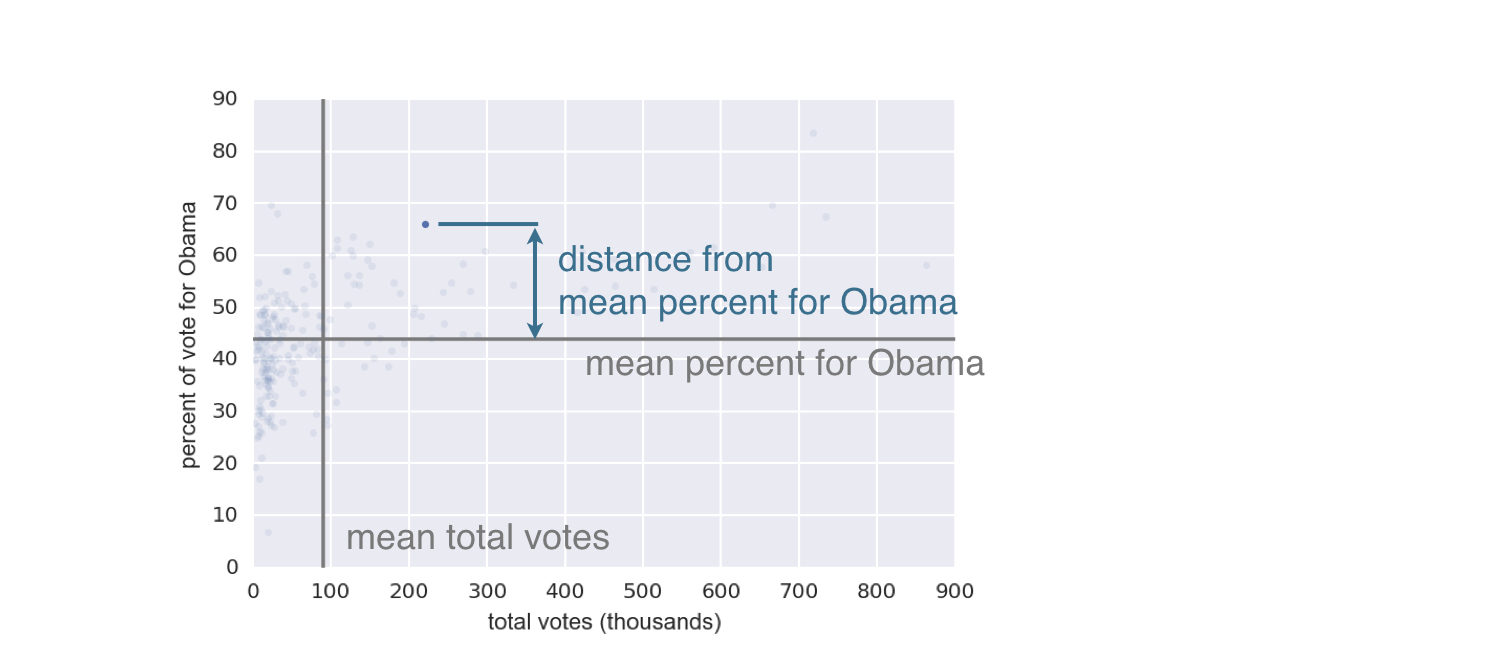

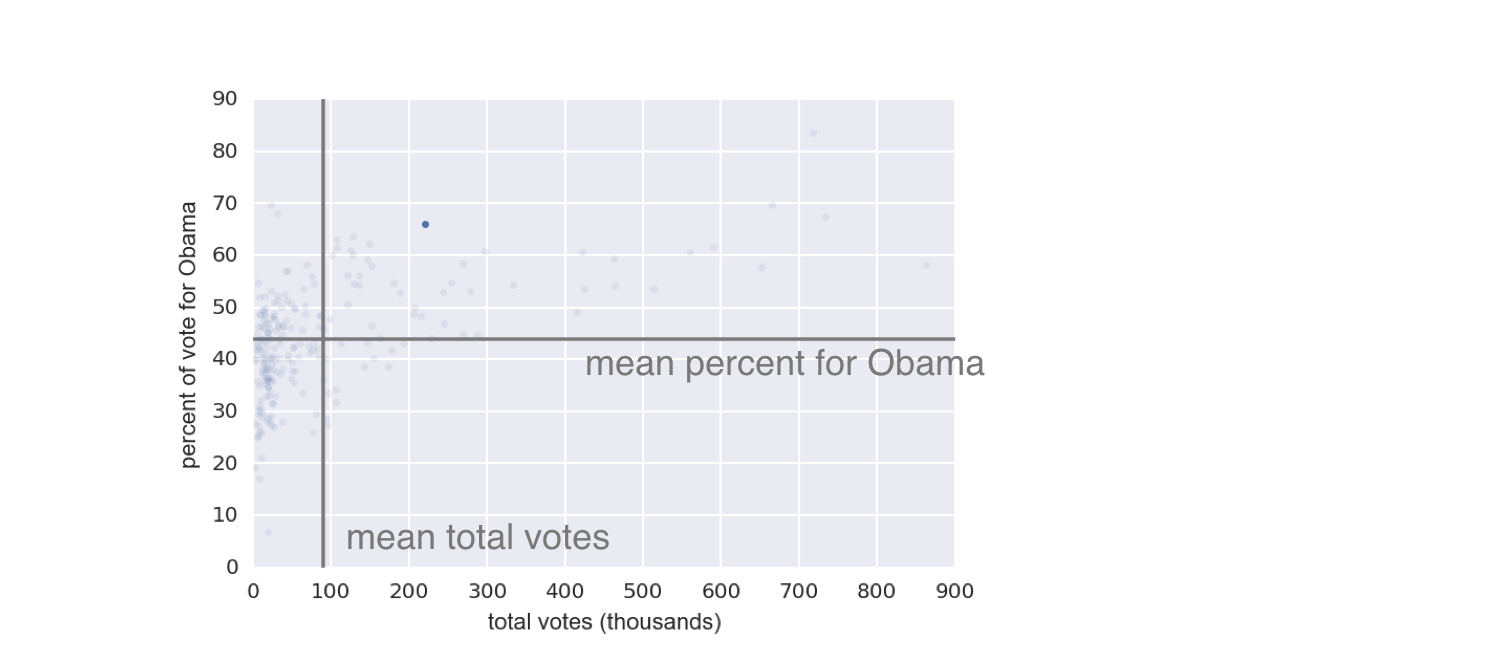

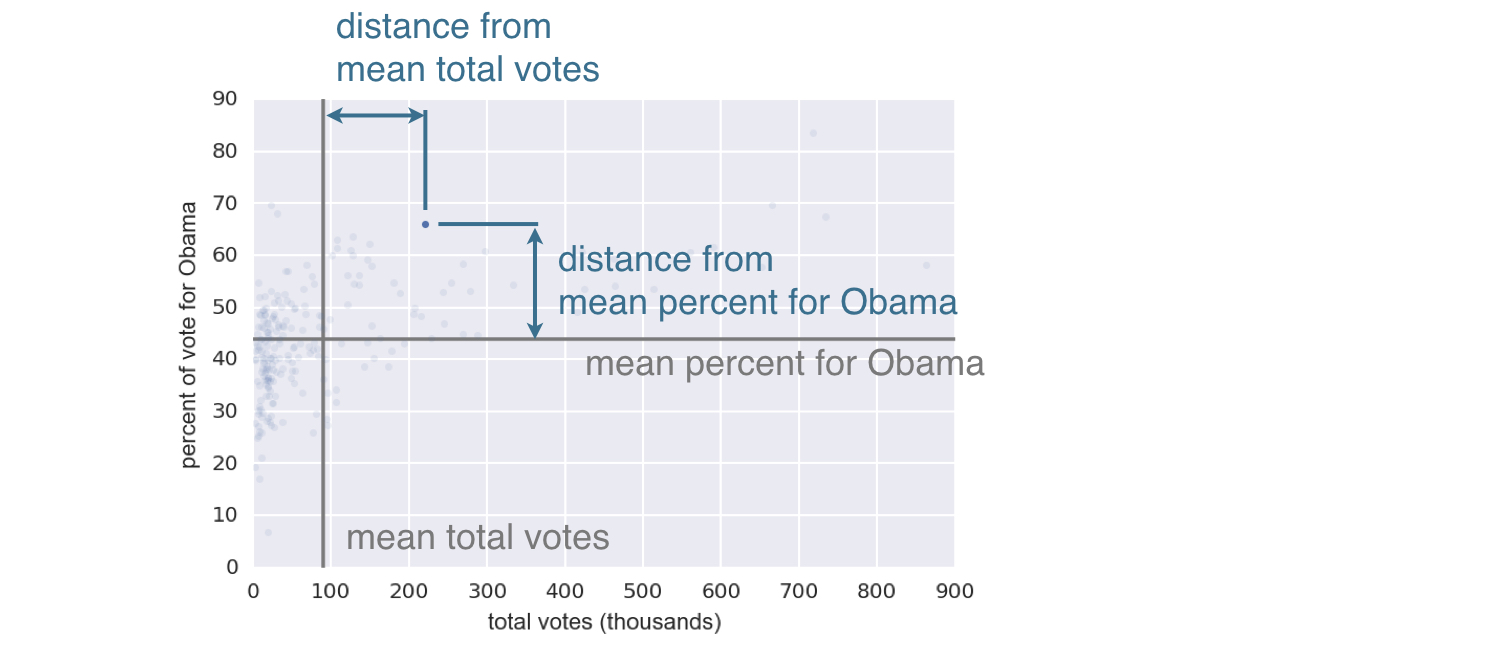

Calculation of the covariance


¹ Data retrieved from Data.gov (https://www.data.gov/)

Calculation of the covariance


¹ Data retrieved from Data.gov (https://www.data.gov/)

Calculation of the covariance


¹ Data retrieved from Data.gov (https://www.data.gov/)

Calculation of the covariance


$$covariance = \frac{1}{n}\sum_{i=1}^{n}(x_i - \bar{x})(y_i - \bar{y})$$

¹ Data retrieved from Data.gov (https://www.data.gov/)

Pearson correlation coefficient

$$\rho = \text{Pearson correlation} = \frac{\text{covariance}}{(\text{std of x}) (\text{std of y})}$$

$$= \frac{\text{variability due to codependence}}{\text{independant variability}}$$

Pearson correlation coefficient examples


Let's practice!
