Loading multiple tables with joins

Streamlined Data Ingestion with pandas

Amany Mahfouz

Instructor

Keys

Database records have unique identifiers, or keys

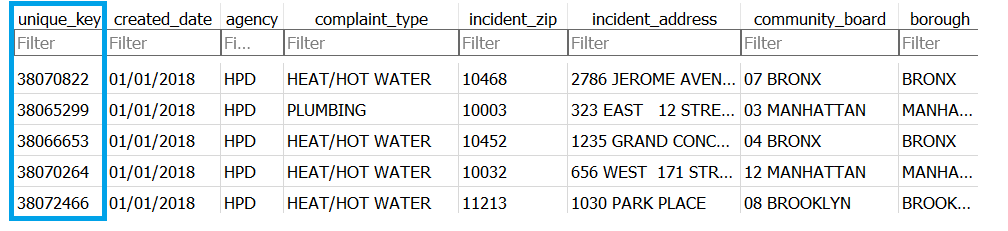

311 call data, with the unique_key column highlighted. Unique keys are numbers.

Keys

Database records have unique identifiers, or keys

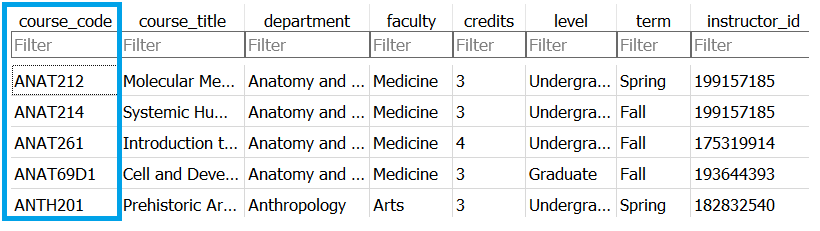

Course catalog data, with the course_code column highlighted. Codes consist of subject abbreviations and numbers.

Keys

Database records have unique identifiers, or keys

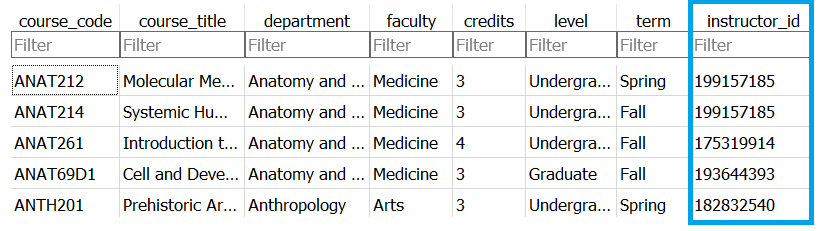

Course catalog data, with instructor_id column highlighted. Values are 9-digit integers.

Keys

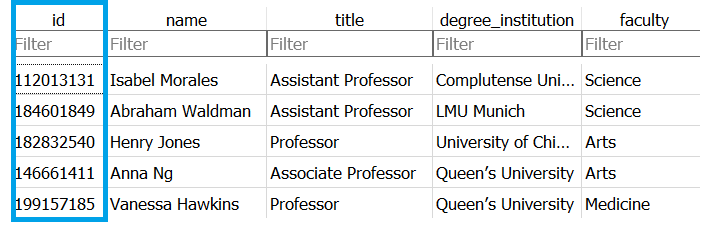

Professor table, with id column highlighted. Values are 9-digit integers like in the course catalog instructor_ids.

Keys

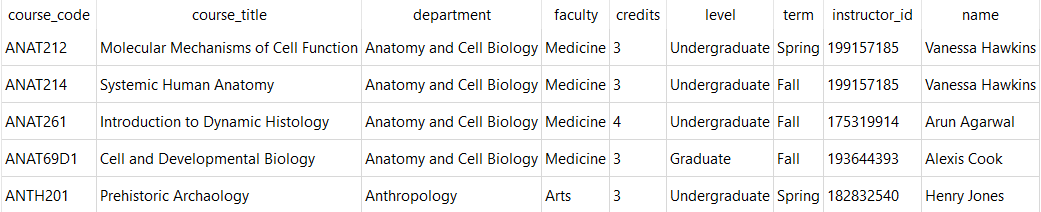

Course catalog data with professors' names column joined in

Joining Tables

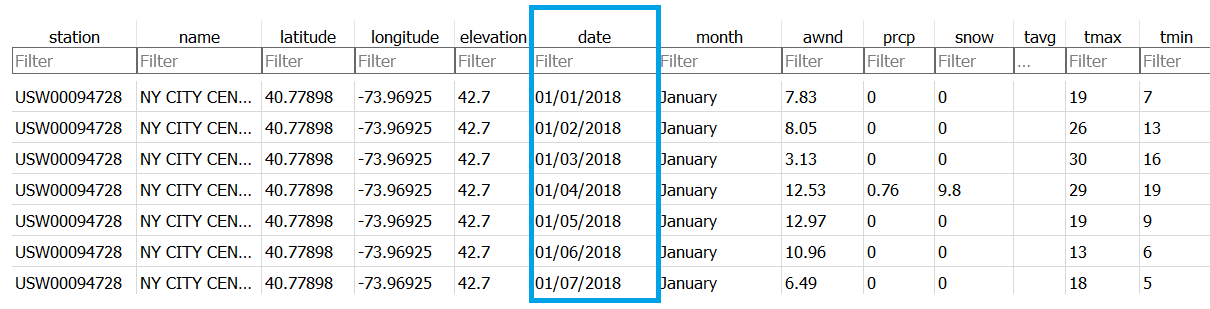

Weather data, with the date column highlighted

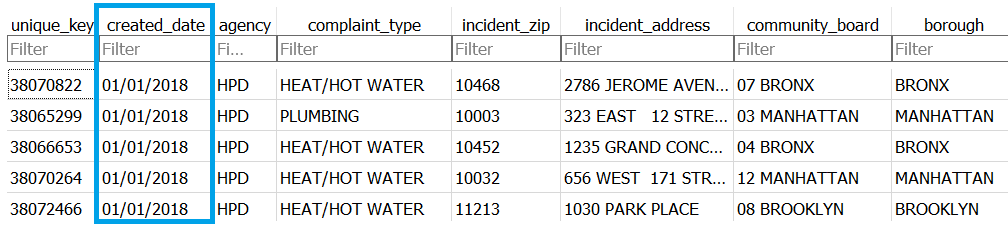

311 call data, with the created_date column highlighted

Joining Tables

SELECT *
  FROM hpd311calls

Joining Tables

SELECT *
  FROM hpd311calls
       JOIN weather
       ON hpd311calls.created_date = weather.date;

Use dot notation (table.column) when working with multiple tables
Default join only returns records whose key values appear in both tables
Make sure join keys are the same data type or nothing will match

Joining and Filtering

/* Get only heat/hot water calls and join in weather data */
SELECT *
  FROM hpd311calls
       JOIN weather
       ON hpd311calls.created_date = weather.date
 WHERE hpd311calls.complaint_type = 'HEAT/HOT WATER';

Joining and Aggregating

/* Get call counts by borough */
SELECT hpd311calls.borough,
         COUNT(*)
  FROM hpd311calls
 GROUP BY hpd311calls.borough;

Joining and Aggregating

/* Get call counts by borough
   and join in population and housing counts */
SELECT hpd311calls.borough,
       COUNT(*),
       boro_census.total_population,
       boro_census.housing_units
  FROM hpd311calls
 GROUP BY hpd311calls.borough

Joining and Aggregating

/* Get call counts by borough
   and join in population and housing counts */
SELECT hpd311calls.borough,
       COUNT(*),
       boro_census.total_population,
       boro_census.housing_units
  FROM hpd311calls
       JOIN boro_census
       ON hpd311calls.borough = boro_census.borough
 GROUP BY hpd311calls.borough;

query = """SELECT hpd311calls.borough,
                    COUNT(*),
                    boro_census.total_population,
                    boro_census.housing_units
             FROM hpd311calls
                  JOIN boro_census
                  ON hpd311calls.borough = boro_census.borough
            GROUP BY hpd311calls.borough;"""

call_counts = pd.read_sql(query, engine)
print(call_counts)

         borough  COUNT(*)  total_population  housing_units
0          BRONX     29874           1455846         524488
1       BROOKLYN     31722           2635121        1028383
2      MANHATTAN     20196           1653877         872645
3         QUEENS     11384           2339280         850422
4  STATEN ISLAND      1322            475948         179179

Review

SQL order of keywords
- SELECT
- FROM
- JOIN
- WHERE
- GROUP BY

Let's practice!
