Evaluation of different imputation techniques

Dealing with Missing Data in Python

Suraj Donthi

Deep Learning & Computer Vision Consultant

Evaluation techniques

  • Imputations are used to improve model performance.
  • Imputation with maximum machine learning model performance is selected.
  • Density plots explain the distribution in the data.
  • A very good metric to check bias in the imputations.

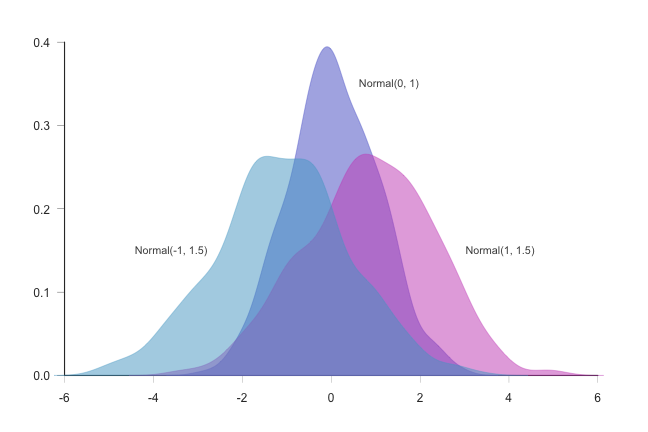

Density Plot

Dealing with Missing Data in Python

Fit a linear model for statistical summary

import statsmodels.api as sm

diabetes_cc = diabetes.dropna(how='any') X = sm.add_constant(diabetes_cc.iloc[:, :-1]) y = diabetes_cc['Class'] lm = sm.OLS(y, X).fit()
Dealing with Missing Data in Python
print(lm.summary())
Summary:                              OLS Regression Results
==============================================================================
Dep. Variable:                  Class   R-squared:                       0.346
Model:                            OLS   Adj. R-squared:                  0.332
Method:                 Least Squares   F-statistic:                     25.30
Date:                Wed, 10 Jul 2019   Prob (F-statistic):           2.65e-31
Time:                        15:03:19   Log-Likelihood:                -177.76
No. Observations:                 392   AIC:                             373.5
Df Residuals:                     383   BIC:                             409.3
Df Model:                           8
Covariance Type:            nonrobust
=====================================================================================
                        coef    std err          t      P>|t|      [0.025      0.975]
<hr />----------------------------------------------------------------------------------
const                -1.1027      0.144     -7.681      0.000      -1.385      -0.820
Pregnant              0.0130      0.008      1.549      0.122      -0.003       0.029
Glucose               0.0064      0.001      7.855      0.000       0.005       0.008
Diastolic_BP       5.465e-05      0.002      0.032      0.975      -0.003       0.003
Skin_Fold             0.0017      0.003      0.665      0.506      -0.003       0.007
Serum_Insulin        -0.0001      0.000     -0.603      0.547      -0.001       0.000
BMI                   0.0093      0.004      2.391      0.017       0.002       0.017
Diabetes_Pedigree     0.1572      0.058      2.708      0.007       0.043       0.271
Age                   0.0059      0.003      2.109      0.036       0.000       0.011
Dealing with Missing Data in Python

R-squared and Coefficients

lm.rsquared_adj
0.33210
lm.params
const               -1.102677
Pregnant             0.012953
Glucose              0.006409
Diastolic_BP         0.000055
Skin_Fold            0.001678
Serum_Insulin       -0.000123
BMI                  0.009325
Diabetes_Pedigree    0.157192
Age                  0.005878
dtype: float64
Dealing with Missing Data in Python

Fit linear model on different imputed DataFrames

# Mean Imputation
X = sm.add_constant(diabetes_mean_imputed.iloc[:, :-1])
y = diabetes['Class']
lm_mean = sm.OLS(y, X).fit()

# KNN Imputation X = sm.add_constant(diabetes_knn_imputed.iloc[:, :-1]) lm_KNN = sm.OLS(y, X).fit()
# MICE Imputation X = sm.add_constant(diabetes_mice_imputed.iloc[:, :-1]) lm_MICE = sm.OLS(y, X).fit()
Dealing with Missing Data in Python

Comparing R-squared of different imputations

print(pd.DataFrame({'Complete': lm.rsquared_adj,
                          'Mean Imp.': lm_mean.rsquared_adj,
                          'KNN Imp.': lm_KNN.rsquared_adj,
                          'MICE Imp.': lm_MICE.rsquared_adj},
                         index=['R_squared_adj']))
                        Complete   Mean Imp.    KNN Imp.   MICE Imp.
R_squared_adj           0.332108    0.313781    0.316543    0.317679

Note: The metrics used here is for linear correlations only. You must use the metrics that are reflective of the data.

Dealing with Missing Data in Python

Comparing coefficients of different imputations

print(pd.DataFrame({'Complete': lm.params,
                          'Mean Imp.': lm_mean.params,
                          'KNN Imp.': lm_KNN.params,
                          'MICE Imp.': lm_MICE.params}))
                        Complete   Mean Imp.    KNN Imp.   MICE Imp.
const                  -1.102677   -1.024005   -1.028035   -1.050023
Pregnant                0.012953    0.020693    0.020047    0.020295
Glucose                 0.006409    0.006467    0.006614    0.006871
Diastolic_BP            0.000055   -0.001137   -0.001196   -0.001317
Skin_Fold               0.001678    0.000193    0.001626    0.000807
Serum_Insulin          -0.000123   -0.000090   -0.000147   -0.000227
BMI                     0.009325    0.014376    0.013239    0.014203
Diabetes_Pedigree       0.157192    0.129282    0.128038    0.129056
Age                     0.005878    0.002092    0.002046    0.002097
Dealing with Missing Data in Python

Comparing density plots

diabetes_cc['Skin_Fold'].plot(kind='kde', c='red', linewidth=3)
diabetes_mean_imputed['Skin_Fold'].plot(kind='kde')
diabetes_knn_imputed['Skin_Fold'].plot(kind='kde')
diabetes_mice_imputed['Skin_Fold'].plot(kind='kde')

labels = ['Baseline (Complete Case)', 'Mean Imputation', 'KNN Imputation',
          'MICE Imputation']
plt.legend(labels)
plt.xlabel('Skin Fold')
Dealing with Missing Data in Python

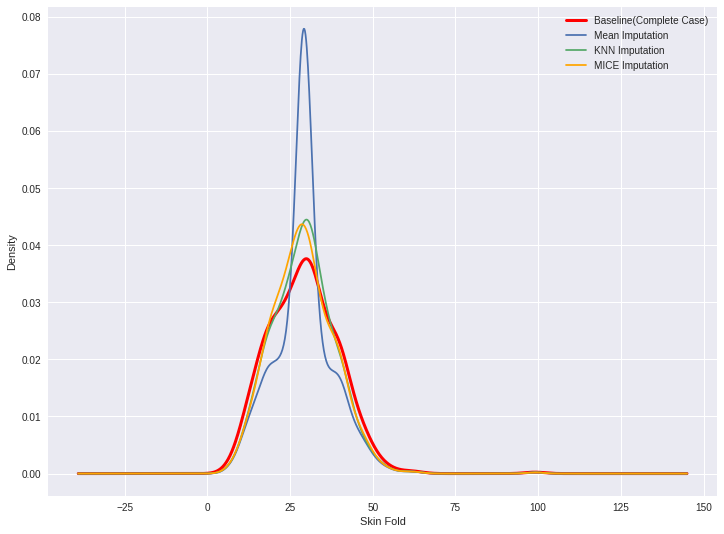

Comparing density plots

Density plots of different imputed datasets

Dealing with Missing Data in Python

Summary

  • Applying linear model from the statsmodels package
  • Comparing the coefficients and standard errors
  • Comparing density plots
Dealing with Missing Data in Python

Let's practice!
