Visualizing missingness across a variable

Dealing with Missing Data in Python

Suraj Donthi

Deep Learning & Computer Vision Consultant

Missingness across a variable

Visualize how missingness of a variable changes against another variable

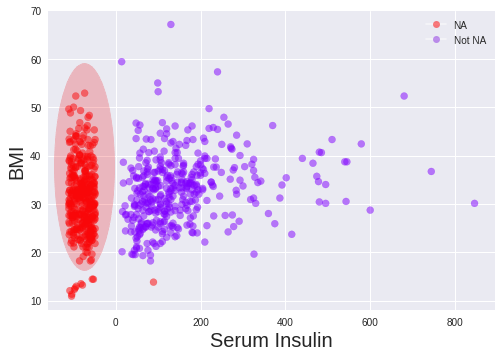

Missingness Scatter Plot of BMI vs Serum Insulin

Missingness across a variable

Visualize how missingness of a variable changes against another variable

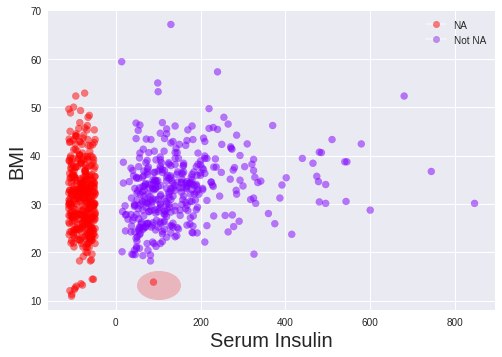

Missingness Scatter Plot of BMI vs Serum Insulin

Missingness across a variable

Visualize how missingness of a variable changes against another variable

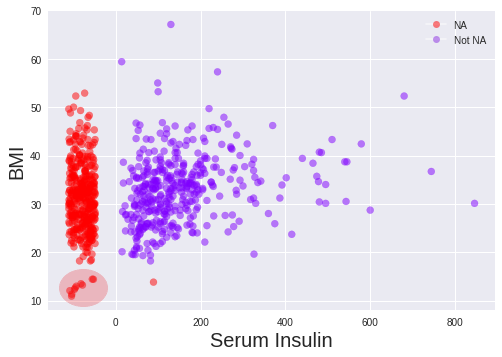

Missingness Scatter Plot of BMI vs Serum Insulin

Missingness across a variable

Visualize how missingness of a variable changes against another variable

Missingness Scatter Plot of BMI vs Serum Insulin

Missingness across a variable

Visualize how missingness of a variable changes against another variable

Missingness Scatter Plot of BMI vs Serum Insulin

Filling dummy Values

from numpy.random import rand


BMI_null = diabetes['BMI'].isnull()
num_nulls = BMI_null.sum()


# Generate random values
dummy_values = rand(num_nulls)

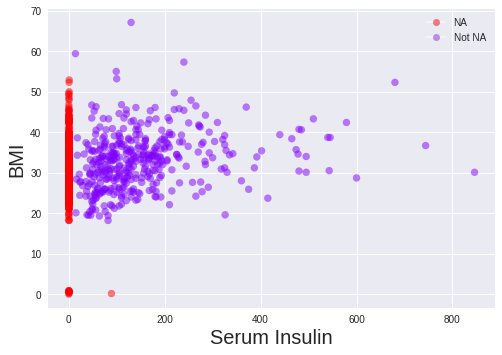

Missingness Scatter Plot of BMI vs Serum Insulin

Filling dummy Values

from numpy.random import rand

BMI_null = diabetes['BMI'].isnull()
num_nulls = BMI_null.sum()

# Generate random values
dummy_values = rand(num_nulls)
# Shift to -2 & -1
dummy_values = dummy_values - 2

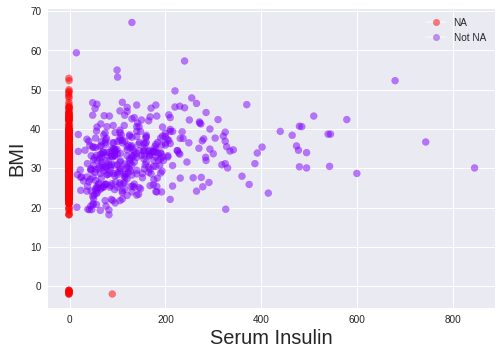

Missingness Scatter Plot of BMI vs Serum Insulin

Filling dummy Values

from numpy.random import rand

BMI_null = diabetes['BMI'].isnull()
num_nulls = BMI_null.sum()

# Generate random values
dummy_values = rand(num_nulls)
# Shift to -2 & -1
dummy_values = dummy_values - 2
# Scale to 0.075 of Column Range
BMI_range = BMI.max() - BMI.min()
dummy_values = dummy_values * 0.075 * BMI_range

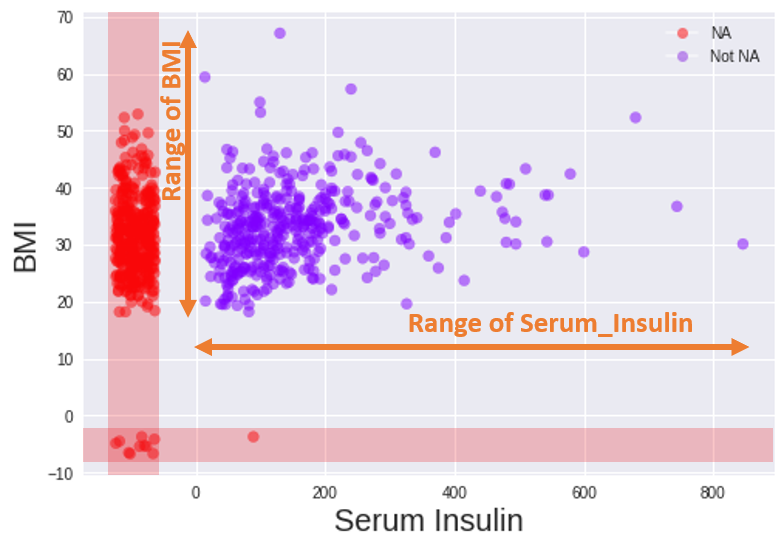

Missingness Scatter Plot of BMI vs Serum Insulin

Filling dummy Values

from numpy.random import rand

BMI_null = diabetes['BMI'].isnull()
num_nulls = BMI_null.sum()

# Generate random values
dummy_values = rand(num_nulls)
# Shift to -2 & -1
dummy_values = dummy_values - 2
# Scale to 0.075 of Column Range
BMI_range = BMI.max() - BMI.min()
dummy_values = dummy_values * 0.075 * BMI_range
# Shift to Column Minimum
dummy_values = (rand(num_nulls) - 2)
        * 0.075 * BMI_range + BMI.min()

Missingness Scatter Plot of BMI vs Serum Insulin

from numpy.random import rand

def fill_dummy_values(df, scaling_factor):
  # Create copy of dataframe
  df_dummy = df.copy(deep=True)
  # Iterate over each column
  for col in df_dummy:

    # Get column, column missing values and range
    col = df_dummy[col]
    col_null = col.isnull()
    num_nulls = col_null.sum()
    col_range = col.max() - col.min()

    # Shift and scale dummy values
    dummy_values = (rand(num_nulls) - 2)
    dummy_values = dummy_values * scaling_factor * col_range + col.min()

    # Return dummy values
    col[col_null] = dummy_values
  return df_dummy

# Create dummy dataframe
diabetes_dummy = fill_dummy_values(diabetes)

# Get missing values of both columns for coloring
nullity=diabetes.Serum_Insulin.isnull() | diabetes.BMI.isnull()
# Generate scatter plot
diabetes_dummy.plot(x='Serum_Insulin', y='BMI', kind='scatter', alpha=0.5,

                      c=nullity, cmap='rainbow')

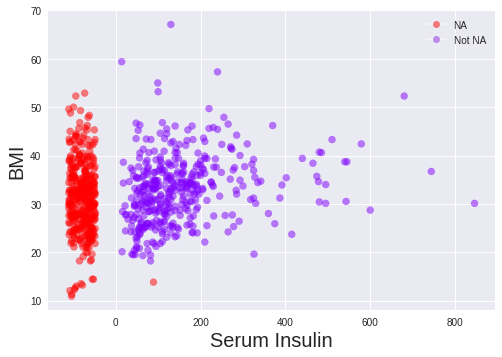

Missingness Scatter Plot of BMI vs Serum Insulin

Note: Sum (+) is equivalent to logical OR (|) for boolean values.

Let's practice!
