Case Study: Building a notification system

Introduction to AWS Boto in Python

Maksim Pecherskiy

Data Engineer

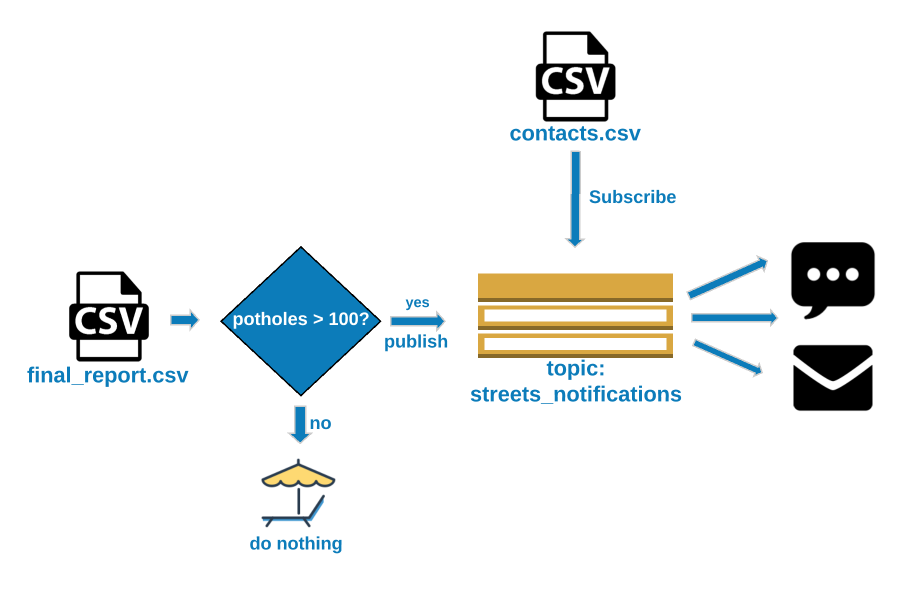

Final product

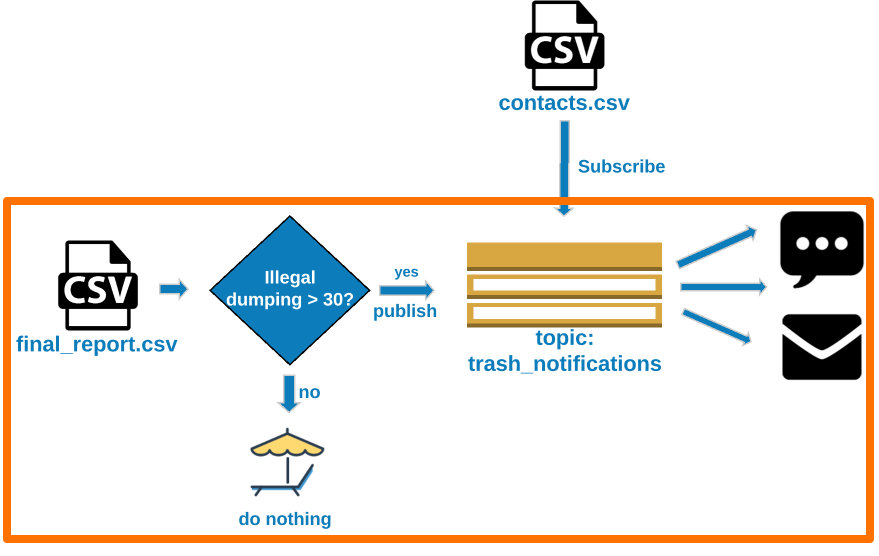

Building the notification system

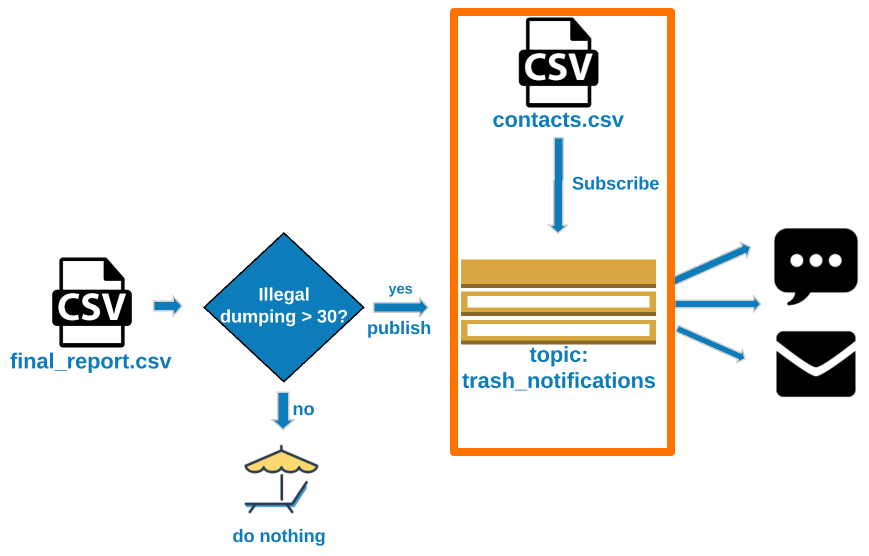

Topic Set Up

Create the topic
Download the contact list csv
Create topics for each service
Subscribe the contacts to their respective topics

Building the notification system

Get the aggregated numbers

Download the monthly get it done report
Get the count of Potholes
Get the count of Illegal dumping notifications

Send Alerts

If potholes exceeds 100, send alert
If illegal dumping exceeds 30, send alert

Topic set up

Initialize SNS client

sns = boto3.client('sns',
                   region_name='us-east-1',
                   aws_access_key_id=AWS_KEY_ID,
                   aws_secret_access_key=AWS_SECRET)

Create topics and store their ARNs

trash_arn = sns.create_topic(Name="trash_notifications")['TopicArn']
streets_arn = sns.create_topic(Name="streets_notifications")['TopicArn']

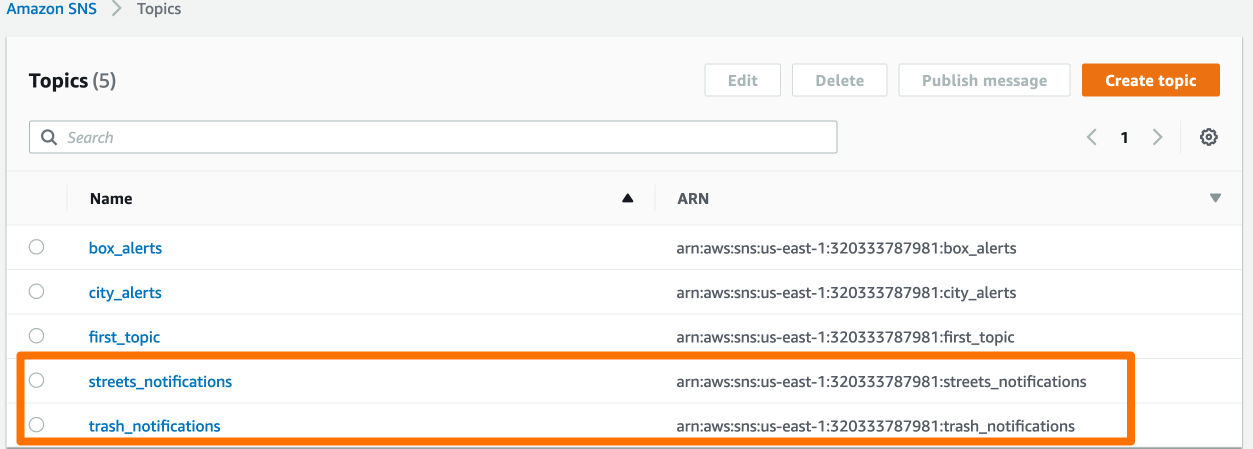

Topic set up

Subscribing users to topics

contacts = pd.read_csv('http://gid-staging.contacts.csv')

Subscribing users to topics

contacts.csv

?Name	Email	Phone	Department
John Smith	[email protected]	+11224567890	trash
Fanny Mae	[email protected]	+11234597890	trash
Janessa Goldsmith	[email protected]	+11534567890	streets
Evelyn Monroe	[email protected]	+11234067890	streets
Max Pe	[email protected]	+11234517890	streets

Subscribing users to topics

Create subscribe_user method

def subscribe_user(user_row):

    if user_row['Department'] == 'trash':
        sns.subscribe(TopicArn = trash_arn, Protocol='sms', Endpoint=str(user_row['Phone']))
        sns.subscribe(TopicArn = trash_arn, Protocol='email', Endpoint=user_row['Email'])

    else:
        sns.subscribe(TopicArn = streets_arn, Protocol='sms', Endpoint=str(user_row['Phone']))
        sns.subscribe(TopicArn = streets_arn, Protocol='email', Endpoint=user_row['Email'])

Apply the subscribe_user method to every row

contacts.apply(subscribe_user, axis=1)

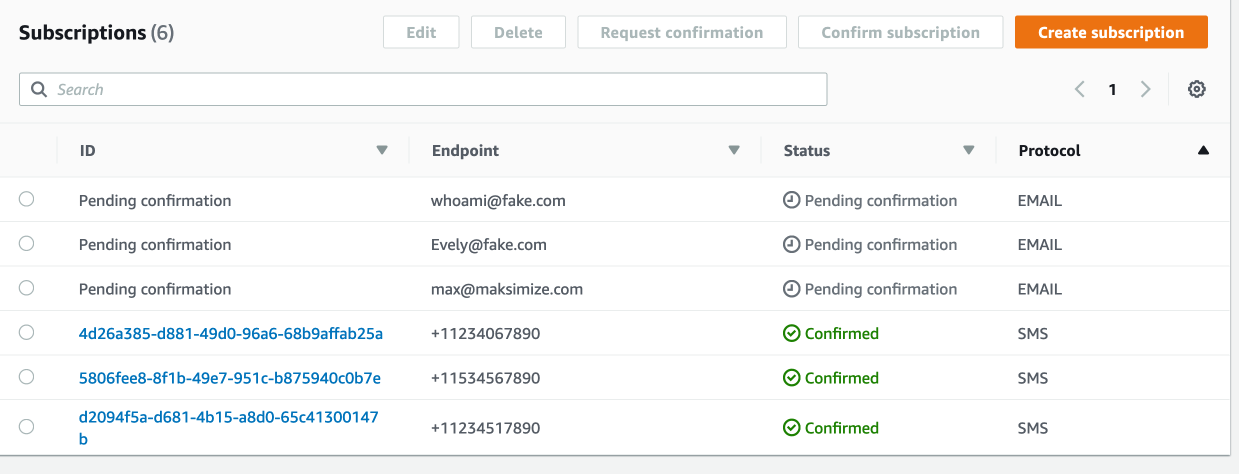

Subscribing users to topics

Subscribing users to topic

Get the aggregated numbers

Load January's report into a DataFrame

df = pd.read_csv('http://gid-reports.2019/feb/final_report.csv')

Get the aggregated numbers

service_name	count
Illegal Dumping	2580
Potential Missed Collection	150
Pothole	1170
Traffic Sign - Maintain	210
Traffic Signal Head Turned	60
Traffic Signal Light Out	120

Get the aggregated numbers

Set the index so we can access counts by service name directly

df.set_index('service_name', inplace=True)

Get the aggregated numbers

trash_violations_count = df.at['Illegal Dumping', 'count']
streets_violations_count = df.at['Pothole', 'count']

Send Alerts

if trash_violations_count > 100:

  # Construct the message to send
    message = "Trash violations count is now {}".format(trash_violations_count)

    # Send message
    sns.publish(TopicArn = trash_arn,
                Message = message,
                Subject = "Trash Alert")

Send alerts

if streets_violations_count > 30:

    # Construct the message to send
    message = "Streets violations count is now {}".format(streets_violations_count)

    # Send message
    sns.publish(TopicArn = streets_arn,
                Message = message,
                Subject = "Streets Alert")

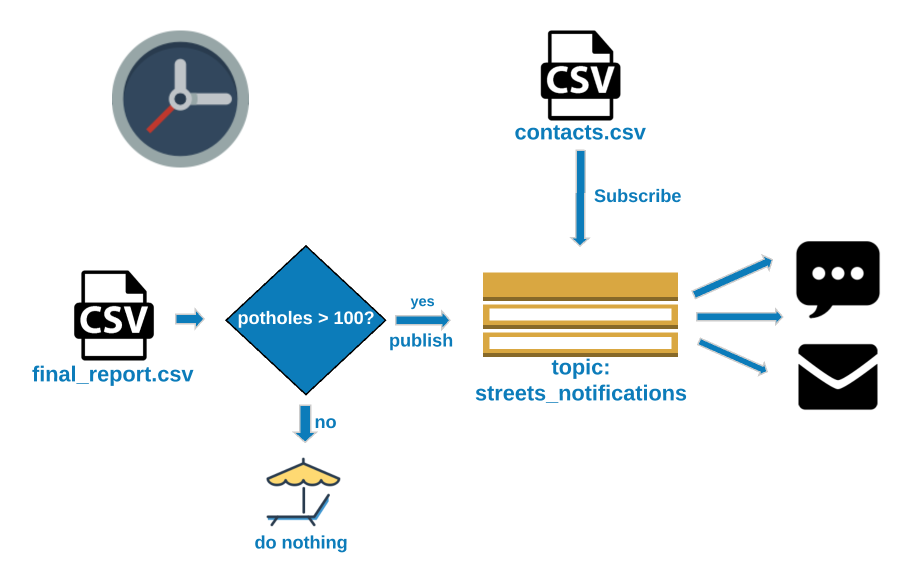

Final Result

Let's practice!

Introduction to AWS Boto in Python
