Defining the decoder

Machine Translation with Keras

Thushan Ganegedara

Data Scientist and Author

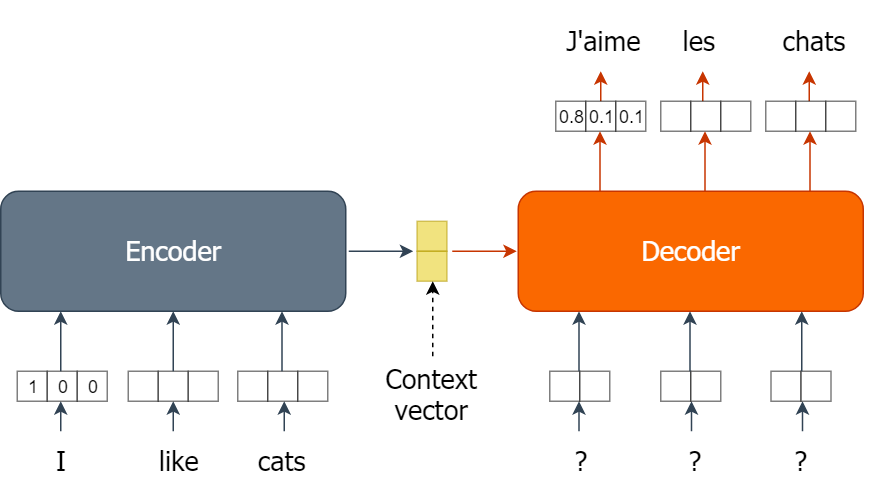

Encoder-decoder model

Encoder decoder model

Encoder decoder model

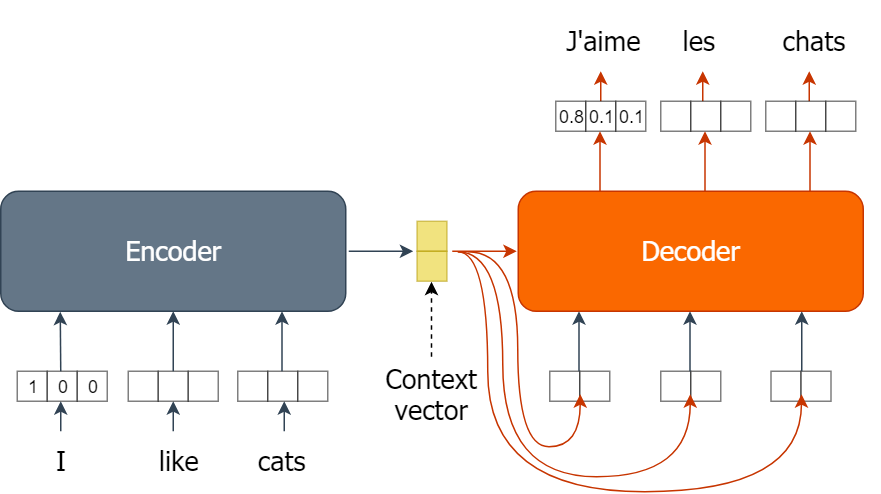

Repeat the context vector from the encoder N-many times

To produce a french sentence of 10 words, you repeat the context vector 10 times.

Encoder decoder model repeat vector

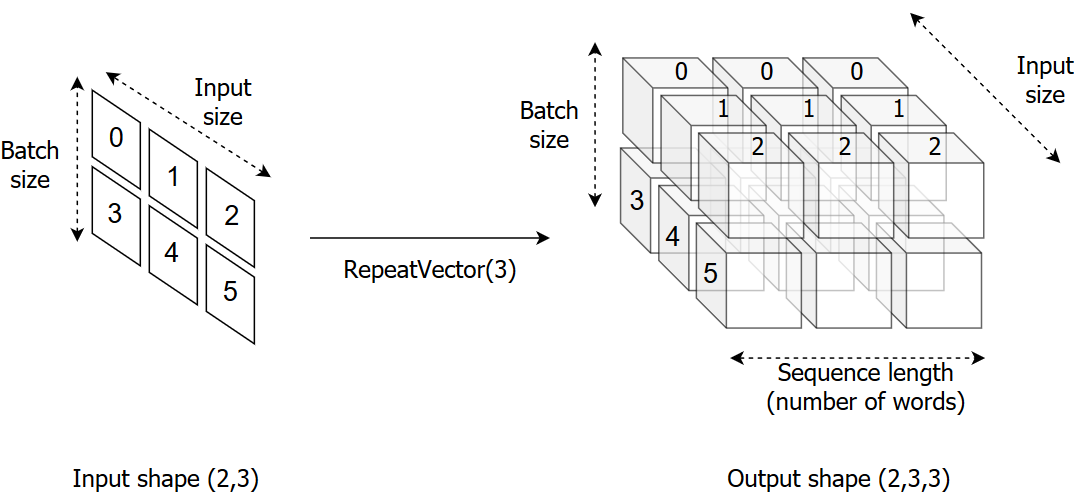

RepeatVector layer:

Takes one argument which defines the sequence length of the required output
Takes in an input of (batch_size, input size) (e.g. Input of size 2 x 3)
Outputs data having shape (batch_size, sequence length, input size) (e.g. Output of size 2 x 3 x 3)

Repeat vector functionality

from tensorflow.keras.layers import RepeatVector
rep = RepeatVector(5)

r_inp = Input(shape=(3,))
r_out = rep(r_inp)

repeat_model = Model(inputs=r_inp, outputs=r_out)

rep = RepeatVector(5)
r_out = rep(r_inp)

r_out = RepeatVector(5)(r_inp)

x = np.array([[0,1,2],[3,4,5]])
y = repeat_model.predict(x)
print('x.shape = ',x.shape,'\ny.shape = ',y.shape)

x.shape =  (2, 3)
y.shape =  (2, 5, 3)

Defining the decoder

de_inputs = RepeatVector(fr_len)(en_state)

decoder_gru = GRU(hsize, return_sequences=True)

Fixing the initial state of the decoder

gru_outputs = decoder_gru(de_inputs, initial_state=en_state)

enc_dec = Model(inputs=en_inputs, outputs=gru_outputs)
