Selecting number of clusters

Unsupervised Learning in R

Hank Roark

Senior Data Scientist at Boeing

Interpreting results

# Create hierarchical cluster model: hclust.out
hclust.out <- hclust(dist(x))

# Inspect the result
summary(hclust.out)

            Length Class  Mode
merge       98     -none- numeric
height      49     -none- numeric
order       50     -none- numeric
labels       0     -none- NULL
method       1     -none- character
call         2     -none- call
dist.method  1     -none- character

Dendrogram

Tree shaped structure used to interpret hierarchical clustering models

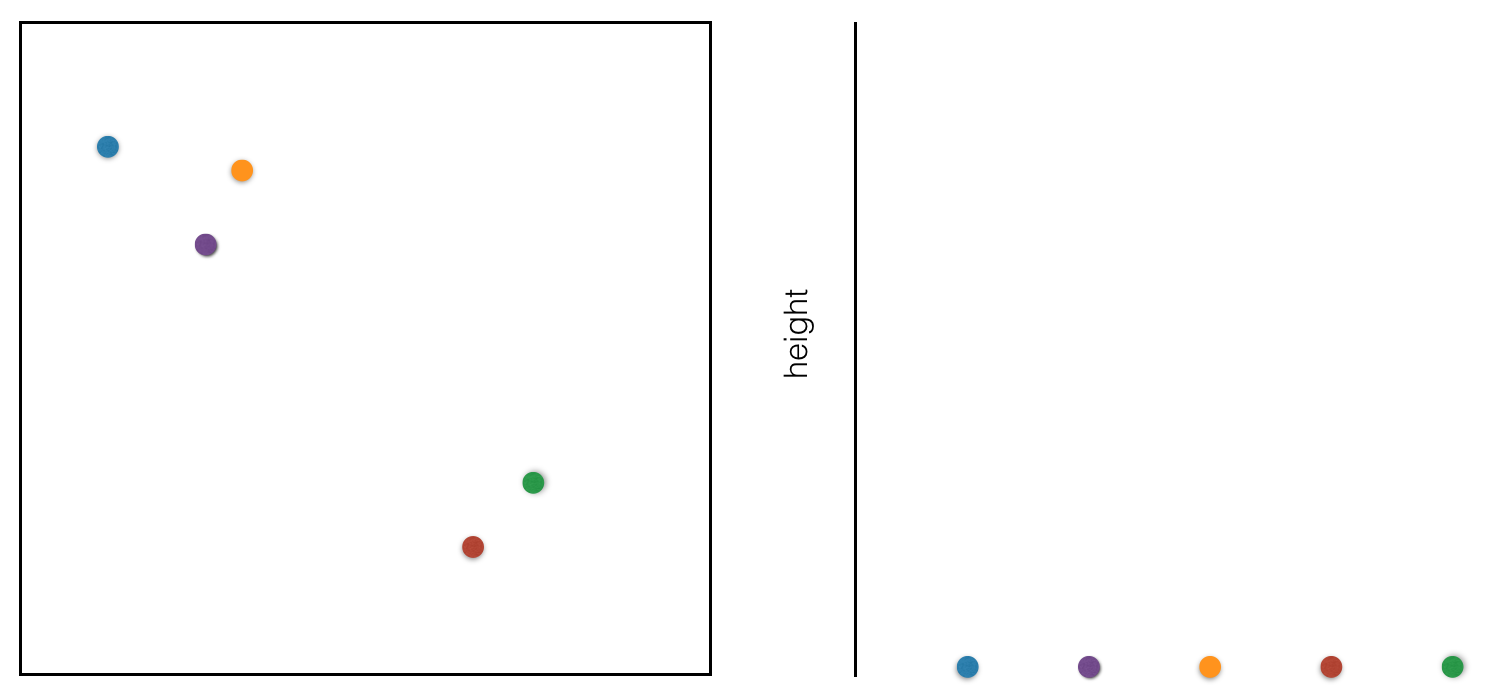

five observations plotted and a dendrogram

Dendrogram

Tree shaped structure used to interpret hierarchical clustering models

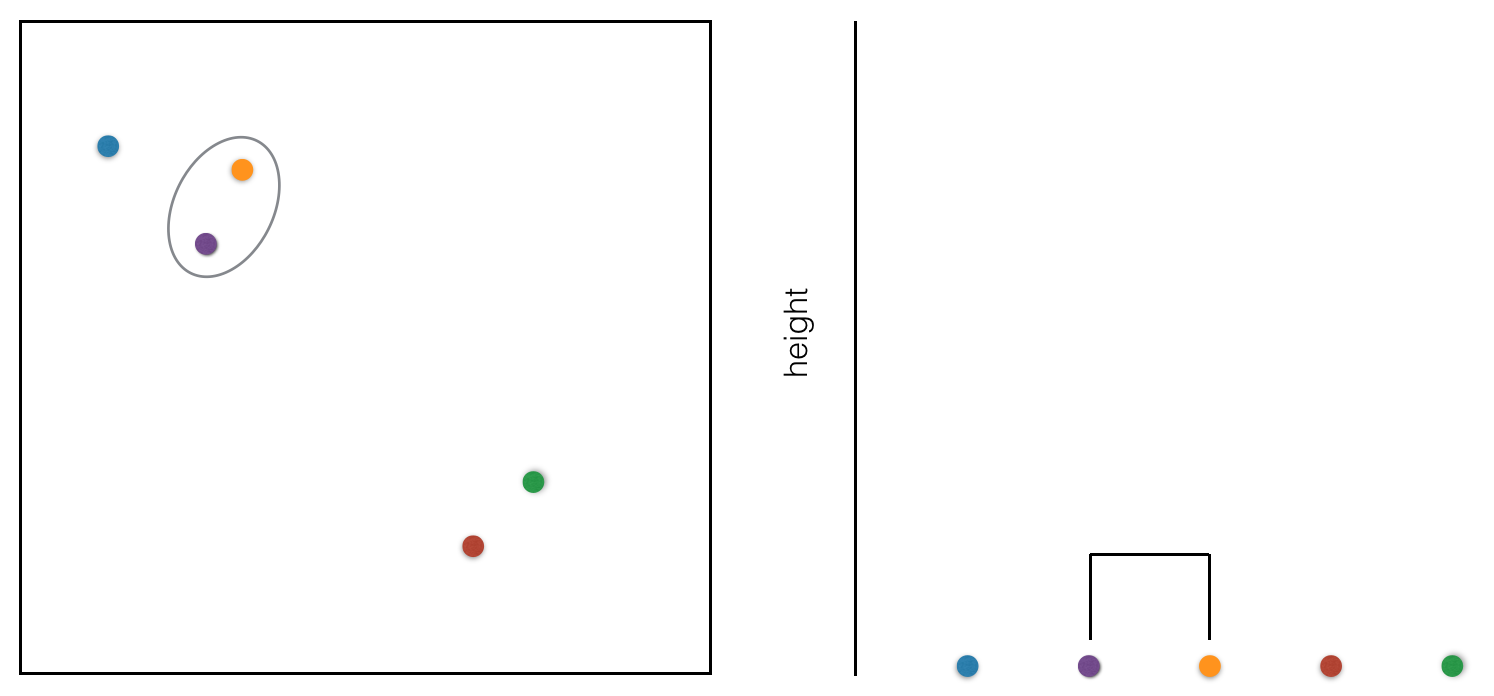

two cluster points are joined in the dendrogram

Dendrogram

Tree shaped structure used to interpret hierarchical clustering models

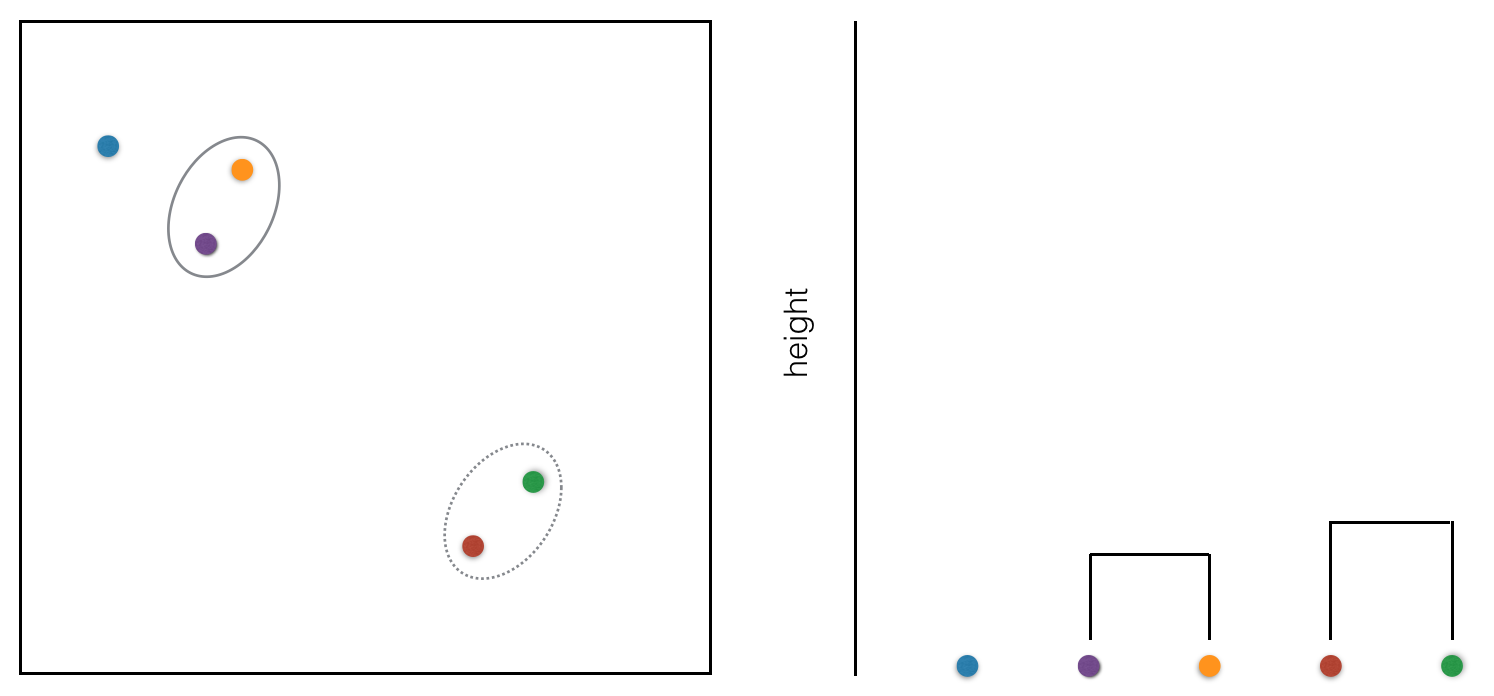

two other cluster points are joined in the dendrogram

Dendrogram

Tree shaped structure used to interpret hierarchical clustering models

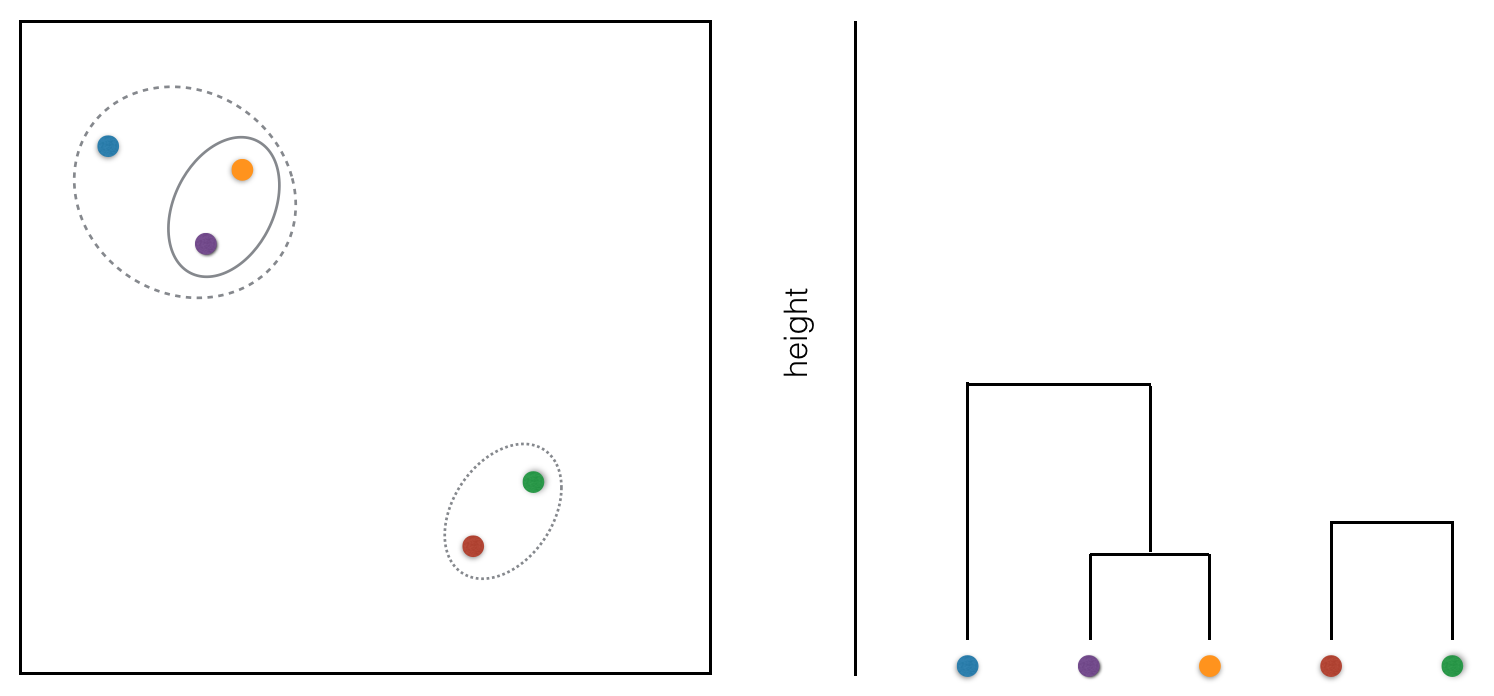

two clusters and a point are joined in the dendrogram

Dendrogram

Tree shaped structure used to interpret hierarchical clustering models

all clusters and points are joined together in the dendrogram

Dendrogram plotting in R

# Draws a dendrogram
plot(hclust.out)

abline(h = 6, col = "red")

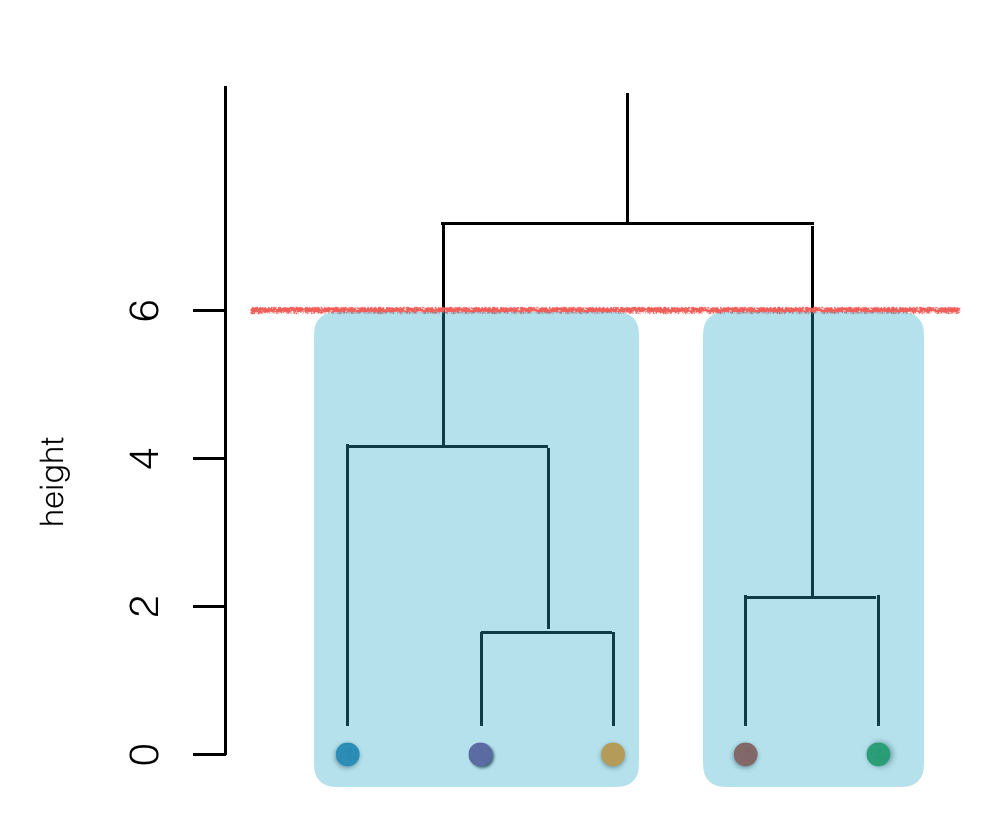

horizontal bar showing how many clusters we want on the dendrogram

Tree "cutting" in R

# Cut by height h
cutree(hclust.out, h = 6)

1 1 1 1 1 1 1 1 2 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 3 3 3
3 3 3 3 3 3 3 4 4 4 4 4 4 4 4 4 4 2 4 2 4 4

# Cut by number of clusters k
cutree(hclust.out, k = 2)

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 2 2
2 2 2 2 2 2 2 1 1 1 1 1 1 1 1 1 2 1 1 1 1 1

Let's practice!

Unsupervised Learning in R
