Visualizing and interpreting PCA results

Unsupervised Learning in R

Hank Roark

Senior Data Scientist at Boeing

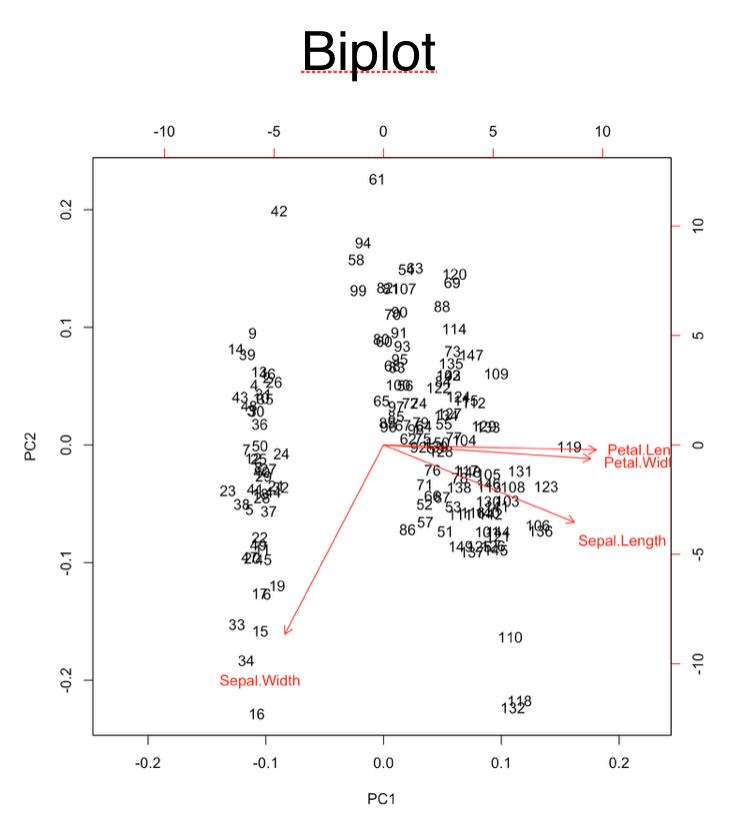

Biplot

biplot

Scree plot

scree plot

Biplots in R

# Creating a biplot
pr.iris <- prcomp(x = iris[-5],
                  scale = FALSE,
                  center = TRUE)
biplot(pr.iris)

biplot

Scree plots in R

# Getting proportion of variance for a scree plot
pr.var <- pr.iris$sdev^2
pve <- pr.var / sum(pr.var)

# Plot variance explained for each principal component
plot(pve, xlab = "Principal Component",
       ylab = "Proportion of Variance Explained",
       ylim = c(0, 1), type = "b")

scree plot

Let's practice!
