Visualizing twitter networks

Analyzing Social Media Data in R

Sowmya Vivek

Data Science Coach

Lesson overview

Plot a network with default parameters
Apply formatting attributes to improve the readability
Use network centrality and attributes to enhance the plot

View a retweet network

# View the retweet network
print.igraph(nw_rtweet)

IGRAPH e7e618c DN-- 21 39 --
+ attr: name (v/c), followers (v/c)
+ edges from e7e618c (vertex names):
 [1] w3daily    ->RealFirstBuzz   w3daily    ->RealFirstBuzz
 [3] w3daily    ->Giasaysthat     w3daily    ->RealFirstBuzz
 [5] VanesEtim  ->PotionVanity    VanesEtim  ->DAVIDxCGN
 [7] VanesEtim  ->PotionVanity    VanesEtim  ->Avinash_galaxy
 [9] VanesEtim  ->PotionVanity    VanesEtim  ->BklynLeague
[11] RedNileShop->Macaw_Blink     RedNileShop->leuqimcouture
[13] RedNileShop->StoreDiv        RedNileShop->PotionVanity
[15] RedNileShop->SCISSORSAPPAREL RedNileShop->Themoon12961958
+ ... omitted several edges

Create the base network plot

# Create the base network plot
set.seed(1234)
plot.igraph(nw_rtweet)

View the base network plot

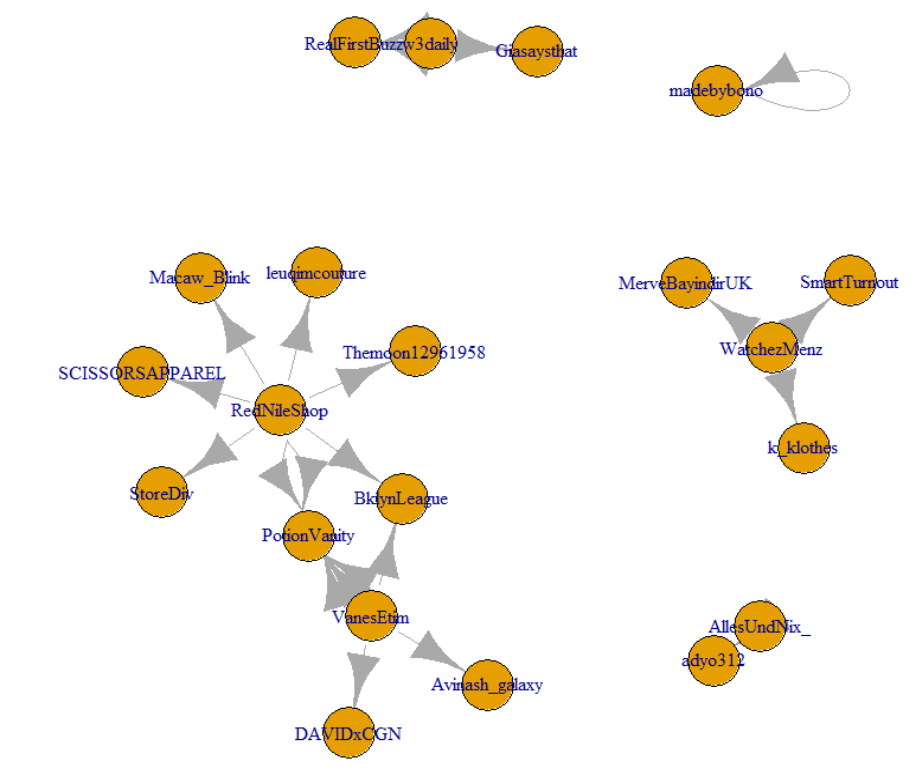

Base network plot

Format the plot

# Format the network plot with attributes
set.seed(1234)
plot(nw_rtweet, asp = 9/16,
     vertex.size = 10,
     vertex.color = "lightblue",
     edge.arrow.size = 0.5,
     edge.color = "black",
     vertex.label.cex = 0.9,
     vertex.label.color = "black")

View the formatted plot

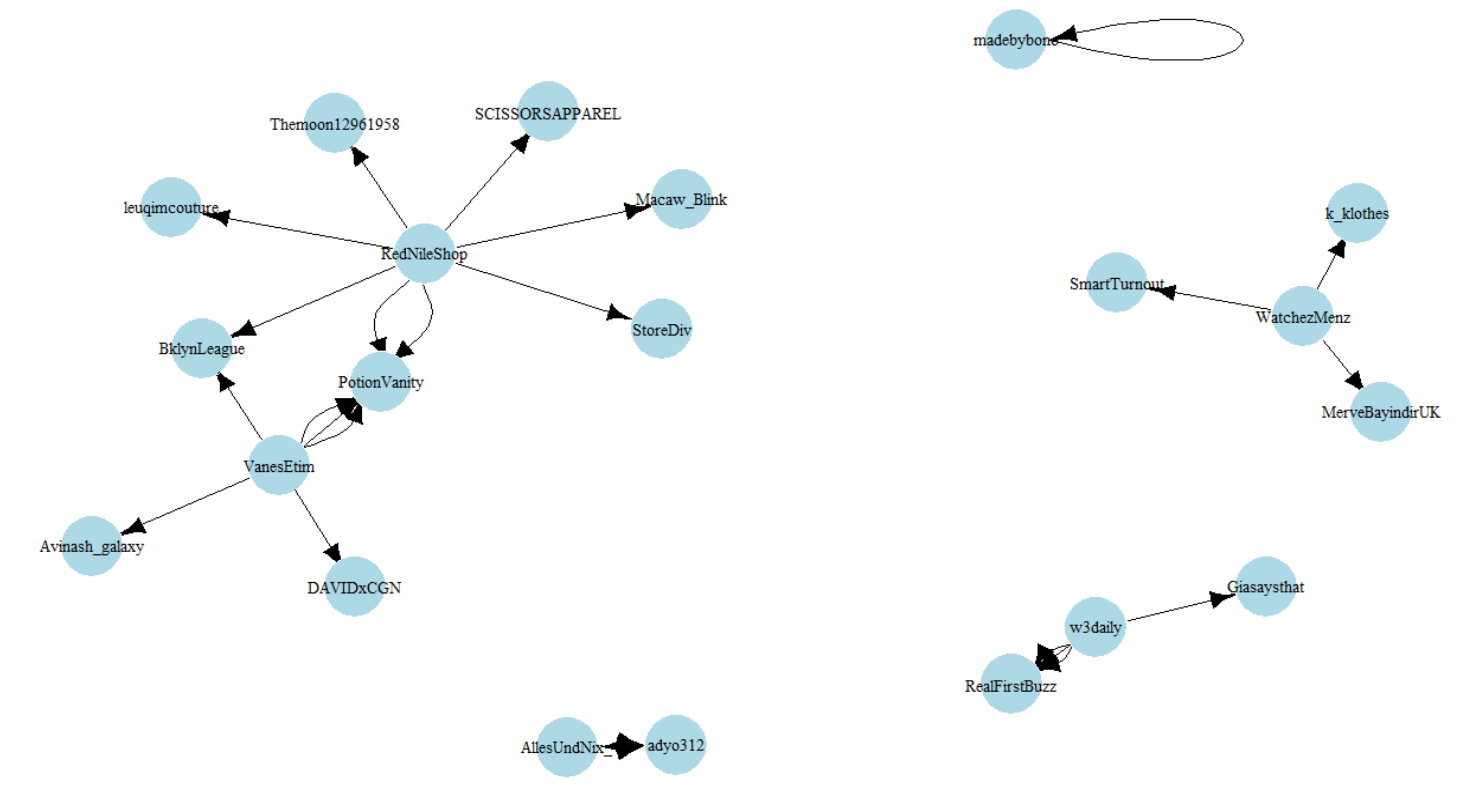

Formatted network plot

Set vertex size based on the out-degree

# Create a variable for out-degree
deg_out <- degree(nw_rtweet, mode = c("out"))
deg_out

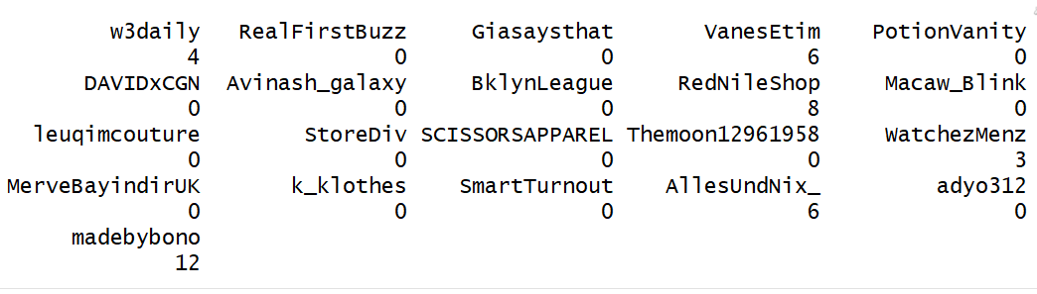

Out-degree values

vert_size <- (deg_out * 2) + 10

Assign vert_size to the vertex size attribute

# Assign vert_size to vertex size attribute and plot network
set.seed(1234)
plot(nw_rtweet, asp = 9/16,
     vertex.size = vert_size,
     vertex.color = "lightblue",
     edge.arrow.size = 0.5,
     edge.color = "black",
          vertex.label.cex = 1.2,
     vertex.label.color = "black")

View plot with new attributes

Plot with vert size attribute

Adding network attributes

Users who retweet most and have a high follower count add more value
Network plot of users who retweet more and have a high follower count
Add follower count as a network attribute

Follower count of network users

# Import the followers count data frame
followers <- readRDS("follower_count.rds")

View the followers data frame

# View the follower count
head(followers)

screen_name    followers_count
<fct>             <dbl>
adyo312            58
AllesUndNix_       18
Avinash_galaxy     1536
BklynLeague        40
DAVIDxCGN          267
Giasaysthat        9139

Follower count of network users

# Categorize high and low follower count
followers$follow <- ifelse(followers$followers_count > 500, "1", "0")

View the followers data frame

# View the data frame with the new column
head(followers)

screen_name    followers_count    follow
<fct>              <dbl>          <chr>
adyo312              58              0
AllesUndNix_         18              0
Avinash_galaxy     1536              1
BklynLeague          40              0
DAVIDxCGN           267              0
Giasaysthat        9139              1

Assign network attributes

# Assign external network attributes to retweet network
V(nw_rtweet)$followers <- followers$follow

View vertex attributes

# View the vertex attributes
vertex_attr(nw_rtweet)

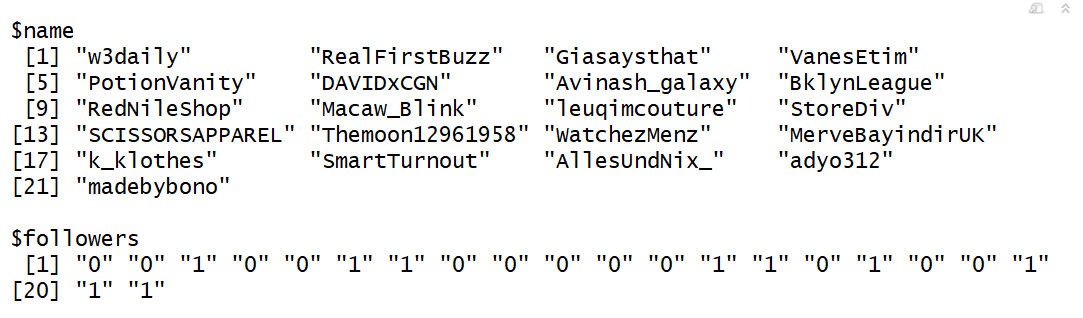

Vertex attributes

Changing vertex colors

# Set the vertex colors for the plot
sub_color <- c("lightgreen", "tomato")
set.seed(1234)
plot(nw_rtweet, asp = 9/16,
     vertex.size = vert_size,
     edge.arrow.size = 0.5,
     vertex.label.cex = 1.3,
     vertex.color = sub_color[as.factor(vertex_attr(nw_rtweet, "followers"))],
     vertex.label.color = "black",
     vertex.frame.color = "grey")

View plot formatted with vertex attributes

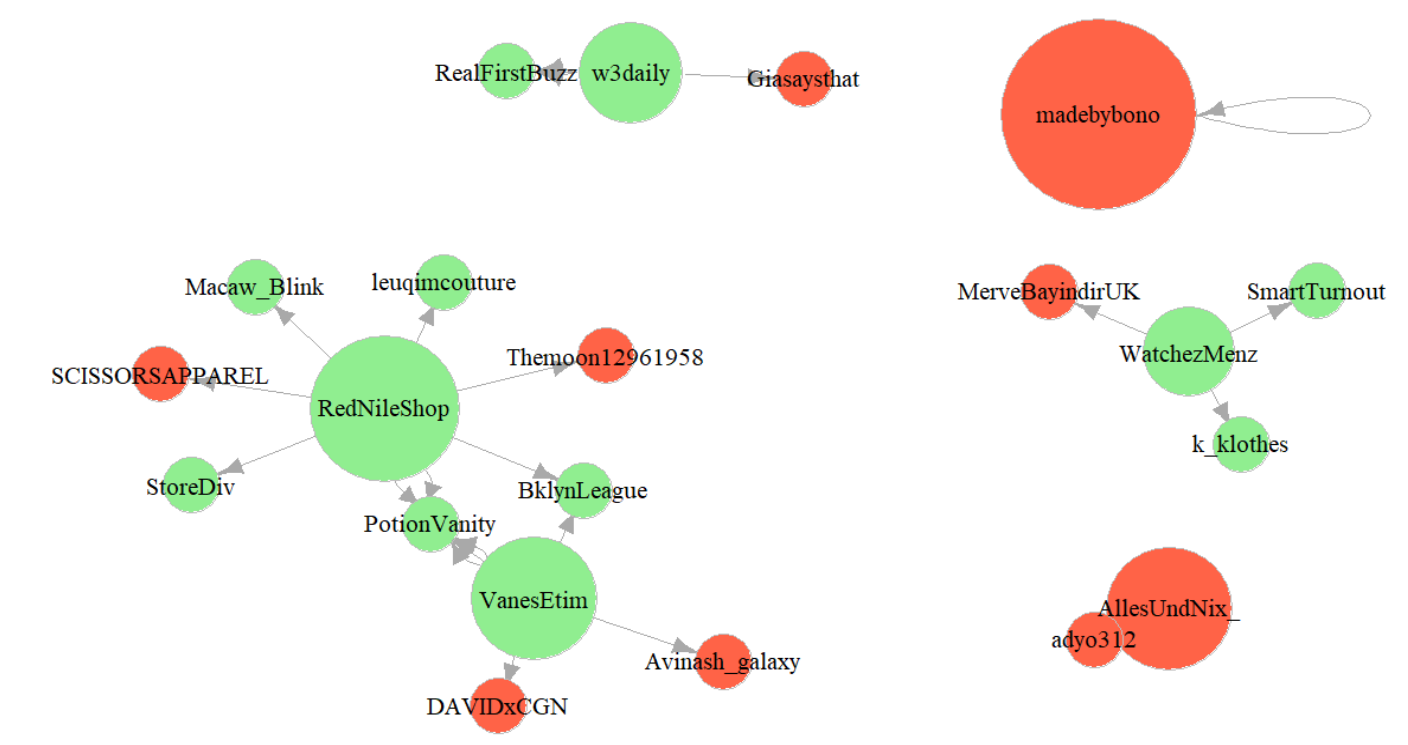

Plot based on vertex attributes

Let's practice!

Analyzing Social Media Data in R
