Using merge_asof()

Joining Data with pandas

Aaren Stubberfield

Instructor

Using merge_asof()

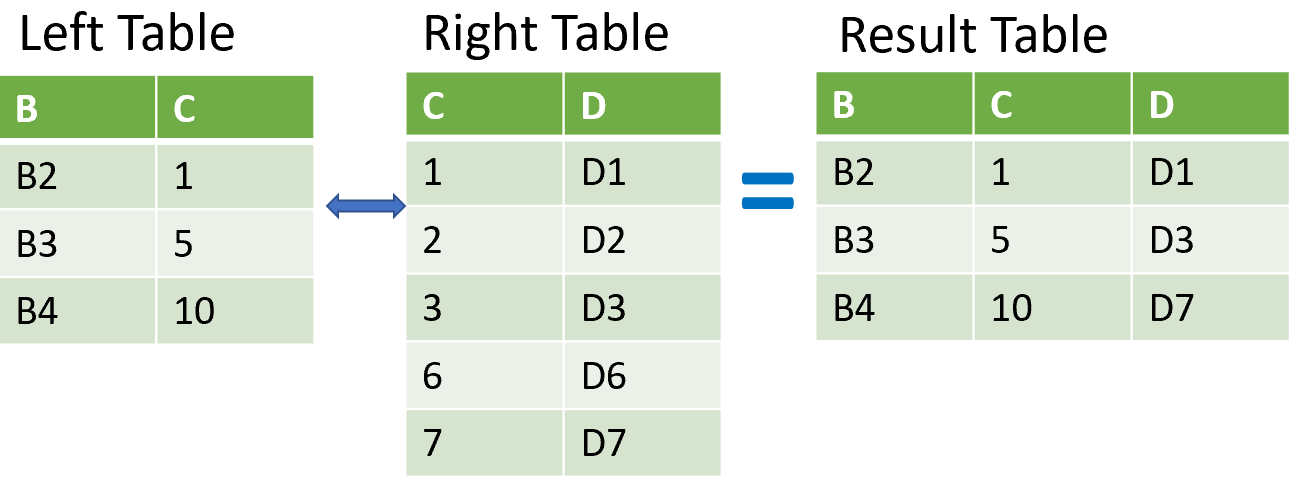

Joining two tables using merge_asof

Similar to a merge_ordered() left join
- Similar features as merge_ordered()

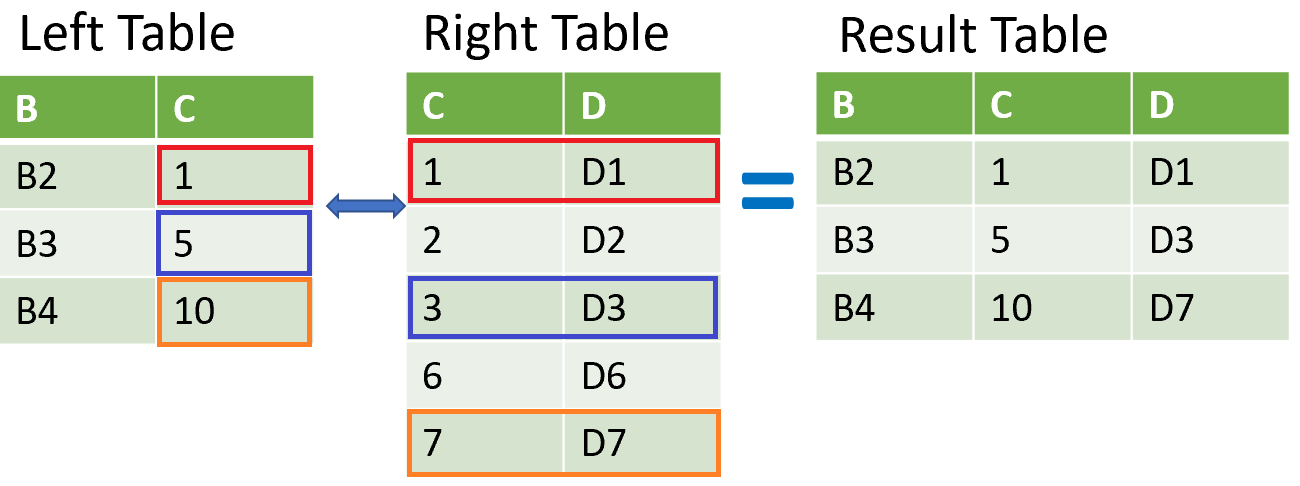

Match on the nearest key column and not exact matches.
- Merged "on" columns must be sorted.

Using merge_asof()

Joining two tables using merge_asof

Similar to a merge_ordered() left join
- Similar features as merge_ordered()
Match on the nearest key column and not exact matches.
- Merged "on" columns must be sorted.

Datasets

Table Name: visa

  date_time            close
0 2017-11-17 16:00:00  110.32
1 2017-11-17 17:00:00  110.24
2 2017-11-17 18:00:00  110.065
3 2017-11-17 19:00:00  110.04
4 2017-11-17 20:00:00  110.0
5 2017-11-17 21:00:00  109.9966
6 2017-11-17 22:00:00  109.82

Table Name: ibm

   date_time            close
0  2017-11-17 15:35:12  149.3
1  2017-11-17 15:40:34  149.13
2  2017-11-17 15:45:50  148.98
3  2017-11-17 15:50:20  148.99
4  2017-11-17 15:55:10  149.11
5  2017-11-17 16:00:03  149.25
6  2017-11-17 16:05:06  149.5175
7  2017-11-17 16:10:12  149.57
8  2017-11-17 16:15:30  149.59
9  2017-11-17 16:20:32  149.82
10 2017-11-17 16:25:47  149.96

merge_asof() example

pd.merge_asof(visa, ibm, on='date_time',
              suffixes=('_visa','_ibm'))

  date_time            close_visa  close_ibm
0 2017-11-17 16:00:00  110.32      149.11
1 2017-11-17 17:00:00  110.24      149.83
2 2017-11-17 18:00:00  110.065     149.59
3 2017-11-17 19:00:00  110.04      149.505
4 2017-11-17 20:00:00  110.0       149.42
5 2017-11-17 21:00:00  109.9966    149.26
6 2017-11-17 22:00:00  109.82      148.97

Table Name: ibm

   date_time            close
0  2017-11-17 15:35:12  149.3
1  2017-11-17 15:40:34  149.13
2  2017-11-17 15:45:50  148.98
3  2017-11-17 15:50:20  148.99
4  2017-11-17 15:55:10  149.11
5  2017-11-17 16:00:03  149.25
6  2017-11-17 16:05:06  149.5175
7  2017-11-17 16:10:12  149.57
8  2017-11-17 16:15:30  149.59
9  2017-11-17 16:20:32  149.82
10 2017-11-17 16:25:47  149.96

merge_asof() example with direction

pd.merge_asof(visa, ibm, on=['date_time'],
              suffixes=('_visa','_ibm'),
              direction='forward')

  date_time            close_visa  close_ibm
0 2017-11-17 16:00:00  110.32      149.25
1 2017-11-17 17:00:00  110.24      149.6184
2 2017-11-17 18:00:00  110.065     149.59
3 2017-11-17 19:00:00  110.04      149.505
4 2017-11-17 20:00:00  110.0       149.42
5 2017-11-17 21:00:00  109.9966    149.26
6 2017-11-17 22:00:00  109.82      148.97

Table Name: ibm

   date_time            close
0  2017-11-17 15:35:12  149.3
1  2017-11-17 15:40:34  149.13
2  2017-11-17 15:45:50  148.98
3  2017-11-17 15:50:20  148.99
4  2017-11-17 15:55:10  149.11
5  2017-11-17 16:00:03  149.25
6  2017-11-17 16:05:06  149.5175
7  2017-11-17 16:10:12  149.57
8  2017-11-17 16:15:30  149.59
9  2017-11-17 16:20:32  149.82
10 2017-11-17 16:25:47  149.96

When to use merge_asof()

Data sampled from a process
Developing a training set (no data leakage)

Let's practice!

Joining Data with pandas
