Triggers and Fault Tolerance

Introduction to Apache Airflow in Python

Mike Metzger

Data Engineer

Building robust pipelines

Triggers - control when tasks can run
- Define tasks that execute under specific conditions
- Default trigger - all success

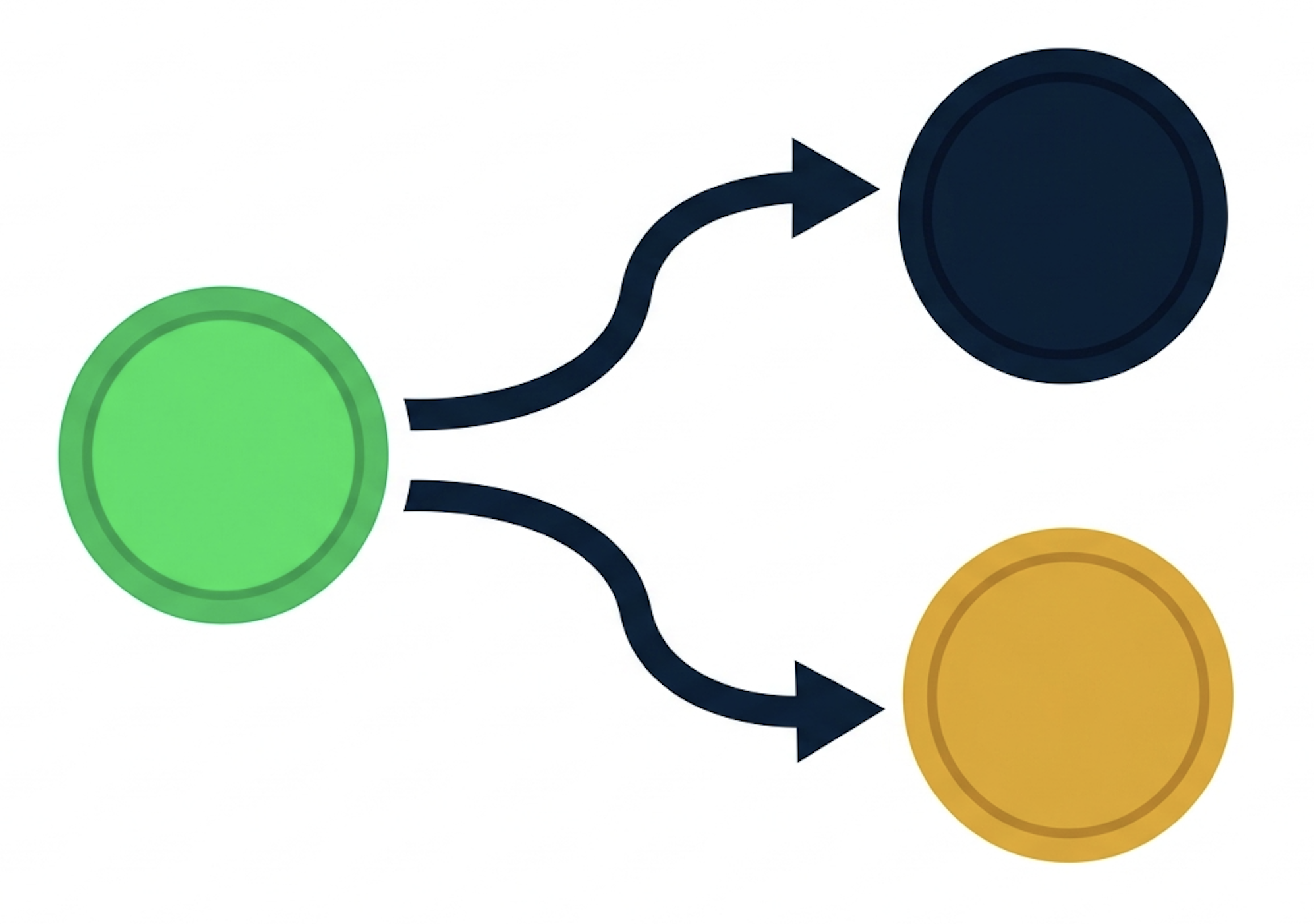

Illustration of triggers controlling when tasks can run

Fault tolerance - enables recovery within a task
- Retry individual task

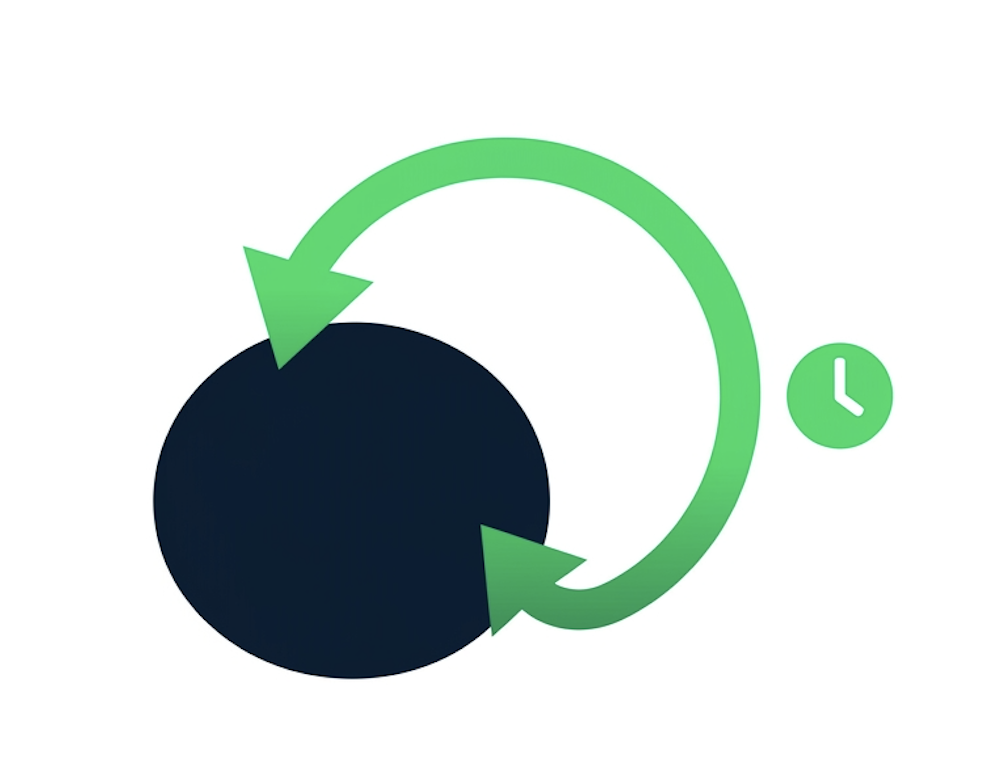

Illustration of fault tolerance retrying a failed task

Trigger rules

Check the state previous tasks before a task starts
Lets you define if tasks should proceed
By default, all previous tasks must finish successfully before continuing
Trigger rules let you change that

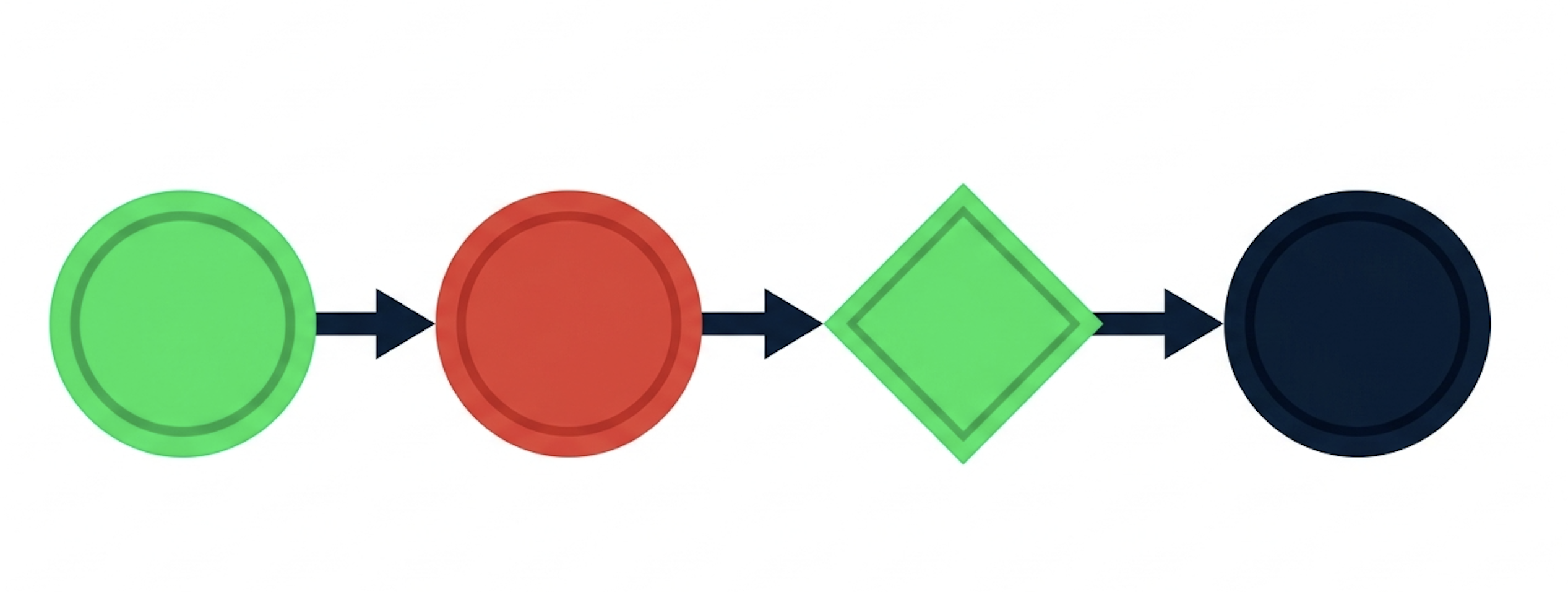

Illustration of trigger rules checking upstream task states

Trigger rules uses

Notification tasks
Cleanup tasks
Conditional execution

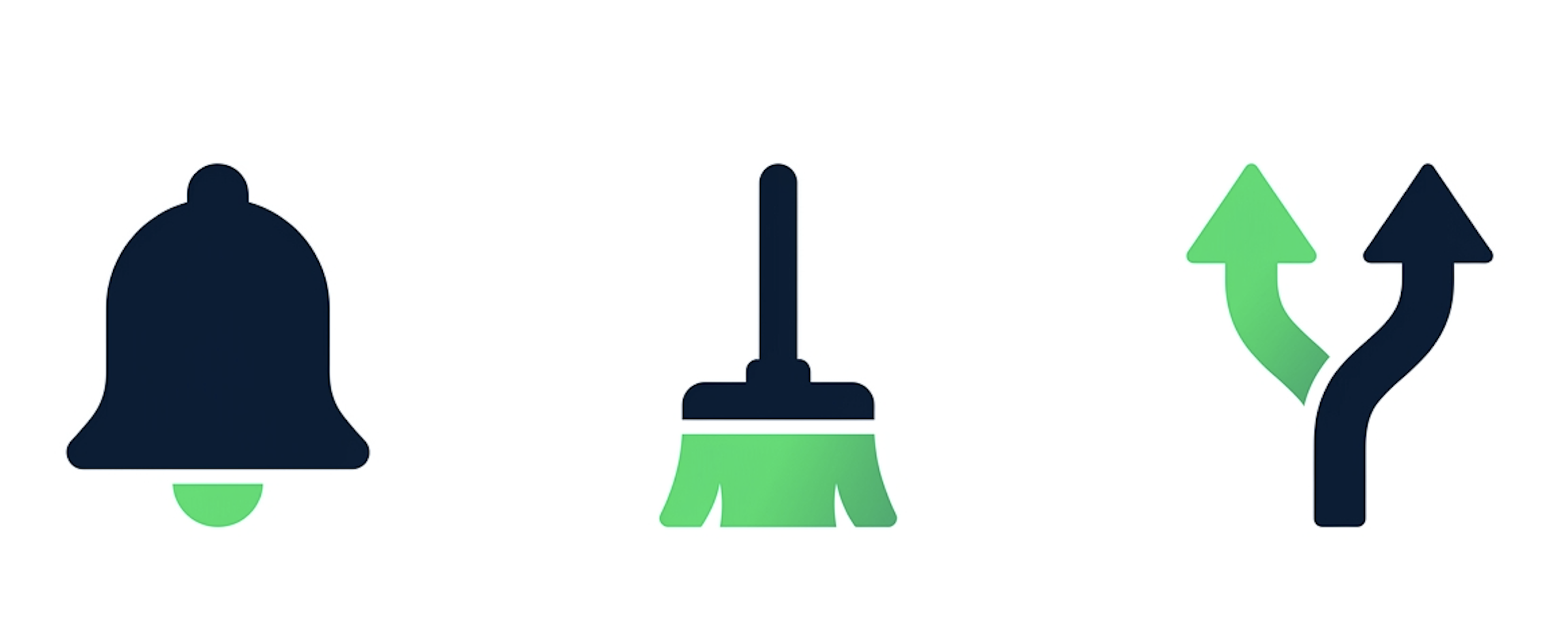

Illustration of trigger rule use cases such as notification and cleanup tasks

Key trigger rules

all_success - Every prior task finished successfully, no skips
all_failed - Every prior task failed
all_done - Every prior task completed, regardless of outcome
one_failed - At least one task failed
one_success - At least one task succeeded
none_failed - All prior tasks finished successfully or skipped

Trigger rule implementation

from airflow.utils.trigger_rule import TriggerRule
Trigger rules are applied to the @task decorator
trigger_rule=TriggerRule.<TriggerRule enum>

@task(trigger_rule=TriggerRule.ALL_SUCCESS)
def run_if_everything_succeeds:
  print('All previous tasks succeeded!')

Fault tolerance attributes

retries - task parameter defining how many times Airflow should retry a failed task before marking it as failed
retry_delay - task parameter accepting a timedelta defining the wait time between retry attempts

@task(
  trigger_rule=TriggerRule.ONE_SUCCESS,
  retries=3,
  retry_delay=timedelta(minutes=5)
)

TriggerDagRunOperator

Allows one Dag to kick off another Dag
Provides code and Dags
from airflow.providers.standard.operators.trigger_dagrun import TriggerDagRunOperator
trigger_dag_id - Must match dag_id
wait_for_completion - Block further tasks until complete
poke_interval - How often to check
conf - Data to pass to child Dag

TriggerDagRun Example

trigger_child = TriggerDagRunOperator(
        task_id="trigger_child_pipeline",
        trigger_dag_id="child_pipeline_dag",
        wait_for_completion=True,
        poke_interval=30,
        conf={
            "source": "s3://my-bucket/raw/",
        },
    )

task1 >> trigger_child    # Run first task, then kick off child Dag
trigger_child >> cleanup  # Run a cleanup task after child Dag completes

Let's practice!
