Strategic dashboard

Dashboard Design Concepts

Olga Scrivner, PhD

President, Scrivner Solutions Inc

The forward-thinking dashboard

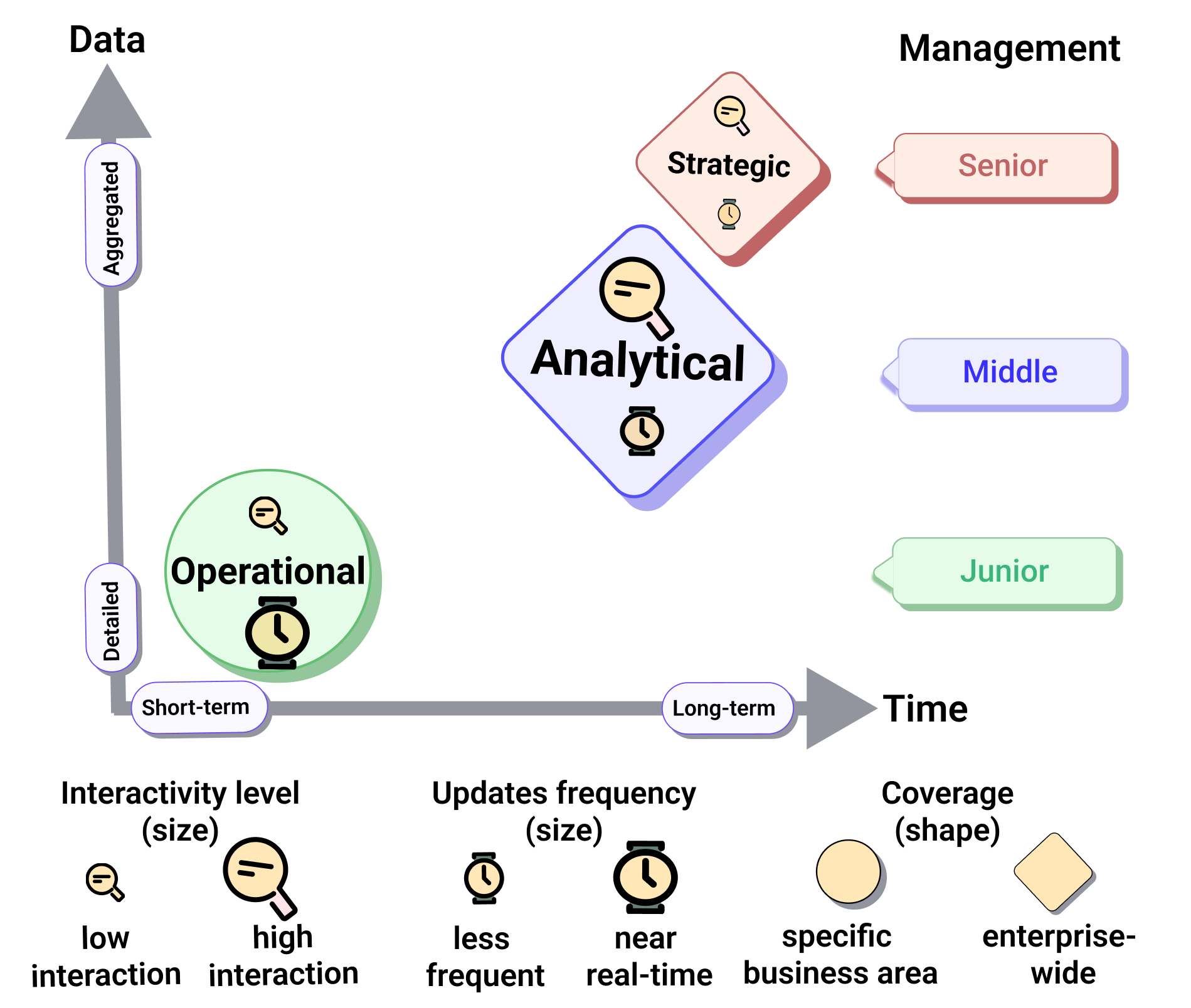

taxonomy-analytical

Purpose

  • Monitor long-term company strategies

Data Type

  • Complex, aggregated enterprise-wide data, infrequent updates

Interactivity:

  • Low interaction, often static snapshots

Stakeholders

  • Executives, senior-level management
Dashboard Design Concepts

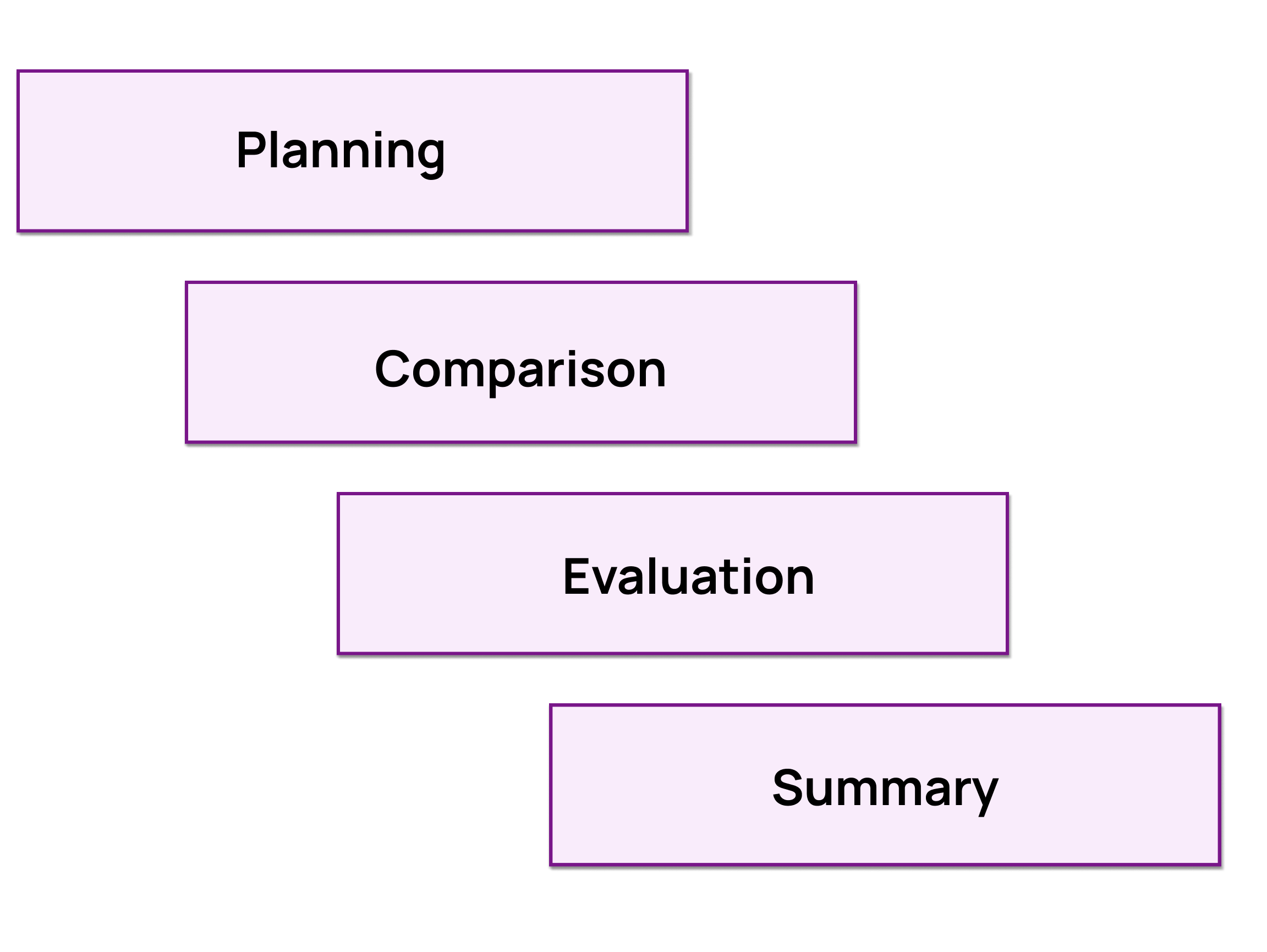

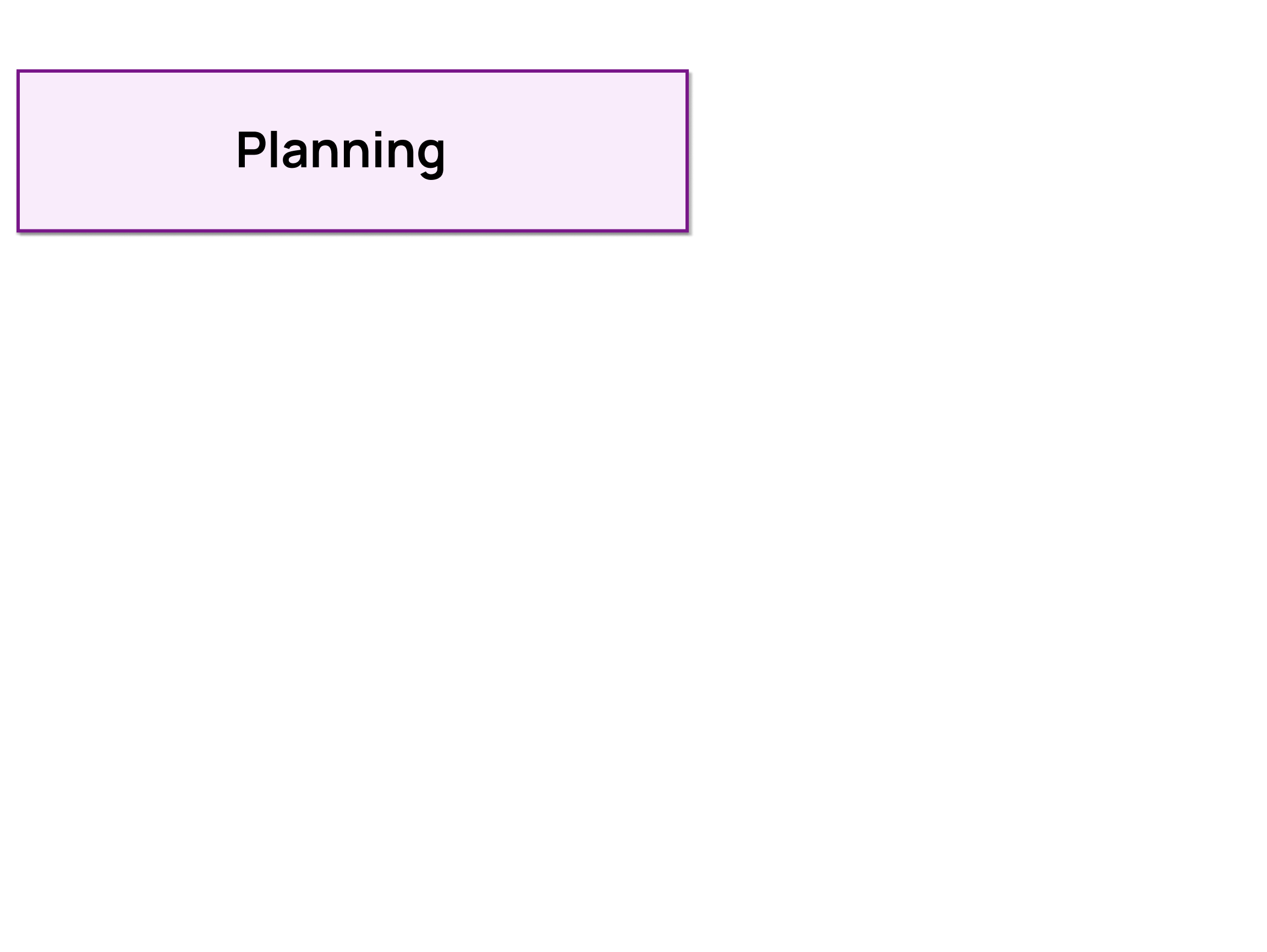

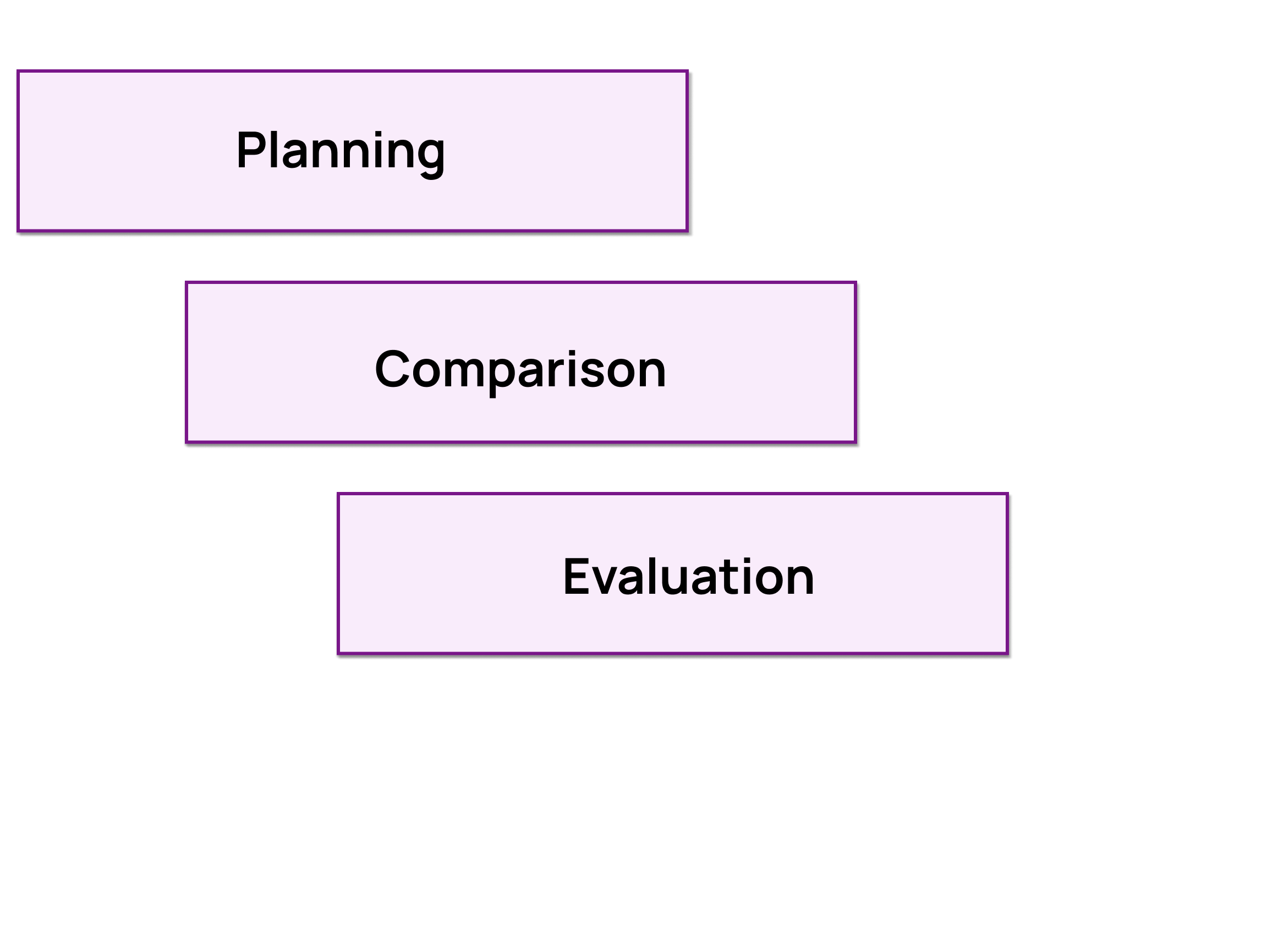

Strategic dashboard benefits

  benefits



  • Planning and decision-making for a specific course of actions
    • Where did we fall short of our targets?
    • Which of the objectives have we completed?
    • Which objectives are no longer needed?
1 Few, Stephen. (2006). Information dashboard design.
Dashboard Design Concepts

Strategic dashboard benefits

  benefits

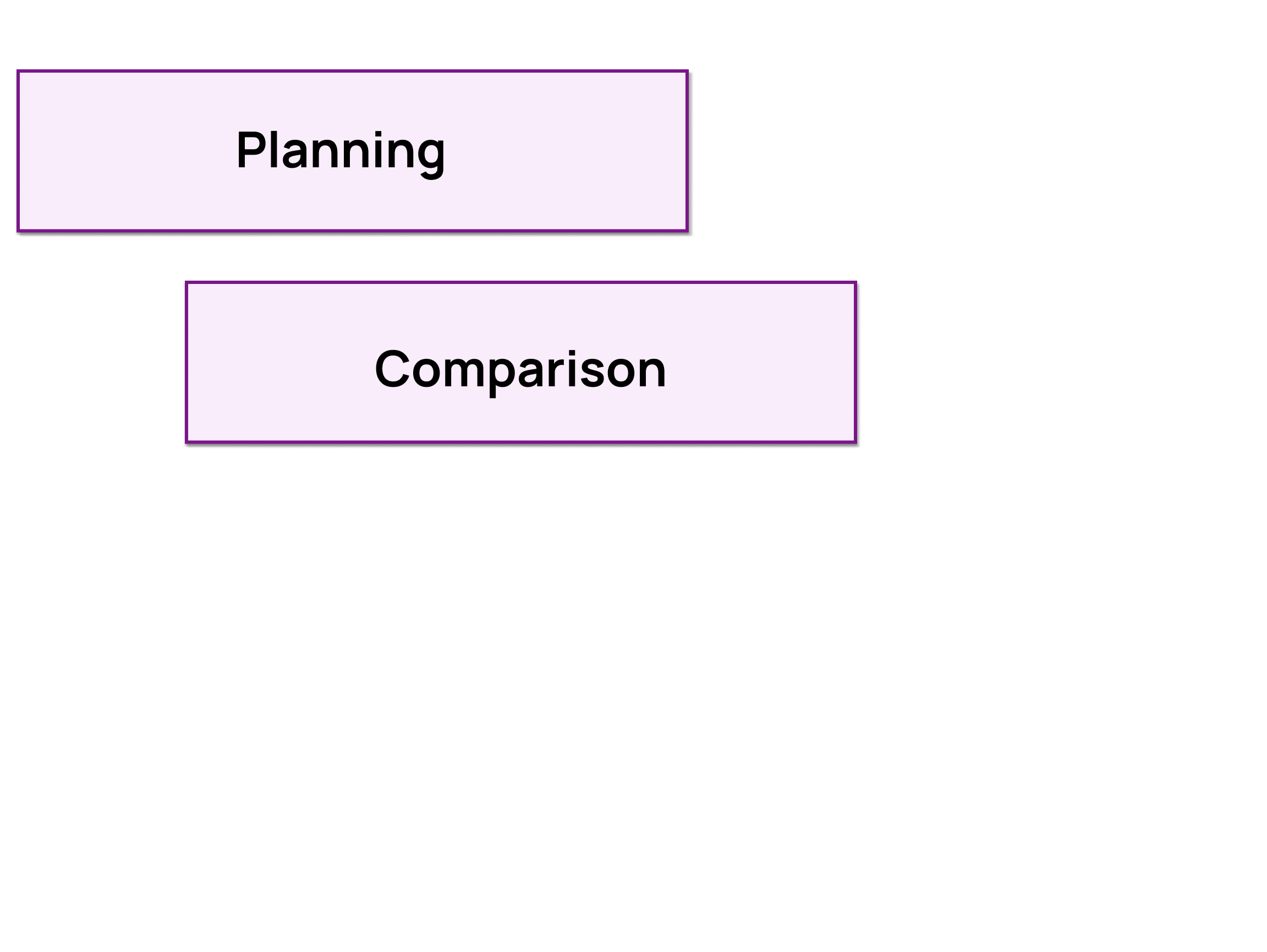

  • Planning and decision-making for specific course of actions

  • Comparing current performance to target values for various success indicators

1 Few, Stephen. (2006). Information dashboard design.
Dashboard Design Concepts

Strategic dashboard benefits

  benefits



  • Planning and decision-making for specific course of actions

  • Comparing current performance to target values for various success indicators

  • Evaluating strategies (outdated and out-of-sync)

    • Is our strategic area still relevant?
    • Which of our objectives have we completed?
1 Few, Stephen. (2006). Information dashboard design.
Dashboard Design Concepts

Strategic dashboard benefits

  benefits



  • Planning and decision-making for specific course of actions

  • Comparing current performance to target values for various success indicators

  • Evaluating strategies (outdated and out-of-sync)

  • Aggregating measures into high-level success indicators

1 Few, Stephen. (2006). Information dashboard design.
Dashboard Design Concepts

Types of the strategic dashboard

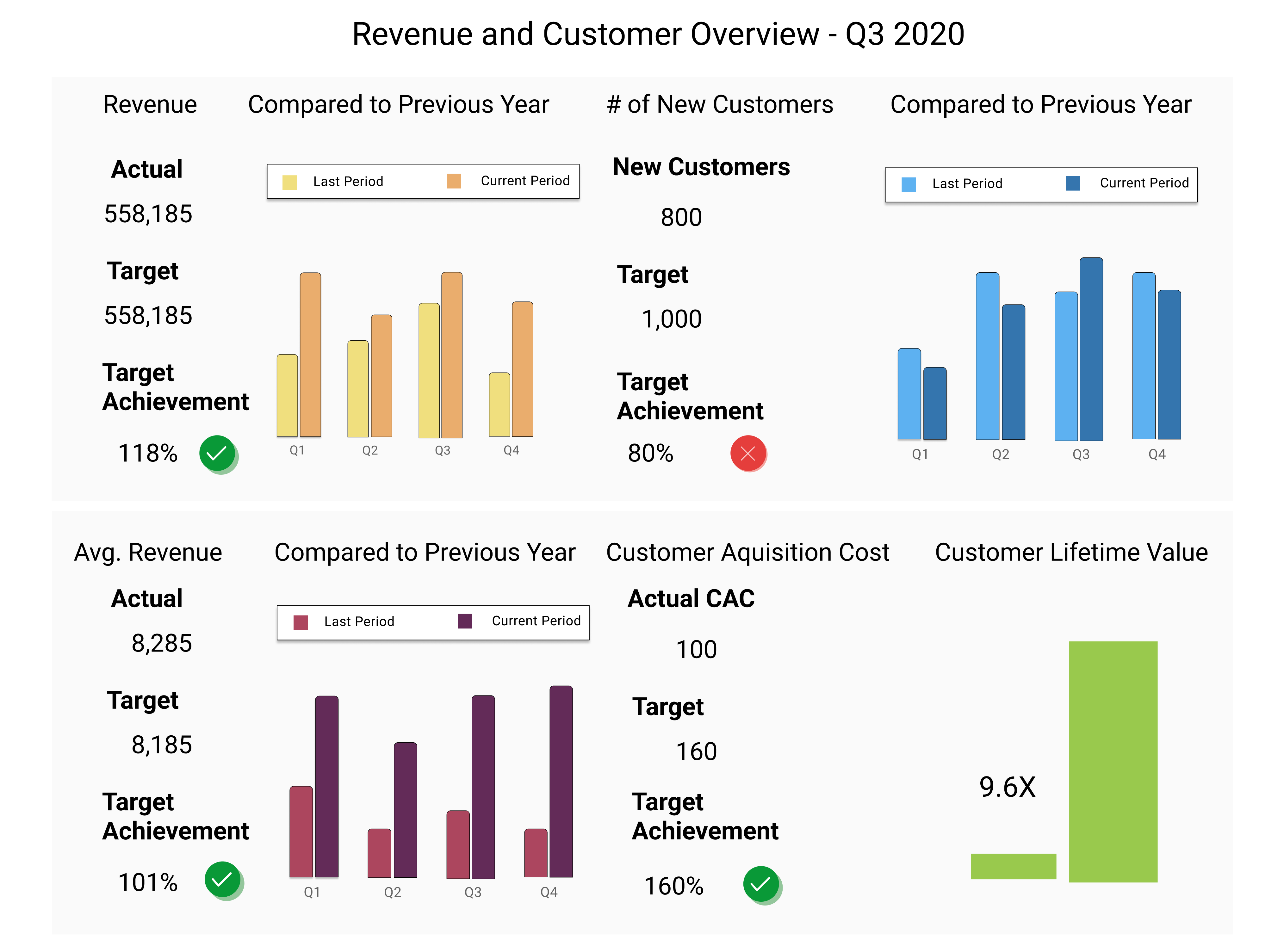

  executive

Marketing: marketing KPIs

  • Chief Marketing Officer



Executive: overall success KPIs

  • Chief Administrative Officer



Financial: financial KPIs

  • Chief Financial Officer
Dashboard Design Concepts

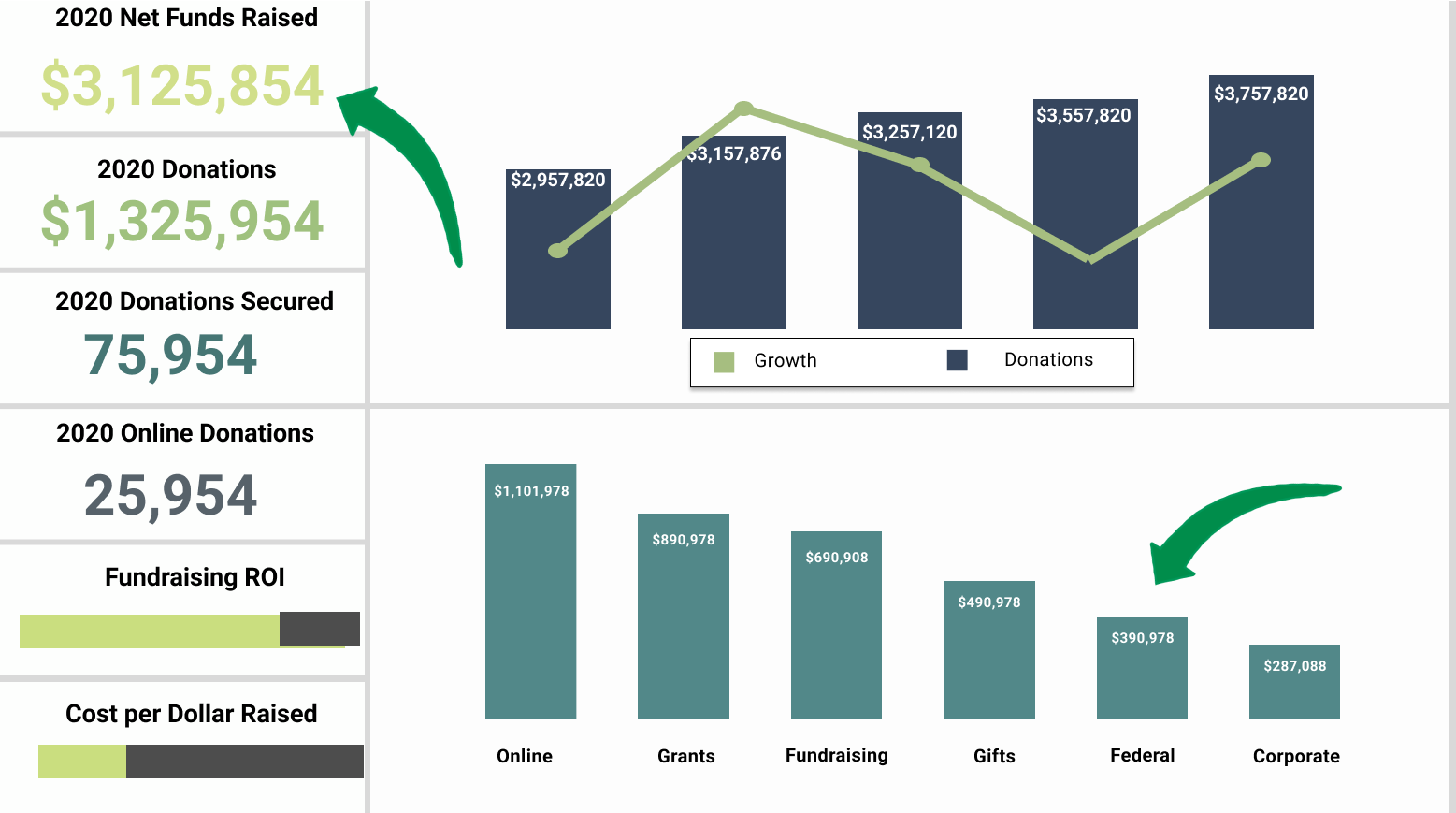

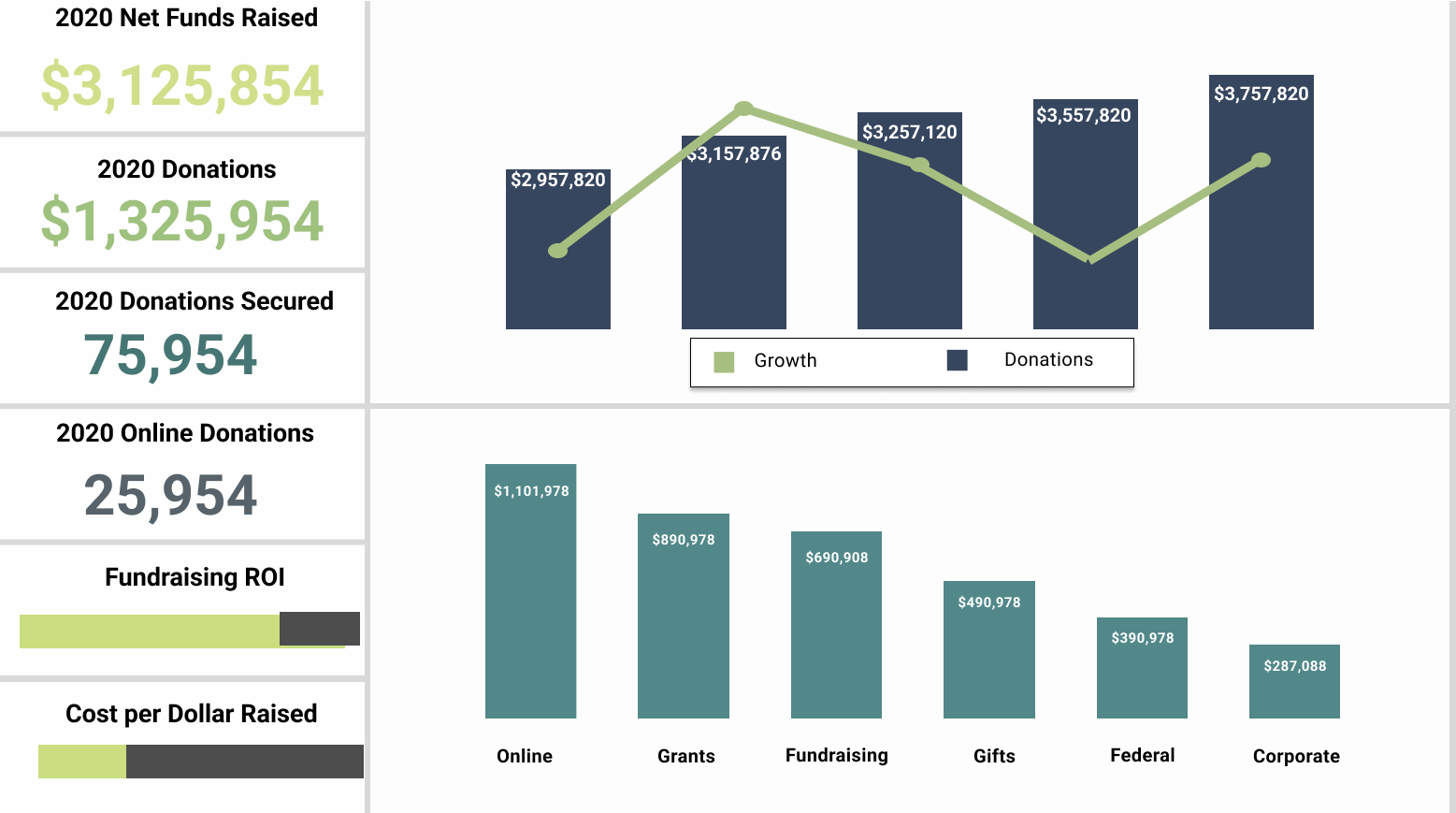

Strategic dashboard graphical components



graphical components

Dashboard Design Concepts

Strategic dashboard graphical components



graphical components

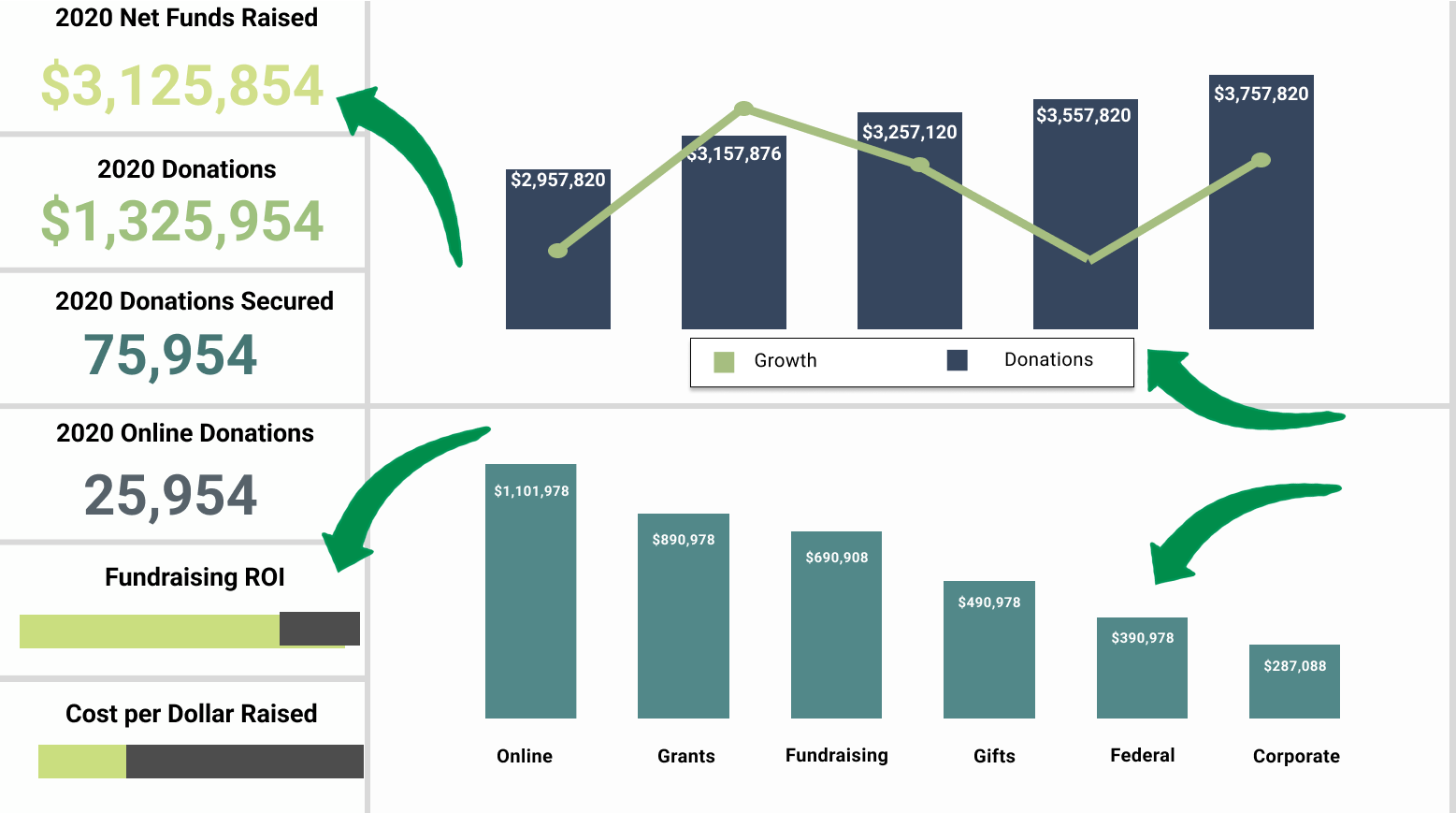

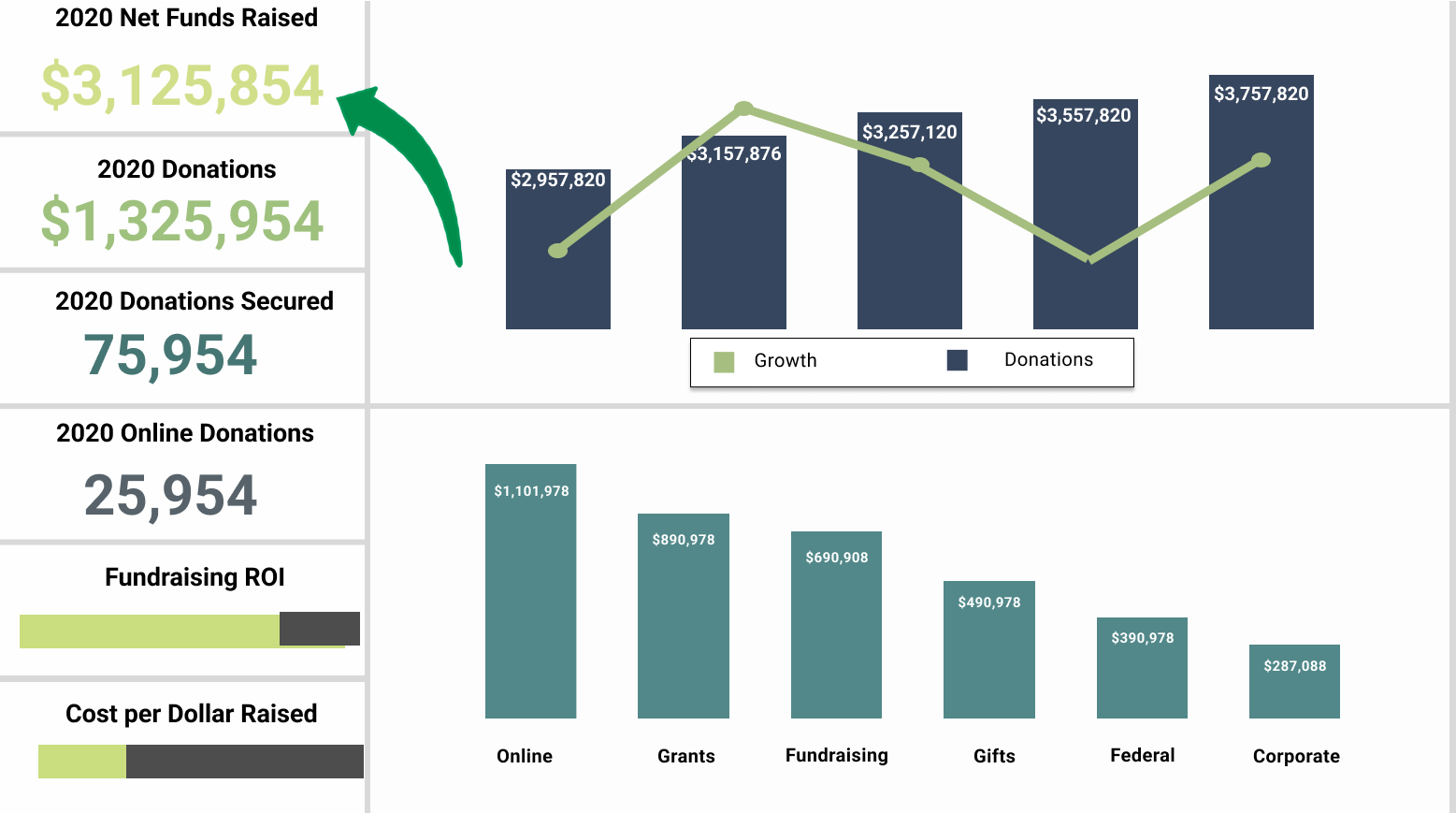

Indicator: strategic success KPIs

Dashboard Design Concepts

Strategic dashboard graphical components



graphical components

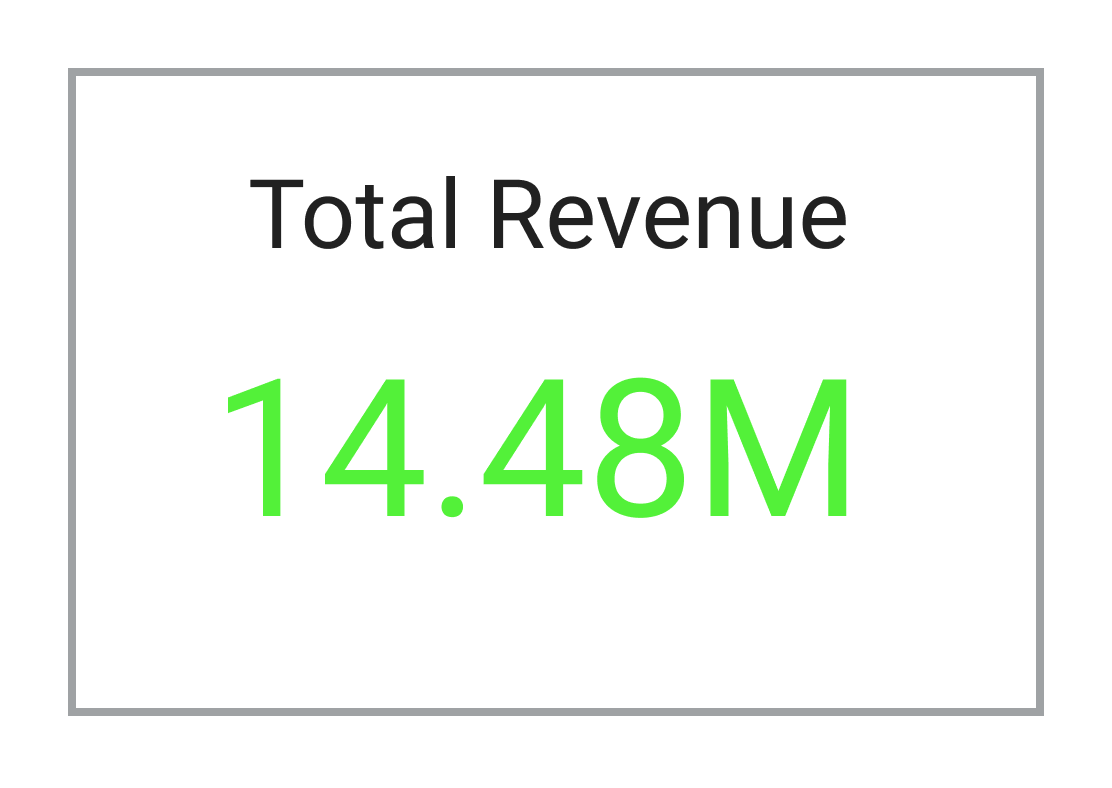

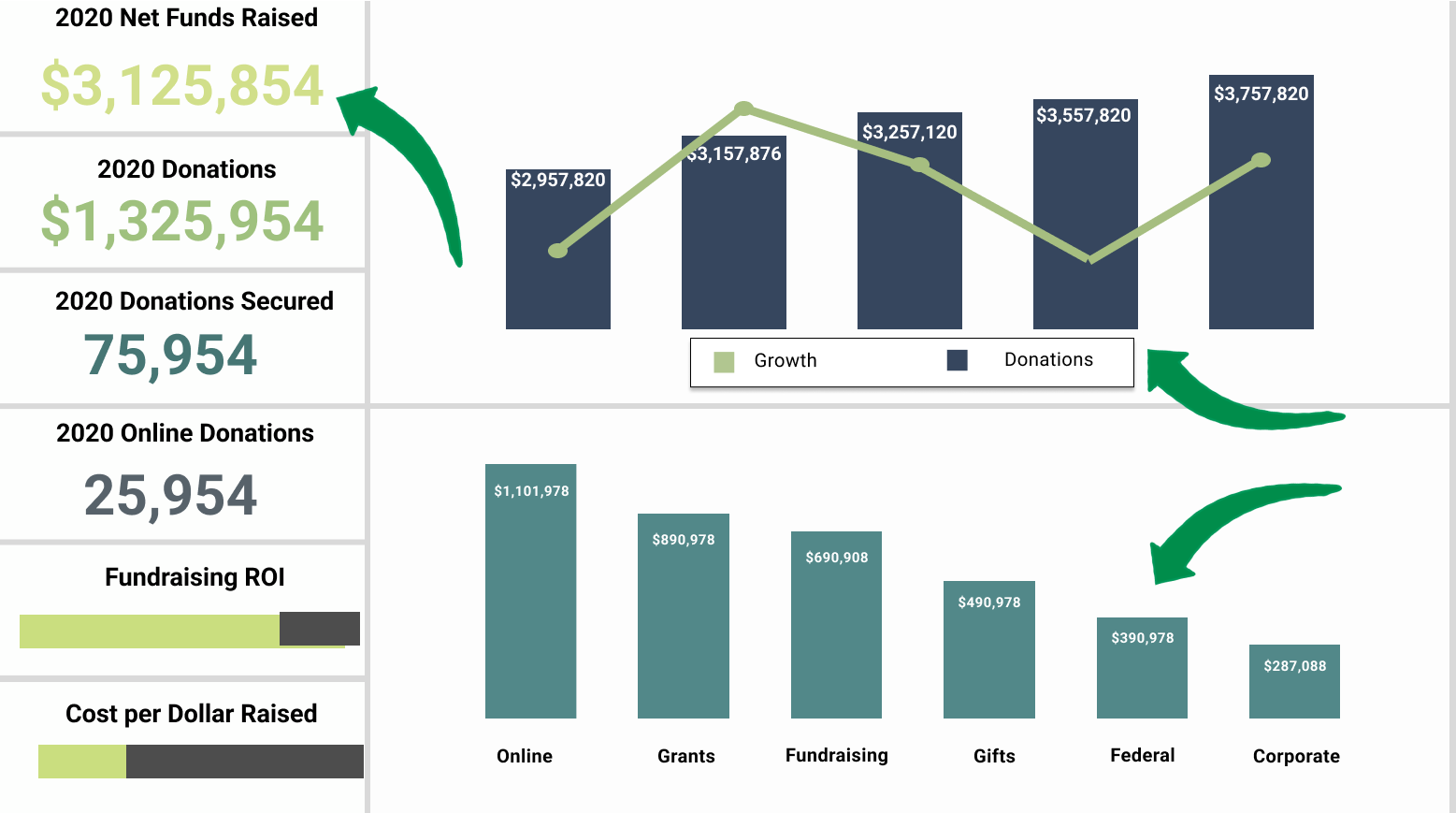

Indicator: single values of importance

Bar chart: specific values across different categories

Dashboard Design Concepts

Strategic dashboard graphical components



graphical components



Indicator: single values of importance

Bar chart: specific values across different categories

Combo chart: two charts combined for a quick comparison

Dashboard Design Concepts

Strategic dashboard graphical components



graphical components



Indicator: single values of importance

Bar chart: specific values across different categories

Combo chart: two charts combined for a quick comparison

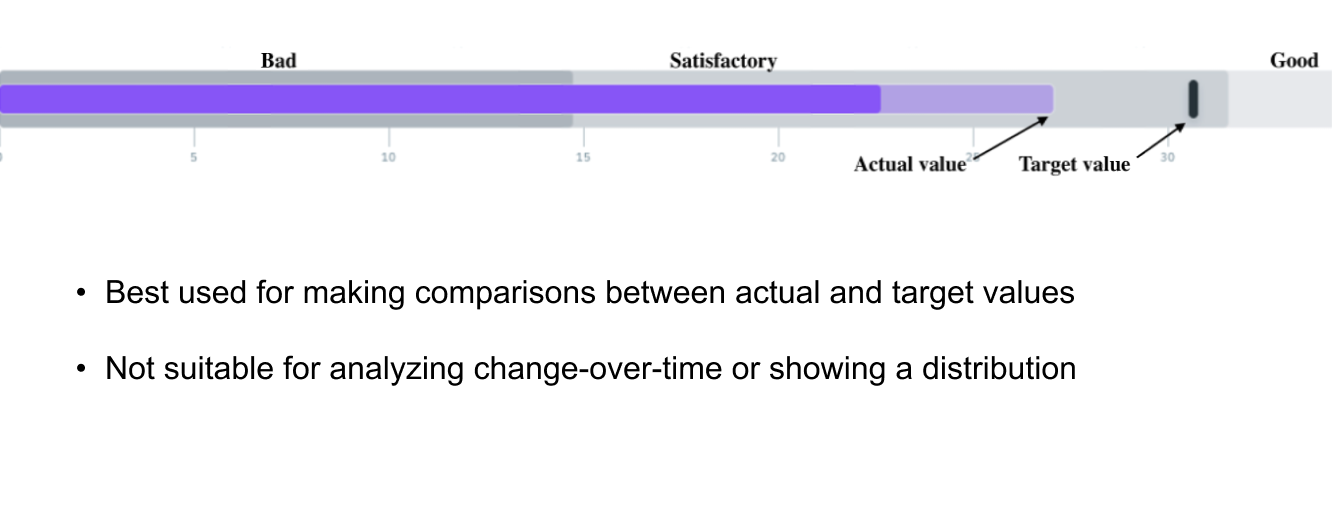

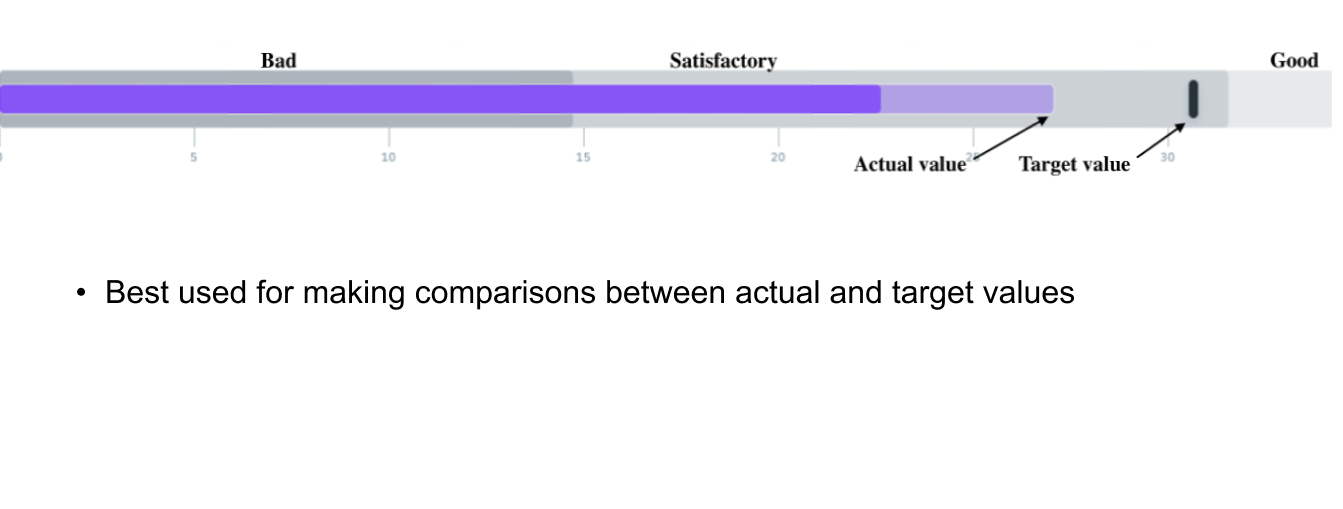

Bullet chart: performance against a target

Dashboard Design Concepts

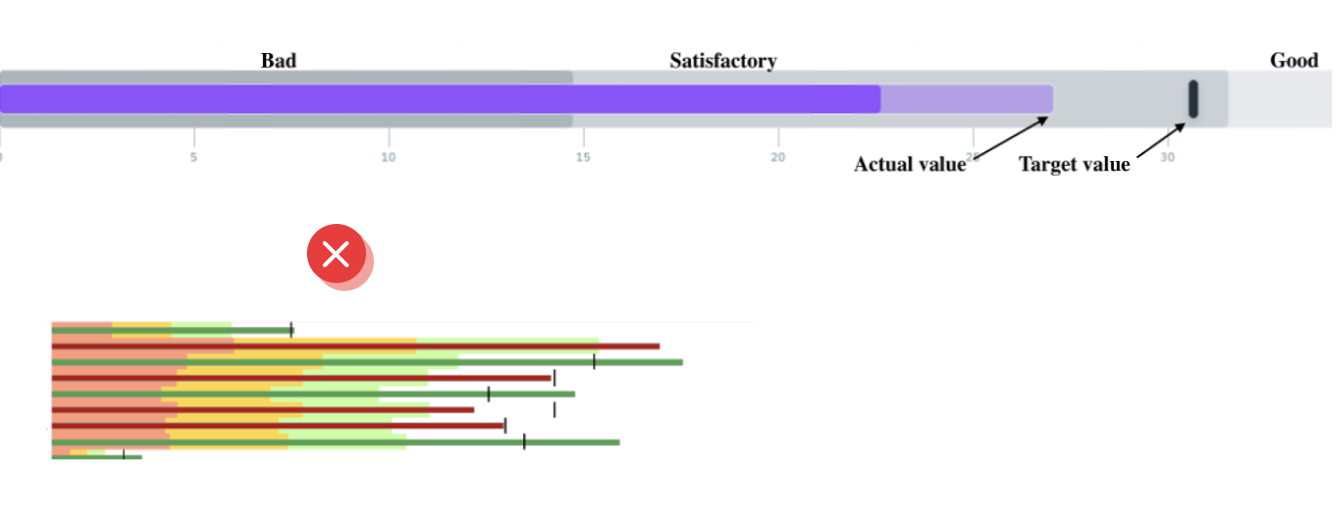

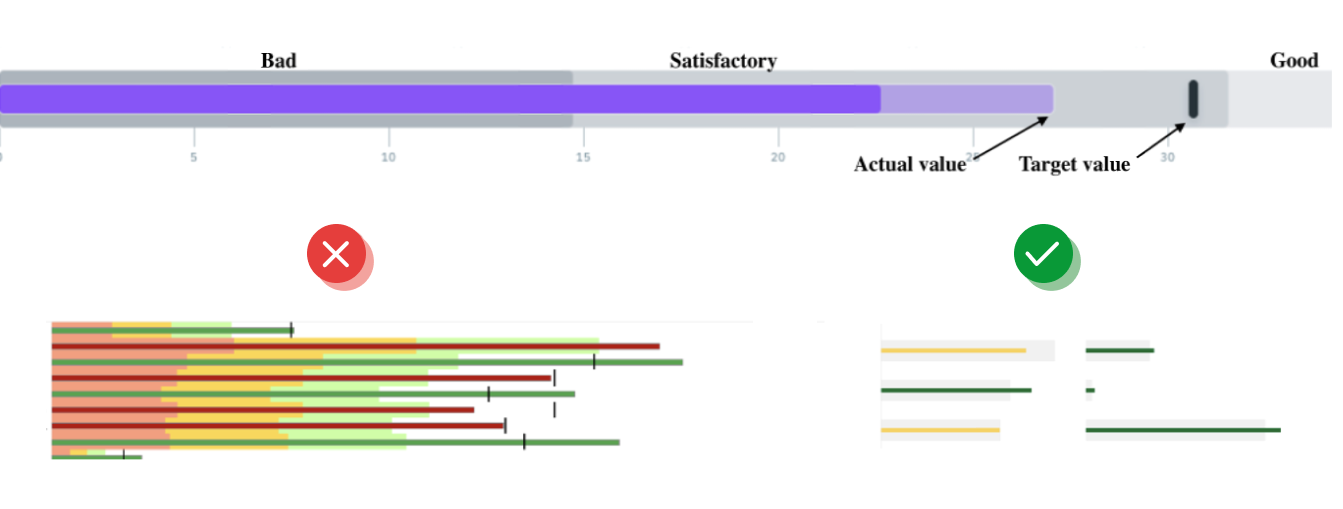

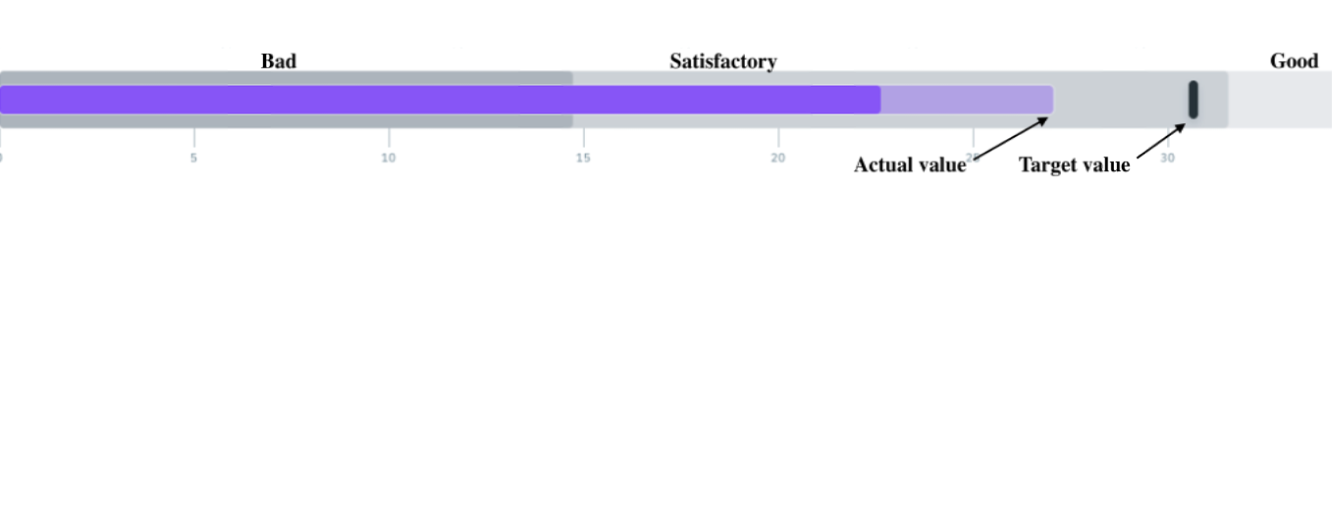

A special word about bullet graphs

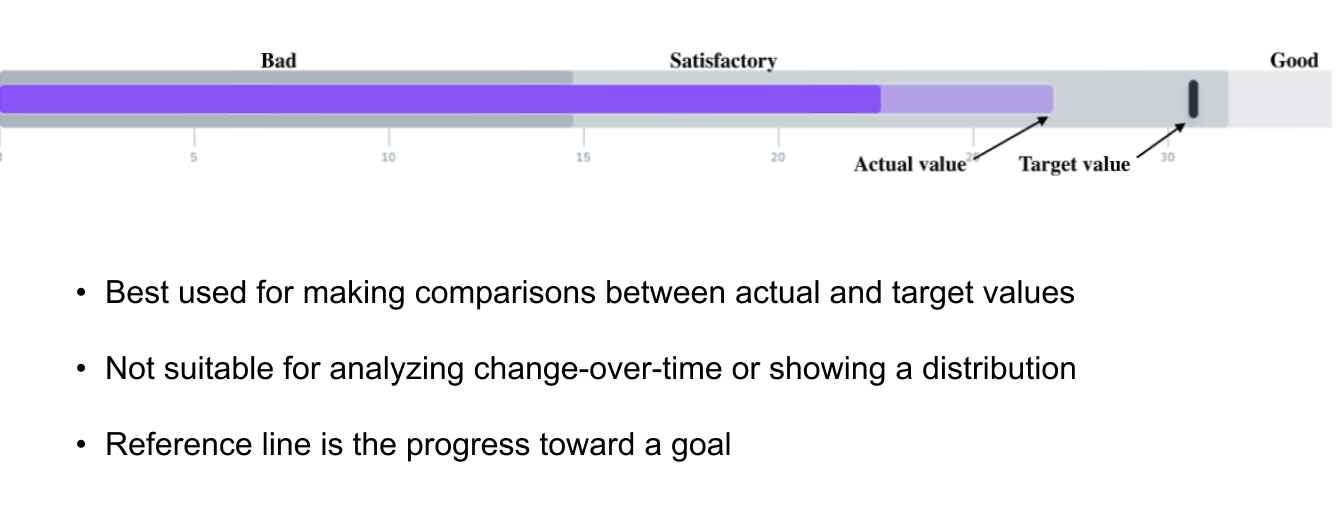

Bullet Graph

1 Allio, Michael. (2012). Strategic dashboards.
Dashboard Design Concepts

A special word about bullet graphs

Bullet Graph

1 Allio, Michael. (2012). Strategic dashboards.
Dashboard Design Concepts

A special word about bullet graphs

Bullet Graph

1 Allio, Michael. (2012). Strategic dashboards.
Dashboard Design Concepts

A special word about bullet graphs

Bullet Graph

1 Allio, Michael. (2012). Strategic dashboards.
Dashboard Design Concepts

A special word about bullet graphs

Bullet Graph

1 Allio, Michael. (2012). Strategic dashboards.
Dashboard Design Concepts

A special word about bullet graphs

Bullet Graph

1 Allio, Michael. (2012). Strategic dashboards.
Dashboard Design Concepts

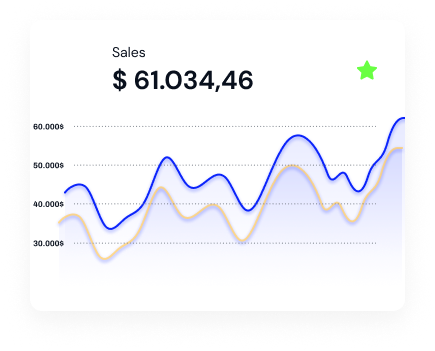

A special word about period over period graph

KPI indicator multi-value card

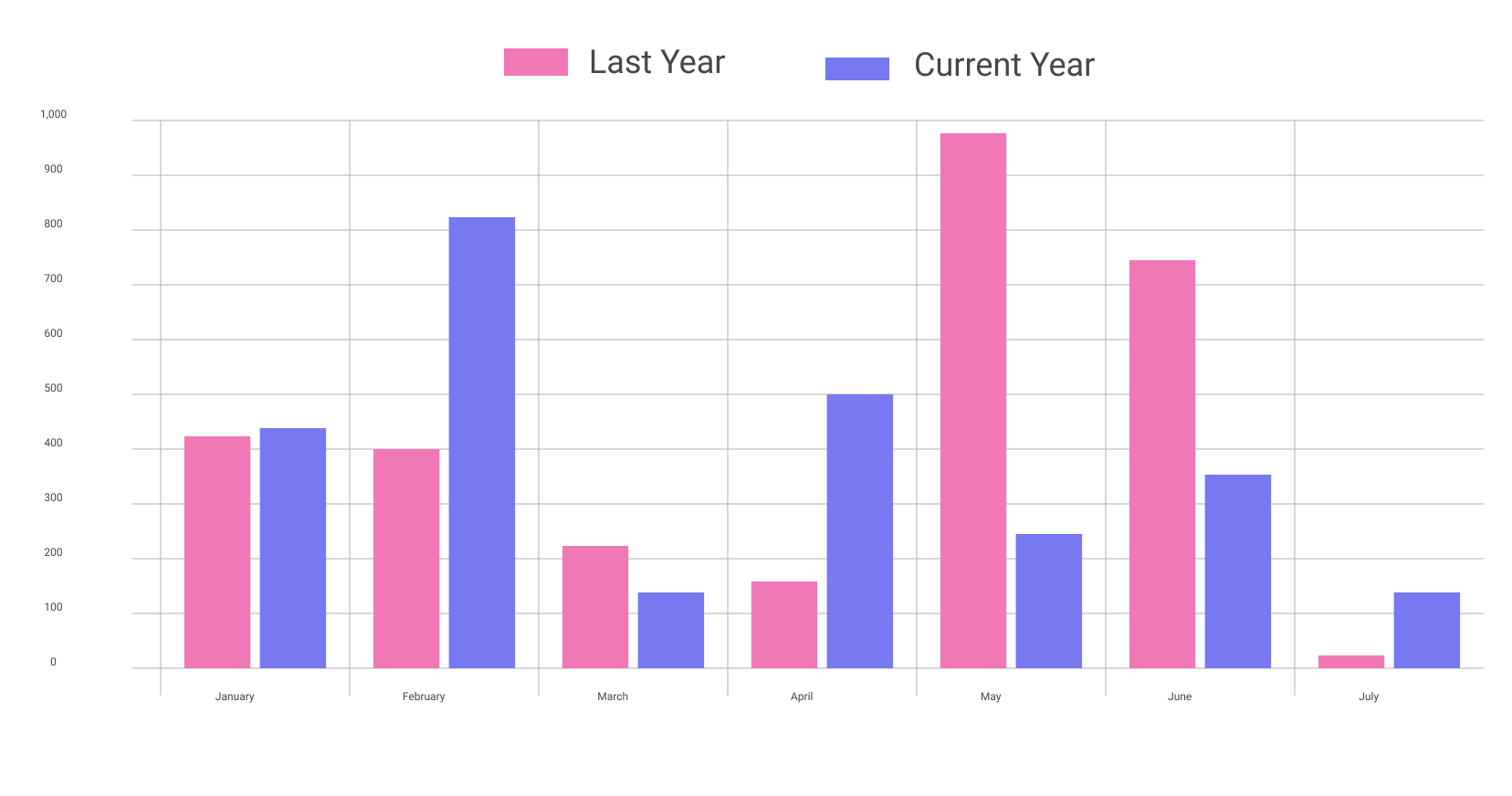

Column chart Column Chart

Line chart YOY Line Example

Dashboard Design Concepts

More about indicators and gauge charts

Indicator - One Value

Indicator - Two Values

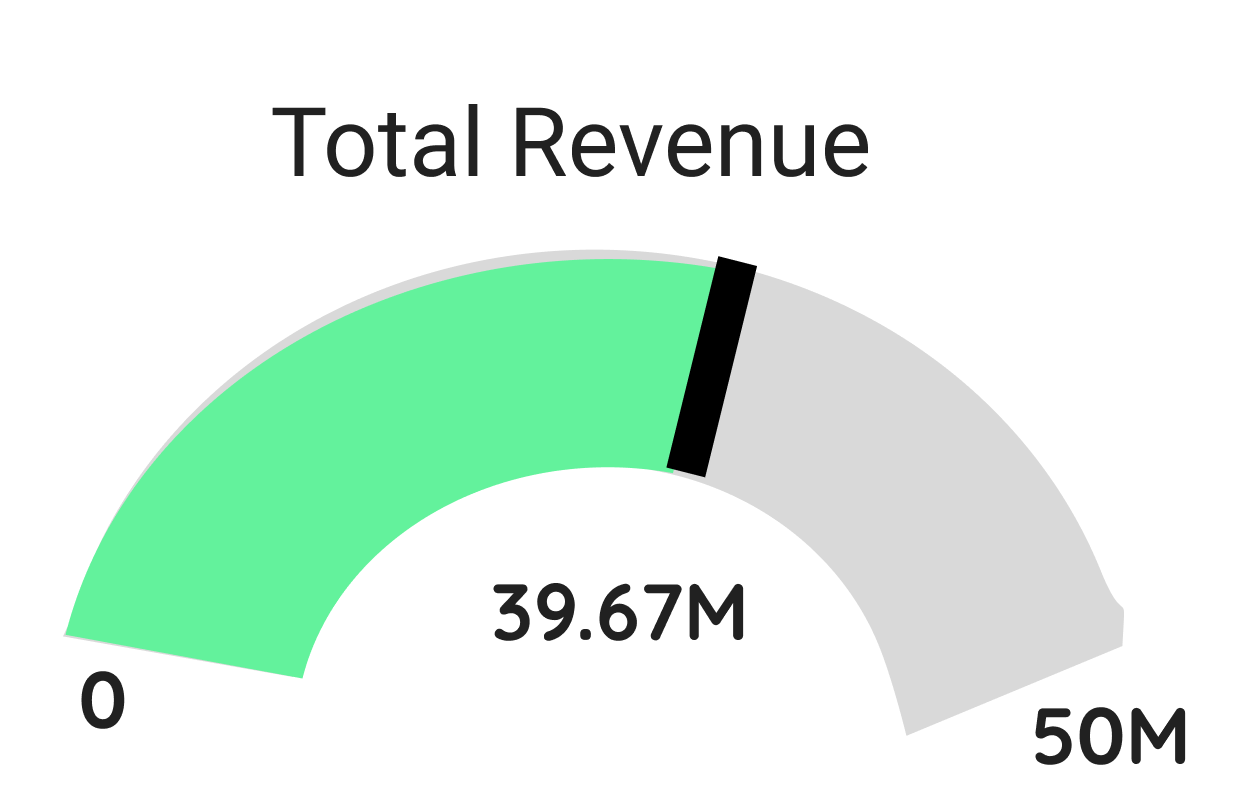

Gauge - Green

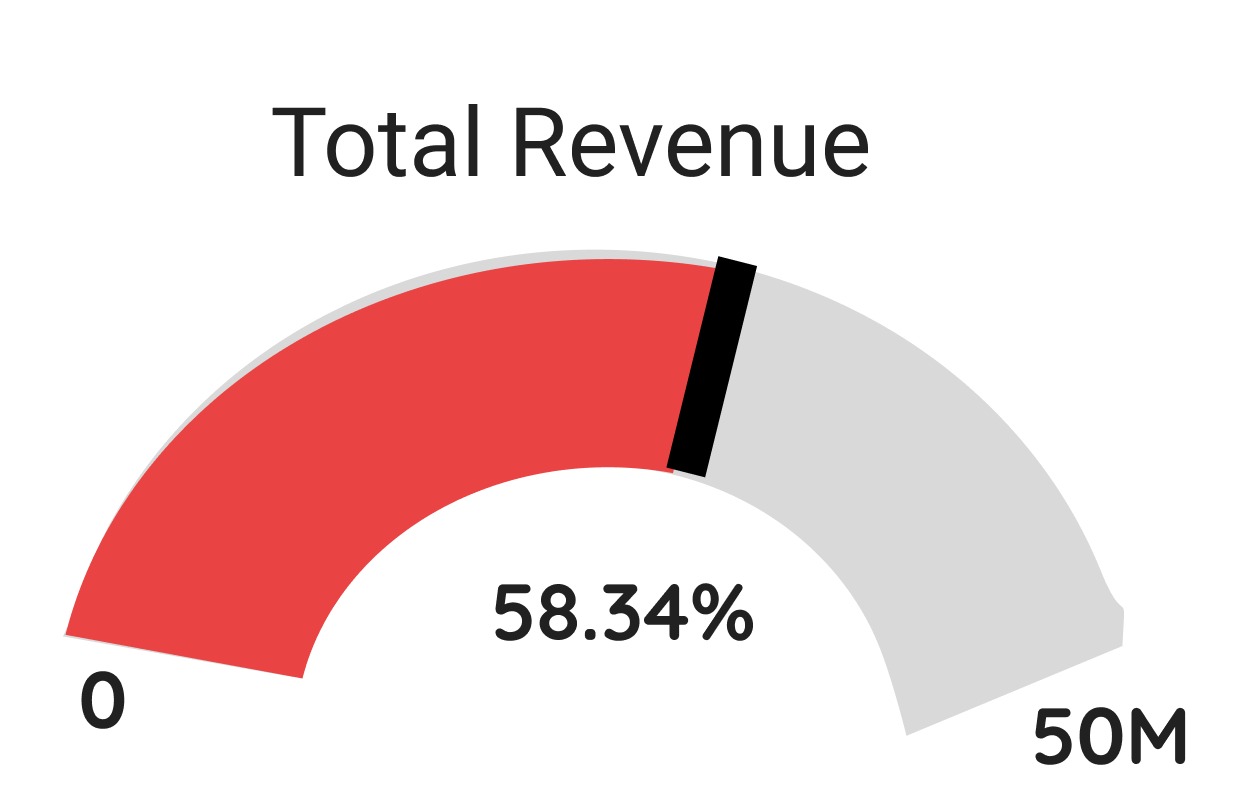

Gauge - Red

Dashboard Design Concepts

Let's practice!

Dashboard Design Concepts
