Running repository code

CI/CD for Machine Learning

Ravi Bhadauria

Machine Learning Engineer

Shared repository model

Multiple collaborators work on same repository
Feature/Topic branches are created for related work
- Pull requests are opened
- Code is reviewed and changes are suggested
- Branch code is merged into main branch
CI/CD enabled checks improve code quality

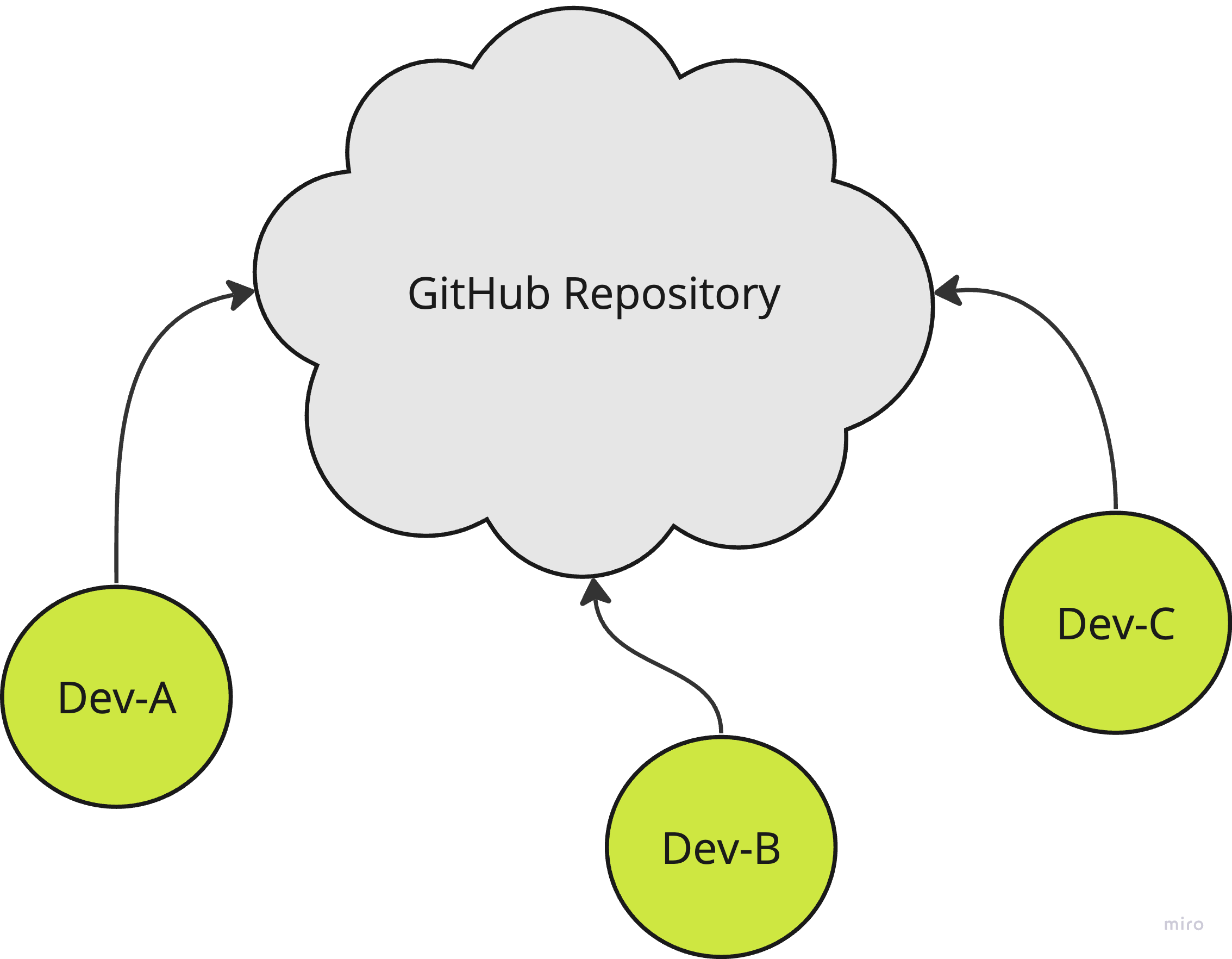

Image of the shared repository model where multiple developers are contributing to a single repository

Create a feature branch

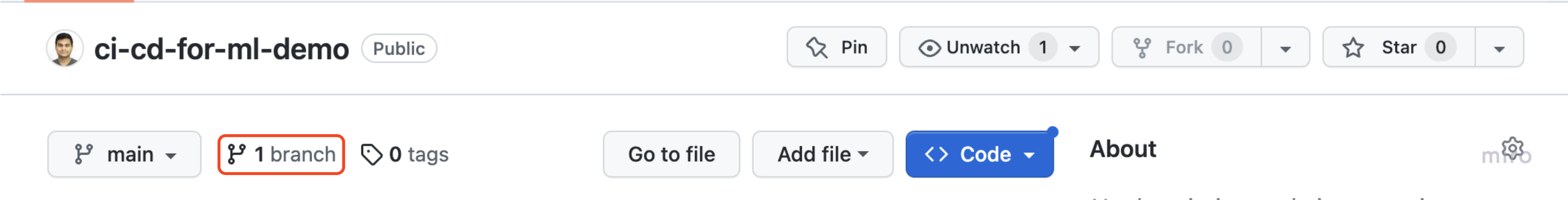

Image of the landing page highlighting the branch tab

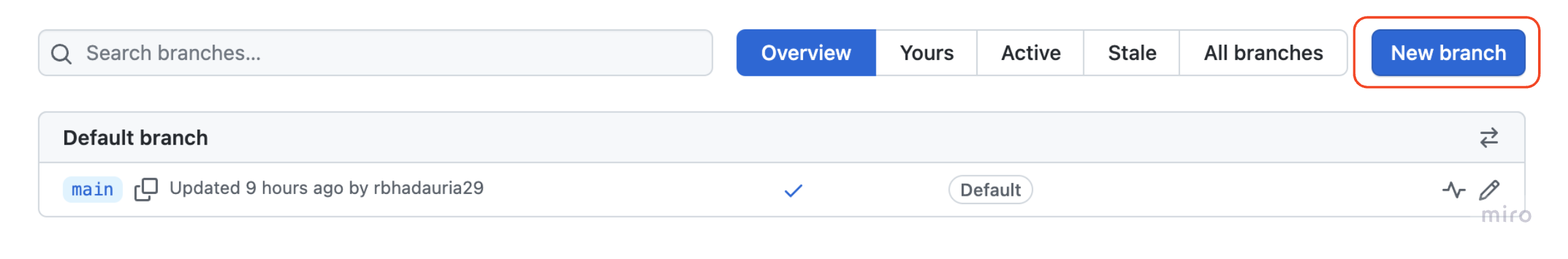

Image of the branch page highlighting the new branch tab

Create a feature branch

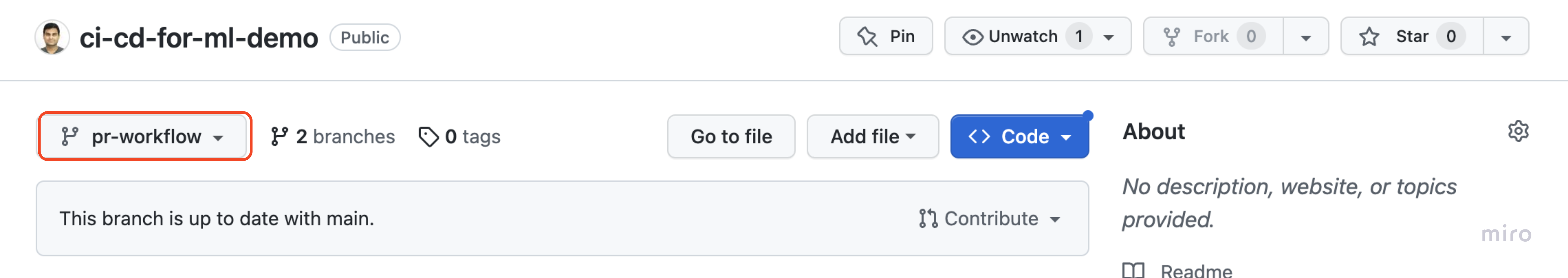

Image of the repository landing page displaying active feature branch

Add repository code

Save as hello_world.py in the branch

import datetime

def main():
    print("Hello, World!")

    # Get the current time and print it
    current_time = datetime.datetime.now()
    print("Current time:", current_time)

if __name__ == "__main__":
    main()

Configure workflow event

Specify target branch for pull request event

on:
  pull_request:
    branches: [ "main" ]

Actions syntax

steps:
  - name: My Action
    uses: <org_or_user_name>/<reponame>@<version_number>
    with:
      action-argument: value

Action repository https://github.com/<org_or_user_name>/<reponame>
- E.g. https://github.com/actions/checkout
Arguments can be provided using with key
GitHub marketplace actions at https://github.com/actions

Configure workflow steps and actions

Checking out repository in job step

steps:
  - name: Checkout
    uses: actions/checkout@v3

Setting up python environment

steps:
  - name: Setup Python
    uses: actions/setup-python@v4
    with:
      python-version: 3.9

Putting it together

Workflow triggers on pull request to main
build job contains three steps
- Checkout checks out the repository
- Setup Python sets up the Python environment
- Run Python script runs the Python file

name: PR

on:
  pull_request:
    branches: [ "main" ]

jobs:
  build:
    runs-on: ubuntu-latest
    steps:
      - name: Checkout
        uses: actions/checkout@v3
      - name: Setup Python
        uses: actions/setup-python@v4
        with:
          python-version: 3.9
      - name: Run Python script
        run: |
          echo hello_world.py
          python hello_world.py

Create PR and trigger workflow

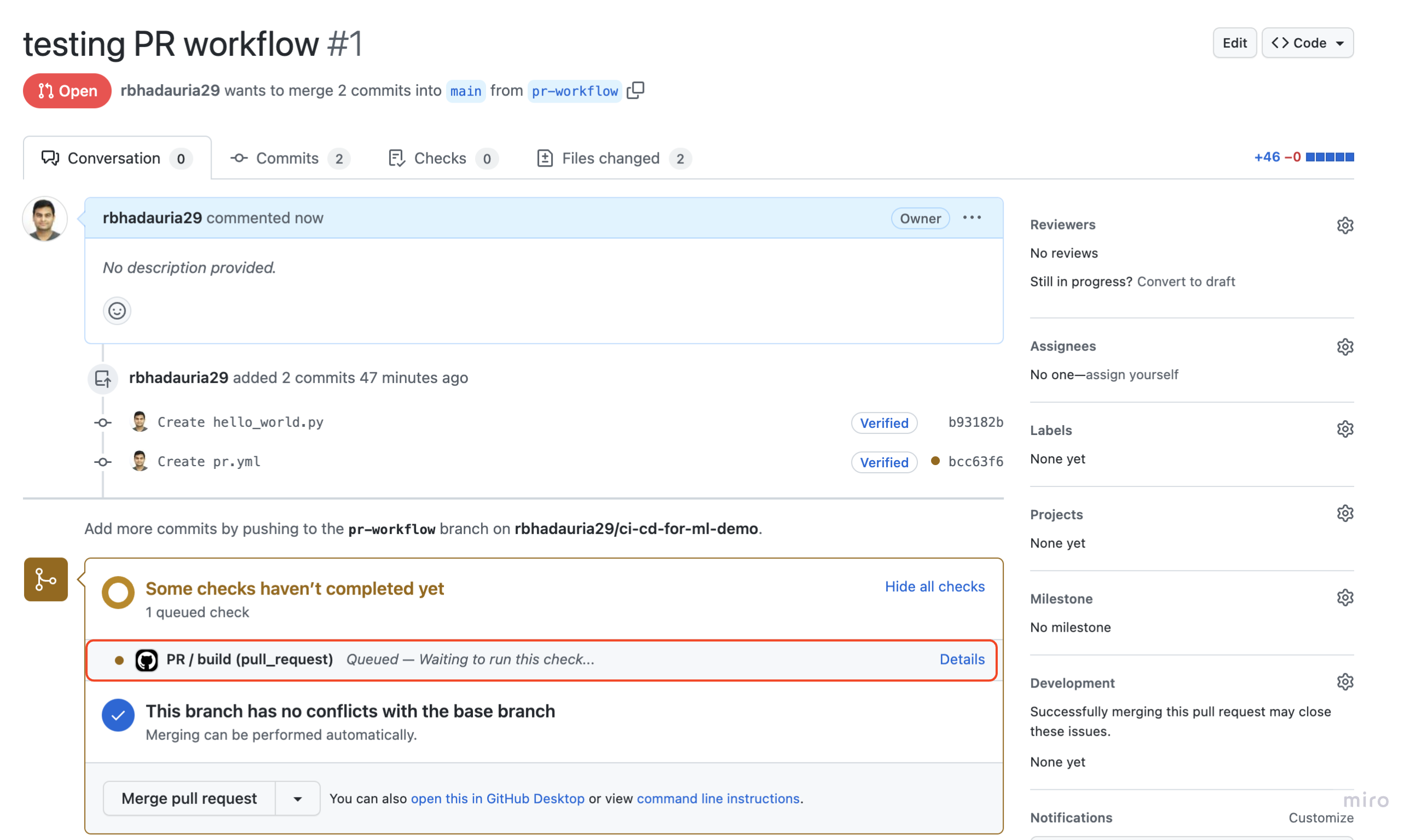

Image of pull request page displaying a running workflow

Inspect workflow logs

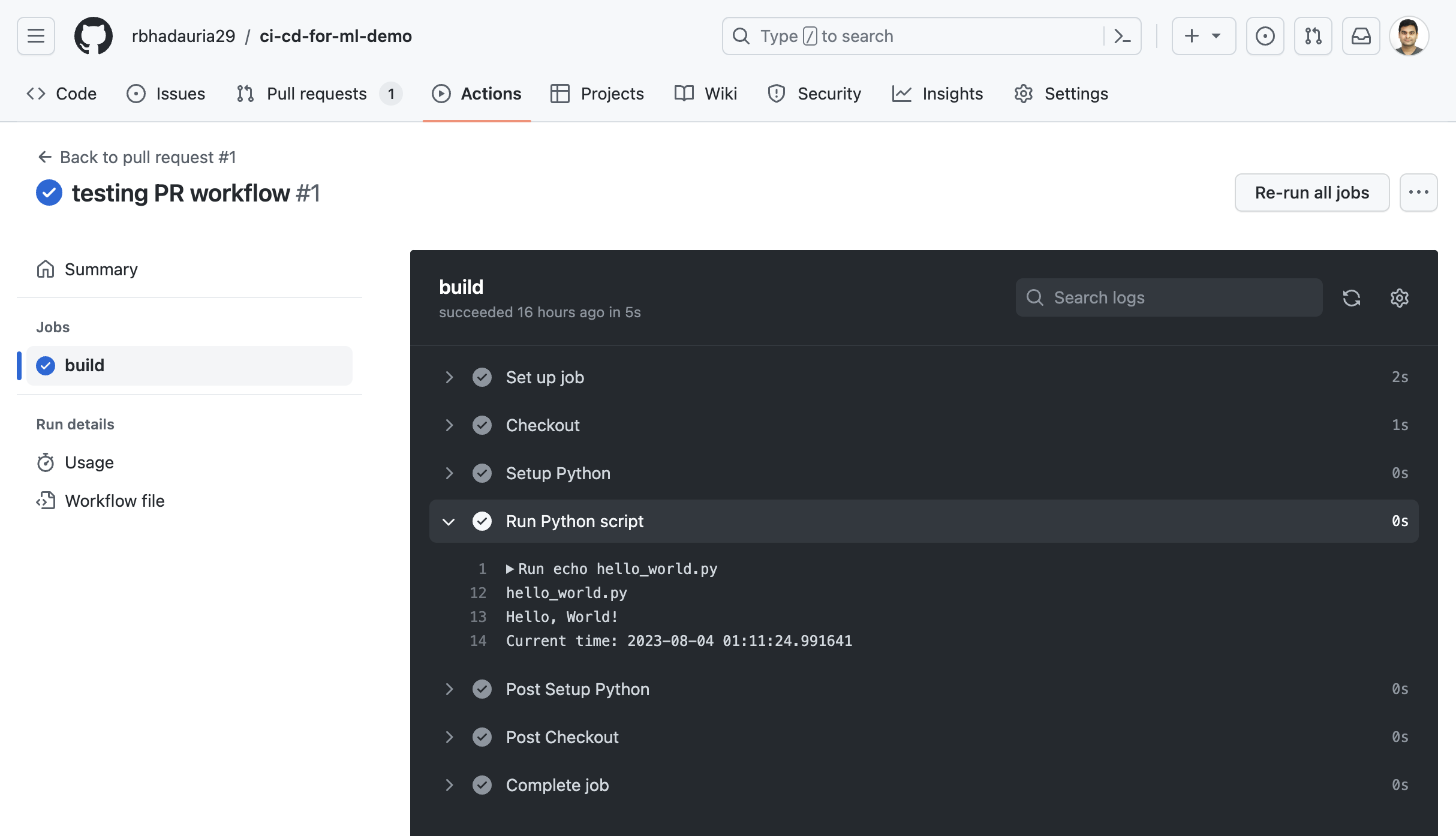

Image of the workflow logs page displaying python script step among other steps

Let's practice!

CI/CD for Machine Learning
