Binary and multi-class image classification

Deep Learning for Images with PyTorch

Michal Oleszak

Machine Learning Engineer

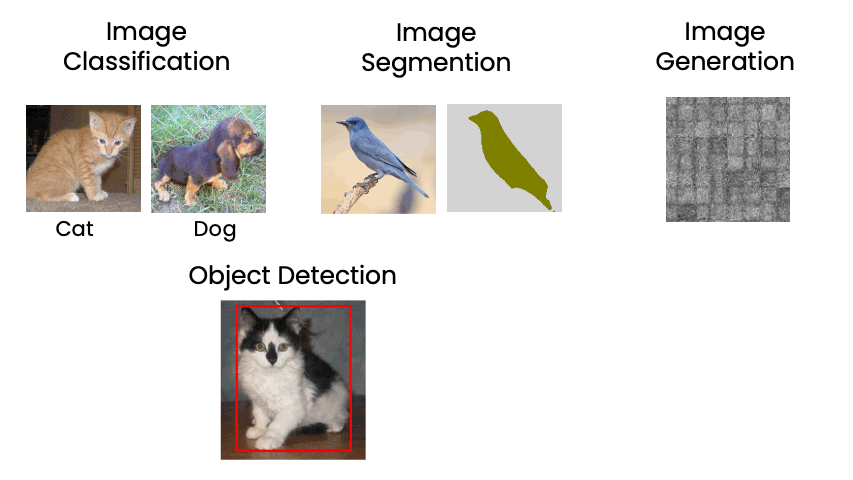

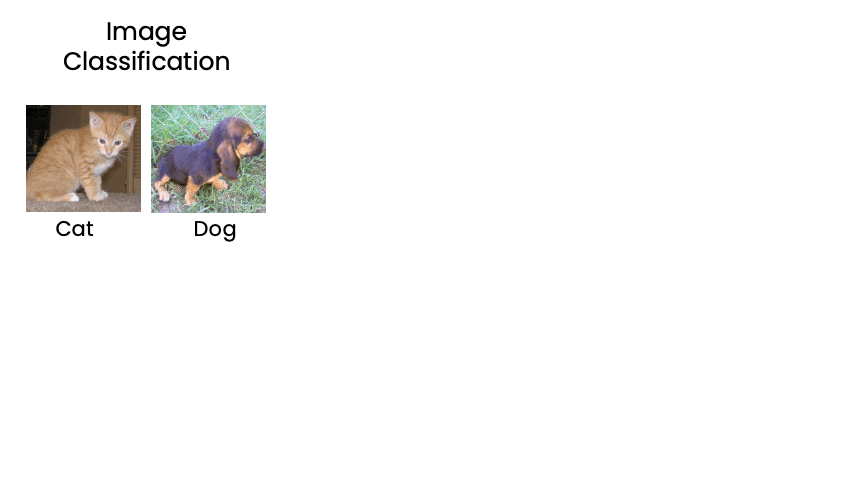

What will we learn with PyTorch?

tasks

What will we learn with PyTorch?

tasks

What will we learn with PyTorch?

tasks

What will we learn with PyTorch?

tasks

Prerequisites

Convolutional Neural Networks
Model training in PyTorch
Prerequisite course: Intermediate Deep Learning with PyTorch

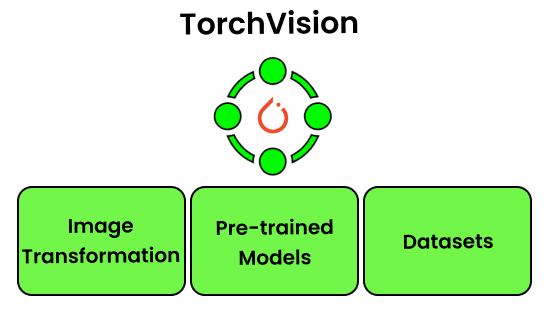

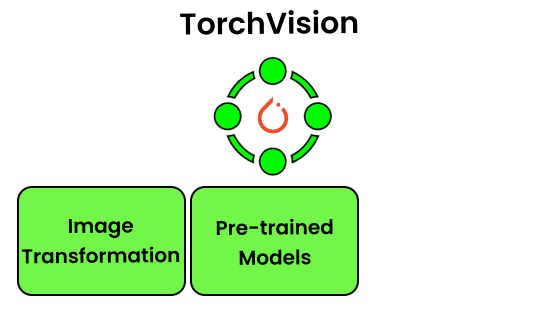

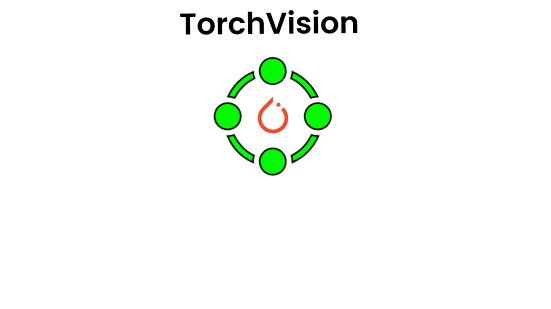

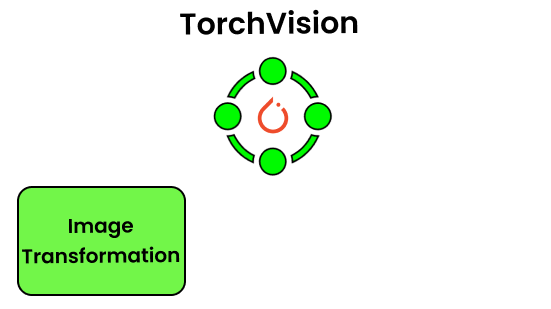

PyTorch library

torchvision

PyTorch library

torchvision

PyTorch library

torchvision

PyTorch library

torchvision

Image classification

Binary classification

binary

Two distinct classes (cats, dogs)
Activation function: Sigmoid

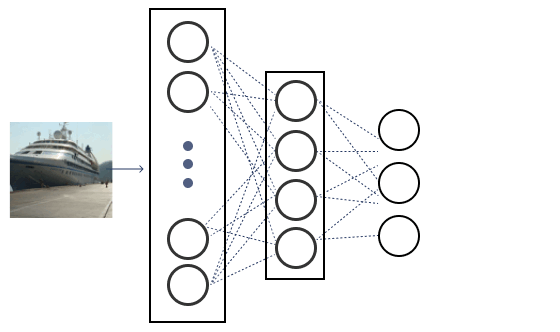

Multi-class classification

multi-class

Multiple classes (boat, train, car)
Activation function: Softmax
Highest probability is the prediction

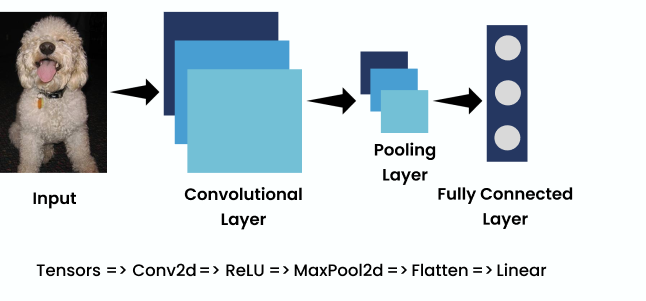

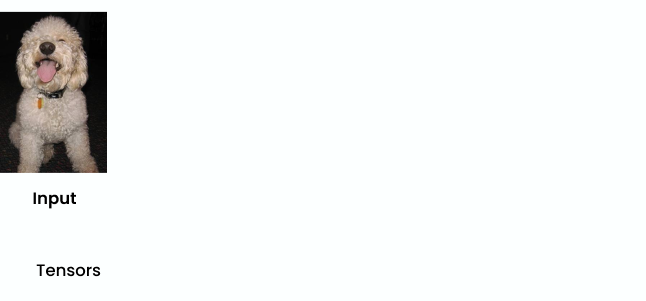

Convolutional Neural Network model

cnn

Convolutional Neural Network model

binary

Convolutional Neural Network model

binary

Convolutional Neural Network model

binary

Convolutional Neural Network model

binary

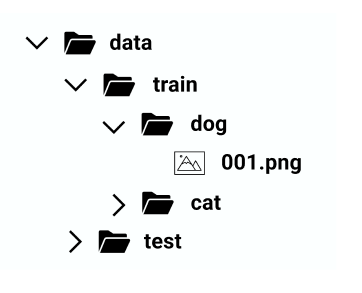

Datasets: class labels

image folders

from torchvision import datasets
import torchvision.transforms as transforms


train_dir = '/data/train'
train_dataset = ImageFolder(root=train_dir,
         transform=transforms.ToTensor())

classes = train_dataset.classes
print(classes)

['cat', 'dog']

print(train_dataset.class_to_idx)

{'cat': 0, 'dog': 1}

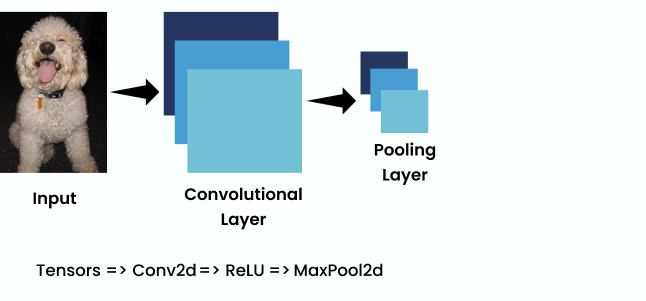

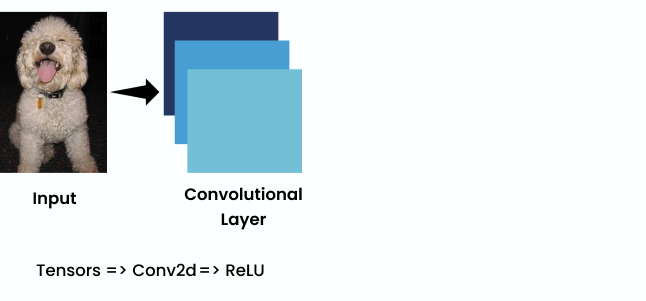

Binary image classification: convolutional layer

Conv2d():
- Input: 3 RGB channels (red, green, blue)
- Output: 16 channels
- Kernel: 3 x 3 matrix
- Stride = 1: the kernel moves 1 step
- Padding = 1: 1 pixel around the border
ReLU():
- A non-linear activation function
MaxPool2d():
- Kernel: 2x2
- Stride: 2 steps

class BinaryCNN(nn.Module):
    def __init__(self):
        super(BinaryCNN, self).__init__()

        self.conv1 = nn.Conv2d(3, 16,
                kernel_size=3, stride=1, padding=1)

        self.relu = nn.ReLU()

        self.pool = nn.MaxPool2d(kernel_size=2,
                     stride=2)




   def forward(self, x):



        return x

Binary image classification: fully connected layer

Flatten():
- Tensors flattened into 1-D vector
Linear():
- Input: feature maps x height x width
- Output: a single class
Sigmoid():
- [0,1]

class BinaryCNN(nn.Module):
    def __init__(self):
        super(BinaryCNN, self).__init__()
        self.conv1 = nn.Conv2d(3, 16,
                kernel_size=3, stride=1, padding=1)
        self.relu = nn.ReLU()
        self.pool = nn.MaxPool2d(kernel_size=2,
                     stride=2)

        self.flatten = nn.Flatten()

        self.fc1 = nn.Linear(16 * 112 * 112, 1)

        self.sigmoid = nn.Sigmoid()

   def forward(self, x):

        x = self.pool(self.relu(self.conv1(x)))
        x = self.fc1(self.flatten(x))
        x = self.sigmoid(x)]

        return x

Multi-class image classification with CNN

class MultiClassCNN(nn.Module):
    def __init__(self, num_classes):
        super(MultiClassCNN, self).__init__()
        ...

        self.fc = nn.Linear(16 * 112 * 112, num_classes)

        self.softmax = nn.Softmax(dim=1)

    def forward(self, x):
        ...

        x = self.softmax(x)

        return x

Let's practice!

Deep Learning for Images with PyTorch
