Pipeline architecture

Designing Forecasting Pipelines for Production

Rami Krispin

Senior Manager, Data Science and Engineering

Model deployment

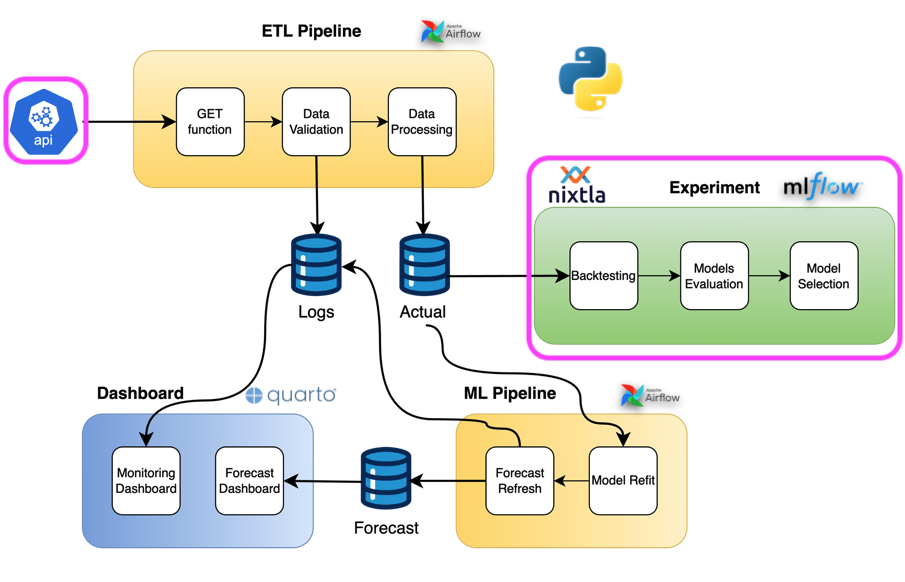

Experimentation Process

Designing Forecasting Pipelines for Production

Model deployment

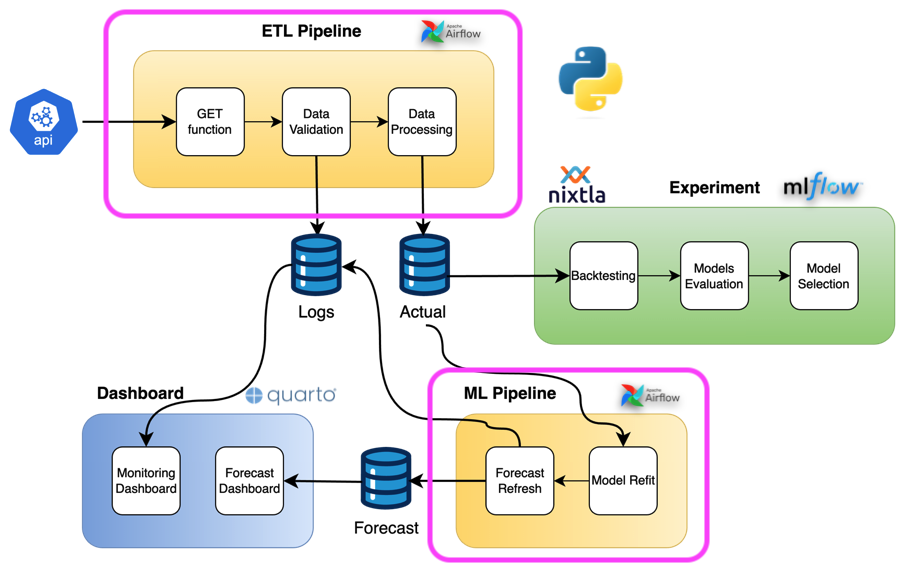

ETL and ML Pipelines

Designing Forecasting Pipelines for Production

Pipelines requirements

Data ingestion

  • Refresh frequency - daily

Forecast refresh

  • Refresh frequency - daily
  • Forecast horizon - 72 hours

Robust

  • Unit testing and validation steps
  • Logs
  • Easy to maintain
Designing Forecasting Pipelines for Production

Pipeline design

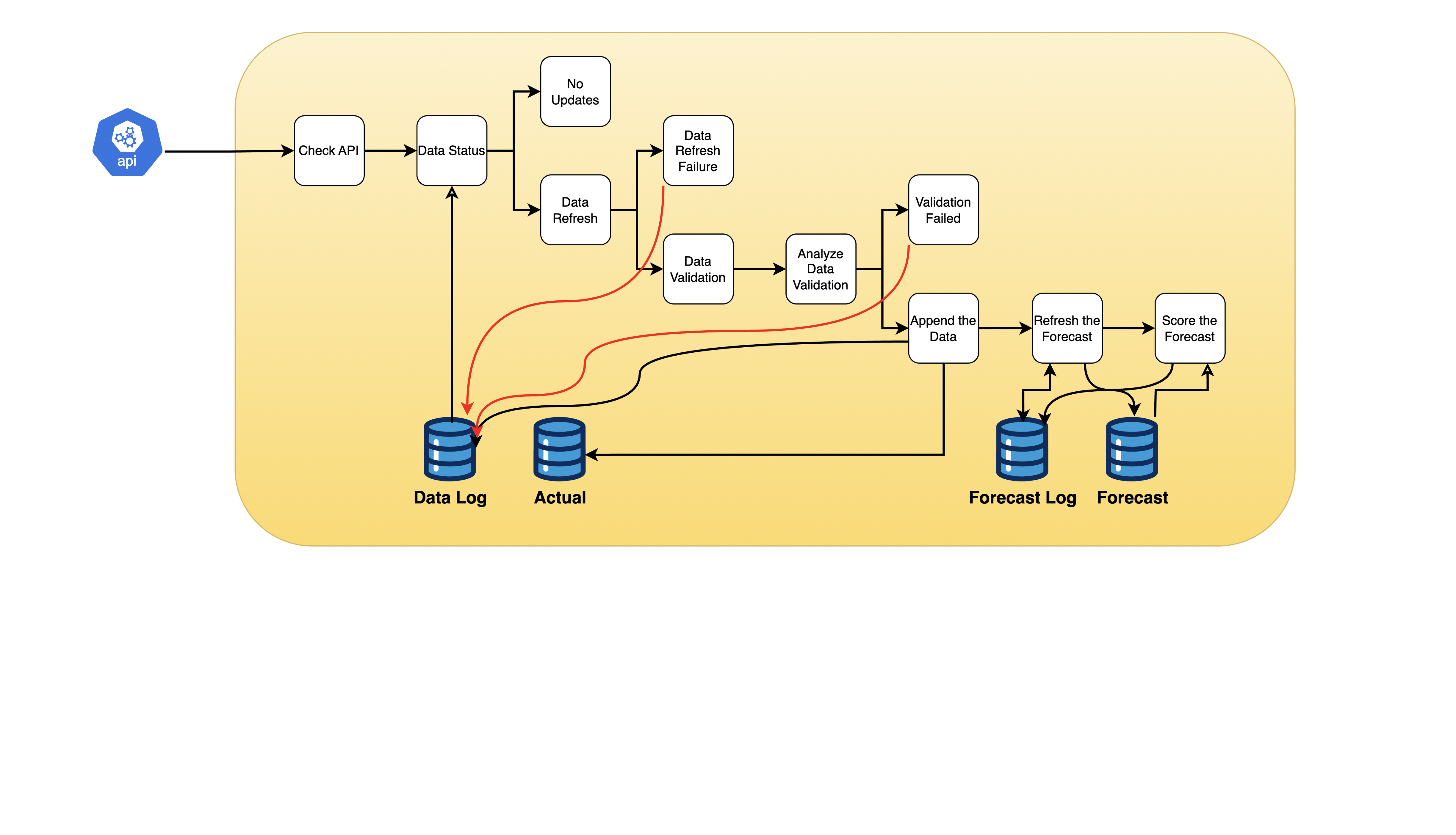

Pipeline requirements, including API requests, data transformation, forecast refresh, and logging

Designing Forecasting Pipelines for Production

Pipeline design

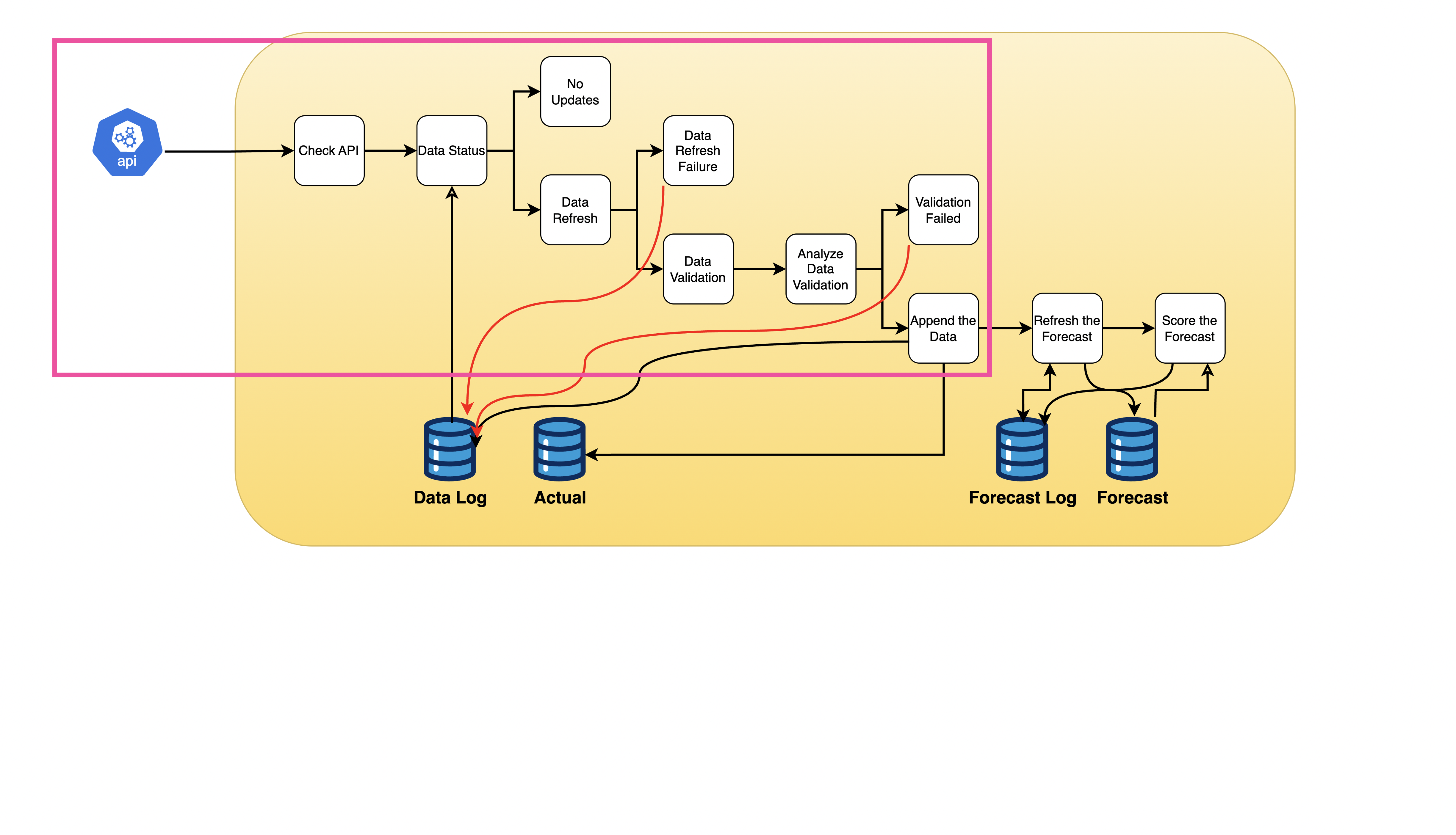

Data ingestion process

Designing Forecasting Pipelines for Production

Pipeline design

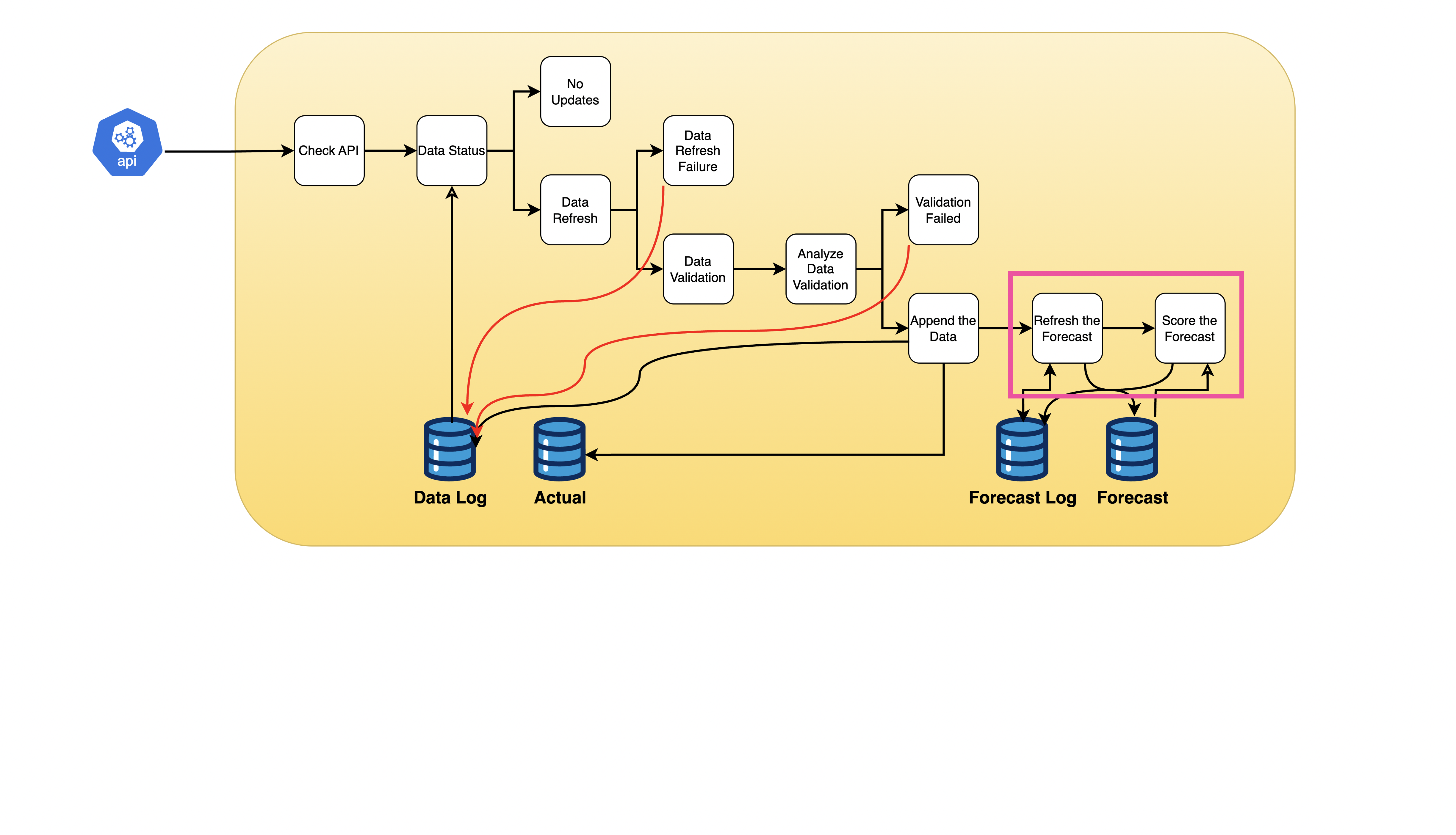

Forecasting automation

Designing Forecasting Pipelines for Production

Pipeline design

Data storage

Designing Forecasting Pipelines for Production

Pipeline design

Logging

Designing Forecasting Pipelines for Production

Pipeline design

Tools used in pipeline - Airflow, mlflow, nixtla

Designing Forecasting Pipelines for Production

Model registry

Approaches

  • Register all models
  • Register only the top model

Requirements

  • MLflow flavor
  • Customized function
  • Fitted object
  • Predicted method
Designing Forecasting Pipelines for Production

Model registry

from lightgbm import LGBMRegressor
from mlforecast import MLForecast
import mlflow
import mlforecast.flavor


experiment_name = "ml_forecast"
mlflow_path = "file:///mlruns"


meta = mlflow.get_experiment_by_name(experiment_name)
Designing Forecasting Pipelines for Production

Model registry

model = LGBMRegressor(n_estimators = 500, learning_rate= 0.05)


params = {
  "freq": "h",
  "lags": list(range(1, 24)),
  "date_features": ["month", "day", "dayofweek", "week", "hour"]
}
Designing Forecasting Pipelines for Production

Model registry

mlf = MLForecast(
    models= model,
    freq= params["freq"],
    lags=params["lags"],
    date_features=params["date_features"]
)

mlf.fit(ts)
Designing Forecasting Pipelines for Production

Model registry

run_time = datetime.datetime.now().strftime("%Y-%m-%d %H-%M-%S")
run_name = f"lightGBM6_{run_time}"


print(run_name)

'lightGBM6_2025-05-19 05-12-16'

with mlflow.start_run(experiment_id=meta.experiment_id,
                      run_name=run_name) as run:
  mlforecast.flavor.log_model(model=mlf, artifact_path="prod_model")
Designing Forecasting Pipelines for Production

Model registry

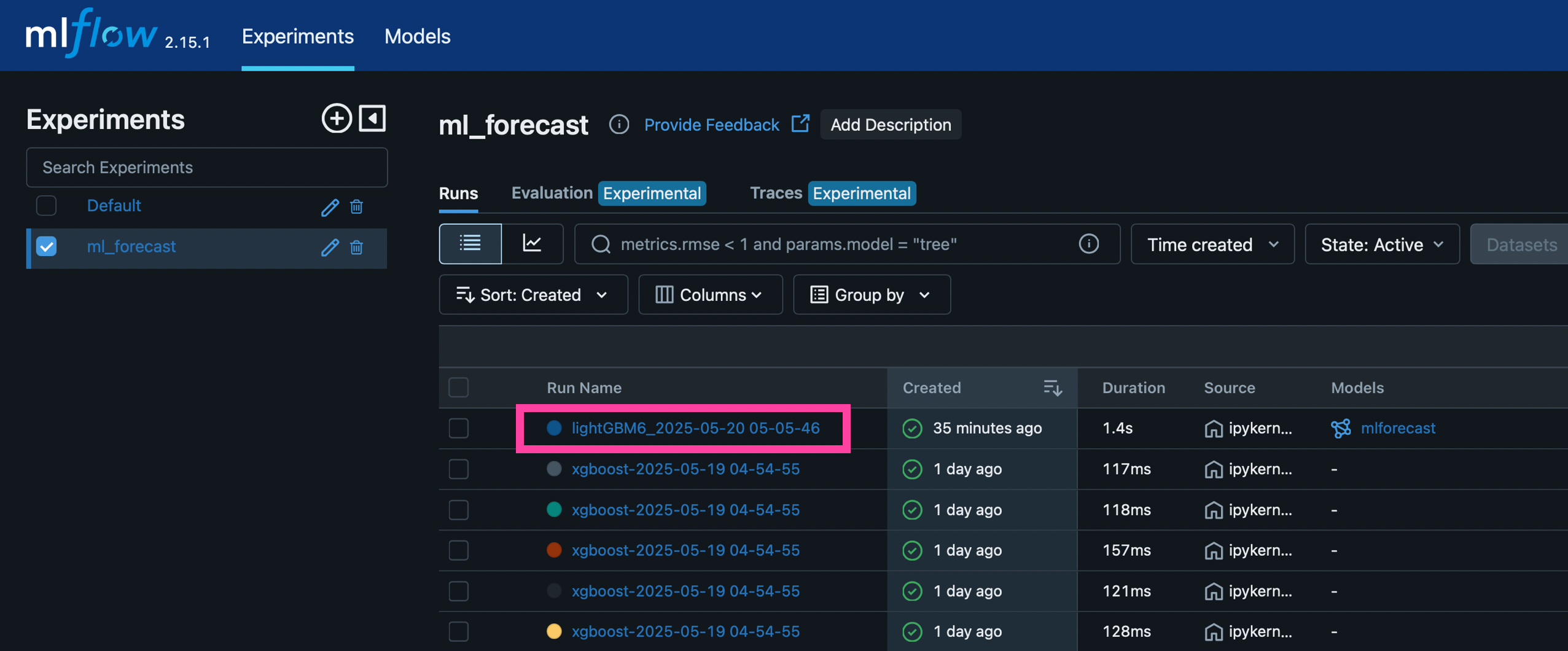

Model registry with run name highlighted

Designing Forecasting Pipelines for Production

Model registry

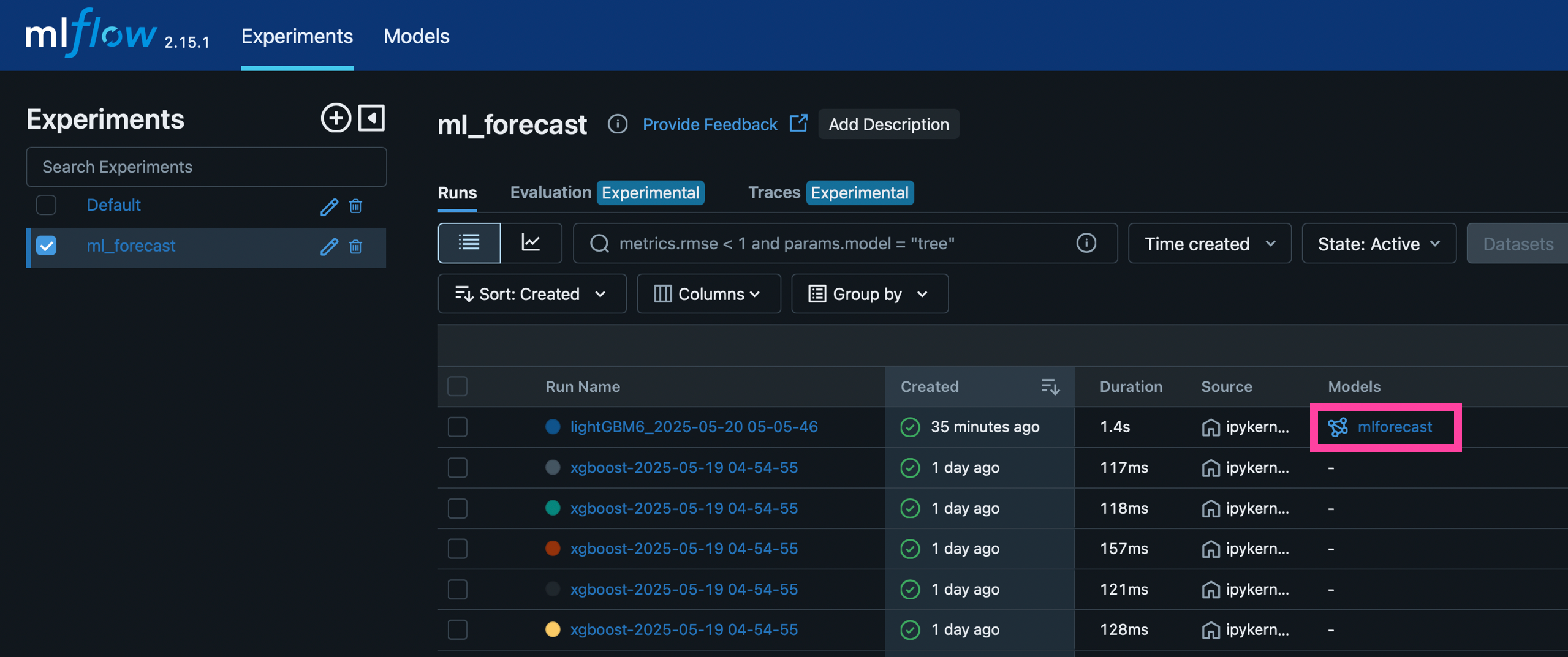

Model registry with model name highlighted

Designing Forecasting Pipelines for Production

Model registry

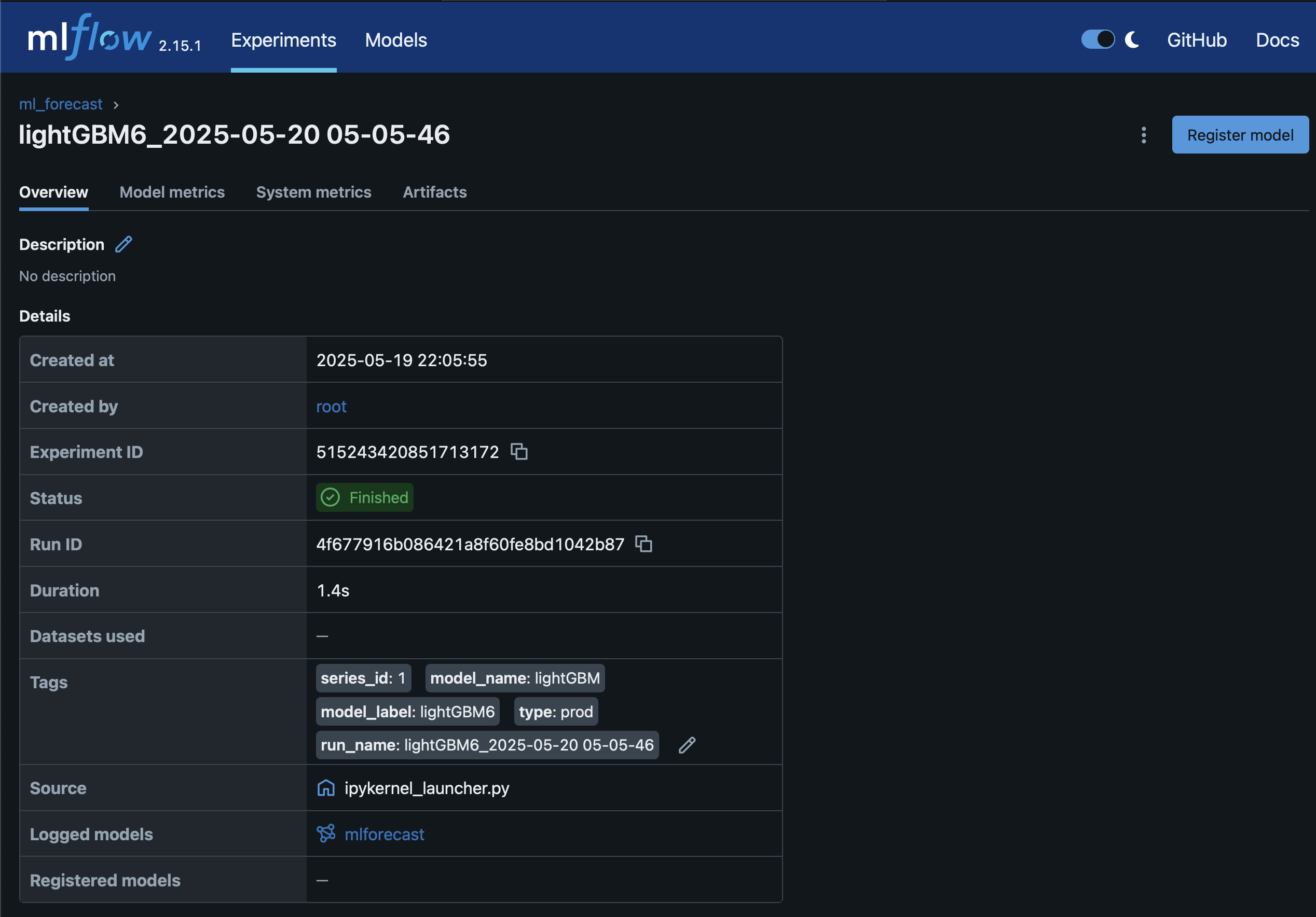

Model registry metadata

Designing Forecasting Pipelines for Production

Let's practice!
