Inside the Redshift warehouse

Introduction to Redshift

Jason Myers

Principal Architect

Agenda

Redshift cluster internals
- Node types
- Leader specific functions
- Redshift cluster storage
Predicates
Redshift spectrum
- Database components
- External tables

Redshift cluster architecture

Leader Node

Provides connections
Builds and distributes query execution plans
Can execute entire queries
Has exclusive functions

Compute Node

Provides data storage
Executes code from the leader node on locally stored data

Redshift Cluster

Leader specific functions

Only run on the leader

-- Selecting the substr, starting at
-- position 11 of 'chocolate chip'
SELECT SUBSTR('chocolate chip', 11);

chip

Default to using SUBSTRING
List of leader specific functions in AWS Redshift documentation

SUBSTR errors on table columns

-- Selecting the substr from position 1
-- of the column named field on table
SELECT SUBSTR(field, 1) FROM table;

ERROR: SUBSTR() function is not
supported (Hint: use SUBSTRING
instead)

Looking at data across nodes

SELECT host,
       -- Calculate the percentage of used space
       -- using the used minus tossed or ready to be reclaimed
       -- divided by the capacity
       (used - tossed) / capacity * 100 as percent_used
  FROM STV_PARTITIONS;

 host |  percent_used
======+==============
  0   |  24.9
  1   |  24.8

Predicates

SELECT table_A.columnX,
       table_B.columnY,
  FROM table_A
       INNER JOIN table_B
          -- predicate
       ON table_B.foreign_key = table_A.primary_key
       -- predicate
 WHERE table_B.columnZ = 'value';

Typically boolean expressions and found in WHERE, HAVING or ON SQL clauses

Predicate push-down

PushDown

Typical internal database components

Database Components

MetaData Catalog

Holds schema info (columns, keys, etc)
References a storage location

Query Engine

Plans and executes queries
Provides connections

Storage

Hold table data
Supports multiple file and table formats

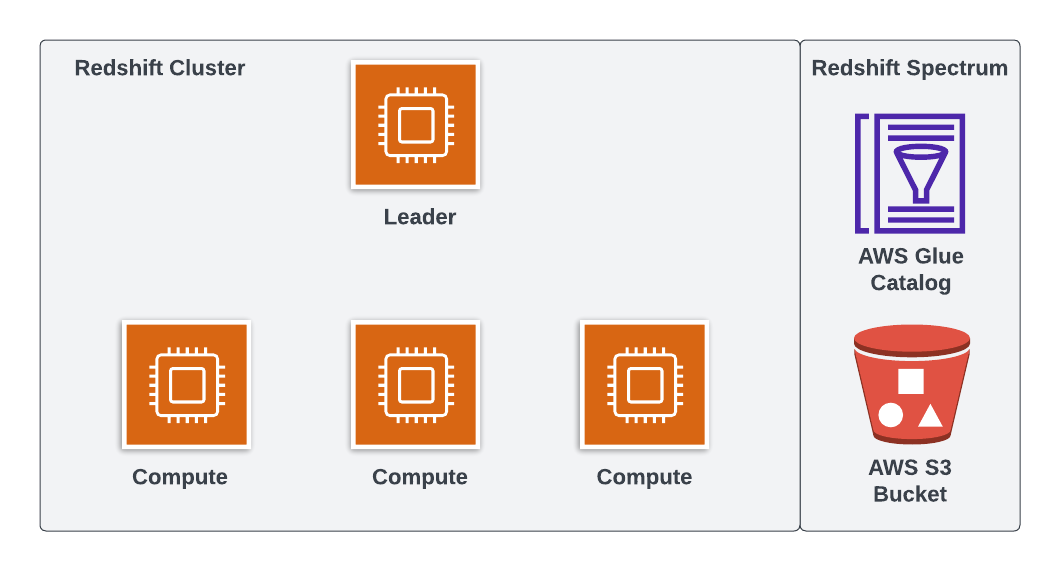

Redshift spectrum architecture

AWS Glue Data Catalog

Stores information about "external" tables

AWS S3 Bucket

Stores the files that represent the table
Supports CSVs, JSON, Text, Parquet, and many more file types

Redshift Spectrum Architecture

Let's practice!

Introduction to Redshift
