Bipartite graphs as matrices

Intermediate Network Analysis in Python

Eric Ma

Data Carpentry instructor and author of nxviz package

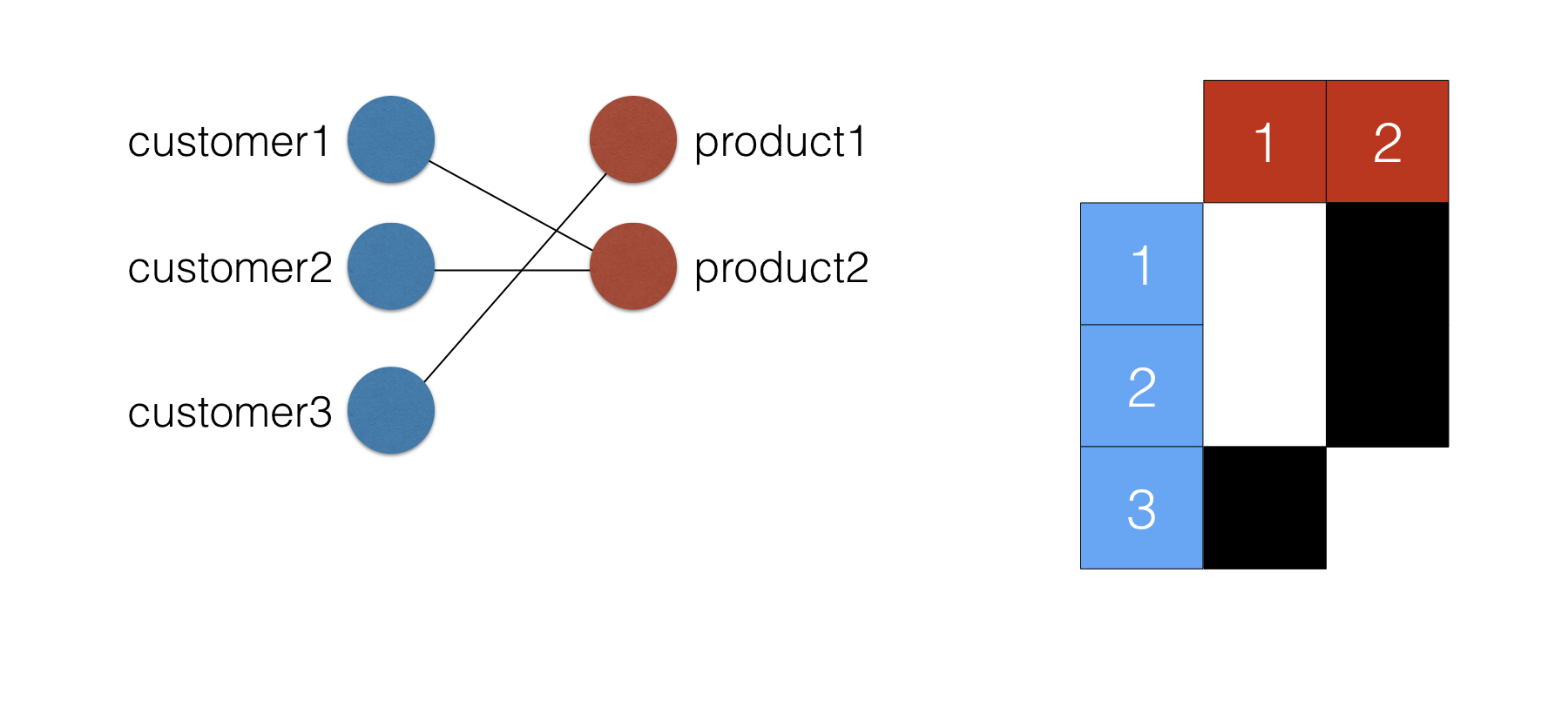

Matrix representation

  • Rows: nodes on one partition
  • Columns: nodes on other partition
  • Cells: 1 if edge present, else 0
Intermediate Network Analysis in Python

Matrix representation


Intermediate Network Analysis in Python

Example code

cust_nodes = [n for n in G.nodes() if G.nodes[n]
                 ['bipartite'] == 'customers']
prod_nodes = [n for n in G.nodes() if G.nodes[n]
                 ['bipartite'] == 'products']

mat = nx.bipartite.biadjacency_matrix(G,
          row_order=cust_nodes, column_order=prod_nodes)

mat

<3x2 sparse matrix of type '<class 'numpy.int64'>'
with 3 stored elements in Compressed Sparse Row format>
Intermediate Network Analysis in Python

Matrix projection

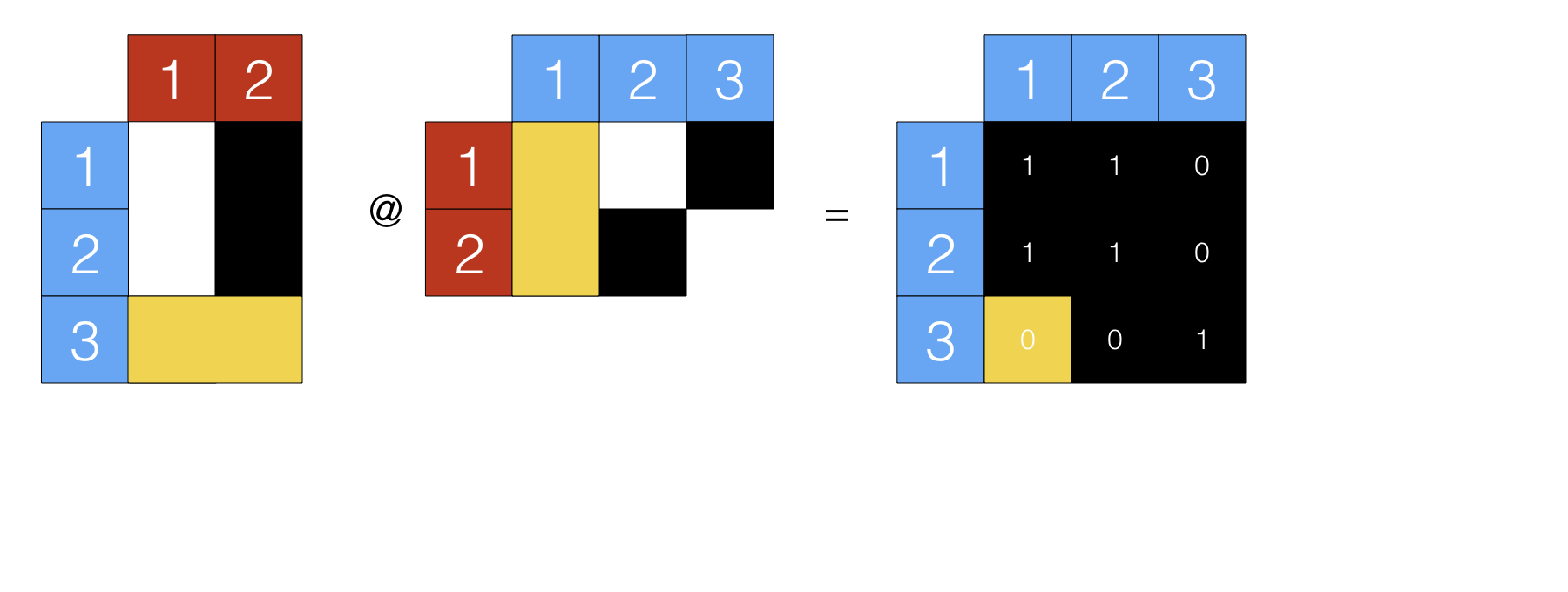

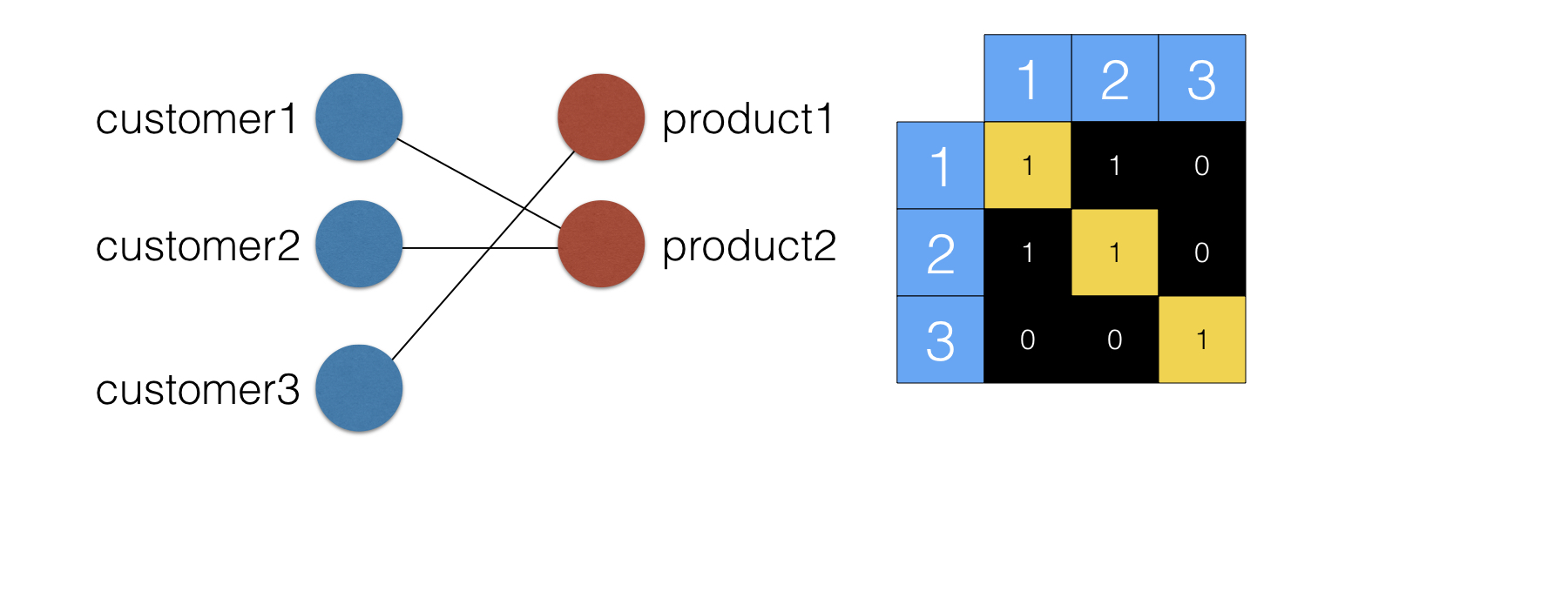

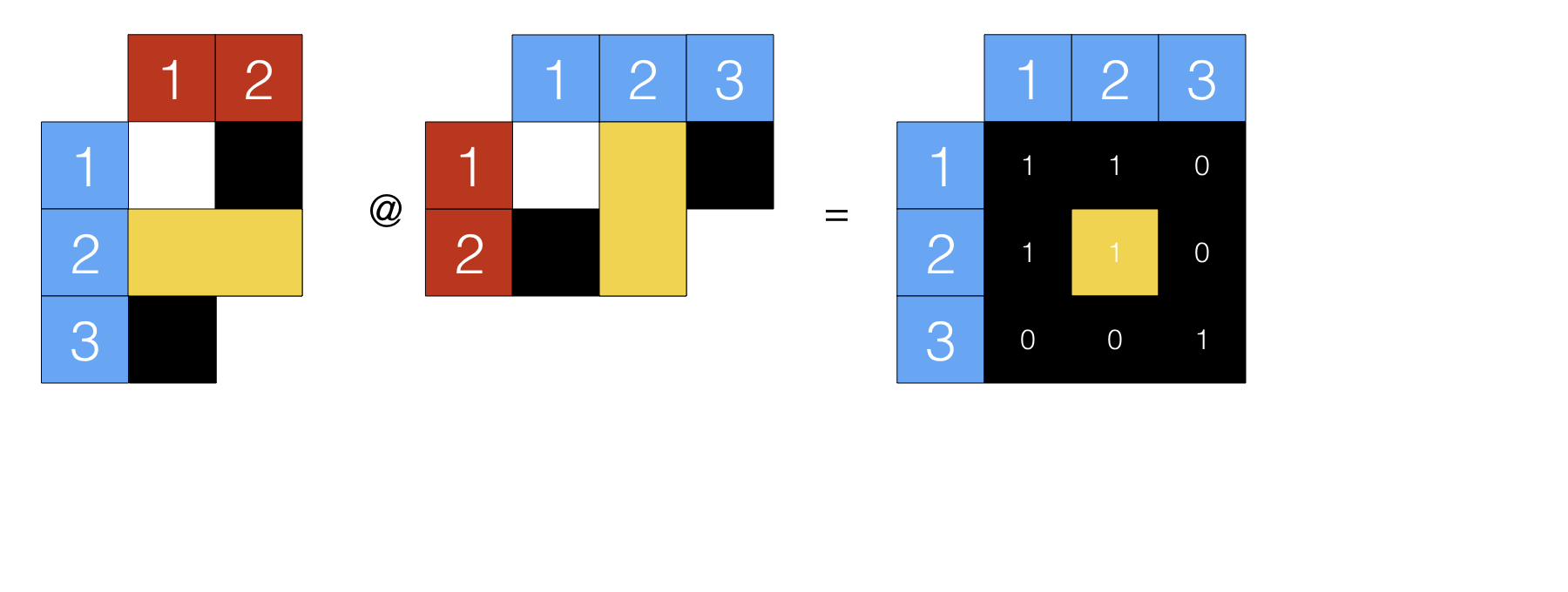

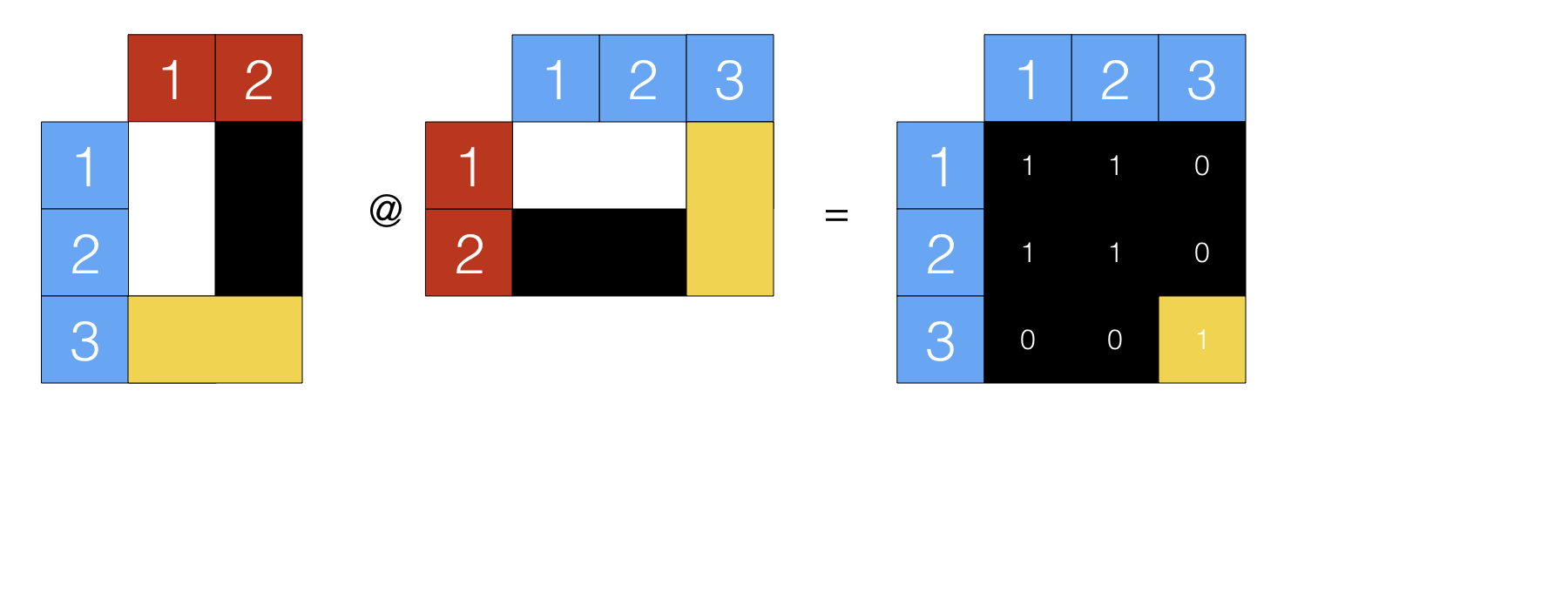

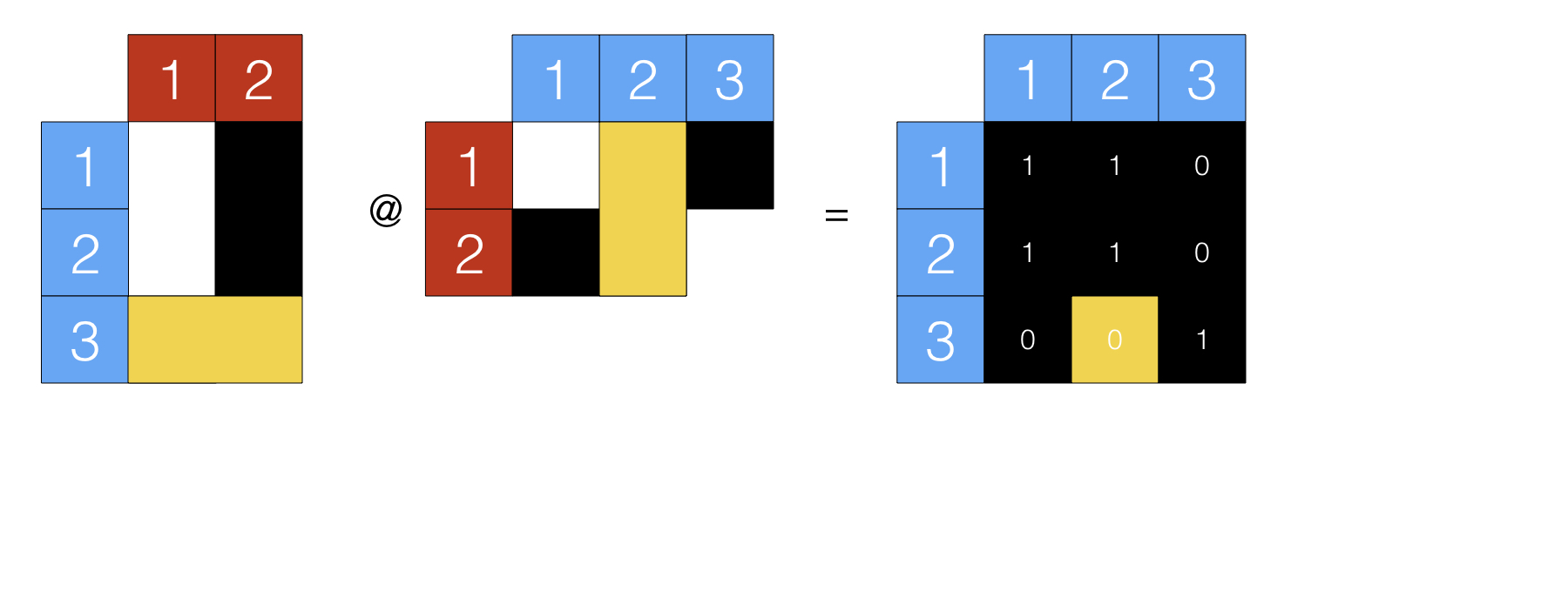

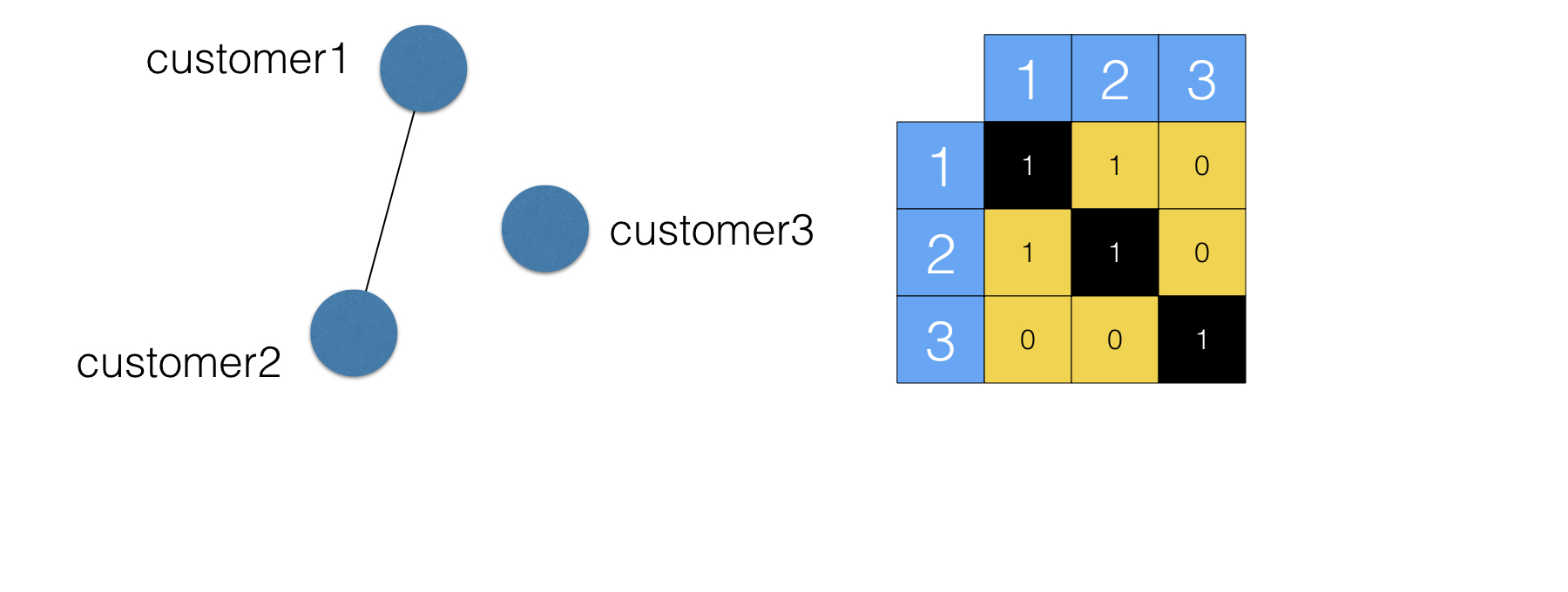

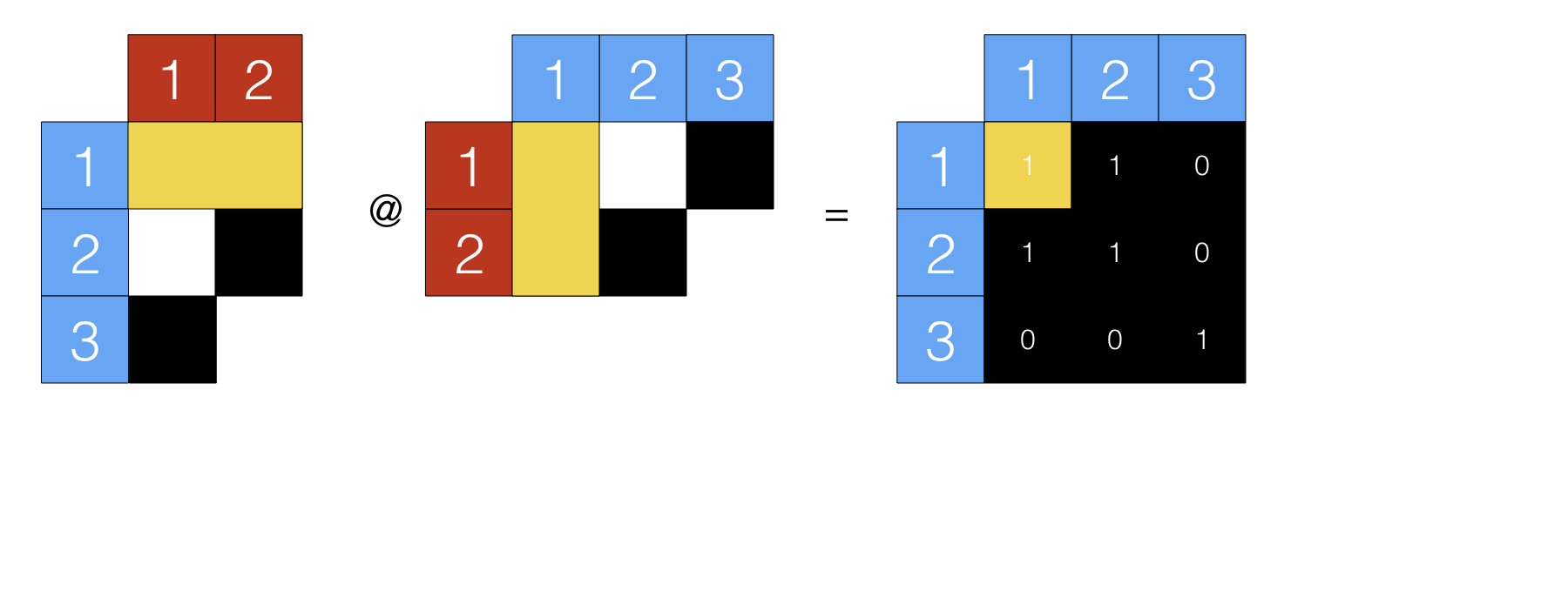

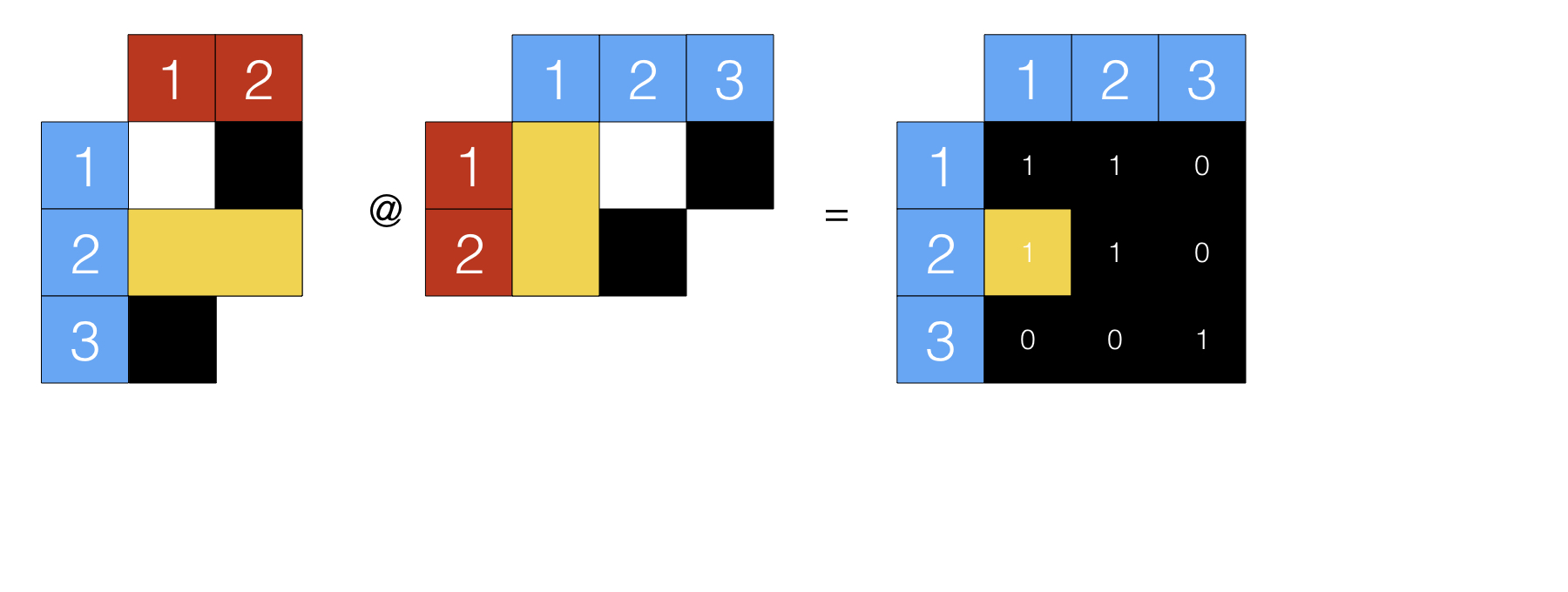

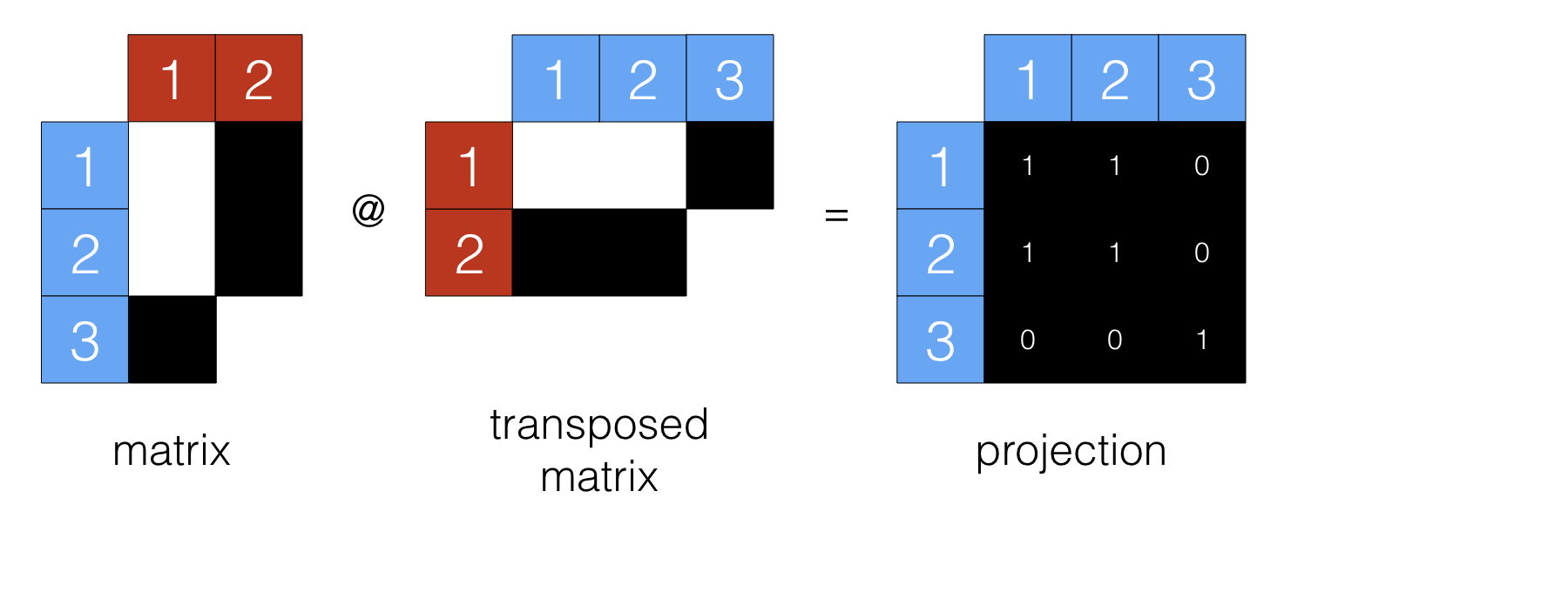

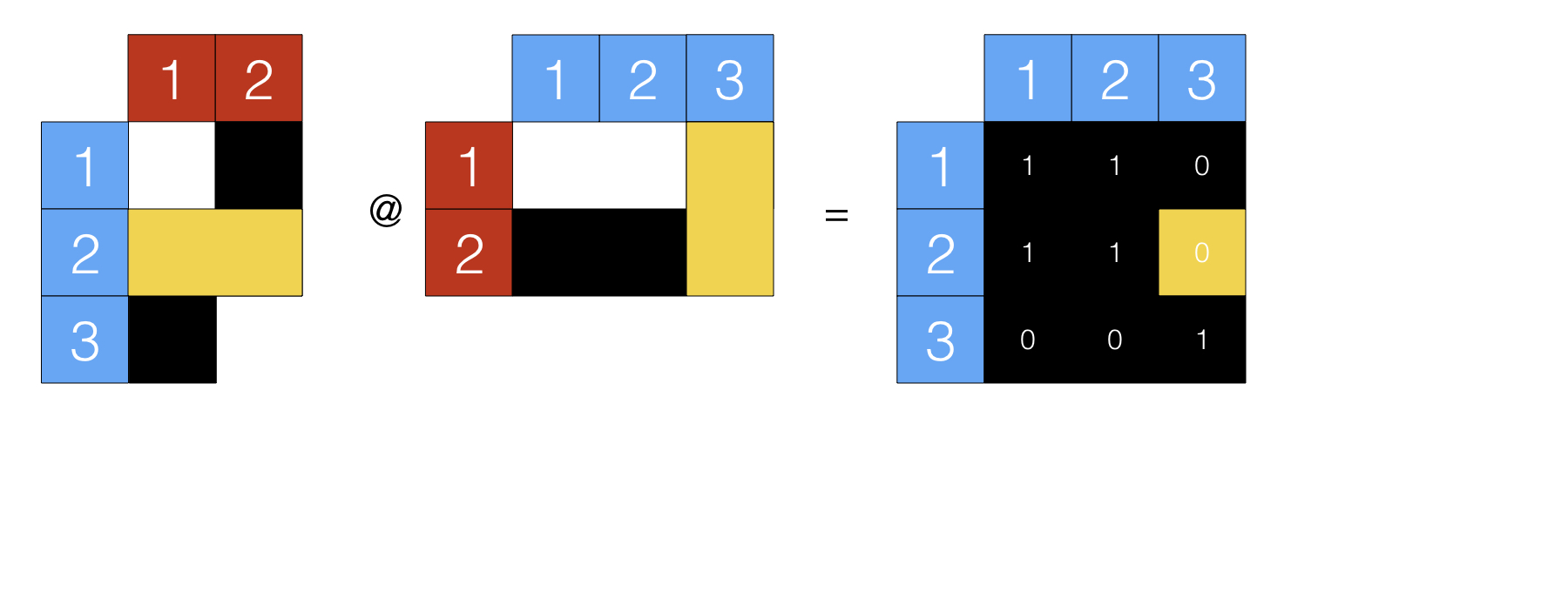

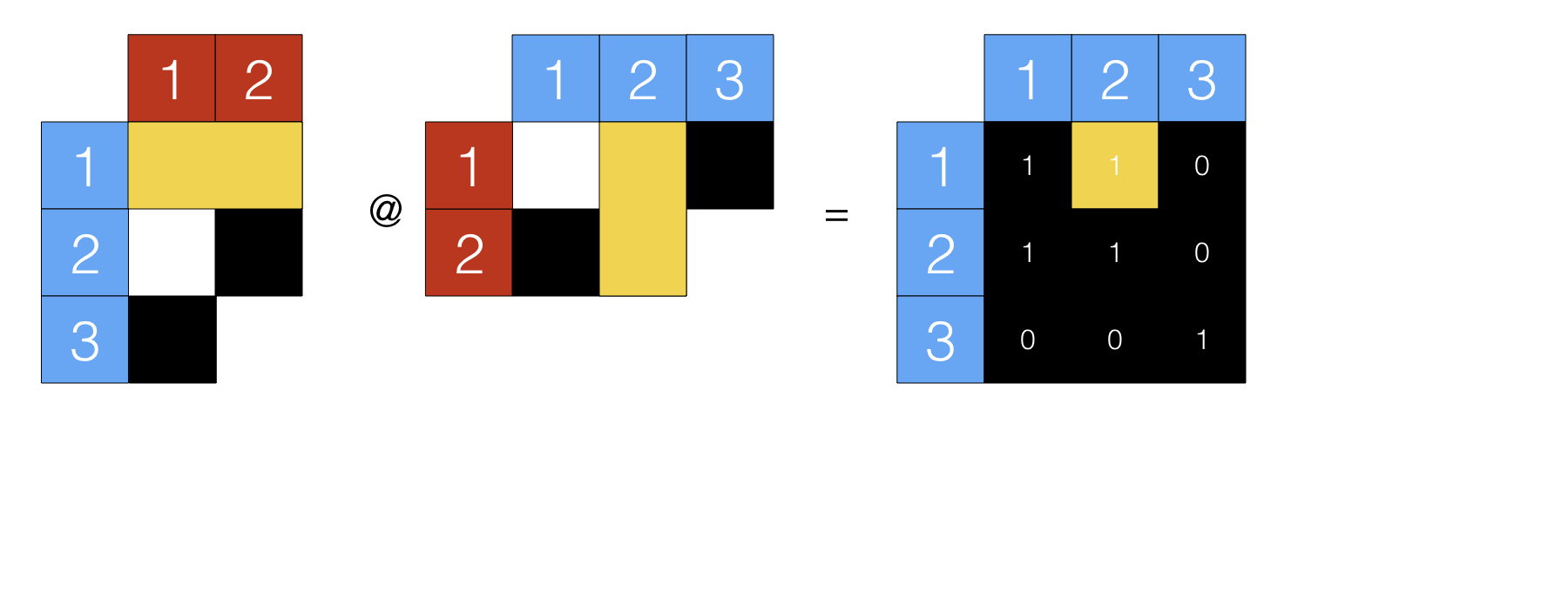

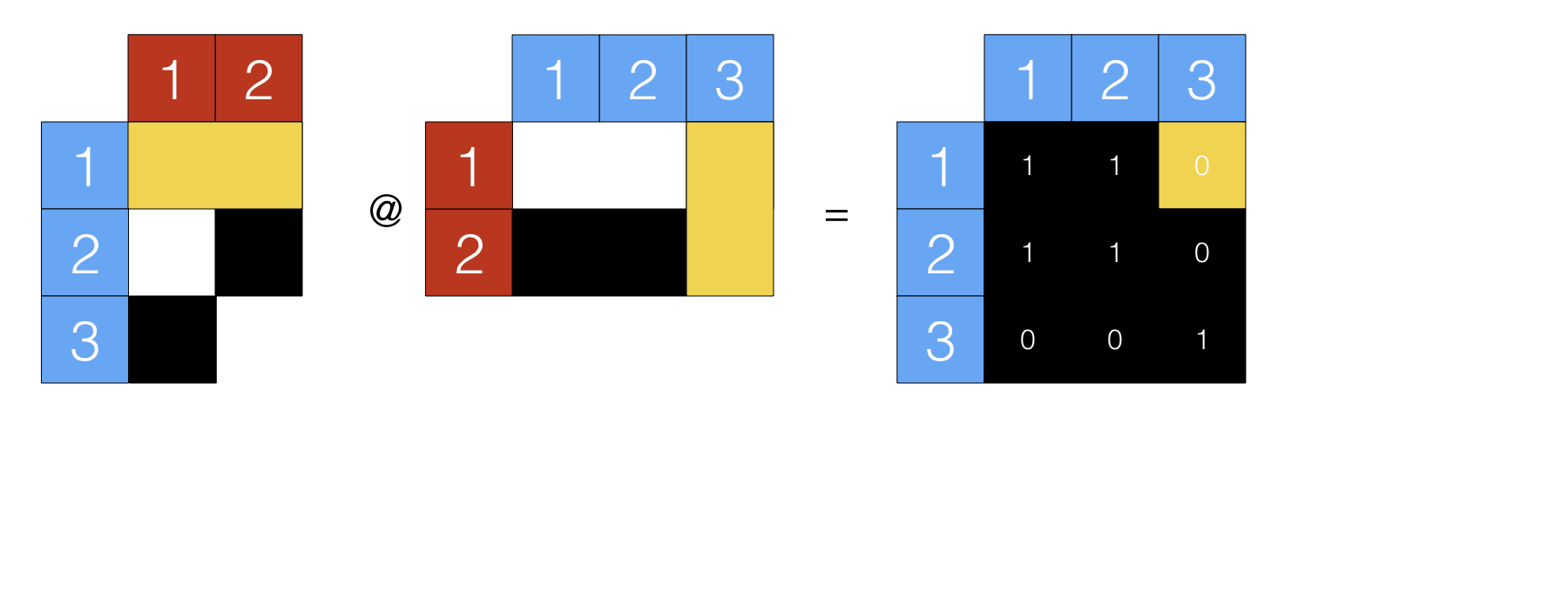

  • Projection computable using matrix multiplication


Intermediate Network Analysis in Python

Matrix projection

  • Projection computable using matrix multiplication


Intermediate Network Analysis in Python

Matrix projection

  • Projection computable using matrix multiplication


Intermediate Network Analysis in Python

Matrix projection

  • Projection computable using matrix multiplication


Intermediate Network Analysis in Python

Matrix projection

  • Projection computable using matrix multiplication


Intermediate Network Analysis in Python

Matrix projection

  • Projection computable using matrix multiplication


Intermediate Network Analysis in Python

Matrix projection

  • Projection computable using matrix multiplication


Intermediate Network Analysis in Python

Matrix projection

  • Projection computable using matrix multiplication


Intermediate Network Analysis in Python

Matrix projection

  • Projection computable using matrix multiplication


Intermediate Network Analysis in Python

Matrix projection

  • Projection computable using matrix multiplication


Intermediate Network Analysis in Python

Matrix projection

  • Projection computable using matrix multiplication


Intermediate Network Analysis in Python

Matrix projection

  • Projection computable using matrix multiplication


Intermediate Network Analysis in Python

Matrix multiplication in Python

mat @ mat.T

<5x5 sparse matrix of type '<class 'numpy.int64'>'
 with 23 stored elements in Compressed Sparse Row format>

mat.T @ mat

<10x10 sparse matrix of type '<class 'numpy.int64'>'
 with 50 stored elements in Compressed Sparse Column format>
