Concept of projection

Intermediate Network Analysis in Python

Eric Ma

Data Carpentry instructor and author of nxviz package

Projection

Useful to investigate the relationships between nodes on one partition
- Conditioned on the connections to the nodes in the other partition

Projection

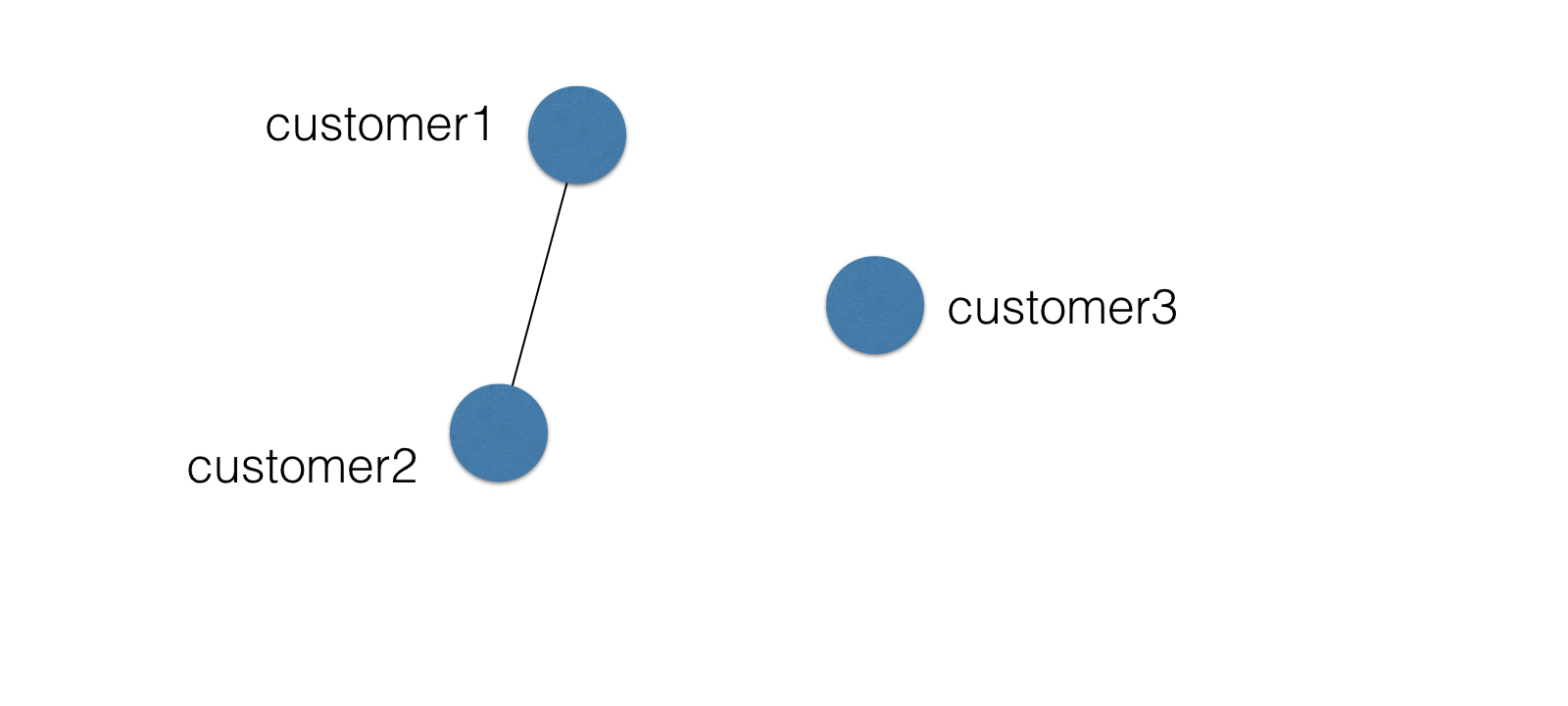

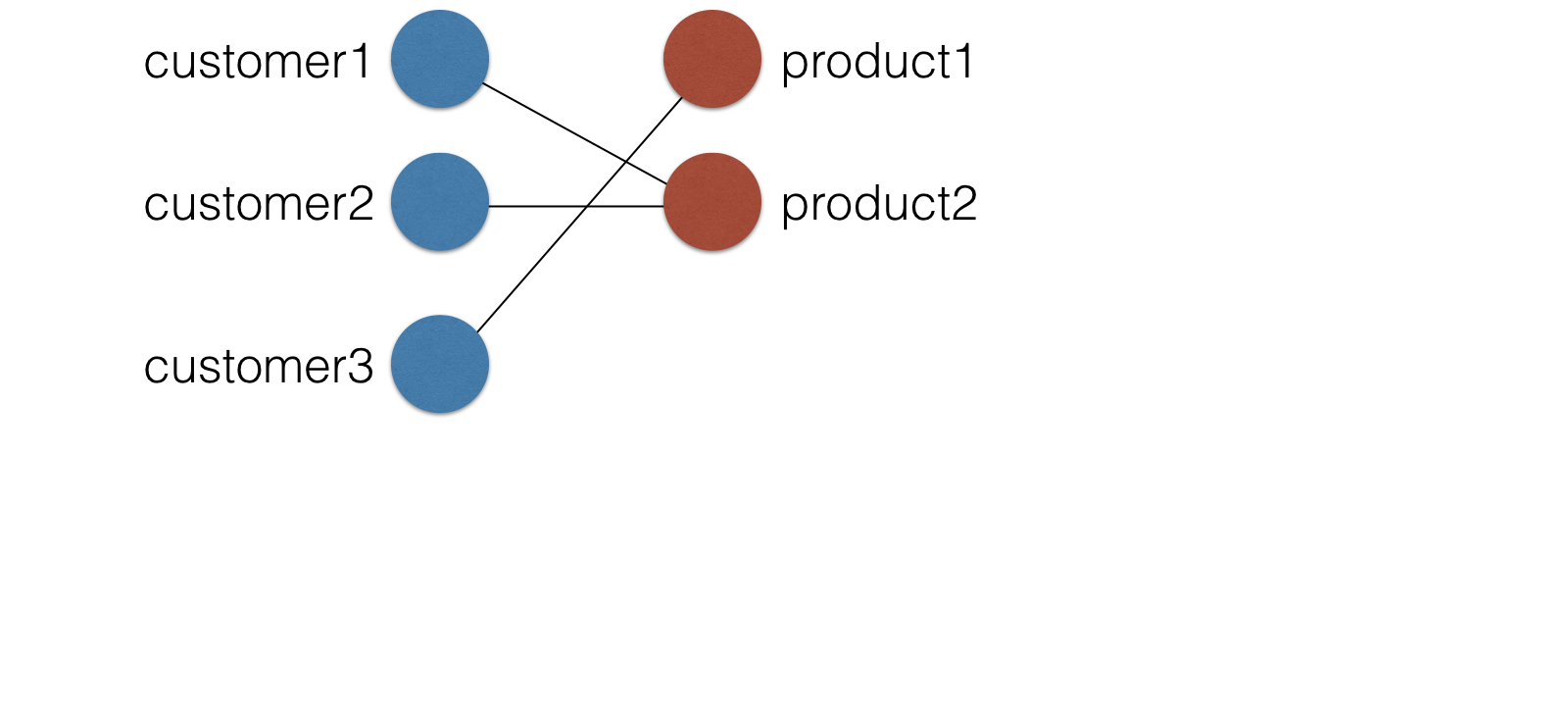

Unipartite representation of bipartite connectivity


Projection

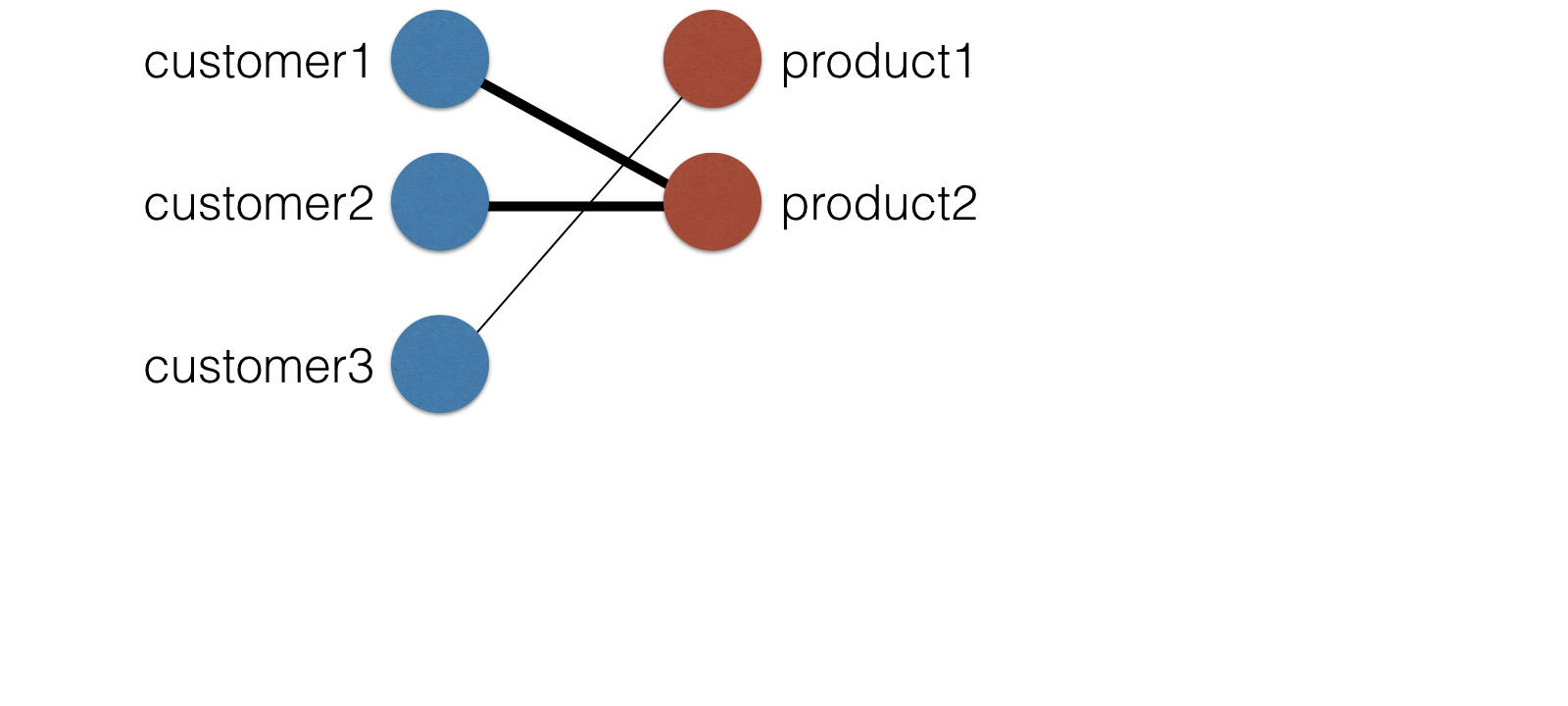

Unipartite representation of bipartite connectivity


Projection

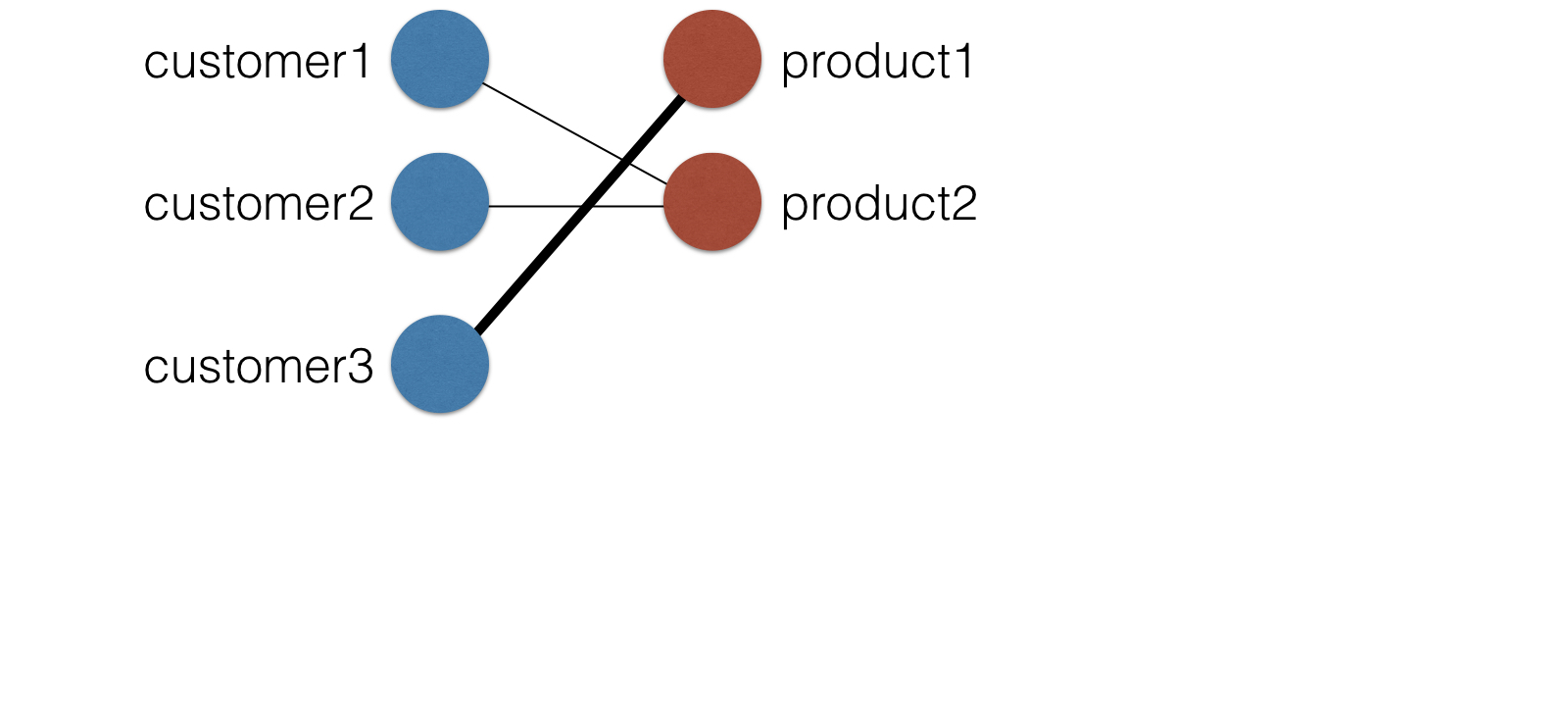

Unipartite representation of bipartite connectivity


Projection

Unipartite representation of bipartite connectivity


Graphs on Disk

Flat edge lists
CSV files: nodelist + metadata, edgelist + metadata

Reading network data

import networkx as nx
G = nx.read_edgelist('american-revolution.txt')

list(G.edges(data=True))[0:5]

[('Parkman.Elias', 'LondonEnemies', {'weight': 1}),
 ('Parkman.Elias', 'NorthCaucus', {'weight': 1}),
 ('Inglish.Alexander', 'StAndrewsLodge', {'weight': 1}),
 ('NorthCaucus', 'Chadwell.Mr', {'weight': 1}),
 ('NorthCaucus', 'Pearce.IsaacJun', {'weight': 1})]

Text File

Barrett.Samuel LondonEnemies {'weight': 1}
Barrett.Samuel StAndrewsLodge {'weight': 1}
Marshall.Thomas LondonEnemies {'weight': 1}
Eaton.Joseph TeaParty {'weight': 1}
Bass.Henry LondonEnemies {'weight': 1}

Bipartite projection

list(G.nodes())

['product2', 'customer3', 'customer1', 'product3',
    'customer2', 'product1']

list(G.edges())

[('product2', 'customer1'),
 ('product2', 'customer2'),
 ('customer3', ‘product1')]

Bipartite projection

cust_nodes = [n for n in G.nodes() if G.nodes[n]
                  ['bipartite'] == 'customers']
cust_nodes

['customer3', 'customer1', 'customer2']

Bipartite projection

G_cust = nx.bipartite.projected_graph(G, cust_nodes)
list(G_cust.nodes())

['customer1', 'customer3', 'customer2']

list(G_cust.edges())

[('customer1', 'customer2')]

Degree centrality

Recall degree centrality definition $$\frac{\text{number of neighbors}}{\text{number of possible neighbors}}$$
Denominator: number of nodes on opposite partition

Bipartite degree centrality

nx.bipartite.degree_centrality(G, cust_nodes)

{'customer1': 0.3333333333333333,
 'customer2': 0.3333333333333333,
 'customer3': 0.3333333333333333,
 'product1': 0.3333333333333333,
 'product2': 0.6666666666666666,
 'product3': 0.0}

Bipartite degree centrality

nx.degree_centrality(G)

{'customer1': 0.2,
 'customer2': 0.2,
 'customer3': 0.2,
 'product1': 0.2,
 'product2': 0.4,
 'product3': 0.0}
