Correlation

Exploratory Data Analysis in Python

Izzy Weber

Curriculum Manager, DataCamp

Correlation

Describes direction and strength of relationship between two variables
Can help us use variables to predict future outcomes

divorce.corr()


                    income_man  income_woman  marriage_duration  num_kids  marriage_year
 income_man         1.000       0.318         0.085              0.041     0.019
 income_woman       0.318       1.000         0.079              -0.018    0.026
 marriage_duration  0.085       0.079         1.000              0.447     -0.812
 num_kids           0.041       -0.018        0.447              1.000     -0.461
 marriage_year      0.019       0.026         -0.812             -0.461    1.000

.corr() calculates Pearson correlation coefficient, measuring linear relationship

Correlation heatmaps

sns.heatmap(divorce.corr(), annot=True)
plt.show()

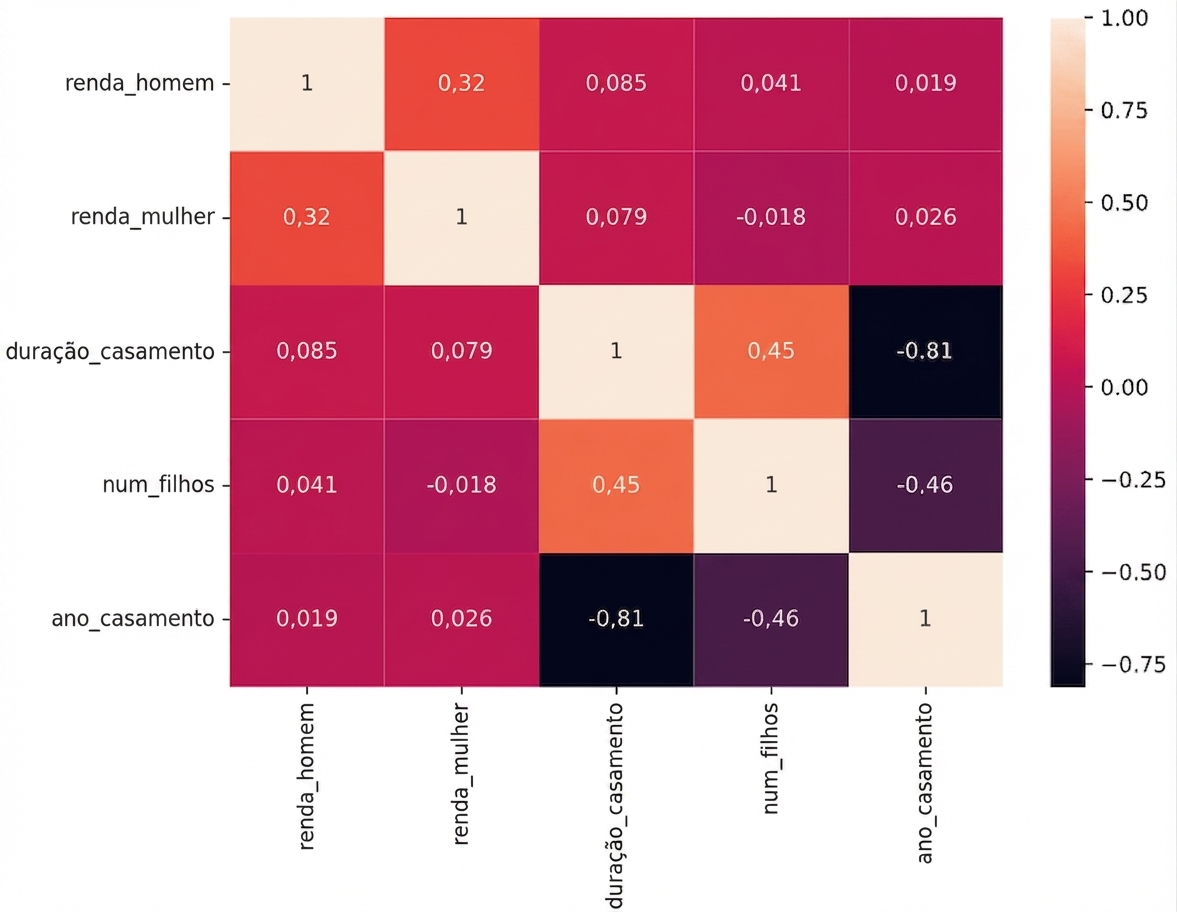

A heatmap of divorce correlations

Correlation in context

divorce["divorce_date"].min()

Timestamp('2000-01-08 00:00:00')

divorce["divorce_date"].max()

Timestamp('2015-11-03 00:00:00')

Visualizing relationships

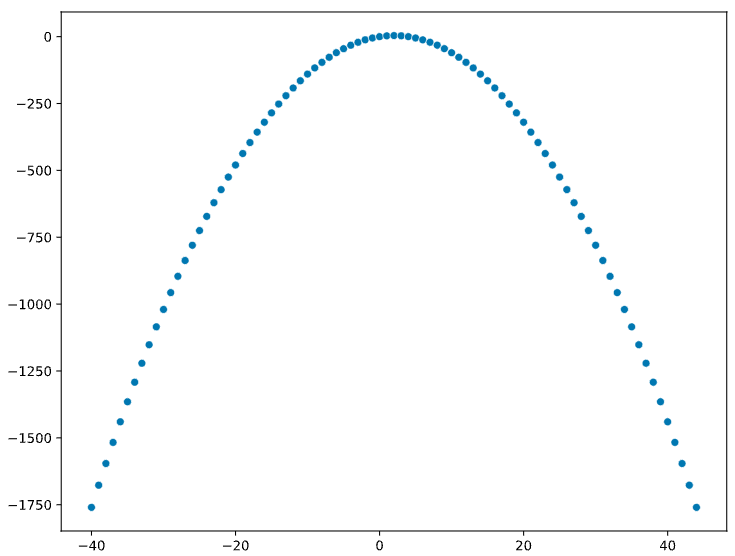

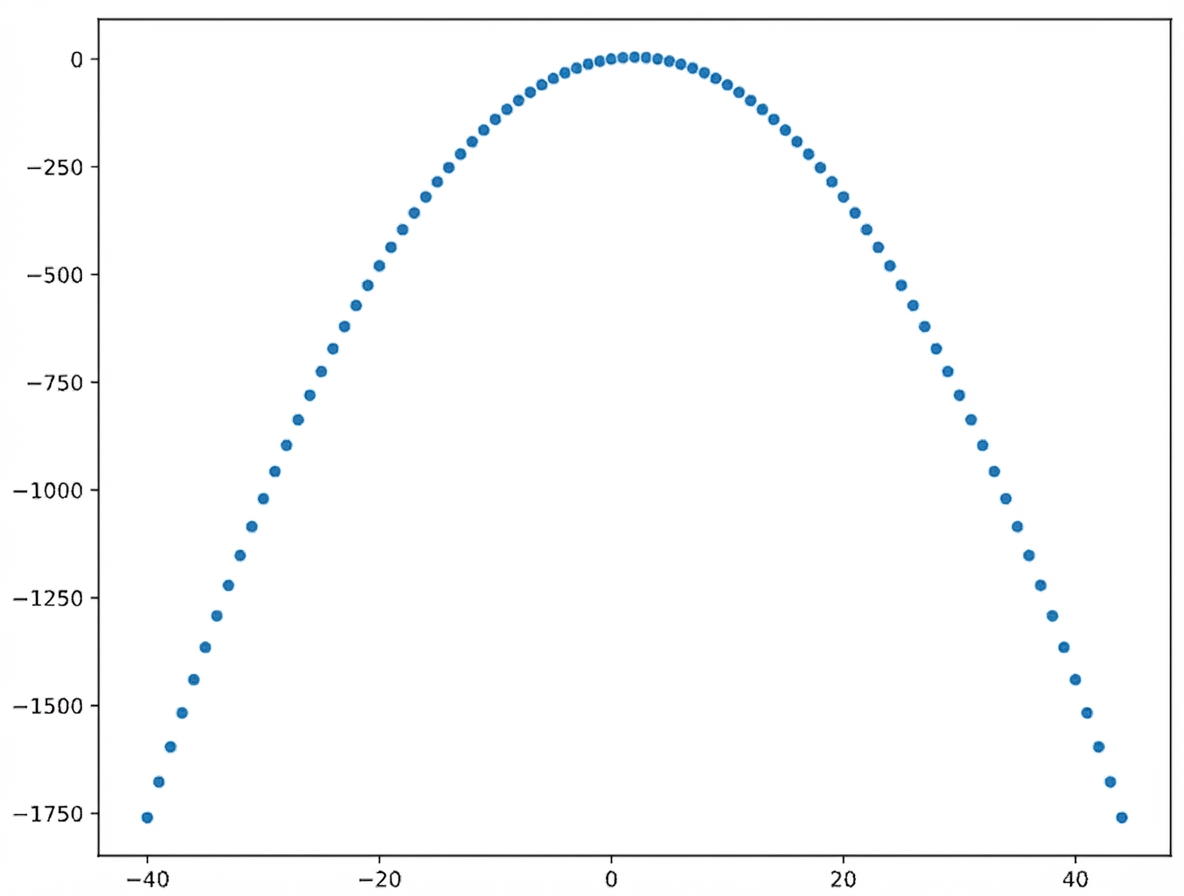

A strong relationship with a low linear correlation coefficient

Strong relationship—but not linear
Pearson correlation coefficient: -6.48e-18

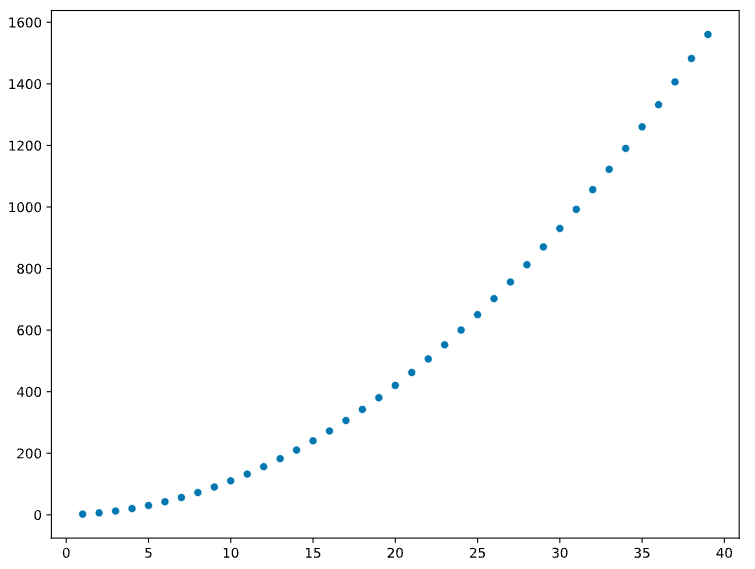

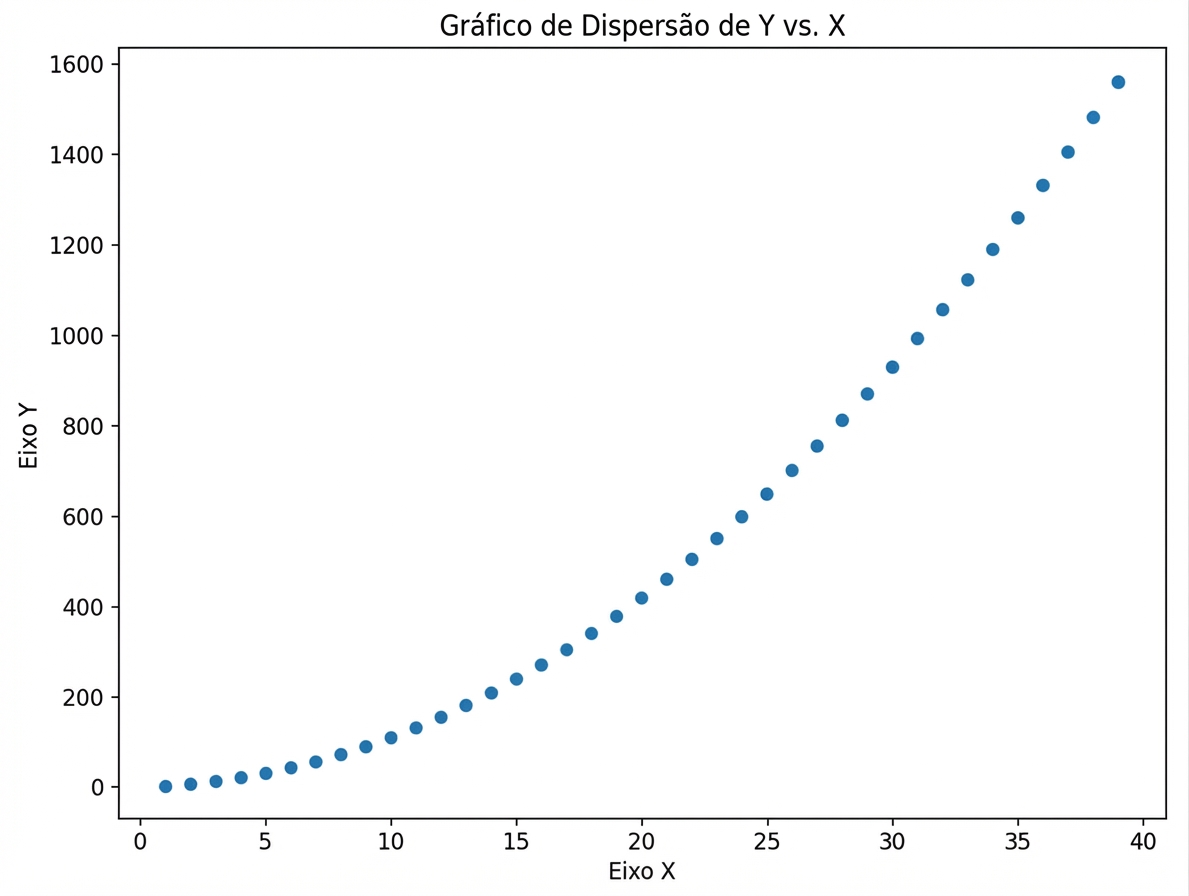

A quadratic relationship with a high linear correlation coefficient

Quadratic relationship; not linear
Pearson correlation coefficient: .971211

Scatter plots

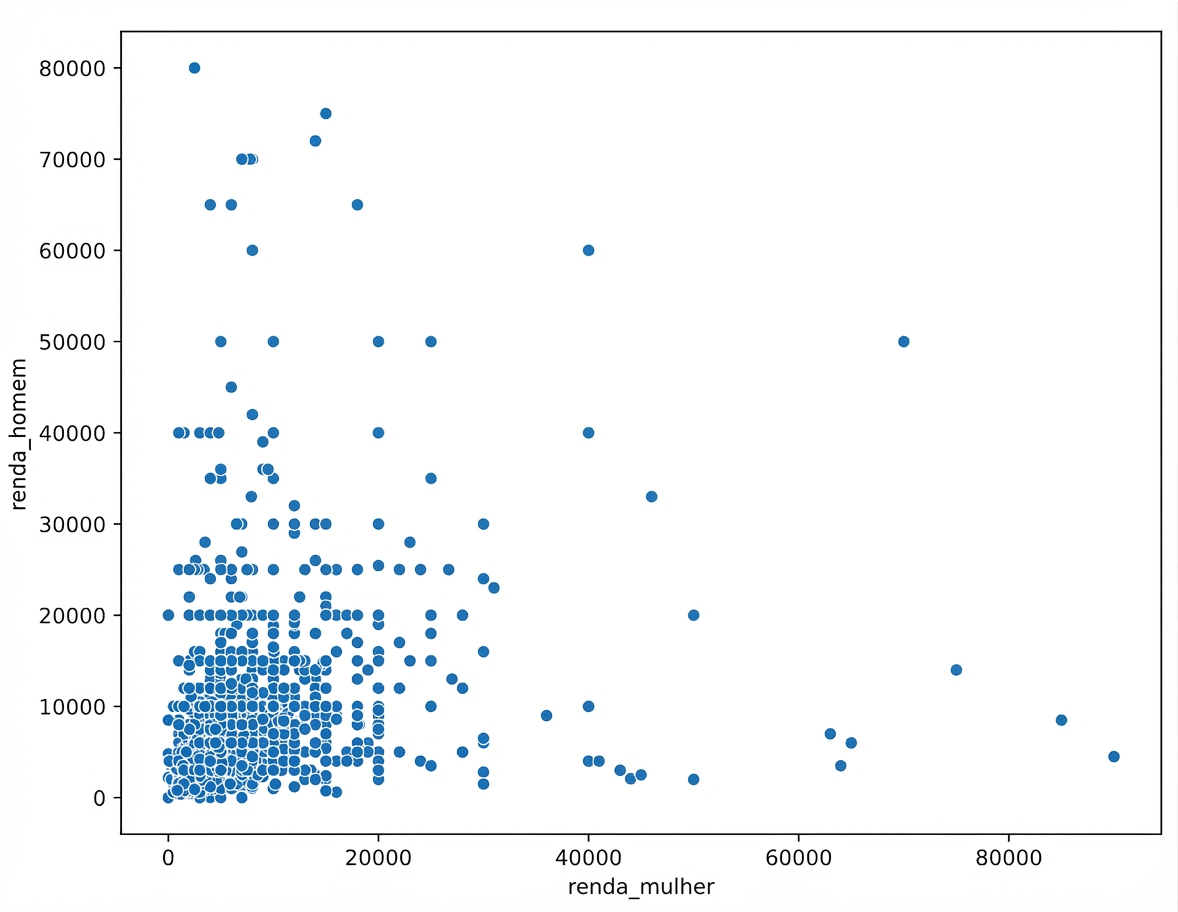

sns.scatterplot(data=divorce, x="income_man", y="income_woman")
plt.show()

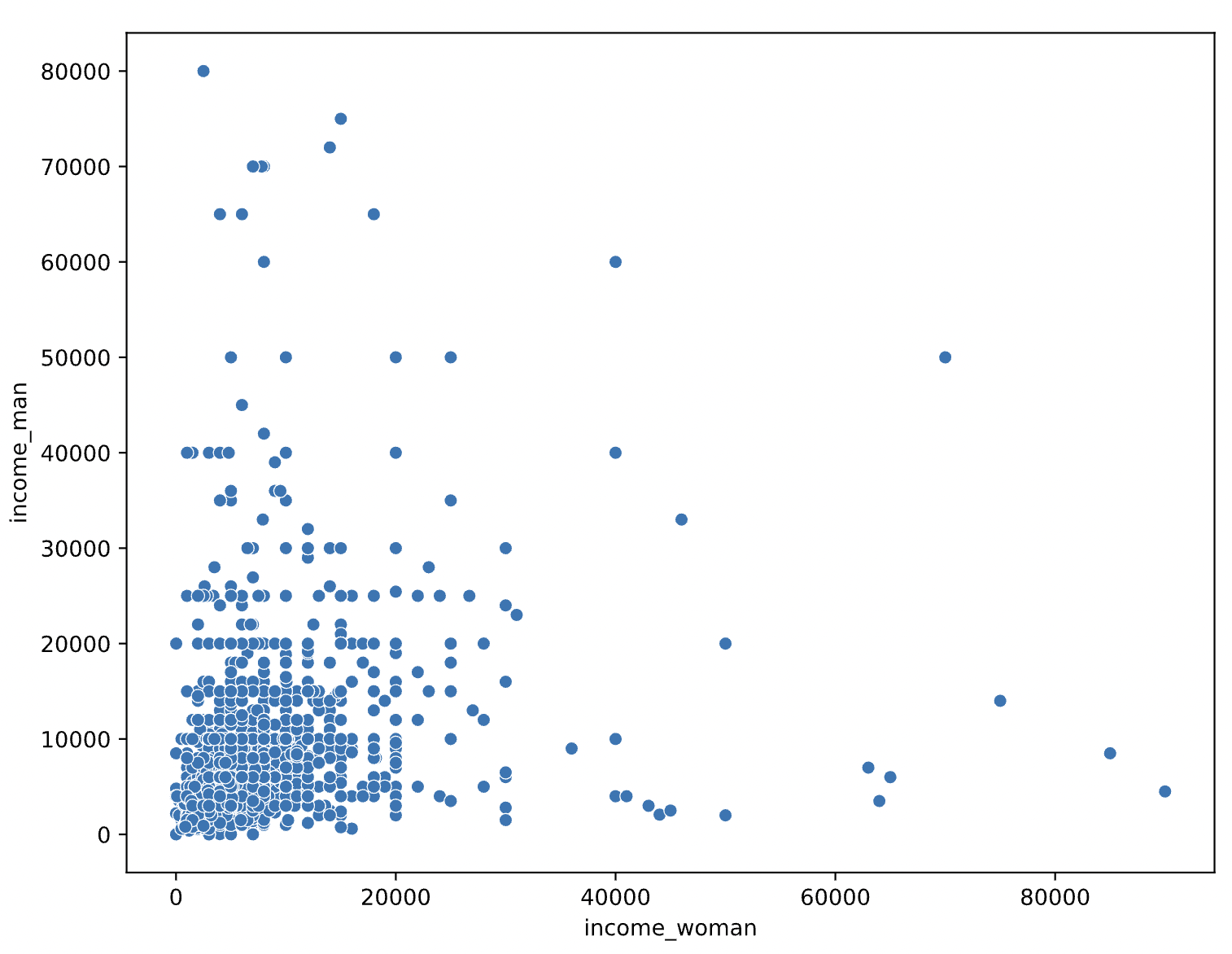

a scatterplot of mens and womens income at time of divorce

Pairplots

sns.pairplot(data=divorce)
plt.show()

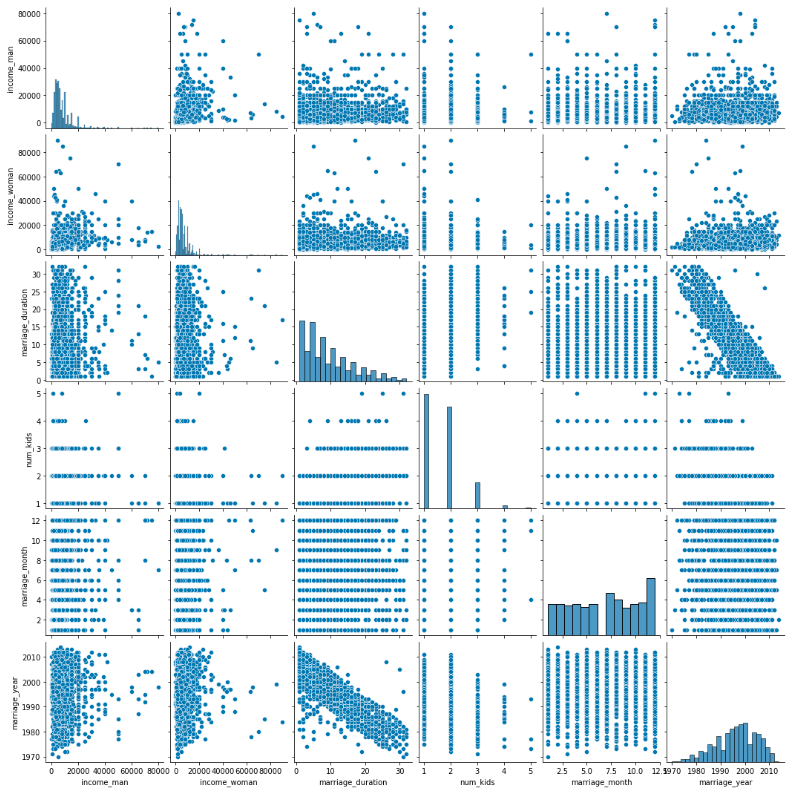

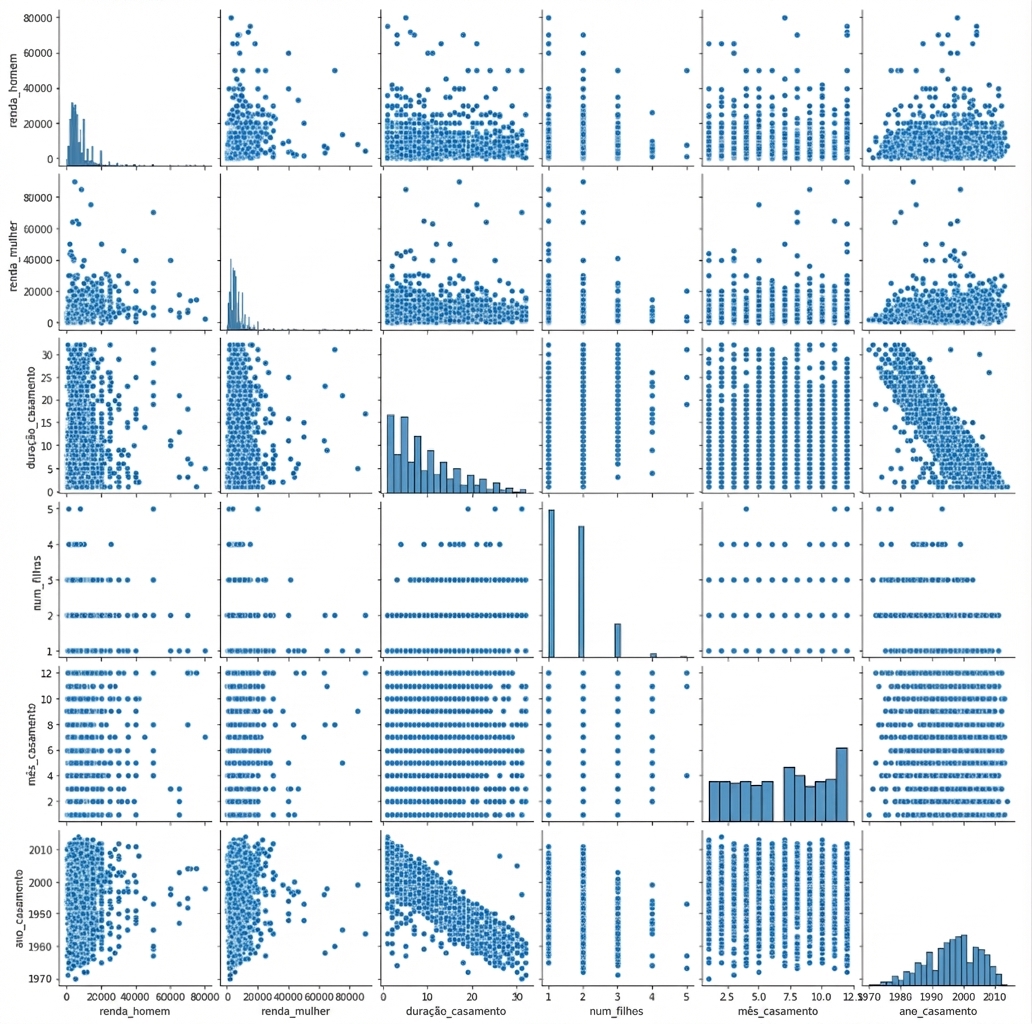

A pairplot of all numeric columns in the divorce dataframe

Pairplots

sns.pairplot(data=divorce, vars=["income_man", "income_woman", "marriage_duration"])
plt.show()

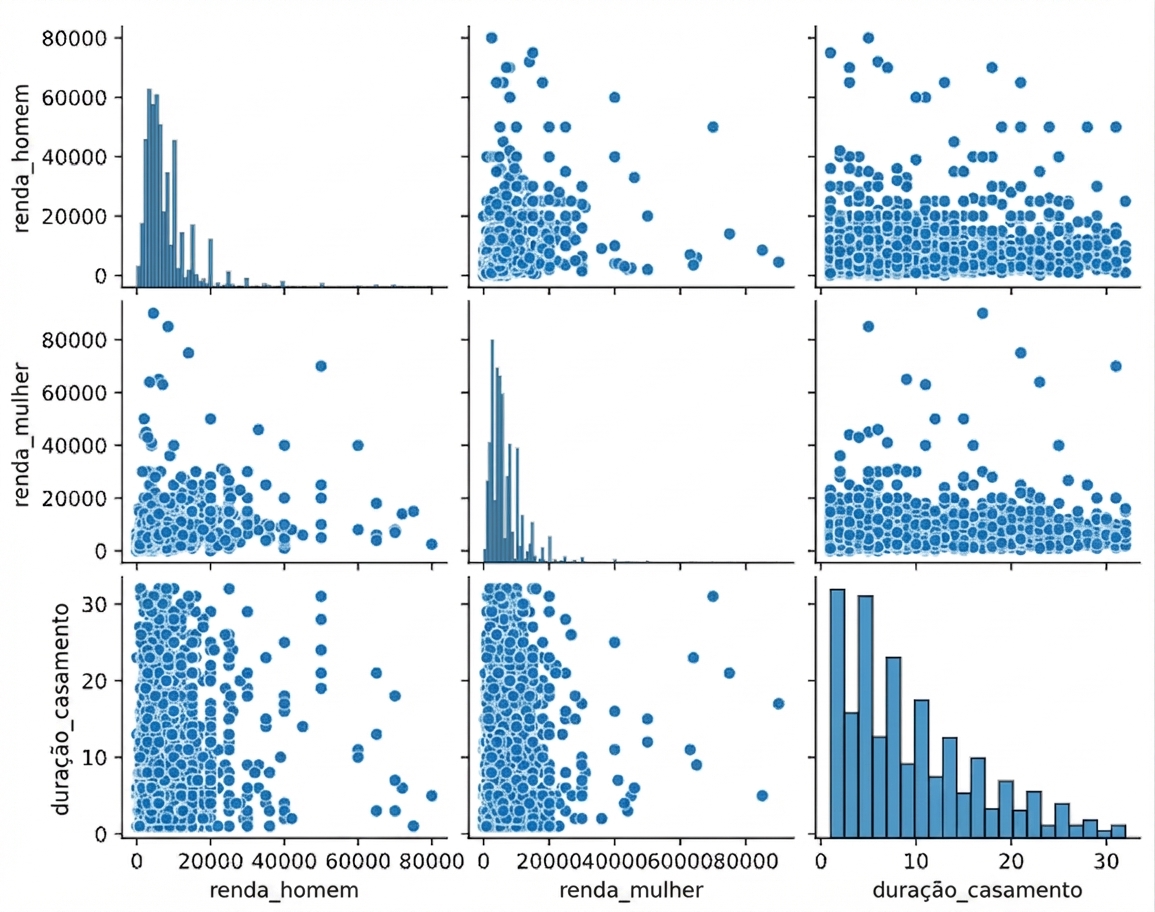

a pairplot of partner incomes and marriage duration

Let's practice!
