Airflow DAGs

Introduction to Apache Airflow in Python

Mike Metzger

Data Engineer

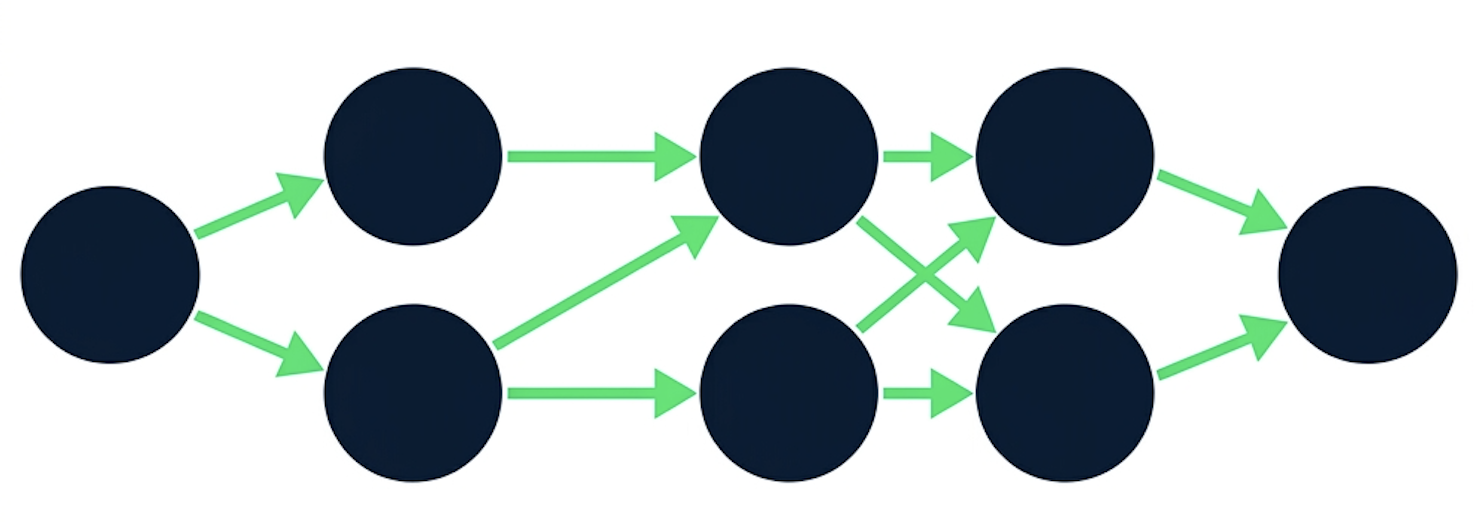

What is a DAG?

DAG, or Directed Acyclic Graph:

Directed, there is an inherent flow representing dependencies between components.
Acyclic, does not loop / cycle / repeat.
Graph, the actual set of components.
Seen in Airflow, Apache Spark, dbt

DAG

¹ https://en.m.wikipedia.org/wiki/Directed_acyclic_graph

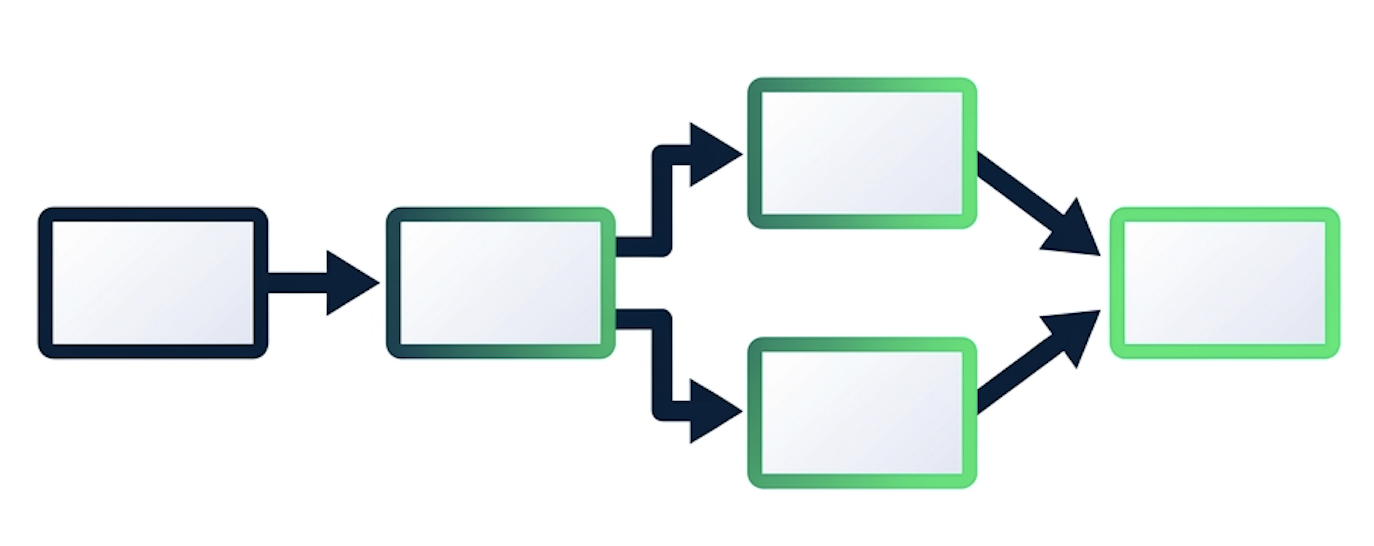

DAG in Airflow

Within Airflow, DAGs:

Are written in Python (but can use components written in other languages).
Are made up of components (typically tasks) to be executed, such as operators, sensors, etc.
Contain dependencies defined explicitly or implicitly.
- ie, Copy the file to the server before trying to import it to the database service.

Define a DAG

Example DAG:

from airflow import DAG


from datetime import datetime
default_arguments = {
  'owner': 'jdoe',
  'email': '[email protected]',
  'start_date': datetime(2020, 1, 20)
}


with DAG('etl_workflow', default_args=default_arguments ) as etl_dag:

Define a DAG (before Airflow 2.x)

Example DAG:

from airflow import DAG


from datetime import datetime
default_arguments = {
  'owner': 'jdoe',
  'email': '[email protected]',
  'start_date': datetime(2020, 1, 20)
}


etl_dag = DAG('etl_workflow', default_args=default_arguments )

DAGs on the command line

Using airflow:

The airflow command line program contains many subcommands.
airflow -h for descriptions.
Many are related to DAGs.
airflow dags list to show all recognized DAGs.

Command line vs Python

Use the command line tool to:

Start Airflow processes
Manually run DAGs / Tasks
Get logging information from Airflow

Use Python to:

Create a DAG
Edit the individual properties of a DAG

Let's practice!
