Hyperparameter optimization with Optuna

Deep Reinforcement Learning in Python

Timothée Carayol

Principal Machine Learning Engineer, Komment

What are hyperparameters





  • Large number of hyperparameters in DRL algorithms
  • Can have large effect on performance
  • Search complexity grows with number of hyperparameters



Examples
Discount rate
PPO: clipping epsilon, entropy bonus
Experience replay: buffer size, batch size
Decayed epsilon greediness schedule
Fixed Q-targets: $\tau$
Learning rate
Number of layers, nodes per layer...
Deep Reinforcement Learning in Python

How to choose hyperparameter values



Objective: average cumulative rewards

Hyperparameter search techniques:

  • Trial and error by hand
  • Grid search
  • Random search
  • Dedicated algorithms

A huge mechanical machine with dozens of knobs and dials

Deep Reinforcement Learning in Python

The Optuna logo



Optuna workflow:

  • Define an objective function
  • Instantiate an Optuna study
  • Let Optuna iterate over trials





import optuna

def objective(trial): ...
study = optuna.create_study()
study.optimize(objective, n_trials=100)
study.best_params
{'learning_rate': 0.001292481, 'batch_size': 8}
Deep Reinforcement Learning in Python

Specifying the objective function



In the objective function:

  • Define the hyperparameters of interest
  • Define the metric(s) to optimize

Offers full flexibility on hyperparameter specification:

  • float
  • integer
  • categorical



def objective(trial: optuna.trial.Trial):

# Hyperparameters x and y between -10 and 10
x = trial.suggest_float('x', -10, 10) y = trial.suggest_float('y', -10, 10)
# Return the metric to minimize return (x - 2) ** 2 + 1.2 * (y + 3) ** 2
Deep Reinforcement Learning in Python

The optuna study



  • Use sqlite to save the study
  • Sample n_trials with default sampler (TPE)
    • Picks hyperparameters at random at first
    • Then focus more on promising regions
  • If n_trials omitted: run trials until interrupted
  • Can load study from database later



import sqlite
study = optuna.create_study(
                 storage="sqlite:///DRL.db",
                 study_name="my_study")

study.optimize(objective, n_trials=100)
loaded_study = optuna.load_study(
                        study_name="my_study",
                        storage="sqlite:///DRL.db")
Deep Reinforcement Learning in Python

Exploring the study results

optuna.visualization.plot_param_importances(study)

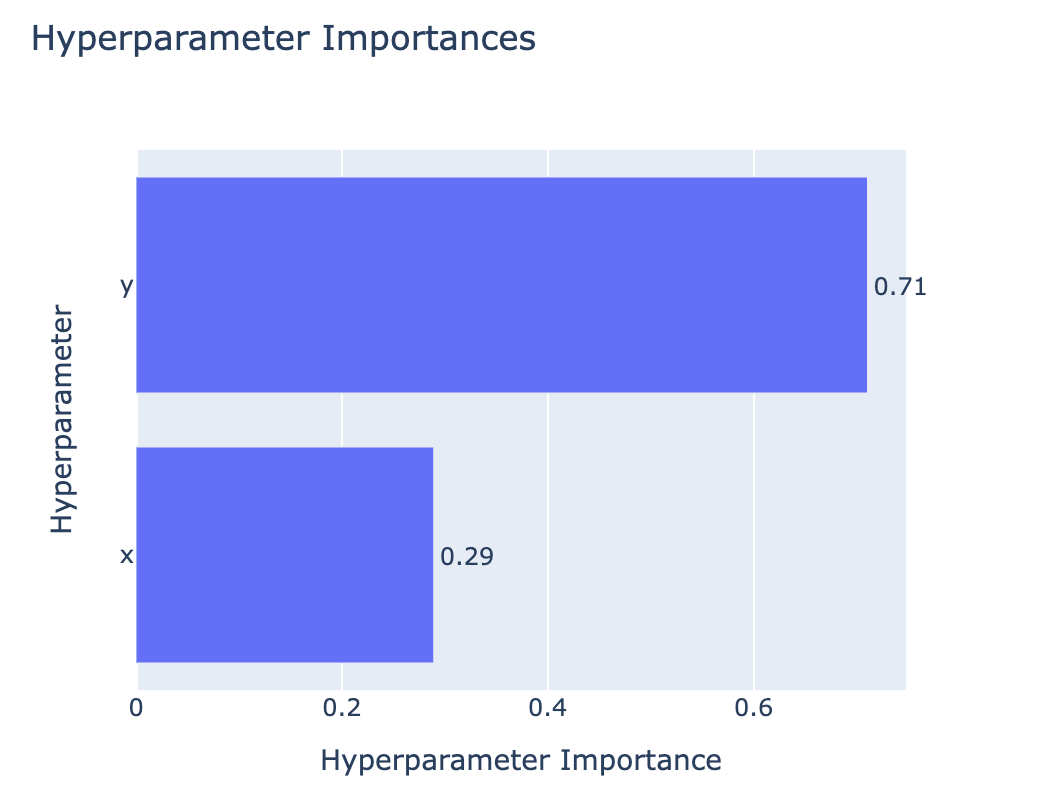

A bar chart showing hyperparameter importance for x and y; y is at 0.71 and x at 0.29.

optuna.visualization.plot_contour(study)

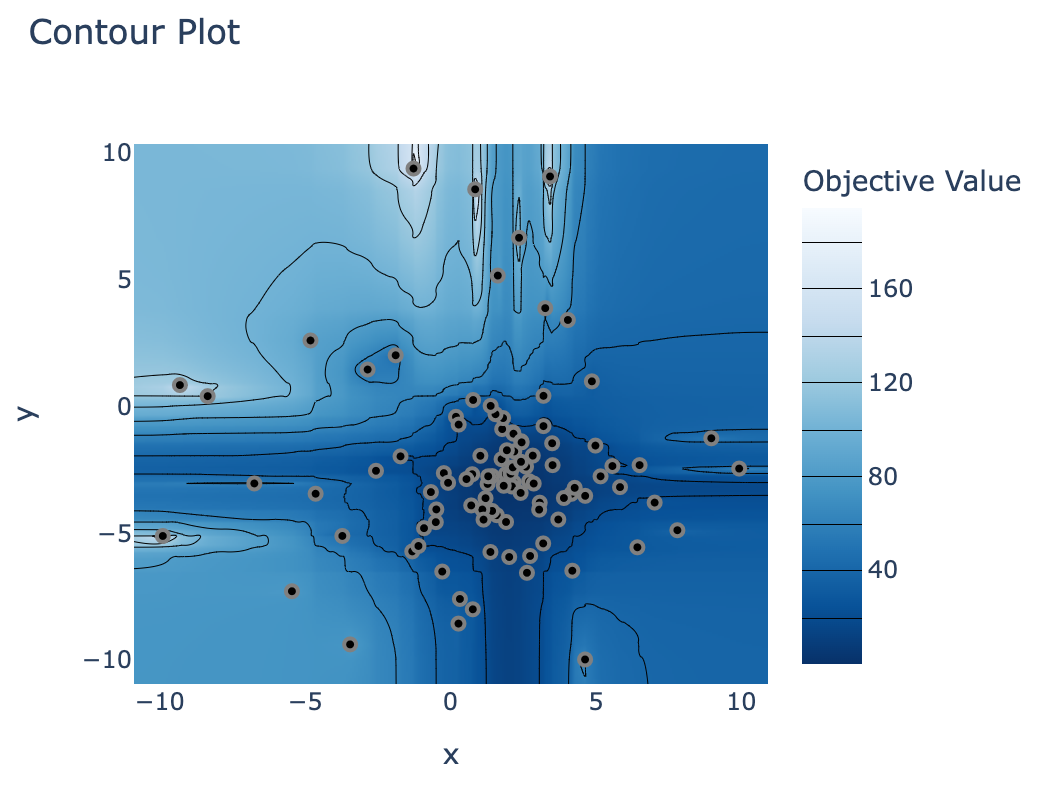

A contour plot showing one dot per trial. Dots are concentrated around x = 2, y = -3.

Deep Reinforcement Learning in Python

Let's practice!

Deep Reinforcement Learning in Python
