Adding titles and labels: Part 2

Introduction to Data Visualization with Seaborn

Erin Case

Data Scientist

Adding a title to AxesSubplot

FacetGrid

g = sns.catplot(x="Region",
                y="Birthrate",
                data=gdp_data,
                kind="box")


g.fig.suptitle("New Title",
               y=1.03)

AxesSubplot

g = sns.boxplot(x="Region",
                y="Birthrate",
                data=gdp_data)



g.set_title("New Title",
            y=1.03)

Titles for subplots

g = sns.catplot(x="Region",
                y="Birthrate",
                data=gdp_data,
                kind="box",
                col="Group")

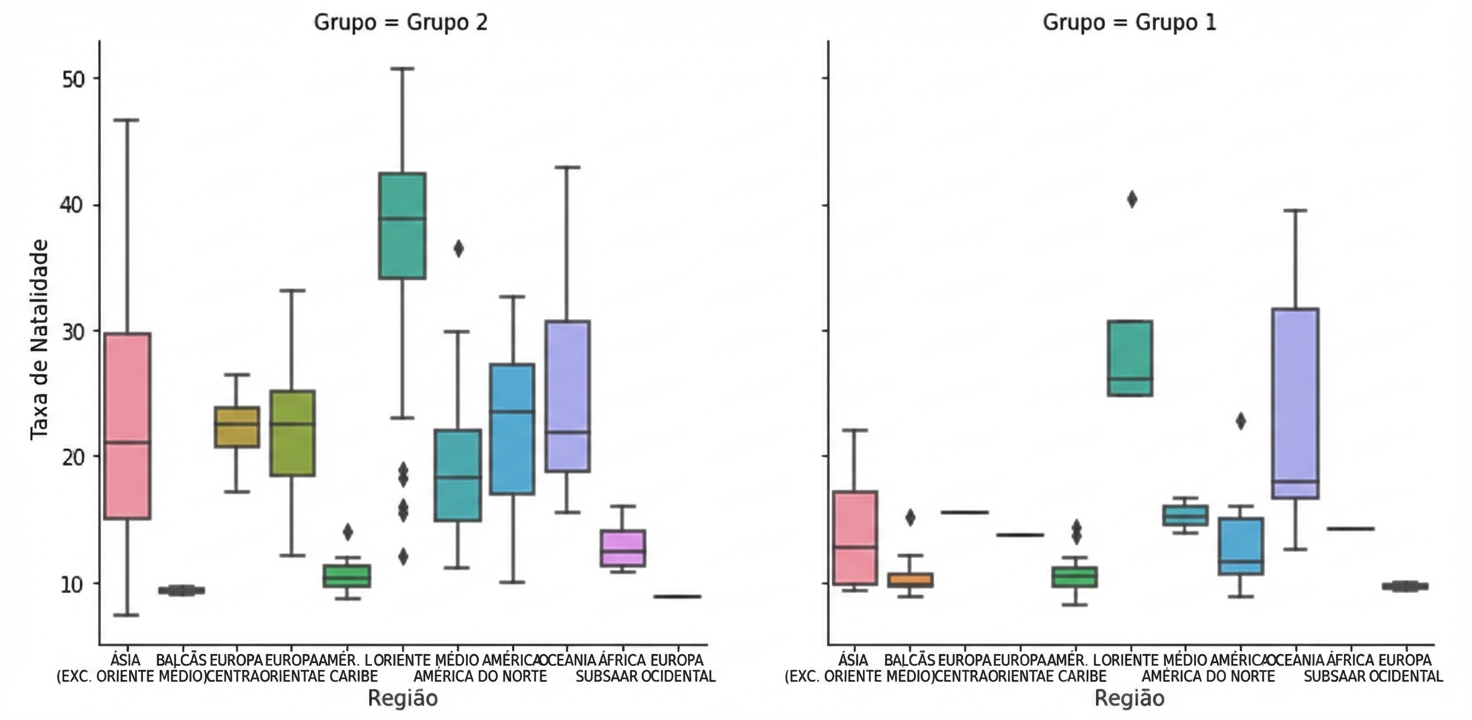

Birth rate box plots with subgroups

Titles for subplots

g = sns.catplot(x="Region",
                y="Birthrate",
                data=gdp_data,
                kind="box",
                col="Group")


g.fig.suptitle("New Title",
               y=1.03)

Birth rate box plots with subgroups and figure title

Titles for subplots

g = sns.catplot(x="Region",
                y="Birthrate",
                data=gdp_data,
                kind="box",
                col="Group")

g.fig.suptitle("New Title",
               y=1.03)


g.set_titles("This is {col_name}")

Birth rate box plots with subgroups and subplot titles

Adding axis labels

g = sns.catplot(x="Region",
                y="Birthrate",
                data=gdp_data,
                kind="box")
`

g.set(xlabel="New X Label",
      ylabel="New Y Label")


plt.show()

Birth rate box plot with axis labels

Rotating x-axis tick labels

g = sns.catplot(x="Region",
                y="Birthrate",
                data=gdp_data,
                kind="box")

plt.xticks(rotation=90)

plt.show()

Birth rate box plot with rotated x tick labels

Let's practice!
