Jump into filtering

Image Processing in Python

Rebeca Gonzalez

Data Engineer

Filters

Enhancing an image
Emphasize or remove features
Smoothing
Sharpening
Edge detection

Neighborhoods

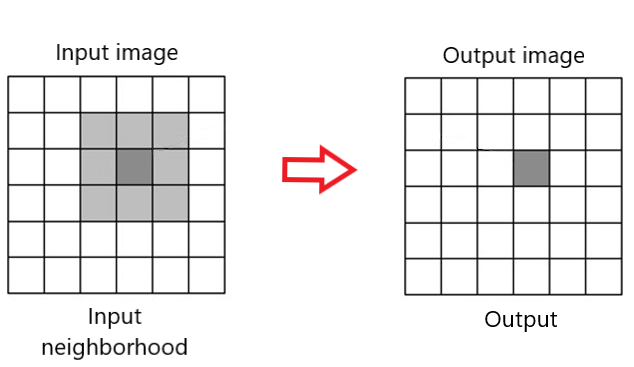

Filter neighborhood

Edge detection

Coins in where edges are detected

Edge detection

Original image of chocolate kisses

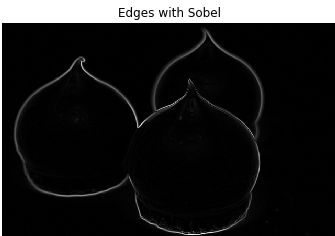

Chocolate kisses image in where the edges are detected

Edge detection

Sobel

# Import module and function
from skimage.filters import sobel


# Apply edge detection filter
edge_sobel = sobel(image_coins)


# Show original and resulting image to compare
plot_comparison(image_coins, edge_sobel, "Edge with Sobel")

Edge detection

Sobel

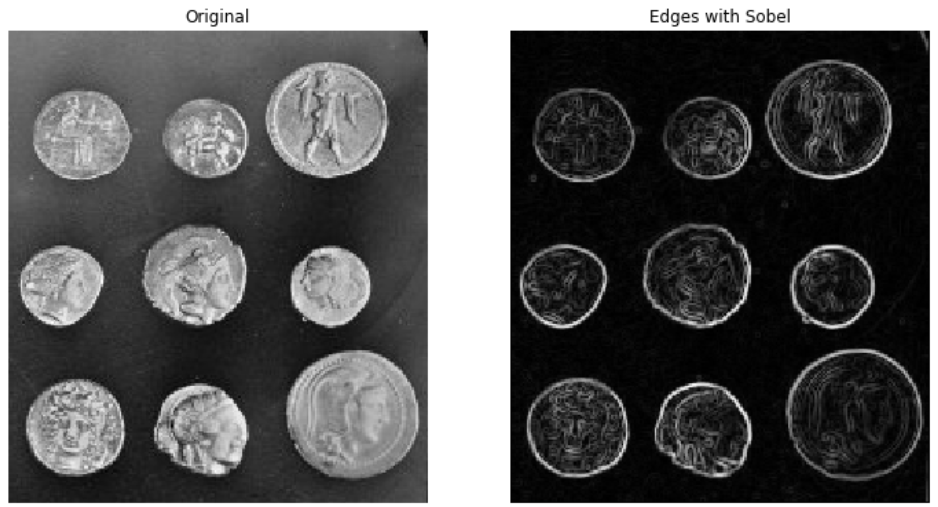

Coins image in where edges are detected showing the shape

Comparing plots

def plot_comparison(original, filtered, title_filtered):

    fig, (ax1, ax2) = plt.subplots(ncols=2, figsize=(8, 6), sharex=True,
                                   sharey=True)
    ax1.imshow(original, cmap=plt.cm.gray)
    ax1.set_title('original')
    ax1.axis('off')
    ax2.imshow(filtered, cmap=plt.cm.gray)
    ax2.set_title(title_filtered)
    ax2.axis('off')

Gaussian smoothing

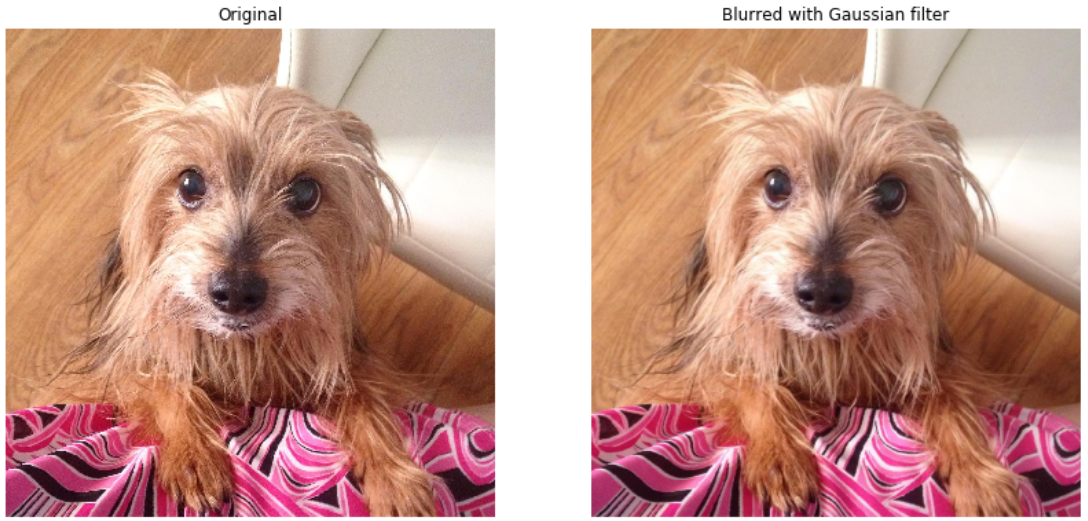

Image of a dog next to the same image with Gaussian filter applied

Gaussian smoothing

Image of Rebeca in Amsterdam holding a bike in a bridge

Gaussian smoothing

# Import the module and function
from skimage.filters import gaussian


# Apply edge detection filter
gaussian_image = gaussian(amsterdam_pic, multichannel=True)


# Show original and resulting image to compare
plot_comparison(amsterdam_pic, gaussian_image, "Blurred with Gaussian filter")

Gaussian smoothing

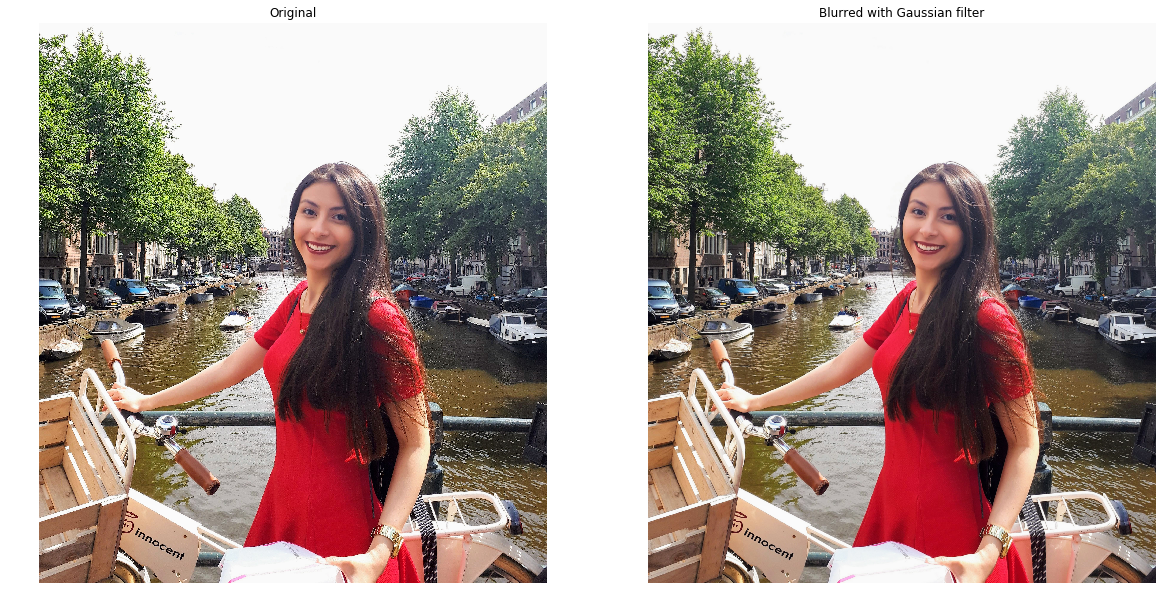

Resulted image

Gaussian smoothing

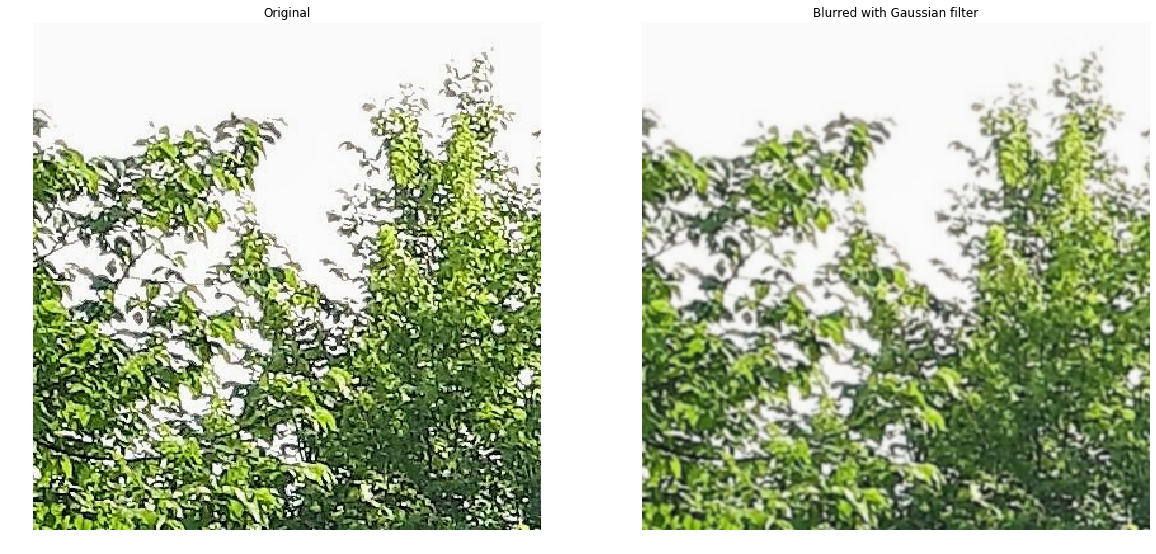

Resulted image zoomed in

Let's practice!

Image Processing in Python
