Memory-efficient training with Adafactor

Efficient AI Model Training with PyTorch

Dennis Lee

Data Engineer

Optimizers for training efficiency

Icons representing AdamW, Adafactor, and 8-bit Adam.

Optimizer tradeoffs

Diagram showing the tradeoffs between number of parameters and precision for AdamW, Adafactor, and 8-bit Adam.

How does Adafactor work?

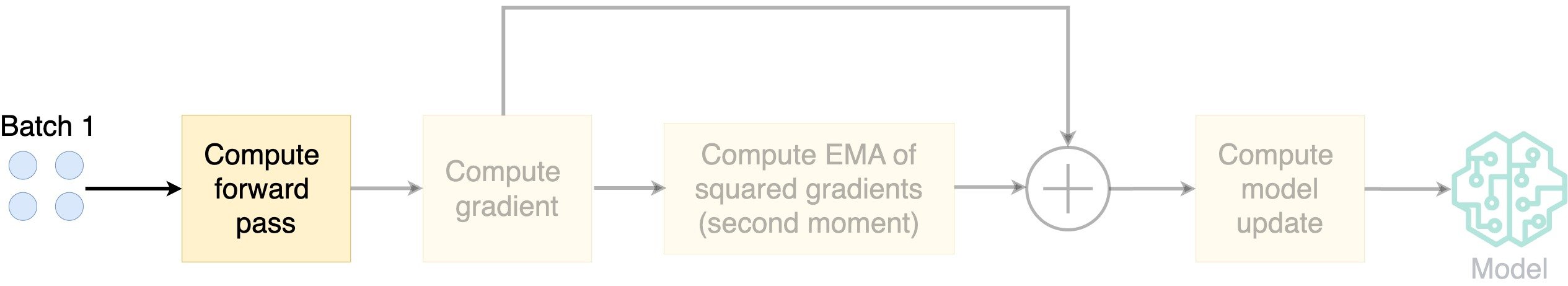

Diagram showing the steps of Adafactor.

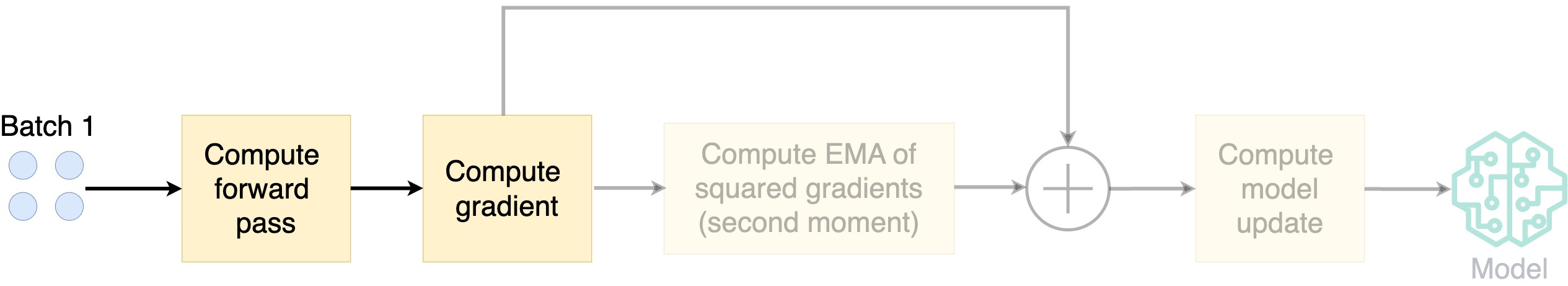

How does Adafactor work?

Diagram showing the steps of Adafactor.

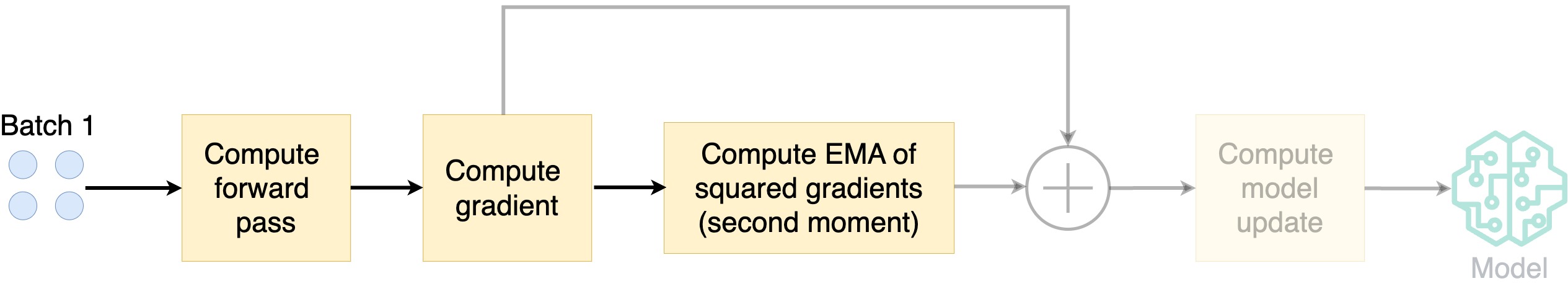

How does Adafactor work?

Diagram showing the steps of Adafactor.

EMA: exponential moving average
Second moment: EMA of the squared gradients

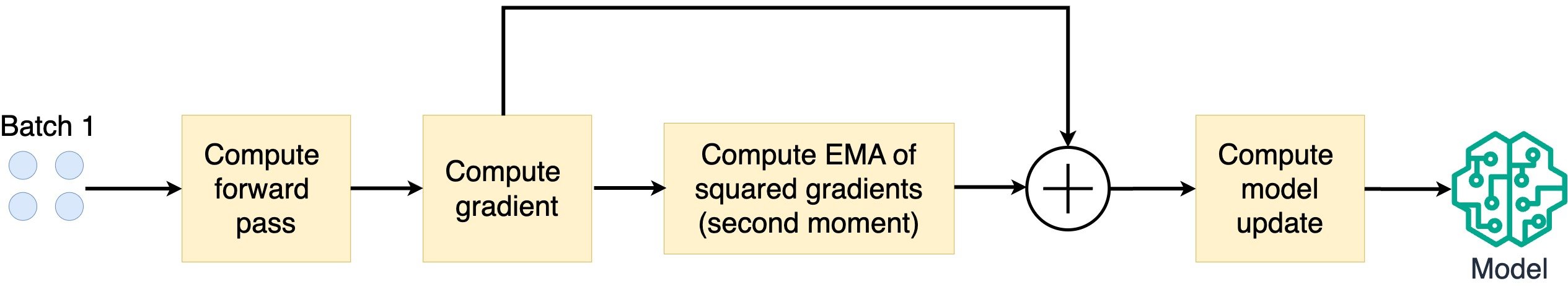

How does Adafactor work?

Diagram showing the steps of Adafactor.

EMA: exponential moving average
Second moment: EMA of the squared gradients

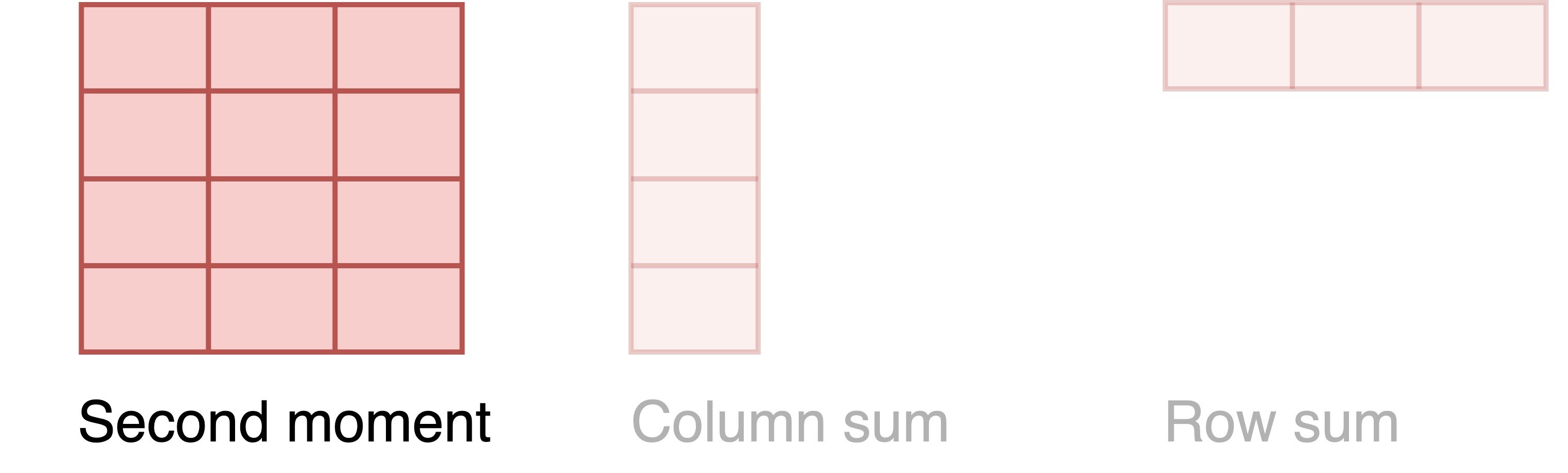

How does Adafactor save memory?

Diagram depicting the second moment matrix, column sum, and row sum.

Save memory by not storing the second moment matrix

How does Adafactor save memory?

Diagram depicting the second moment matrix, column sum, and row sum.

Save memory by not storing the second moment matrix
Instead, store the column sum and row sum of the matrix

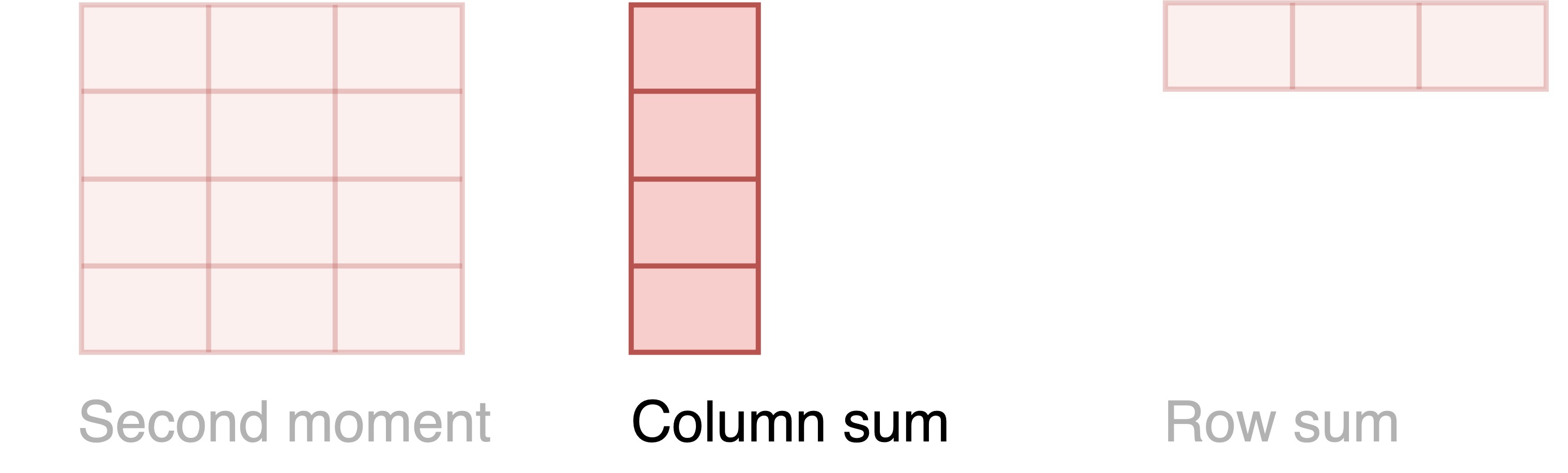

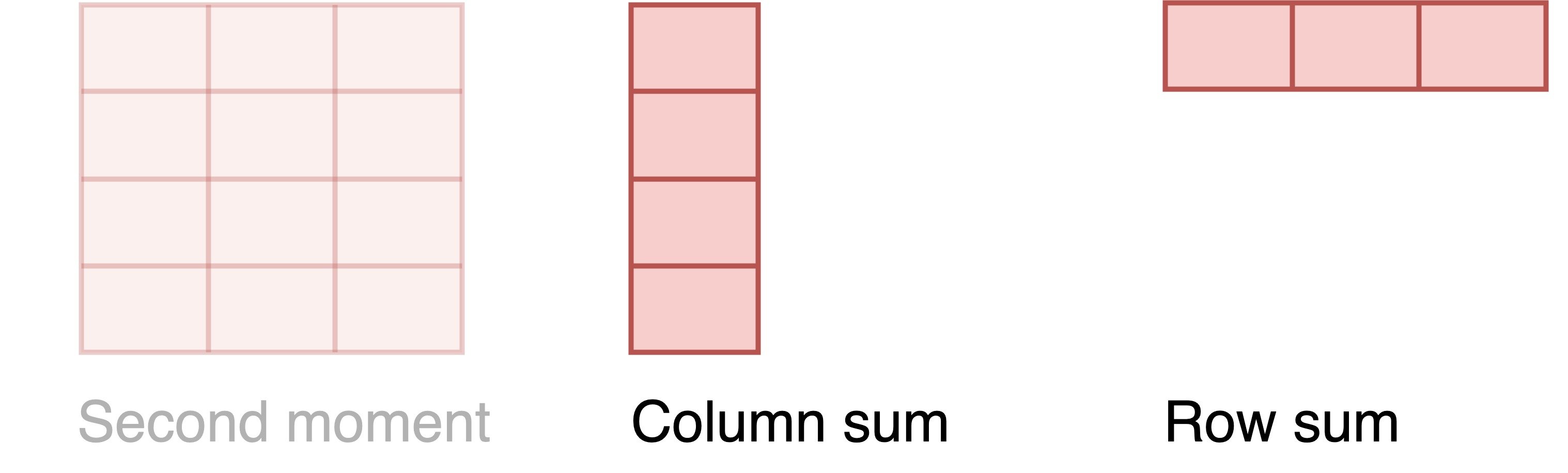

How does Adafactor save memory?

Diagram depicting the second moment matrix, column sum, and row sum.

Save memory by not storing the second moment matrix
Instead, store the column sum and row sum of the matrix

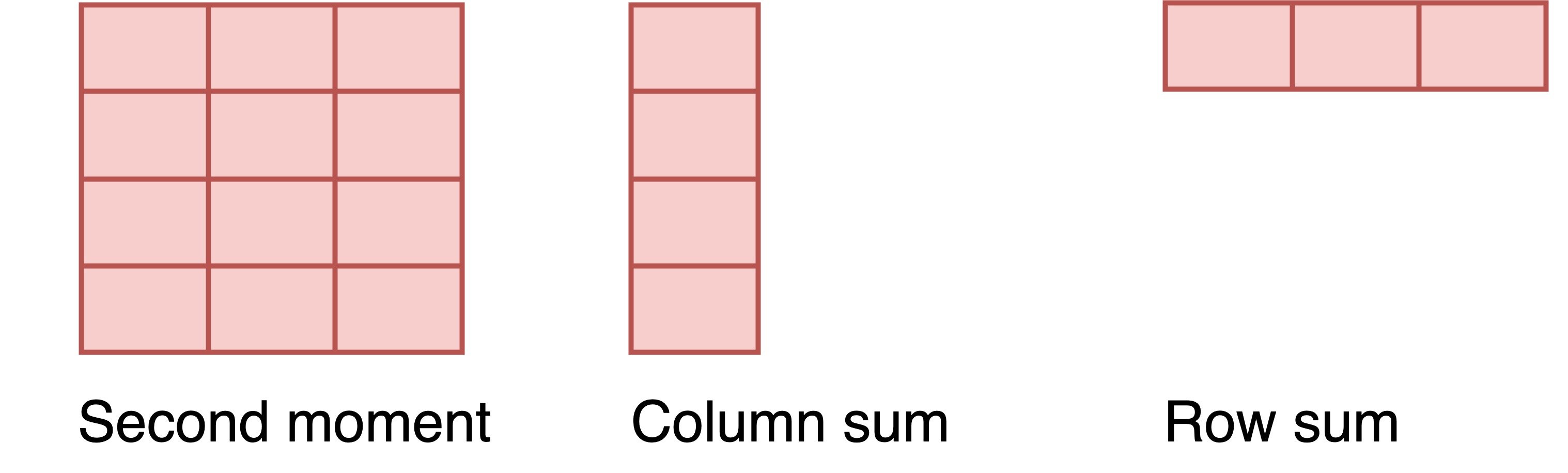

How does Adafactor save memory?

Diagram depicting the second moment matrix, column sum, and row sum.

Save memory by not storing the second moment matrix
Instead, store the column sum and row sum of the matrix
Estimate full matrix by multiplying column sum and row sum

Trainer and Accelerator implementation

Chart comparing ease of use vs. ability to customize for Accelerator and Trainer.

Implement Adafactor with Trainer

training_args = TrainingArguments(output_dir="./results",
                                  evaluation_strategy="epoch",

                                  optim="adafactor")

trainer = Trainer(model=model,
                  args=training_args,
                  train_dataset=train_dataset,
                  eval_dataset=validation_dataset,
                  compute_metrics=compute_metrics)
trainer.train()

{'epoch': 1.0, 'eval_accuracy': 0.6, 'eval_f1': 0.5}

Implement Adafactor with Accelerator

# Assumes PyTorch 2.5 or higher
from torch.optim import Adafactor

optimizer = Adafactor(params=model.parameters(), lr=lr)


for batch in train_dataloader:
    inputs, targets = batch["input_ids"], batch["labels"]
    outputs = model(inputs, labels=targets)
    loss = outputs.loss
    accelerator.backward(loss)
    optimizer.step()
    lr_scheduler.step()
    optimizer.zero_grad()
    print(f"Loss = {loss}")

Loss = 0.71

Inspect the optimizer state

Access the optimizer through its state

optimizer_state = optimizer.state.values()

Or access the optimizer through trainer

optimizer_state = trainer.optimizer.state.values()

print(optimizer_state)

dict_values([{'step': tensor(3.),
              'exp_avg_sq_row': tensor([1.0000e-30, 1.0000e-30, 1.0000e-30,  ...]),
              'exp_avg_sq_col': tensor([4.6147e-11, 5.5115e-11, 1.6338e-10, ...])}, ...])

Compute memory usage of Adafactor

total_size_megabytes, total_num_elements = \
    compute_optimizer_size(trainer.optimizer.state.values())
print(f"Number of Adafactor parameters: {total_num_elements:,}")
print(f"Adafactor size: {total_size_megabytes:.0f} MB")

Number of Adafactor parameters: 178,712
Adafactor size: 1 MB

Compare to AdamW: Adafactor uses much less memory!

Number of AdamW parameters: 131,566,188
AdamW size: 502 MB

Let's practice!
