Filtering joins

Joining Data with pandas

Aaren Stubberfield

Instructor

Mutating versus filtering joins

Mutating joins:

Combines data from two tables based on matching observations in both tables

Filtering joins:

Filter observations from table based on whether or not they match an observation in another table

What is a semi join?

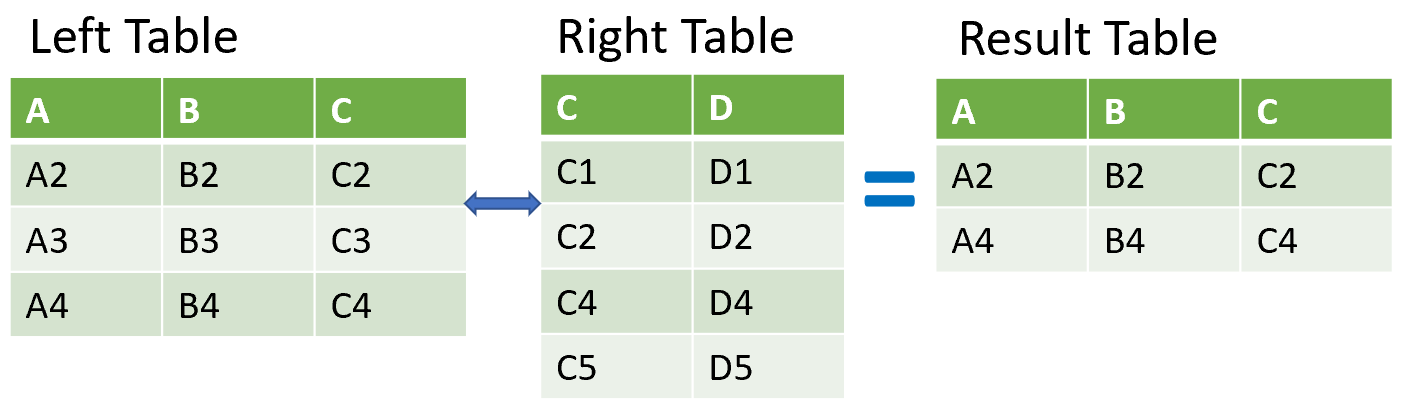

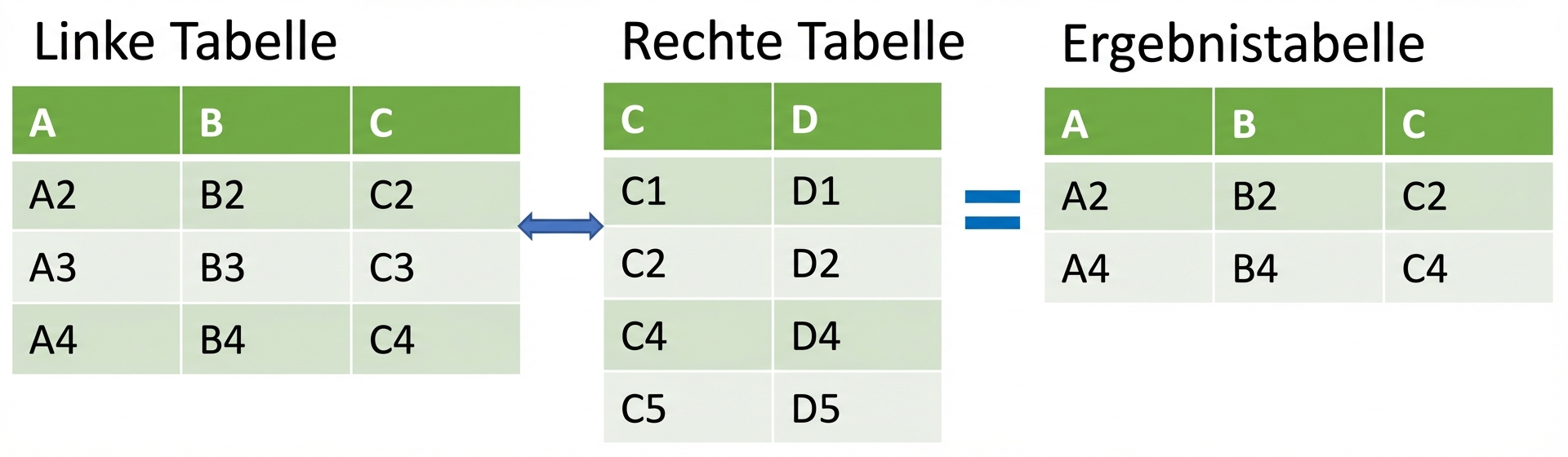

Table diagram of semi join where results come from intersection

Semi joins

Returns the intersection, similar to an inner join
Returns only columns from the left table and not the right
No duplicates

Musical dataset

image of phone with headphones

SQLite tutorial image

¹ Photo by Vlad Bagacian from Pexels

Example datasets

  gid  name
0 1    Rock
1 2    Jazz
2 3    Metal
3 4    Alternative ...
4 5    Rock And Roll

  tid  name             aid  mtid  gid  composer         u_price
0 1    For Those Ab...  1    1     1    Angus Young,...  0.99
1 2    Balls to the...  2    2     1    nan              0.99
2 3    Fast As a Shark  3    2     1    F. Baltes, S...  0.99
3 4    Restless and...  3    2     1    F. Baltes, R...  0.99
4 5    Princess of ...  3    2     1    Deaffy & R.A...  0.99

Step 1 - semi join

genres_tracks = genres.merge(top_tracks, on='gid')
print(genres_tracks.head())

  gid  name_x  tid   name_y           aid  mtid  composer         u_price
0 1    Rock    2260  Don't Stop M...  185  1     Mercury, Fre...  0.99
1 1    Rock    2933  Mysterious Ways  232  1     U2               0.99
2 1    Rock    2618  Speed Of Light   212  1     Billy Duffy/...  0.99
3 1    Rock    2998  When Love Co...  237  1     Bono/Clayton...  0.99
4 1    Rock    685   Who'll Stop ...  54   1     J. C. Fogerty    0.99

Step 2 - semi join

genres['gid'].isin(genres_tracks['gid'])

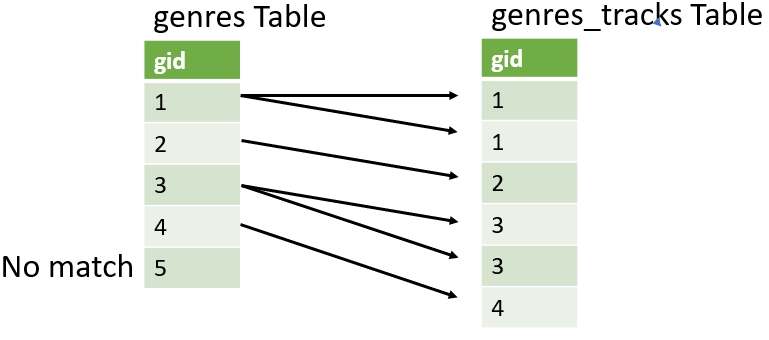

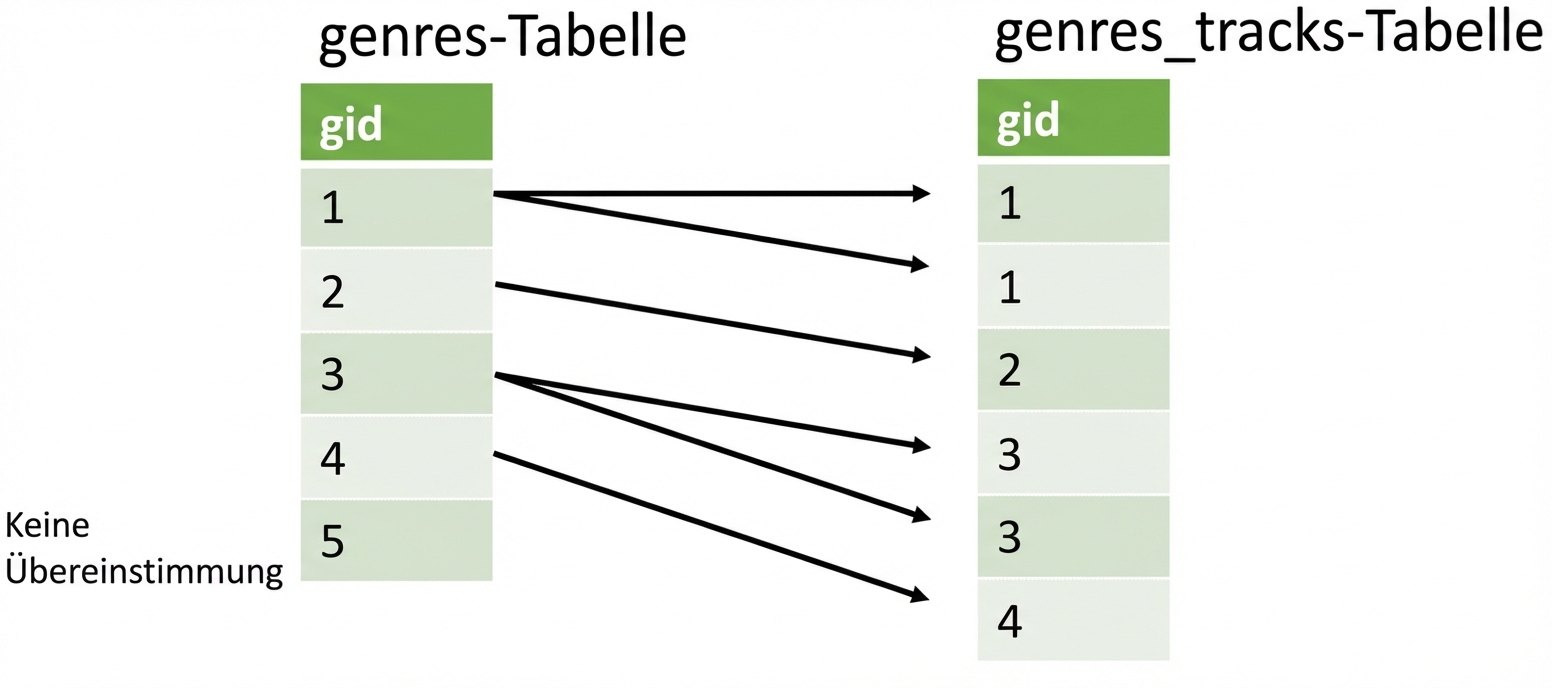

Image of 2 columns of gid being matched

Step 2 - semi join

genres['gid'].isin(genres_tracks['gid'])

0     True
1     True
2     True
3     True
4    False
Name: gid, dtype: bool

Step 3 - semi join

genres_tracks = genres.merge(top_tracks, on='gid')
top_genres = genres[genres['gid'].isin(genres_tracks['gid'])]
print(top_genres.head())

  gid  name
0 1    Rock
1 2    Jazz
2 3    Metal
3 4    Alternative & Punk
4 6    Blues

What is an anti join?

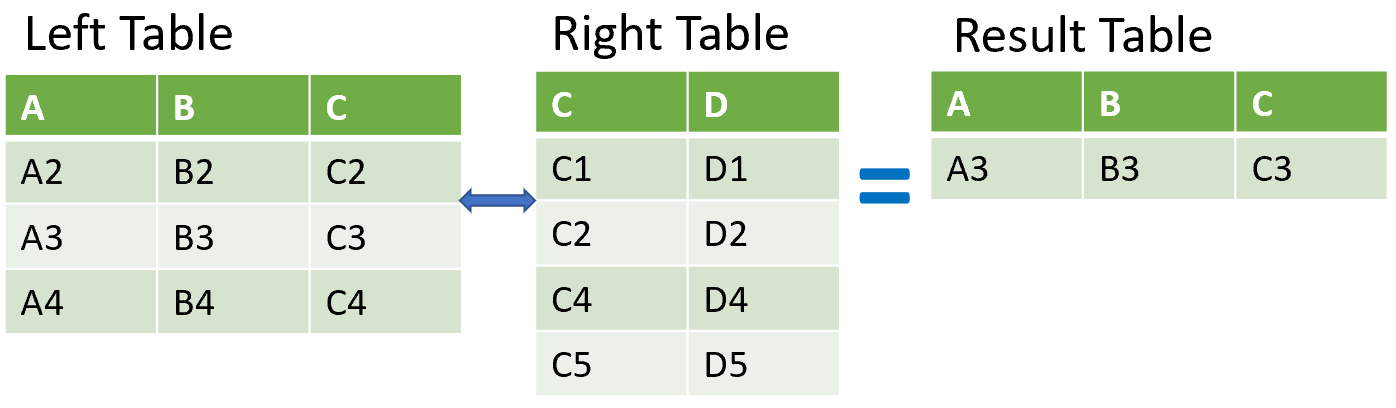

Table diagram of semi join where results come from left table minus intersection

Anti join:

Returns the left table, excluding the intersection
Returns only columns from the left table and not the right

Step 1 - anti join

genres_tracks = genres.merge(top_tracks, on='gid', how='left', indicator=True)
print(genres_tracks.head())

  gid  name_x           tid     name_y           aid    mtid  composer         u_price  _merge
0 1    Rock             2260.0  Don't Stop M...  185.0  1.0   Mercury, Fre...  0.99     both
1 1    Rock             2933.0  Mysterious Ways  232.0  1.0   U2               0.99     both
2 1    Rock             2618.0  Speed Of Light   212.0  1.0   Billy Duffy/...  0.99     both
3 1    Rock             2998.0  When Love Co...  237.0  1.0   Bono/Clayton...  0.99     both
4 5    Rock And Roll    NaN     NaN              NaN    NaN   NaN              NaN      left_only

Step 2 - anti join

gid_list = genres_tracks.loc[genres_tracks['_merge'] == 'left_only', 'gid']
print(gid_list.head())

23     5
34     9
36    11
37    12
38    13
Name: gid, dtype: int64

Step 3 - anti join

genres_tracks = genres.merge(top_tracks, on='gid', how='left', indicator=True)
gid_list = genres_tracks.loc[genres_tracks['_merge'] == 'left_only','gid']
non_top_genres = genres[genres['gid'].isin(gid_list)]

print(non_top_genres.head())

  gid  name
0 5    Rock And Roll
1 9    Pop
2 11   Bossa Nova
3 12   Easy Listening
4 13   Heavy Metal

Let's practice!
