Dimensional modeling

Data Modeling in Power BI

Sara Billen

Curriculum Manager at DataCamp

The Kimball Model

The dimensional model

Book cover of The Data Warehouse Toolkit that's co-written by Ralph Kimball

Data Modeling in Power BI

The Kimball Model

  • Key concepts
    • Facts: metrics from a business process
    • Dimensions: context surrounding a business process
    • Combine to form a star schema
  • Star schemas are used in data warehouses
  • Power BI is optimized for star schemas

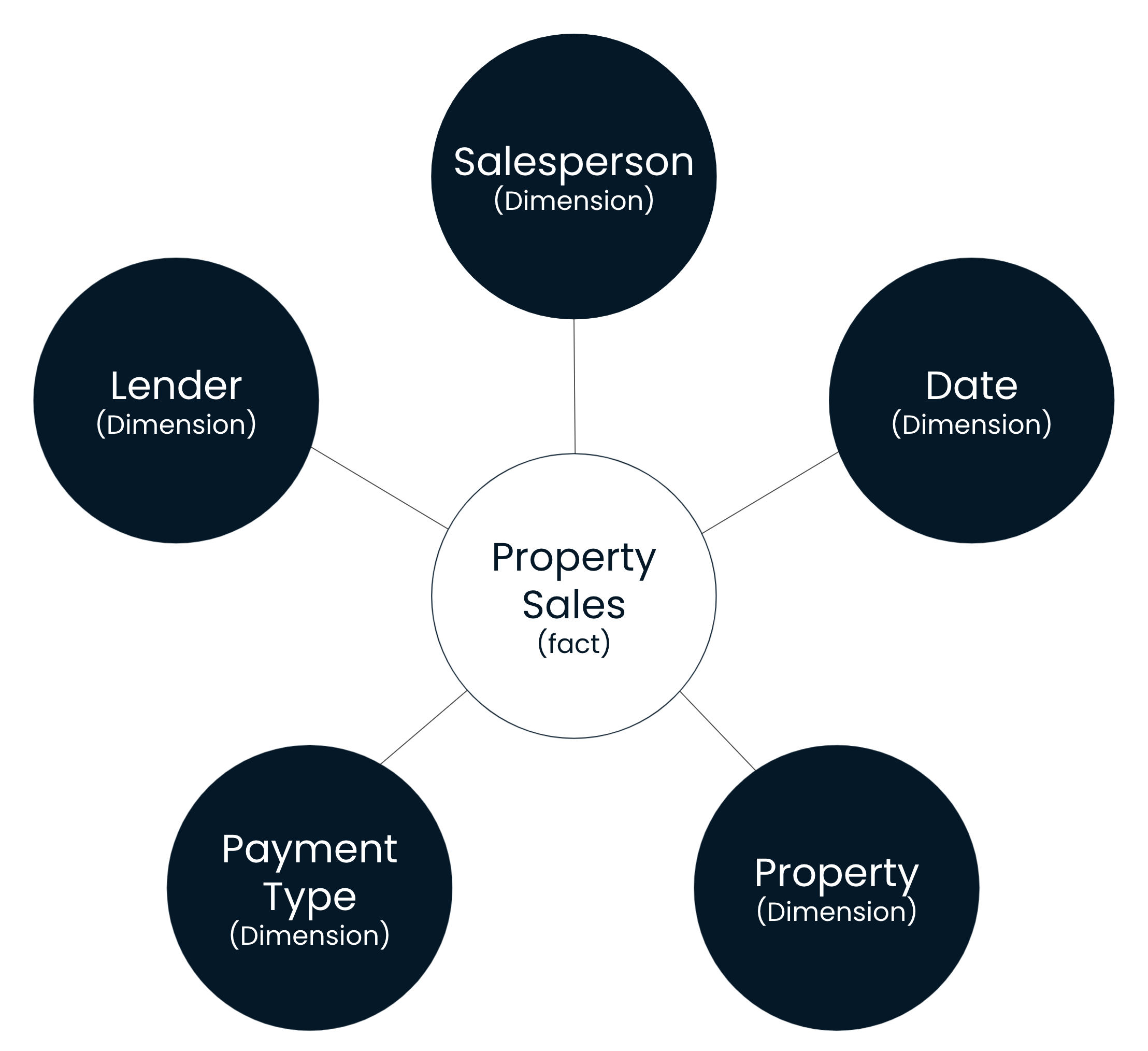

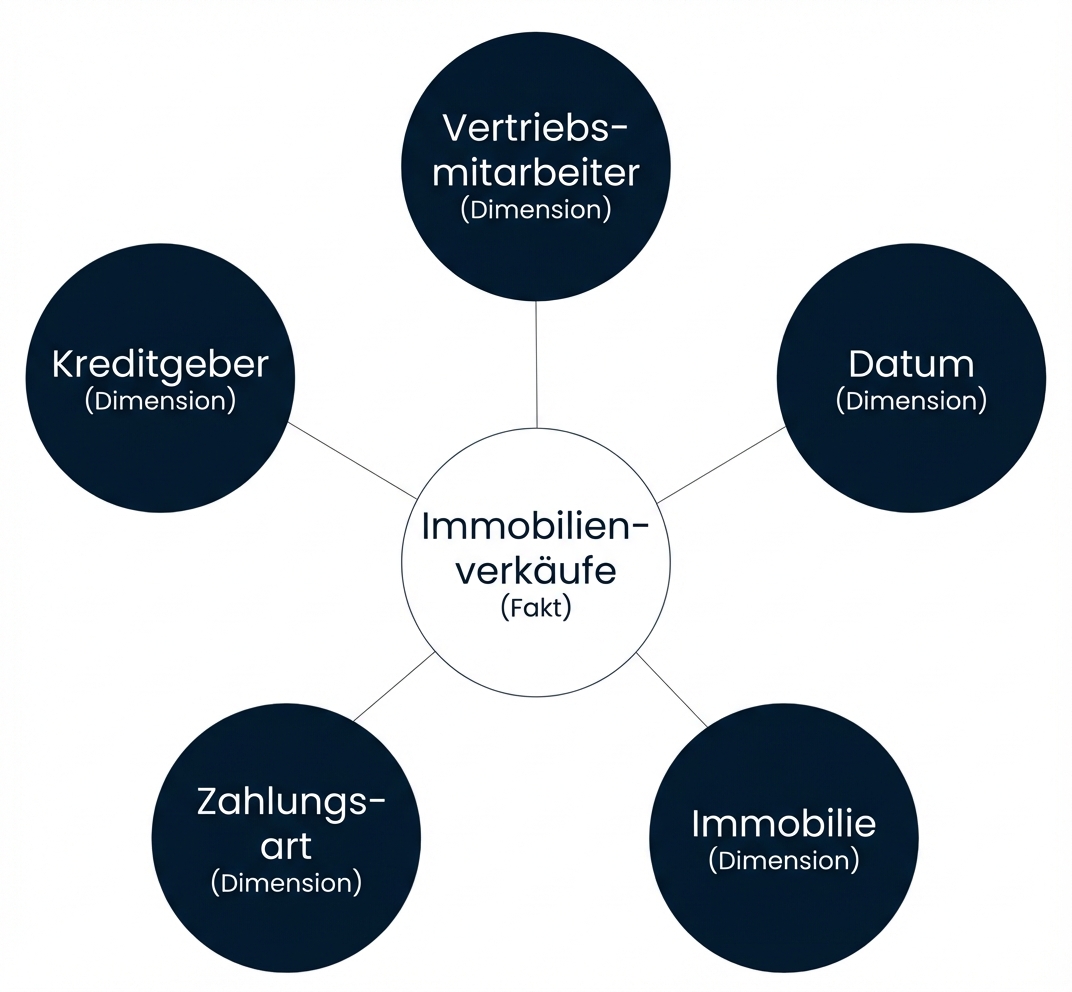

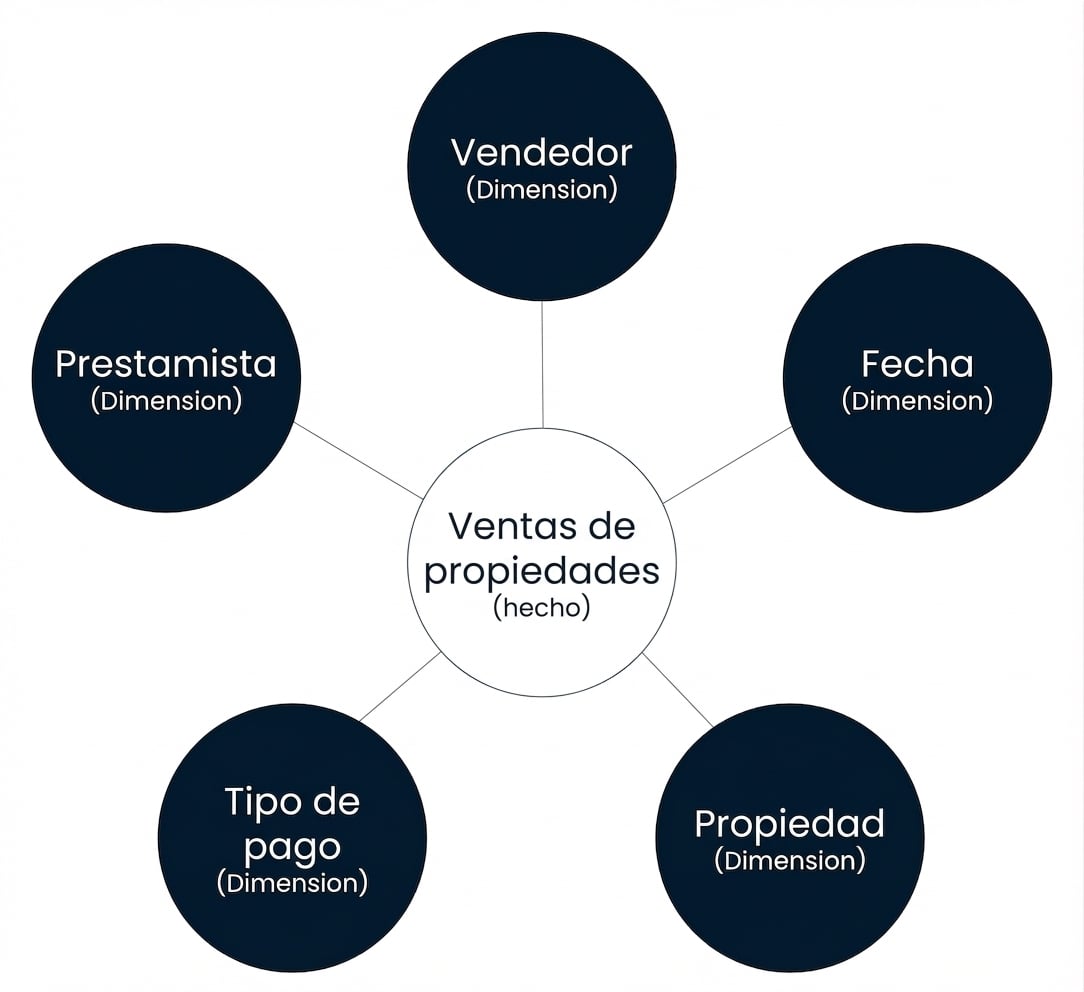

Diagram of a star schema with a fact surrounded by five dimensions

Data Modeling in Power BI

Fact tables

  • Made up of
    • Facts (measures)
      • Measurements or metrics from your business process
    • Keys
      • Used to establish relationships between fact and dimension tables
  • Fact tables are long and narrow
    • Lots of rows
    • Fewer columns

Diagram of a star schema with a fact surrounded by five dimensions

Data Modeling in Power BI

Fact tables: an example

Property Sales table

LenderID StartDateID PropertyID PaymentTypeID SalesPersonID Rent Duration
CO76 20200624 PG14 P2 SA9 750 24
CO56 20200907 PG4 P4 SA12 1250 12
CO62 20201201 PG16 P3 SA5 3000 36
CO43 20200201 PG6 P3 SA6 500 24
CO76 20200530 PG20 P2 SA6 5000 12
CO76 20200115 PG11 P2 SA2 2000 24
CO32 20201201 PG15 P2 SA9 450 36
... ... ... ... ... ... ...
Data Modeling in Power BI

Fact tables: an example

Keys: establish relationships between tables

LenderID StartDateID PropertyID PaymentTypeID SalesPersonID Rent Duration
CO76 20200624 PG14 P2 SA9 750 24
CO56 20200907 PG4 P4 SA12 1250 12
CO62 20201201 PG16 P3 SA5 3000 36
CO43 20200201 PG6 P3 SA6 500 24
CO76 20200430 PG20 P2 SA9 5000 12
CO76 20200115 PG11 P2 SA2 2000 24
CO32 20201201 PG15 P2 SA9 450 36
... ... ... ... ... ... ...
Data Modeling in Power BI

Fact tables: an example

Measures: metrics from the business process

LenderID StartDateID PropertyID PaymentTypeID SalesPersonID Rent Duration
CO76 20200624 PG14 P2 SA9 750 24
CO56 20200907 PG4 P4 SA12 1250 12
CO62 20201201 PG16 P3 SA5 3000 36
CO43 20200201 PG6 P3 SA6 500 24
CO76 20200430 PG20 P2 SA9 5000 12
CO76 20200115 PG11 P2 SA2 2000 24
CO32 20201201 PG15 P2 SA9 450 36
... ... ... ... ... ... ...
Data Modeling in Power BI

Dimension tables

  • Provide context
    • Who, what, when, where, why?
  • Shared business concepts
    • E.g., person, employee, customer, vendor
  • Contain static or "slowly changing" data
    • E.g., name, date of birth, height
  • Dimension tables are short and wide
    • Few rows
    • Lots of columns

Diagram of a star schema with a fact surrounded by five dimensions

Data Modeling in Power BI

Dimension tables: an example

Salesperson table

SalesPersonID FirstName LastName DateOfBirth Salary
SA9 Mary Howe 1990-02-19 24000
SA12 David Ford 1978-03-24 18000
SA5 Ann Beech 1980-11-10 12000
SA6 Julie Lee 1985-06-13 30000
SA9 John White 1965-10-01 9000
... ... ...
Data Modeling in Power BI

Dimension tables: an example

Key: establish relationship with fact table

SalesPersonID FirstName LastName DateOfBirth Salary
SA9 Mary Howe 1990-02-19 24000
SA12 David Ford 1978-03-24 18000
SA5 Ann Beech 1980-11-10 12000
SA6 Julie Lee 1985-06-13 30000
SA9 John White 1965-10-01 9000
... ... ...
Data Modeling in Power BI

Dimension tables: an example

Attributes: various characteristics of the dimension

SalesPersonID FirstName LastName DateOfBirth Salary
SA9 Mary Howe 1990-02-19 24000
SA12 David Ford 1978-03-24 18000
SA5 Ann Beech 1980-11-10 12000
SA6 Julie Lee 1985-06-13 30000
SA9 John White 1965-10-01 9000
... ... ... ... ...
Data Modeling in Power BI

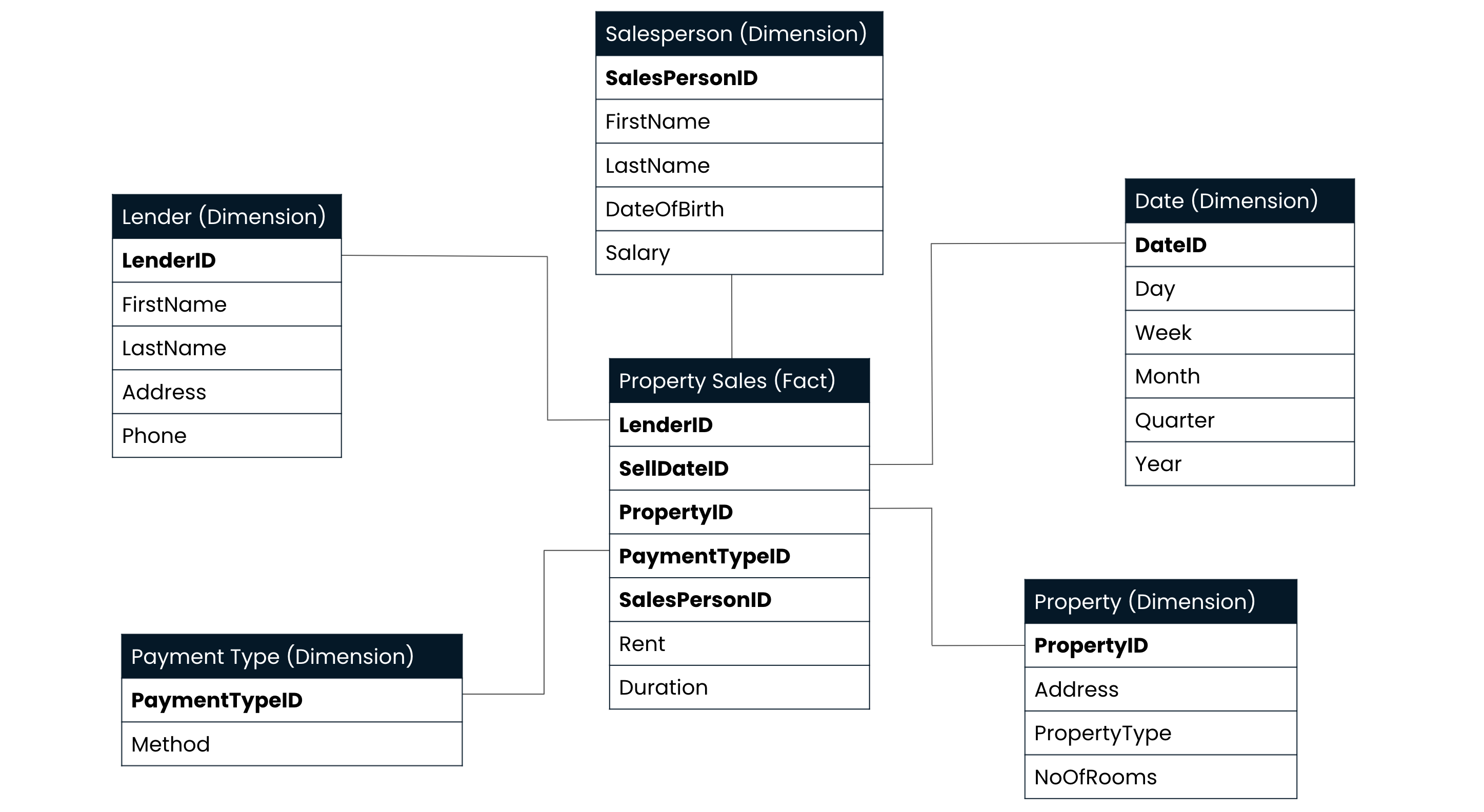

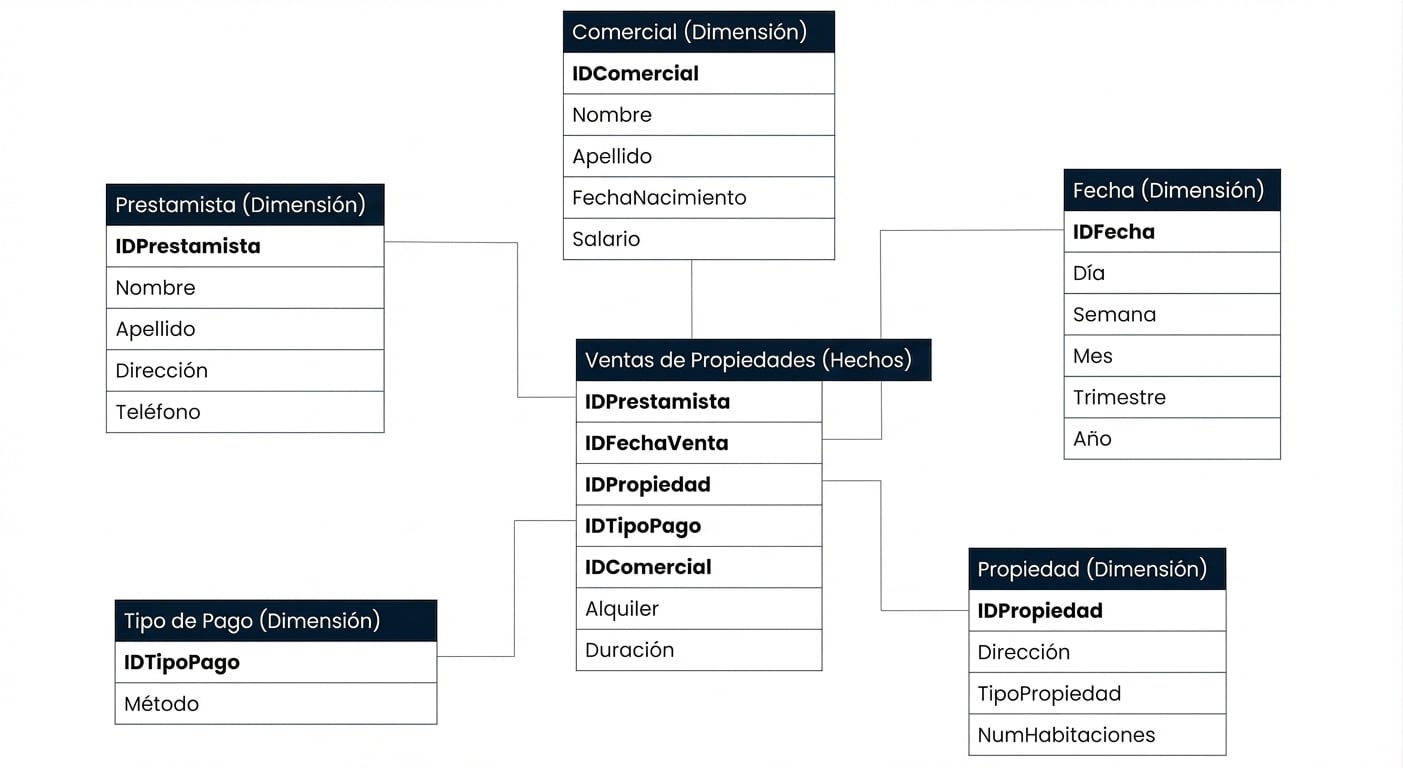

Data model for the Property Sales star schema

  • Dimensions are used in multiple facts
  • Dimensions do not link to other dimensions
Data Modeling in Power BI

The dataset

Fact
  • Establishment Survey: number of employees, number of firms, ...
Dimensions
  • Industry: NAICS code, industry group, subsector, sector
  • Time: year, decade, century
  • Age: establishment age
  • Geography: country, state

Photograph of a conveyor belt in a bottle factory

Data Modeling in Power BI

Let's practice!

Data Modeling in Power BI
