Intrinsic dimension

Unsupervised Learning in Python

Benjamin Wilson

Director of Research at lateral.io

Intrinsic dimension of a flight path

  • 2 features: longitude and latitude at points along a flight path
  • Dataset appears to be 2-dimensional
  • But can approximate using one feature: displacement along flight path
  • Is intrinsically 1-dimensional
latitude  longitude
  50.529     41.513
  50.360     41.672
  50.196     41.835
...

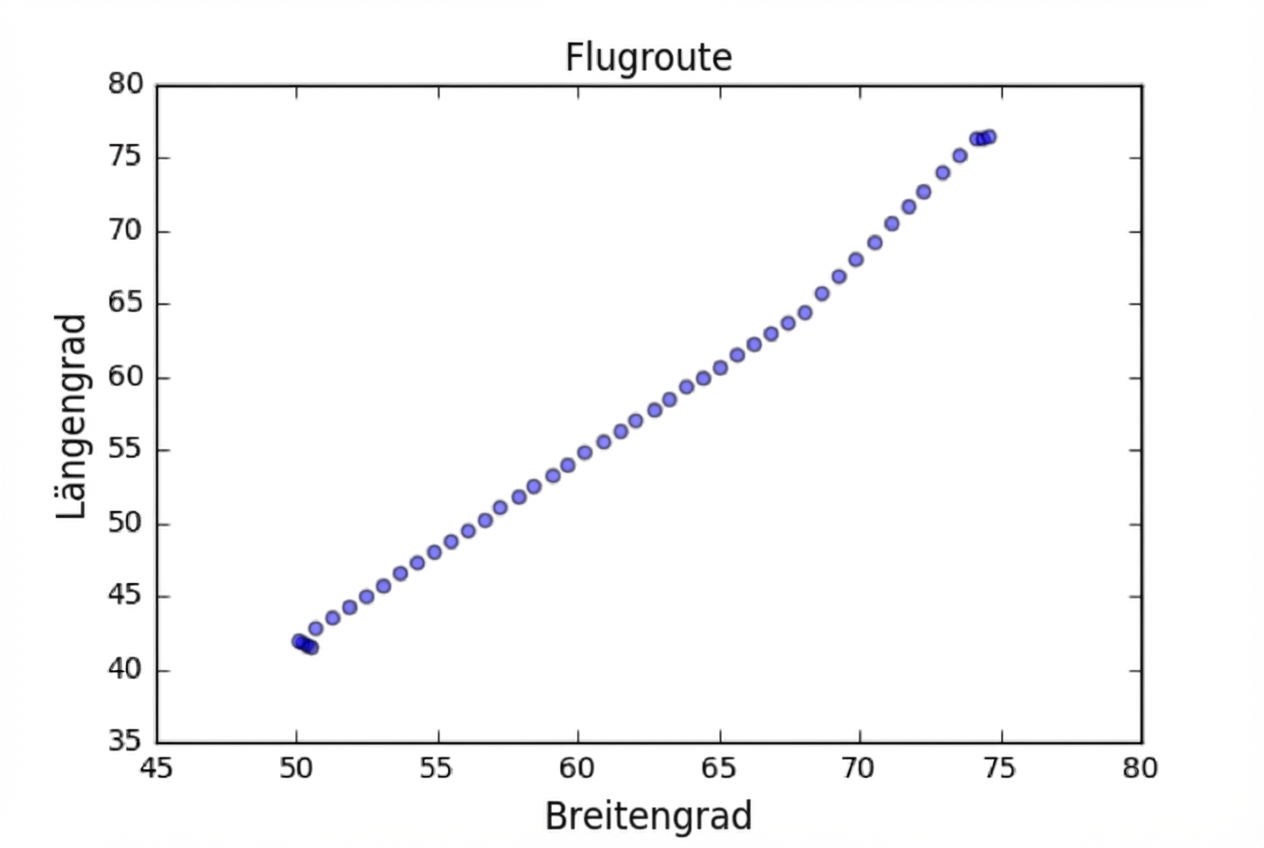

Scatter plot of longitude vs latitude

Unsupervised Learning in Python

Intrinsic dimension

  • Intrinsic dimension = number of features needed to approximate the dataset
  • Essential idea behind dimension reduction
  • What is the most compact representation of the samples?
  • Can be detected with PCA
Unsupervised Learning in Python

Versicolor dataset

  • "versicolor", one of the iris species
  • Only 3 features: sepal length, sepal width, and petal width
  • Samples are points in 3D space
Unsupervised Learning in Python

Versicolor dataset has intrinsic dimension 2

  • Samples lie close to a flat 2-dimensional sheet
  • So can be approximated using 2 features

Versicolor points plotted in 3d space: sepal length vs sepal width vs petal width

Unsupervised Learning in Python

PCA identifies intrinsic dimension

  • Scatter plots work only if samples have 2 or 3 features
  • PCA identifies intrinsic dimension when samples have any number of features
  • Intrinsic dimension = number of PCA features with significant variance
Unsupervised Learning in Python

PCA of the versicolor samples

Rotated versicolor points plotted in 3d space: PC1 vs PC2 vs PC3

Unsupervised Learning in Python

PCA features are ordered by variance descending

Bar plot showing pca feature number vs variance

Unsupervised Learning in Python

Variance and intrinsic dimension

  • Intrinsic dimension is number of PCA features with significant variance
  • In our example: the first two PCA features
  • So intrinsic dimension is 2

Bar plot showing pca feature number vs variance with vertical red line between 1 and 2

Unsupervised Learning in Python

Plotting the variances of PCA features

  • samples = array of versicolor samples
import matplotlib.pyplot as plt
from sklearn.decomposition import PCA

pca = PCA()

pca.fit(samples)

PCA()

features = range(pca.n_components_)
Unsupervised Learning in Python

Plotting the variances of PCA features

plt.bar(features, pca.explained_variance_)
plt.xticks(features)
plt.ylabel('variance')
plt.xlabel('PCA feature')
plt.show()

Bar plot showing pca feature number vs variance

Unsupervised Learning in Python

Intrinsic dimension can be ambiguous

  • Intrinsic dimension is an idealization
  • ... there is not always one correct answer!
  • Piedmont wines: could argue for 2, or for 3, or more

Bar plot showing pca feature number vs variance of wines dataset

Unsupervised Learning in Python

Let's practice!
