Welcome!

Data Structures and Algorithms in Python

Miriam Antona

Software Engineer

The importance of algorithms and data structures

  • Data structures and algorithms enable us to
    • solve everyday problems
    • using efficient code
  • The course could be taught in any programming language
Data Structures and Algorithms in Python

Algorithms and data structures

  • Algorithm: set of instructions that solve a problem

    1. Design

      An schematic picture of an algorithm design.

    2. Code

      An schematic picture of the code of an algorithm.

  • Data structures: hold and manipulate data when we execute an algorithm
    • Advanced data structures: linked lists, stacks, queues...
Data Structures and Algorithms in Python

Linked lists

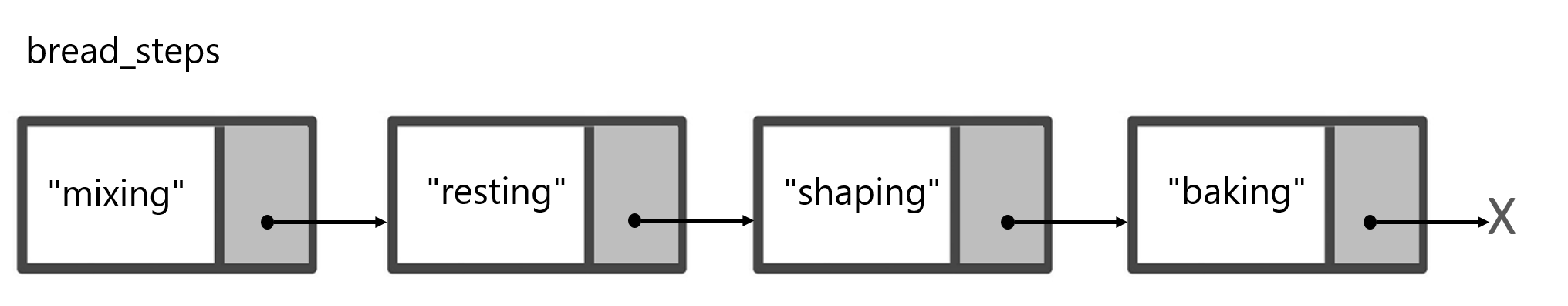

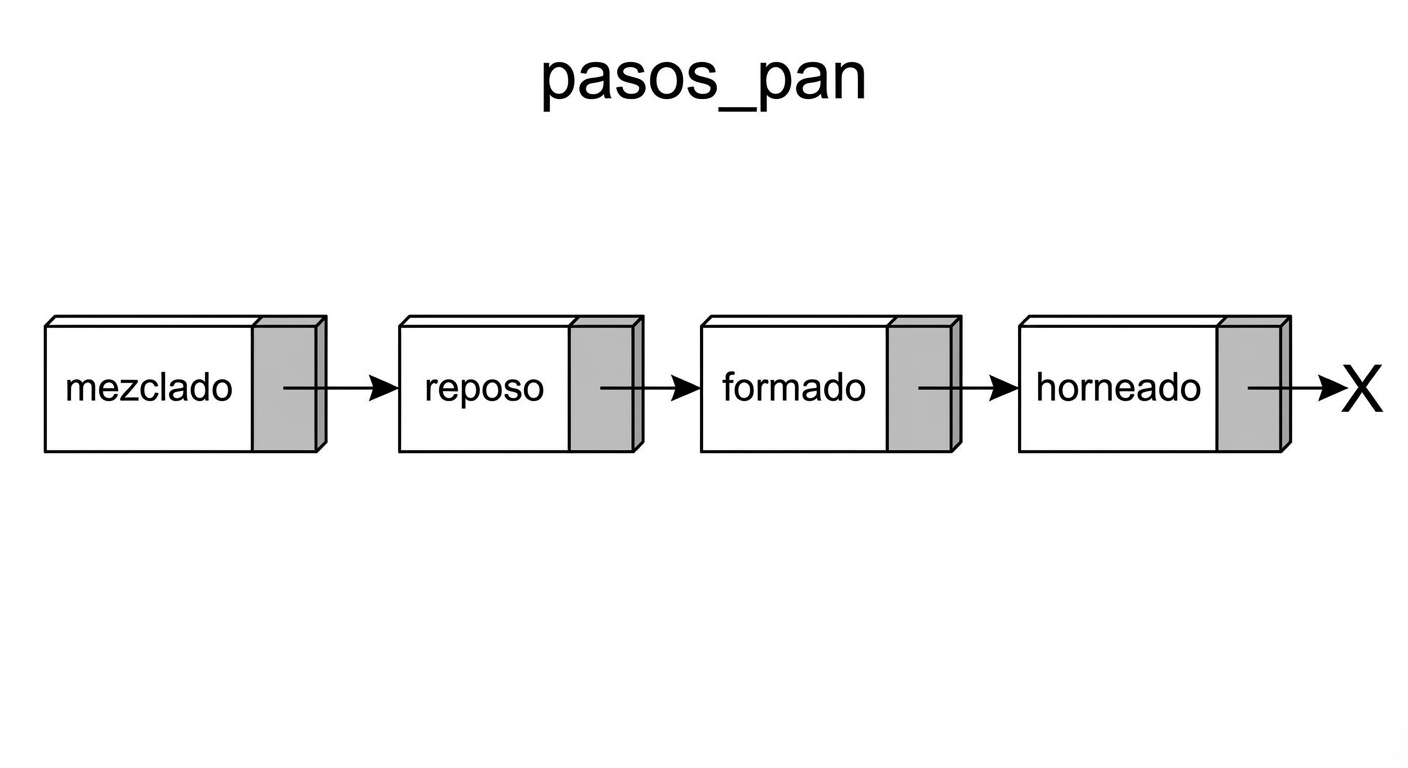

A visual example of a linked list that contains the steps to prepare bread.

  • Sequence of data connected through links
Data Structures and Algorithms in Python

Linked lists - structure

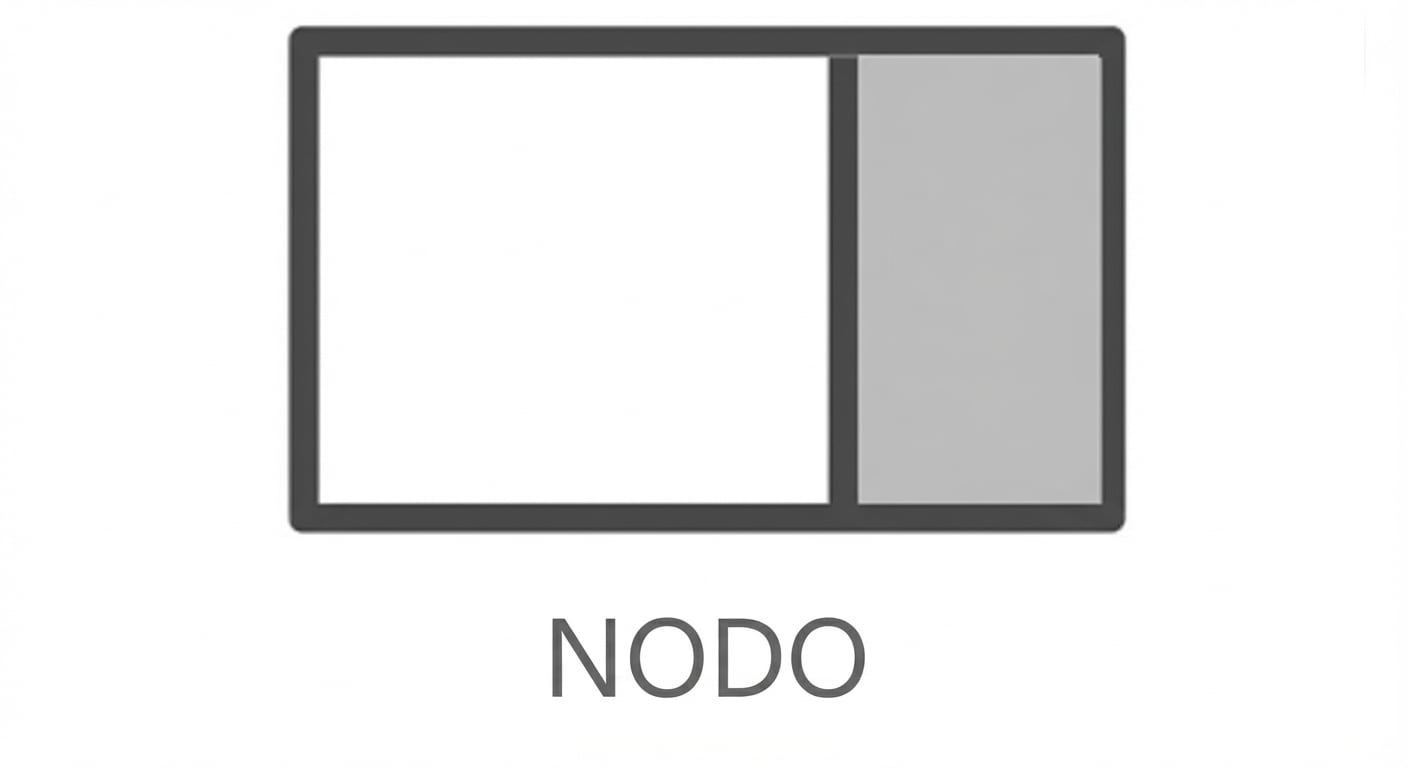

The representation of a node in a linked list.

Data Structures and Algorithms in Python

Linked lists - structure

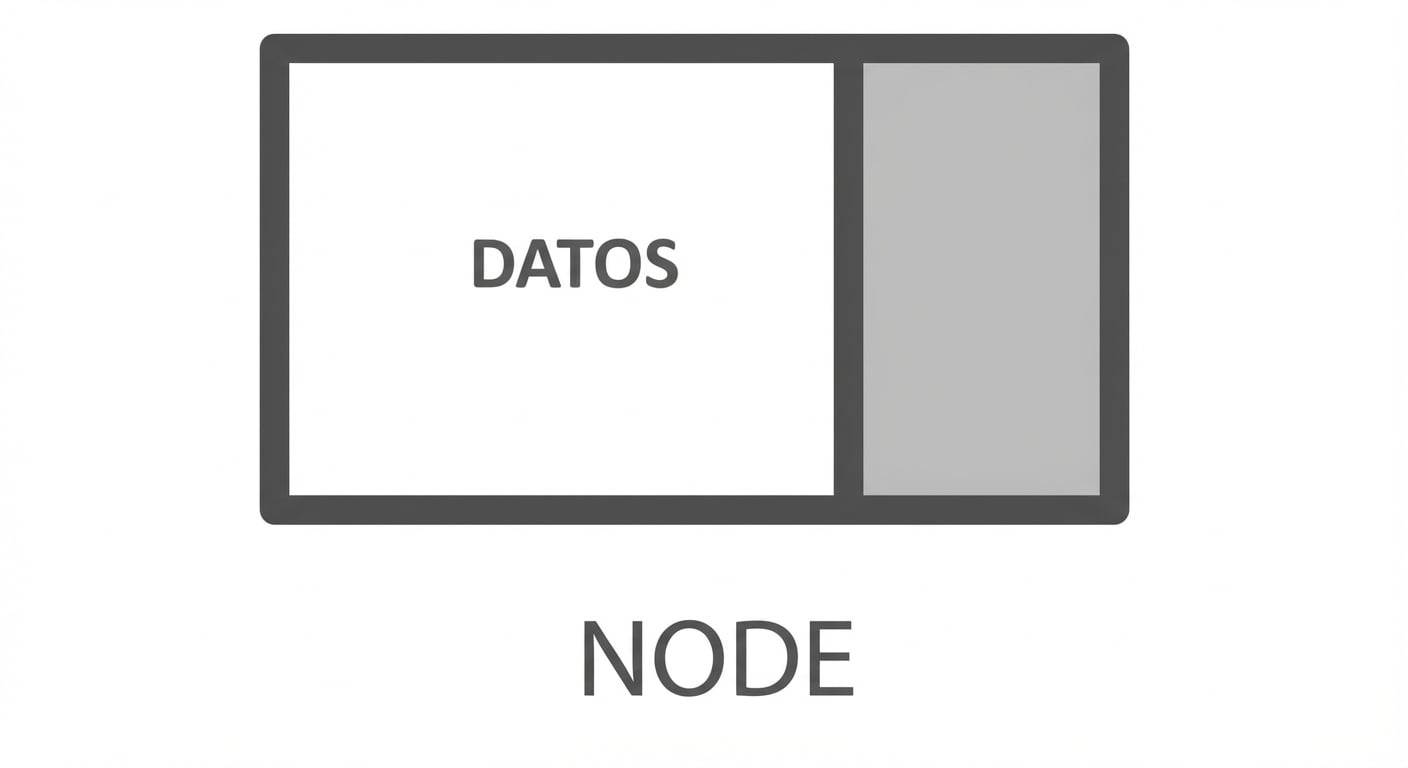

The representation of a node in a linked list with the word "DATA" in the first part.

Data Structures and Algorithms in Python

Linked lists - structure

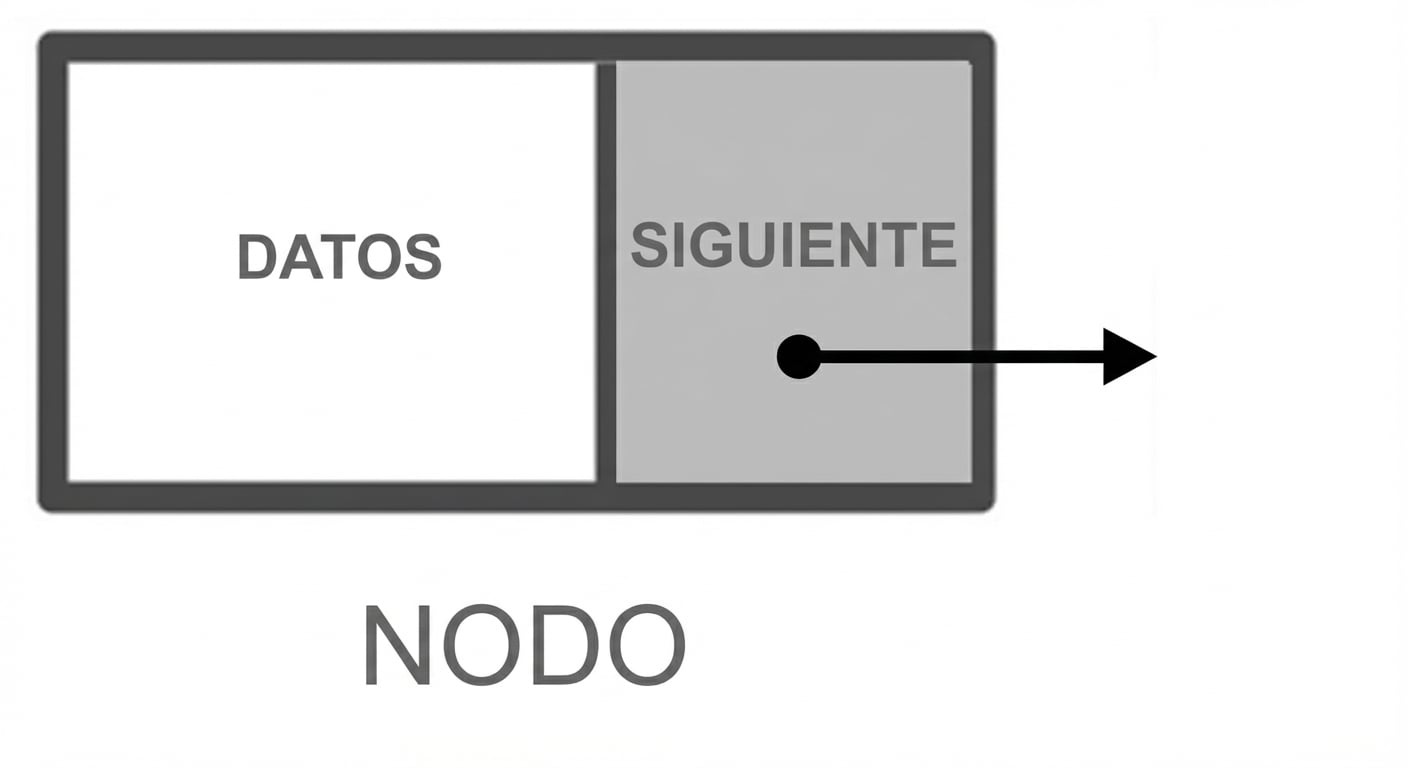

The representation of a node in a linked list with the words "DATA" in the first part, and "NEXT" with a pointer in the second part.

Data Structures and Algorithms in Python

Linked lists - structure

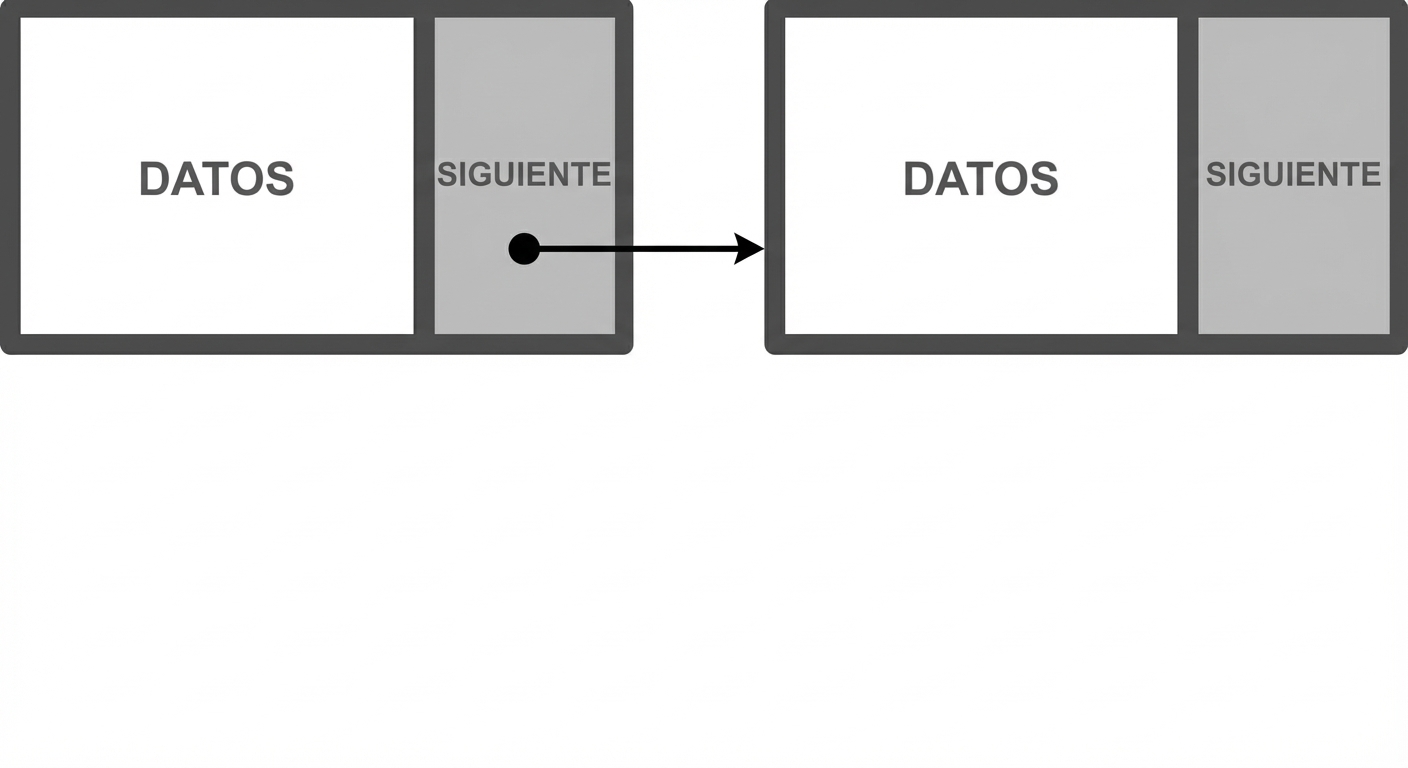

The representation of two nodes of a linked list connected with a link.

Data Structures and Algorithms in Python

Linked lists - structure

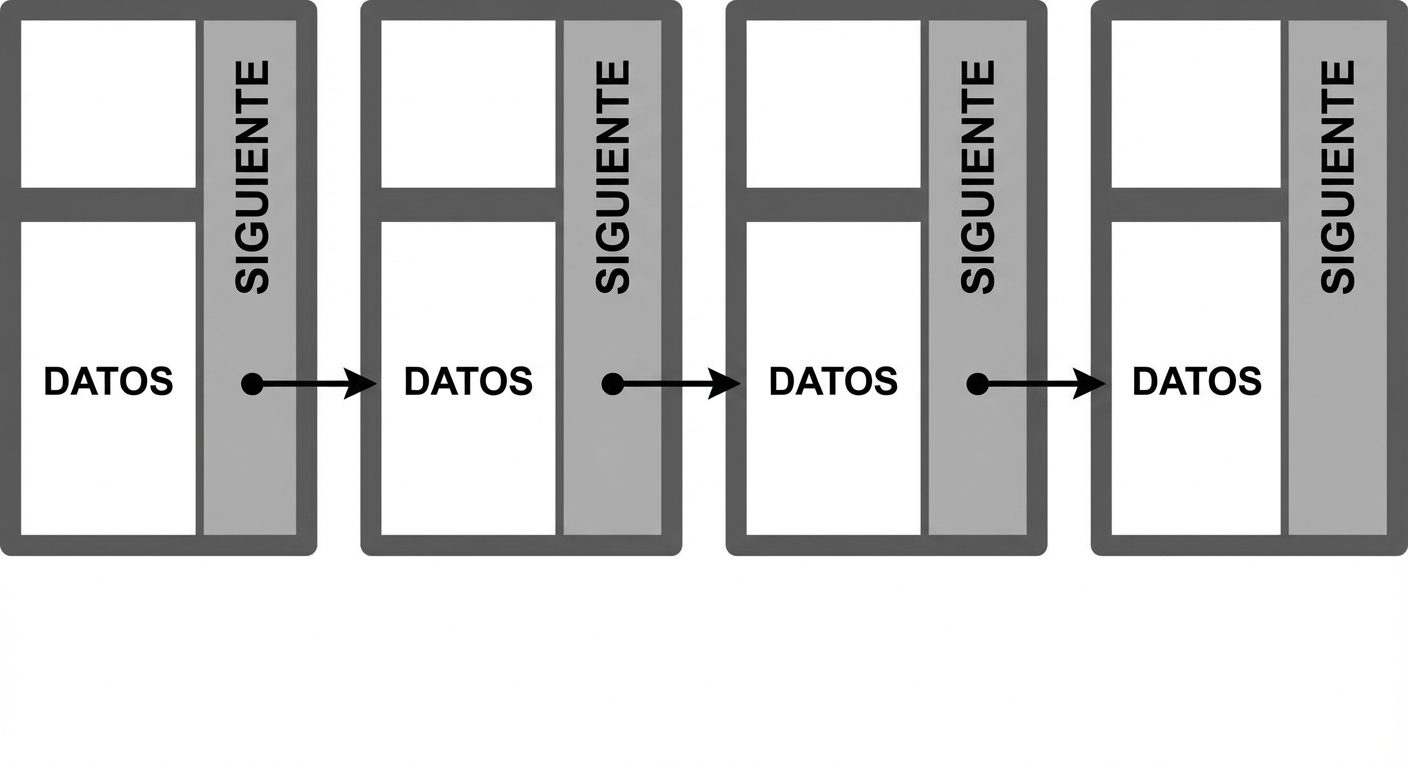

The representation of several nodes of a linked list connected with links.

Data Structures and Algorithms in Python

Linked lists - structure

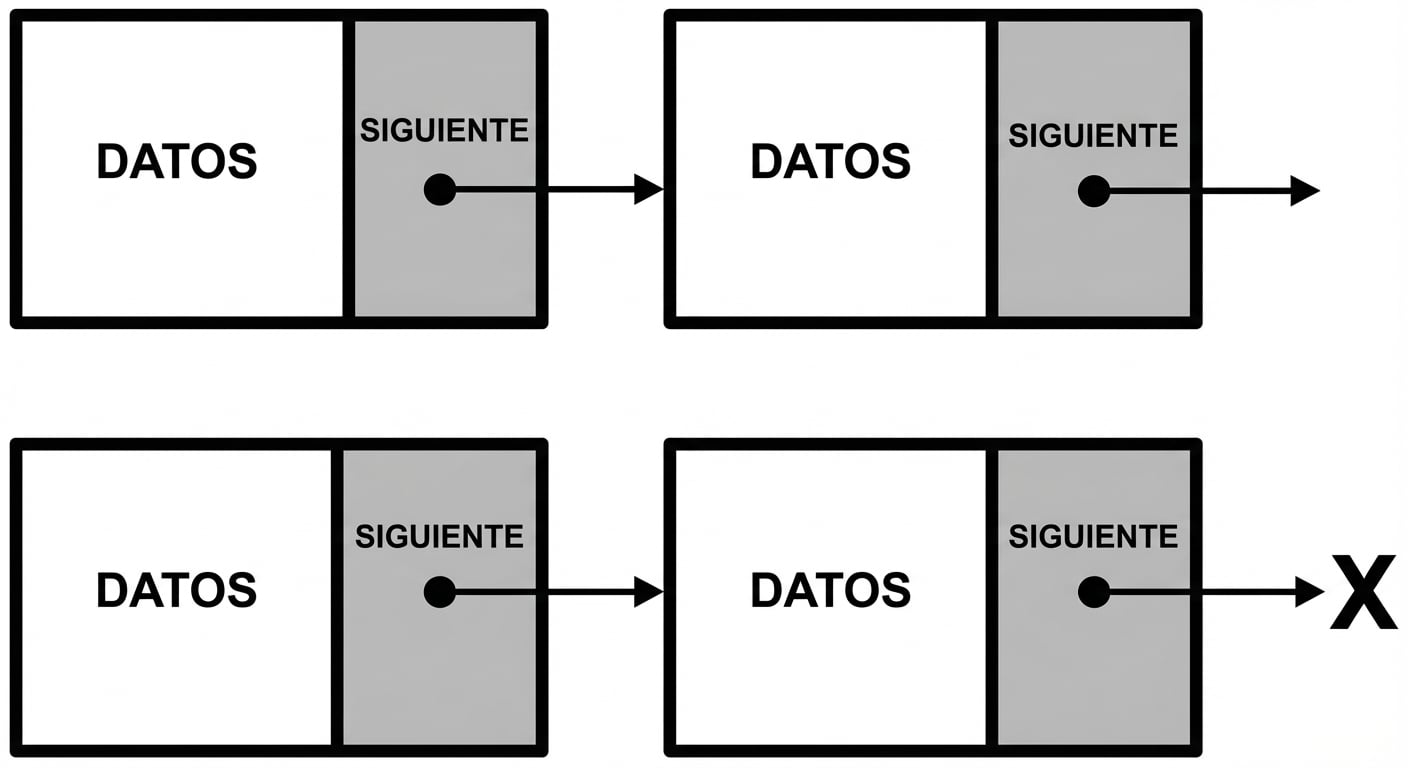

The representation a linked list where the last node points to null.

Data Structures and Algorithms in Python

Linked lists - structure

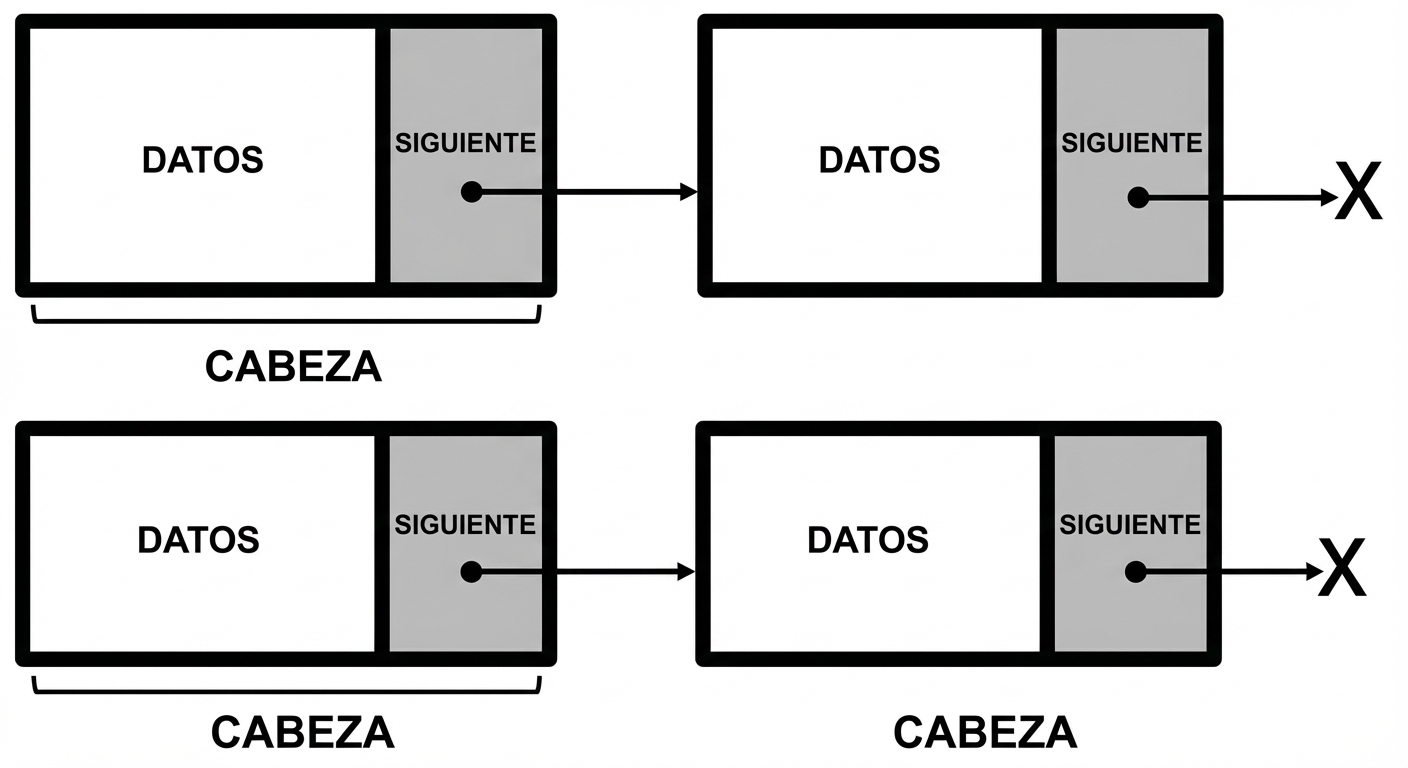

The representation of a linked list with the word "HEAD" in the first node.

Data Structures and Algorithms in Python

Linked lists - structure

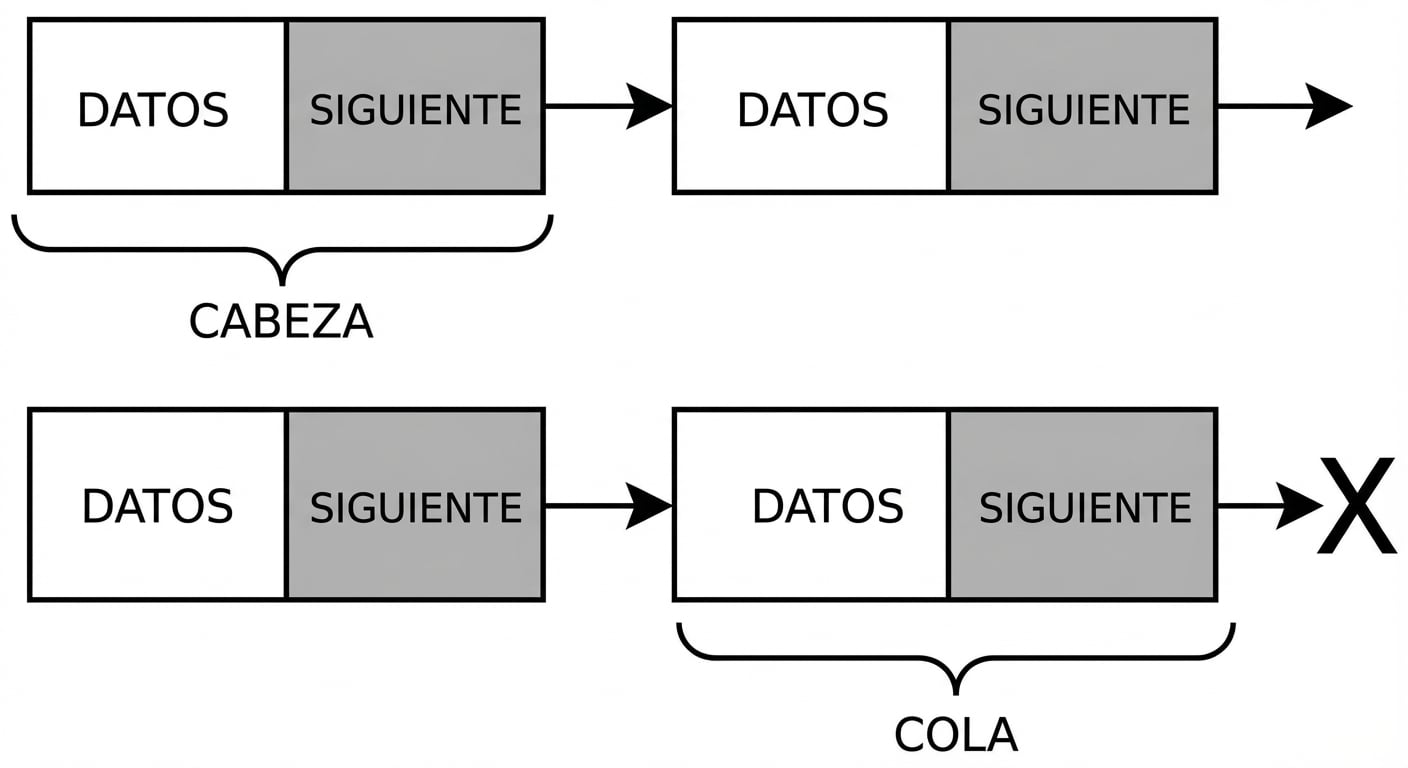

The representation of a linked list with the word "TAIL" in the last node.

  • Data doesn't need to be stored in contiguous blocks of memory
  • Data can be located in any available memory address
Data Structures and Algorithms in Python

Singly linked lists

The representation of a singly linked list.

  • One link: singly linked list
Data Structures and Algorithms in Python

Doubly linked lists

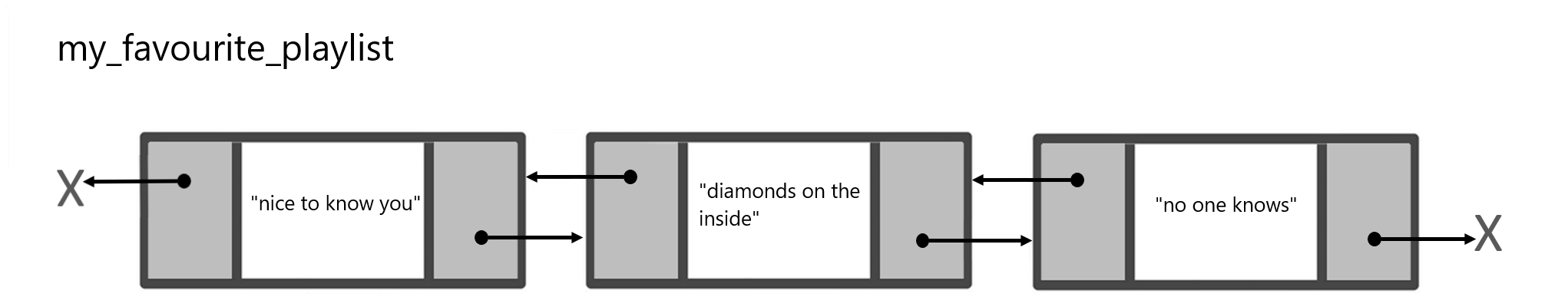

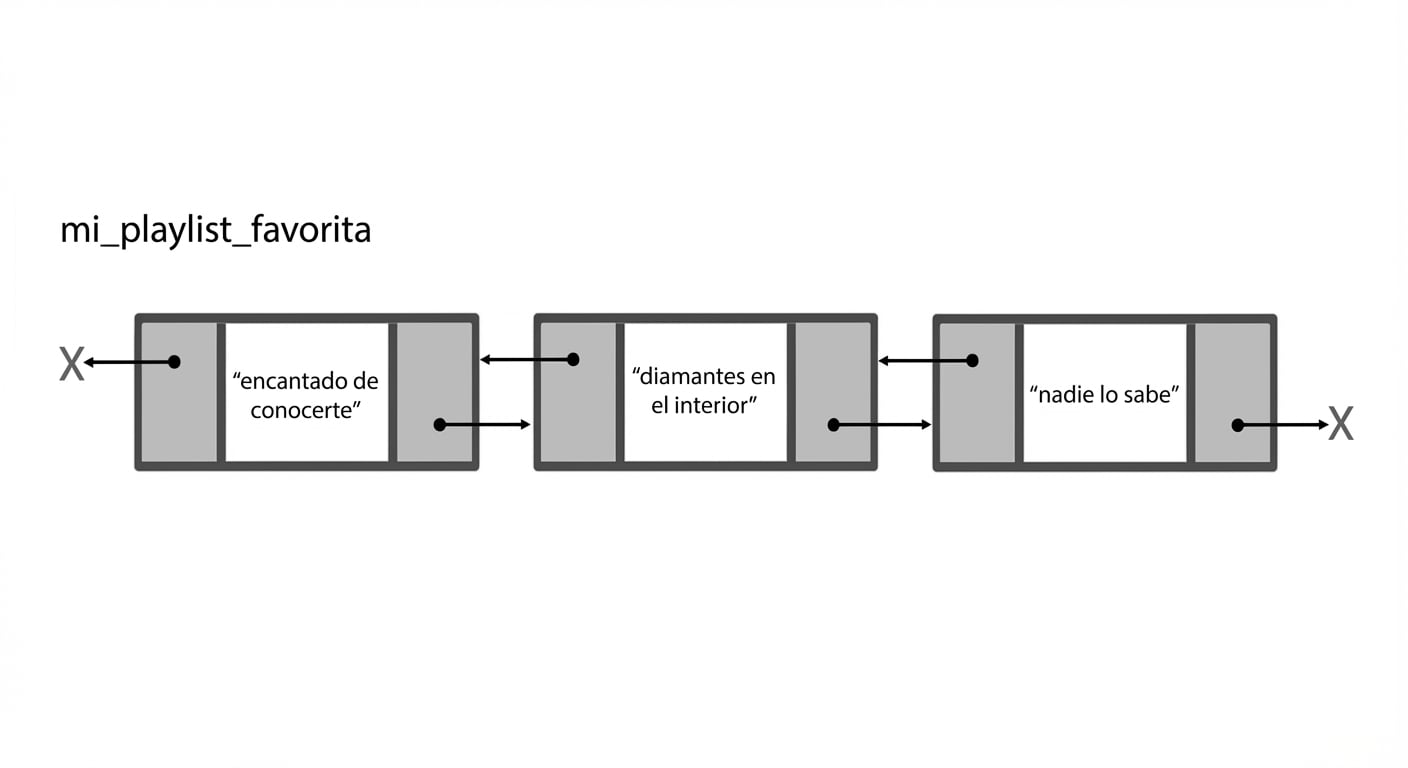

The representation of a doubly linked list.

  • Two links in either direction: doubly linked list
Data Structures and Algorithms in Python

Linked lists - real uses

  • Implement other data structures:
    • stacks
    • queues
    • graphs
  • Access information by navigating backward and forward
    • web browser
    • music playlist
Data Structures and Algorithms in Python

Linked lists - Node class

class Node:
  def __init__(self, data):
    self.data = data
    self.next = None
Data Structures and Algorithms in Python

Linked lists - LinkedList class

class LinkedList:
  def __init__(self):
    self.head = None
    self.tail = None
Data Structures and Algorithms in Python

Linked lists - methods

  • insert_at_beginning()
  • remove_at_beginning()
  • insert_at_end()
  • remove_at_end()
  • insert_at()
  • remove_at()
  • search()
  • ...
Data Structures and Algorithms in Python

Linked lists - insert_at_beginning

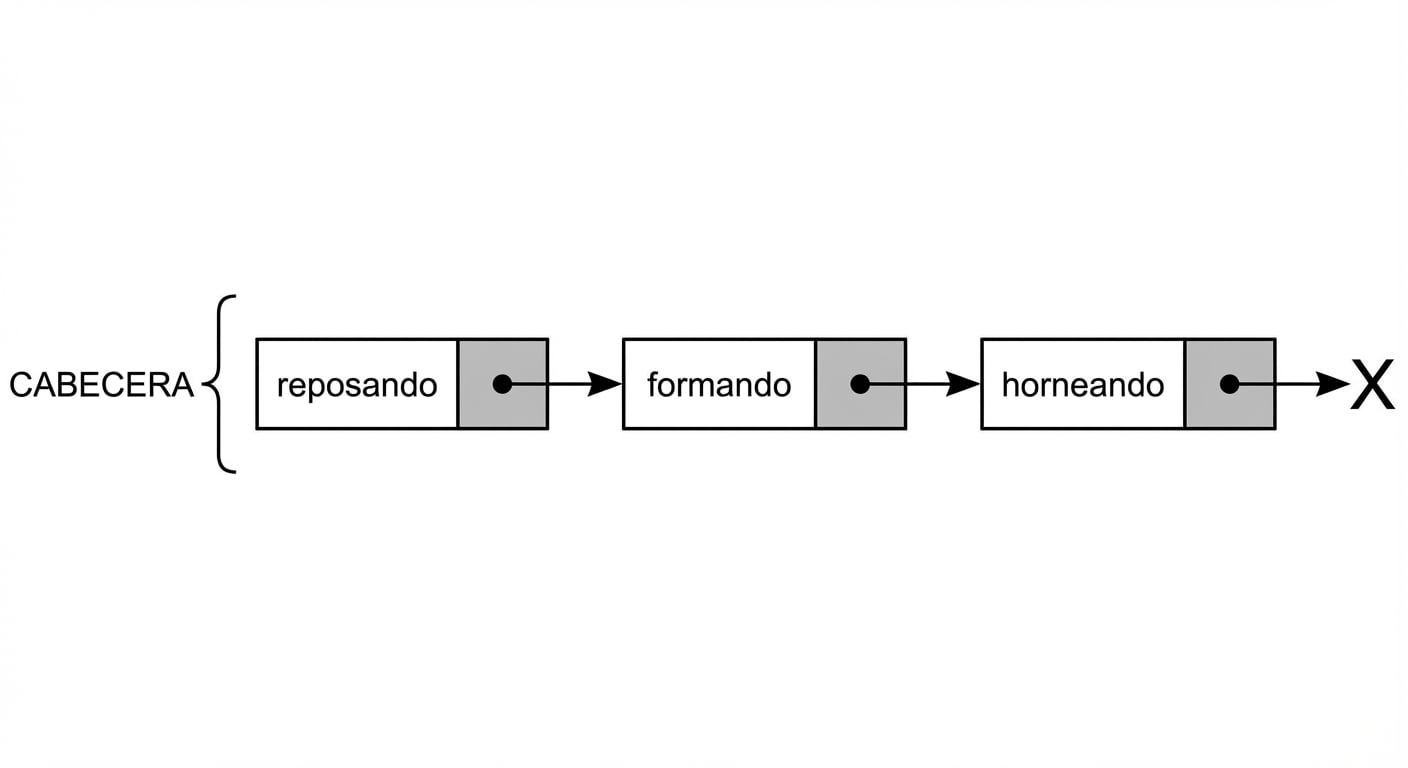

The representation of a singly linked list.

Data Structures and Algorithms in Python

Linked lists - insert_at_beginning

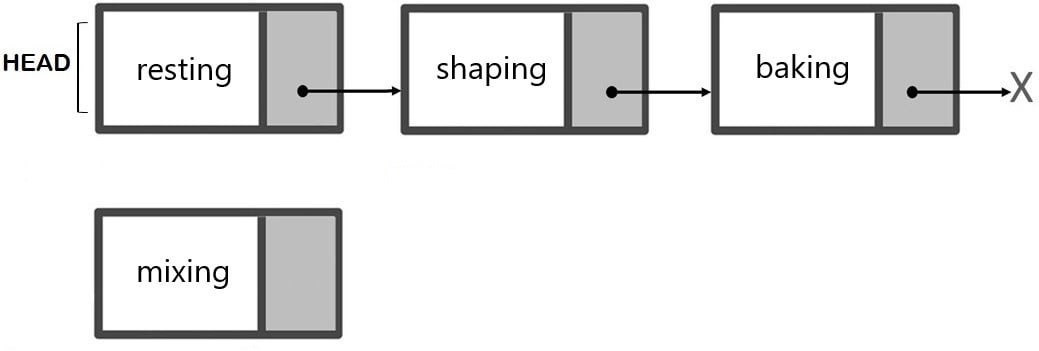

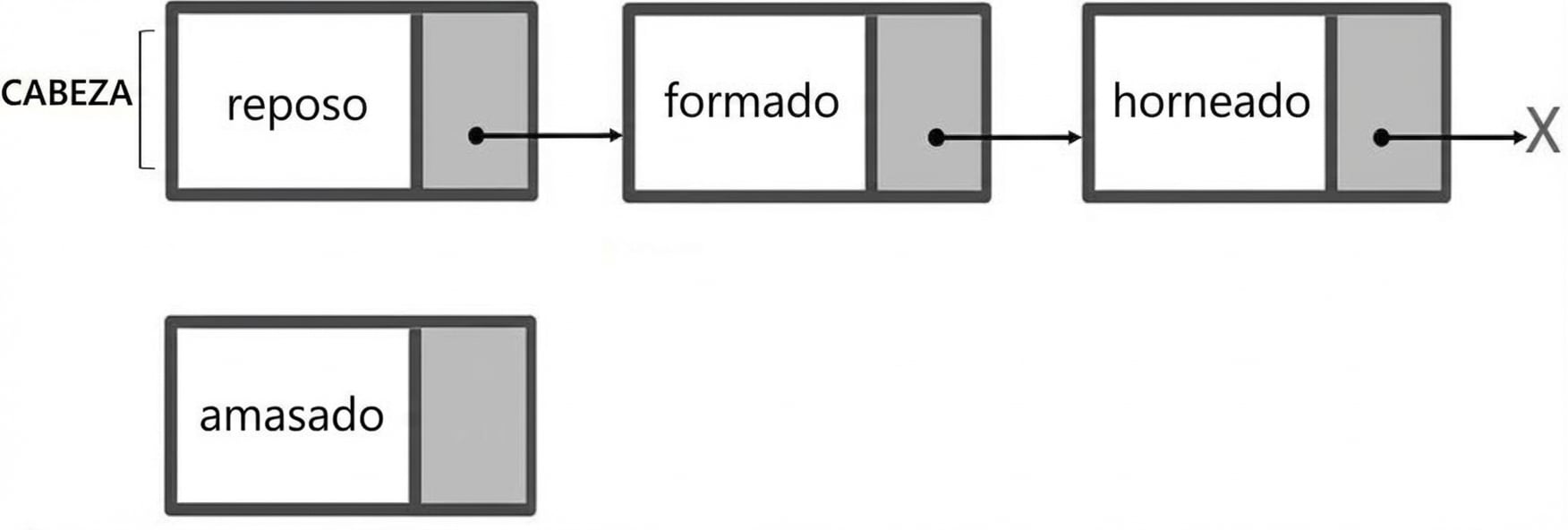

The representation of a singly linked list and a new node,

 def insert_at_beginning(self, data):
    new_node = Node(data)

if self.head:
Data Structures and Algorithms in Python

Linked lists - insert_at_beginning

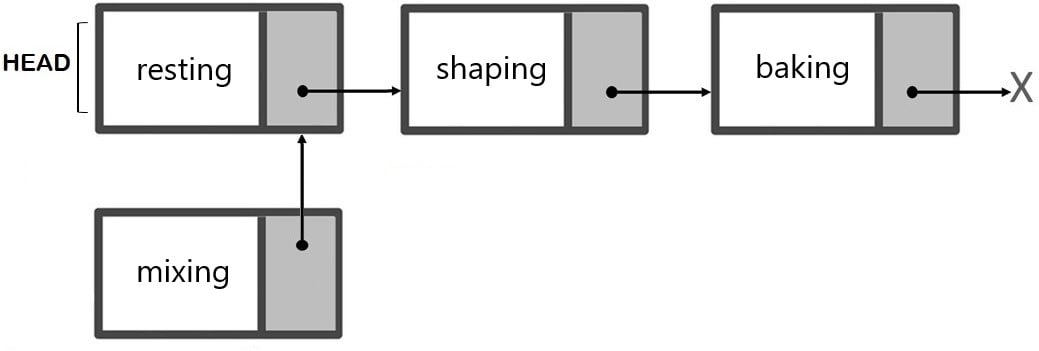

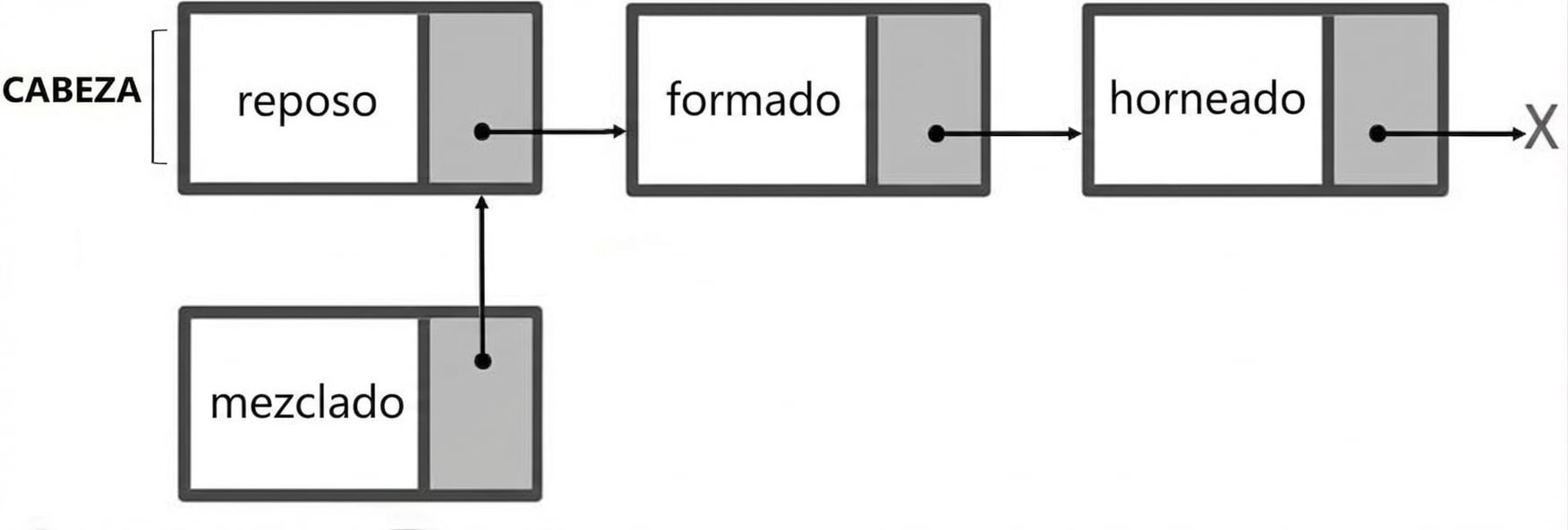

The representation of a singly linked list with the new node connected.

 def insert_at_beginning(self, data):
    new_node = Node(data)
    if self.head:
      new_node.next = self.head

Data Structures and Algorithms in Python

Linked lists - insert_at_beginning

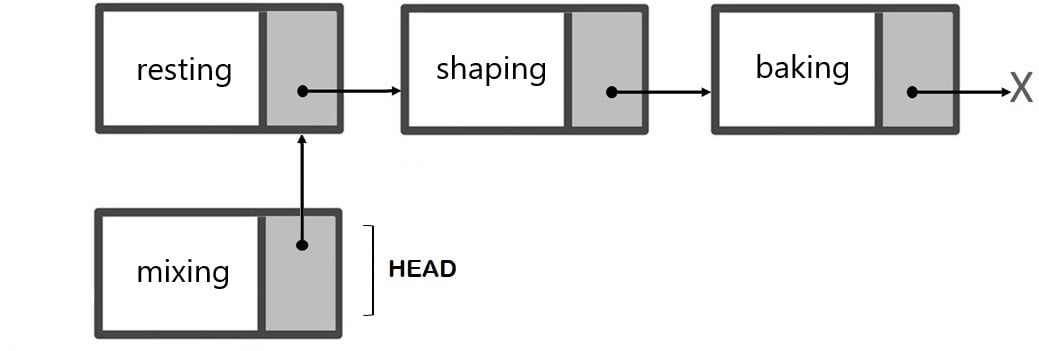

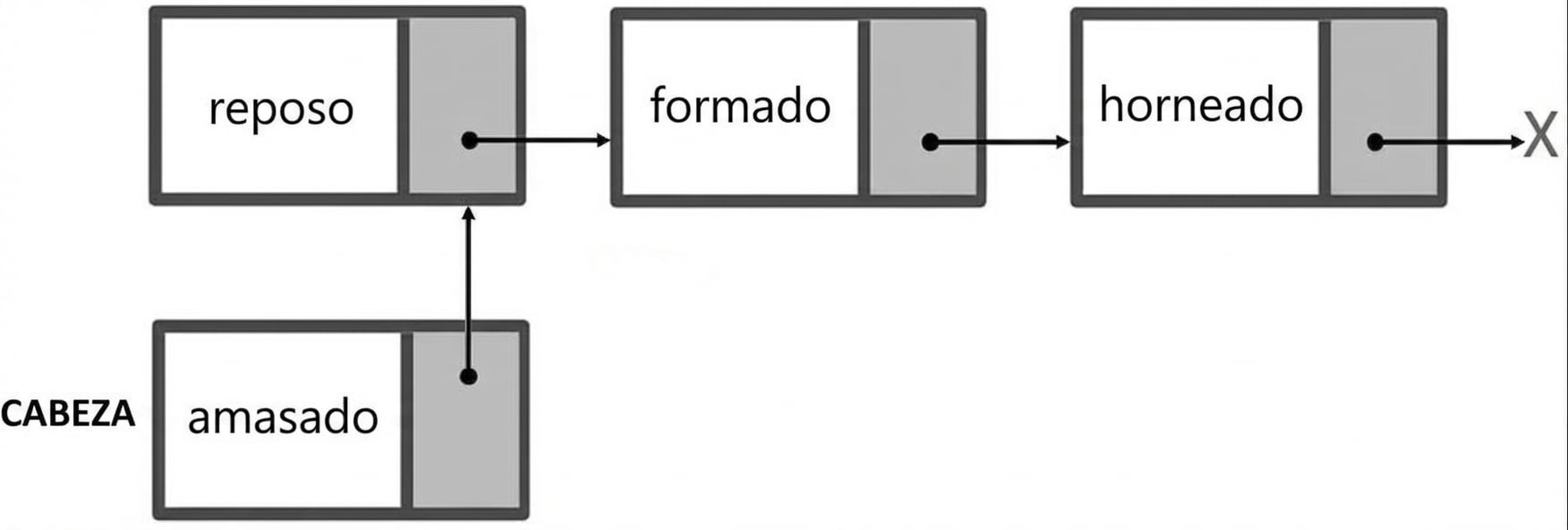

The representation of a singly linked list with the new node connected and the word "HEAD" in this node.

 def insert_at_beginning(self, data):
    new_node = Node(data)
    if self.head:
      new_node.next = self.head
      self.head = new_node

Data Structures and Algorithms in Python

Linked lists - insert_at_beginning

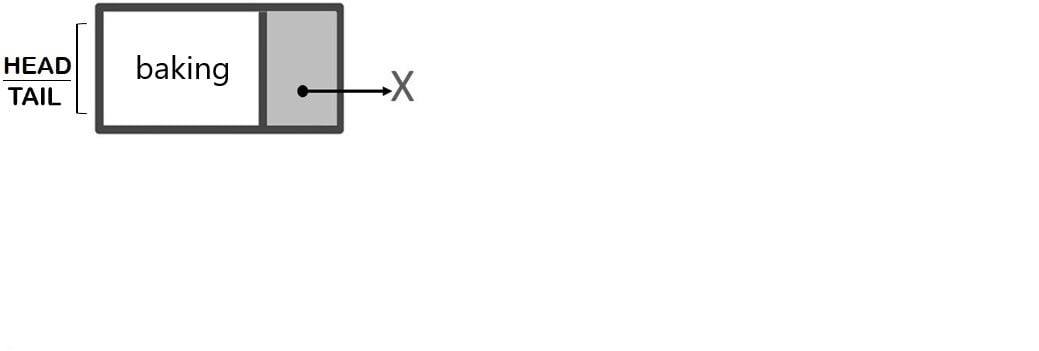

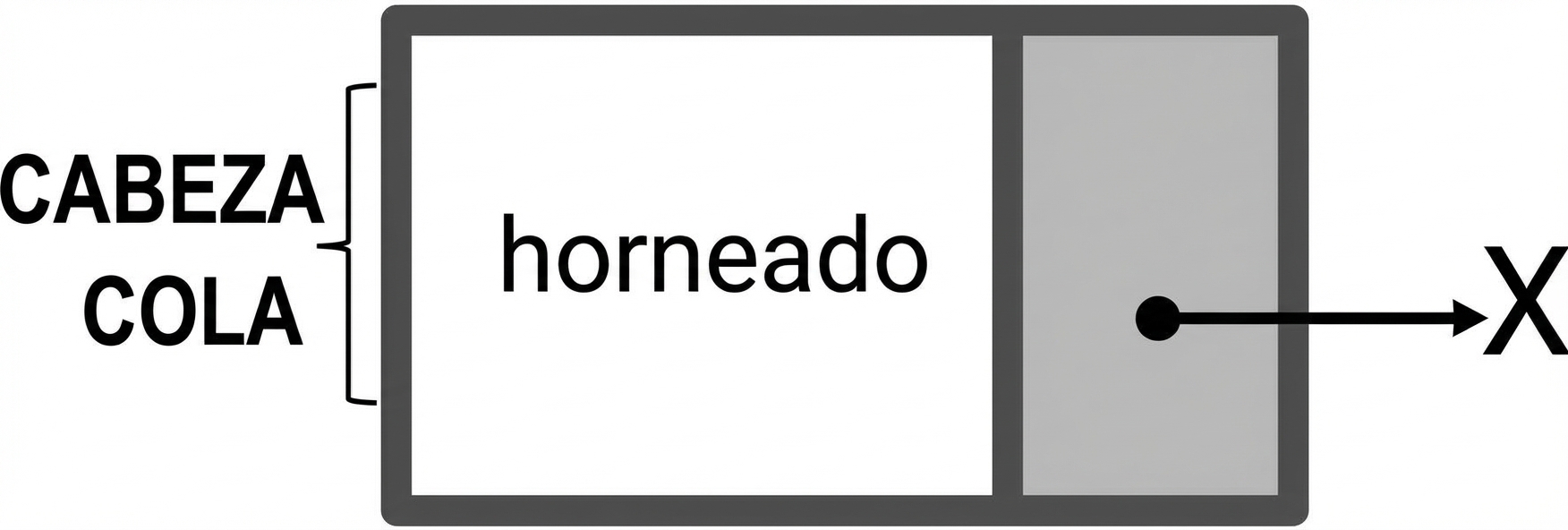

The representation of new node in an empty linked list.

 def insert_at_beginning(self, data):
    new_node = Node(data)
    if self.head:
      new_node.next = self.head
      self.head = new_node
    else:

self.tail = new_node self.head = new_node
Data Structures and Algorithms in Python

Linked lists - insert_at_end

  def insert_at_end(self, data):
    new_node = Node(data)
    if self.head:

self.tail.next = new_node
self.tail = new_node
else:
self.head = new_node self.tail = new_node
Data Structures and Algorithms in Python

Linked lists - search

def search(self, data):

current_node = self.head
while current_node:
if current_node.data == data:
return True

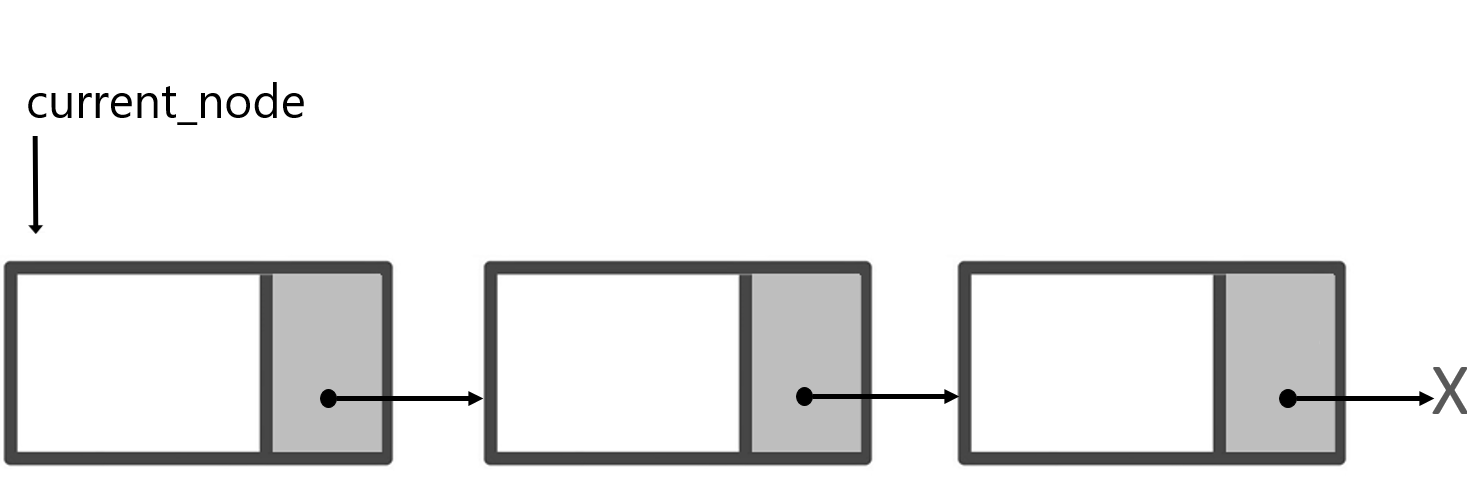

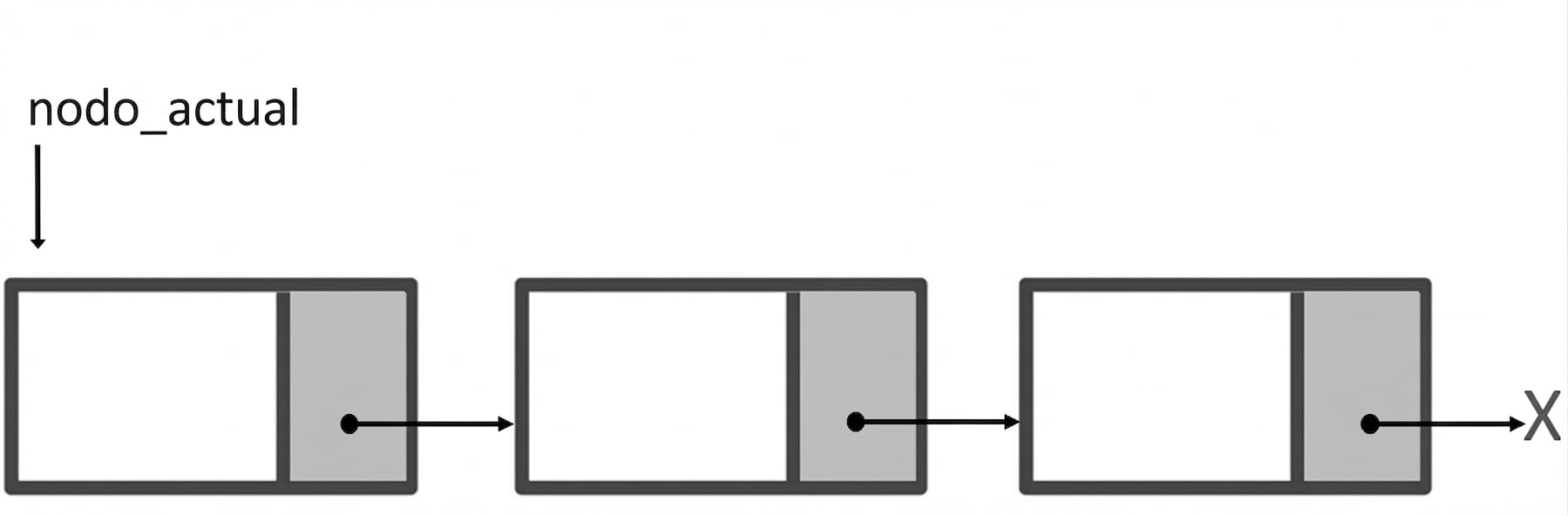

The representation of a singly linked list with the word "current_node" pointing to the first node.

Data Structures and Algorithms in Python

Linked lists - search

def search(self, data):
  current_node = self.head
  while current_node:
    if current_node.data == data:
      return True
    else:
      current_node = current_node.next

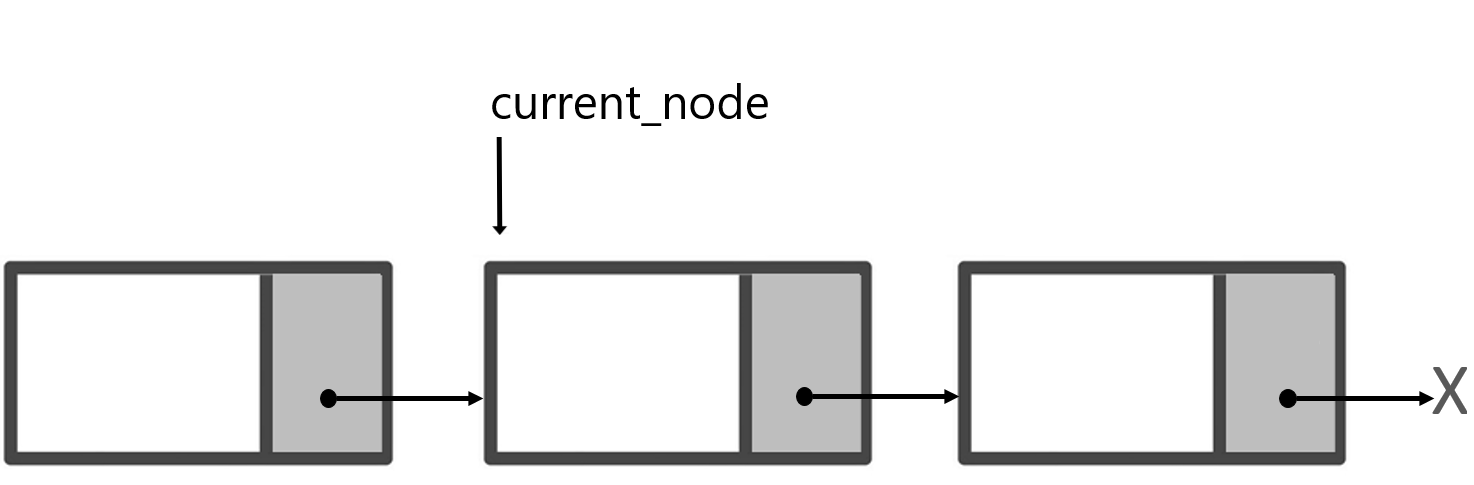

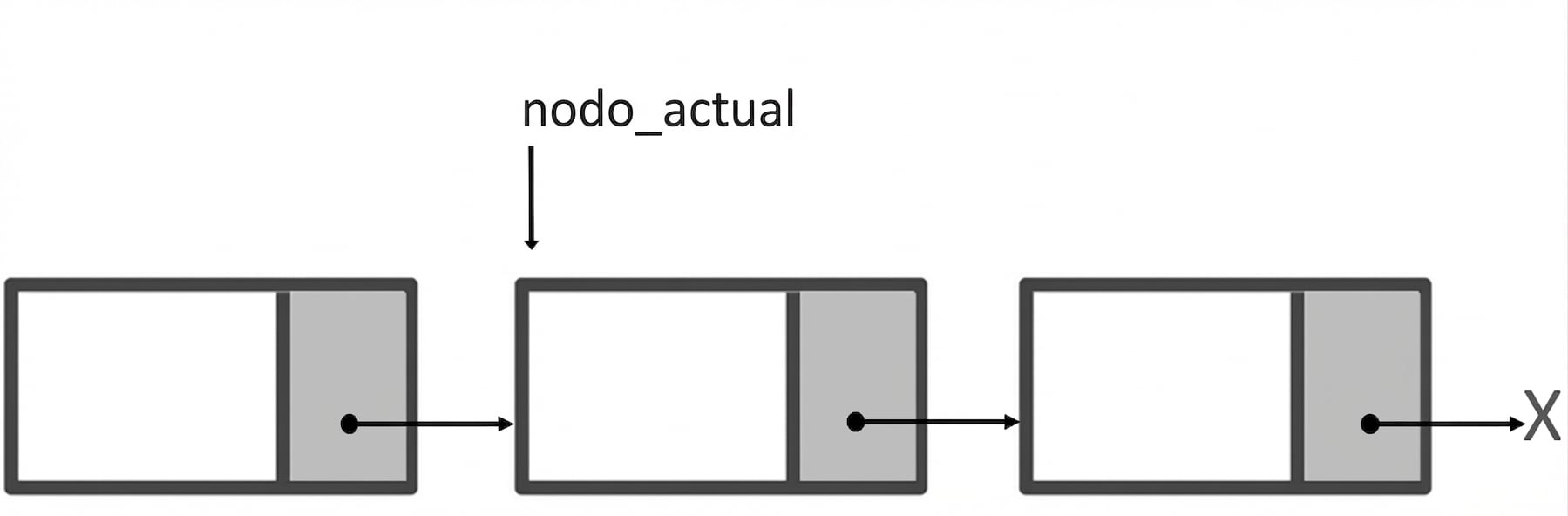

The representation of a singly linked list with the word "current_node" pointing to the second node.

Data Structures and Algorithms in Python

Linked lists - search

def search(self, data):
  current_node = self.head
  while current_node:
    if current_node.data == data:
      return True
    else:
      current_node = current_node.next

return False

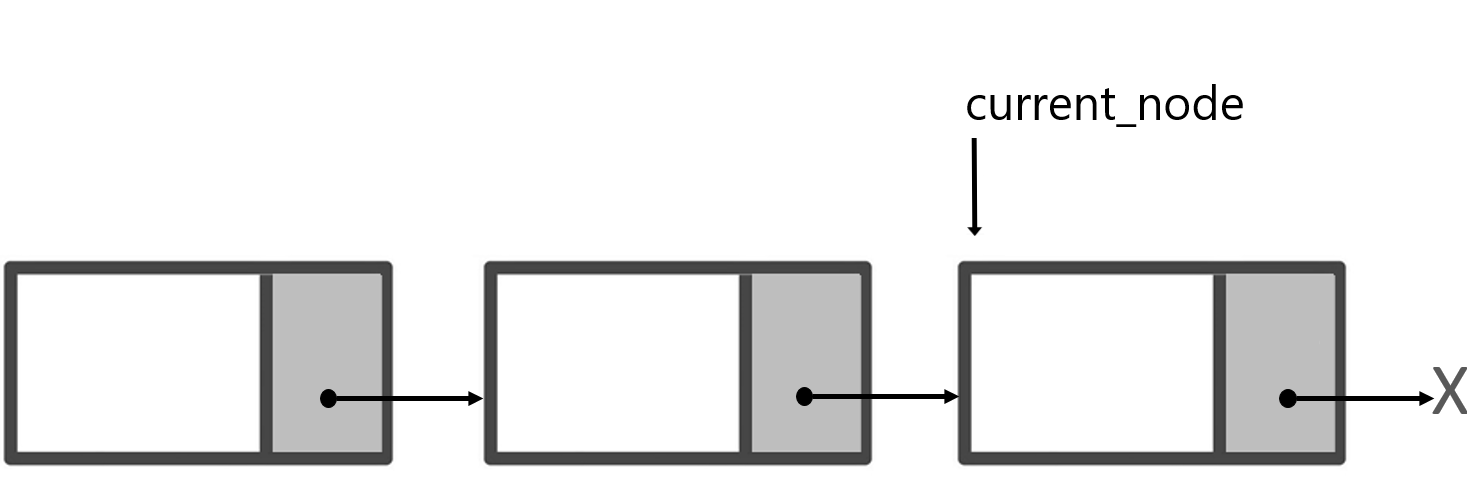

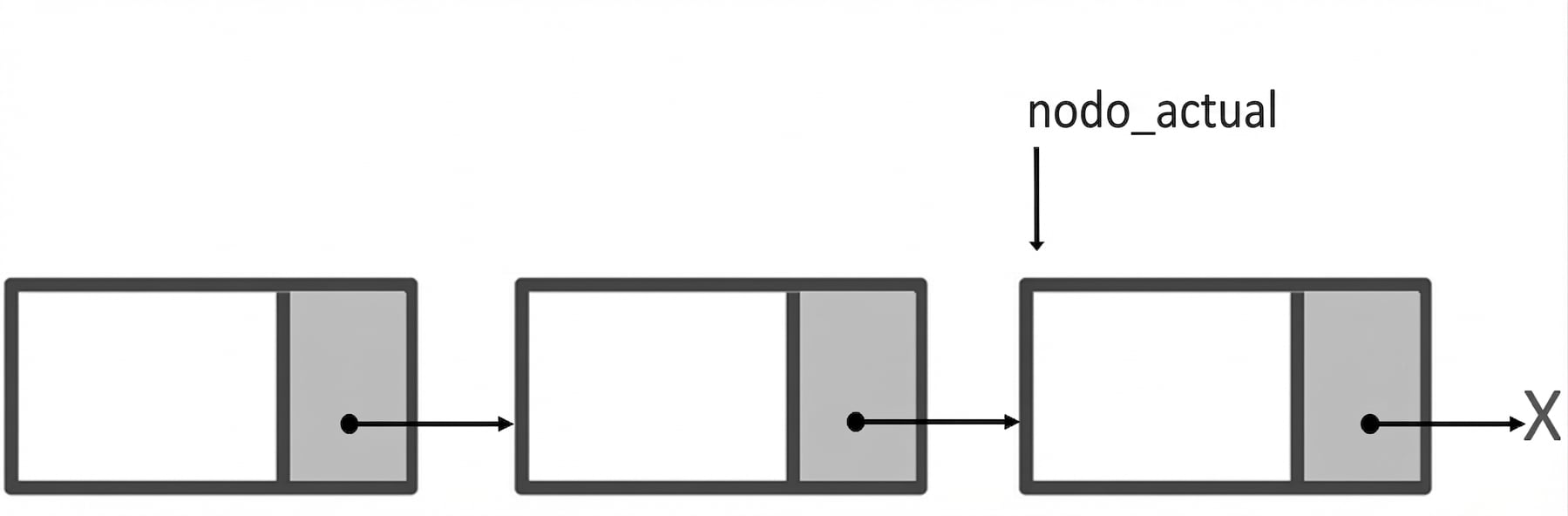

The representation of a singly linked list with the word "current_node" pointing to the third node.

Data Structures and Algorithms in Python

Linked lists - example

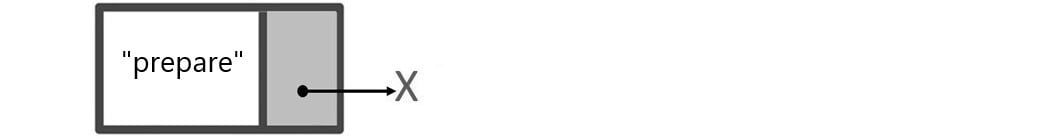

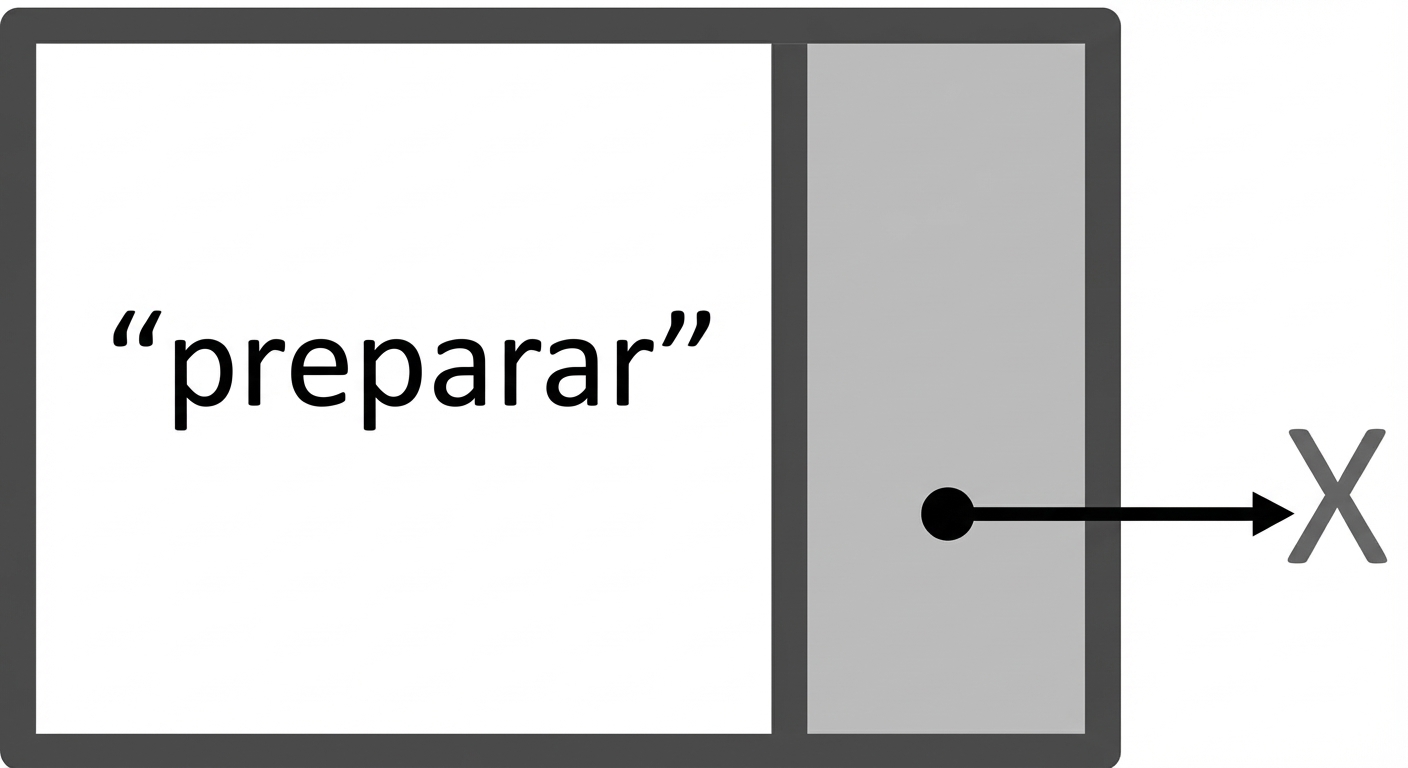

The representation of a new node in an empty linked list.

sushi_preparation = LinkedList()

sushi_preparation.insert_at_end("prepare")
Data Structures and Algorithms in Python

Linked lists - example

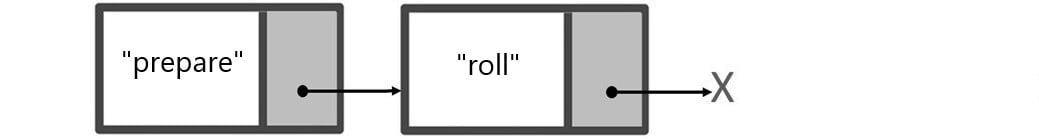

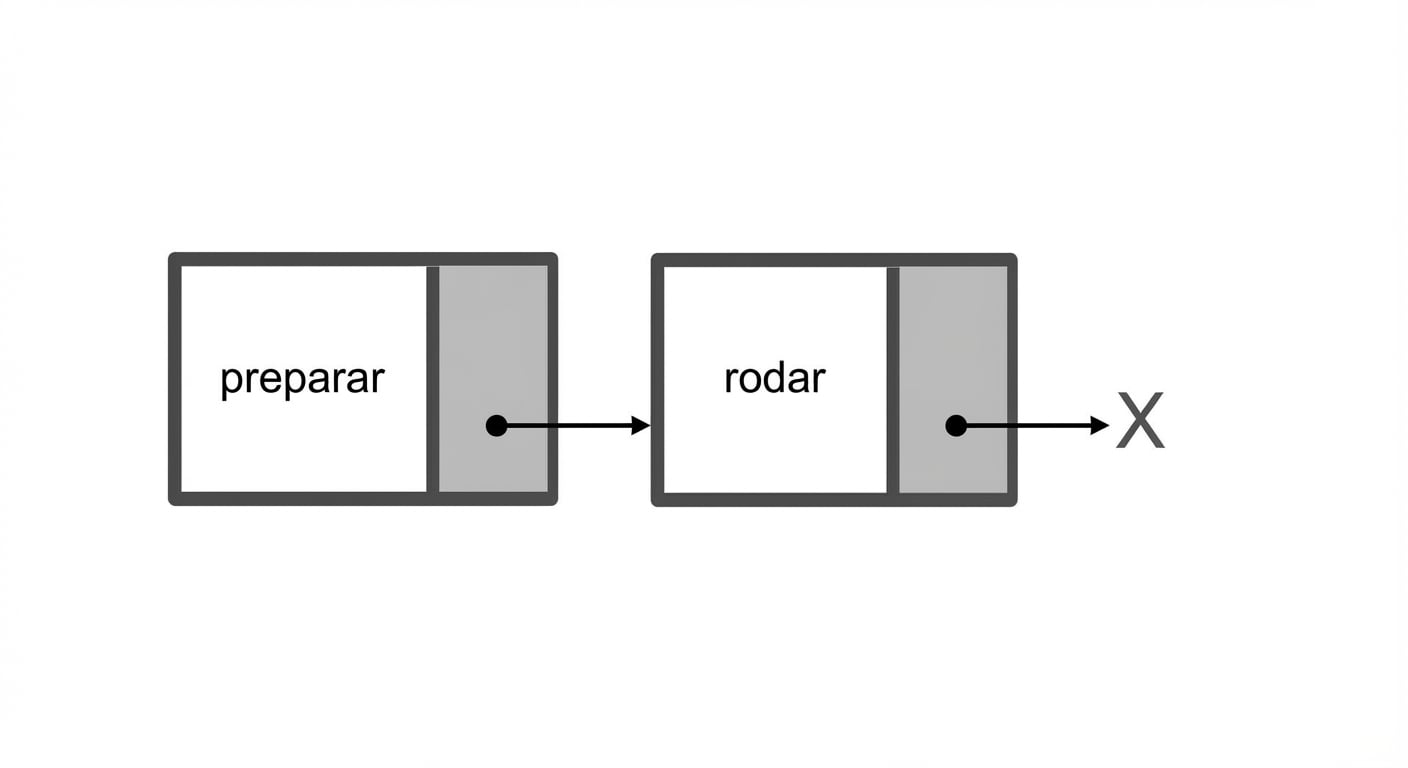

The representation of a new node added at the end of a linked list.

sushi_preparation = LinkedList()
sushi_preparation.insert_at_end("prepare")
sushi_preparation.insert_at_end("roll")

Data Structures and Algorithms in Python

Linked lists - example

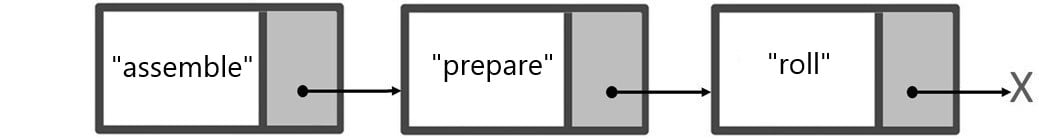

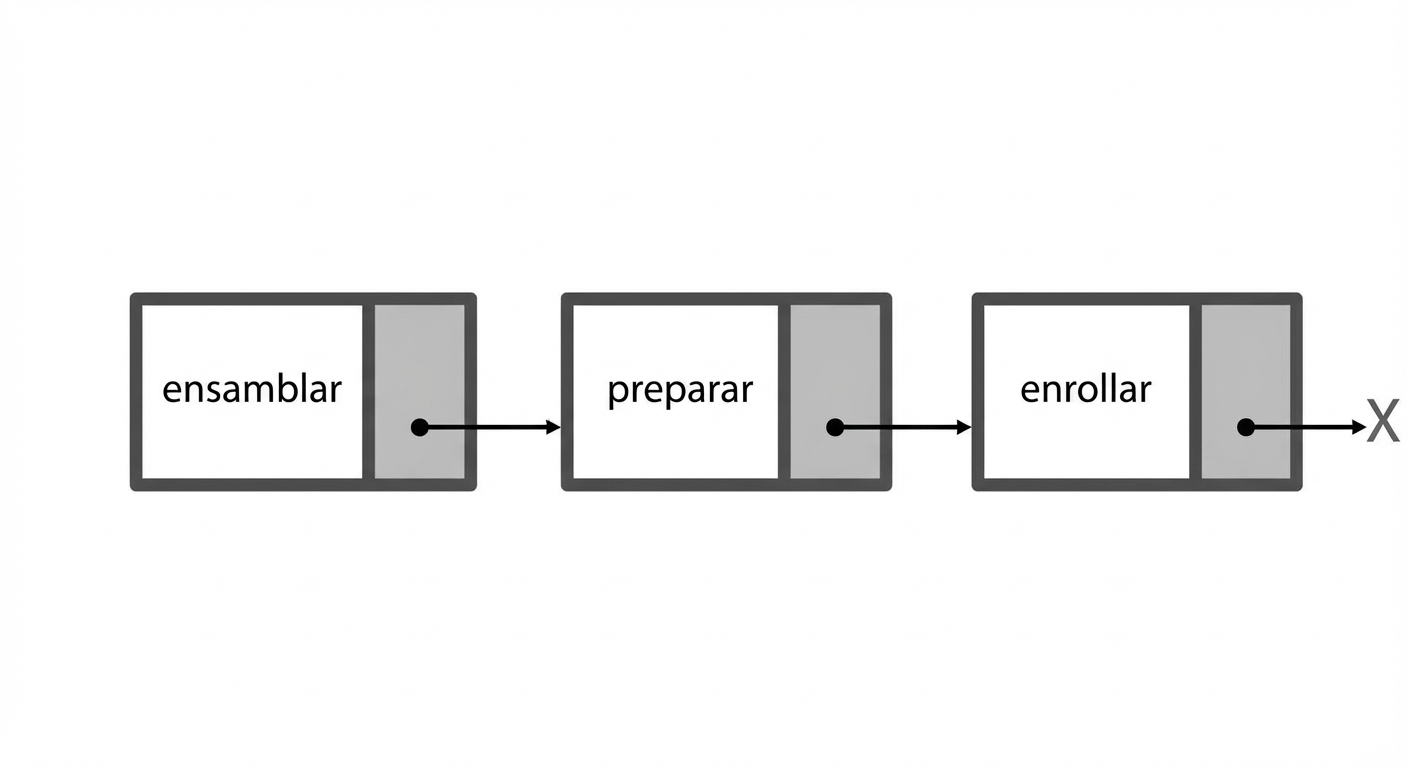

The representation of a new node added at the beginning of a linked list.

sushi_preparation = LinkedList()
sushi_preparation.insert_at_end("prepare")
sushi_preparation.insert_at_end("roll")
sushi_preparation.insert_at_beginning("assemble")
Data Structures and Algorithms in Python

Linked lists - example

The representation of a linked list.

sushi_preparation.search("roll")
True
sushi_preparation.search("mixing")
False
Data Structures and Algorithms in Python

Let's practice!
