The text-to-query workflow

Text-to-Query Agents with MongoDB and LangGraph

Apoorva Joshi

Senior AI/ML Developer Advocate, MongoDB

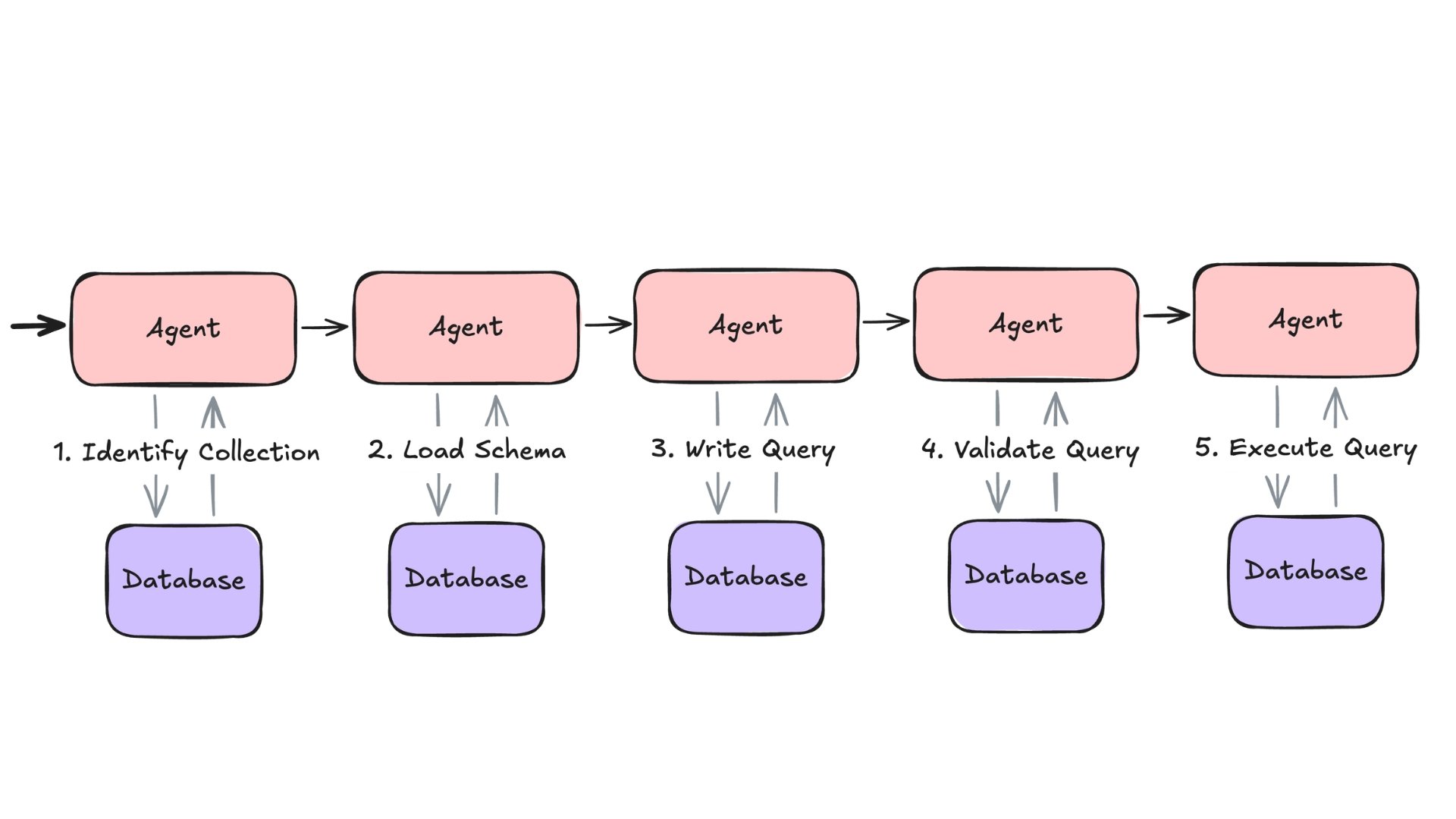

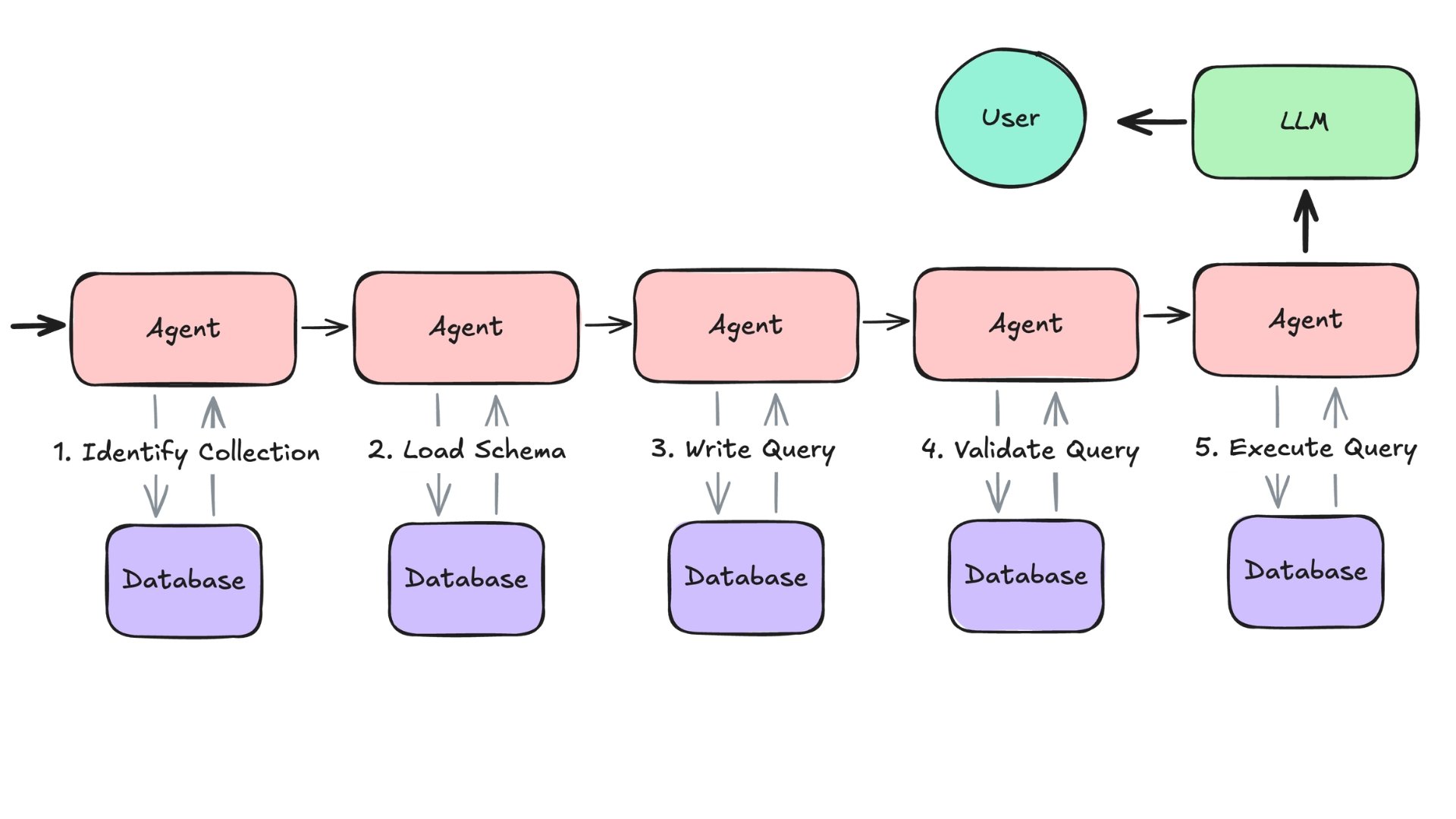

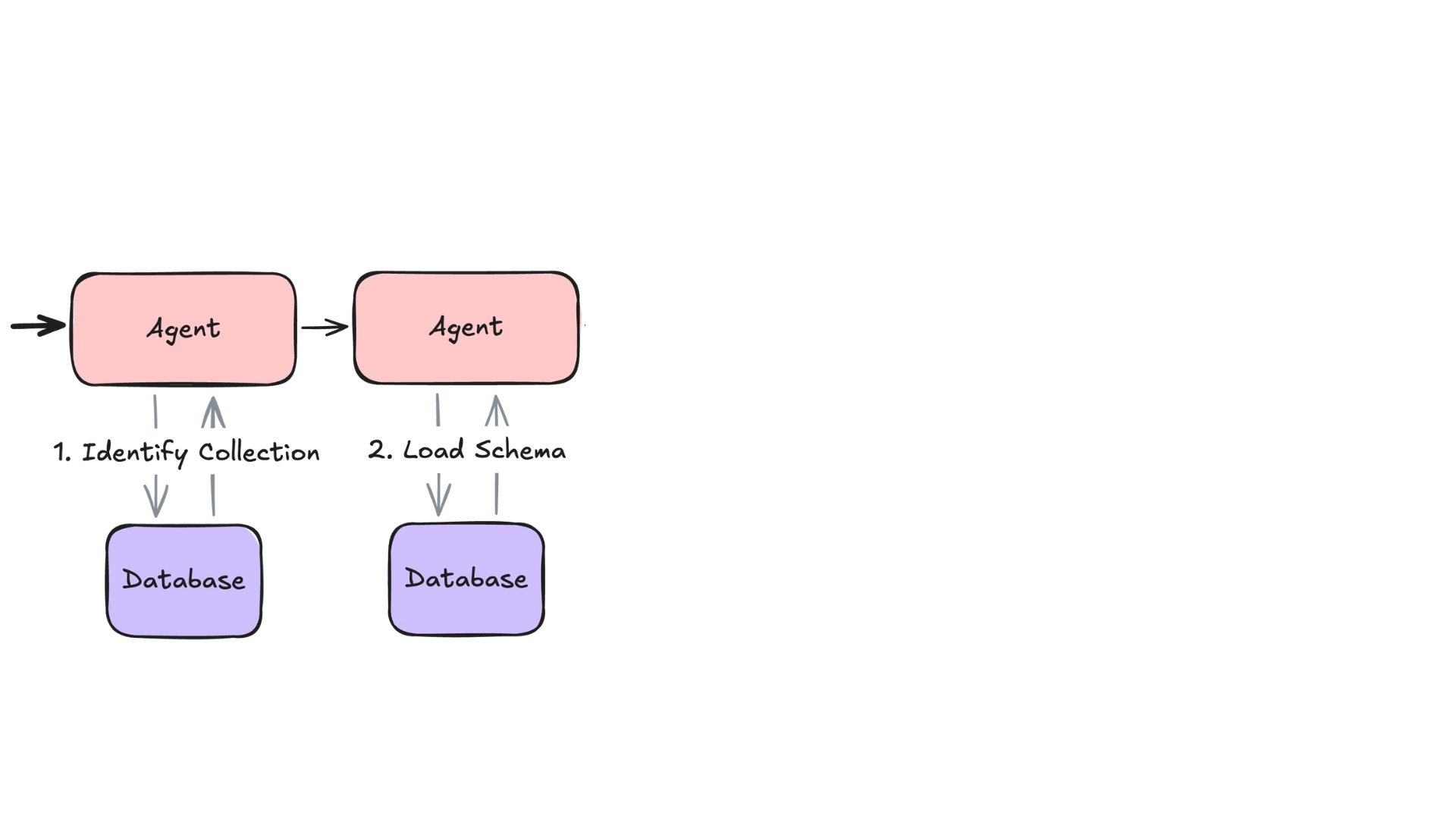

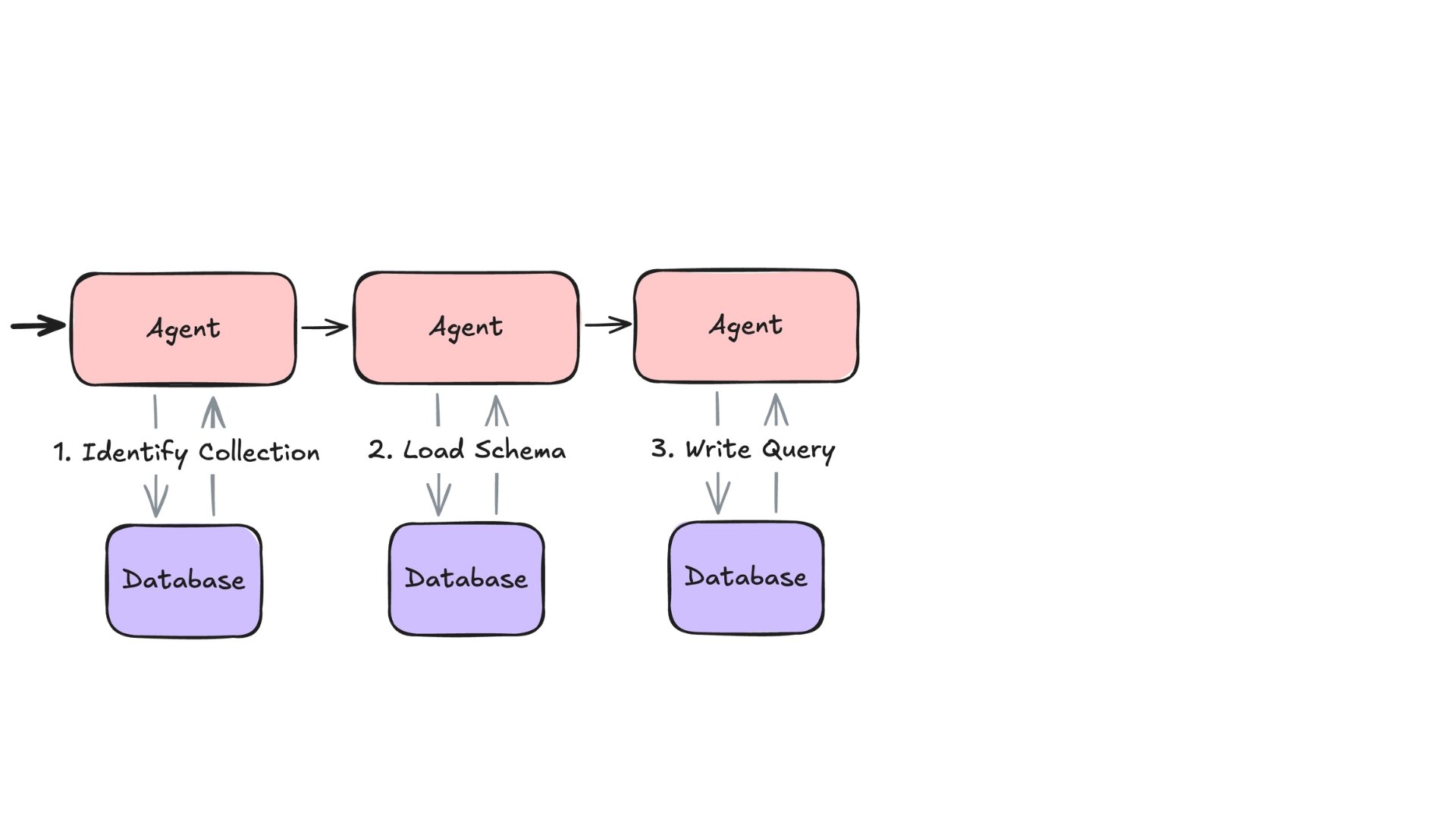

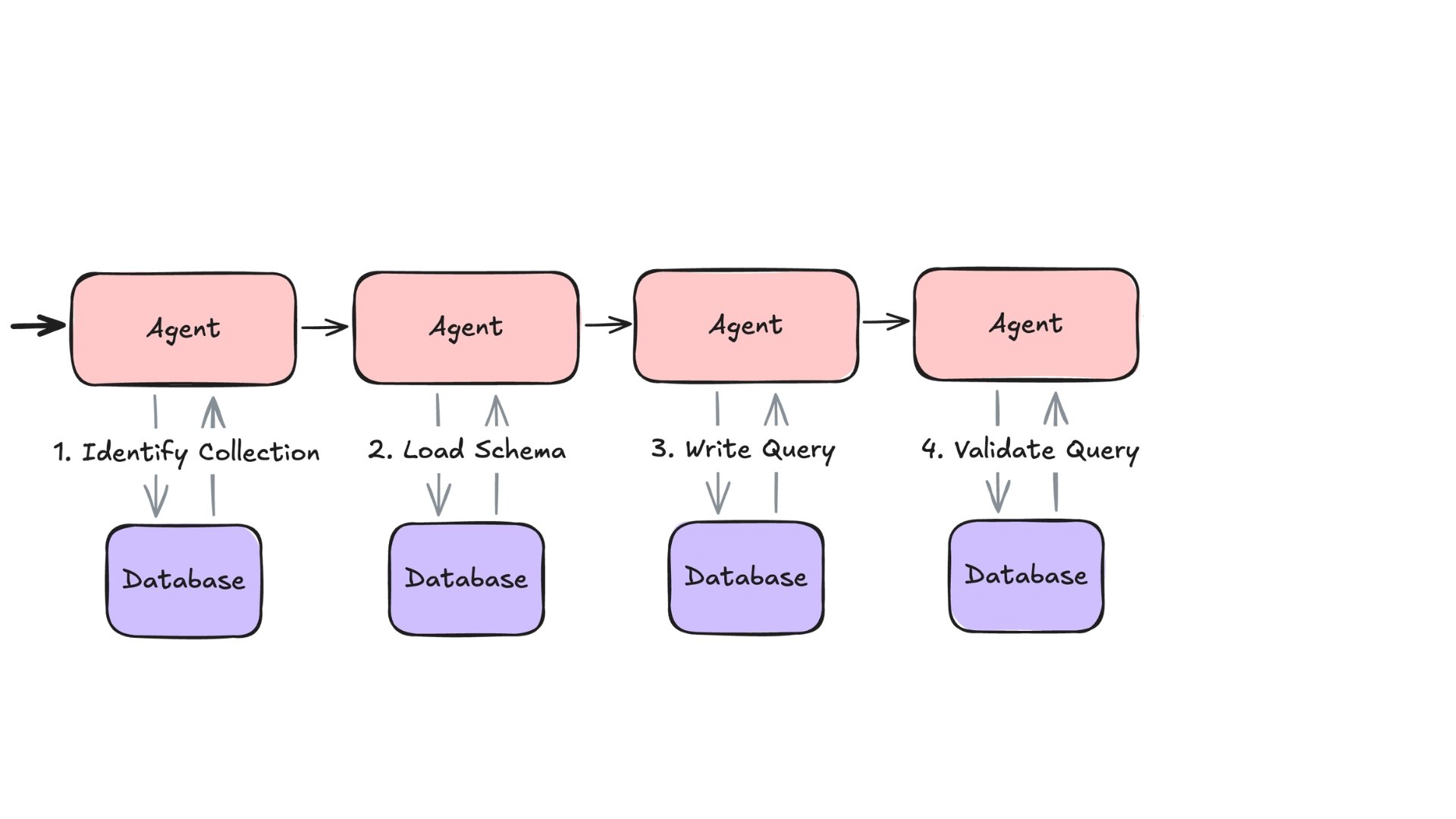

Text-to-query

Text-to-query

Text-to-query

Text-to-query

Text-to-query

Text-to-query

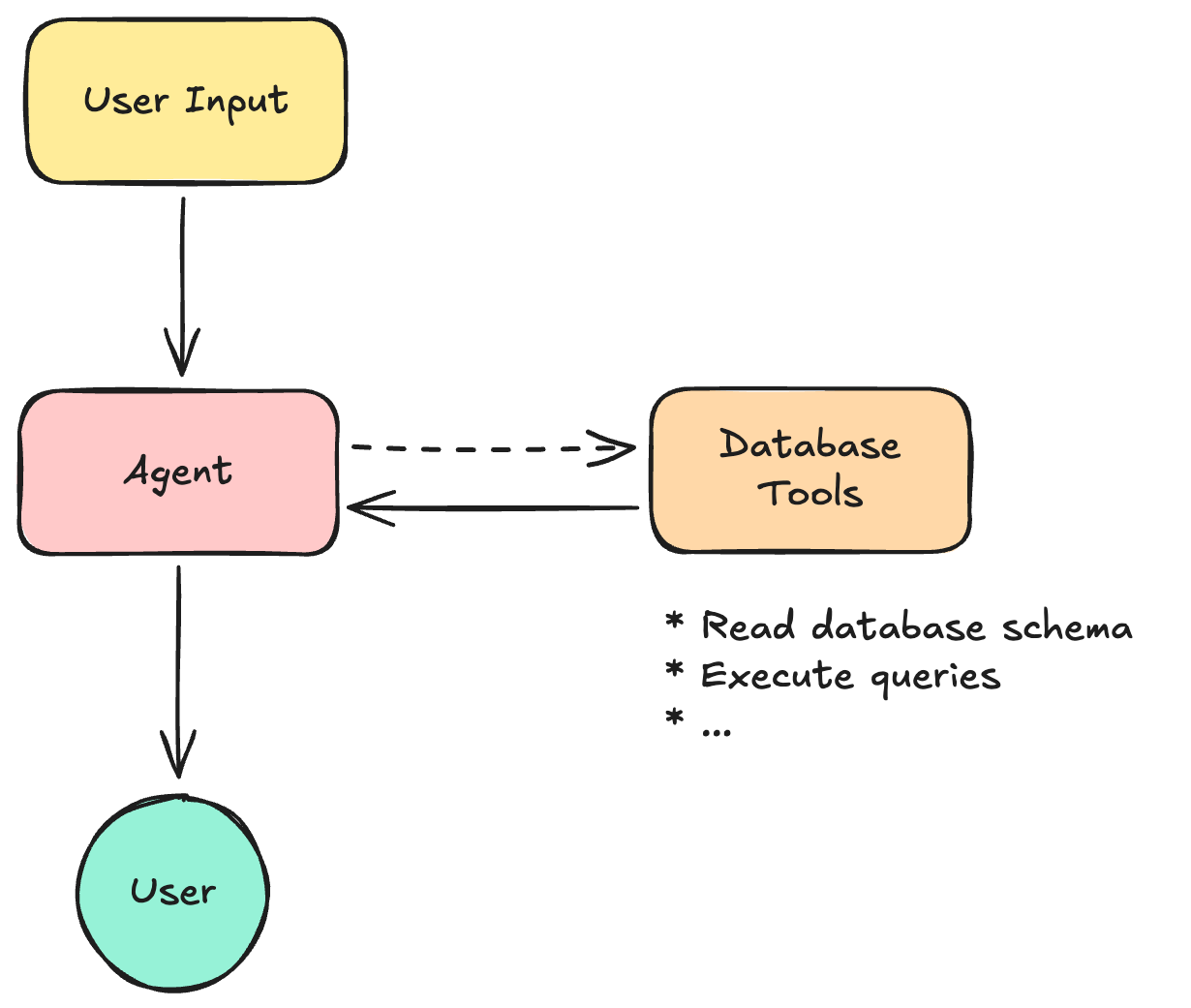

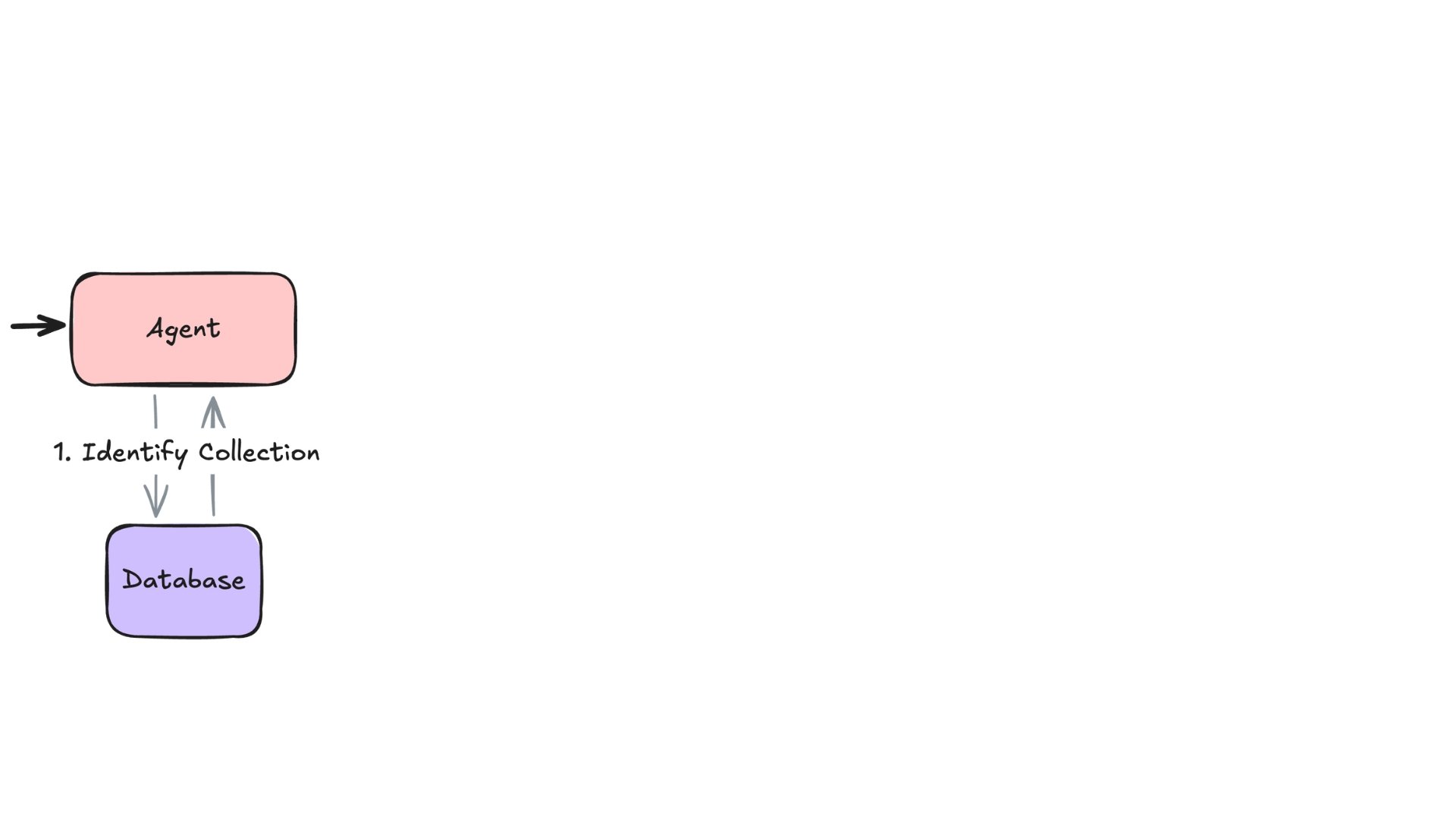

Text-to-query: the agentic approach

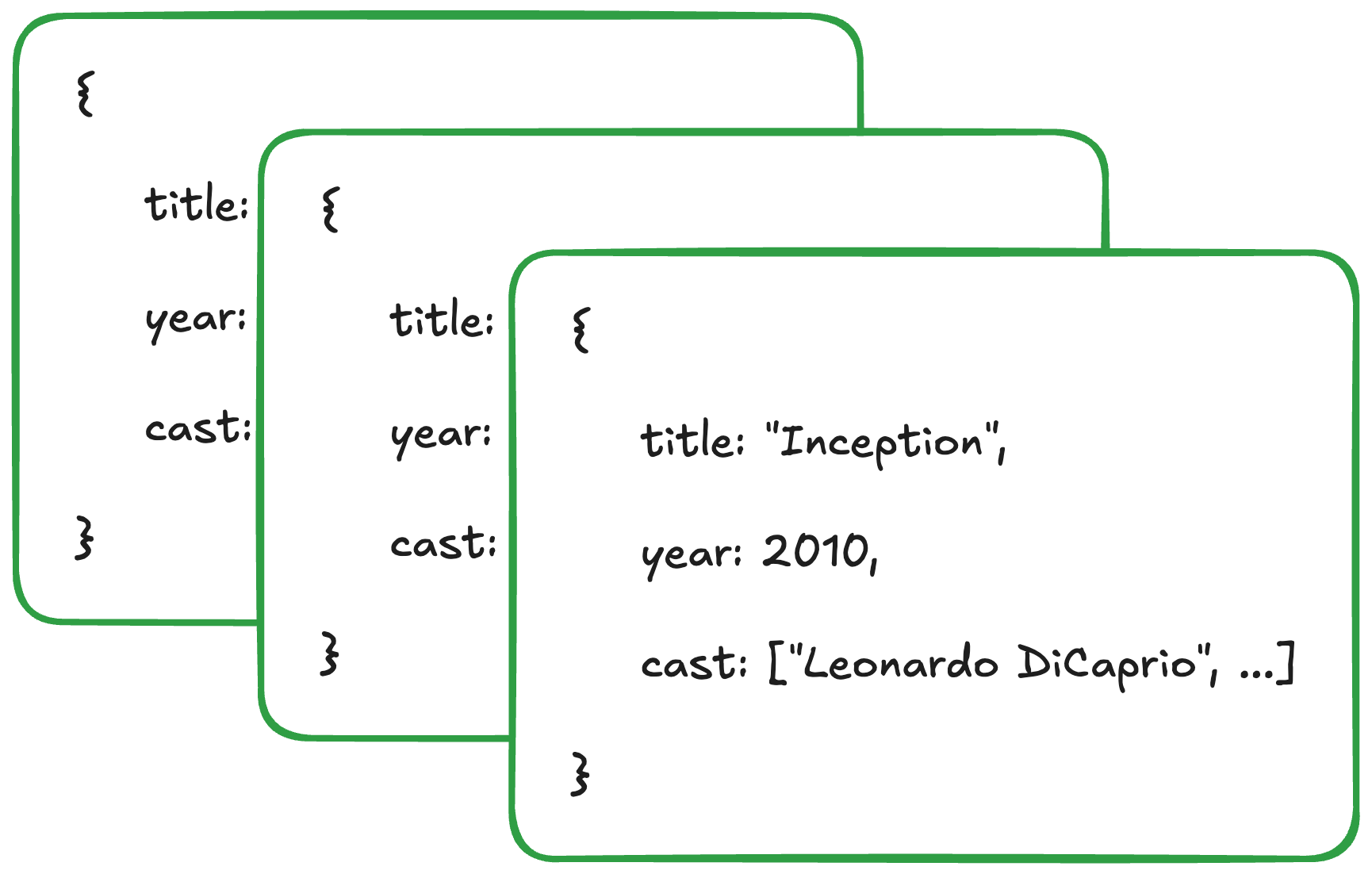

Data: the MongoDB way!



Structured Query Language (SQL)

Example SQL Query

SELECT *
FROM table
WHERE year>=1950
LIMIT 5

MongoDB Query API

Example JSON-like Input

{ "$and": [
              {"year": {"$gte": 1990}},
              {"year": {"$lt": 2000}}
          ]
}

MongoDB Query Methods

• .find(), .insert(), .update(), .delete()

Example: movies collection

_id	Title	Release Year	Cast	Genres
573a1396f29313caabce3d17	Larks on a String	1990	[Rudolf Hrusènskè, Vlastimil Brodskè]	[Comedy, Drama, Romance]
573a1398f29313caabceab72	The Witching of Ben Wagner	1990	[Sam Bottoms, Harriet Hall, Bettina Rae, Justin Gocke]	[Family]
...	...	...	[...]	[...]

Single filters

query = {"genre": "Romance"}

Single filters

query = {"genre": "Romance"}

_id	Title	Release Year	Cast	Genres
573a1390f29313caabcd6377	Wild and Woolly	1917	[Douglas Fairbanks, Eileen Percy, Calvert Carter, Charles Stevens]	[Comedy, Western, Romance]
573a1391f29313caabcd70b4	The Four Horsemen of the Apocalypse	1921	[Pomeroy Cannon, Josef Swickard, Bridgetta Clark, Rudolph Valentino]	[Drama, Romance, War]

Multiple filters

query = { "$and": [
                    {"year": {"$gte": 1990}},
                    {"year": {"$lt": 2000}}
                  ]
        }

Multiple filters

query = { "$and": [
                    {"year": {"$gte": 1990}},
                    {"year": {"$lt": 2000}}
                  ]
        }

_id	Title	Release Year	Cast	Genres
573a1396f29313caabce3d17	Larks on a String	1990	[Rudolf Hrusènskè, Vlastimil Brodskè]	[Comedy, Drama, Romance]
573a1398f29313caabceab72	The Witching of Ben Wagner	1990	[Sam Bottoms, Harriet Hall, Bettina Rae, Justin Gocke]	[Family]

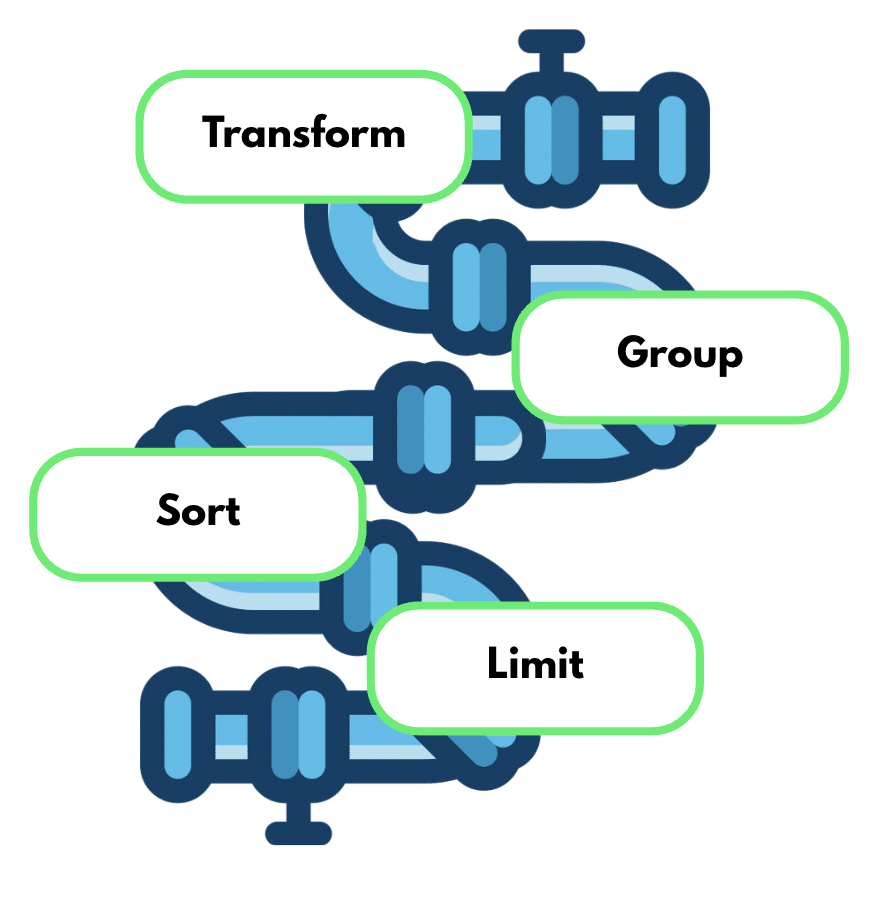

Aggregation pipelines

db.<collection>.aggregate([
    {stage-1},
    {stage-2},
    {stage-3},
    {stage-4},
])

Multiple operations

query = [








]

Multiple operations

query = [

    { "$sort": { "released": -1 } },






]

• Sort by released

Multiple operations

query = [

    { "$sort": { "released": -1 } },

    { "$limit": 5 },




]

• Sort by released

• Limit to 5 results

Multiple operations

query = [

    { "$sort": { "released": -1 } },

    { "$limit": 5 },

    { "$project": { "title": 1,
                    "_id": 0 } }

]

• Sort by released

• Limit to 5 results

• Project "title" column

Multiple operations

query = [

    { "$sort": { "released": -1 } },

    { "$limit": 5 },

    { "$project": { "title": 1,
                    "_id": 0 } }

]

• Sort by released

• Limit to 5 results

• Project "title" column

Title
The Treasure
Knight of Cups
Sand Castles
Shut In
Dègradè

Grouped aggregations

_id	Title	Release Year	Cast	Genres
573a1396f29313caabce3d17	Larks on a String	1990	[Rudolf Hrusènskè, Vlastimil Brodskè]	[Comedy, Drama, Romance]
573a1398f29313caabceab72	The Witching of Ben Wagner	1990	[Sam Bottoms, Harriet Hall, Bettina Rae, Justin Gocke]	[Family]
...	...	...	[...]	[...]

Grouped aggregations

query = [

          { "$unwind": "$genres" },

          { "$group": {
                "_id": "$genres",
                "numMovies": { "$sum": 1 }
          }},

          { "$match": { "numMovies": { "$gte": 50 } } }

]

Grouped aggregations



Genre	Count
Drama	12385
Comedy	6532
Romance	3318
Crime	2457
Thriller	2454
...	...

Pipeline Stages

• $match, $group, $facet, $geoNear, $lookup, $merge, $search, $sort...

Operators

• Comparison: $eq, $gt, $gte, ...
• Math: $add, $multiply, $divide...
• Array: $push, $reduce, ...
• String: $toUpper, $toLower, ...
• Temporal: $dateAdd, $dateDiff, ...

Let's practice!
