Event source mappings and stream processing

Serverless Applications with AWS Lambda

Claudio Canales

Senior DevOps Engineer

Where event source mappings fit

Queues and streams are often polled in batches.
Event source mappings manage polling and batching behavior.

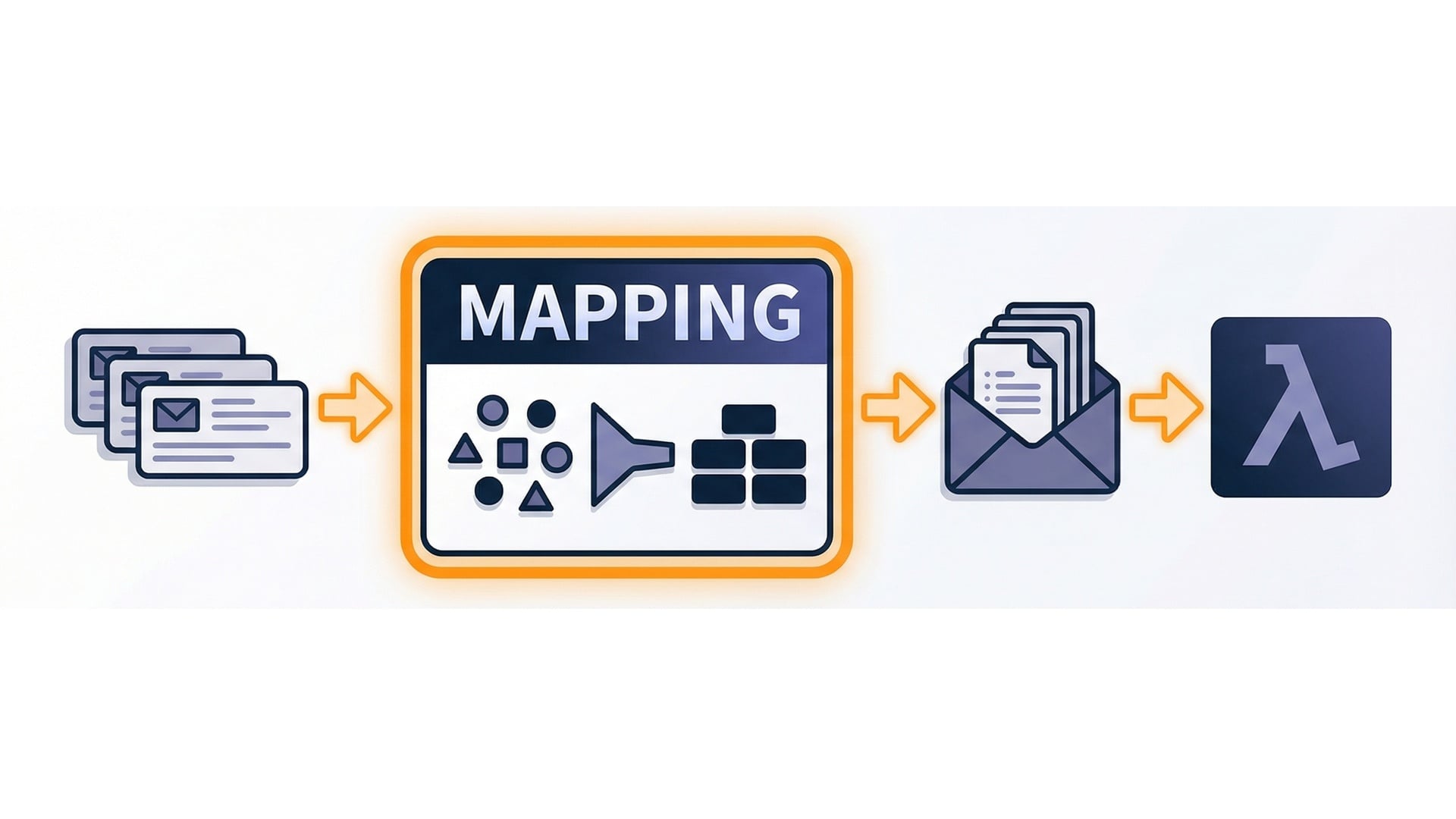

Event source mapping position

What is an event source mapping?

A resource that connects a source to your function.
Lambda polls the source for records.
Lambda invokes your handler with a batch.

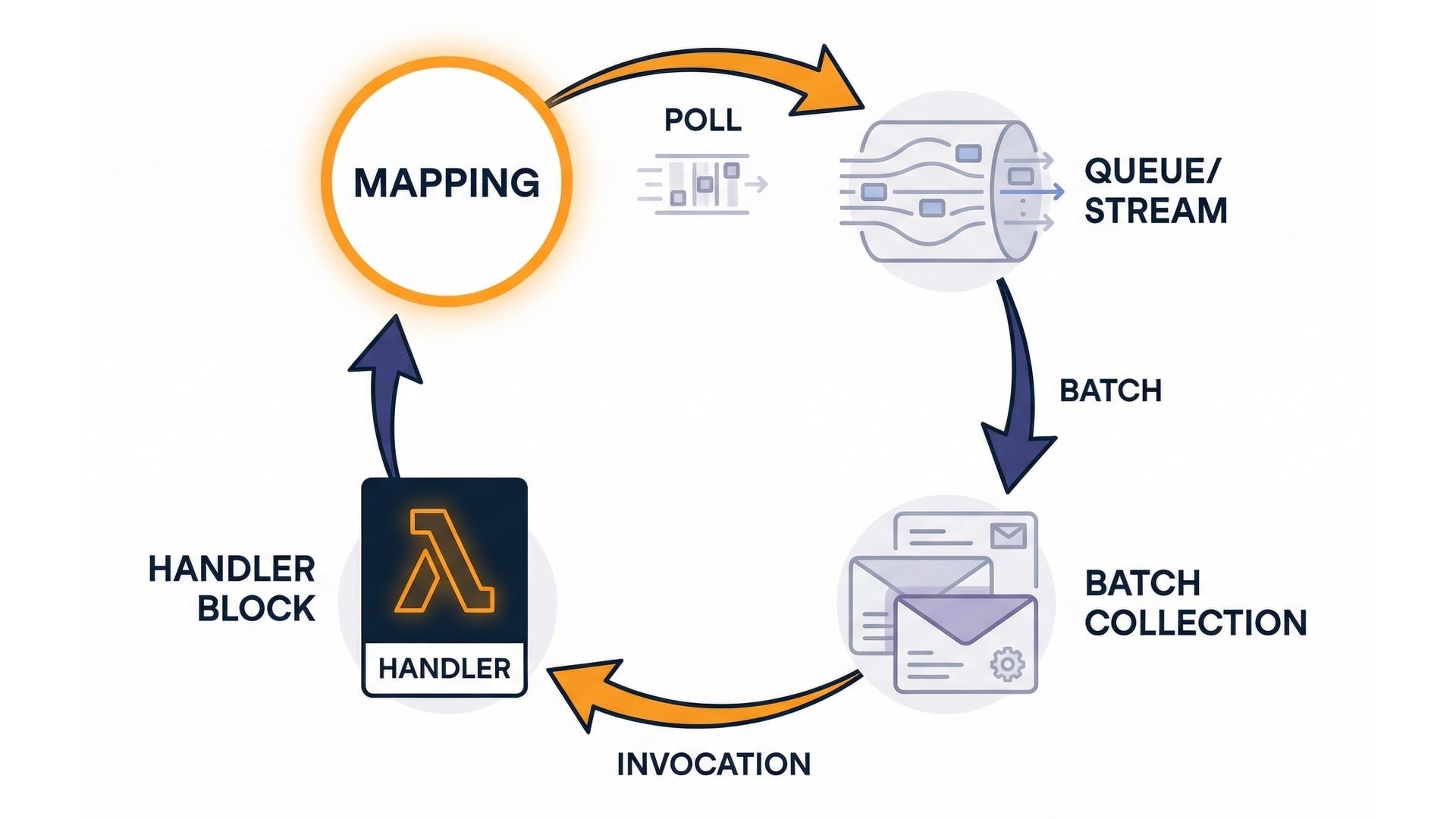

Event source mapping flow

Push vs poll (why it matters)

Push model

Push sources send events immediately.
Example: an upload to Amazon S3.

Poll model

Poll sources are checked by Lambda.
Lambda builds a batch and invokes your handler.
This changes latency and retry behavior.

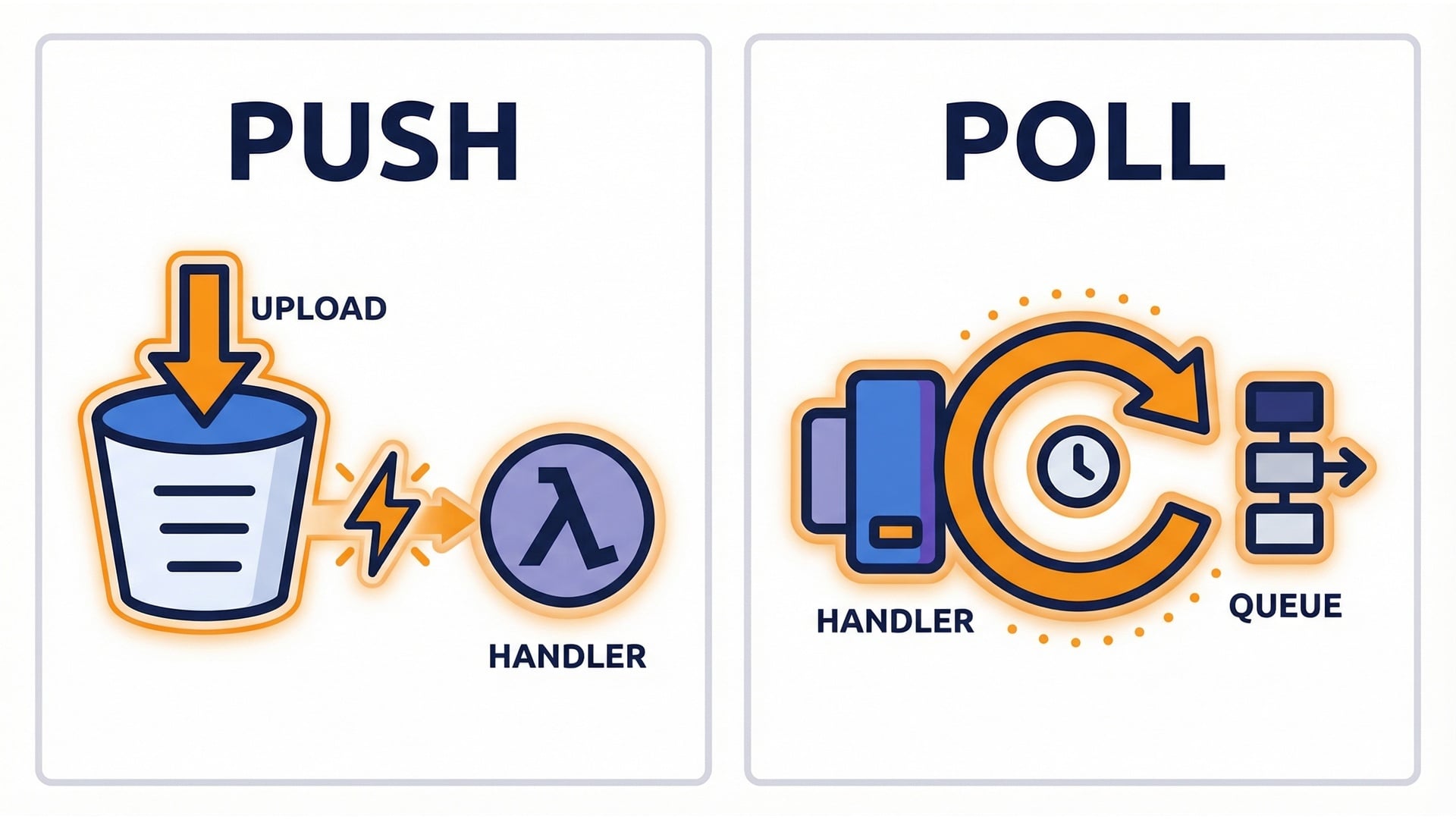

Push vs poll models

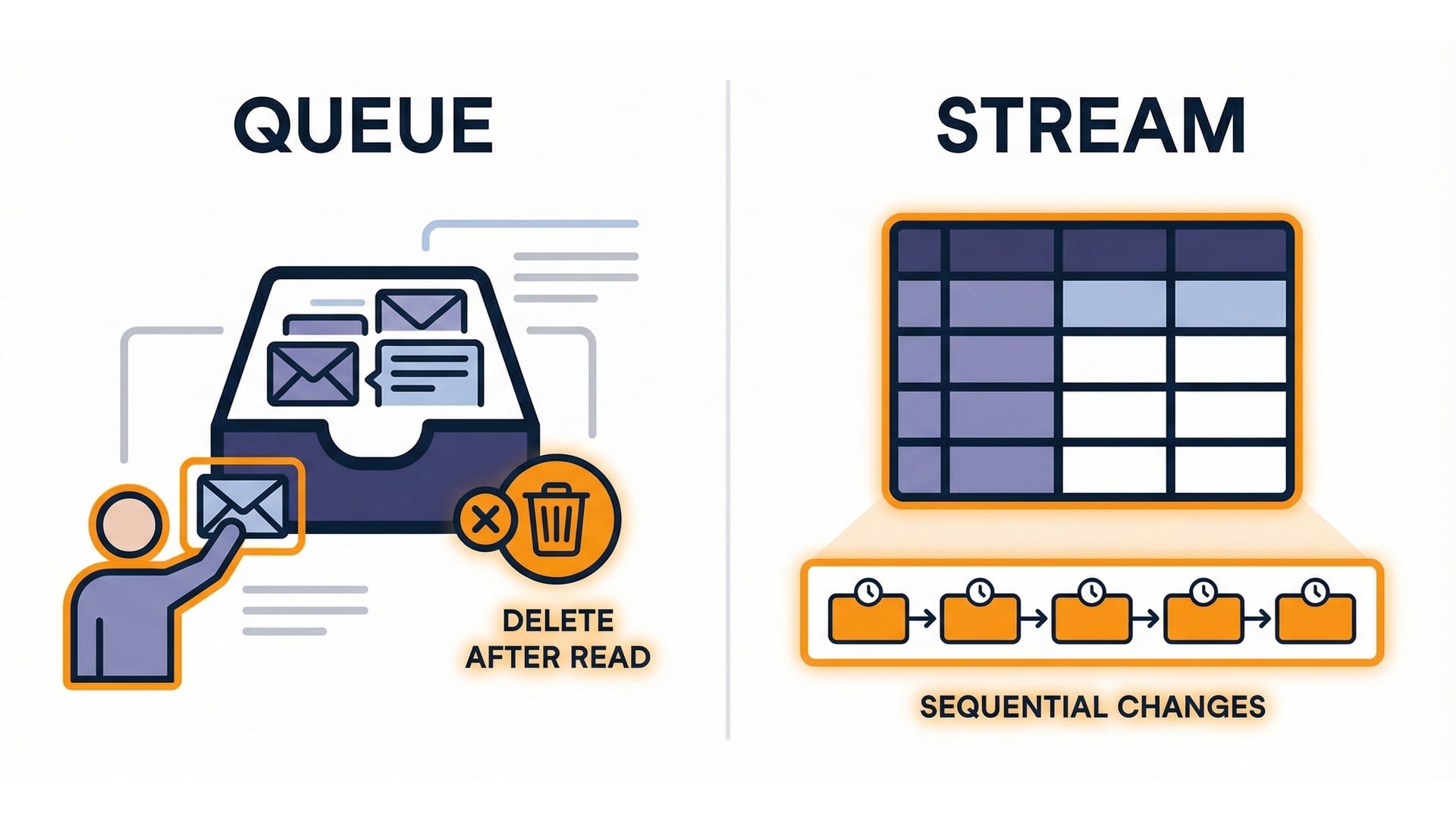

Queue vs stream

Queue (Amazon SQS)

A managed message queue, like an inbox.

Stream (DynamoDB Streams)

A change log for a DynamoDB table.
Both arrive as Records, but the meaning differs.

Queue vs stream comparison

Batch event shape (simplified)

{
  "Records": [{
    "messageId": "abc-123",
    "body": "{\"order_id\": \"A-42\"}"
  }]
}

Most mapping events start with Records.
Each record has a messageId and a body string.
Parse body into your own payload.

Walkthrough: process each record

def lambda_handler(event, context):
    records = event.get("Records", [])
    for record in records:
        body = record.get("body", "")
        print("BODY:", body)
    return {"statusCode": 200}

Read Records with a default list.
Loop through each record and read body safely.
Log what you need, then return.

Walkthrough: parse JSON body

import json

def lambda_handler(event, context):
    record = event.get("Records", [])[0]
    payload = json.loads(record.get("body", "{}"))
    order_id = payload.get("order_id")
    print("ORDER_ID:", order_id)
    return {"statusCode": 200}

Import json and read body with a safe default.
Parse with json.loads to get a dict.
Extract the fields you need; always validate first.

Batching: batch size and batch window

Batch size: how many records per invocation.
Batch window: how long Lambda waits to fill a batch.
Bigger batches improve throughput but add per-run work.
For SQS, watch ApproximateAgeOfOldestMessage for backlog.

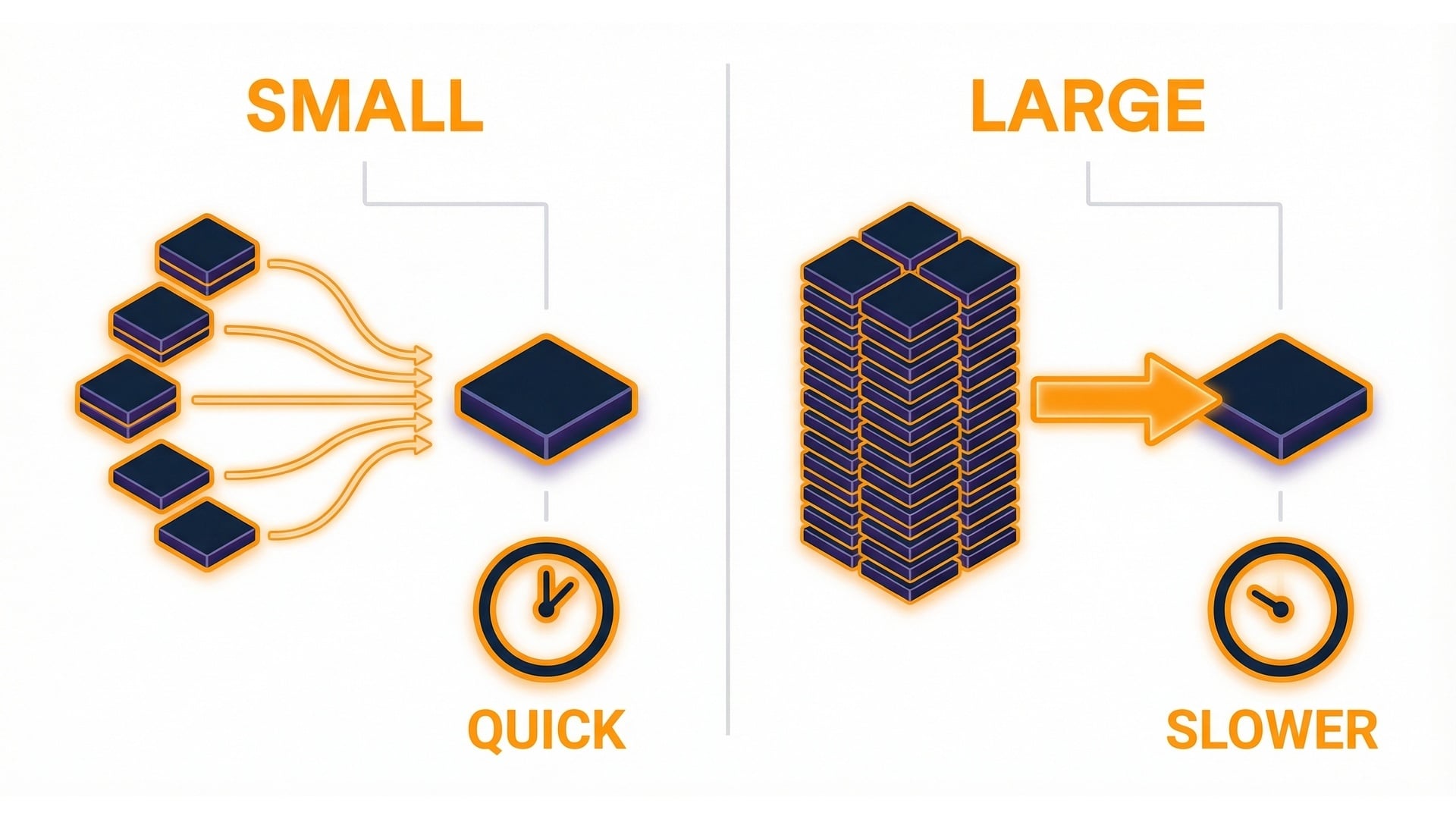

Batch size tradeoff diagram

Batch size trade-offs

Large batches are efficient but can increase latency.
Small batches reduce time-to-first-processing but increase invocations.
Choose based on your workload.

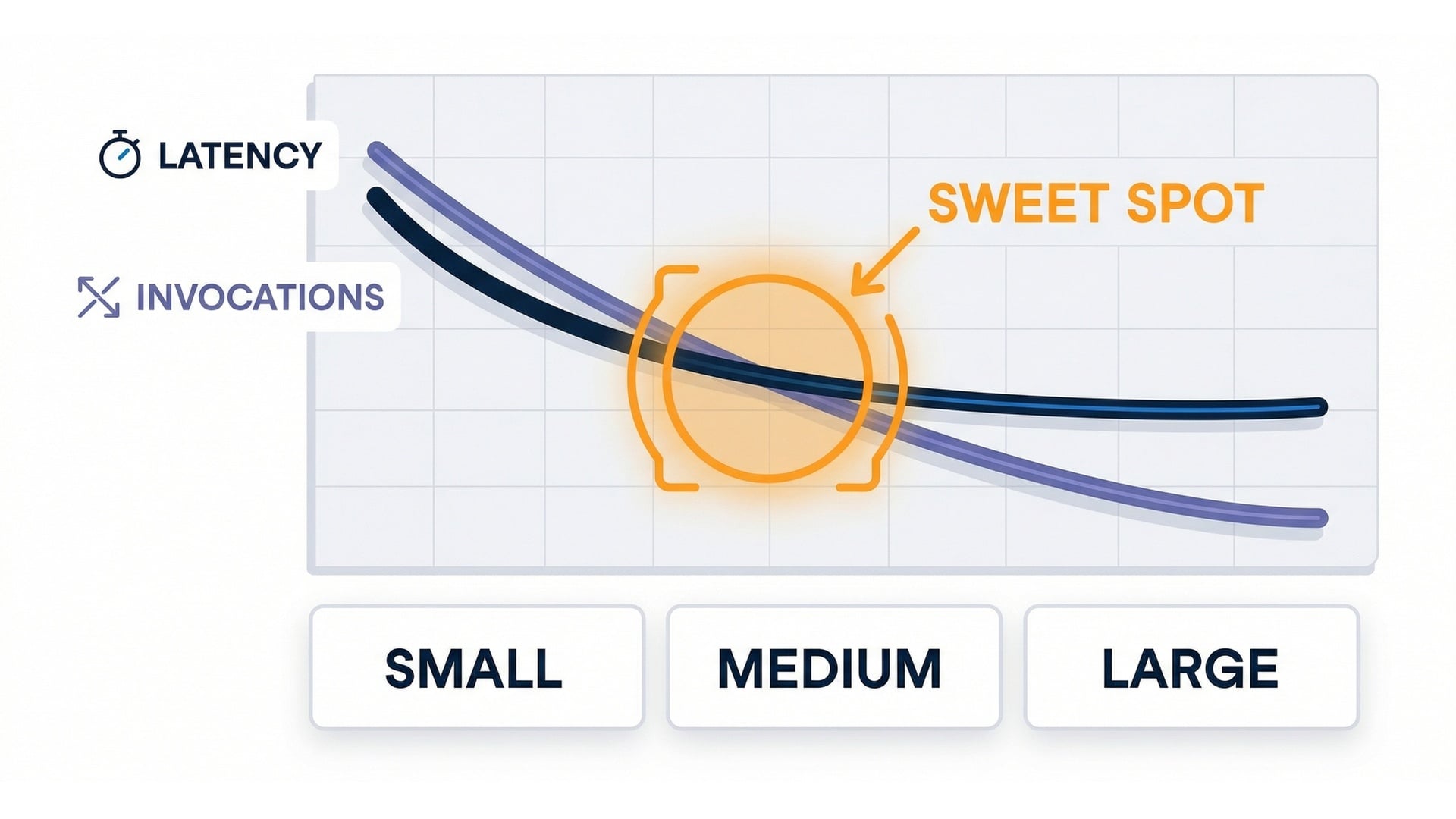

Batch size vs latency chart

Scaling with concurrency

Multiple batches are processed at the same time.
Higher concurrency increases throughput.
But it also increases downstream load.

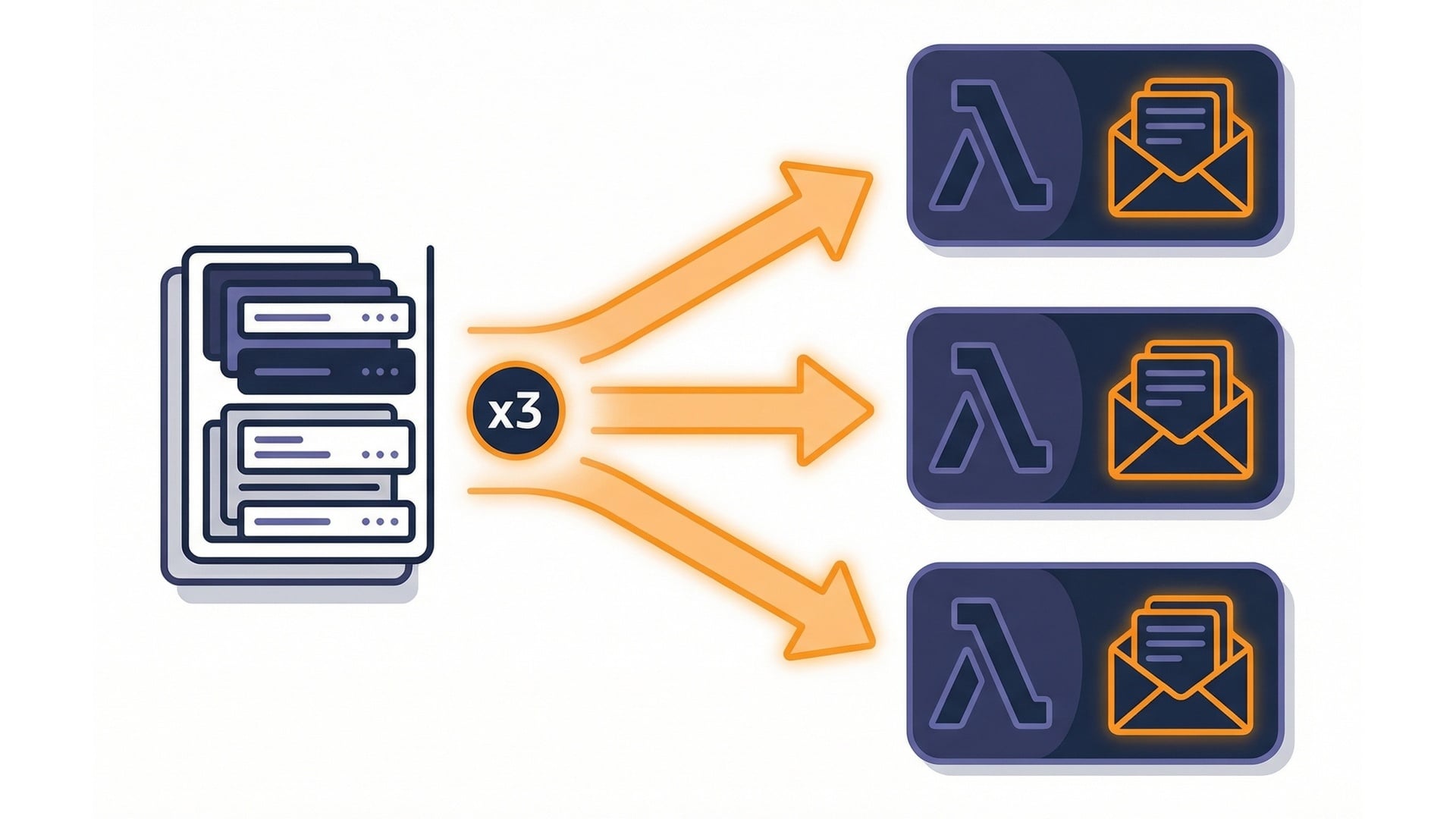

Concurrent batch processing

Protect downstream systems

Too much concurrency can overwhelm a database or API.
Use limits to control load.
Prefer small, safe units of work.

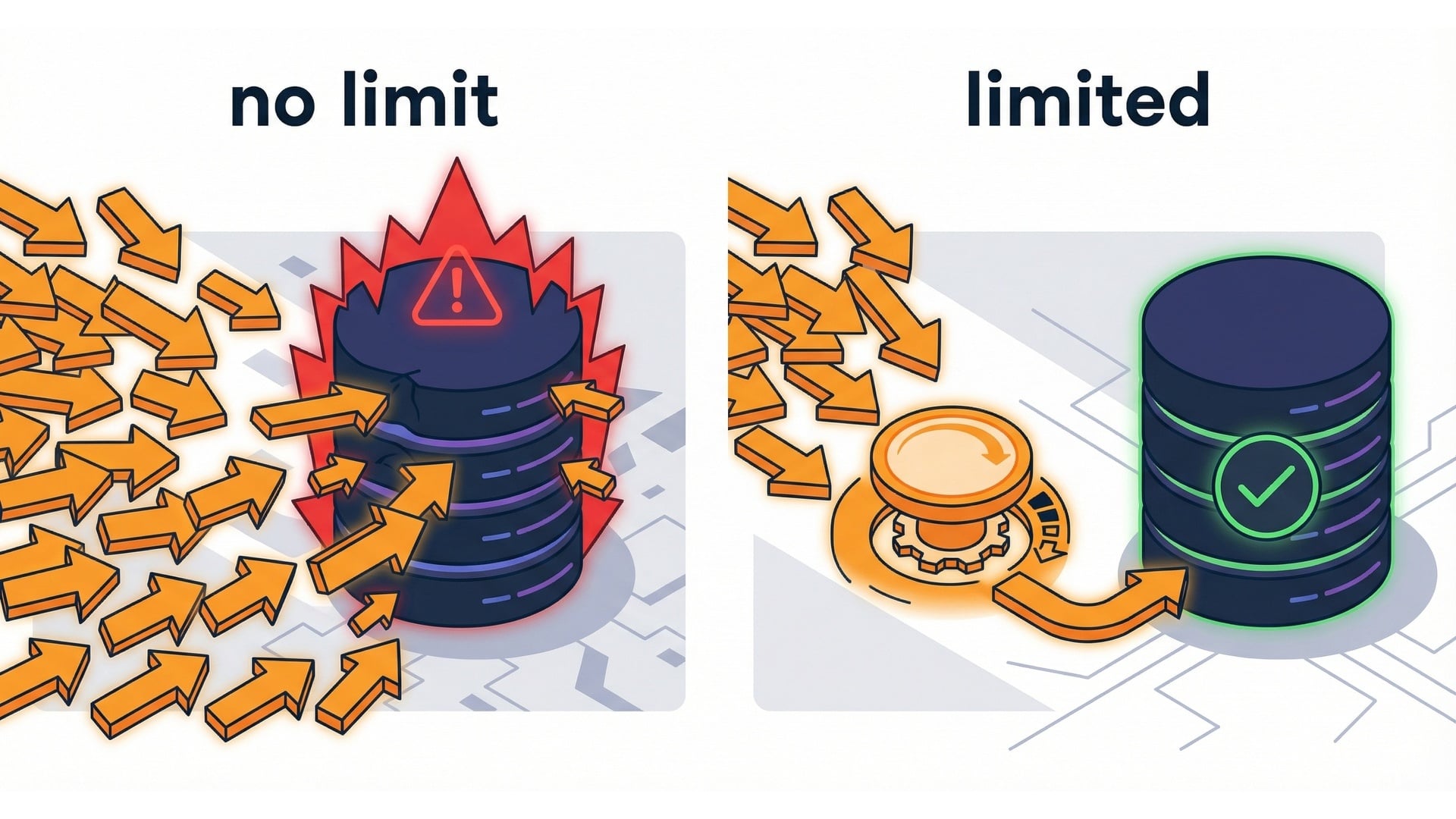

Downstream load protection

Partial batch failures

A batch can contain good and bad records.
Without partial failures, one bad record retries the whole batch.
Partial failure handling lets you retry only the failed items.

Partial batch failure flow

Walkthrough: reporting partial failures (SQS)

def lambda_handler(event, context):
    failures = []
    for record in event.get("Records", []):
        try:
            process(record)
        except Exception:
            failures.append({"itemIdentifier": record["messageId"]})
    return {"batchItemFailures": failures}

Collect messageIds for failed records in batchItemFailures.
Lambda retries only those items.
Successfully processed records are not re-sent.

Key takeaways

Event source mappings poll queues and streams.
They deliver Records in batches to your handler.
Batch size and window trade latency for throughput.
Partial failures avoid reprocessing successes.

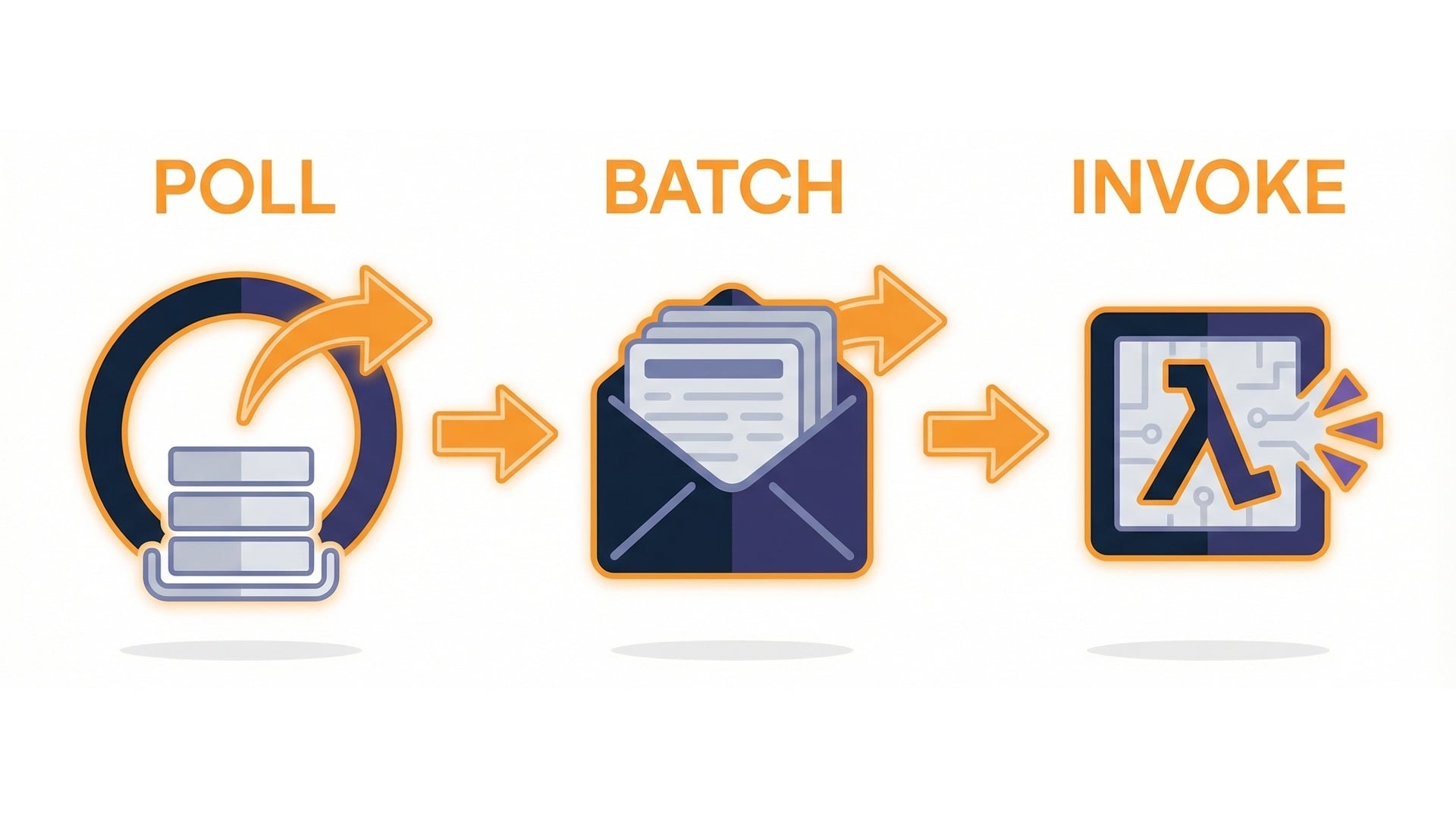

Mapping summary diagram

Let's practice!
