The normal distribution

Introduzione alla statistica in Python

Maggie Matsui

Content Developer, DataCamp

What is the normal distribution?

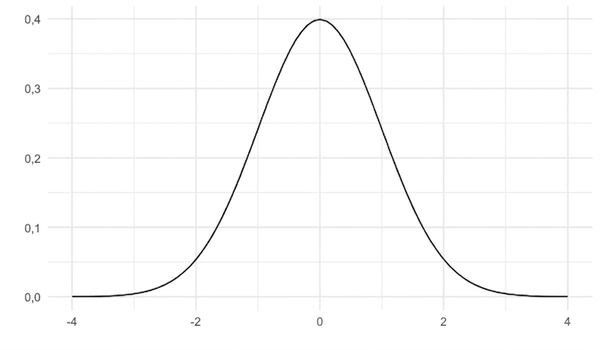

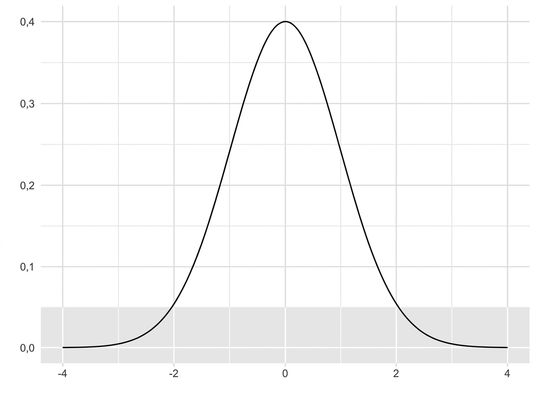

Density function of normal distribution

Introduzione alla statistica in Python

Symmetrical

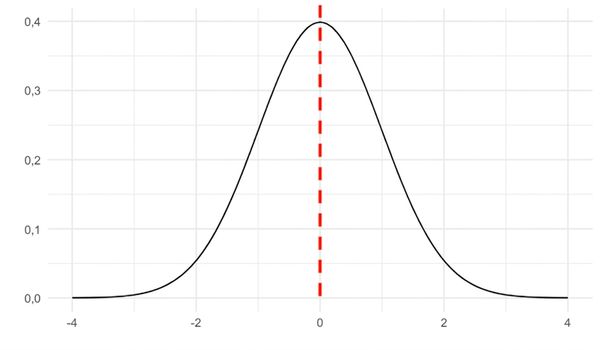

Dashed vertical line down the middle of normal distribution

Introduzione alla statistica in Python

Area = 1

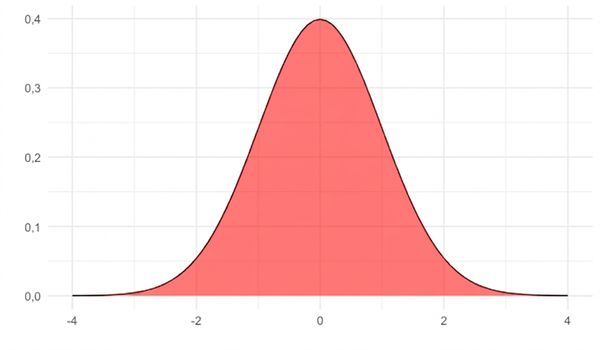

Normal distribution with area underneath curve shaded

Introduzione alla statistica in Python

Curve never hits 0

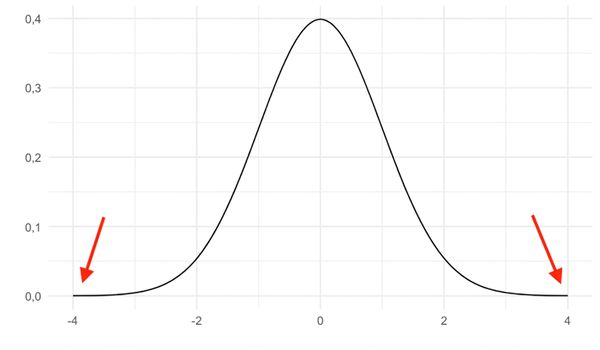

Normal distribution with arrows pointing to tails on either side

Introduzione alla statistica in Python

Described by mean and standard deviation



                                                         Mean: 20

                                        Standard deviation: 3

Normal distribution with mean 20 and sd 3

                         Standard normal distribution

                                                         Mean: 0

                                        Standard deviation: 1

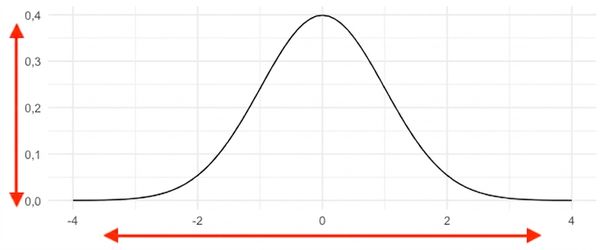

Normal distribution with mean 0 and sd 1

Introduzione alla statistica in Python

Described by mean and standard deviation



                                                         Mean: 20

                                        Standard deviation: 3

Normal distribution with mean 20 and sd 3

                         Standard normal distribution

                                                         Mean: 0

                                        Standard deviation: 1

Normal distribution with mean 0 and sd 1

Introduzione alla statistica in Python

Areas under the normal distribution

68% falls within 1 standard deviation

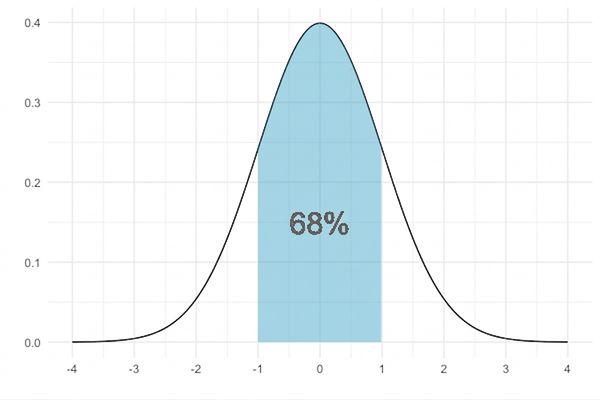

Normal distribution with area between -1 and 1 highlighted, labeled with 68%

Introduzione alla statistica in Python

Areas under the normal distribution

95% falls within 2 standard deviations

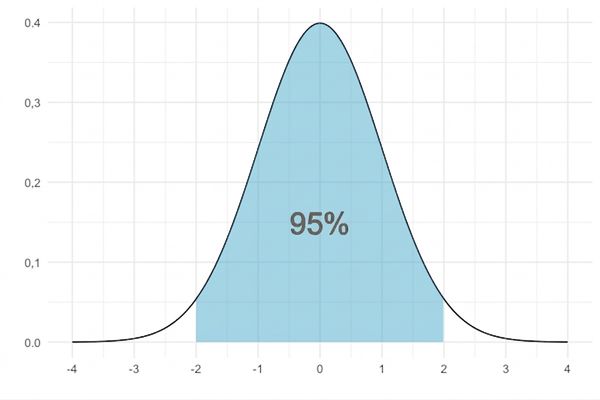

Normal distribution with area between -2 and 2 highlighted, labeled with 95%

Introduzione alla statistica in Python

Areas under the normal distribution

99.7% falls within 3 standard deviations

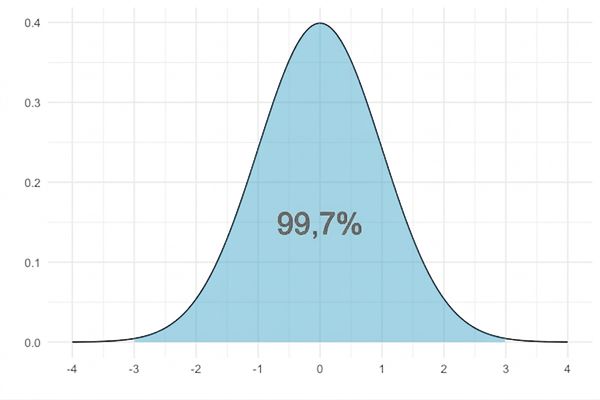

Normal distribution with area between -3 and 3 highlighted, labeled with 99.7%

Introduzione alla statistica in Python

Lots of histograms look normal

Normal distribution

Standard normal distribution

Women's heights from NHANES

Histogram of women's heights

Mean: 161 cm        Standard deviation: 7 cm

Introduzione alla statistica in Python

Approximating data with the normal distribution

Normal curve drawn over the histogram of women's heights

Introduzione alla statistica in Python

What percent of women are shorter than 154 cm?

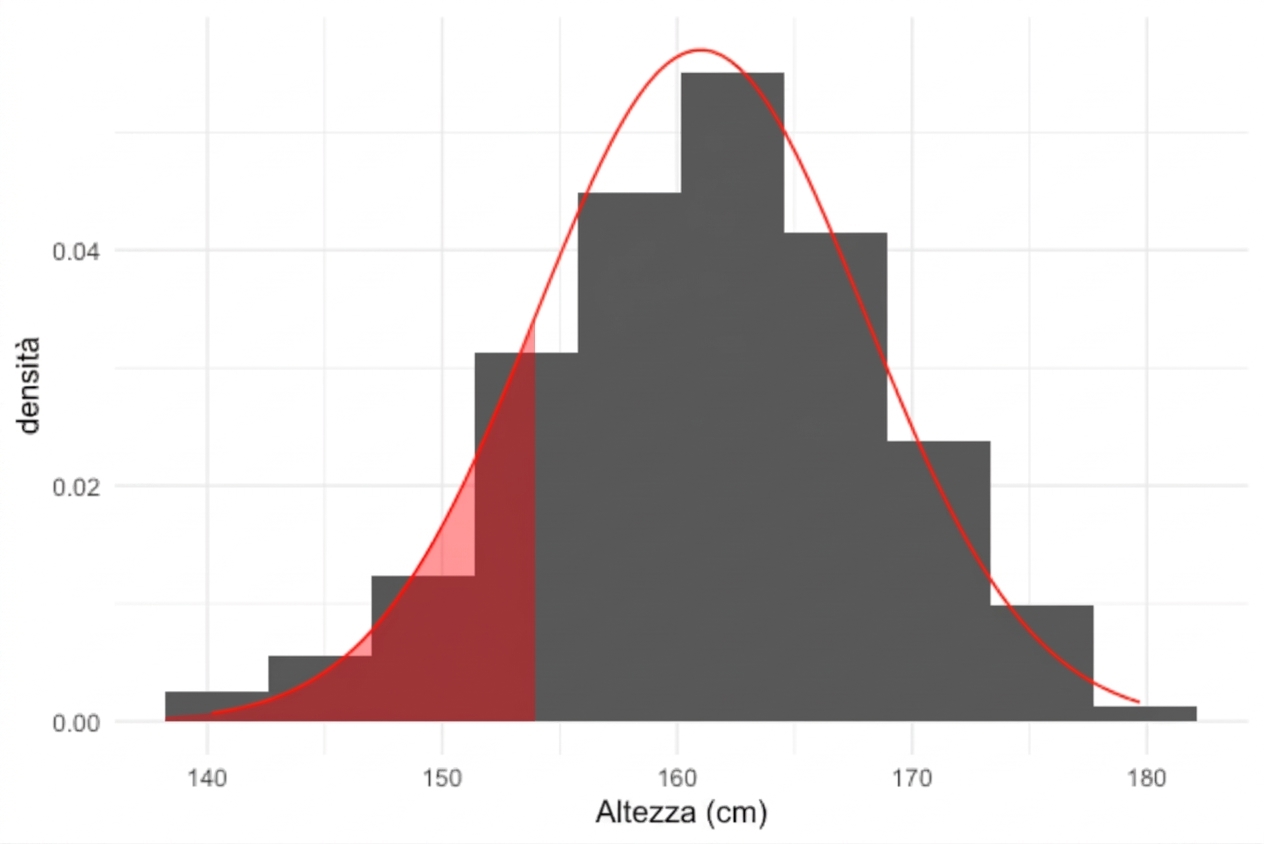

Normal curve drawn over the histogram of women's heights with area less than 154 shaded

16% of women in the survey are shorter than 154 cm

from scipy.stats import norm
norm.cdf(154, 161, 7)

0.158655
Introduzione alla statistica in Python

What percent of women are taller than 154 cm?

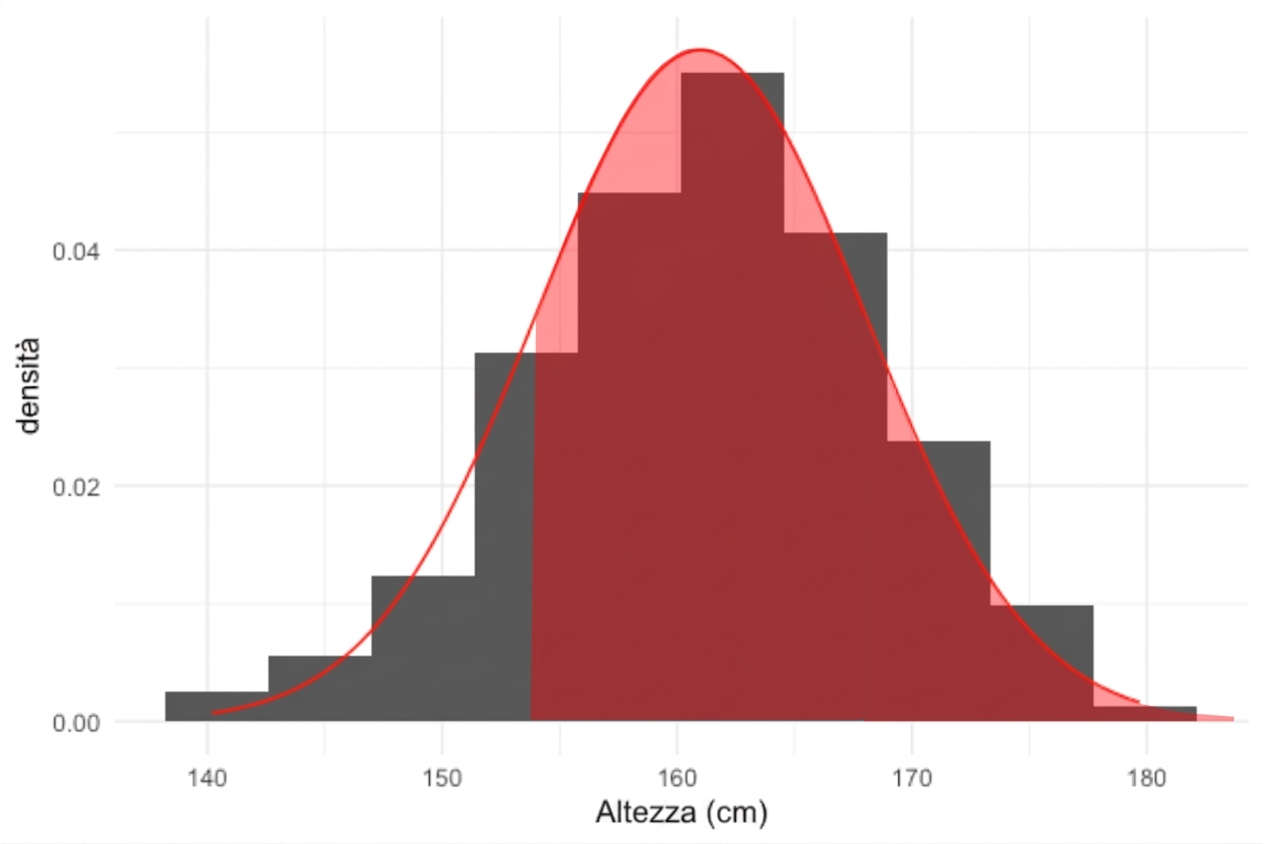

Normal curve drawn over the histogram of women's heights with area to the right of 154 shaded

from scipy.stats import norm
1 - norm.cdf(154, 161, 7)

0.841345
Introduzione alla statistica in Python

What percent of women are 154-157 cm?

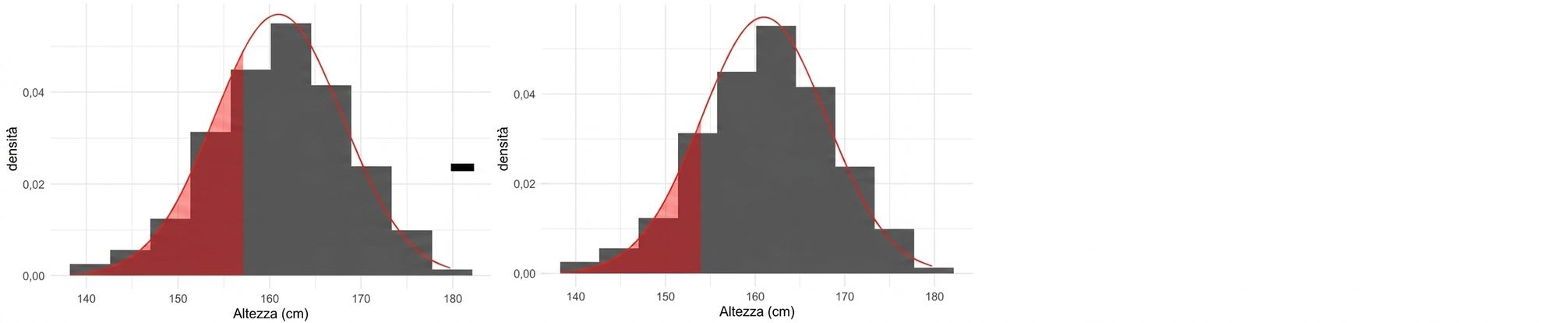

Area less than 157 minus area less than 154

norm.cdf(157, 161, 7) - norm.cdf(154, 161, 7)
Introduzione alla statistica in Python

What percent of women are 154-157 cm?

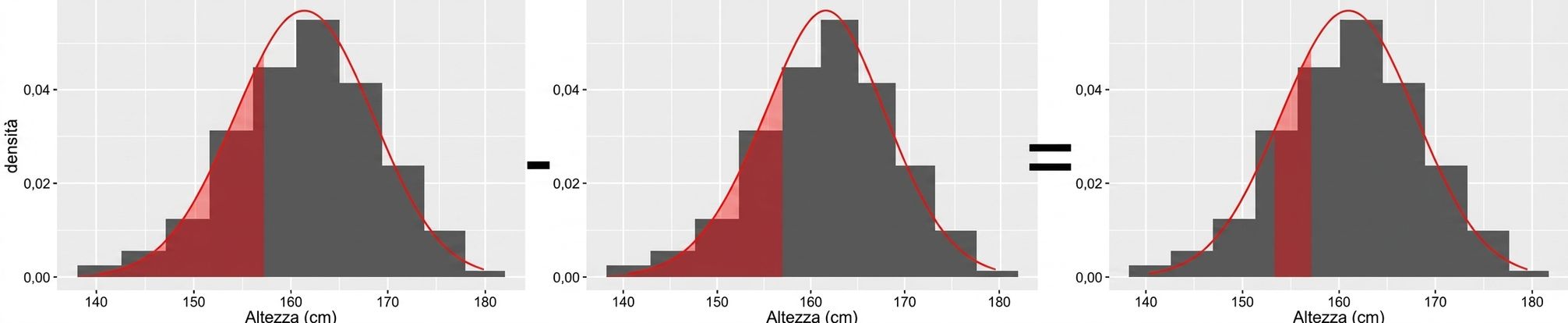

Area less than 157 minus area less than 154 equals area between 154 and 157

norm.cdf(157, 161, 7) - norm.cdf(154, 161, 7)

0.1252
Introduzione alla statistica in Python

What height are 90% of women shorter than?

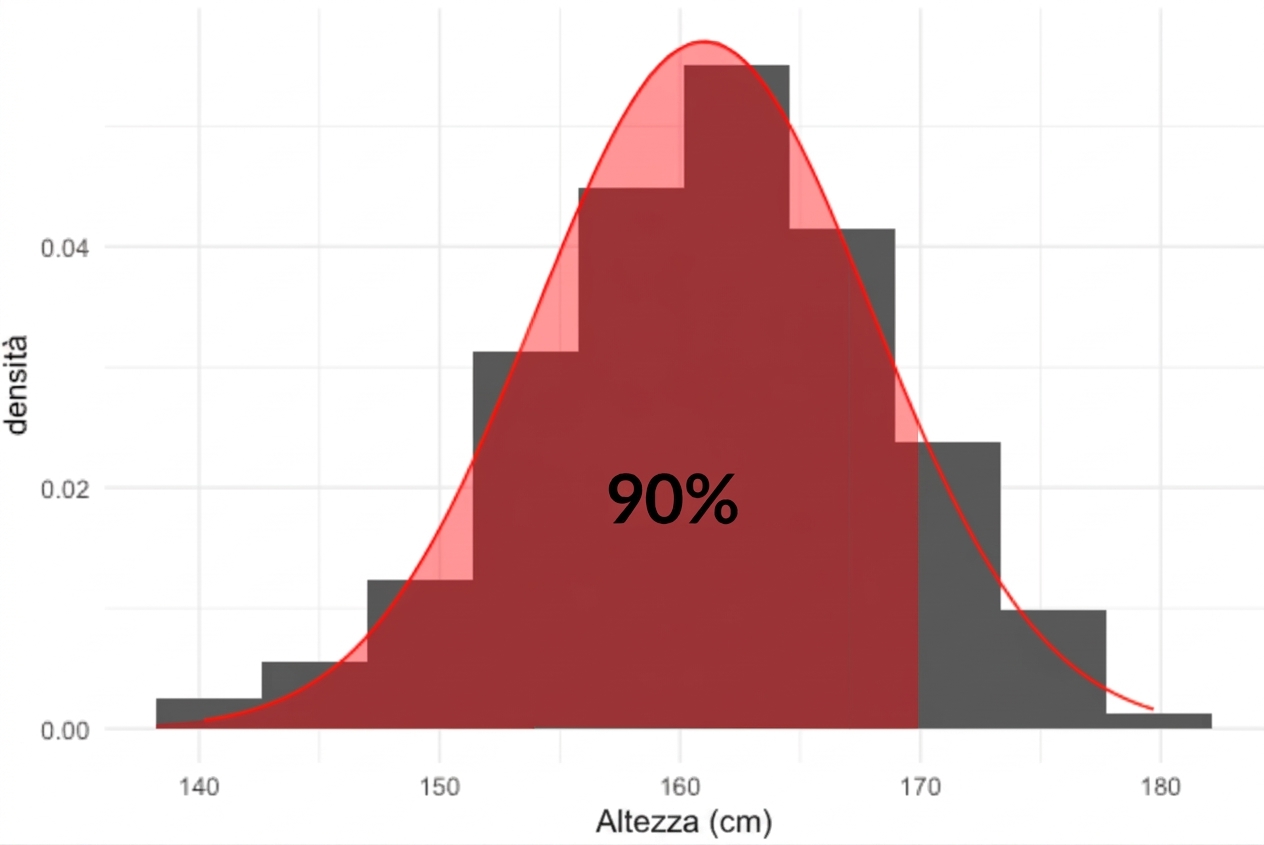

Area less than 170 shaded, labeled 90%

norm.ppf(0.9, 161, 7)

169.97086
Introduzione alla statistica in Python

What height are 90% of women taller than?

Area greater than about 162 shaded, labeled 90%

norm.ppf((1-0.9), 161, 7)

152.029
Introduzione alla statistica in Python

Generating random numbers

# Generate 10 random heights
norm.rvs(161, 7, size=10)

array([155.5758223 , 155.13133235, 160.06377097, 168.33345778,
       165.92273375, 163.32677057, 165.13280753, 146.36133538,
       149.07845021, 160.5790856 ])
Introduzione alla statistica in Python

Let's practice!
