Network Services

Concetti di tecnologie e servizi cloud AWS

Rahulraj Singh

Technical Product Manager

Unlock the power of AWS networking services

Building secure and efficient network environments in the cloud
Designing robust content delivery mechanisms

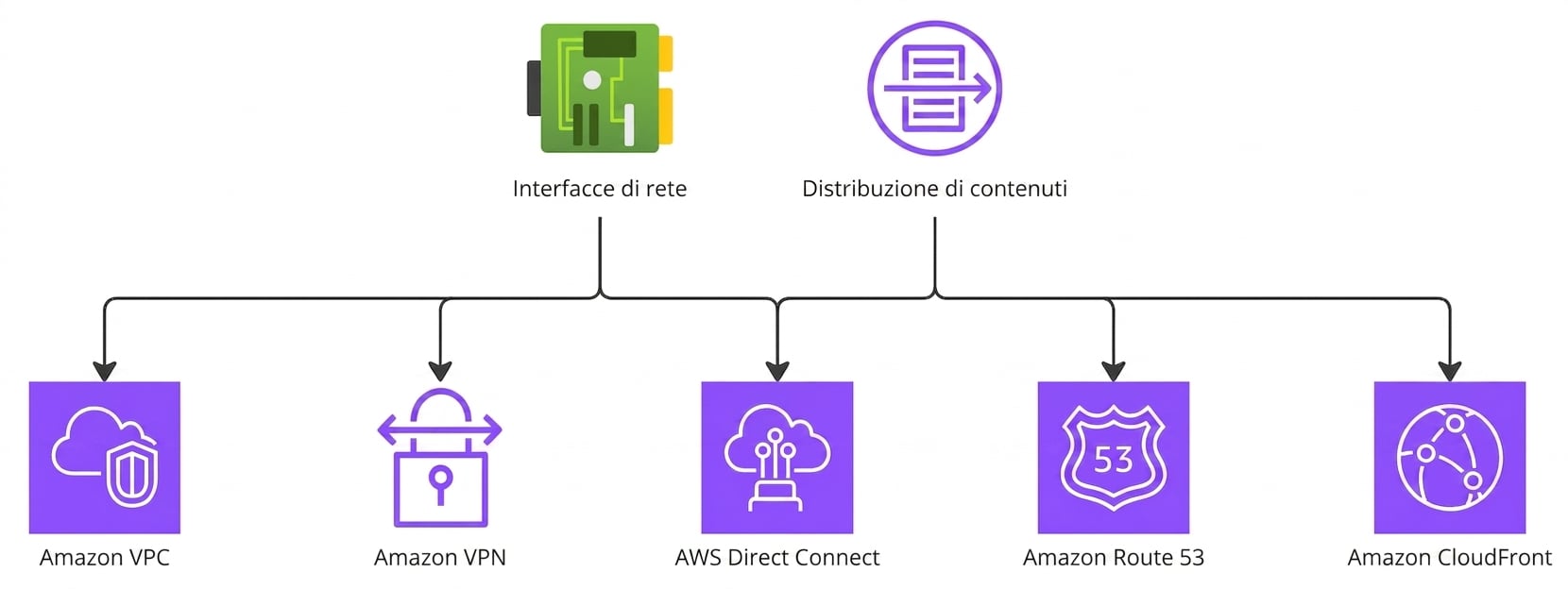

A hierarchical chart highlighting AWS services for networking and content delivery.

Networking in the cloud

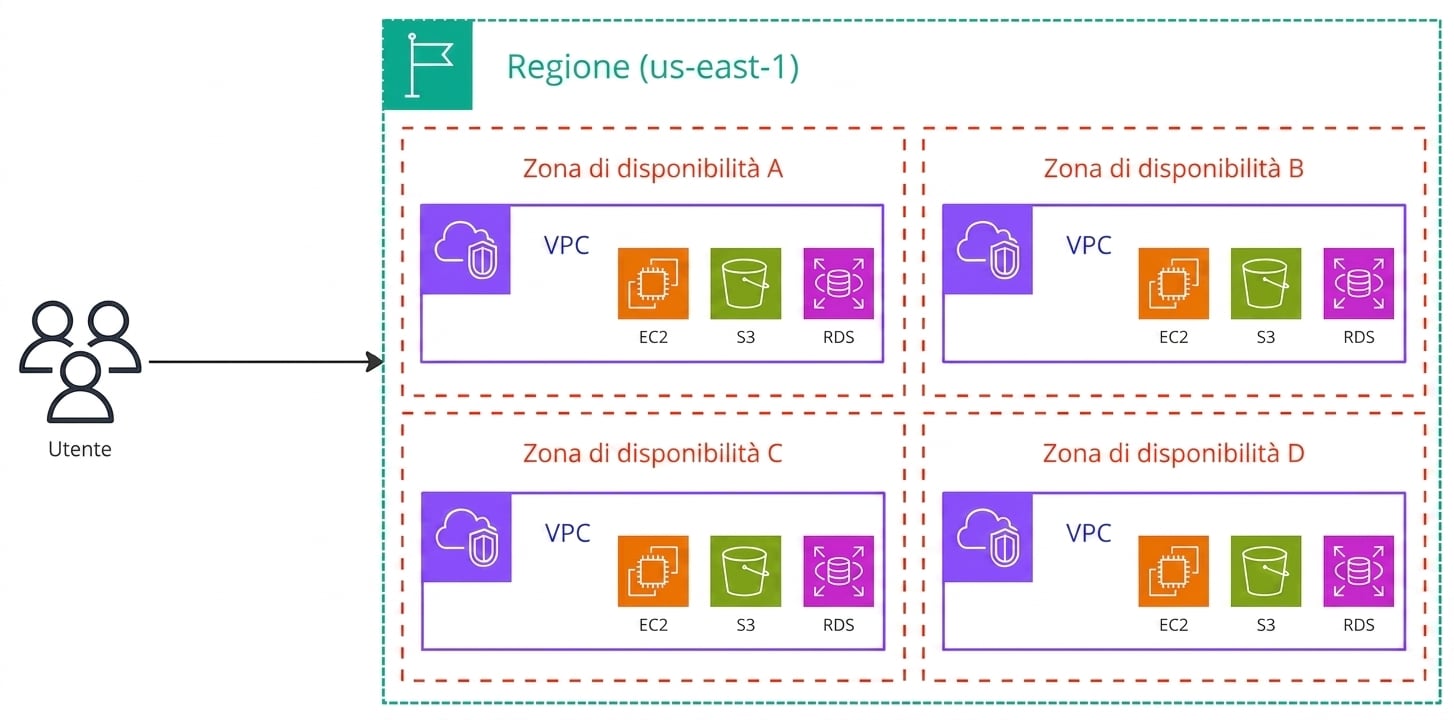

Amazon Virtual Private Cloud (VPC)

Logically isolated section of the AWS cloud to launch and manage your own resources

An architecture diagram explaining the functionality of Amazon Virtual Private Cloud.

Building a logically isolated virtual network

Amazon Virtual Private Cloud (VPC)

IPv4 and IPv6 support with custom configurable IP address range

An icon showing custom IP configuration.

Building a logically isolated virtual network

Amazon Virtual Private Cloud (VPC)

IPv4 and IPv6 support with custom configurable IP address range

Security Layers: security groups and network access control lists (ACLs)

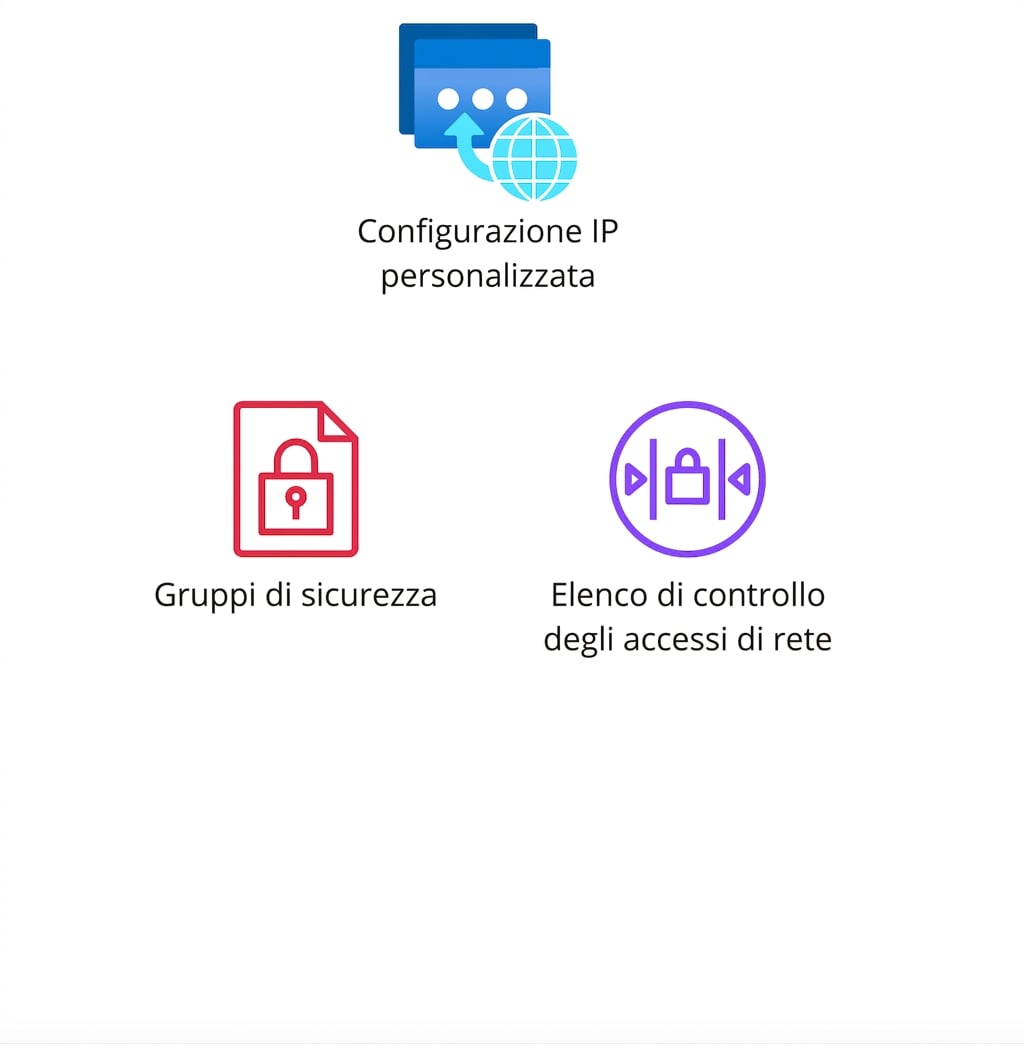

Icons showing security groups and network access control lists.

Building a logically isolated virtual network

Amazon Virtual Private Cloud (VPC)

IPv4 and IPv6 support with custom configurable IP address range

Security Layers: security groups and network access control lists (ACLs)

Complete control: subnets, route tables and network gateways

Multiple icons showing network configuration, security groups, network access control lists, subnets, route tables and network gateway.

Understanding key VPC concepts

Custom configurable IP address range

Your virtual address space in the cloud

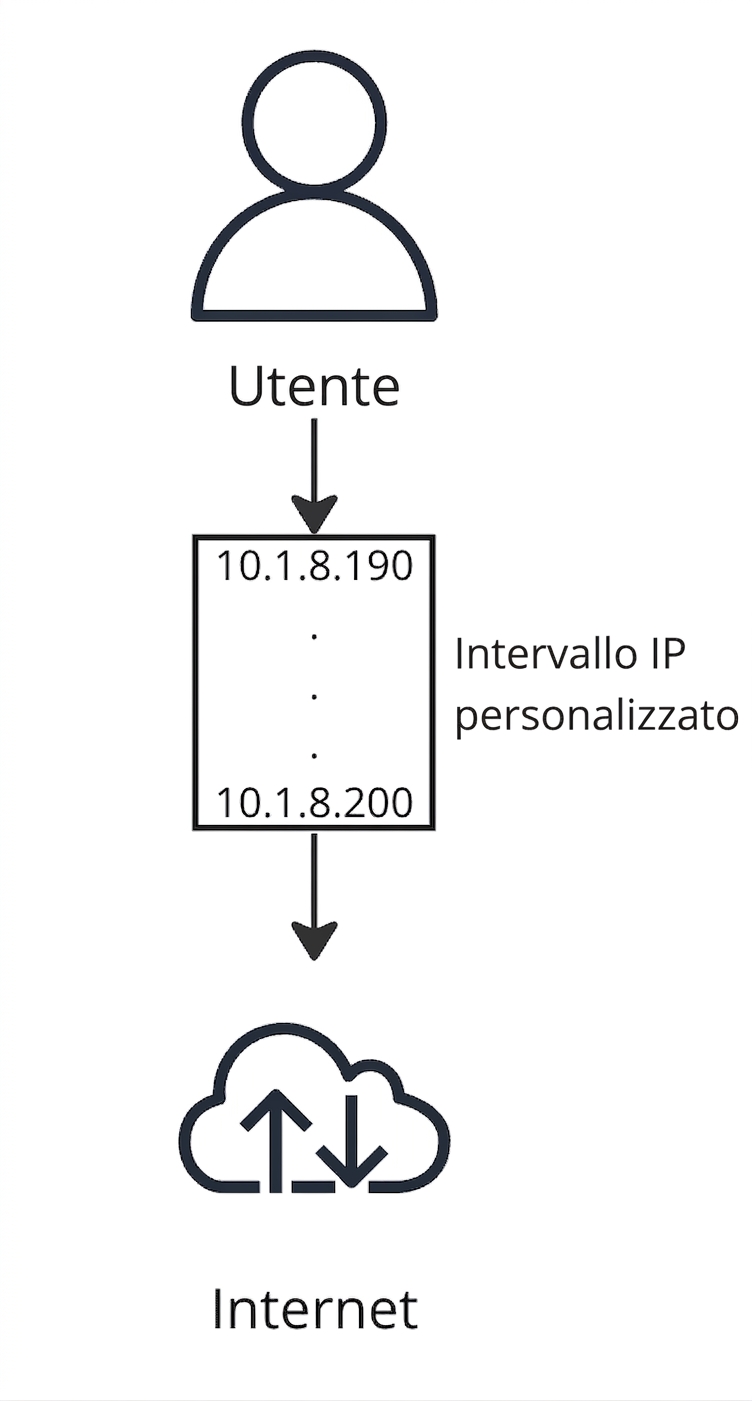

A flow diagram showing a user connecting to the internet.

Subnets

Dividing your VPC IP address range into smaller, manageable segments

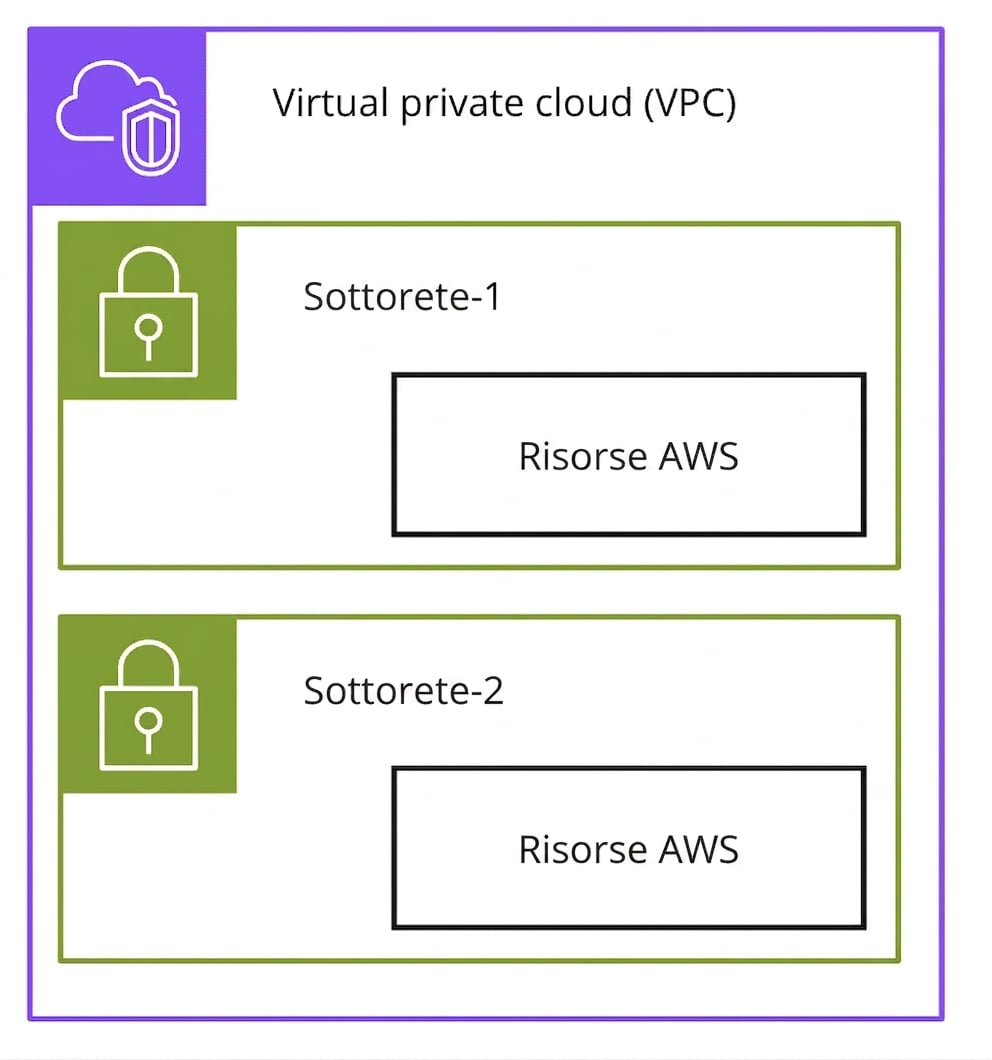

An architecture diagram explaining subnets within the Virtual Private Cloud.

Understanding key VPC concepts

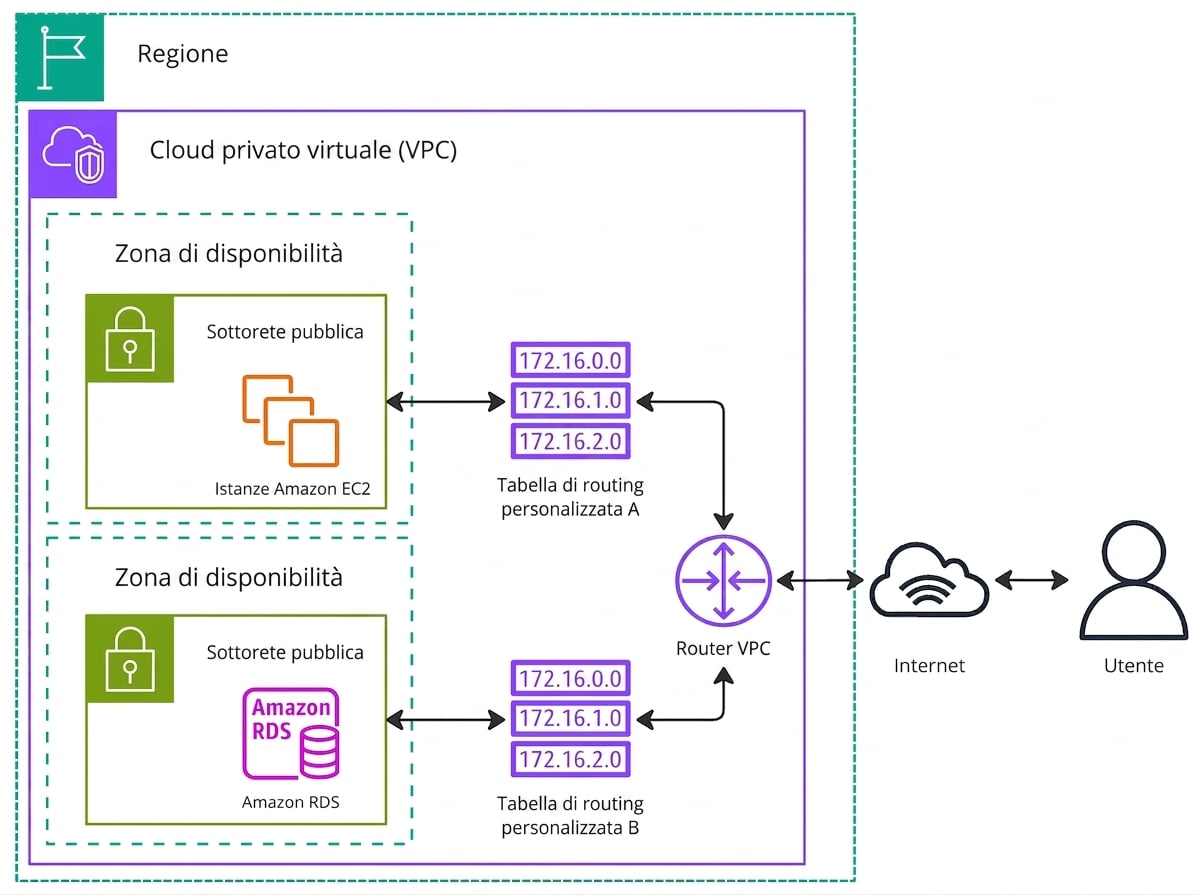

Route tables

Determines where network traffic from your subnet or gateway is directed

An architecture diagram explaining route tables.

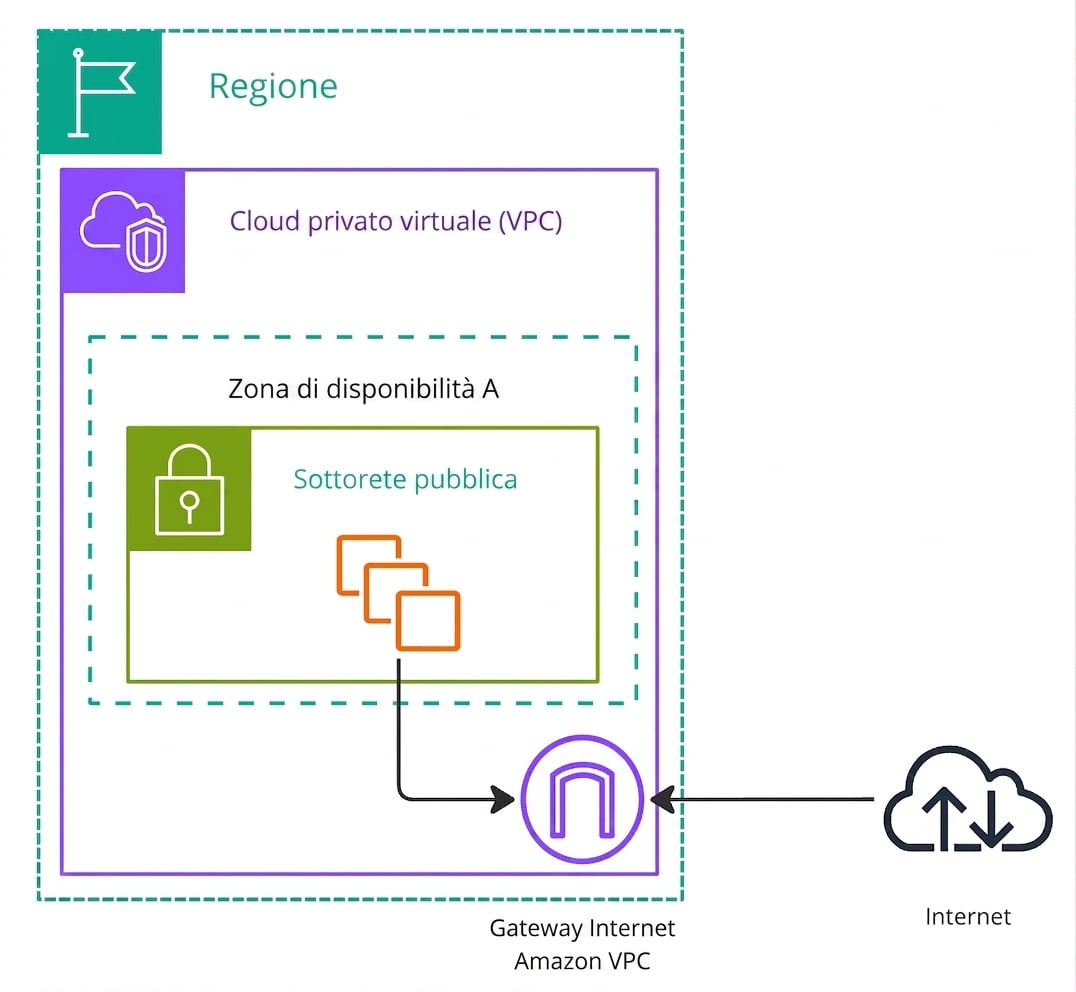

Network gateway

Connects your VPC to the internet or other VPCs and controls inbound and outbound traffic

An architecture diagram explaining network gateways.

Default vs. custom Amazon VPC

Default Amazon VPC

Automatic creation with AWS-assigned IP addresses
Pre-configured settings with a subnet in every availability zone
Communicate with the internet by default

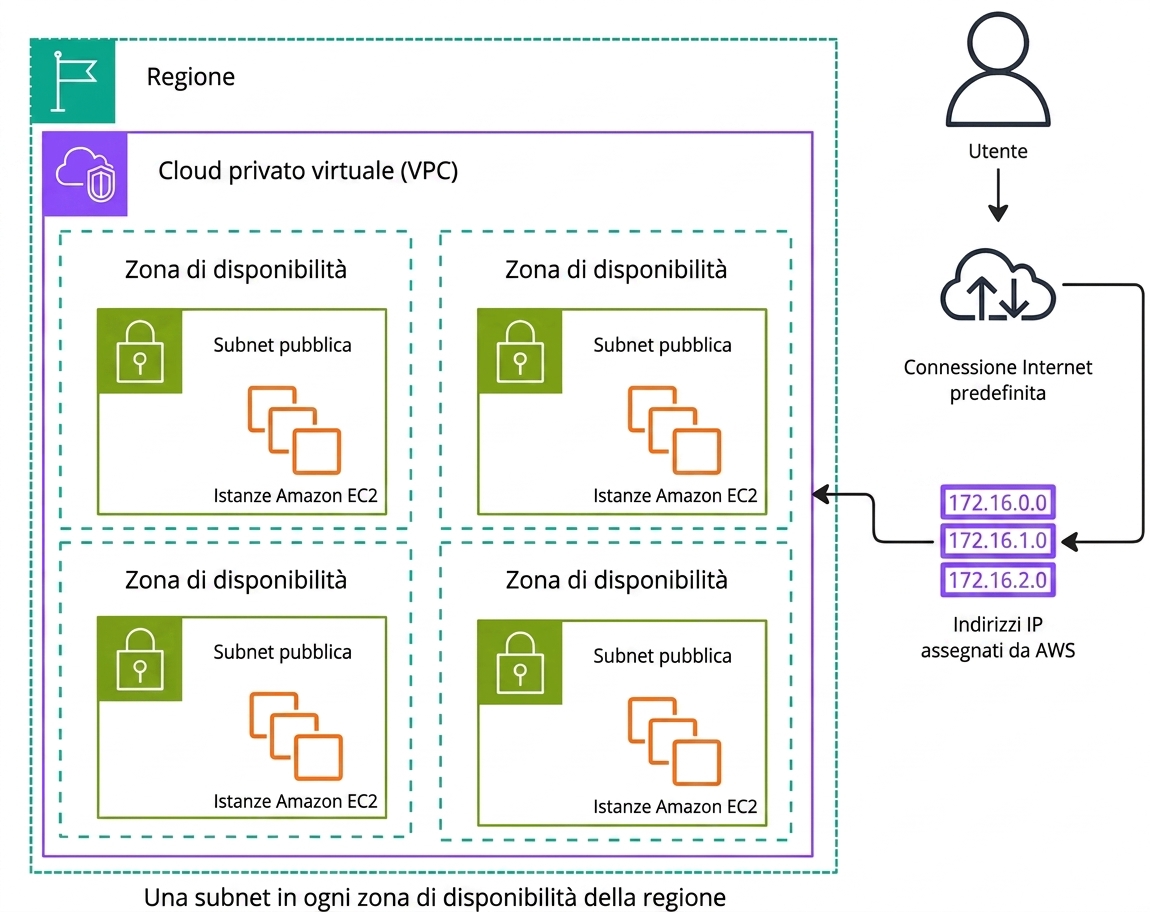

An architecture diagram explaining the functioning of a default Amazon VPC.

Default vs. custom Amazon VPC

Custom Amazon VPC

User-defined
Customize IP address range, subnets, and route tables
Require explicit configuration for internet access

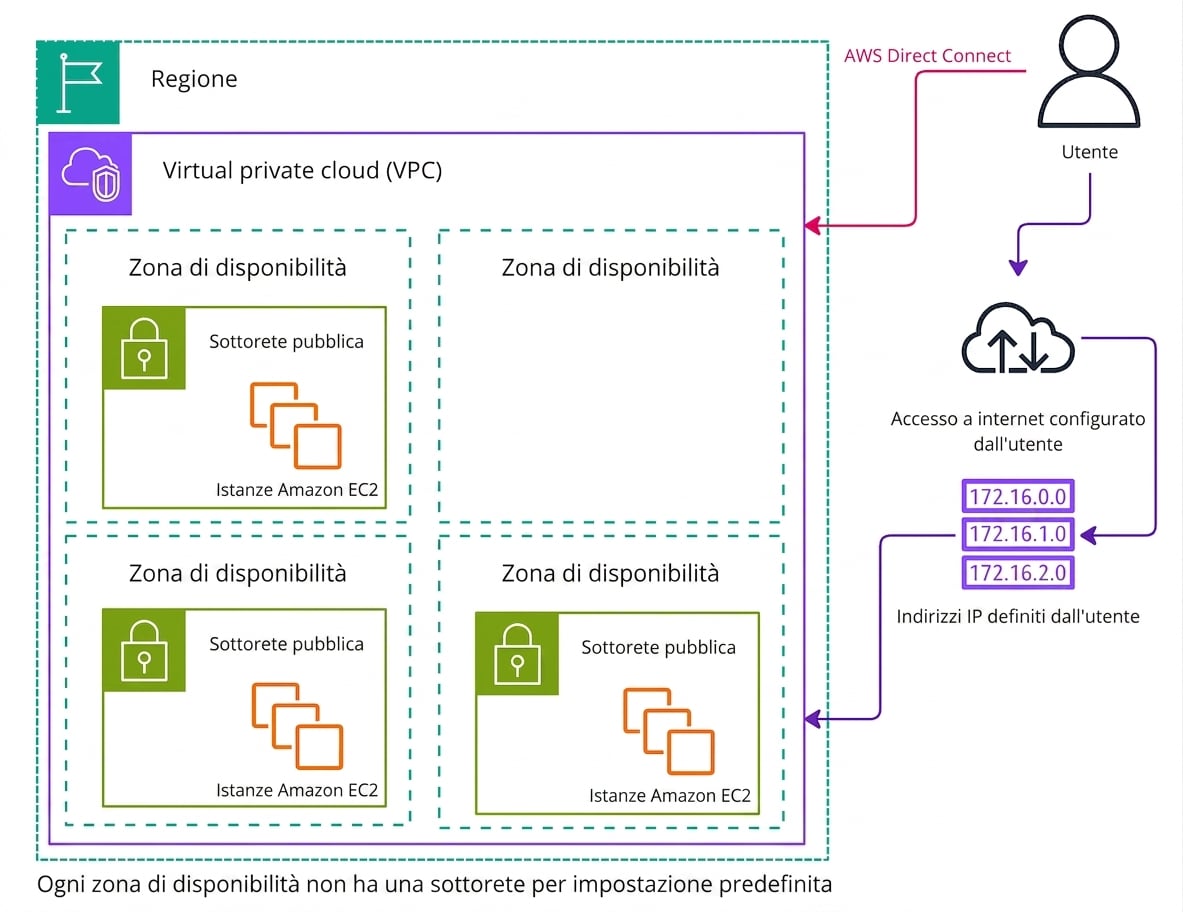

An architecture diagram explaining custom VPC in AWS.

Network security

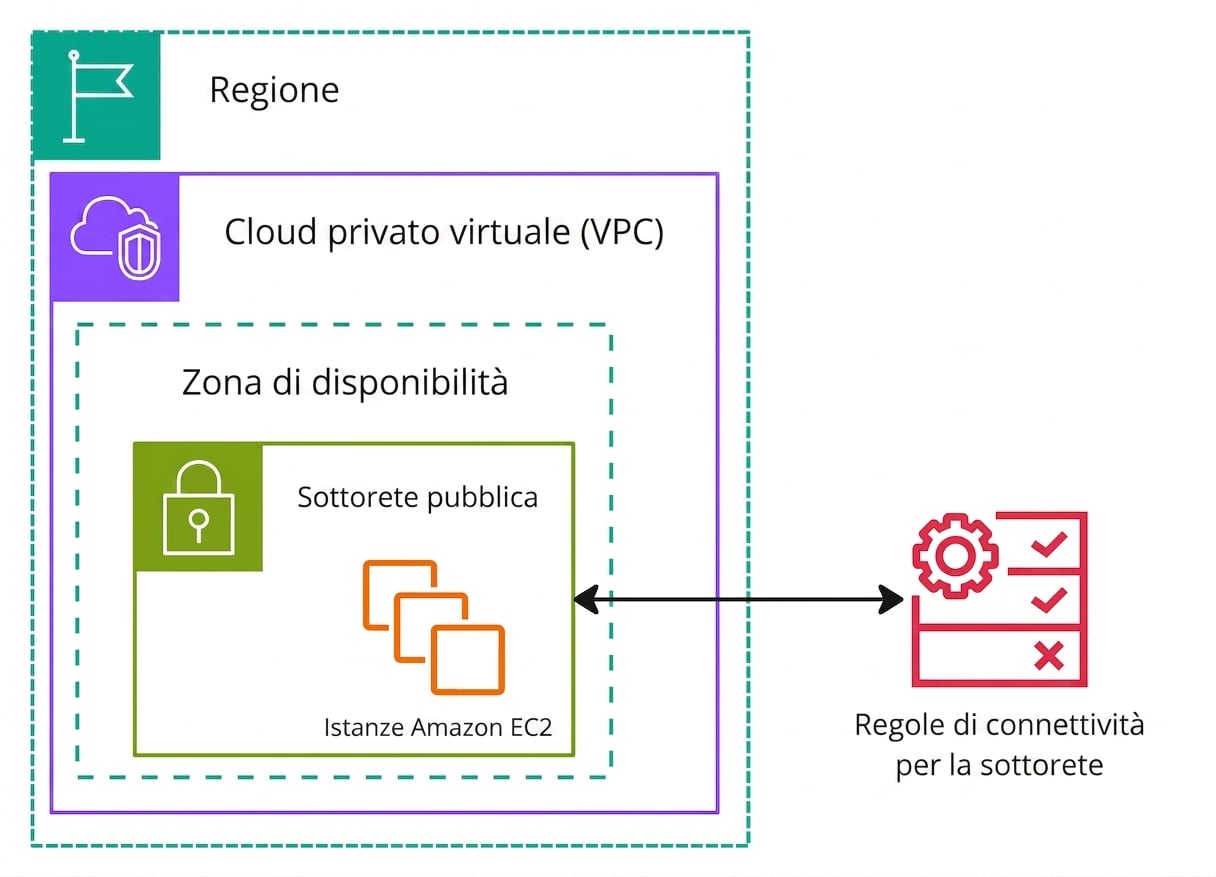

Network Access Control Lists (ACL)

Firewall for your subnet

An architecture diagram explaining Network Access Control Lists.

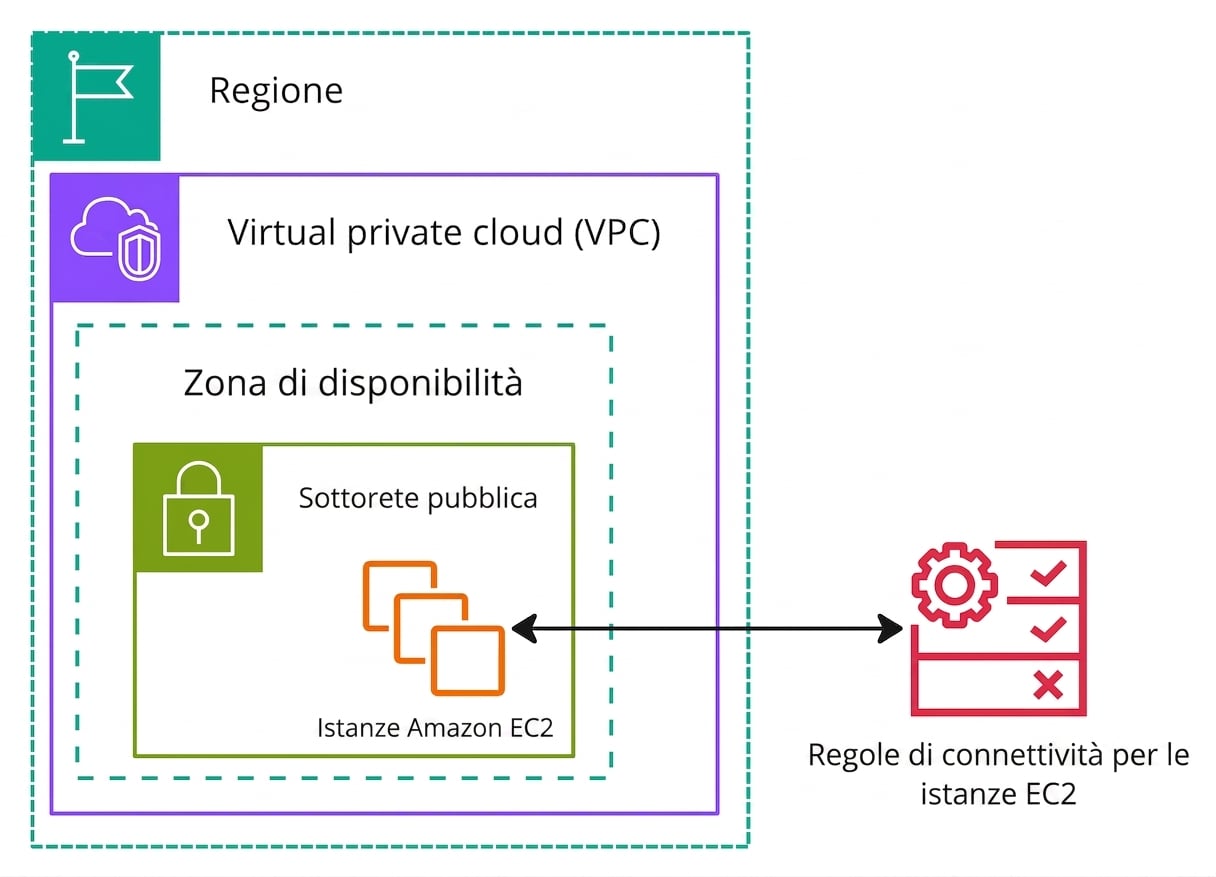

Network Security Groups (NSGs)

Firewall for your instances

An architecture diagram explaining Network Security Groups.

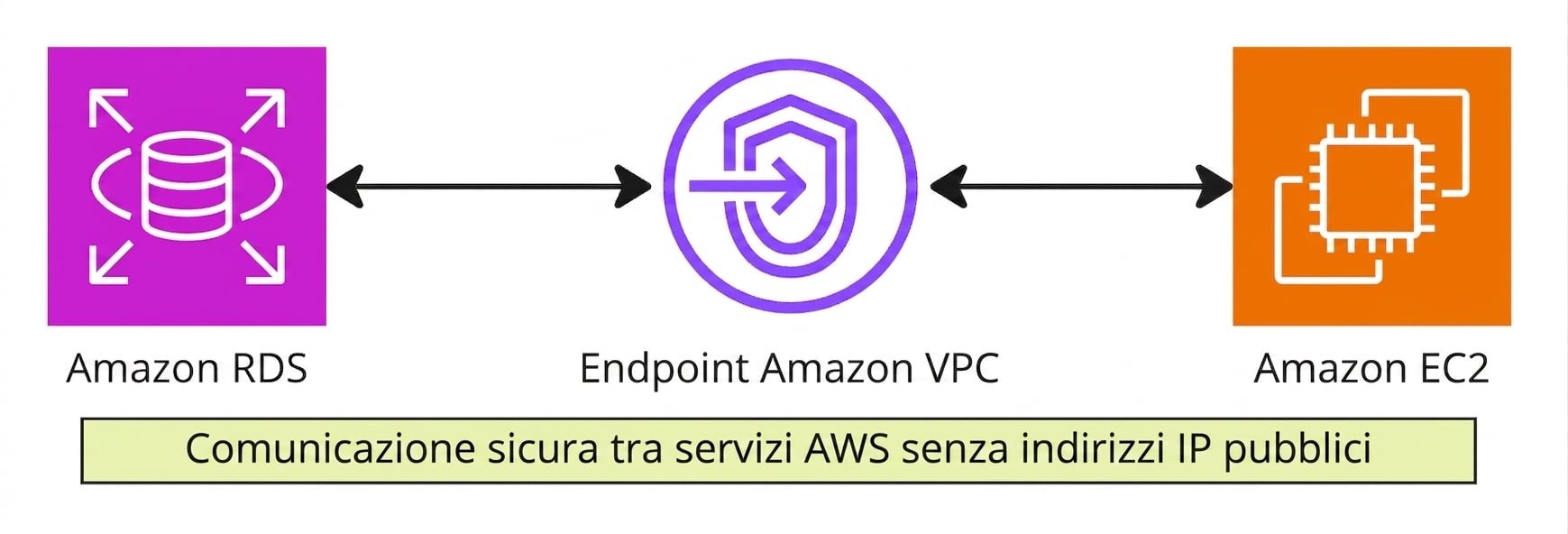

VPC endpoints

Enable private connections between AWS services
Enhances security by allowing communication between services without public IP addresses

An architecture diagram explaining VPC endpoints.

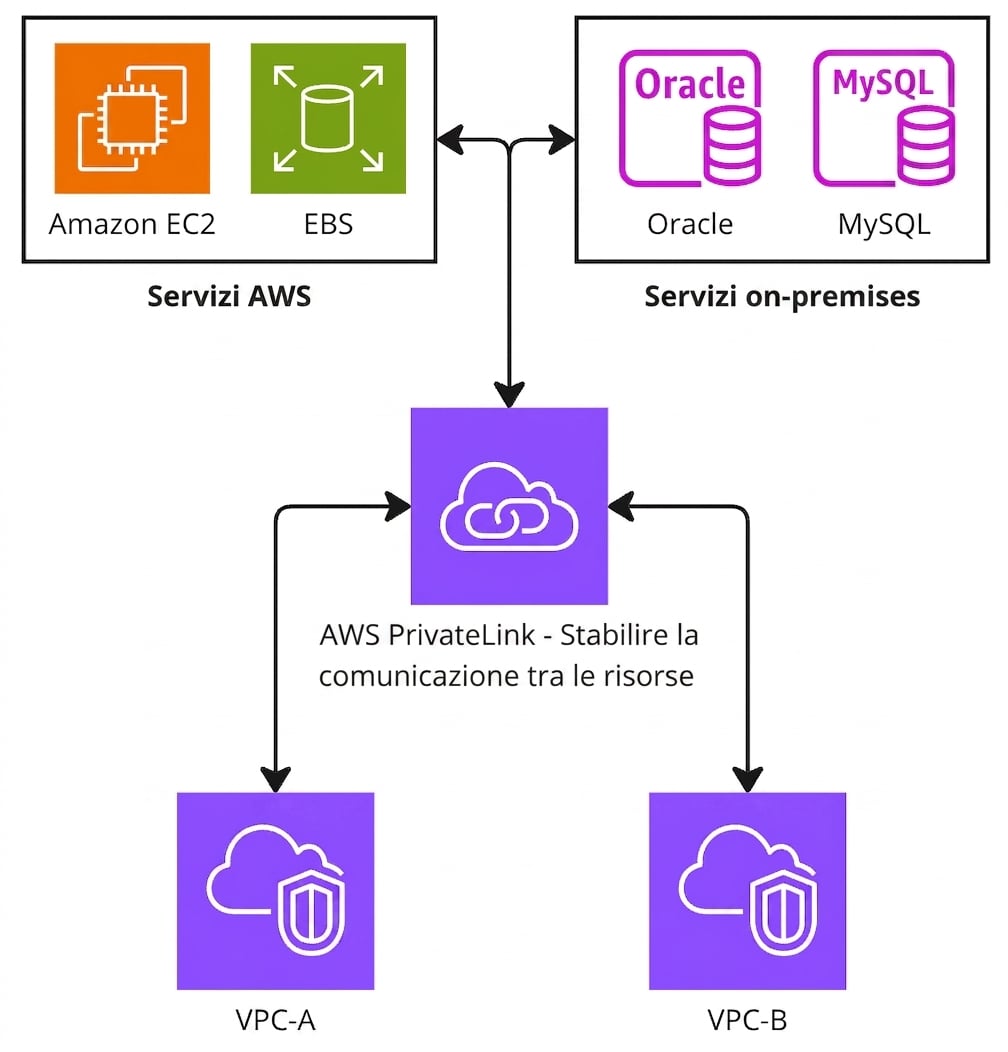

What is AWS PrivateLink?

Private connectivity between VPCs, supported AWS services, and on-premises networks

Benefits

Secure data exchange with SaaS applications
Simplified network management

An architecture diagram explaining AWS PrivateLink.

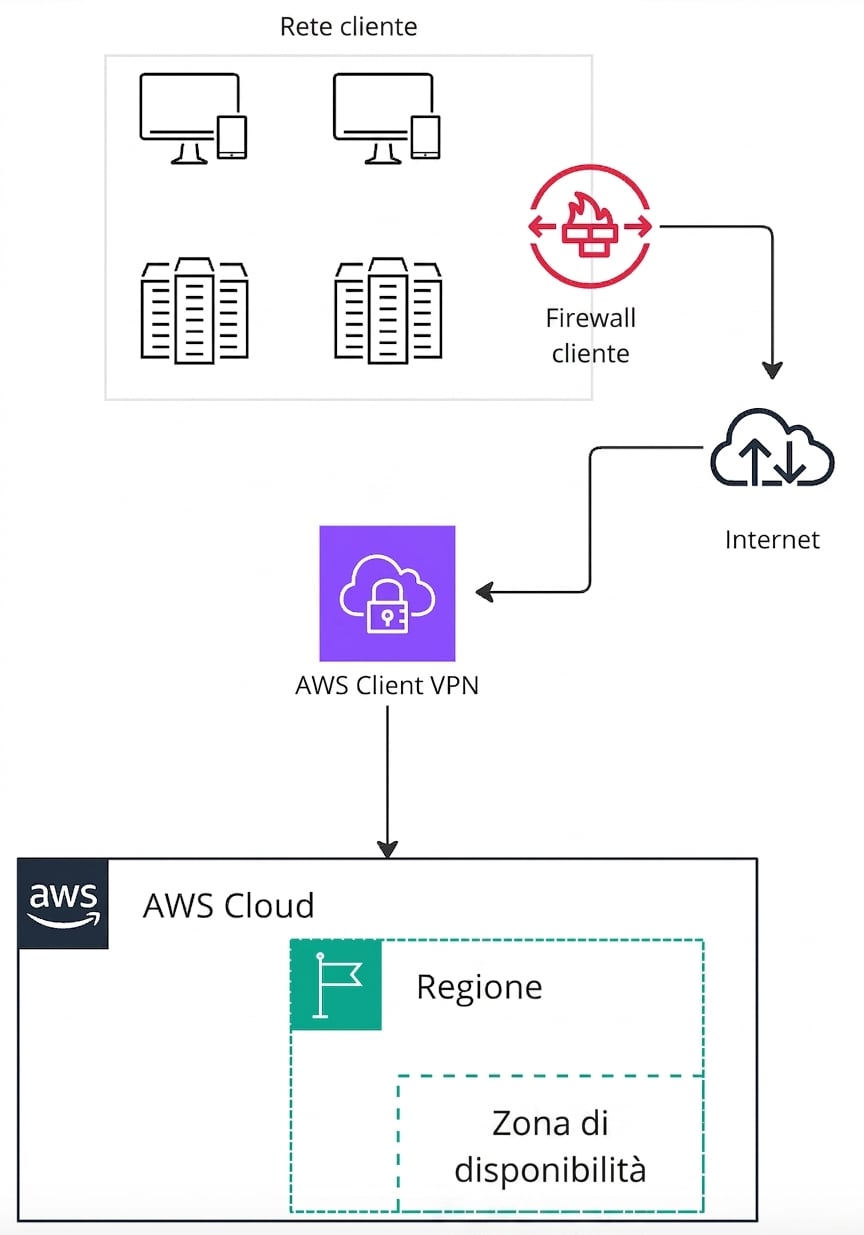

Connections - AWS VPN

Securely connects your on-premises network to AWS over the internet
Flexible and accessible, suitable for smaller workloads or temporary connections

An architectural diagram explaining how AWS virtual private network can be used to connect to AWS.

Connections - AWS Direct Connect

Dedicated network connection between your on-premises data center and AWS
High bandwidth, low latency, ideal for consistent and mission-critical workloads

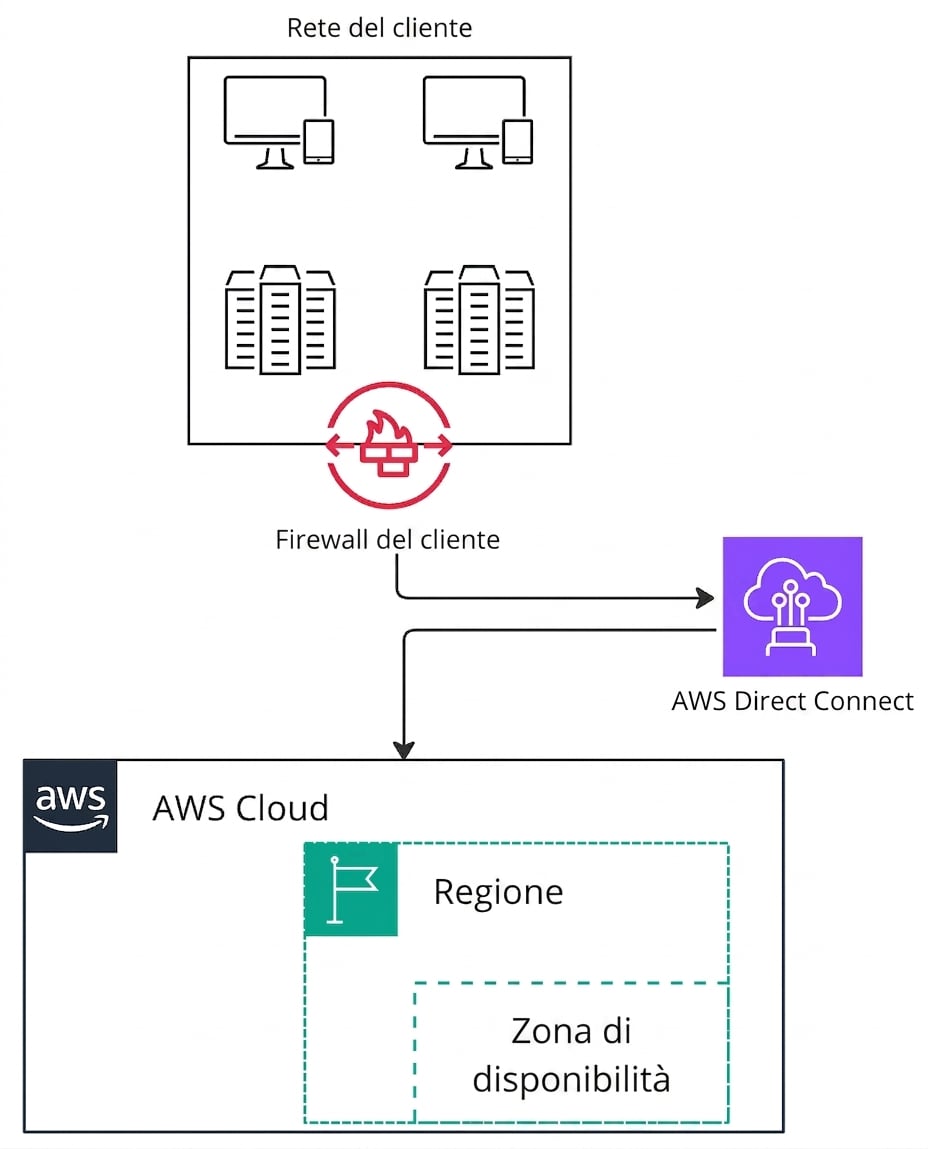

An architectural diagram explaining how AWS direct connect can be used to connect to AWS.

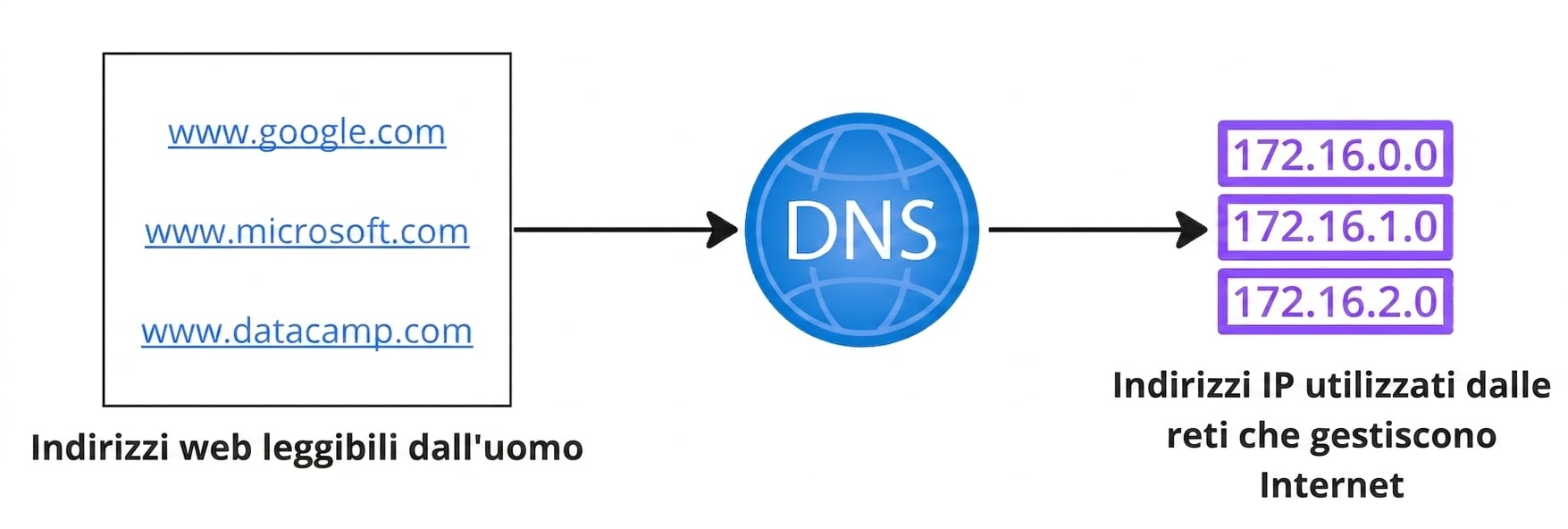

DNS - Internet's address book

Domain Name System (DNS)

Resolves human-readable domain names to IP addresses used by computers

A flow chart showing the conversion from human readable web addresses to IP addresses.

Communication between devices on the internet
Access websites using user-friendly domain names

Amazon Route 53

Manages domain names and translate them to IP addresses

Integration with AWS ecosystem and external services
Scalability
High availability

Two icons showing website hosting and network traffic direction.

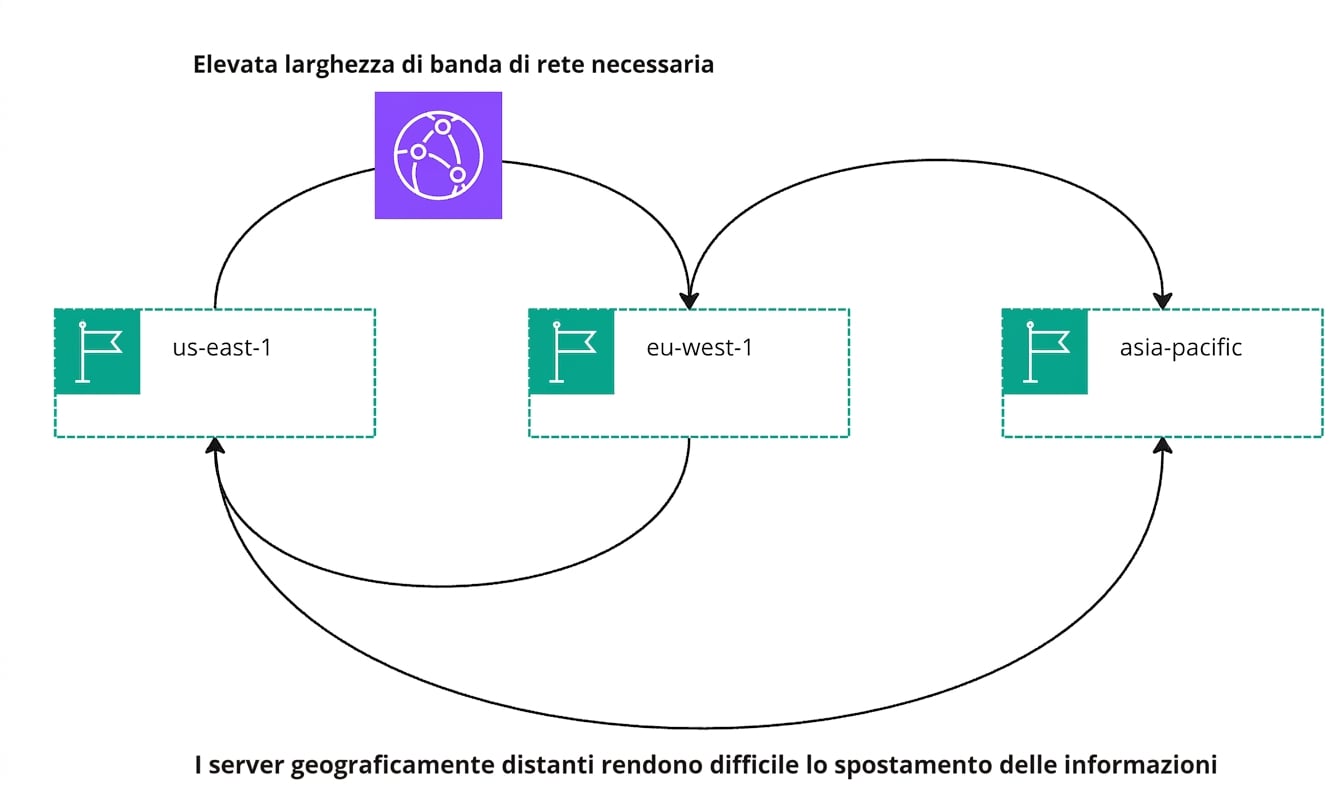

Information movement in the cloud

Delay in loading content due to geographical distance
Limited network capacity impacting content delivery speed

A flow diagram explaining the movement of information in the cloud.

Content Delivery Networks (CDNs)

Distributed network of servers strategically placed globally

Key characteristics

Caching for faster content loading

An icon showing content showing data caching.

Content Delivery Networks (CDNs)

Distributed network of servers strategically placed globally

Key characteristics

Caching for faster content loading
Delivering digital content to end-users over the internet

Two icons showing data caching and digital content movement.

Content Delivery Networks (CDNs)

Distributed network of servers strategically placed globally

Key characteristics

Caching for faster content loading
Delivering digital content to end-users over the internet
Efficiently handle increased user traffic and demand

Three icons showing caching, digital content movement, and increased traffic demand.

Amazon CloudFront

Enhance the speed and security of content delivery to end-users in AWS

Integrates seamlessly with AWS services

An icon showing seamless integration between services.

Amazon CloudFront

Enhance the speed and security of content delivery to end-users in AWS

Integrates seamlessly with AWS services

Accelerates web content, APIs, and streaming

Icons showing integration between services and web content streaming.

Amazon CloudFront

Enhance the speed and security of content delivery to end-users in AWS

Integrates seamlessly with AWS services

Accelerates web content, APIs, and streaming

Enhances security with DDoS protection and HTTPS support

Icons showing seamless integration between services, web content streaming, and enhanced security.

How is CloudFront used?

An icon showing accelerated website content movement.

How is CloudFront used?

Icons showing website content movement and streaming optimization.

How is CloudFront used?

Icons showing website content movement, streaming optimization, and over the air updates transmission.

Let's practice!
