Tema dari nol

Pengantar Visualisasi Data dengan ggplot2

Rick Scavetta

Founder, Scavetta Academy

Lapisan tema

Semua tinta non-data
Elemen visual yang bukan bagian dari data

Lapisan tema

Semua tinta non-data
Elemen visual yang bukan bagian dari data

Tiga jenis

jenis
teks
garis
persegi

Lapisan tema

Semua tinta non-data
Elemen visual yang bukan bagian dari data

Tiga jenis

jenis	diubah dengan
teks	element_text()
garis	element_line()
persegi	element_rect()

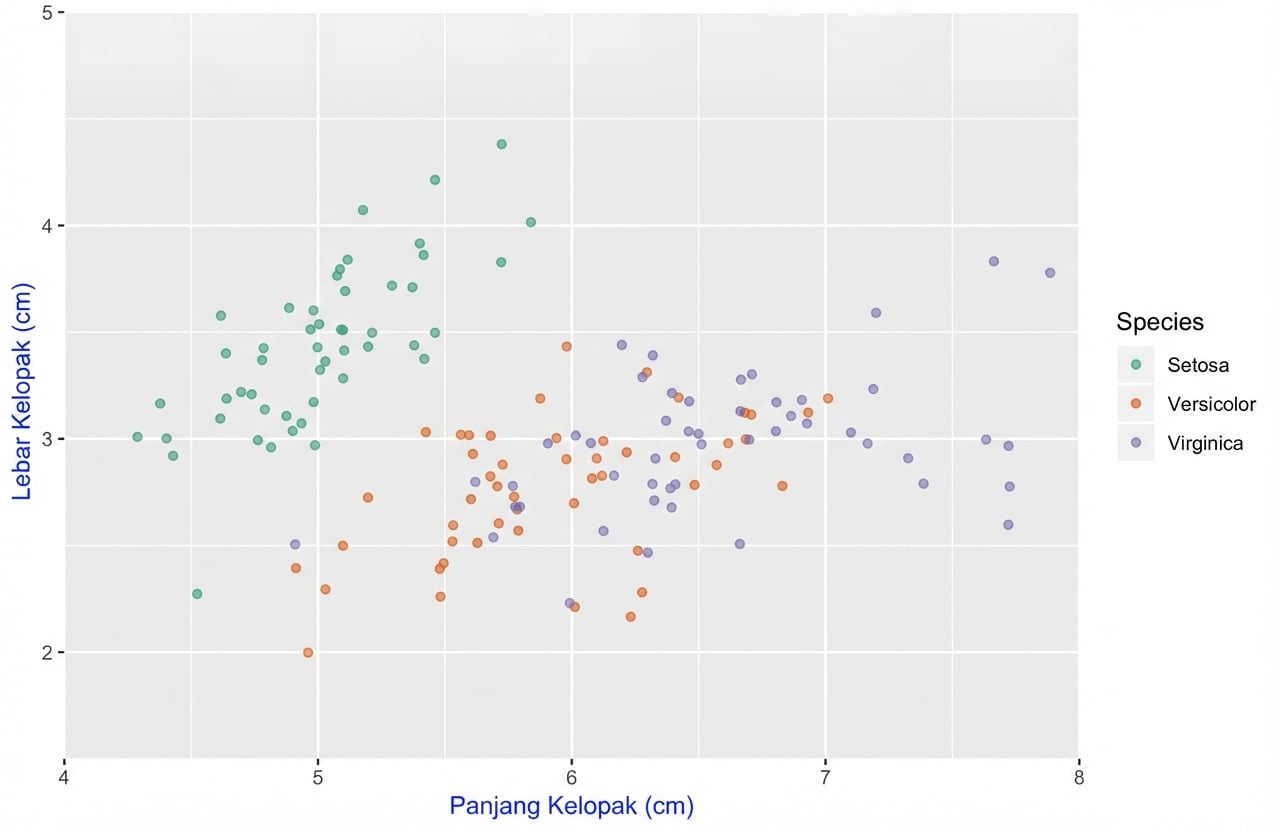

Plot awal...

ggplot(iris, aes(x = Sepal.Length, y = Sepal.Width, color = Species)) +
  geom_jitter(alpha = 0.6)

Elemen teks


text
  axis.title
    axis.title.x
      axis.title.x.top
      axis.title.x.bottom
    axis.title.y
      axis.title.y.left
      axis.title.y.right
  title
    legend.title
    plot.title
    plot.subtitle
    plot.caption
    plot.tag
  axis.text
    axis.text.x
      axis.text.x.top
      axis.text.x.bottom
    axis.text.y
      axis.text.y.left
      axis.text.y.right
  legend.text
  strip.text
    strip.text.x
    strip.text.y

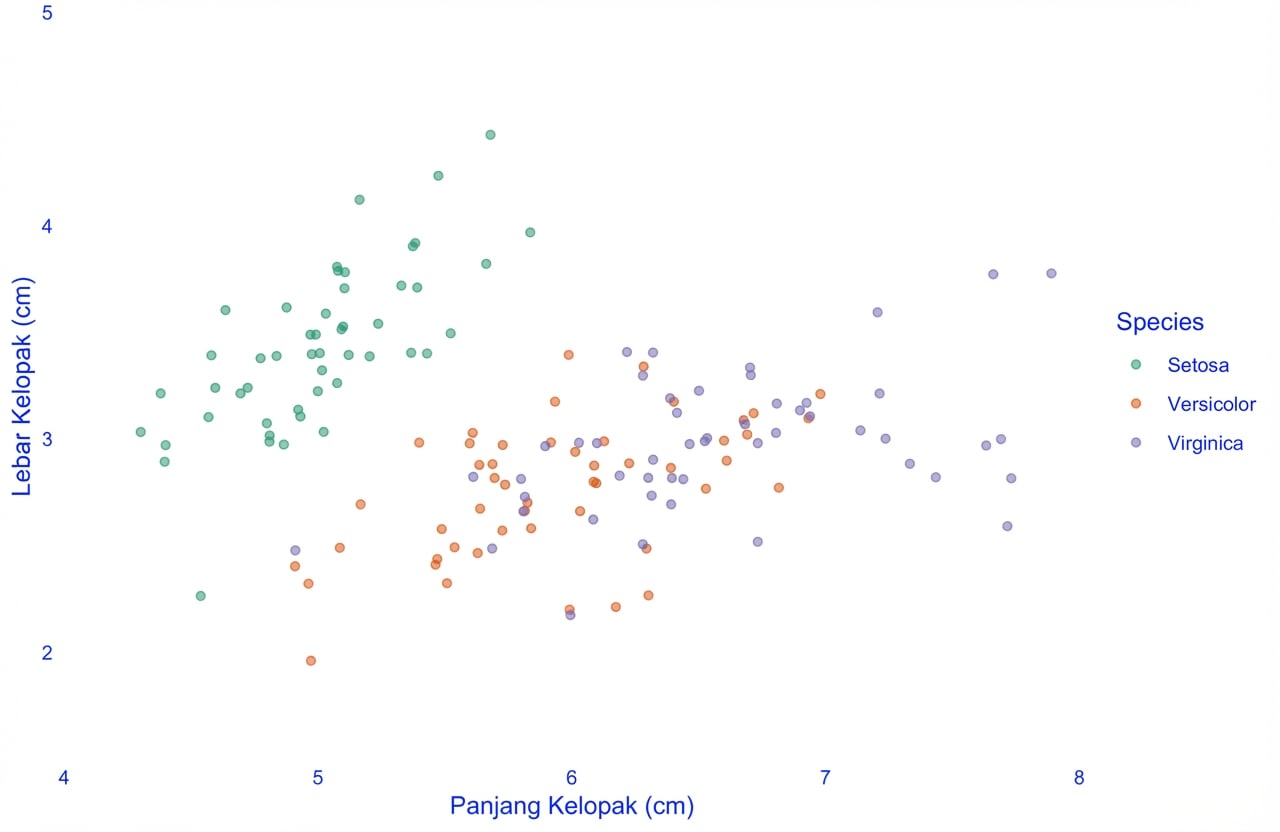

Elemen teks

theme(
text,
  axis.title,
    axis.title.x,
      axis.title.x.top,
      axis.title.x.bottom,
    axis.title.y,
      axis.title.y.left,
      axis.title.y.right,
  title,
    legend.title,
    plot.title,
    plot.subtitle,
    plot.caption,
    plot.tag,
  axis.text,
    axis.text.x,
      axis.text.x.top,
      axis.text.x.bottom,
    axis.text.y,
      axis.text.y.left,
      axis.text.y.right,
  legend.text,
  strip.text,
    strip.text.x,
    strip.text.y)

Mengatur elemen tema

ggplot(iris, aes(x = Sepal.Length, y = Sepal.Width, color = Species)) +
  geom_jitter(alpha = 0.6) +
  theme(axis.title = element_text(color = "blue"))

Plot awal...

ggplot(iris, aes(x = Sepal.Length, y = Sepal.Width, color = Species)) +
  geom_jitter(alpha = 0.6)

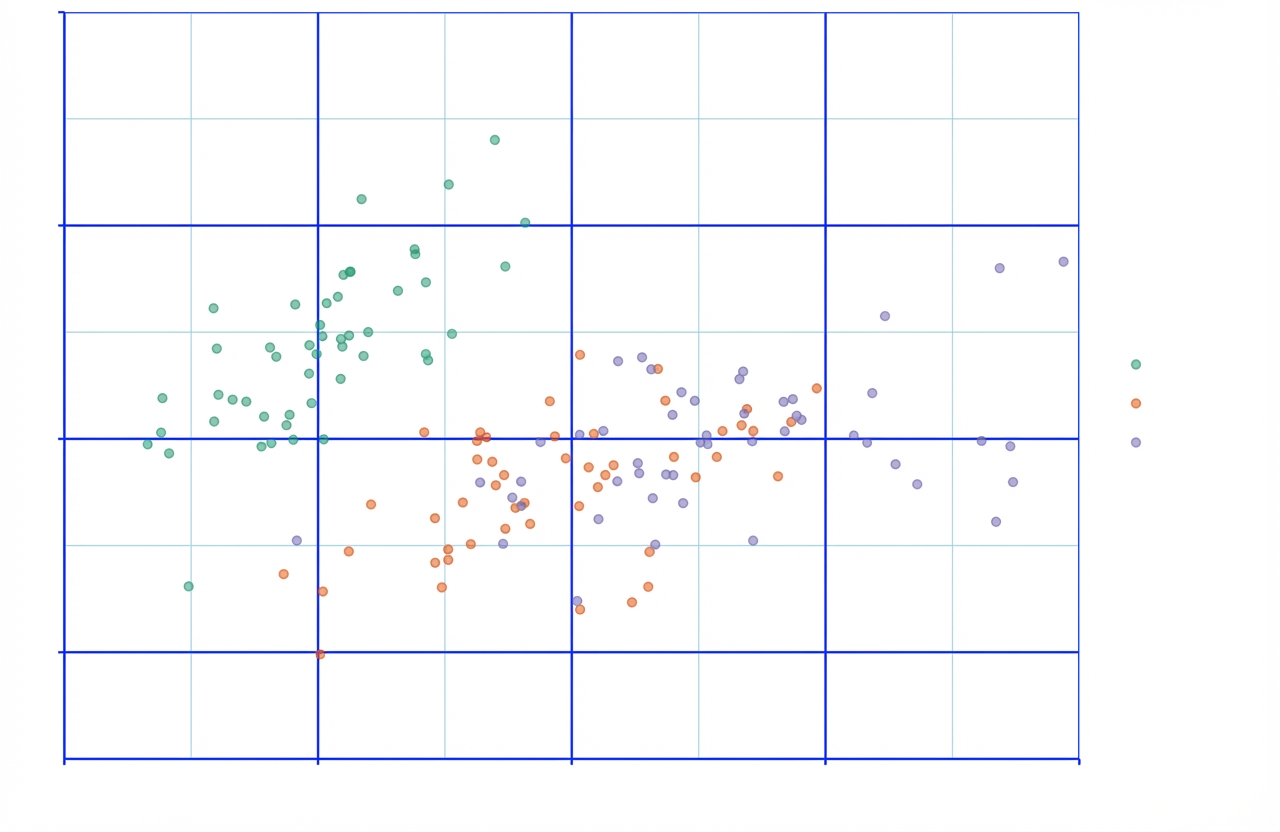

Elemen garis

theme(
line,
  axis.ticks,
    axis.ticks.x,
      axis.ticks.x.top,
      axis.ticks.x.bottom,
    axis.ticks.y,
      axis.ticks.y.left,
      axis.ticks.y.right,
    axis.line,
      axis.line.x,
        axis.line.x.top,
        axis.line.x.bottom,
      axis.line.y,
        axis.line.y.left,
        axis.line.y.right,
  panel.grid,
    panel.grid.major,
      panel.grid.major.x,
      panel.grid.major.y,
    panel.grid.minor,
      panel.grid.minor.x,
      panel.grid.minor.y)

Plot awal...

ggplot(iris, aes(x = Sepal.Length, y = Sepal.Width, color = Species)) +
  geom_jitter(alpha = 0.6)

Elemen persegi

theme(
rect,
  legend.background,
  legend.key,
  legend.box.background,
  panel.background,
  panel.border,
  plot.background,
  strip.background,
    strip.background.x,
    strip.background.y)

Penamaan hierarkis mencerminkan aturan pewarisan

mis. Teks

text
  axis.title
    axis.title.x
      axis.title.x.top
      axis.title.x.bottom
    axis.title.y
      axis.title.y.left
      axis.title.y.right

mis. Garis

line
  axis.ticks
    axis.ticks.x
      axis.ticks.x.top
      axis.ticks.x.bottom
    axis.ticks.y
      axis.ticks.y.left,
      axis.ticks.y.right
    axis.line
      axis.line.x
        axis.line.x.top
        axis.line.x.bottom
      axis.line.y
        axis.line.y.left
        axis.line.y.right

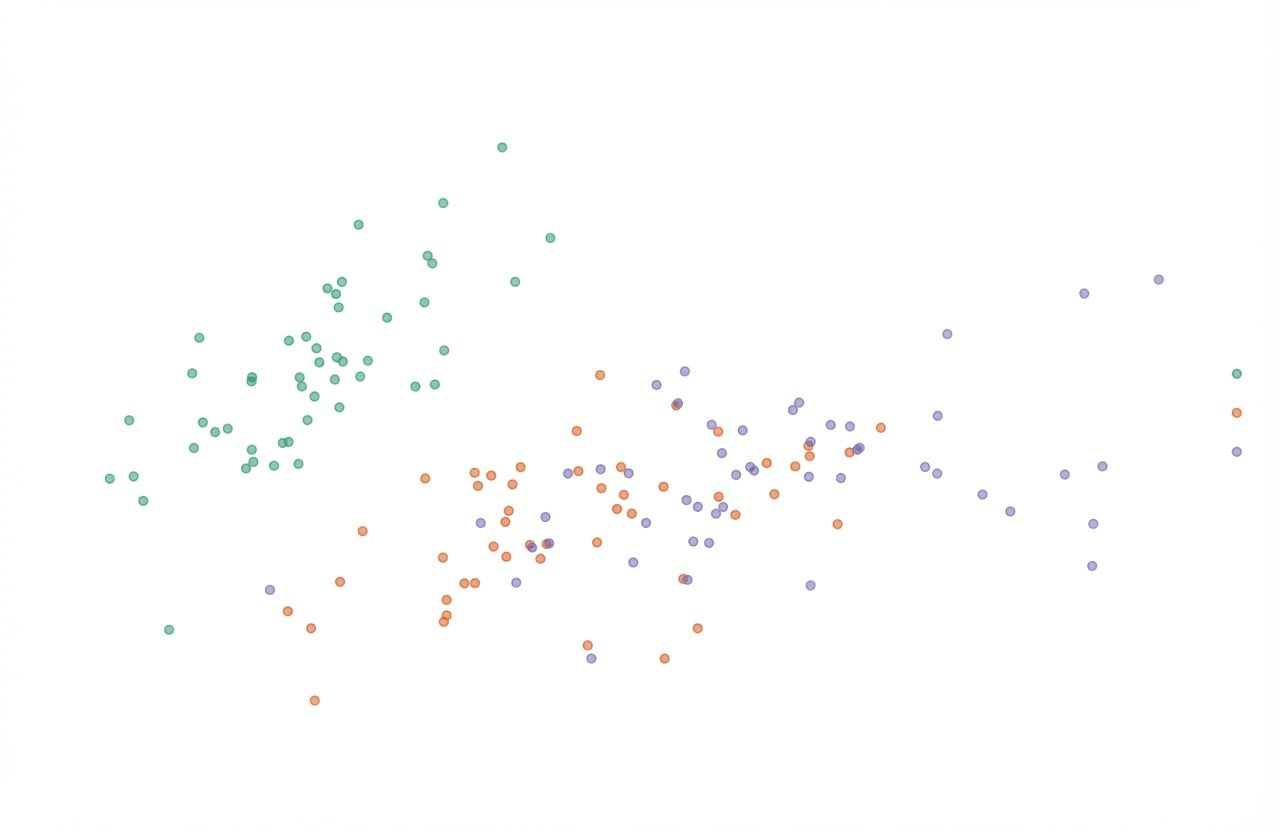

element_blank()

ggplot(iris, aes(x = Sepal.Length, y = Sepal.Width, color = Species)) +
  geom_jitter(alpha = 0.6) +
  theme(line = element_blank(),
        rect = element_blank(),
        text = element_blank())

Ayo berlatih!
