Mix and match - LEFT & RIGHT join

Pengantar SQL Server

John MacKintosh

Instructor

Alasan `LEFT` dan `RIGHT` join

Mengapa kita perlu LEFT dan RIGHT join?
Satu tabel mungkin tidak punya padanan tepat di tabel lain:
- Riwayat pesanan pelanggan untuk kampanye pemasaran
- Daftar produk dan riwayat retur
- Pasien masuk tetapi belum dipulangkan

Alasan `LEFT` dan `RIGHT` join

Mengapa kita perlu LEFT dan RIGHT join?
Satu tabel mungkin tidak punya padanan tepat di tabel lain:
- Riwayat pesanan pelanggan untuk kampanye pemasaran
- Daftar produk dan riwayat retur
- Pasien masuk tetapi belum dipulangkan

Tabel Admissions

+------------+----------+
| Patient_ID | Admitted |
|------------+----------|
| 1          | 1        |
| 2          | 1        |
| 3          | 1        |
| 4          | 1        |
| 5          | 1        |
+------------+----------+

Tabel Discharges

+------------+------------+
| Patient_ID | Discharged |
|------------+------------|
| 1          | 1          |
| 3          | 1          |
| 4          | 1          |
+------------+------------+

INNER JOIN:

+------------+----------+------------|
| Patient_ID | Admitted | Discharged |
|------------+----------|------------|
| 1          | 1        | 1          |
| 3          | 1        | 1          |
| 4          | 1        | 1          |
+------------+----------+------------+

LEFT JOIN:

+------------+----------+------------|
| Patient_ID | Admitted | Discharged |
|------------+----------|------------|
| 1          | 1        | 1          |
| 2          | 1        | NULL       |
| 3          | 1        | 1          |
| 4          | 1        | 1          |
| 5          | 1        | NULL       |
+------------+----------+------------+

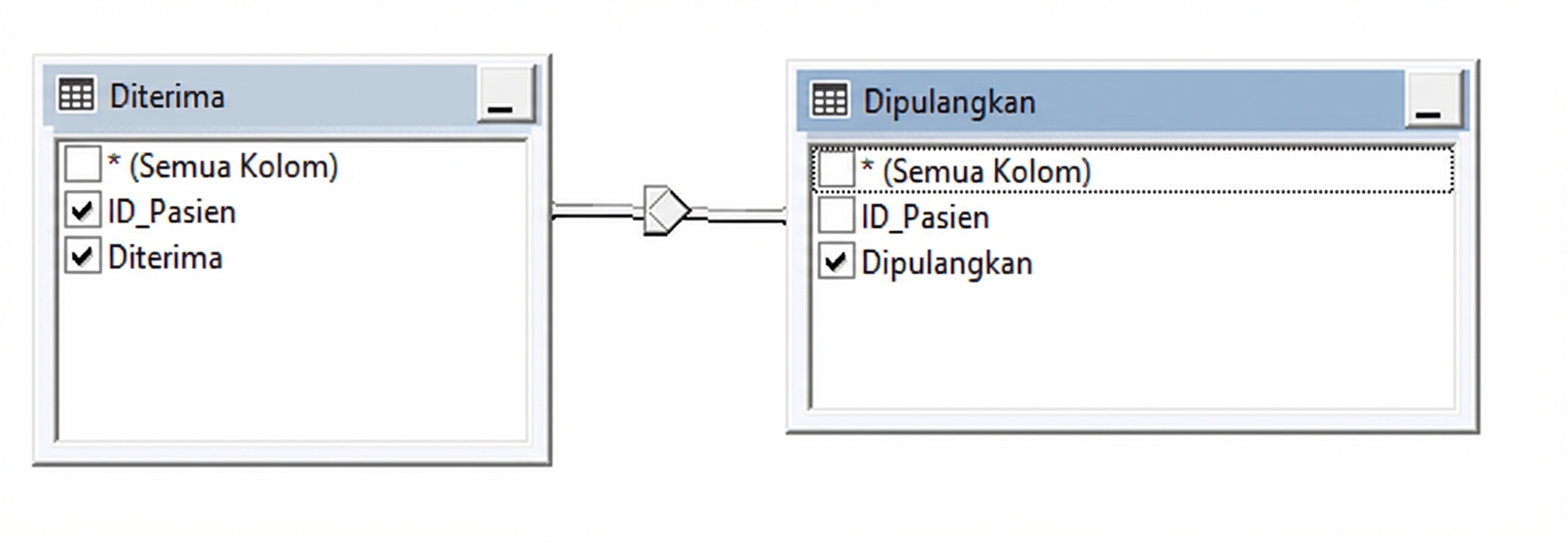

Sintaks LEFT JOIN

SELECT
  Admitted.Patient_ID,
  Admitted,
  Discharged
FROM Admitted
LEFT JOIN Discharged ON Discharged.Patient_ID = Admitted.Patient_ID;

SELECT
  Admitted.Patient_ID,
  Admitted,
  Discharged
FROM Admitted
LEFT JOIN Discharged ON Discharged.Patient_ID = Admitted.Patient_ID;

+------------+----------+------------|
| Patient_ID | Admitted | Discharged |
|------------+----------|------------|
| 1          | 1        | 1          |
| 2          | 1        | NULL       |
| 3          | 1        | 1          |
| 4          | 1        | 1          |
| 5          | 1        | NULL       |
+------------+----------+------------+

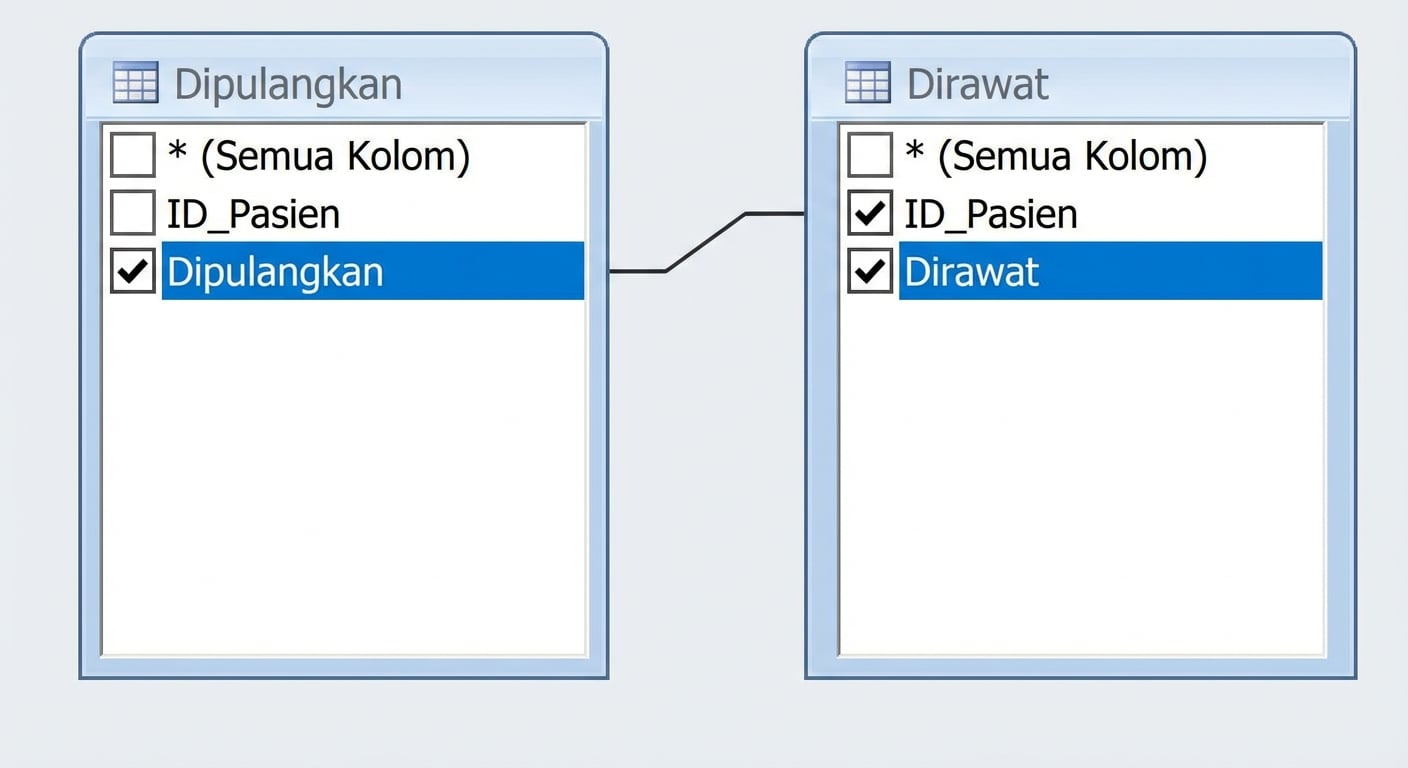

RIGHT JOIN

SELECT
  Admitted.Patient_ID,
  Admitted,
  Discharged
FROM Discharged
RIGHT JOIN Admitted ON Admitted.Patient_ID = Discharged.Patient_ID;

Hasil RIGHT JOIN

SELECT
  Admitted.Patient_ID,
  Admitted,
  Discharged
FROM Discharged
RIGHT JOIN Admitted ON Admitted.Patient_ID = Discharged.Patient_ID;

+------------+----------+------------|
| Patient_ID | Admitted | Discharged |
|------------+----------|------------|
| 1          | 1        | 1          |
| 2          | 1        | NULL       |
| 3          | 1        | 1          |
| 4          | 1        | 1          |
| 5          | 1        | NULL       |
+------------+----------+------------+

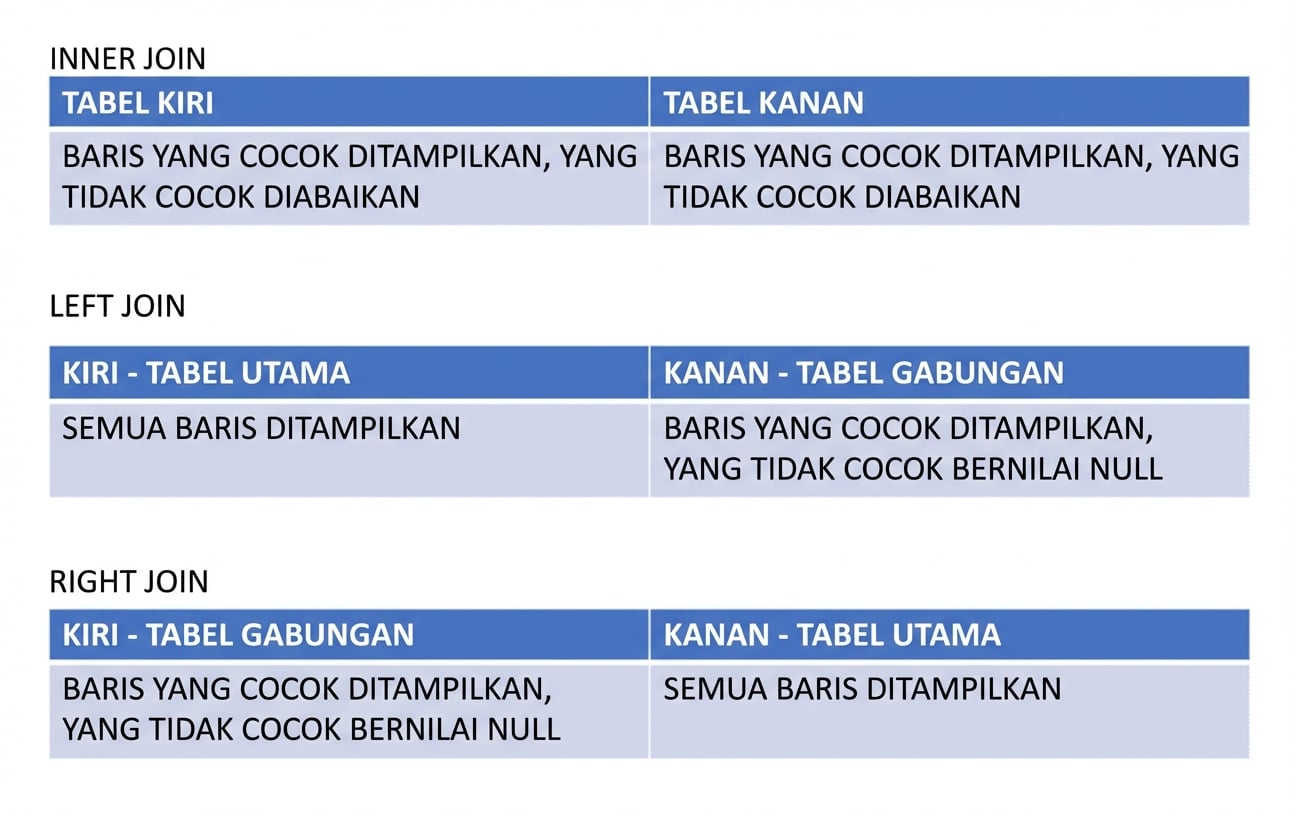

Ringkasan

INNER JOIN: Hanya baris yang cocok
LEFT JOIN (atau RIGHT JOIN): Semua baris dari tabel utama plus kecocokan dari tabel join
NULL: Ditampilkan jika tidak ada kecocokan
LEFT JOIN dan RIGHT JOIN bisa saling menggantikan

Ayo berlatih!
