Menambahkan memori dan percakapan

Merancang Sistem Agentic dengan LangChain

Dilini K. Sumanapala, PhD

Founder & AI Engineer, Genverv, Ltd.

Menguji penggunaan tool

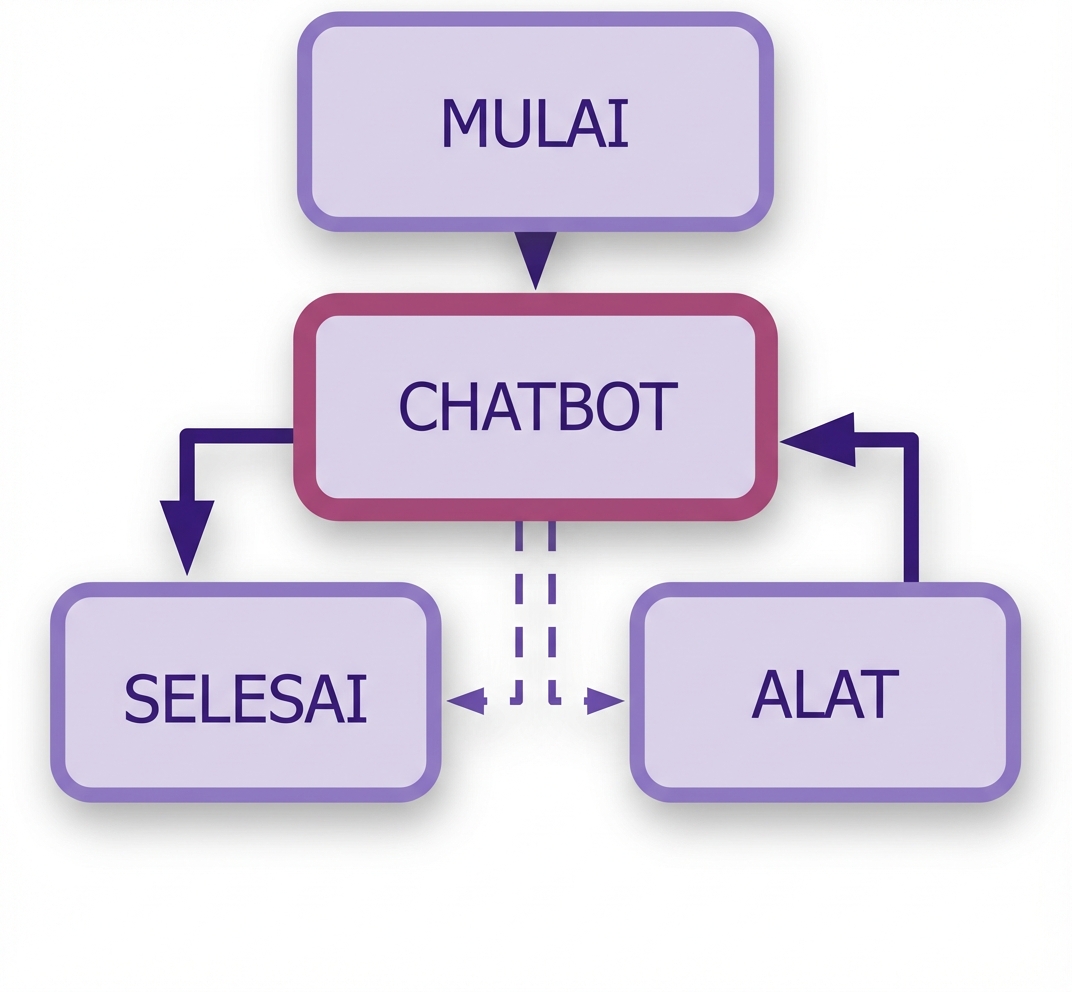

Diagram chatbot lengkap dengan node tools ditambahkan.

Menguji penggunaan tool

# Produce the chatbot graph
display(Image(app.get_graph().draw_mermaid_png()))


# Define a function to execute the chatbot, streaming each message
def stream_tool_responses(user_input: str):
    for event in graph.stream({"messages": [("user", user_input)]}):


        # Return the agent's last response
        for value in event.values():
            print("Agent:", value["messages"])


# Define the query and run the chatbot
user_query = "House of Lords"
stream_tool_responses(user_query)

Memvisualisasikan diagram

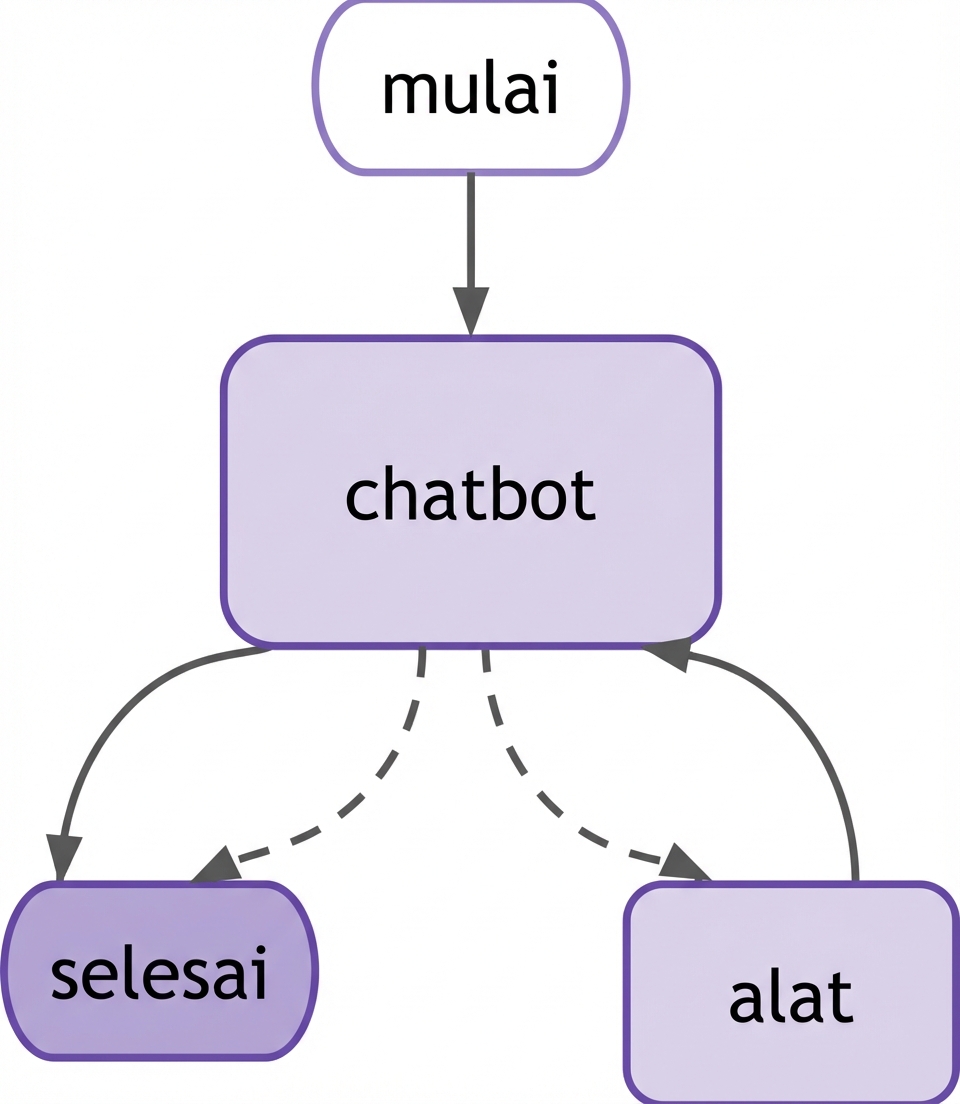

Diagram chatbot LangGraph dengan node tool

Streaming output

Agent: [AIMessage(content='', additional_kwargs={'tool_calls': [{'function': {'arguments':
'{"query":"House of Lords"}', 'name': 'wikipedia'}, 'type': 'function'}]},
response_metadata={'...'}])]

Agent: [ToolMessage(content='Page: House of Lords\nSummary: The House of Lords is the upper
house of the Parliament of the United Kingdom. Like the lower house...The House of Lords
also has a Church of England role...', name='wikipedia', id='...',')]

Agent: [AIMessage(content='The House of Lords is the upper house of the Parliament
of the United Kingdom, located in the Palace of Westminster in London. It is one
of the oldest institutions in the world..., additional_kwargs={},

response_metadata=
{'finish_reason': 'stop', 'model_name': 'gpt-4o-mini-2024-07-18', 'system_fingerprint':
'fp_0ba0d124f1'}, id='run-ae3a0b4f-5b42-4f4e-9409-7c191af0b9c9-0')]

Menambahkan memori

# Import the modules for saving memory
from langgraph.checkpoint.memory import MemorySaver


# Modify the graph with memory checkpointing
memory = MemorySaver()


# Compile the graph passing in memory
graph = graph_builder.compile(checkpointer=memory)

Streaming output dengan memori

# Set up a streaming function for a single user
def stream_memory_responses(user_input: str):

    config = {"configurable": {"thread_id": "single_session_memory"}}


    # Stream the events in the graph
    for event in graph.stream({"messages": [("user", user_input)]}, config):


        # Return the agent's last response
        for value in event.values():
            if "messages" in value and value["messages"]:
                print("Agent:", value["messages"])


stream_memory_responses("What is the Colosseum?")
stream_memory_responses("Who built it?")

Menghasilkan output dengan memori

stream_memory_responses("What is the Colosseum?")

Agent: [AIMessage(content='', additional_kwargs={'tool_calls': [{'index': 0,
'id': '...', 'function': {'arguments': '
{"query":"Colosseum"}', 'name': 'wikipedia'}, ...])]

Agent: [ToolMessage(content='Page: Colosseum\nSummary: The Colosseum is an ancient
amphitheatre in Rome, Italy. It is the largest standing amphitheatre
in the world..)]

Agent: [AIMessage(content='The Colosseum, located in Rome, is the largest ancient
amphitheatre still standing. Built under Emperor Vespasian and completed by his son
Titus, it hosted gladiatorial games and public events. It is also known as the Flavian
Amphitheatre due to its association with the Flavian dynasty.', additional_kwargs={},
response_metadata={'finish_reason': 'stop', 'model_name': 'gpt-4o-mini-...', ...')]

Menghasilkan output dengan memori

stream_memory_responses("Who built it?")

Agent: [AIMessage(content='The Colosseum was built by Emperor Vespasian around
72 AD and completed by his successor, Emperor Titus. Later modifications were
made by Emperor Domitian...')]

Ayo berlatih!
