Templating, idempotency, and backfilling

Building Data Pipelines with Airflow

Volker Janz

Senior Developer Advocate at Astronomer

Jinja templates in Airflow

@task.bash
def export_data():
    return "cp /data/sales.csv /export/sales_{{ ds }}.csv"

{{ ds }} renders the logical date in YYYY-MM-DD format
Each run gets its own date, so the same task produces different output per run
Only works in templatable fields (like bash_command, sql)

The idempotency problem

Run 1 (March 31st):

INSERT sales for March 31st
Result: 3 rows

Run 2 (re-run March 31st):

INSERT sales for March 31st again
Result: 6 rows (duplicates!)

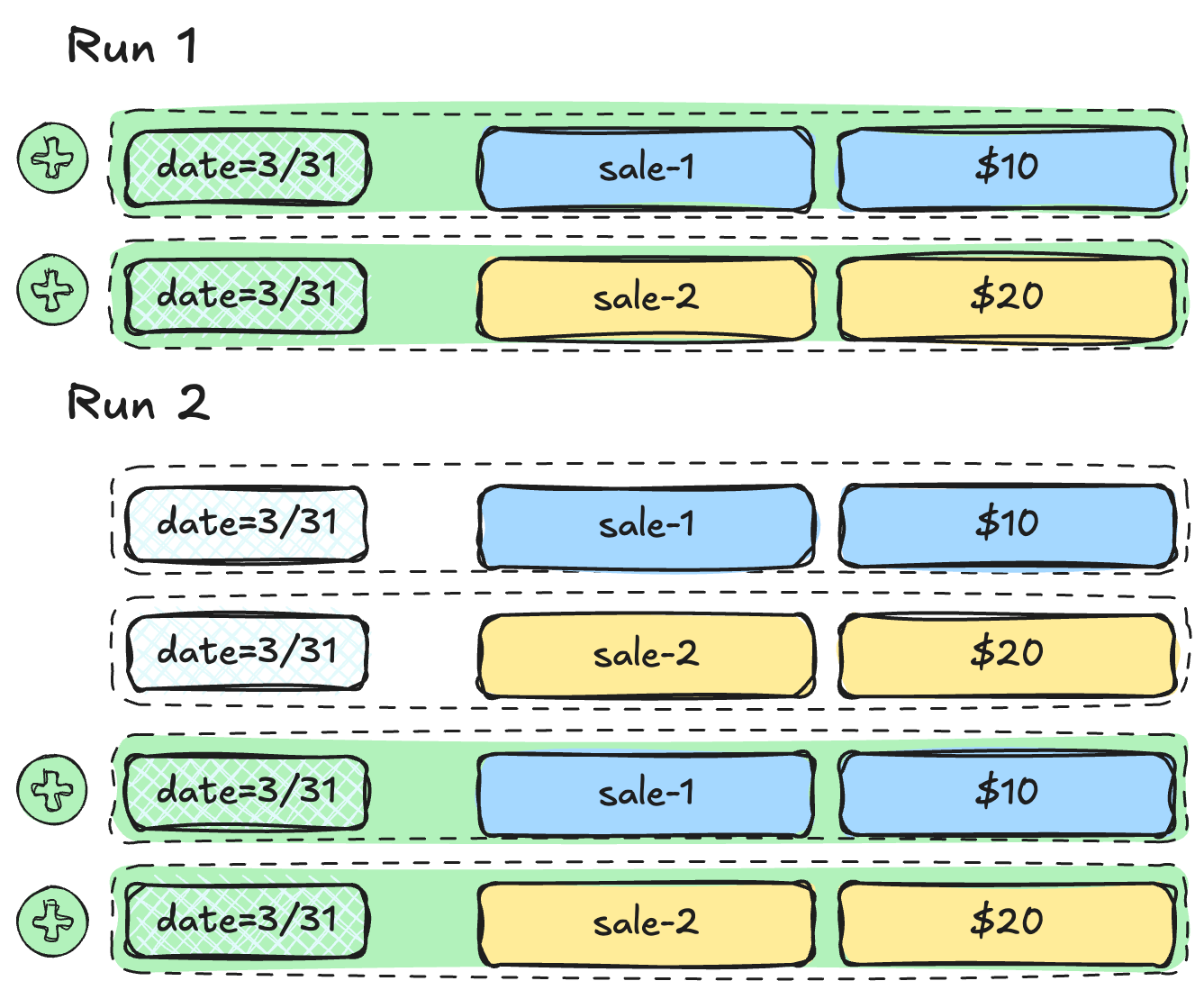

Duplicate rows on re-run

The delete-then-insert pattern

staged_rows = SQLExecuteQueryOperator(
    task_id="get_staged_rows",
    conn_id="duckdb_default",
    sql="SELECT * FROM staging WHERE date = '{{ ds }}'",
)

load = SQLInsertRowsOperator(
    task_id="load_sales",
    conn_id="duckdb_default",
    table_name="sales",
    columns=["date", "product", "amount"],
    preoperator="DELETE FROM sales WHERE date = '{{ ds }}';",
    rows=staged_rows.output,
)

Can also use UPSERT or MERGE approaches

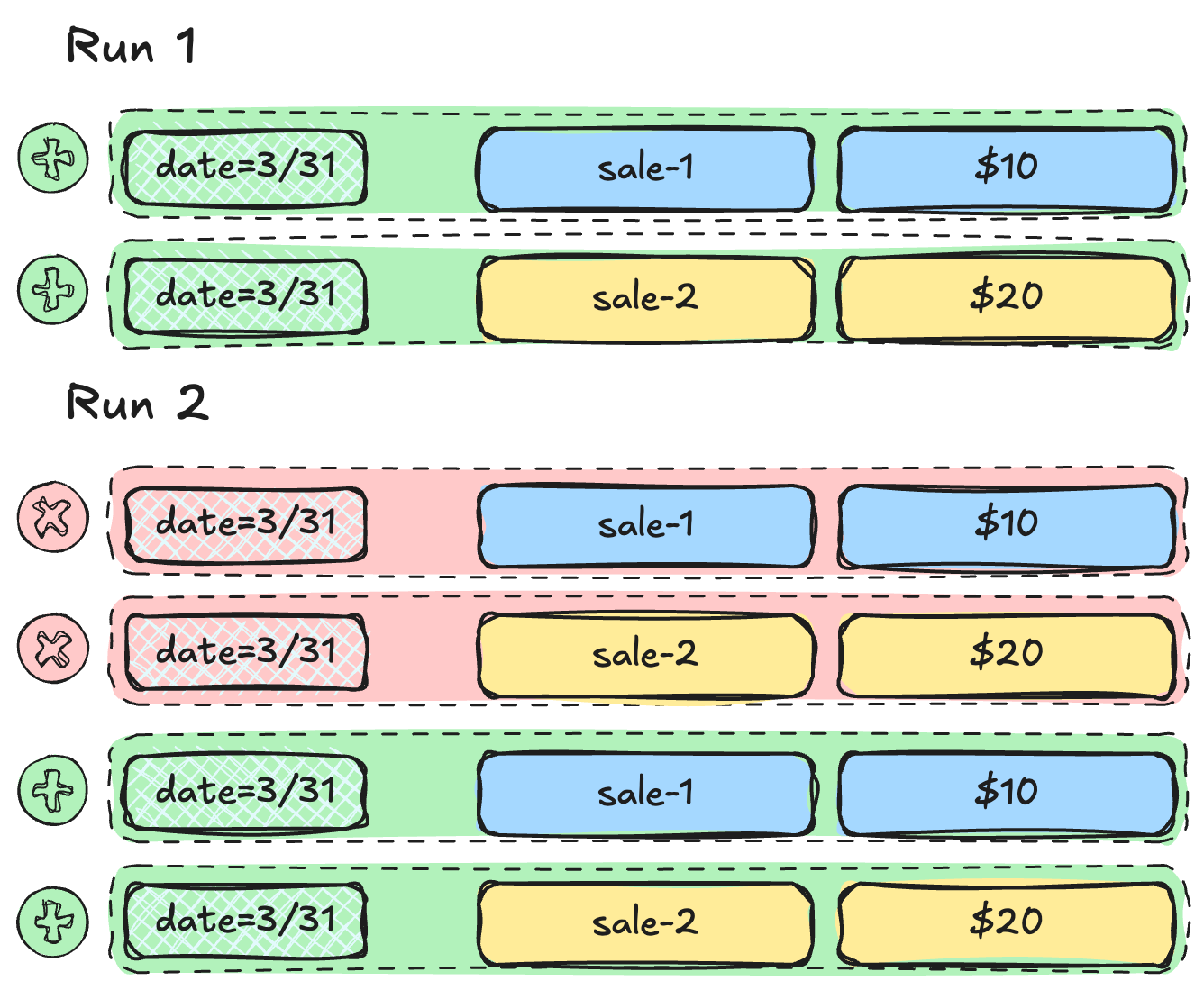

Delete-then-insert

Backfilling

Reprocess a range of historical dates
Airflow creates one Dag run per logical date
Combined with idempotency, backfilling is safe

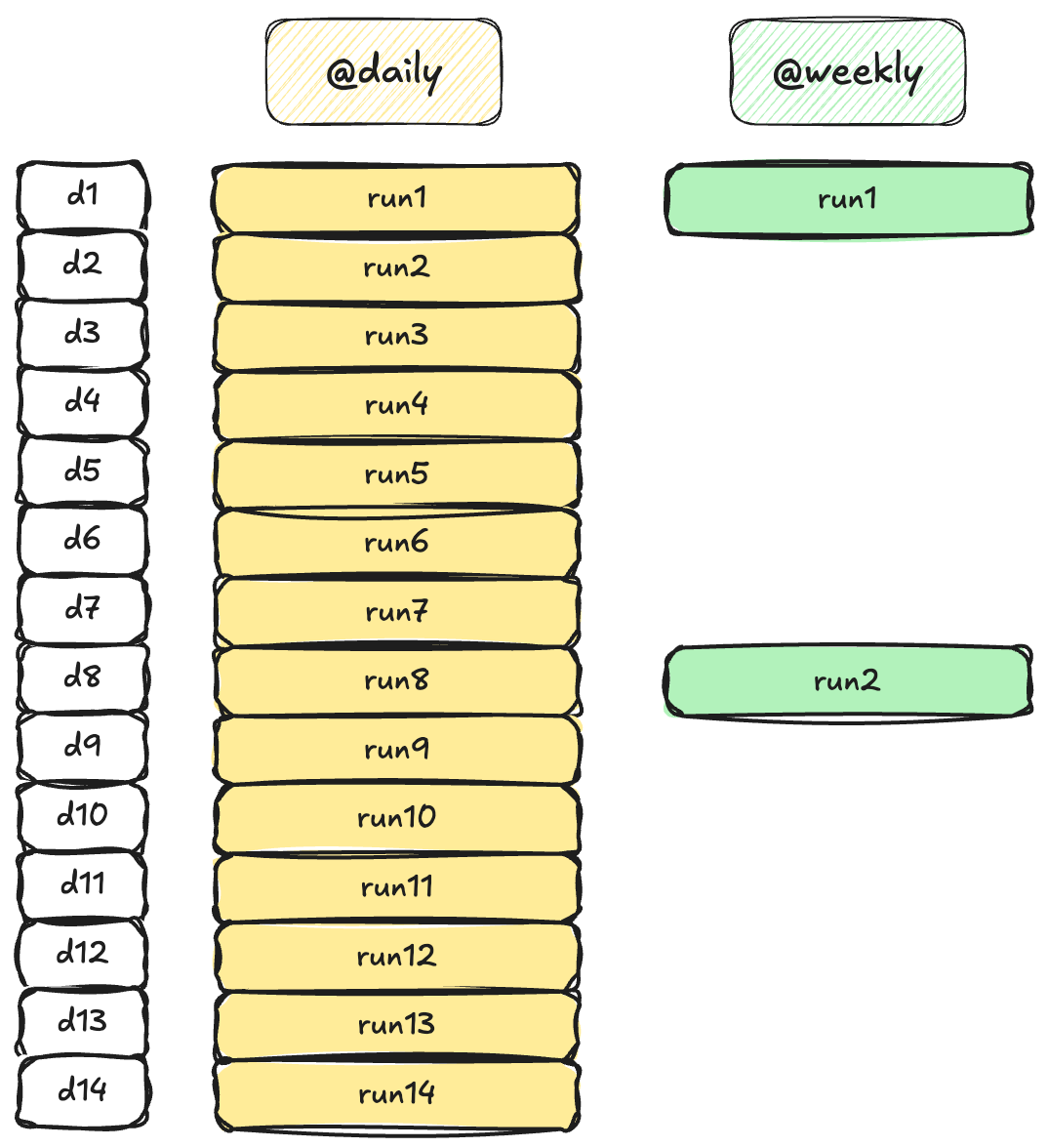

Backfill depends on schedule

Backfill in the UI

Trigger a Dag, select Backfill, set a From and To date
Can choose to trigger Missing Runs, Missing and Errored Runs, or All Runs
Can set the parallelism with Max Active Runs and change the order of execution
With Run Backfill the process starts and runs are created

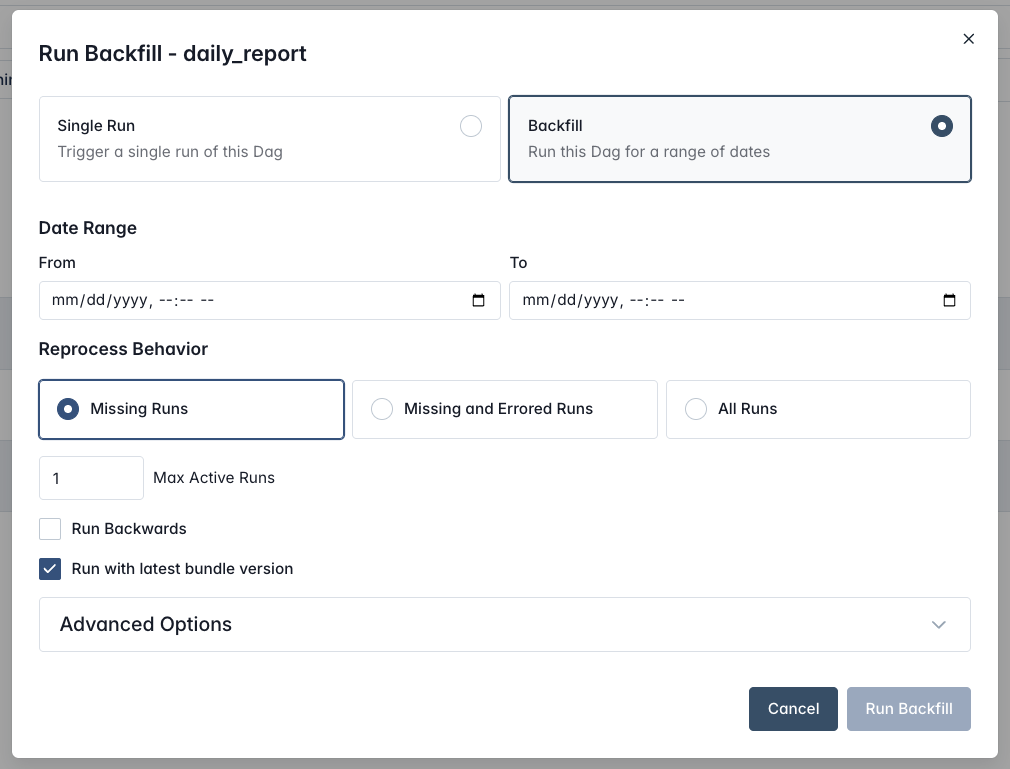

Airflow backfill UI

Let's practice!

Building Data Pipelines with Airflow
