Human-in-the-loop workflows

Building Data Pipelines with Airflow

Volker Janz

Senior Developer Advocate at Astronomer

HITL use cases

Approving an AI-generated response
Routing a support ticket to the right team
Reviewing a data quality report before publishing

Human in the loop visual

The HITL operator family

Operator	Use case
`ApprovalOperator`	Binary approve/reject
`HITLBranchOperator`	Choose which tasks run next
`HITLOperator`	Custom options + form
`HITLEntryOperator`	Pure form input, no options

All HITL operators are implemented as deferrable operators

HITLEntryOperator

from airflow.providers.standard.operators.hitl import HITLEntryOperator
from airflow.sdk import Param


review = HITLEntryOperator(
    task_id="human_review",
    subject="Review AI draft response",
    body="{{ ti.xcom_pull(task_ids='generate_draft') }}",
    params={
        "feedback": Param("", type="string"),
        "urgency": Param("p3", type="string"),
    },
)

The pipeline pauses until the fields are filled in

Accessing the response

@task
def send_response(hitl_output):
    feedback = hitl_output["params_input"]["feedback"]
    urgency = hitl_output["params_input"]["urgency"]
    print(f"Sending response (urgency: {urgency}): {feedback}")


draft = generate_draft()
chain(draft, review)
send_response(review.output)

Form input is in params_input
Options (if any) are in chosen_options

HITLBranchOperator

from airflow.providers.standard.operators.hitl import HITLBranchOperator


route = HITLBranchOperator(
    task_id="route_complaint",
    subject="Route customer complaint",
    body="A customer reported an issue. Choose the responsible team.",
    options=["Billing Issue", "General Inquiry", "Technical Issue"],
    options_mapping={
        "Billing Issue": "handle_billing",
        "Technical Issue": "handle_technical",
        "General Inquiry": "handle_general",
    },
    defaults=["General Inquiry"],
)

Human selects an option, mapped to a downstream task ID
Unselected paths are skipped

Required Actions in the UI

HITL tasks create a Required Action
Reviewers respond in the task instance view

All HITL operators are deferrable
They release the worker slot while waiting
The Triggerer handles the async wait

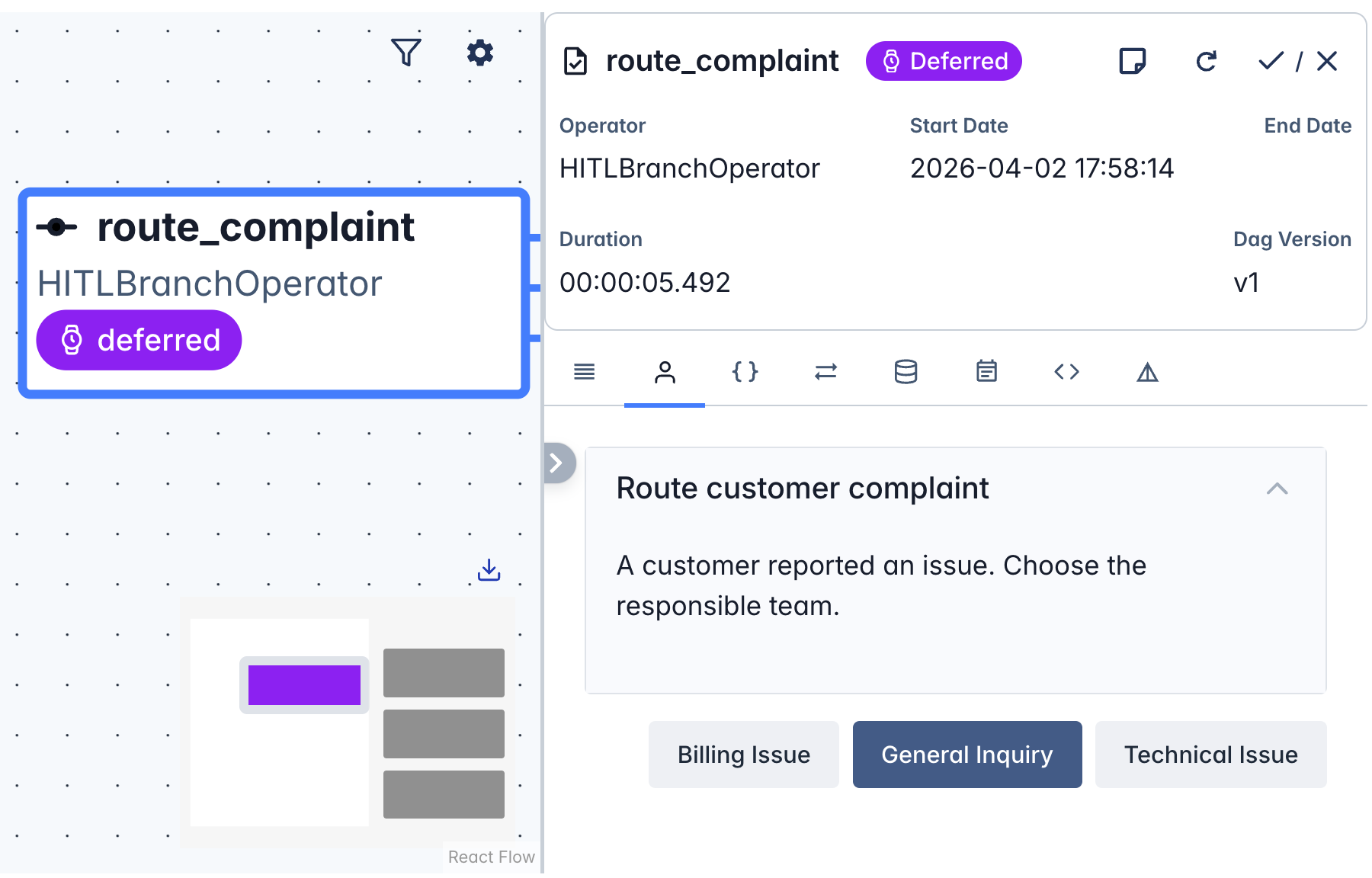

HITL in the Airflow UI

Let's practice!

Building Data Pipelines with Airflow
