Airflow core concepts

Building Data Pipelines with Airflow

Volker Janz

Senior Developer Advocate at Astronomer

Meet your instructor

Volker Janz profile photo

Volker Janz

Senior Developer Advocate, Astronomer
14+ years as a data engineer in gaming
Worked with Airflow since version 1.x
Speaker, mentor, and newsletter lead at Data Engineer Things

What you'll build

Author Dags with the TaskFlow API
Build dynamic workflows with task mapping and asset-based scheduling
Handle failures with retries and callbacks
Run SQL workloads through Airflow

Visualization of each chapter content

Before we start

Comfortable with Dags, tasks, and operators
Familiar with scheduling basics

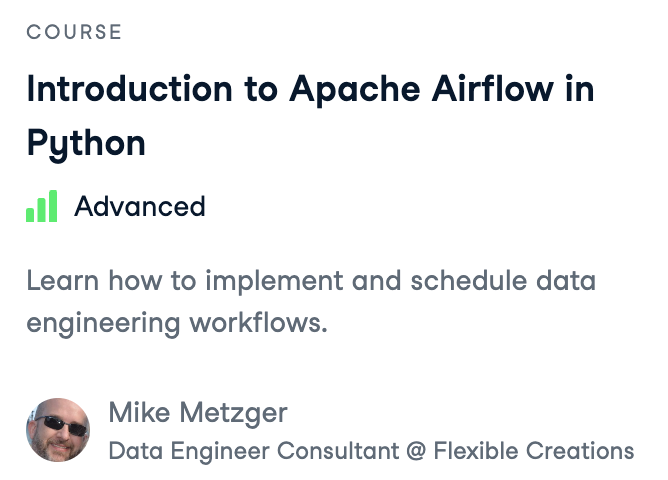

Introduction to Airflow - course page

Quick refresher

from airflow.sdk import dag, task

@dag
def star_wars_dag():


  @task
  def get_star_wars_person():
    import requests
    return requests.get("https://swapi.dev/api/people/1/").json()


  @task.bash
  def print_name(person):
    return f"echo '{person['name']}'"


  person = get_star_wars_person()
  print_name(person)

star_wars_dag()

A Dag is a collection of tasks with dependencies
Tasks are individual units of work
Operators / decorators define what each task does
Dependencies define the order of execution

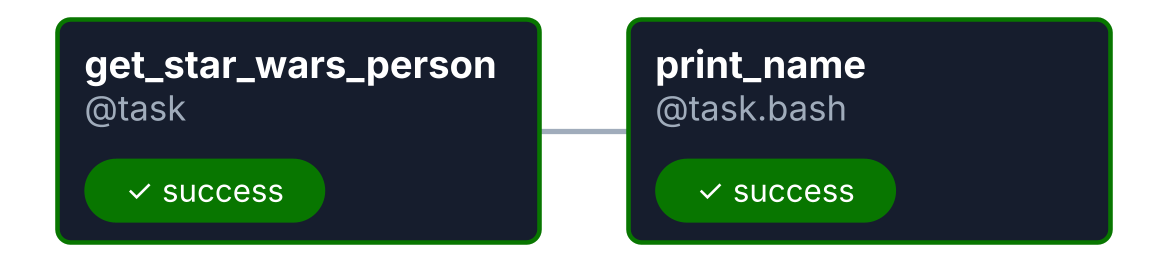

Simple Dag

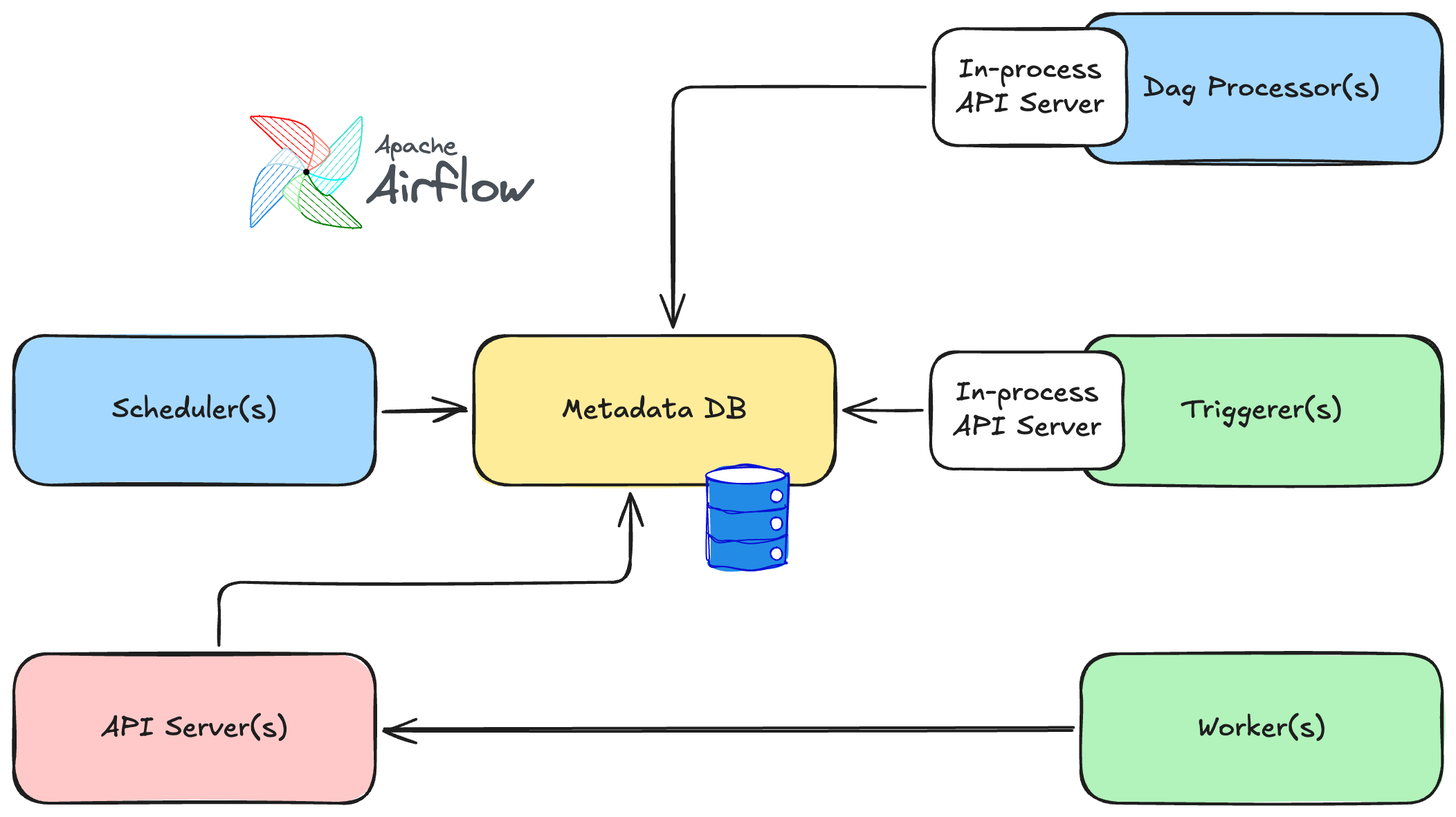

Airflow architecture

Airflow 3 architecture

Orchestration: Scheduler, Dag Processor
Execution: Worker, Triggerer
Interface & Storage: API Server, Metadata DB

Scheduling approaches

# No automatic runs: trigger manually (default)
@dag(schedule=None)
def my_pipeline(): ...


# Time-based: runs every day at 6 AM
@dag(schedule="0 6 * * *")
def daily_pipeline(): ...


# Data-aware: runs when an Asset updates
@dag(schedule=[Asset("my_asset")])
def downstream_pipeline(): ...

Two ways to write Dags

Classic operators

extract = PythonOperator(
    task_id="extract",
    python_callable=extract_fn)
extract >> transform

Choose when no decorators are available

TaskFlow API

@task
def extract():
    return {"users": 150}

data = extract()
transform(data)

Simple Python decorators
Less boilerplate code
Can be combined with classic operators

Exercises in this course

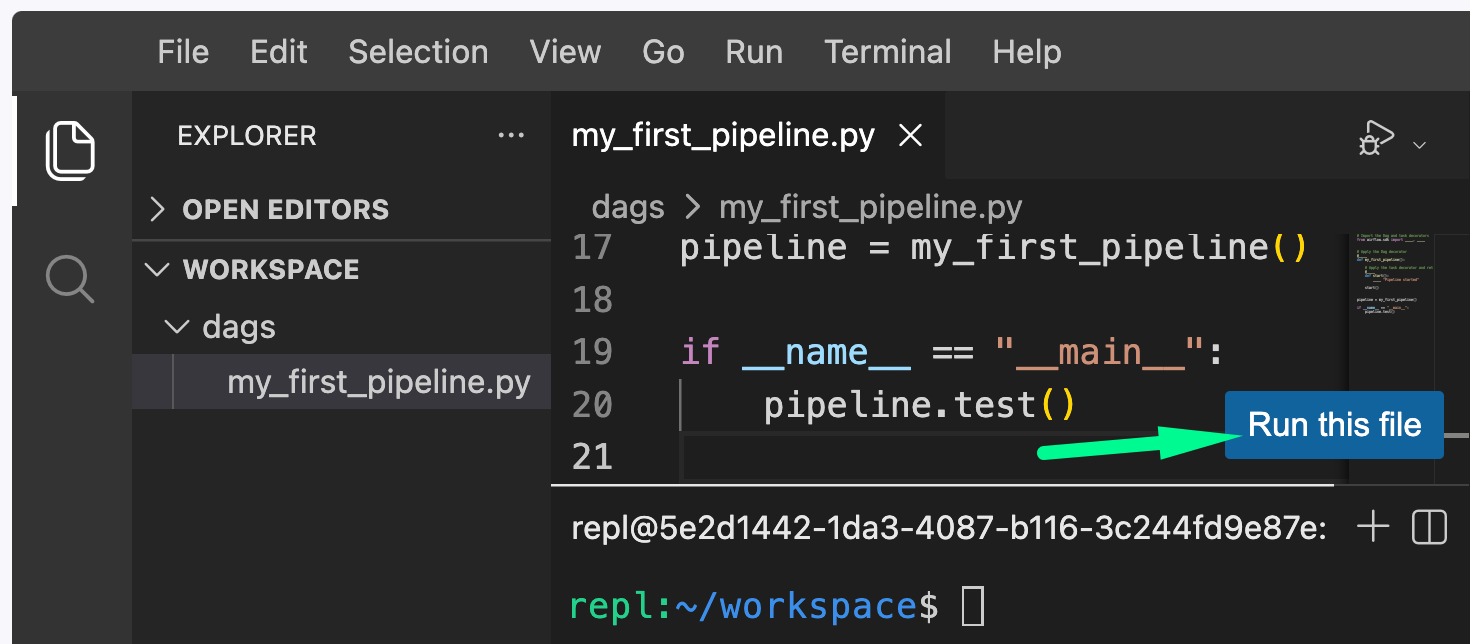

IDE exercise screenshot

IDE exercises: edit real .py files
Click "Run this file" or use python3 filename.py
dag.test() runs the full Dag in one process

Let's practice!
