Sharing data between tasks

Building Data Pipelines with Airflow

Volker Janz

Senior Developer Advocate at Astronomer

What is XCom?

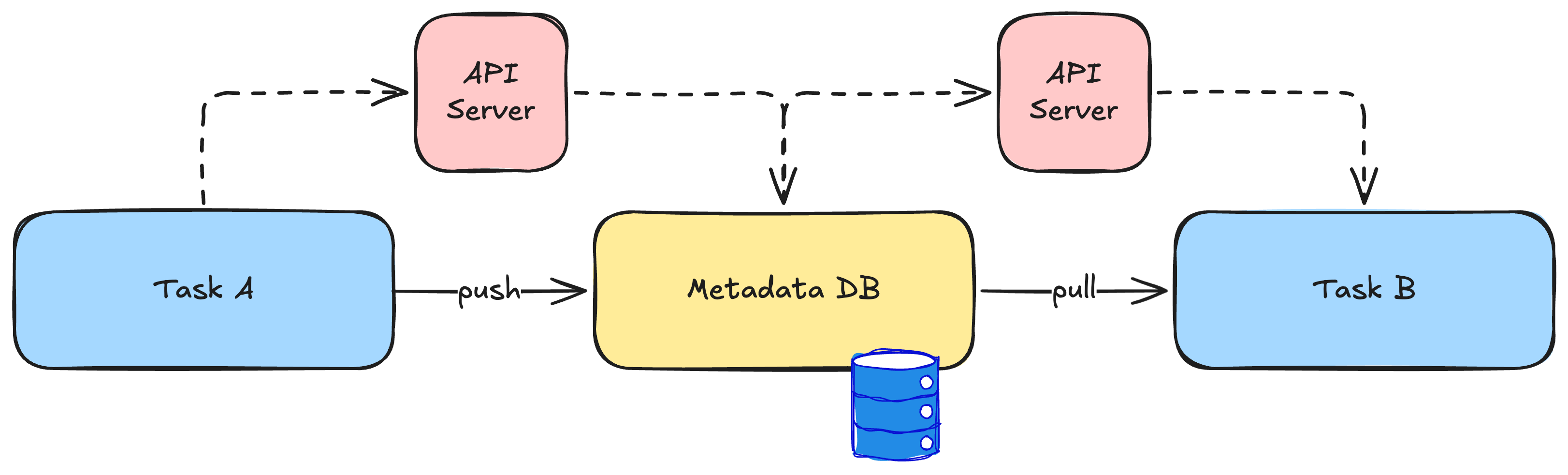

XCom push pull flow

XCom = cross-communication between tasks
Values stored in the metadata database
Classic approach: explicit xcom_push() and xcom_pull()

XComArgs: the TaskFlow way

A @task return value becomes an XComArg
XComArg is a lazy reference, not the actual data
Passing it to another function creates the dependency
At runtime, Airflow resolves it by pulling from XCom

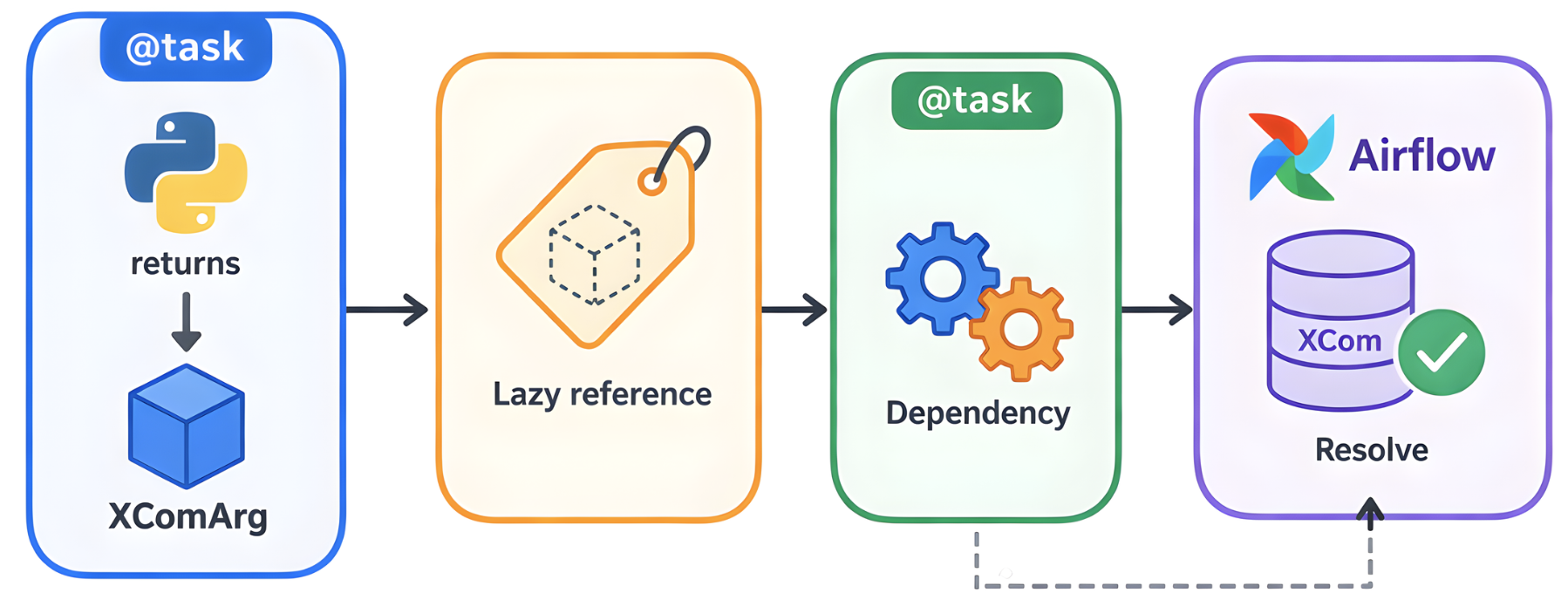

XComArgs in TaskFlow

XComArgs in code

@task
def get_config():
    return {"name": "daily_etl"}

@task
def run_pipeline(config):
    print(config["name"])


config = get_config()   # XComArg

run_pipeline(config)    # dependency + data

Mixing classic and TaskFlow

get_timestamp = BashOperator(
    task_id="get_timestamp",
    bash_command="date +%Y-%m-%d")

@task
def log_timestamp(ts_value):
    print(f"Timestamp: {ts_value}")


log_timestamp(get_timestamp.output)

XCom limitations

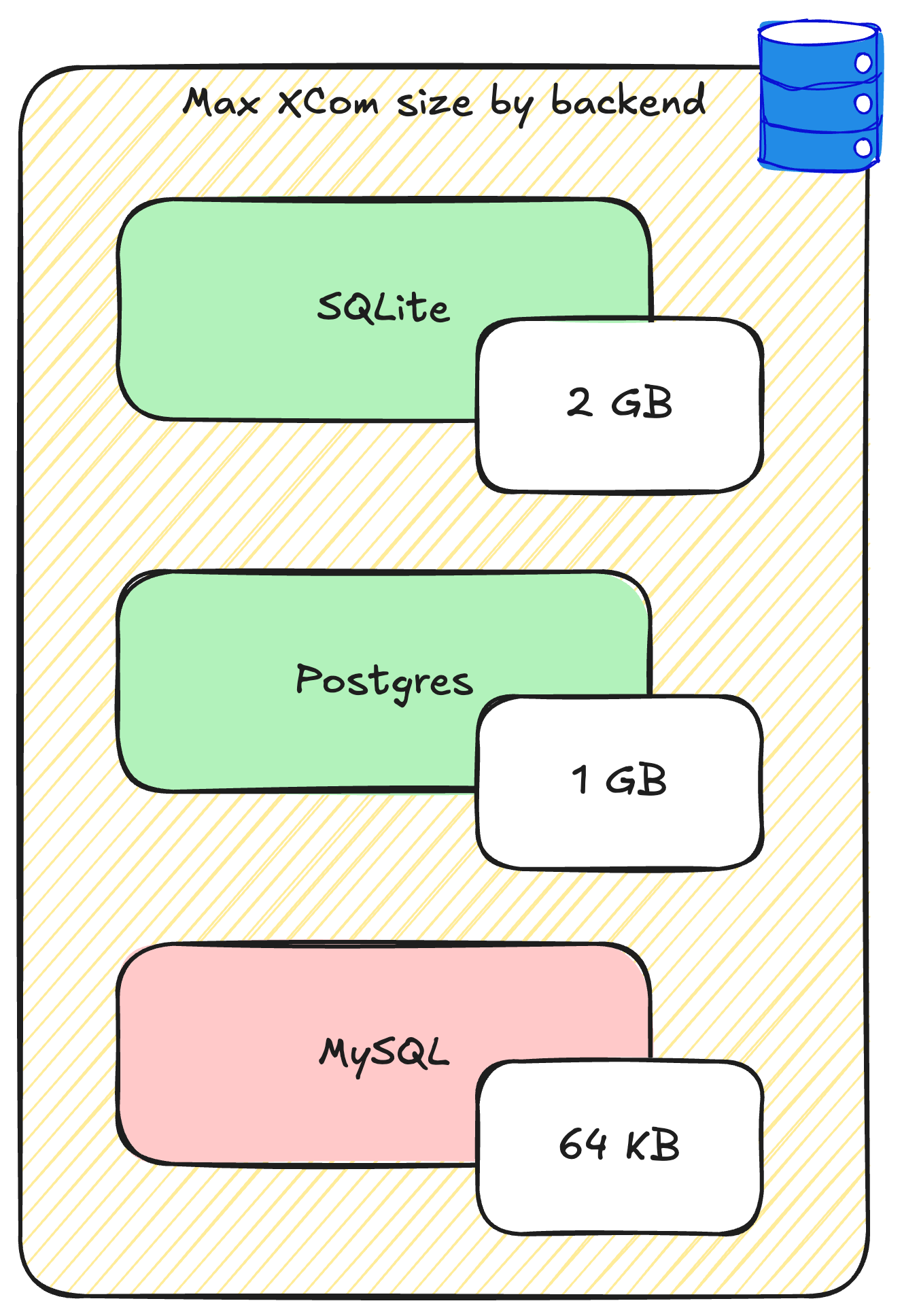

XCom size limits by backend

Max size depends on your database backend
Must be JSON serializable (dicts, lists, strings, numbers)
Every value adds load to the database

Custom XCom backends

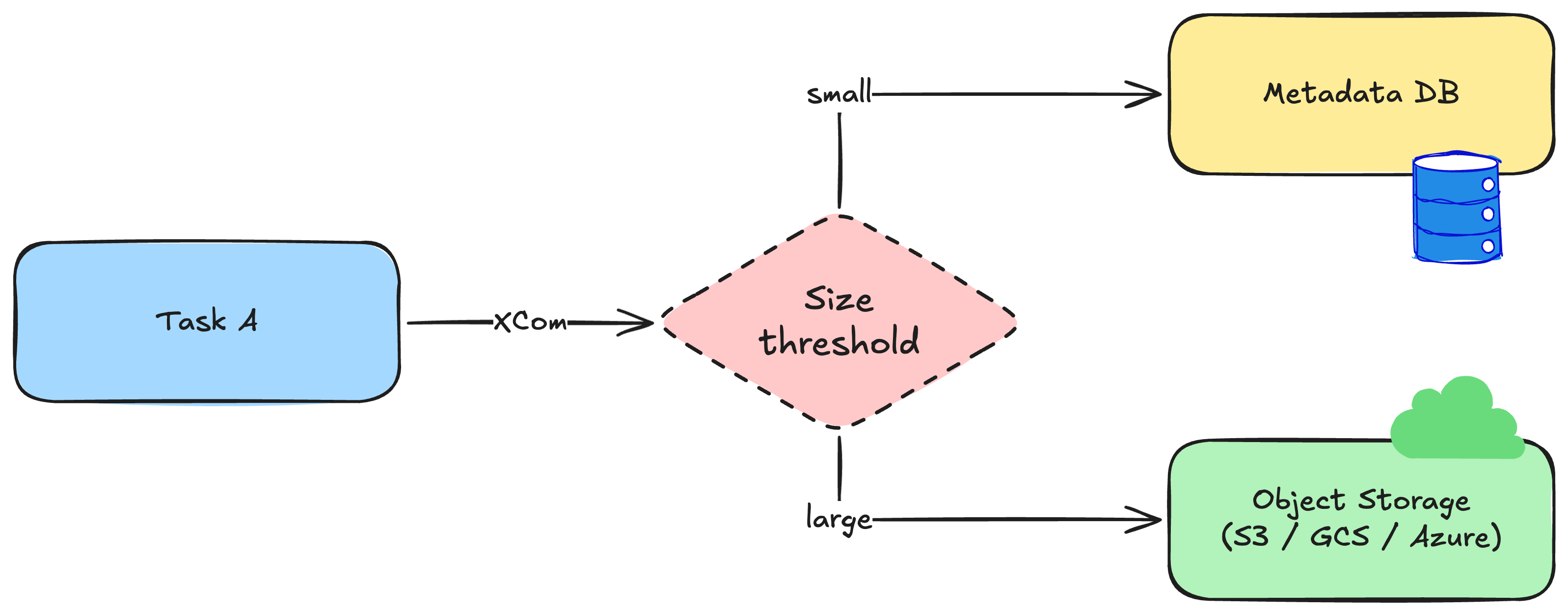

Custom XCom backend routing

Route values to an object storage
AIRFLOW__COMMON_IO__XCOM_OBJECTSTORAGE_THRESHOLD: only store XComs in the object storage if threshold is reached

Let's practice!

Building Data Pipelines with Airflow
