Data quality checks

Building Data Pipelines with Airflow

Volker Janz

Senior Developer Advocate at Astronomer

Why quality gates matter

A pipeline without checks is a pipeline you can't trust
One upstream change introduces nulls or negative values
Every downstream dashboard shows wrong numbers
Quality gates catch problems at the source

Bad data flowing downstream

SQLColumnCheckOperator

from airflow.providers.common.sql.operators.sql import
    (SQLExecuteQueryOperator, SQLColumnCheckOperator)


check_columns = SQLColumnCheckOperator(
    task_id="check_columns",
    conn_id="duckdb_analytics",
    table="daily_summary",
    column_mapping={
        "total_revenue": {"min": {"greater_than": 0}},
        "total_orders": {"null_check": {"equal_to": 0}},
    },
)

Column check types

column_mapping={
    "total_revenue": {"min": {"greater_than": 0}},
    "total_orders": {"null_check": {"equal_to": 0}},
    "order_date": {"distinct_check": {"greater_than": 0}},
}

min: validates the minimum value in a column
null_check: counts null values (assert equal_to: 0 for no nulls)
distinct_check: counts distinct values
Available checks: null_check, unique_check, distinct_check, min, max
Available comparators: equal_to, greater_than, geq_to, less_than, leq_to

SQLTableCheckOperator

from airflow.providers.common.sql.operators.sql import SQLTableCheckOperator


check_table = SQLTableCheckOperator(
    task_id="check_table",
    conn_id="duckdb_analytics",
    table="daily_summary",
    checks={
        "row_count_check": {
            "check_statement": "COUNT(*) > 0",
        },
    },
)

Validates properties of the entire table
check_statement: any SQL expression that evaluates to true or false

Chaining quality checks

@dag(schedule="@daily", template_searchpath="/path/to/sql")
def sales_pipeline():

    load = SQLExecuteQueryOperator(
        task_id="load_daily_sales",
        conn_id="duckdb_analytics",
        sql="aggregate_sales.sql",
    )

    check_columns = SQLColumnCheckOperator(...)
    check_table = SQLTableCheckOperator(...)

    load >> check_columns >> check_table

Load first, then validate
If any check fails, the pipeline stops
Downstream consumers never see bad data

Column vs table checks

SQLColumnCheckOperator

check_columns = SQLColumnCheckOperator(
    task_id="check_columns",
    conn_id="duckdb_analytics",
    table="daily_summary",
    column_mapping={
        "total_revenue": {"min": {"greater_than": 0}},
        "total_orders": {"null_check": {"equal_to": 0}},
    },
)

Are there nulls?
Are values within range?

SQLTableCheckOperator

check_table = SQLTableCheckOperator(
    task_id="check_table",
    conn_id="duckdb_analytics",
    table="daily_summary",
    checks={
        "row_count_check": {
            "check_statement": "COUNT(*) > 0",
        },
    },
)

Does the table have rows?
Is the total within expected bounds?

Monitoring quality at scale with Astro

Astronomer's Astro Observe helps to monitor pipeline health
SLA tracking with alerts before deadlines
Pipeline lineage across Dags and tables
Data quality monitoring at scale
AI-based root cause analysis

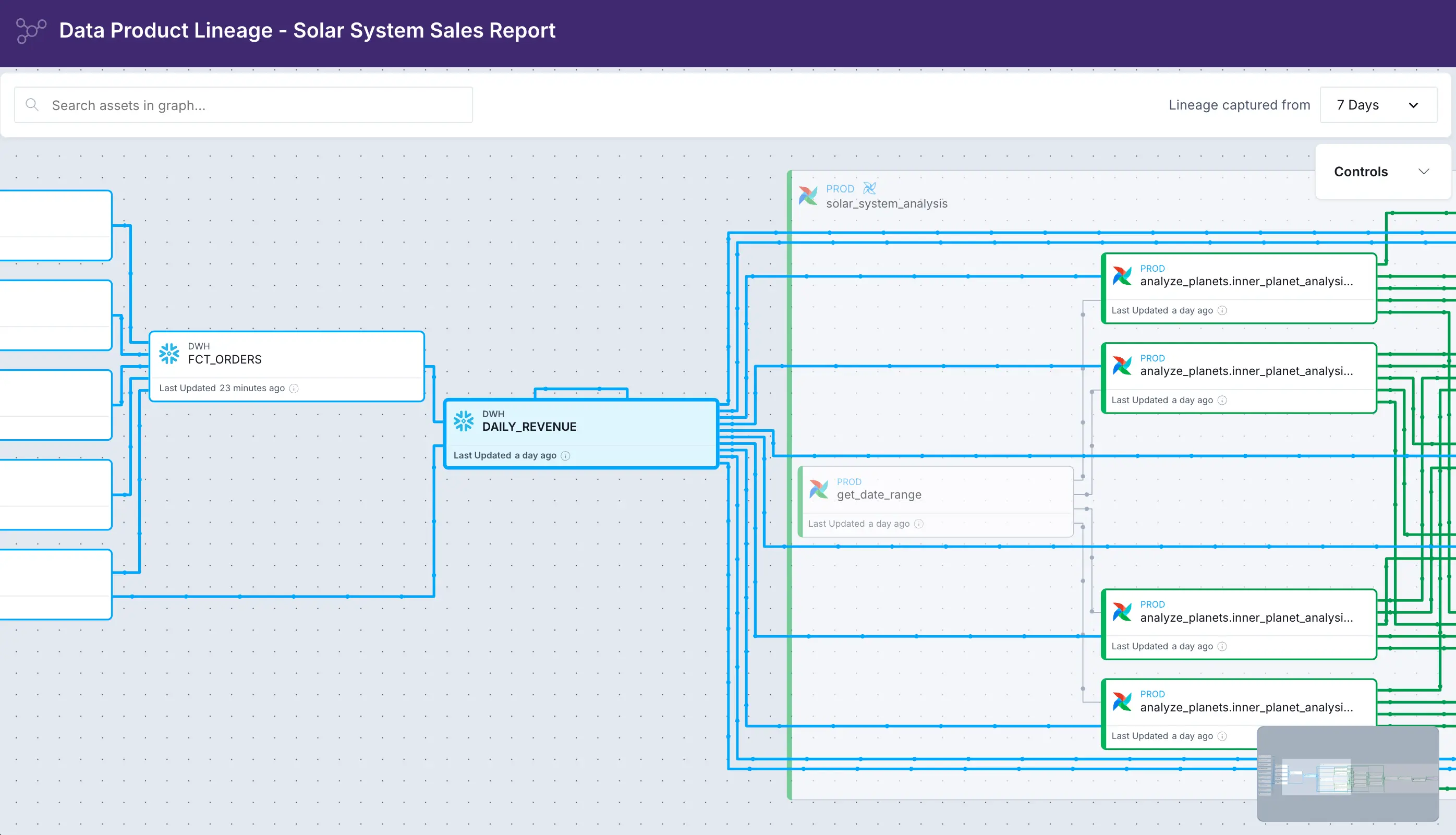

Astro Observe lineage

Let's practice!

Building Data Pipelines with Airflow
