Data-aware scheduling with Assets

Building Data Pipelines with Airflow

Volker Janz

Senior Developer Advocate at Astronomer

The timing problem

Pipeline A loads raw data from an API
Pipeline B builds a dashboard from that data
If both run on cron, B might run before A finishes
Adding a time buffer is fragile

The timing problem

What is an Asset?

from airflow.sdk import Asset
sales_data = Asset("s3://bucket/sales/daily.parquet")

A reference to a piece of data, identified by a unique name
A URI can be attached to the asset when it represents a concrete data entity
Could be a file, a database table, or any data

Producers and consumers

Tasks can update assets, which creates an asset event
Dags can be triggered on asset updates with an asset schedule

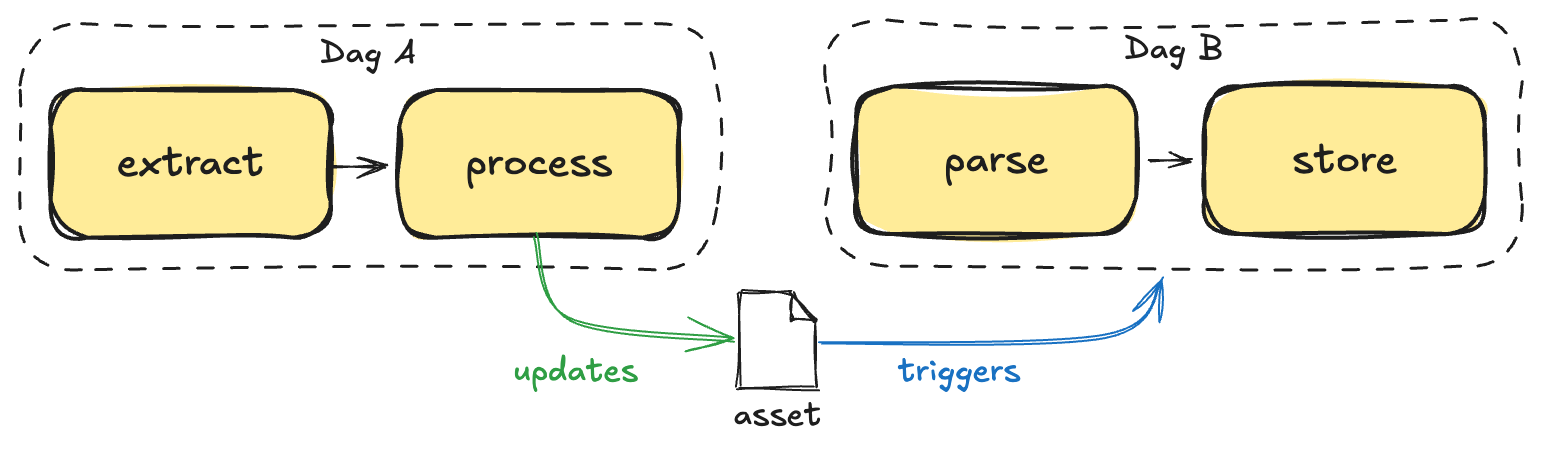

Asset flow

Producer: signaling with outlets

sales_data = Asset("s3://bucket/sales/daily.parquet")


@task(outlets=[sales_data])
def write_sales():
    # Write data to S3
    ...

On success, Airflow records that the asset was updated
The producer does not need to know about any consumer

Consumer: scheduling on an asset

sales_data = Asset("s3://bucket/sales/daily.parquet")


@dag(schedule=[sales_data])
def build_dashboard():
    ...

No cron expression, just the asset reference
Airflow triggers the consumer automatically after the update

Conditional scheduling

sales = Asset("s3://bucket/sales.parquet")
inventory = Asset("s3://bucket/inventory.parquet")


# Wait for BOTH assets to update
@dag(schedule=(sales & inventory))
def full_report(): ...


# Trigger when ANY asset updates
@dag(schedule=(sales | inventory))
def quick_refresh(): ...

Verifying assets with the CLI

$ airflow assets list

name                                  | group    | uri
s3://data-lake/sales/daily.csv        | asset    | s3://data-lake/sales/daily.csv

$ airflow assets details --name "s3://data-lake/sales/daily.csv"

property_name    | property_value
=================+=====================
name             | s3://data-lake/sales/daily.csv
                ...
updated_at       | 2026-04-14T10:00:50.820041Z

airflow assets list shows all registered assets
airflow assets details shows metadata including updated_at

Let's practice!

Building Data Pipelines with Airflow
