Running SQL workloads

Building Data Pipelines with Airflow

Volker Janz

Senior Developer Advocate at Astronomer

Why SQL in Airflow?

SQL workloads are the most common Airflow use case
Let the database do the heavy lifting
Airflow orchestrates when and where
The database handles the how

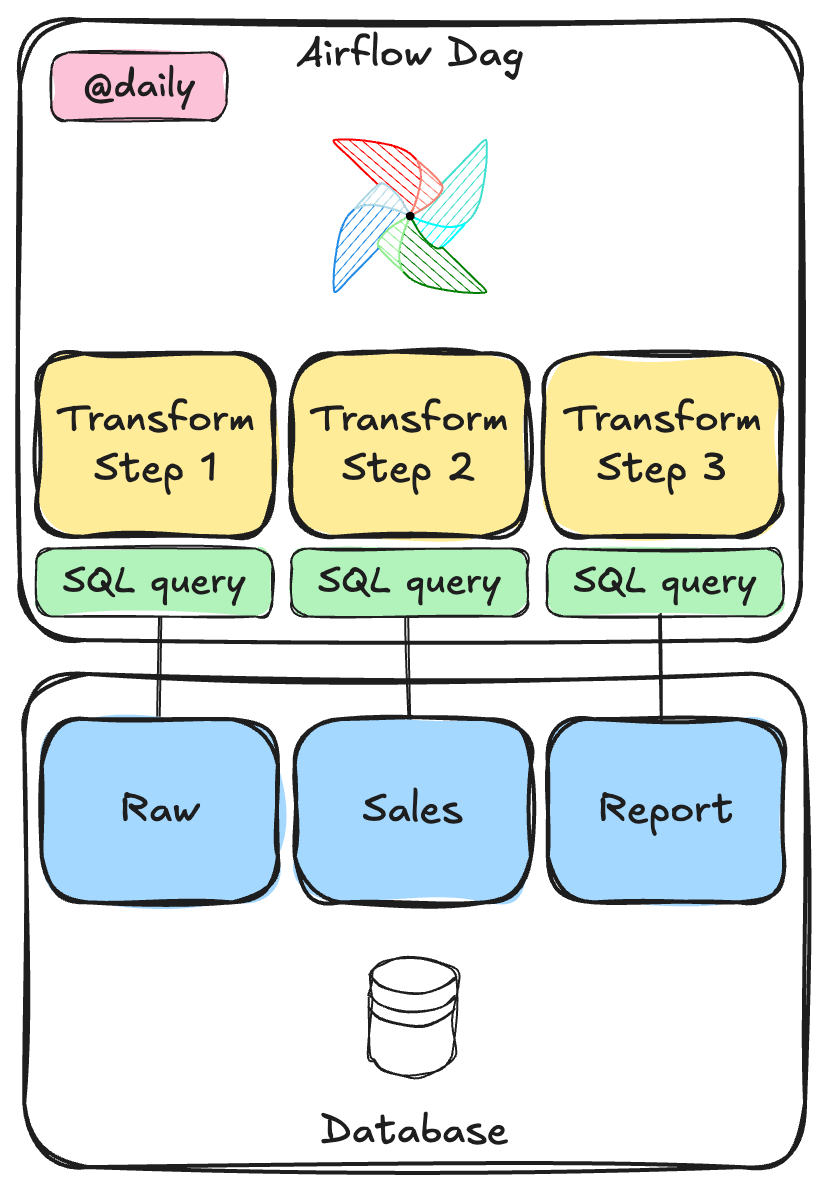

SQL orchestration in Airflow

SQLExecuteQueryOperator

from airflow.providers.common.sql.operators.sql import SQLExecuteQueryOperator


SQLExecuteQueryOperator(
    task_id="load_sales",
    conn_id="duckdb_analytics",
    sql="INSERT INTO sales SELECT * FROM staging",
)

Works with any database that has a compatible Airflow provider
PostgreSQL, Snowflake, BigQuery, DuckDB, and more

Connections

Store credentials outside your code
Each has an ID, type, host, port, login
Created in multiple ways: UI, CLI, API, or environment variables
Reference by conn_id in operators

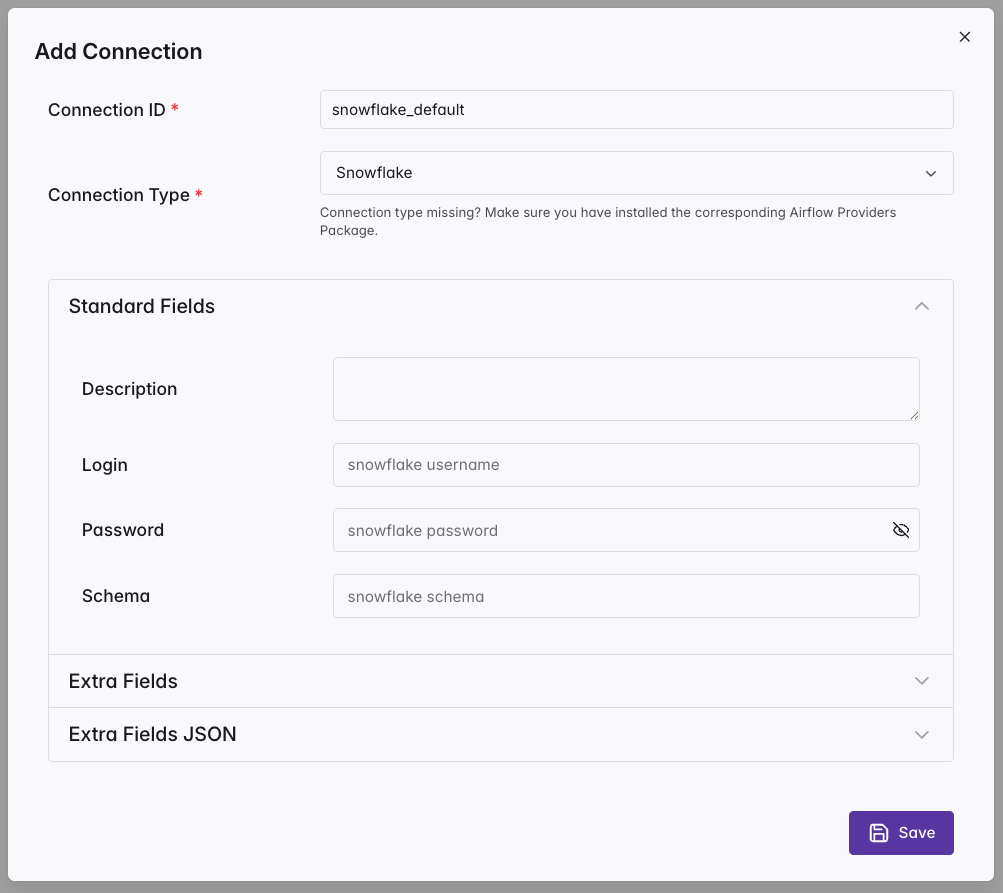

Airflow Connections UI

Building a SQL pipeline

from airflow.sdk import dag, task
from airflow.providers.common.sql.operators.sql import SQLExecuteQueryOperator

@dag(schedule="@daily")
def sales_pipeline():

    aggregate = SQLExecuteQueryOperator(
        task_id="aggregate_daily_sales",
        conn_id="duckdb_analytics",
        sql="""
            INSERT INTO daily_summary (order_date, total_orders, total_revenue)
            SELECT order_date, COUNT(*), SUM(revenue)
            FROM raw_orders GROUP BY order_date
        """,
    )

External SQL files

@dag(
    schedule="@daily",
    template_searchpath="/path/to/include/sql",
)
def sales_pipeline():
    aggregate = SQLExecuteQueryOperator(
        task_id="aggregate_daily_sales",
        conn_id="duckdb_analytics",
        sql="aggregate_sales.sql",
    )

Set template_searchpath on @dag
Reference the filename in sql
Keep scripts and business logic outside of the dags/ folder 💡

Project file structure

Jinja templates in SQL files

DELETE FROM daily_summary WHERE order_date = '{{ ds }}';

INSERT INTO daily_summary (order_date, total_orders, total_revenue)
SELECT order_date, COUNT(*), SUM(revenue)
FROM raw_orders
WHERE order_date = '{{ ds }}'
GROUP BY order_date;

{{ ds }} renders the logical date (YYYY-MM-DD)
DELETE then INSERT: the idempotent pattern from Chapter 2
Re-running the same date produces the same result

params vs parameters

params (Jinja rendering)

SQLExecuteQueryOperator(
    sql="""SELECT * FROM orders
           WHERE product = '{{ params.product }}'""",
    params={"product": user_input},
)

Value interpolated into SQL string
Vulnerable to SQL injection

parameters (DB-level binding)

SQLExecuteQueryOperator(
    sql="SELECT * FROM orders
         WHERE product = $product",
    parameters={"product": user_input},
)

Value passed to database driver
Injection-safe: driver handles escaping

From local to production with Astro

Astronomer's Astro: managed Airflow platform

Astro CLI: local Airflow in one command

Develop locally, deploy to production seamlessly

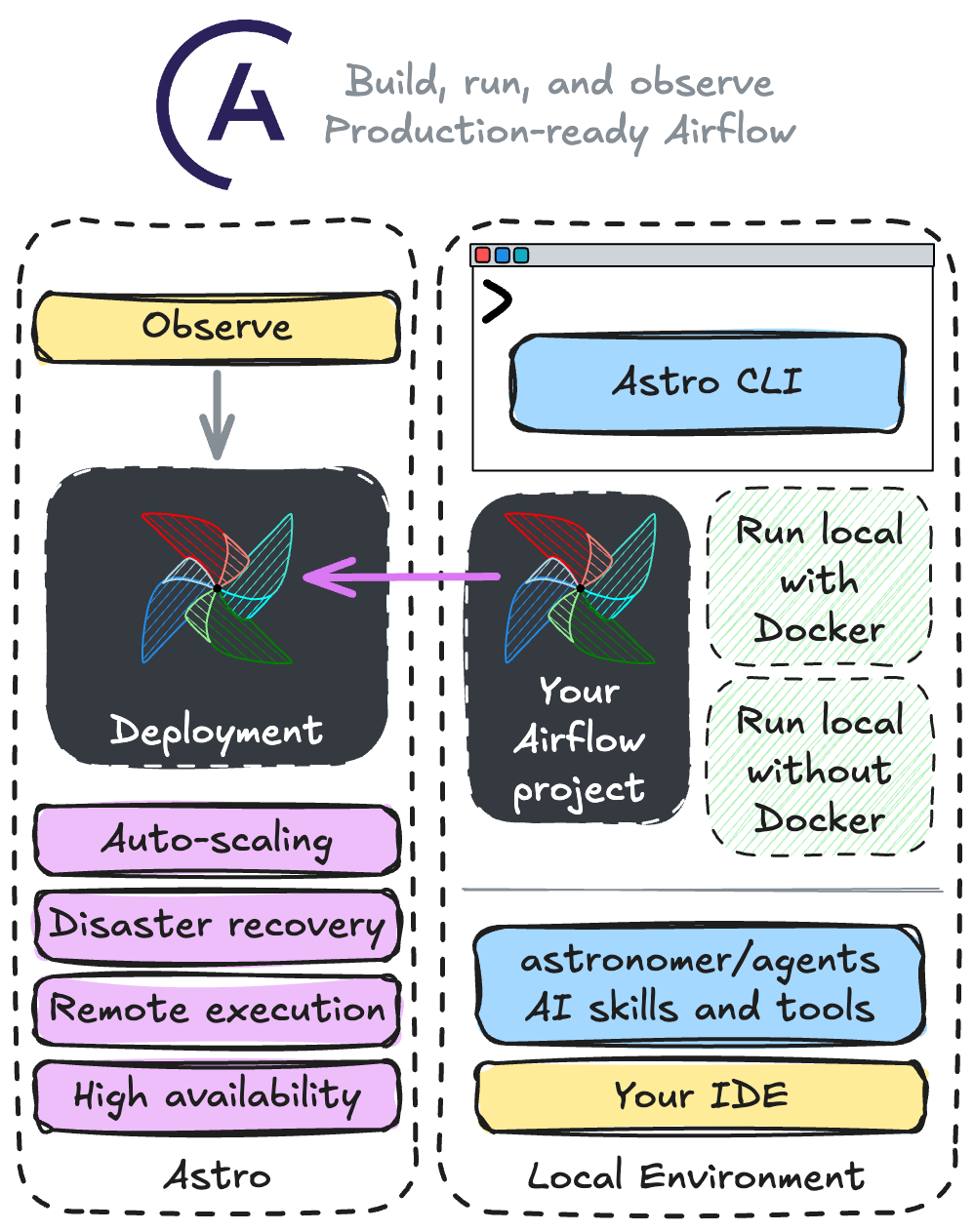

Astro CLI and platform

Let's practice!

Building Data Pipelines with Airflow
