Streaming data with DynamoDB

Developing applications on AWS

Ricardo Sueiras

Principal Technologist

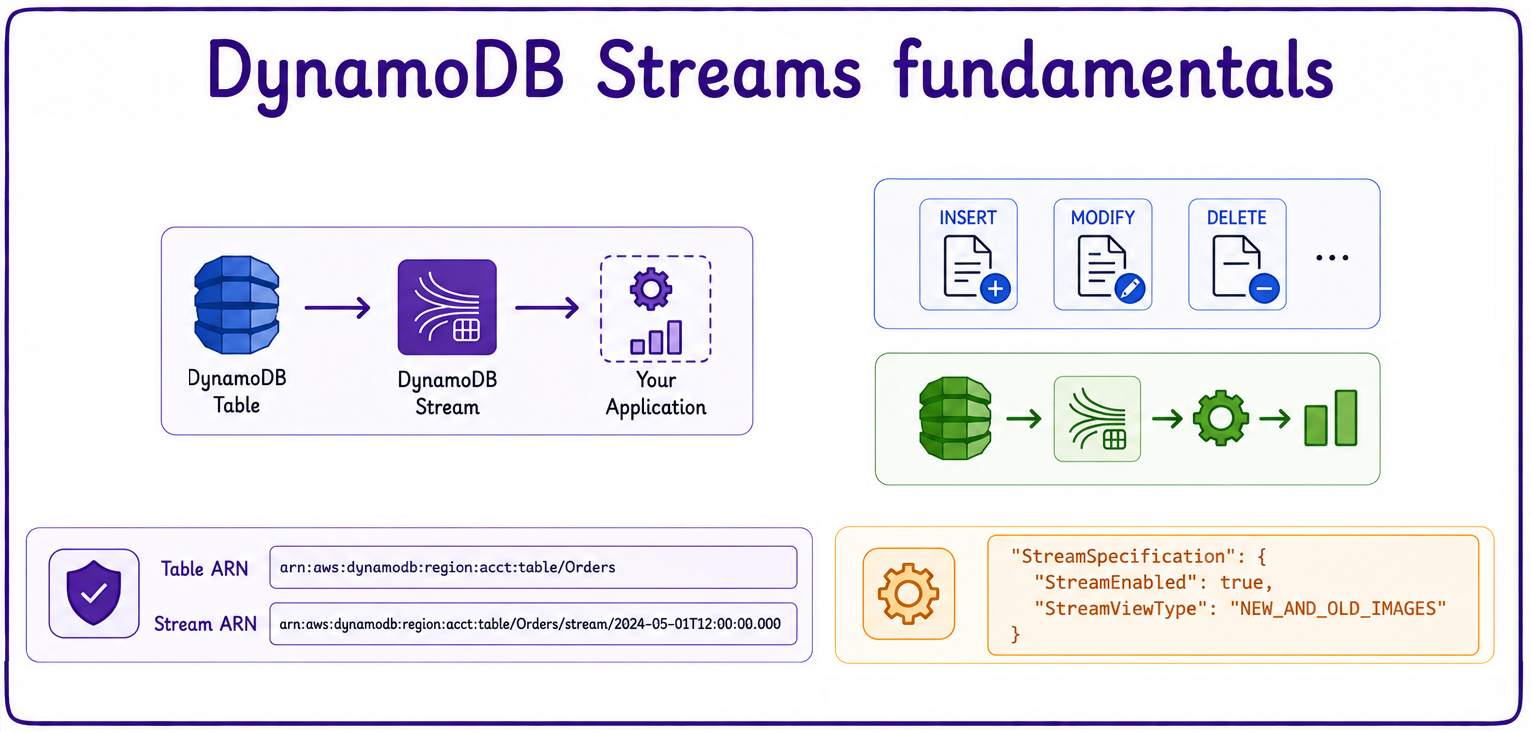

DynamoDB Streams fundamentals



• React to database changes in near real time.
• Built on event-driven patterns.
• Every insert, modify, or delete generates a stream record.
• Build reactive apps without polling the table.
• Disabled by default: enable with StreamSpecification.
• Each stream has its own ARN, distinct from the table ARN.

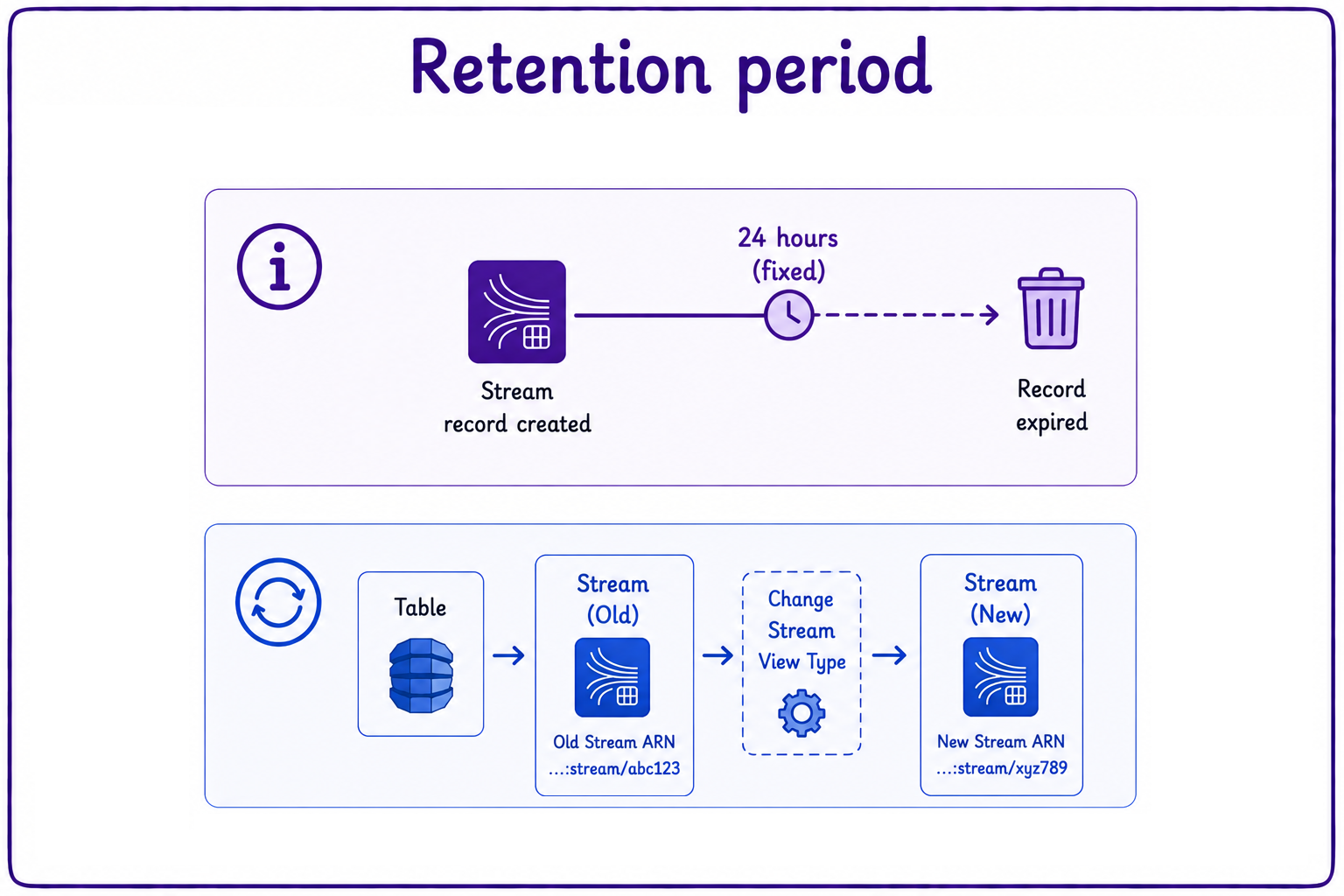

Retention period



• Stream records are retained for 24 hours.
  • Retention is fixed and cannot be configured.
• Changing the view type means recreating the stream.
  • A new stream generates a new stream ARN.

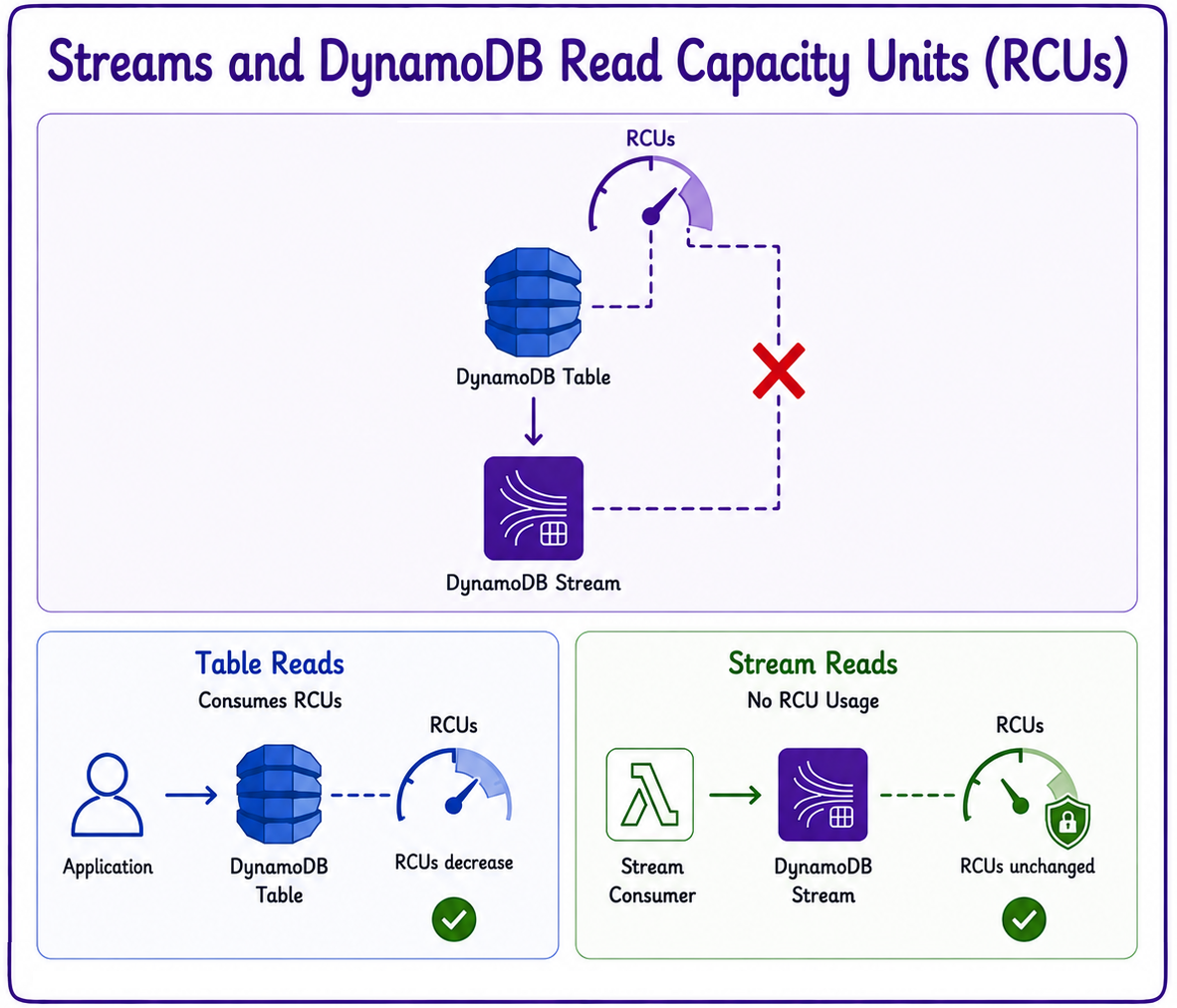

Streams and DynamoDB read capacity units



• Stream reads do NOT consume your read capacity units (RCUs).
• Enabling streams has no impact on provisioned throughput.

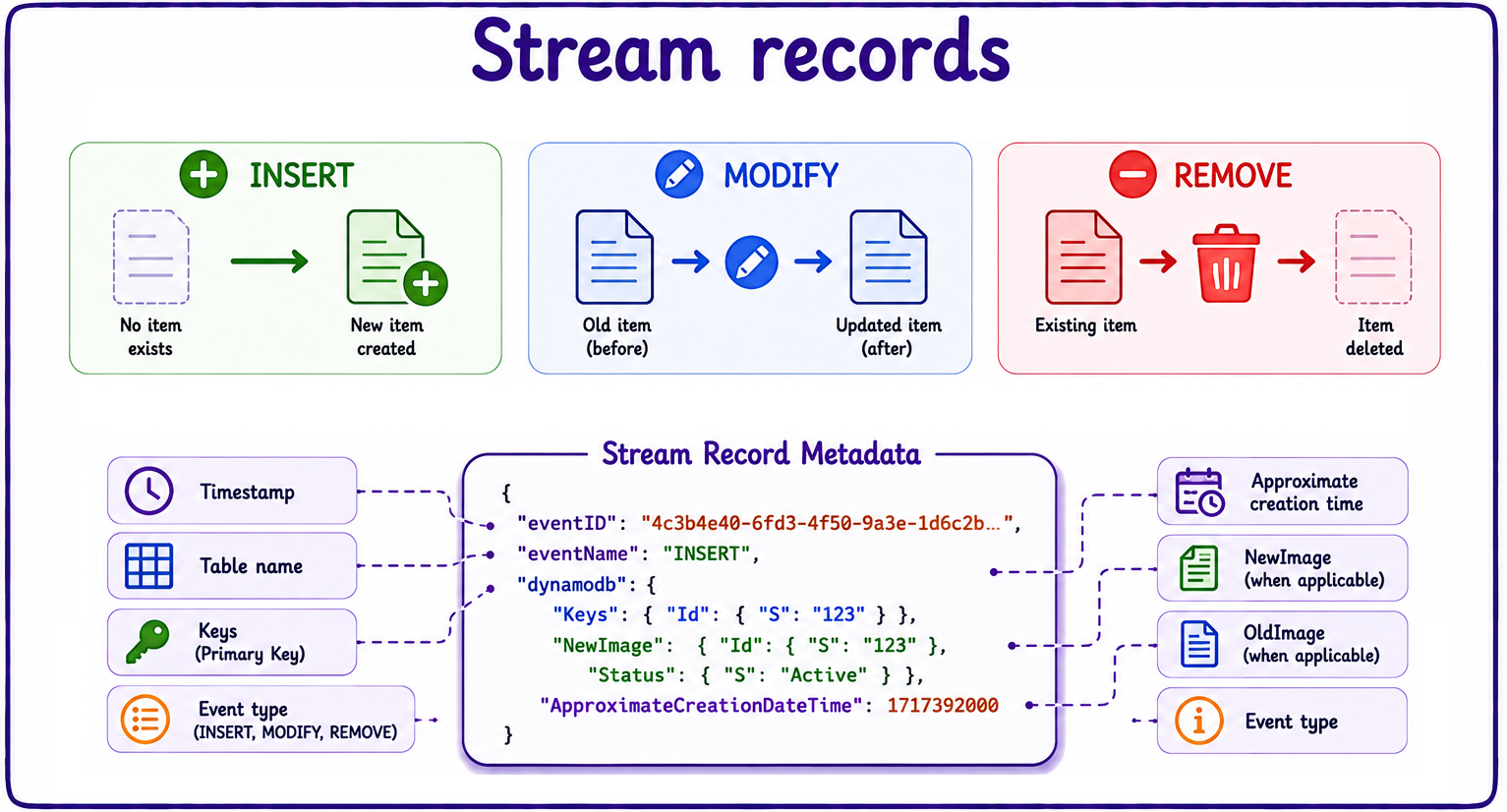

Stream records

• Each stream record carries metadata describing the change.
• Streams capture three event types:
  • INSERT
  • MODIFY
  • REMOVE

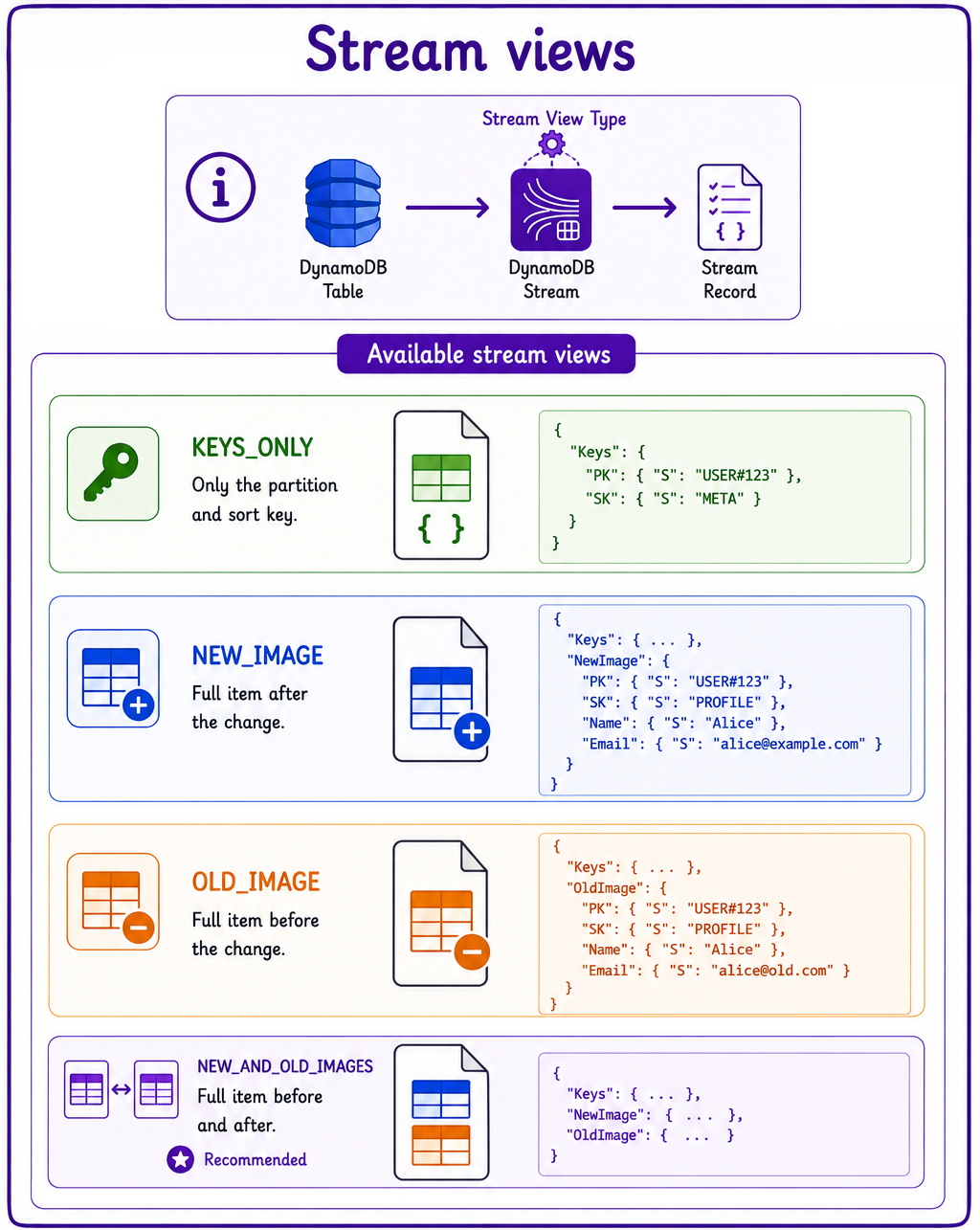

• View types control which data lands in each record.
  • KEYS_ONLY: just the partition and sort key.
  • NEW_IMAGE: the full item after the change.
  • OLD_IMAGE: the full item before the change.
  • NEW_AND_OLD_IMAGES: the item before and after.
• NEW_AND_OLD_IMAGES is the go-to for auditing.
• Required for DynamoDB Global Tables.

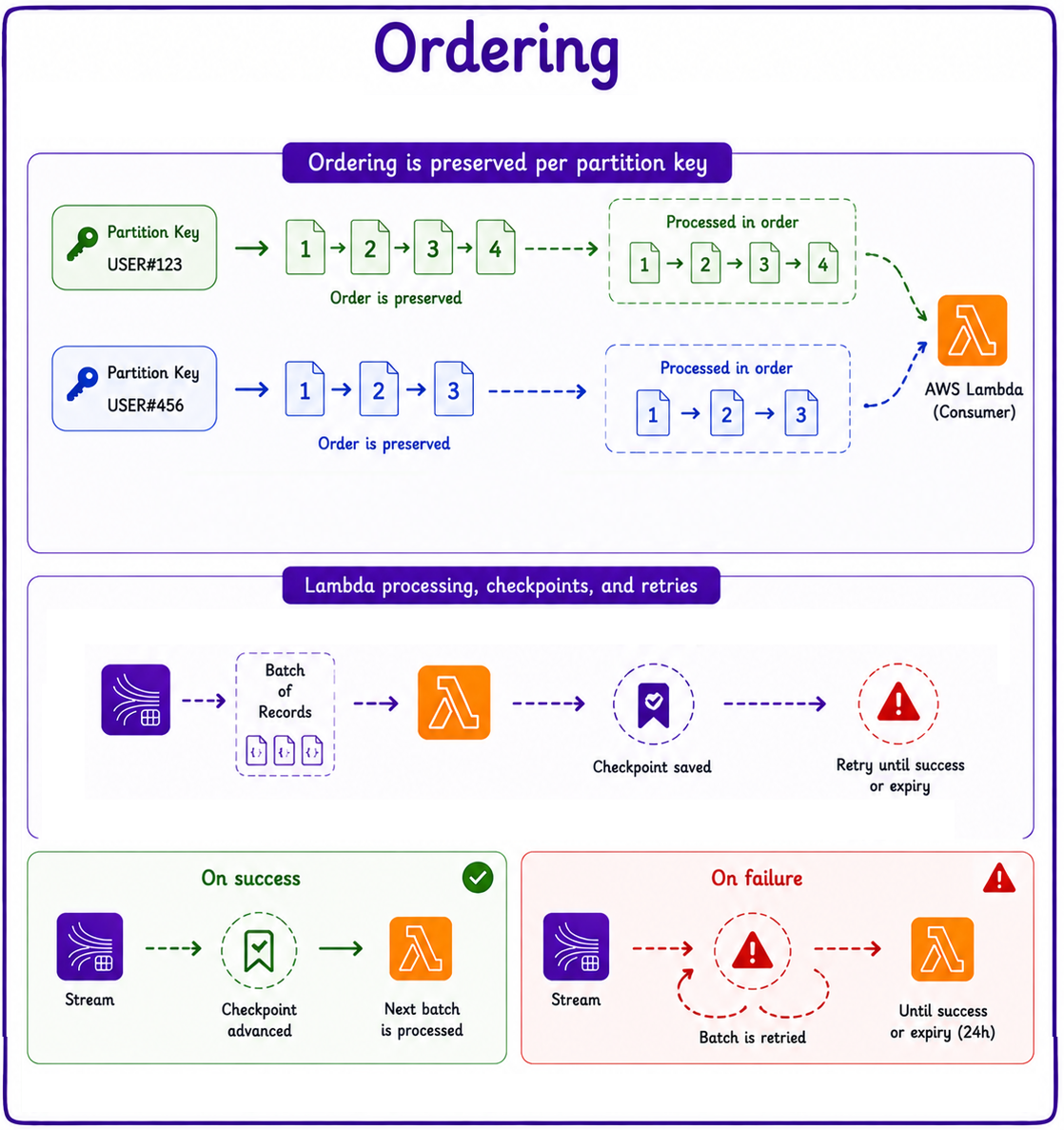

• Streams preserve ordering per partition key.
• Lambda processes records in batches.
  • Checkpoints progress after each successful batch.
  • Failed batches are retried.
  • Retries continue until success or records expire.

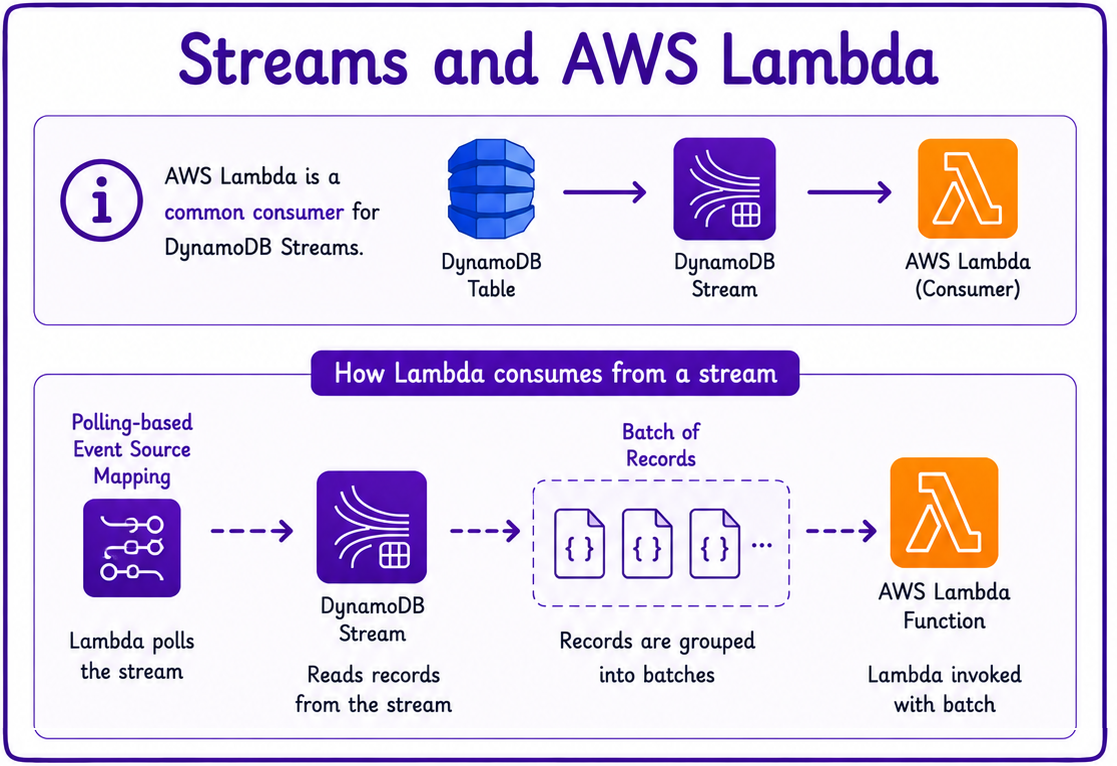

• Lambda is the most common stream consumer.
• It uses a polling-based event source mapping.
• Reads records from the stream.
• Invokes your function with batches of records.

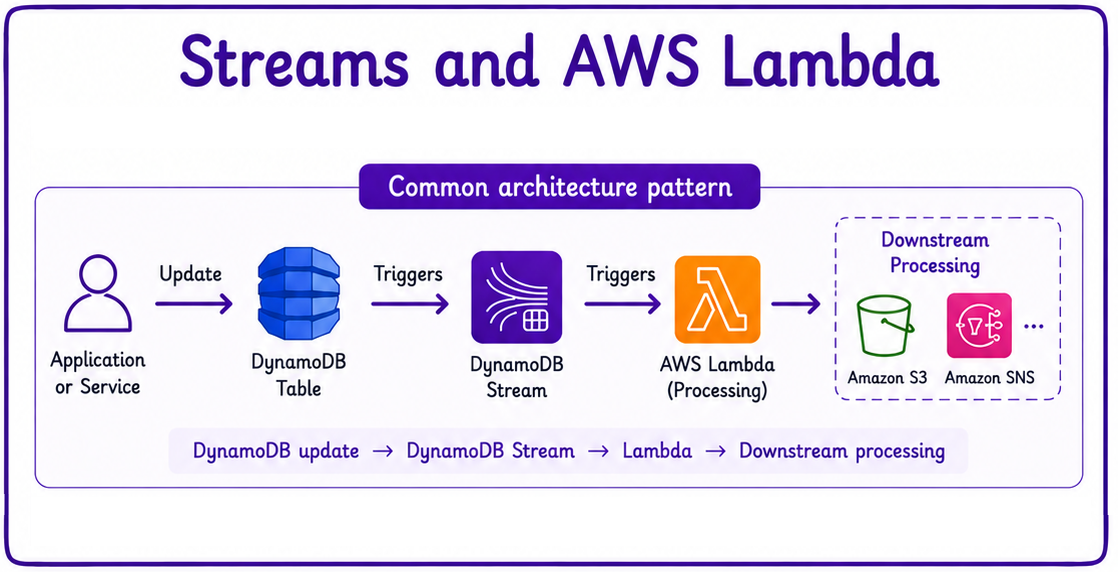

Architectural pattern



• A common end-to-end pattern:
  • An item update lands in DynamoDB.
  • The change generates a stream record.
  • The record triggers Lambda for processing.

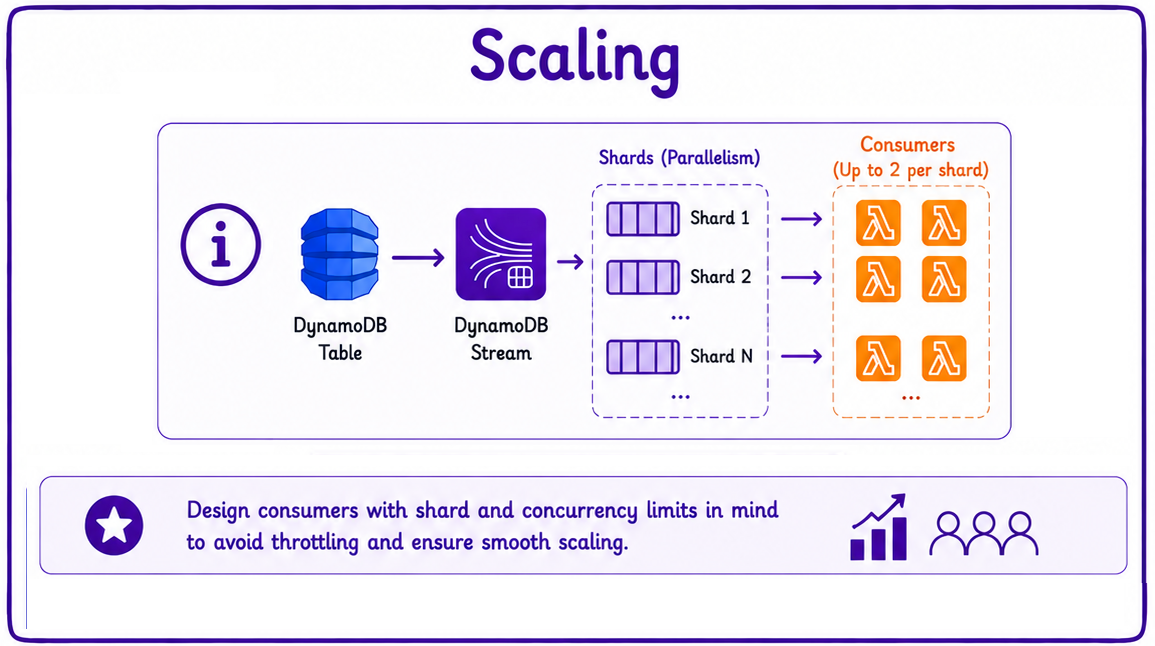

Scaling



• Streams are divided internally into shards.
  • Much like Kinesis Data Streams.
• Each shard allows up to two simultaneous consumers.
  • Exceeding this limit is a common cause of read throttling.

• Lambda concurrency scales with shard count.

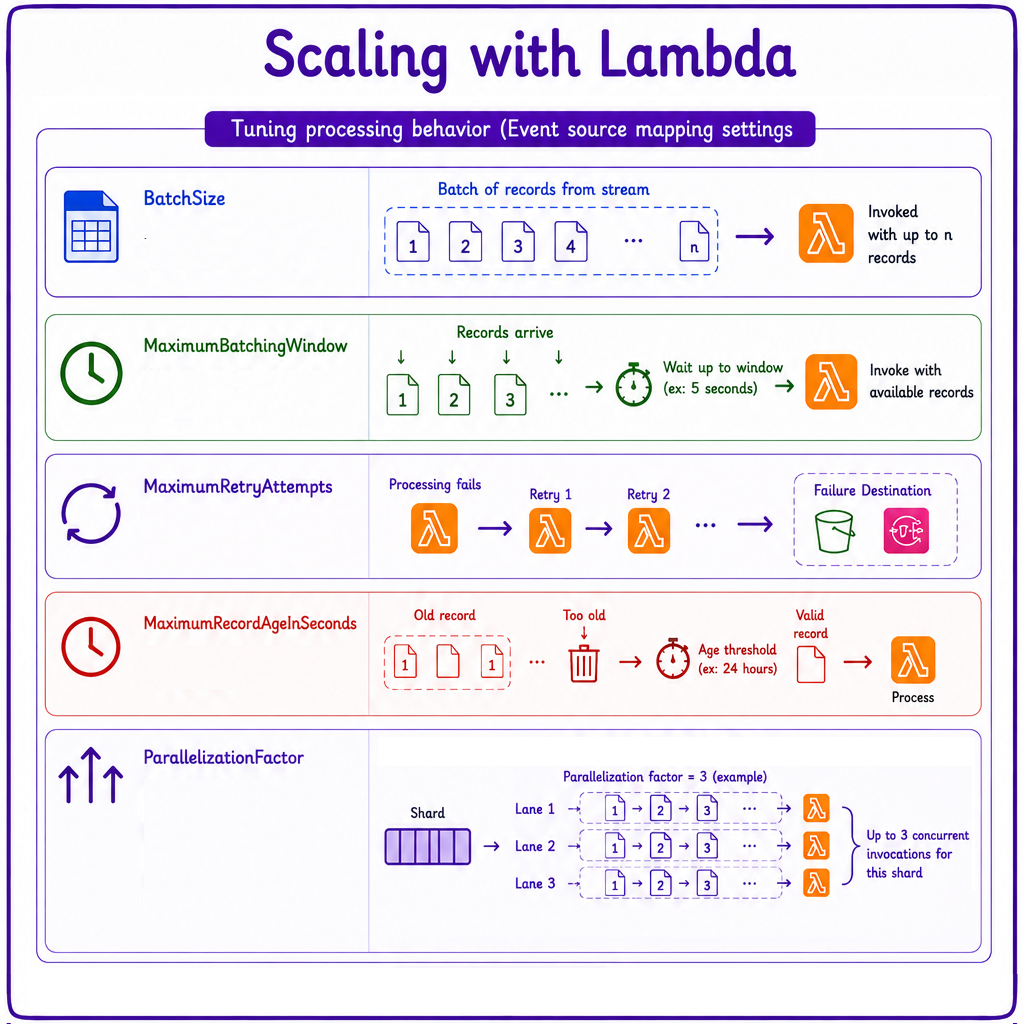

• Tune processing with:
  • BatchSize: max records per invocation.
  • MaximumBatchingWindow: wait before a partial batch.
  • MaximumRetryAttempts: retries before failure destination.
  • MaximumRecordAgeInSeconds: discard records past this age.
  • ParallelizationFactor: concurrent processing per shard (max 10).

Filtering and tumbling windows

• Lambda supports filter criteria.
  • Discard records before the function is invoked.
  • Cuts unnecessary invocations and cost.
• Lambda supports tumbling windows.
  • Aggregate state across batches in a shard.

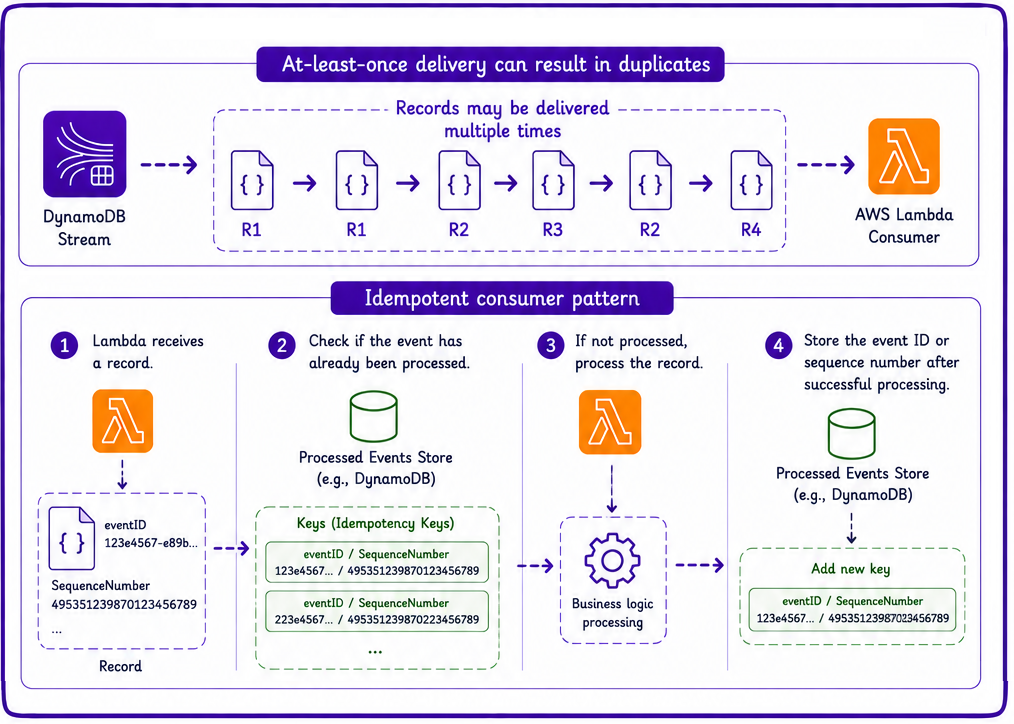

Managing duplicate records

• Streams capture each change exactly once.
• Lambda processes records with at-least-once semantics.
  • Retries can reprocess the same record.
• Design consumers to be idempotent.
• A common pattern: store processed eventID or SequenceNumber.
  • Skip records you have already handled.
  • Both stay stable across retries.
  • Reliable idempotency keys.

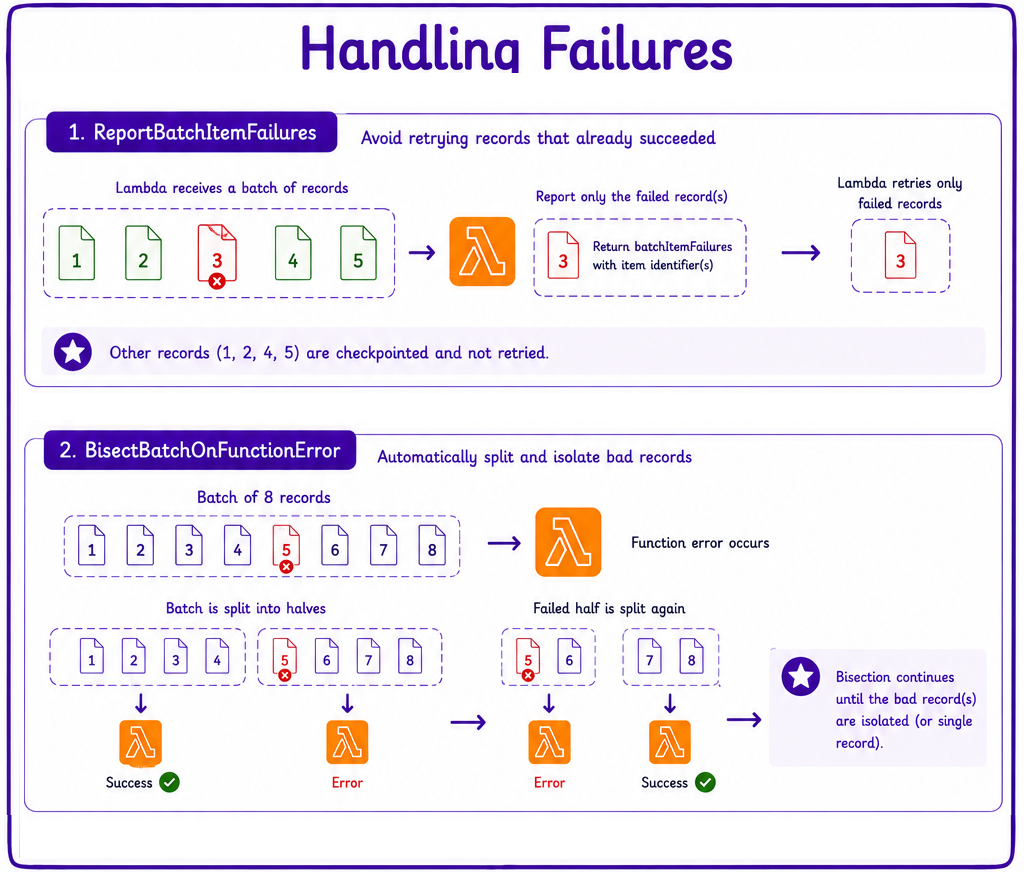

Handling failures



• ReportBatchItemFailures retries only the records that failed.
• Handle Lambda failures with:
  • BisectBatchOnFunctionError for batch bisection.
  • Retry controls.
  • Failure destinations for poison batches that exhaust retries.

DynamoDB to Kinesis integration



• Tables can push changes straight to Kinesis Data Streams.
  • Via the Kinesis Data Streams for DynamoDB feature.
  • A separate, parallel capability, not a chained one.
  • Events do NOT flow through DynamoDB Streams.
• Both can run on the same table at once.
  • They operate independently.
  • Feeds broader streaming and analytics architectures.

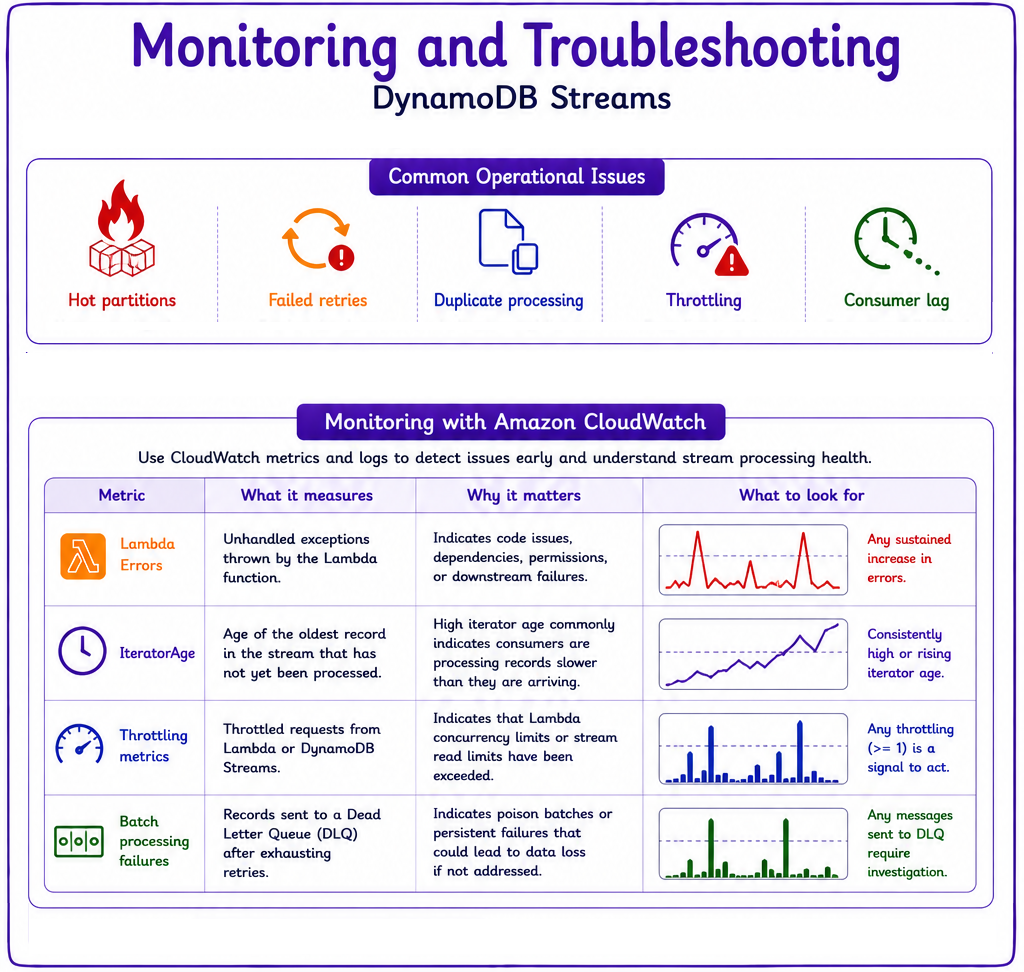

Monitoring: common issues



• Common operational issues to watch for:
  • Hot partitions.
  • Failed retries.
  • Duplicate processing.
  • Throttling and consumer lag.

Monitoring: CloudWatch metrics

• Key CloudWatch metrics to monitor:
  • Lambda Errors: surface code or downstream issues.
  • IteratorAge: high values flag slow consumers.
  • Throttling metrics: read limits being exceeded.
  • Batch processing failures: records sent to a DLQ.

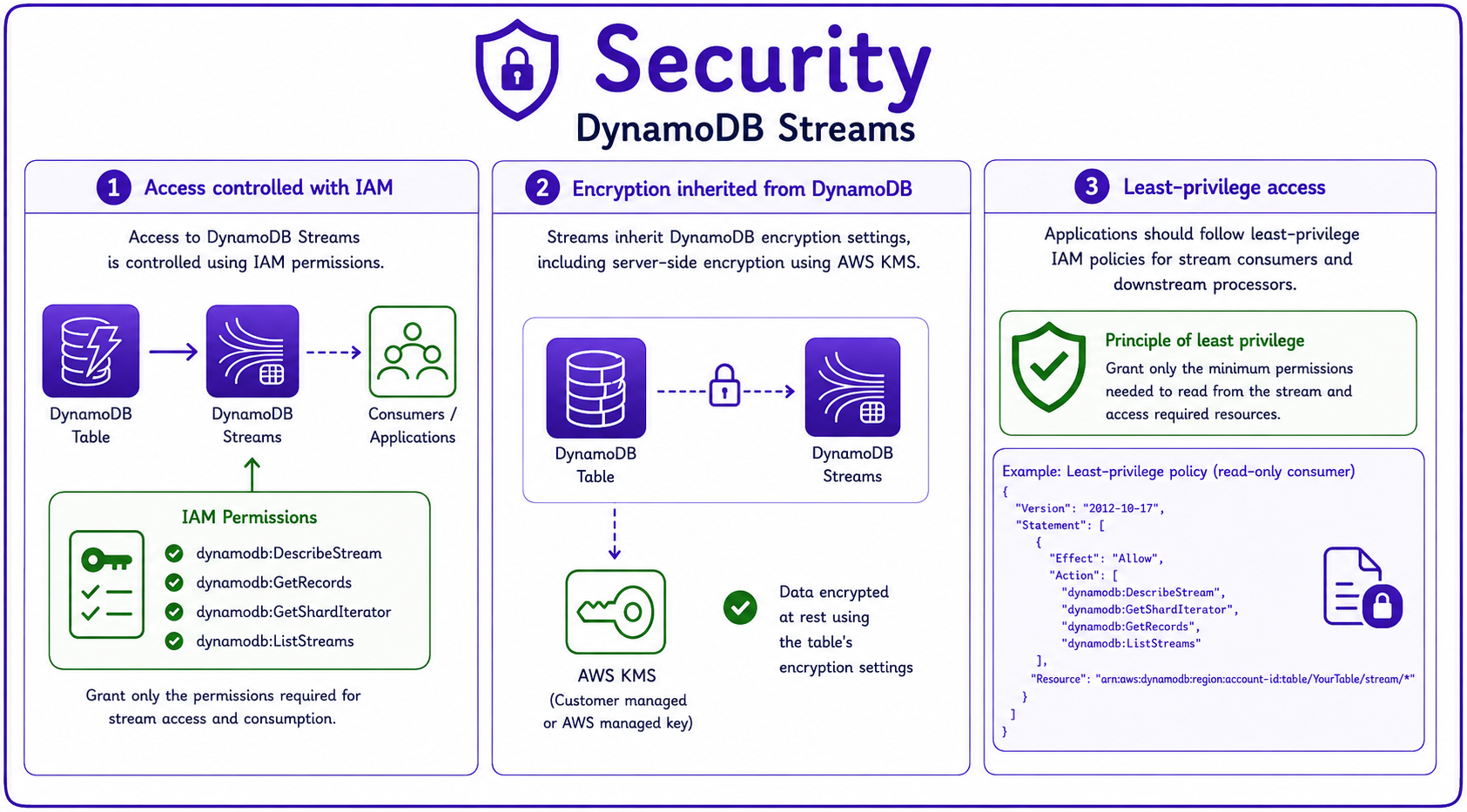

Security

• Access to streams is controlled with IAM permissions.
• Streams inherit the table's encryption settings.
  • Including server-side encryption at rest with KMS.
• Apply least-privilege policies to consumers and downstream processors.



Let's practice!
