API development

Developing applications on AWS

Ricardo Sueiras

Principal Technologist

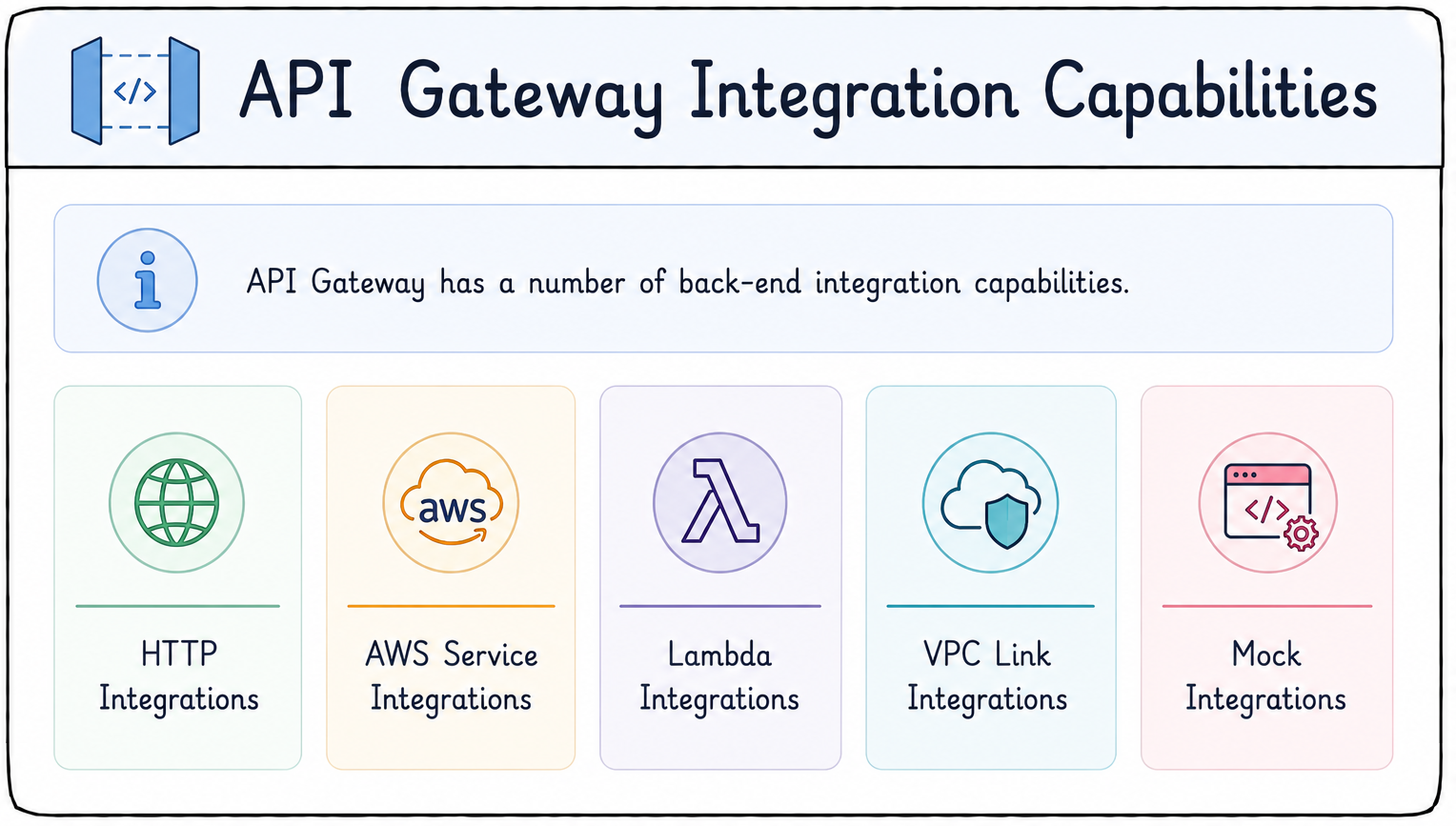

API Gateway integrations



• Multiple back-end integration options
• HTTP: any publicly routable endpoint
• AWS service APIs like DynamoDB or SNS
• Lambda functions
• Private resources via VPC links
• Mock responses without a real back-end

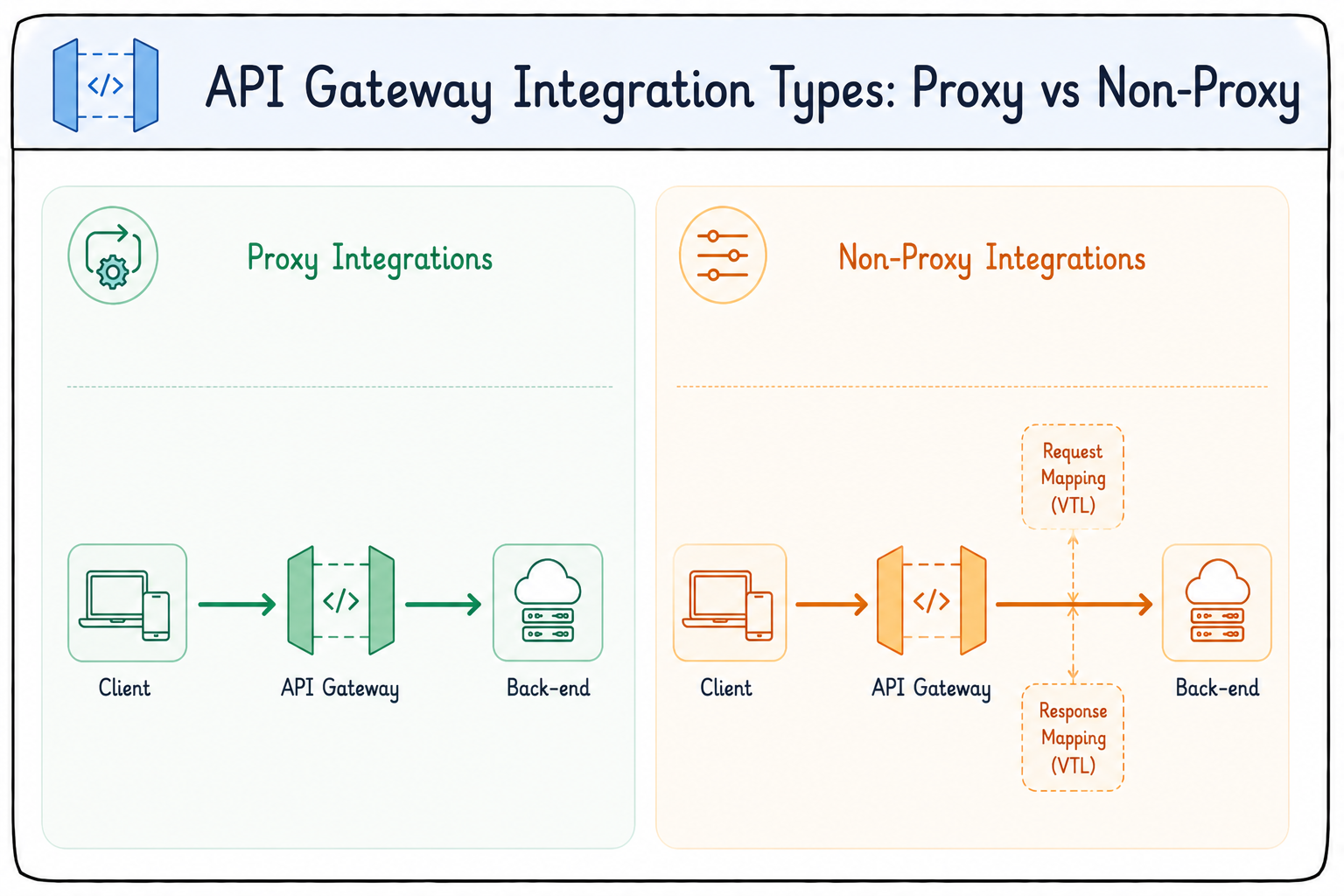

Integration types: proxy



• Integration type sets how much control API Gateway has
• Proxy types: AWS_PROXY and HTTP_PROXY
• Entire HTTP request sent straight to the back-end
• API Gateway is a transparent pass-through
• Back-end crafts the response

Integration types: non-proxy

• Non-proxy types: AWS and HTTP
• You configure request and response transformations
• Driven by mapping templates
• Templates written in Velocity Template Language (VTL)

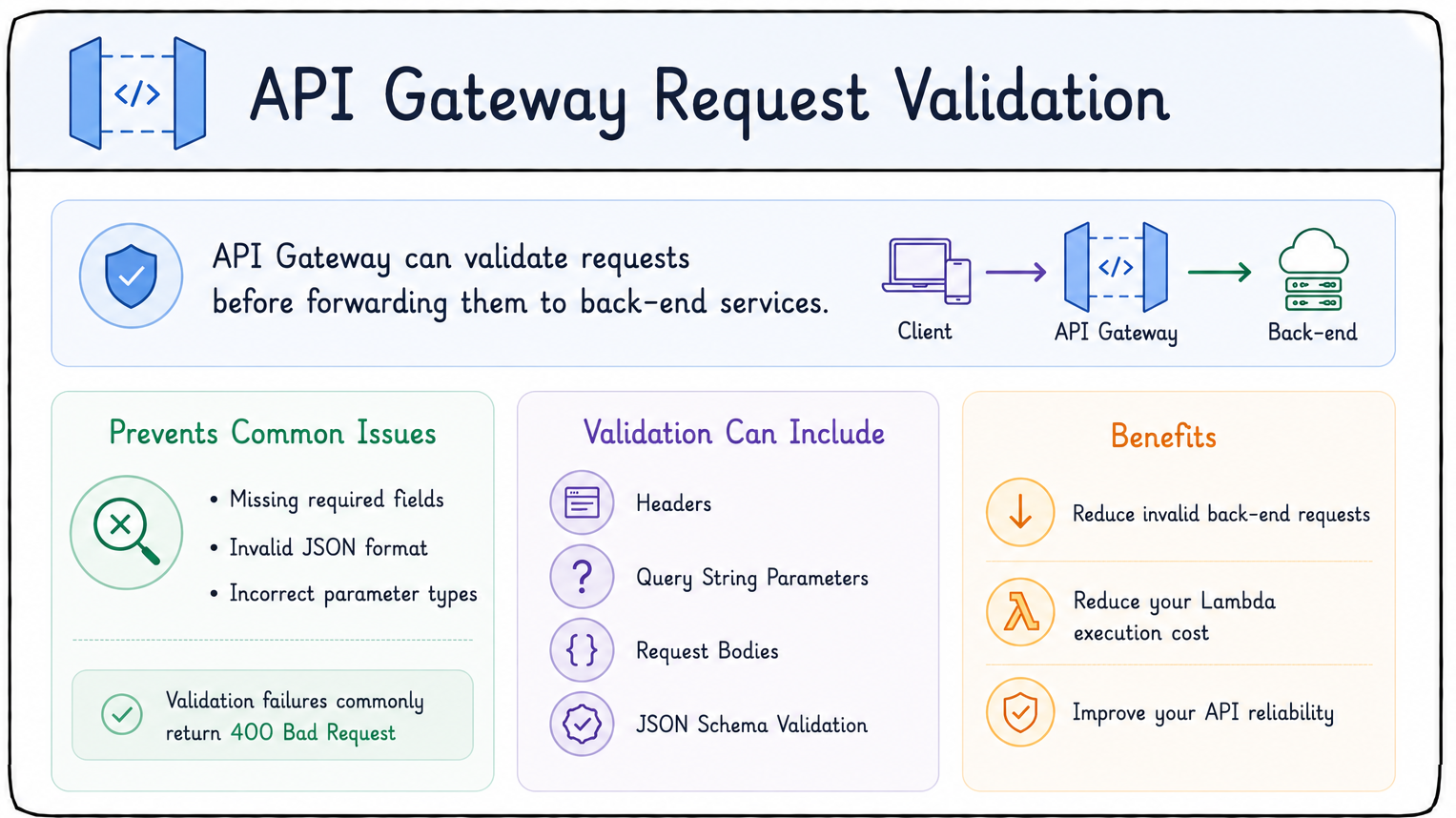

Request validation



• Validate requests before they reach the back-end
• Catches missing required fields
• Catches invalid JSON format
• Catches incorrect parameter types
• Failures usually return 400 Bad Request

Request validation



• Validation can cover:
  • Headers
  • Query string parameters
  • Request body
  • JSON schema

Request validation



• Validation pays off by:
  • Reducing invalid back-end requests
  • Lowering Lambda execution cost
  • Improving API reliability

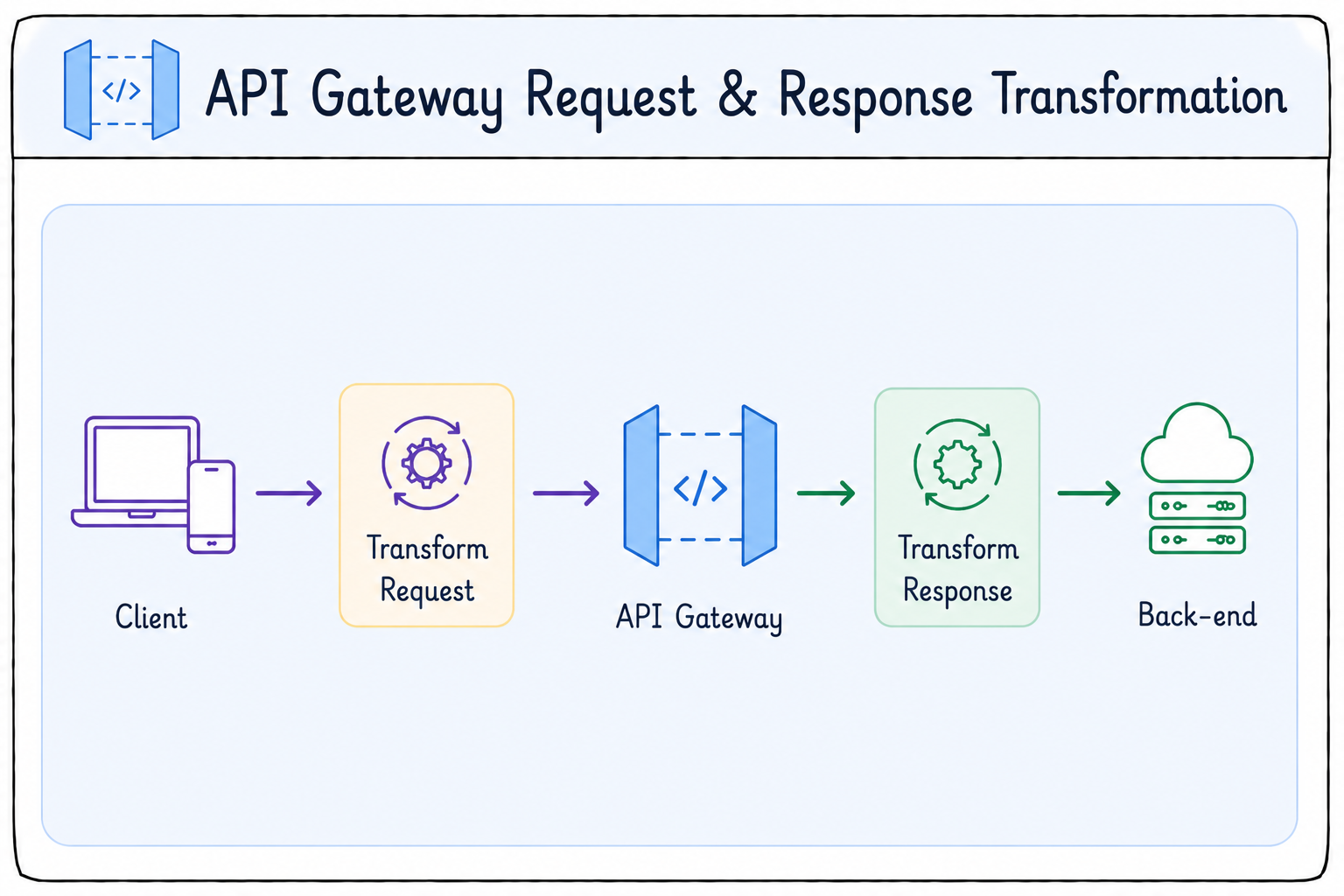

Transformations

• Reshape requests and responses without touching back-end code
  • Change payload structure
  • Rename fields
  • Transform headers
  • Convert data formats
  • Hide implementation details
• Powered by VTL mapping templates

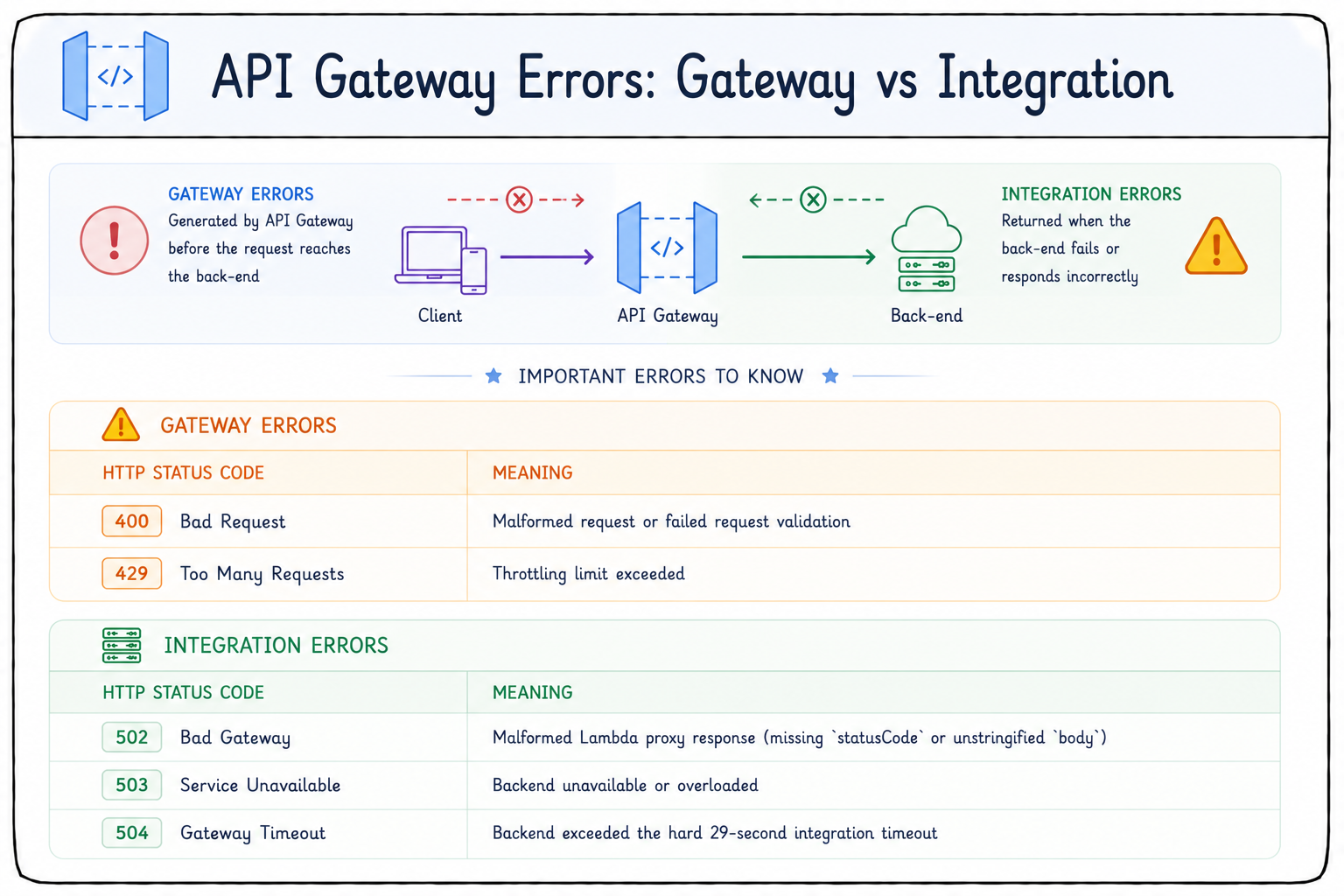

Handling errors



• Two error categories
  • Gateway errors: raised by API Gateway
  • Integration errors: back-end failures
• Common gateway errors:
  • 400 Bad Request: failed request validation
  • 429 Too Many Requests: throttling limit exceeded

Handling errors



• Common integration errors:
  • 502 Bad Gateway: malformed or bad response
  • 503 Service Unavailable: back-end unavailable or overloaded
  • 504 Gateway Timeout: exceeded the 29-second timeout
  • Regional and Private REST APIs can extend beyond 29-second

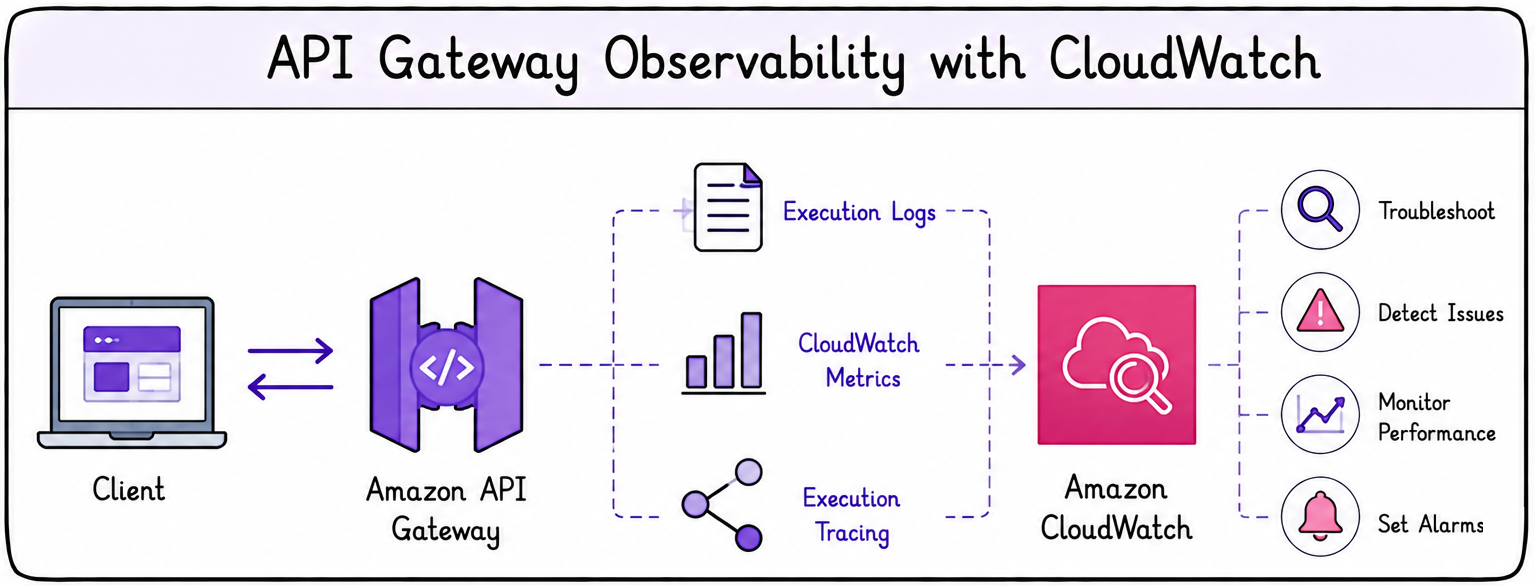

Logging

• Execution logs and CloudWatch metrics are key troubleshooting tools
• API Gateway integrates with CloudWatch for:
  • Logs
  • Metrics
  • Execution tracing





Logging

• CloudWatch logs help you troubleshoot:
  • Failed integrations
  • Transformation errors
  • Authorization failures
  • Lambda execution issues





Stages: managing APIs across environments



• One API definition serves multiple environments
• Stages are how API Gateway manages those environments

Stages: managing APIs across environments



• One API definition serves multiple environments
• Stages are how API Gateway manages those environments
• A stage is a named reference
• Points to a deployment snapshot of your API config

Stages: managing APIs across environments



• One API definition serves multiple environments
• Stages are how API Gateway manages those environments
• A stage is a named reference
• Points to a deployment snapshot of your API config
• Common stage names:
  • Dev
  • Test
  • QA and Prod

Stages: managing APIs across environments



• One API definition serves multiple environments
• Stages are how API Gateway manages those environments
• A stage is a named reference
• Points to a deployment snapshot of your API config
• Common stage names: Dev, Test, QA, Prod
• The invoke URL reflects each stage

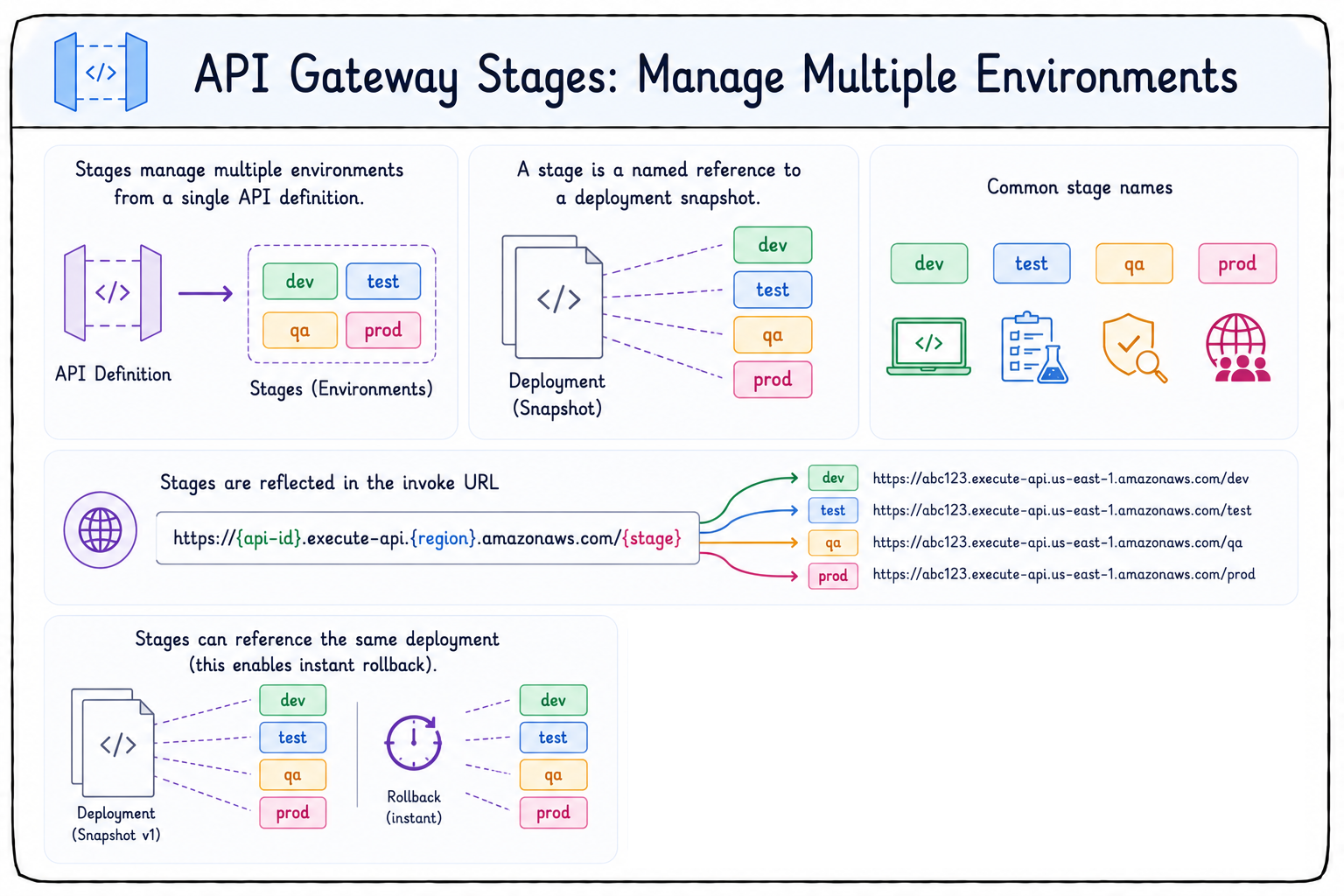

Stages: managing APIs across environments



• One API definition serves multiple environments
• Stages are how API Gateway manages those environments
• A stage is a named reference
• Points to a deployment snapshot of your API config
• Common stage names: Dev, Test, QA, Prod
• The invoke URL reflects each stage
• Multiple stages can point to one deployment for instant rollback

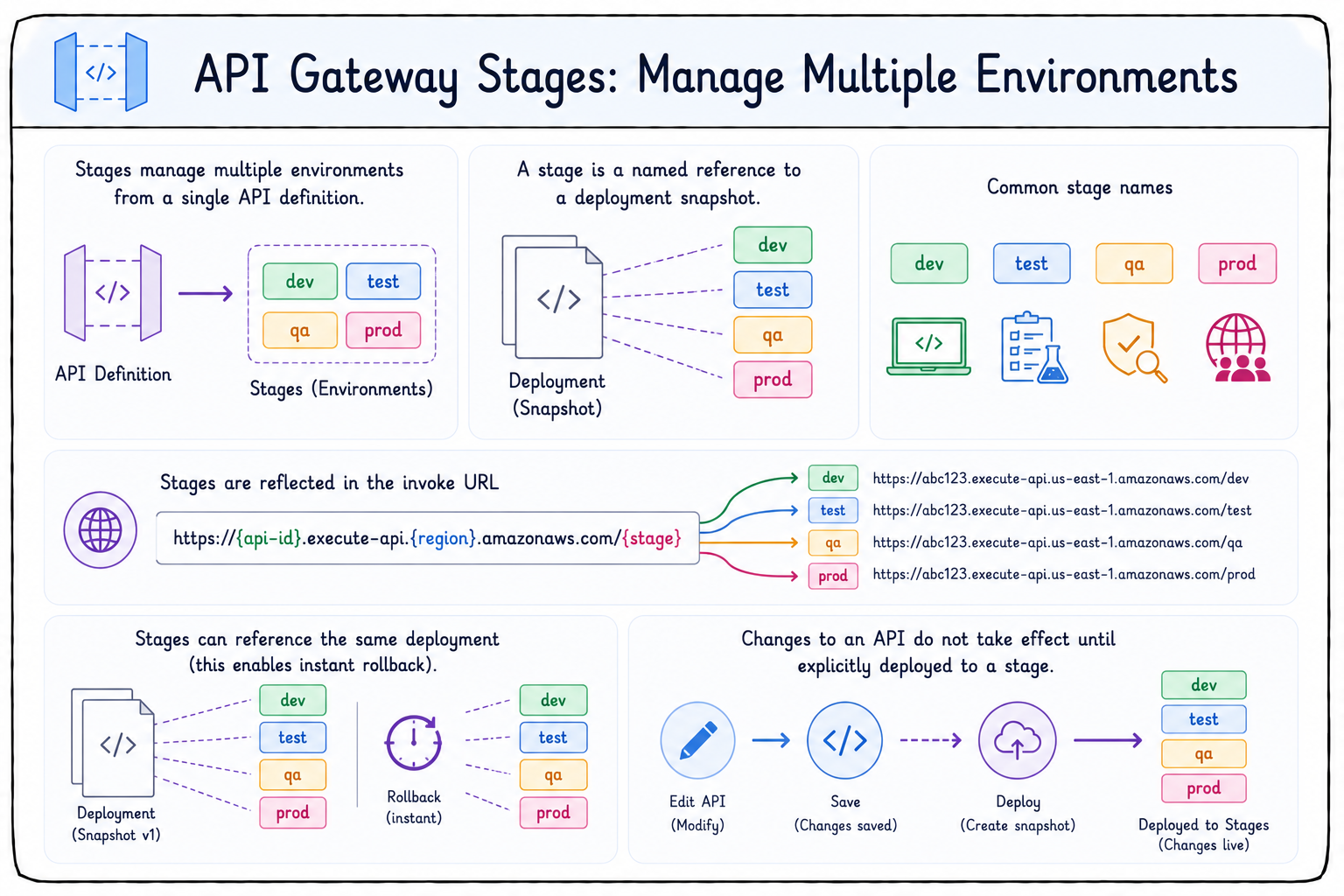

Stages: managing APIs across environments



• Changes go live only once deployed to a stage

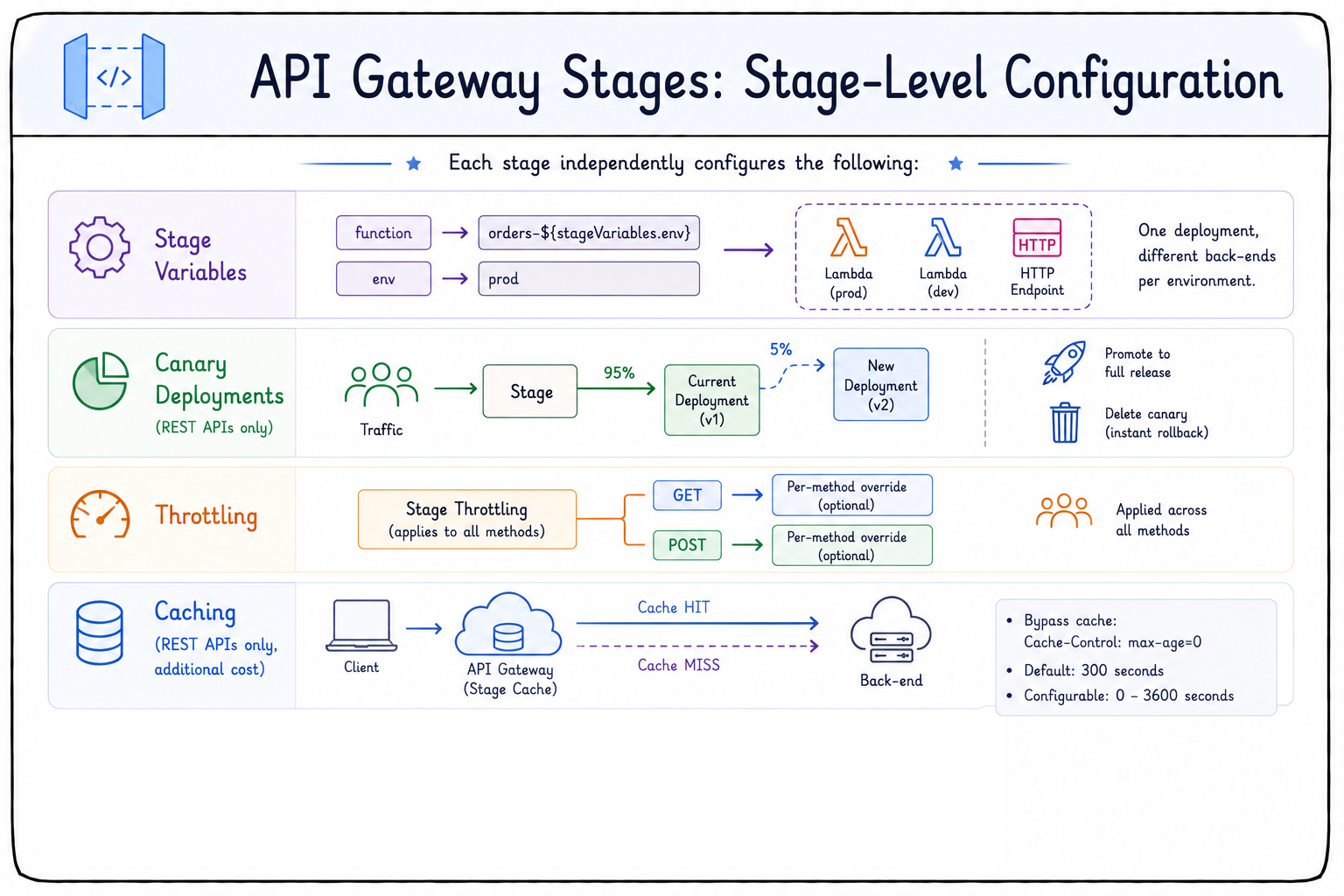

Stages capabilities

• Each stage is configured independently
• Configuration includes stage variables
• Stage variables are key-value pairs
• Route one deployment to different back-ends
• No redeployment needed for environment changes



Stages capabilities

• Canary deployments
  • REST APIs only
  • Send a percentage of traffic to a new deployment
  • Promote to full release
  • Delete the canary to roll back



Stages capabilities

• Throttling
  • Set at the stage level
  • Applies to all methods, with per-method overrides



Stages capabilities

• Throttling
  • Set at the stage level
  • Applies to all methods, with per-method overrides
• Caching
  • REST APIs only
  • Stores back-end responses at the stage
  • Clients bypass with Cache-Control
  • TTL from 0 to 3600 seconds, default 300

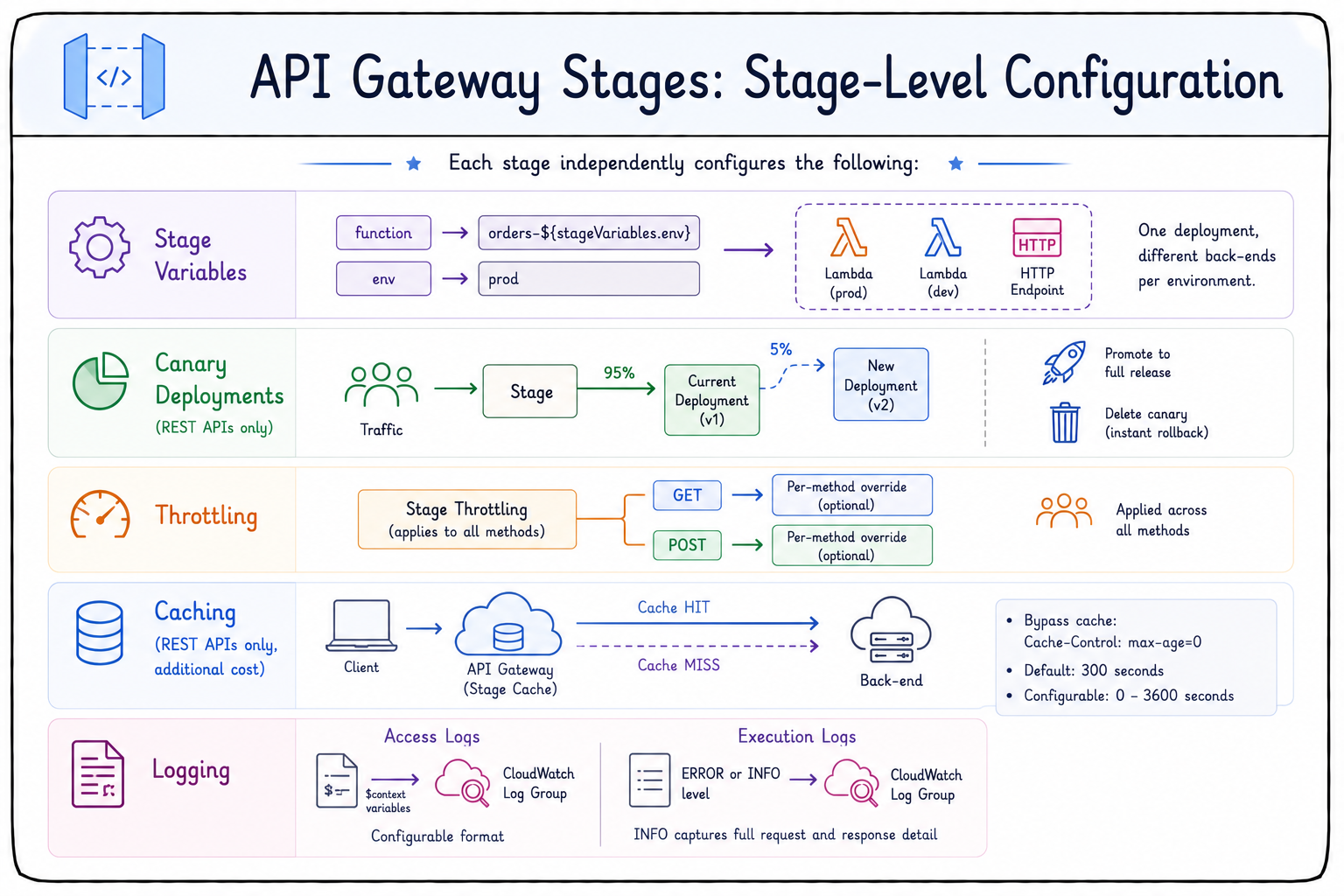

Stages capabilities

• Logging offers two modes
  • Access logs
  • Built from $context variables, sent to a CloudWatch log group
  • Execution logs
  • Capture full request and response detail



Let's practice!
