SNS and SQS integration with CloudWatch

Monitoring and troubleshooting AWS

John Q. Martin

Principal Consultant

Connecting CloudWatch alarms to SNS

aws cloudwatch put-metric-alarm \
  --alarm-name HighCPUUtilization \
  --metric-name CPUUtilization \
  --namespace AWS/EC2 \
  --statistic Average \
  --period 300 \
  --evaluation-periods 2 \
  --threshold 80 \
  --comparison-operator GreaterThanThreshold \
  --alarm-actions arn:aws:sns:us-east-1:123456789012:production-alerts \
  --ok-actions arn:aws:sns:us-east-1:123456789012:recovery-notifications

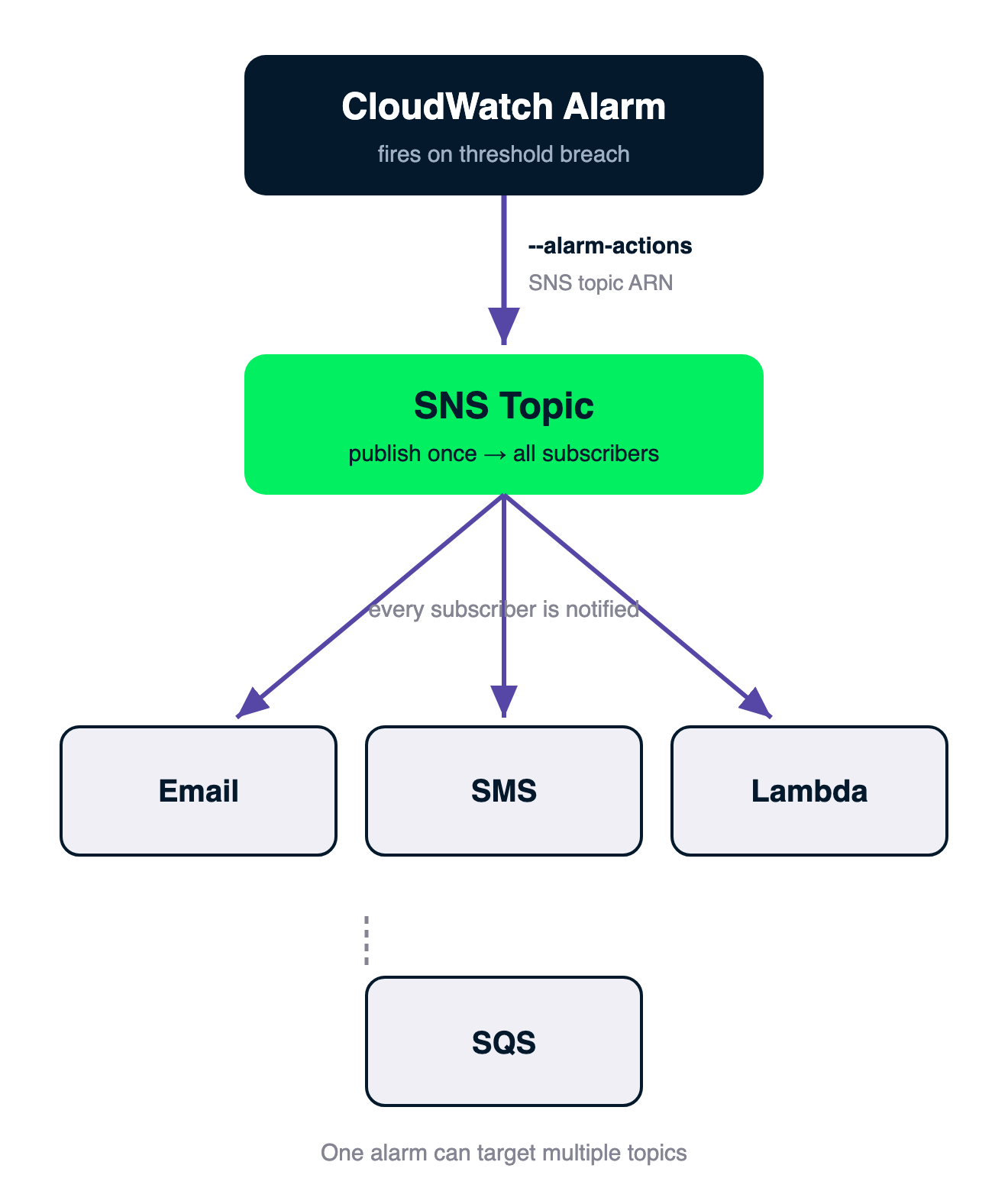

Flow: a CloudWatch Alarm sends via --alarm-actions to an SNS topic, which fans out to subscribers — Email, SMS, Lambda, and SQS

Core SNS Concepts

Components

SNS is publisher/subscriber: topics, publishers, subscribers
Topic: named channel; publishers send, subscribers receive
Publish once, delivered simultaneously to all subscribers

Subscriber protocols (one topic, many endpoints):

Email, SMS
HTTP / HTTPS
Lambda, SQS
Mobile push, Kinesis Firehose

SNS topic types

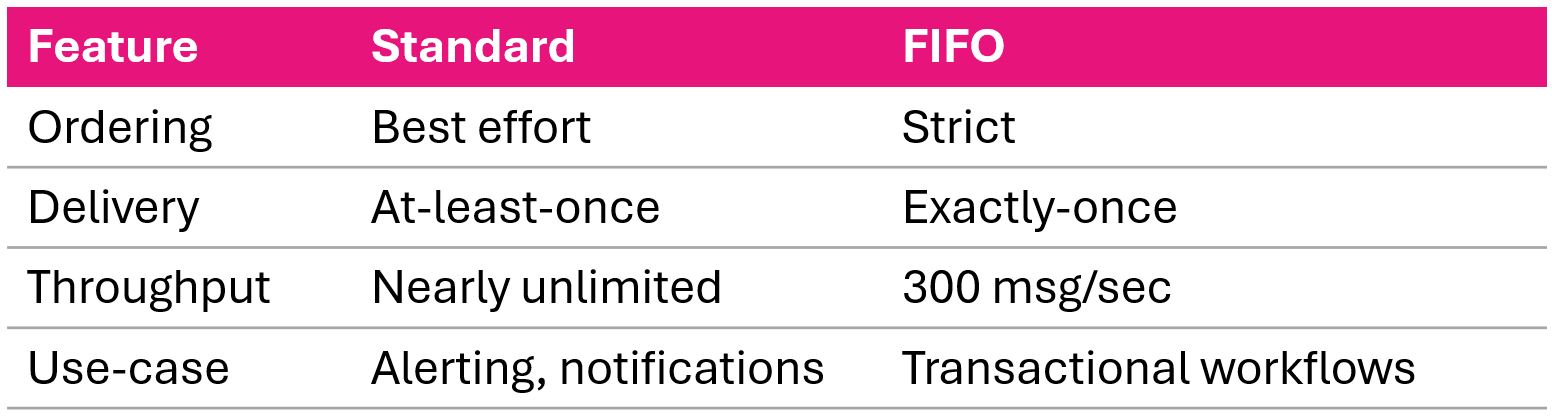

Comparison of SNS Standard and FIFO topic types by ordering throughput and delivery guarantees

Creating SNS topics: AWS CLI

Standard topic

aws sns create-topic \
  --name production-alerts

FIFO topic

aws sns create-topic \
  --name production-alerts.fifo \
  --attributes FifoTopic=true,\
    ContentBasedDeduplication=true

With encryption

aws sns create-topic \
  --name production-alerts \
  --attributes KmsMasterKeyId=alias/aws/sns

Adding Lambda and SMS subscribers

Lambda

aws sns subscribe \
  --topic-arn arn:aws:sns:us-east-1:123456789012:production-alerts \
  --protocol lambda \
  --notification-endpoint arn:aws:lambda:us-east-1:123456789012:function:ProcessAlert

SMS

aws sns subscribe \
  --topic-arn arn:aws:sns:us-east-1:123456789012:critical-alerts \
  --protocol sms \
  --notification-endpoint +1234567890

SNS message format from CloudWatch alarms

{
  "AlarmName": "HighCPUUtilization",
  "NewStateValue": "ALARM",
  "OldStateValue": "OK",
  "NewStateReason": "Threshold Crossed: 2 datapoints [85.0, 90.0] were greater than the threshold (80.0).",
  "StateChangeTime": "2026-03-27T10:30:45.123+0000",
  "Trigger": {
    "MetricName": "CPUUtilization",
    "Namespace": "AWS/EC2",
    "Statistic": "AVERAGE",
    "Period": 300,
    "Threshold": 80.0,
    "ComparisonOperator": "GreaterThanThreshold"
  }
}

SNS message filtering

aws sns set-subscription-attributes \
  --subscription-arn arn:aws:sns:...:production-alerts:abc123 \
  --attribute-name FilterPolicy \
  --attribute-value '{"AlarmName":["HighCPUUtilization"],"NewStateValue":["ALARM"]}'

aws sns set-subscription-attributes \
  --subscription-arn arn:aws:sns:...:production-alerts:abc123 \
  --attribute-name FilterPolicyScope \
  --attribute-value MessageBody

Custom notification formatting with Lambda

def lambda_handler(event, context):
    alarm = json.loads(event['Records'][0]['Sns']['Message'])

    message = f"""
ALERT: {alarm['AlarmName']}
Status: {alarm['NewStateValue']}
Reason: {alarm['NewStateReason']}
Resource: {alarm['Trigger']['Dimensions'][0]['value']}
Runbook: https://wiki.example.com/runbooks/high-cpu
    """

    sns.publish(
        TopicArn='arn:aws:sns:...:formatted-alerts',
        Subject=f"{alarm['AlarmName']}",
        Message=message
    )

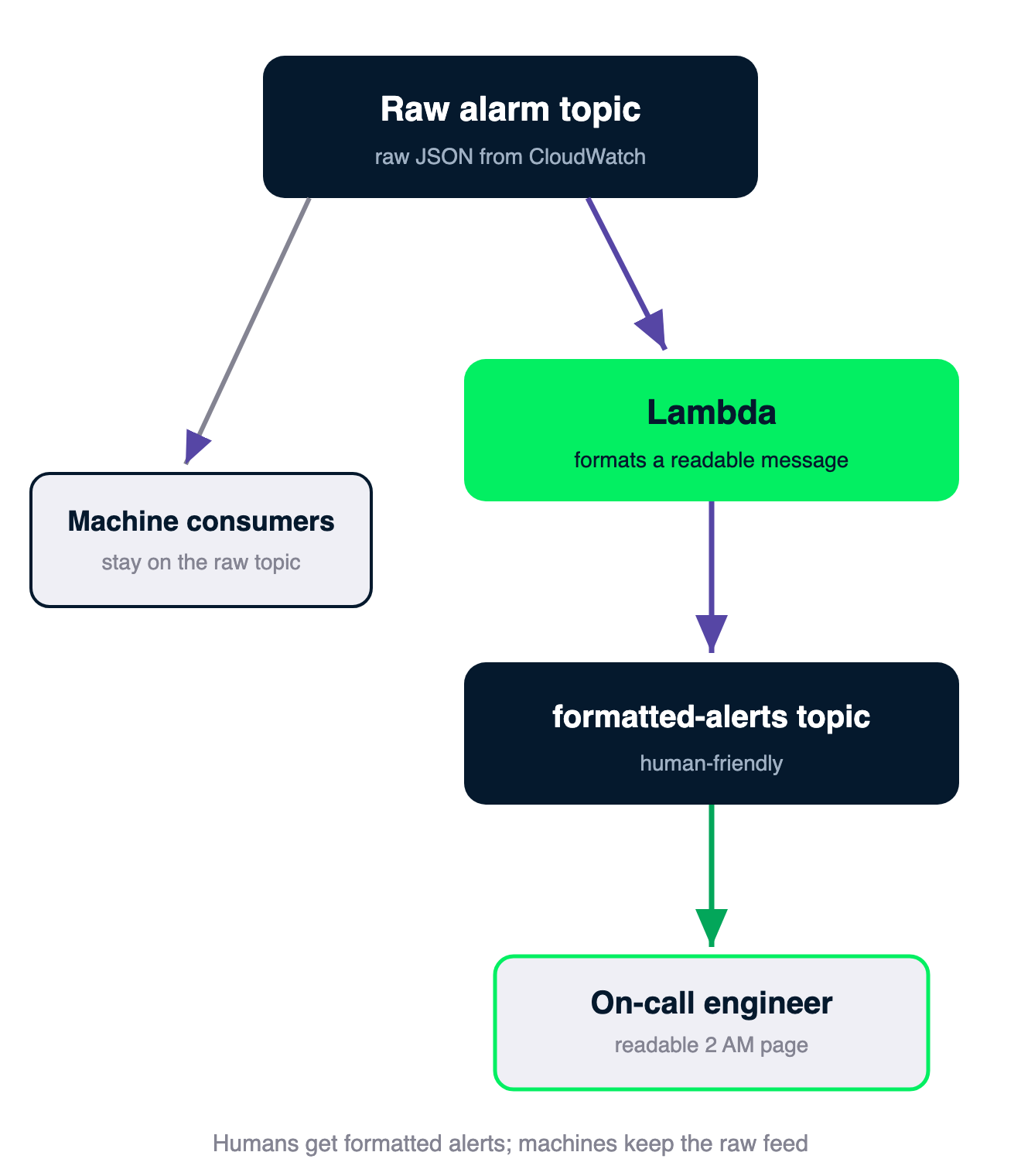

Chain: the raw alarm topic feeds a Lambda that formats a readable message and publishes to the formatted-alerts topic for the on-call engineer, while machine consumers stay on the raw topic

Fan out architecture with SQS

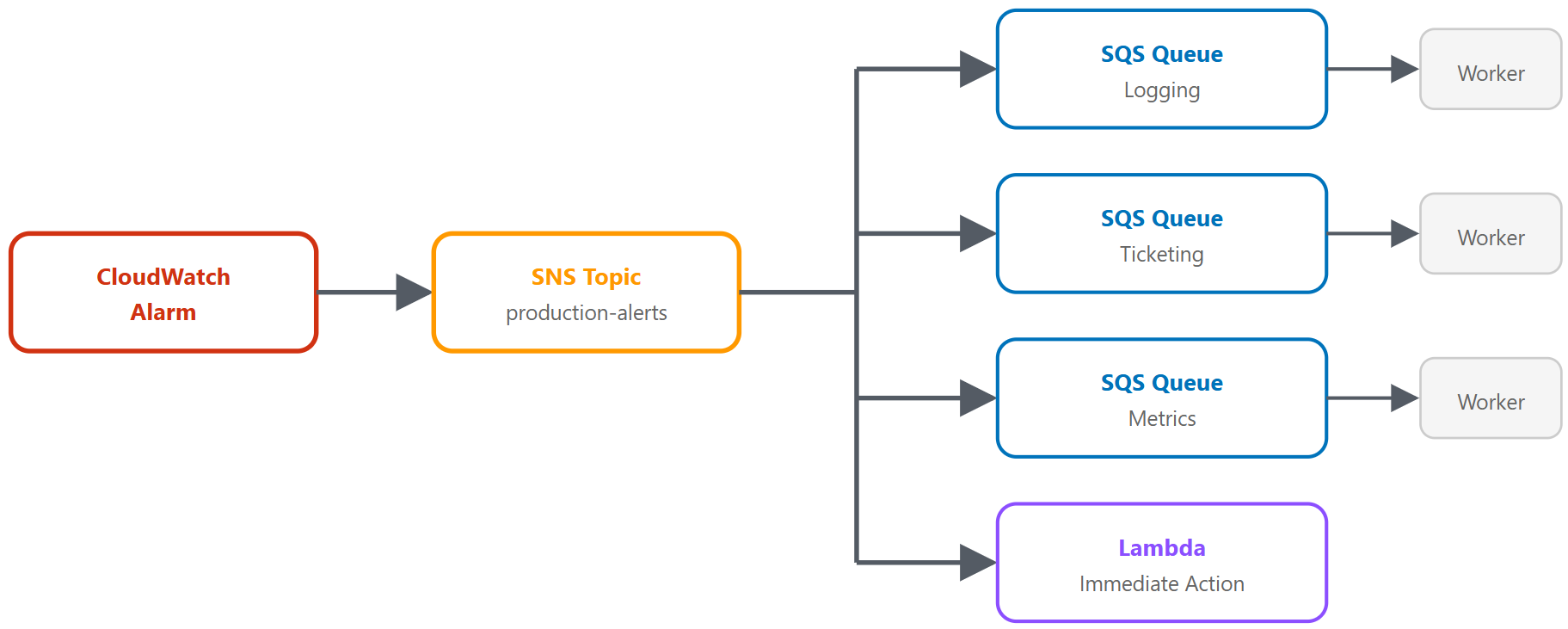

Fan out architecture where one SNS message delivers to multiple SQS queues and a Lambda consumer

Setting Up Fan-Out

Four steps

Create SQS queues (one per consumer)
Configure queue policies (allow SNS to send messages)
Subscribe queues to the SNS topic
Build consumers (poll, process, delete)

Queue policy

{
  "Effect": "Allow",
  "Principal": { "Service": "sns.amazonaws.com" },
  "Action": "sqs:SendMessage",
  "Resource": "arn:aws:sqs:...:alarm-logging-queue",
  "Condition": {
    "ArnEquals": {
      "aws:SourceArn": "arn:aws:sns:...:production-alerts"
    }
  }
}

Subscribing Queues

aws sns subscribe \
  --topic-arn arn:aws:sns:...:production-alerts \
  --protocol sqs \
  --notification-endpoint arn:aws:sqs:...:alarm-logging-queue

Processing Messages

Consumer pattern

response = sqs.receive_message(
    QueueUrl=queue_url,
    MaxNumberOfMessages=10,
    WaitTimeSeconds=20       # Long polling
)
for message in response.get('Messages', []):
    sns_msg = json.loads(message['Body'])
    alarm = json.loads(sns_msg['Message'])
    # Process alarm data
    sqs.delete_message(QueueUrl=queue_url,
                       ReceiptHandle=message['ReceiptHandle'])

Fan-Out with filtering and dead letter queues

Targeted delivery per subscription

Ticketing queue: {"NewStateValue":["ALARM"],"Severity":["Critical"]}
Logging queue: no filter (receives everything)
Metrics queue: {"MessageType":["Metric"]}

Dead letter queues (DLQ)

aws sqs set-queue-attributes \
  --queue-url https://sqs..../alarm-logging-queue \
  --attributes '{
    "RedrivePolicy": "{\"deadLetterTargetArn\":\"arn:aws:sqs:...:alarm-logging-dlq\",\"maxReceiveCount\":\"3\"}"
  }'

SNS vs. SQS: When to Use Each

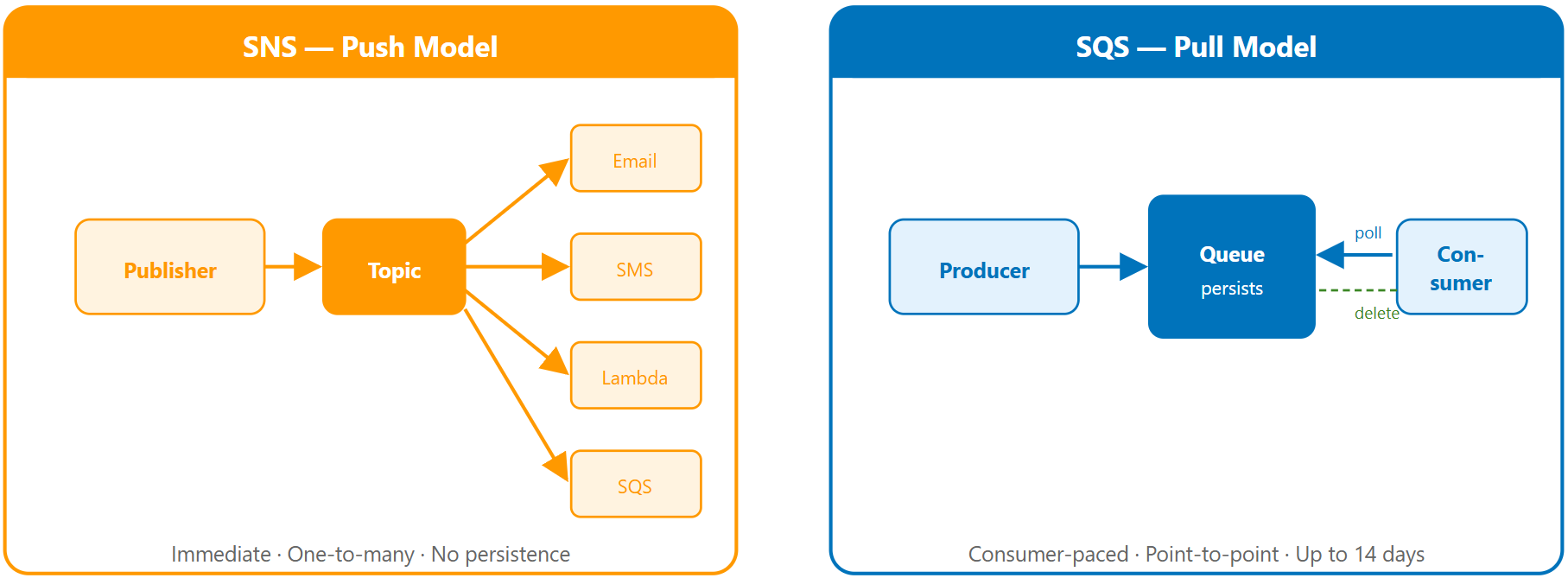

Comparison of SNS push based delivery versus SQS pull based message queuing

Architecture examples

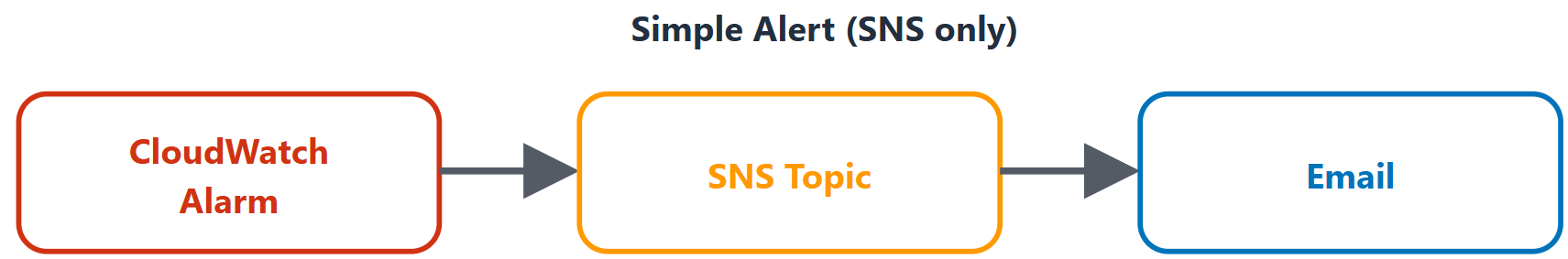

Simple alert pattern sending an SNS notification to email

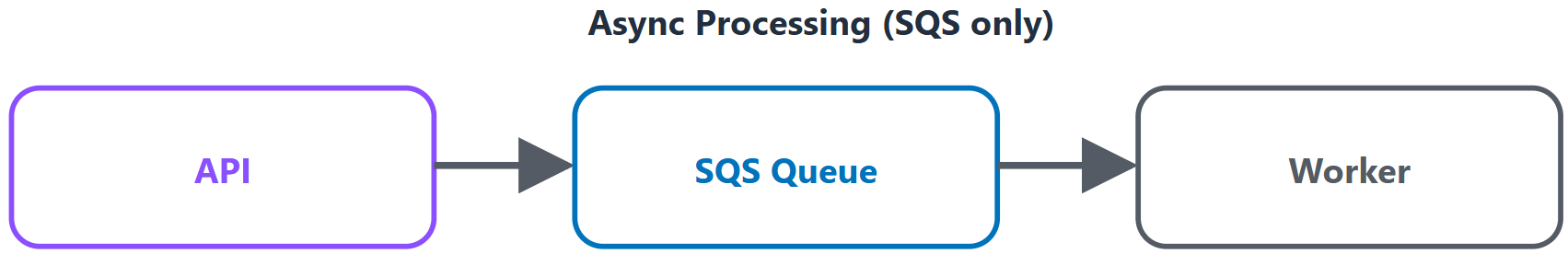

Async processing pattern with an API sending to an SQS queue consumed by a worker

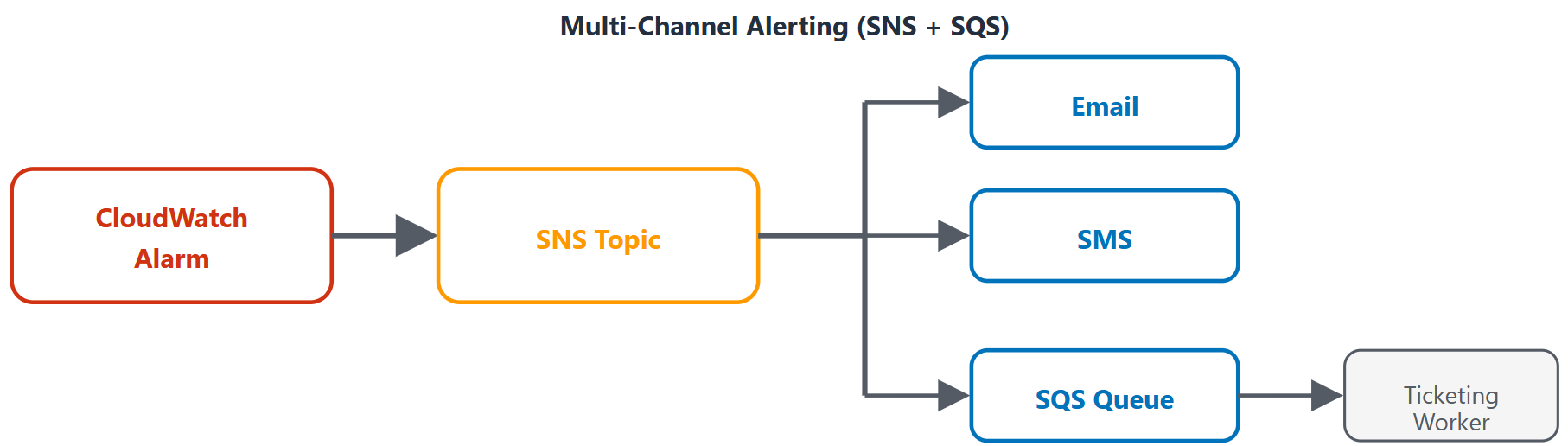

Multi channel alerting pattern where one alarm fans out to several notification channels

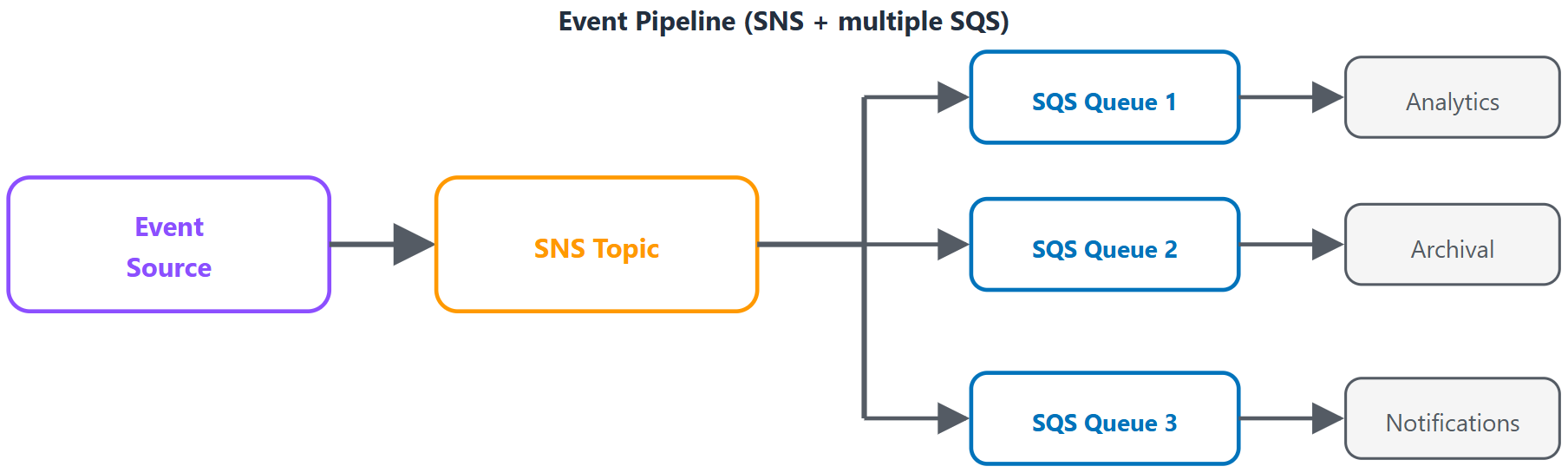

Event pipeline pattern routing a source event to multiple SQS queues for processing

Video summary

SNS topics deliver alarm notifications via email, SMS, HTTP, Lambda, and SQS
Fan-out pattern: one SNS message → multiple SQS queues for parallel, reliable processing
Message filtering reduces noise per subscriber
Dead letter queues catch failed messages
SNS for push notifications, SQS for reliable processing, both for fan-out with reliability
