API Gateway stages and runtime configuration

Automating Deployments on AWS

Dunieski Otano

Amazon Web Services Solutions Architect

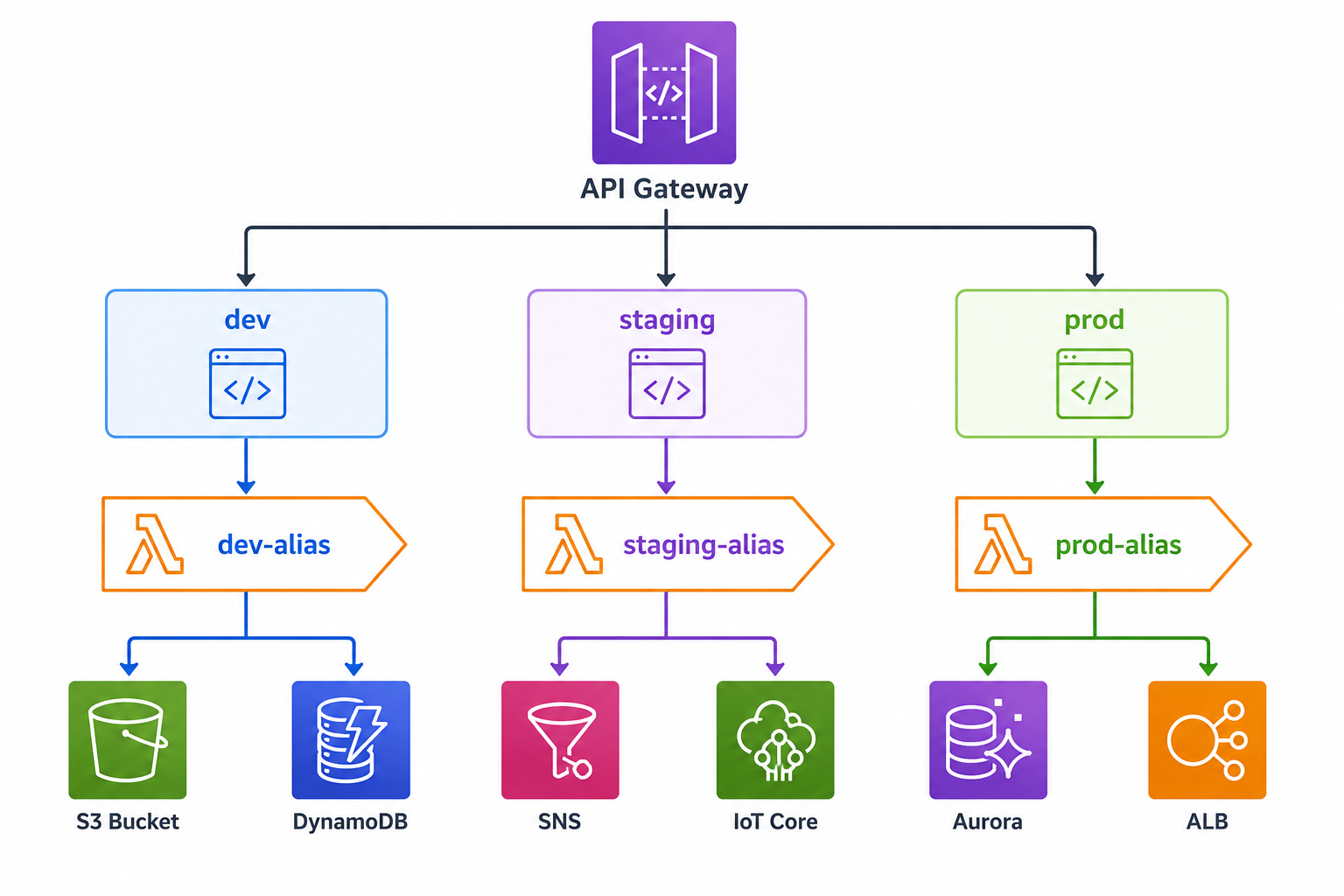

Three URLs, one API

url

  • Same checkout API needs dev, staging, and prod
  • Each environment hits different downstream resources
  • Hardcoding values forces a rebuild per environment
  • Stage variables solve this at runtime
Automating Deployments on AWS

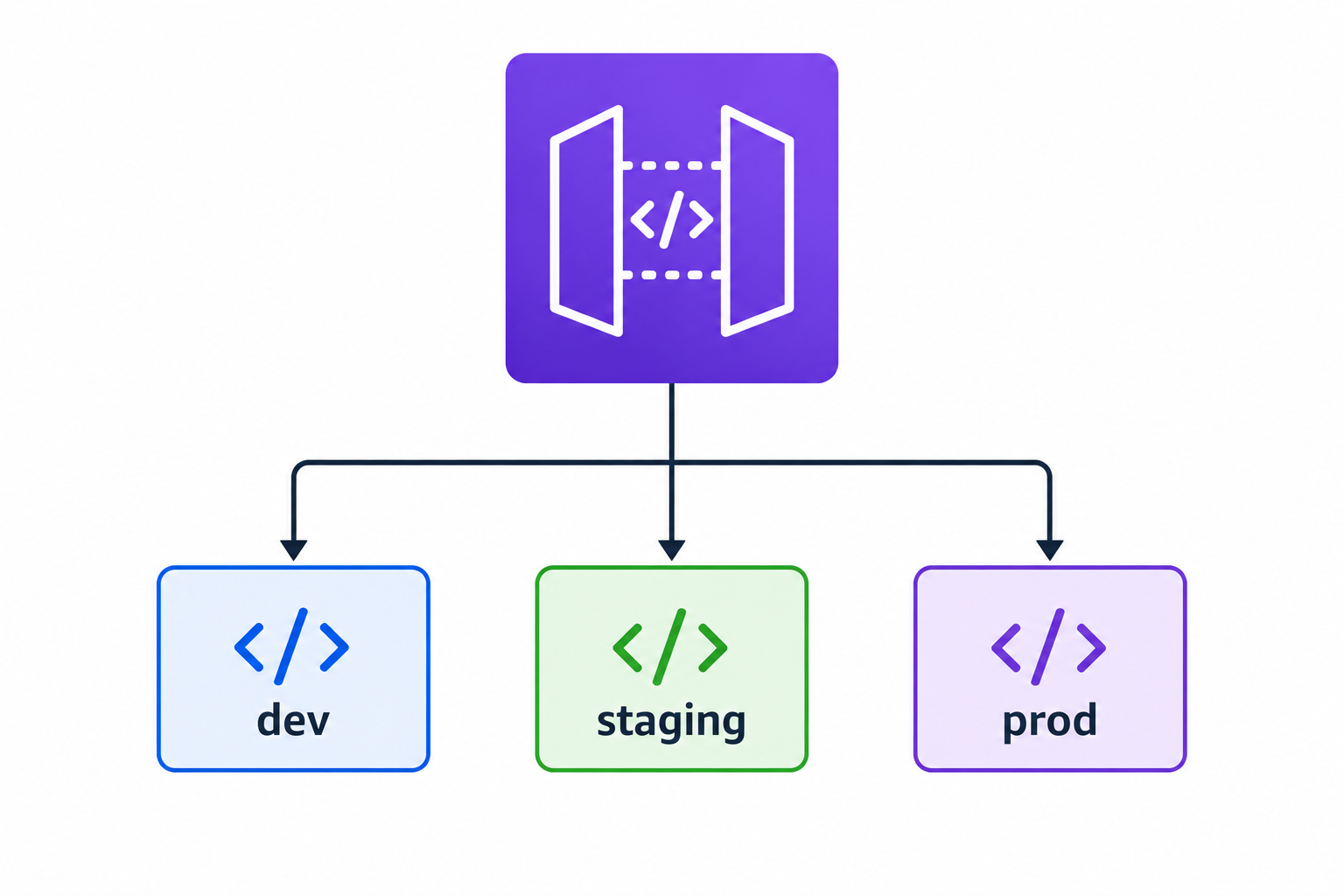

What is an API Gateway stage

api

  • A stage is a deployment of an API
  • Each stage has its own URL
  • Common stages: dev, staging, prod
  • One API definition, many stages
Automating Deployments on AWS

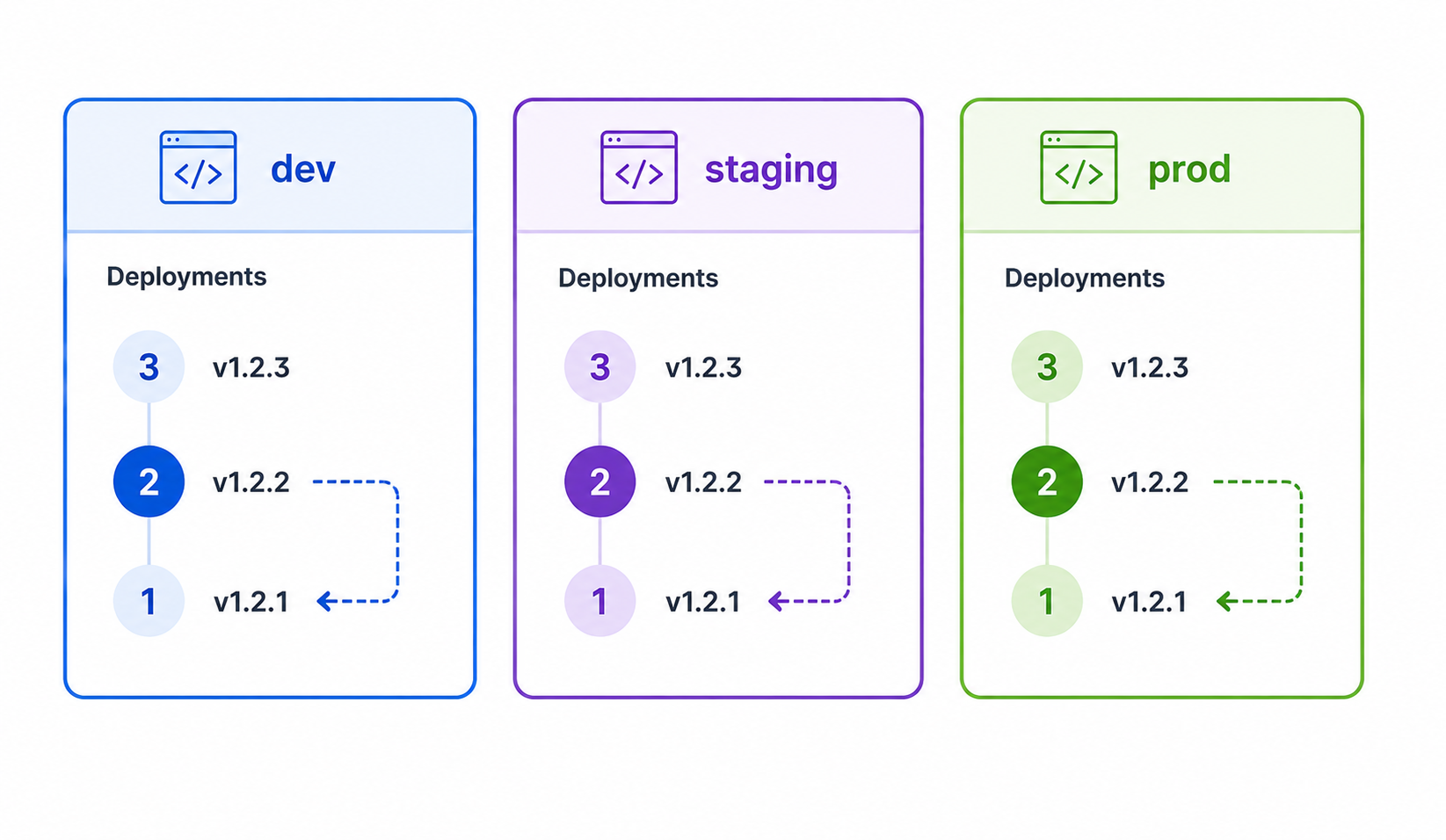

Why stages matter for deployments

stages

  • Test in dev without affecting prod
  • Promote the same API through environments
  • Roll back a stage without touching others
  • Each stage tracks its own deployment history
Automating Deployments on AWS

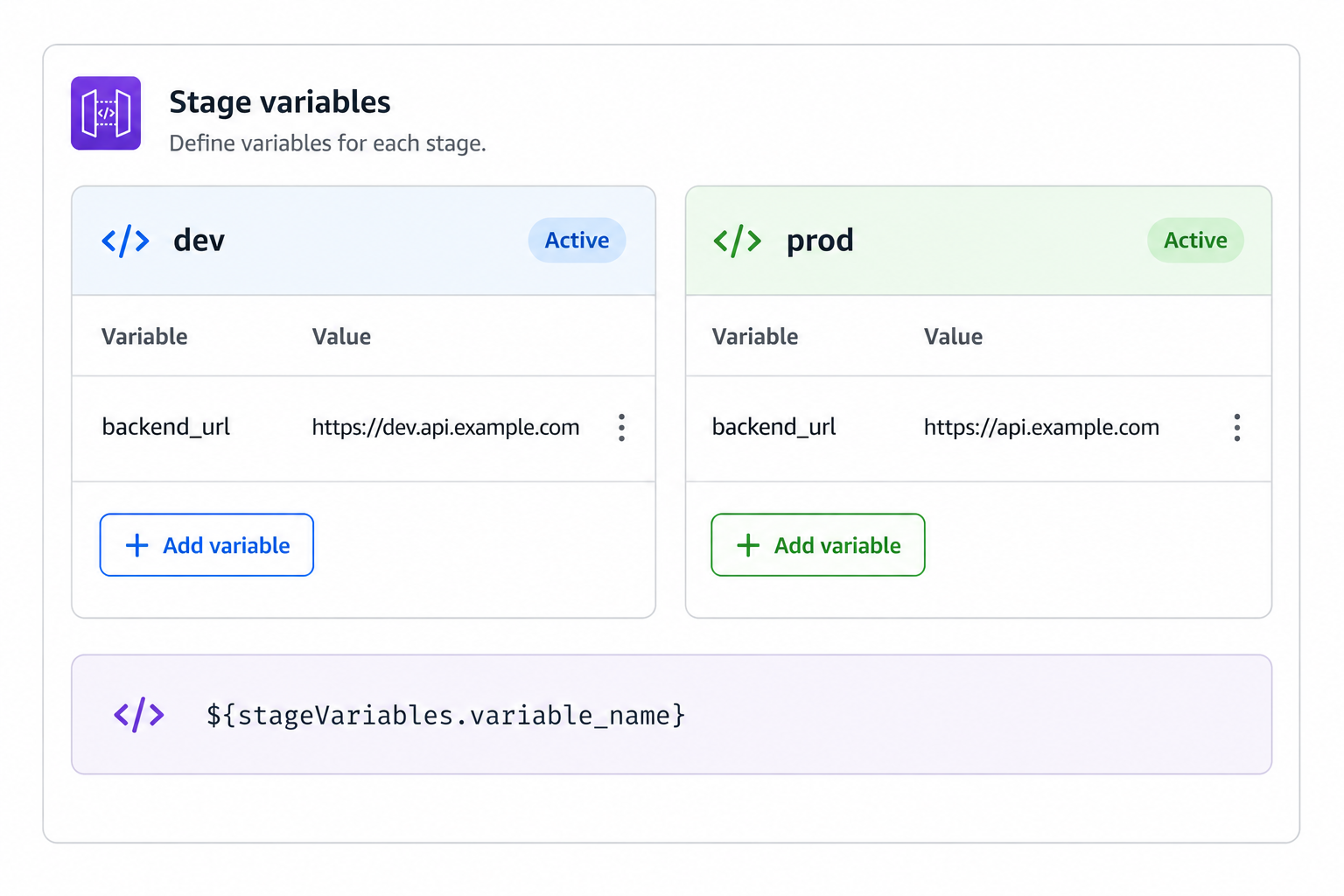

Stage variables

  • Key-value pairs scoped to one stage
  • Reference with ${stageVariables.varName}
  • Use them for per-environment config
  • No code change needed when values differ

variables

Automating Deployments on AWS

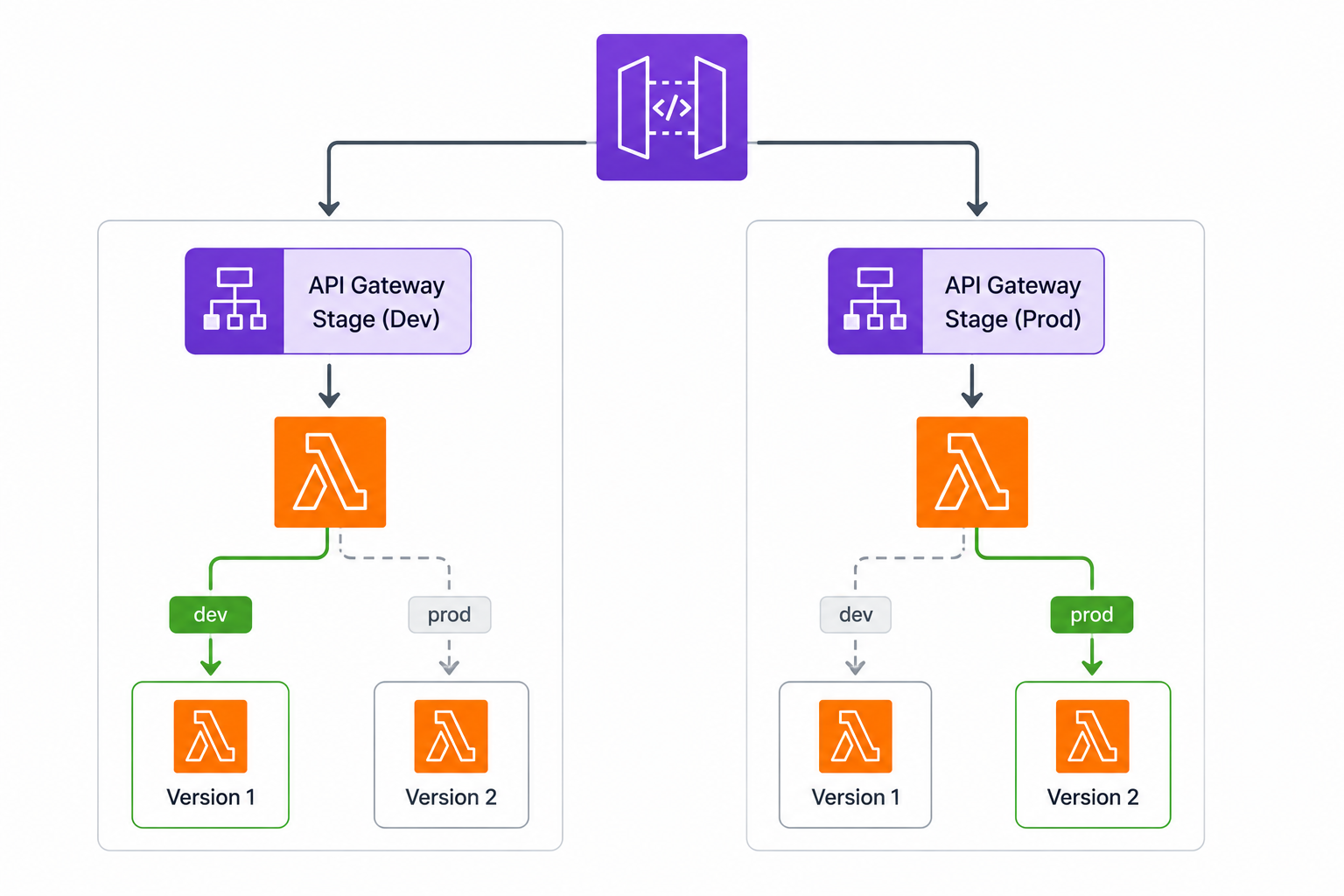

Stage variables in action

  • checkout-api -> dev stage: lambdaAlias = dev
  • checkout-api -> prod stage: lambdaAlias = prod
  • Integration calls payments:${stageVariables.lambdaAlias}
  • One API hits two different Lambda aliases

action

Automating Deployments on AWS

Custom domain names

  • Default URL is ugly: abc123.execute-api.us-east-1.amazonaws.com/dev
  • Custom domain: api.example.com
    • Requires an ACM certificate for TLS
  • Base path mapping ties paths to stages
    • api.example.com/v1 → prod stage

custom

Automating Deployments on AWS

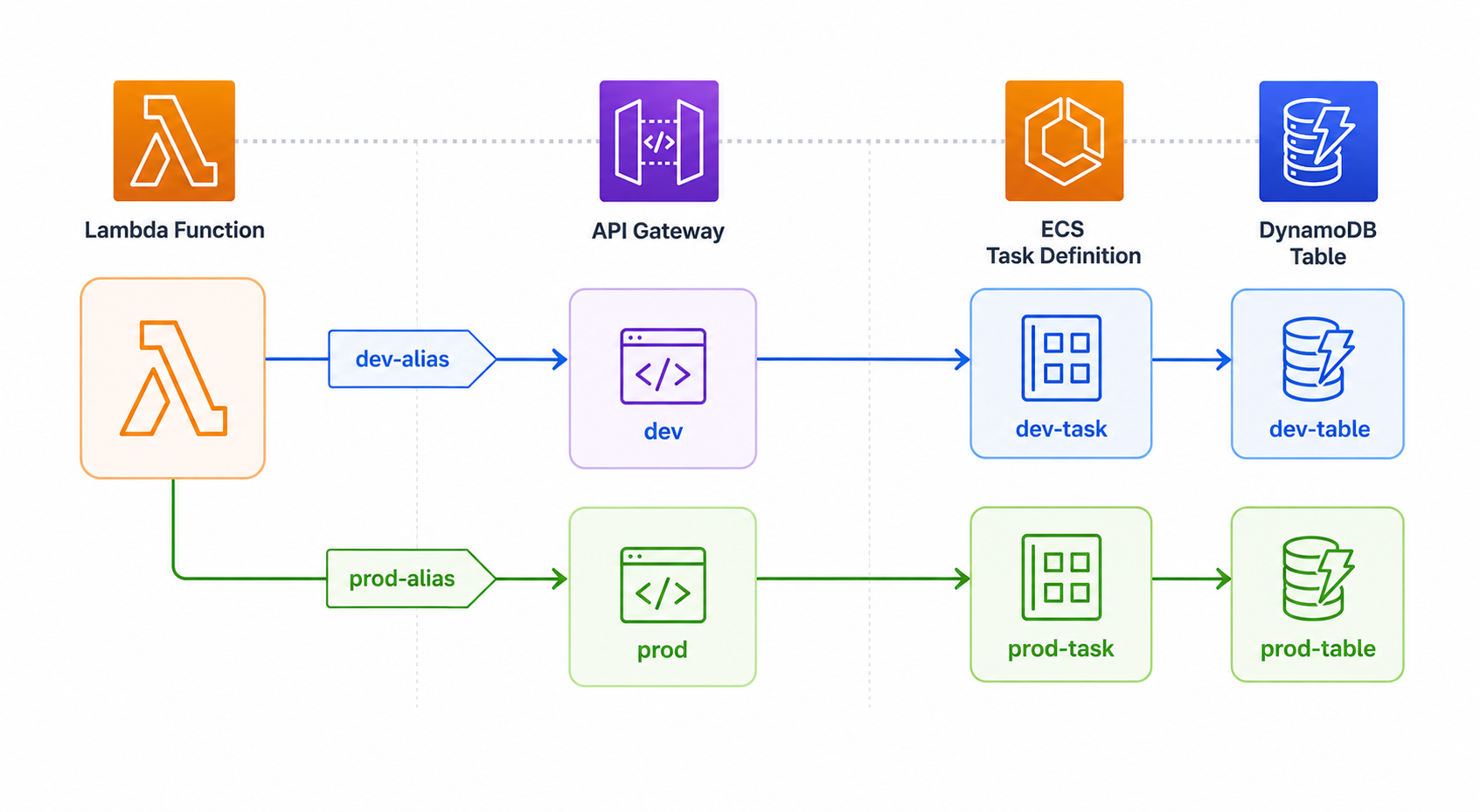

How this ties together

all

  • Stage variables <-> Lambda aliases from video 2.3
  • Same idea for ECS task definition versions and DynamoDB table names
  • Approved versions per environment, no code changes
  • Chapter 3 expands this across services
Automating Deployments on AWS

Let's practice!
