Přizpůsobení

Intermediate Python

Hugo Bowne-Anderson

Data Scientist at DataCamp

Vizualizace dat

Mnoho možností
- Různé typy grafů
- Mnoho přizpůsobení
Volba závisí na
- Datech
- Příběhu, který chcete vyprávět

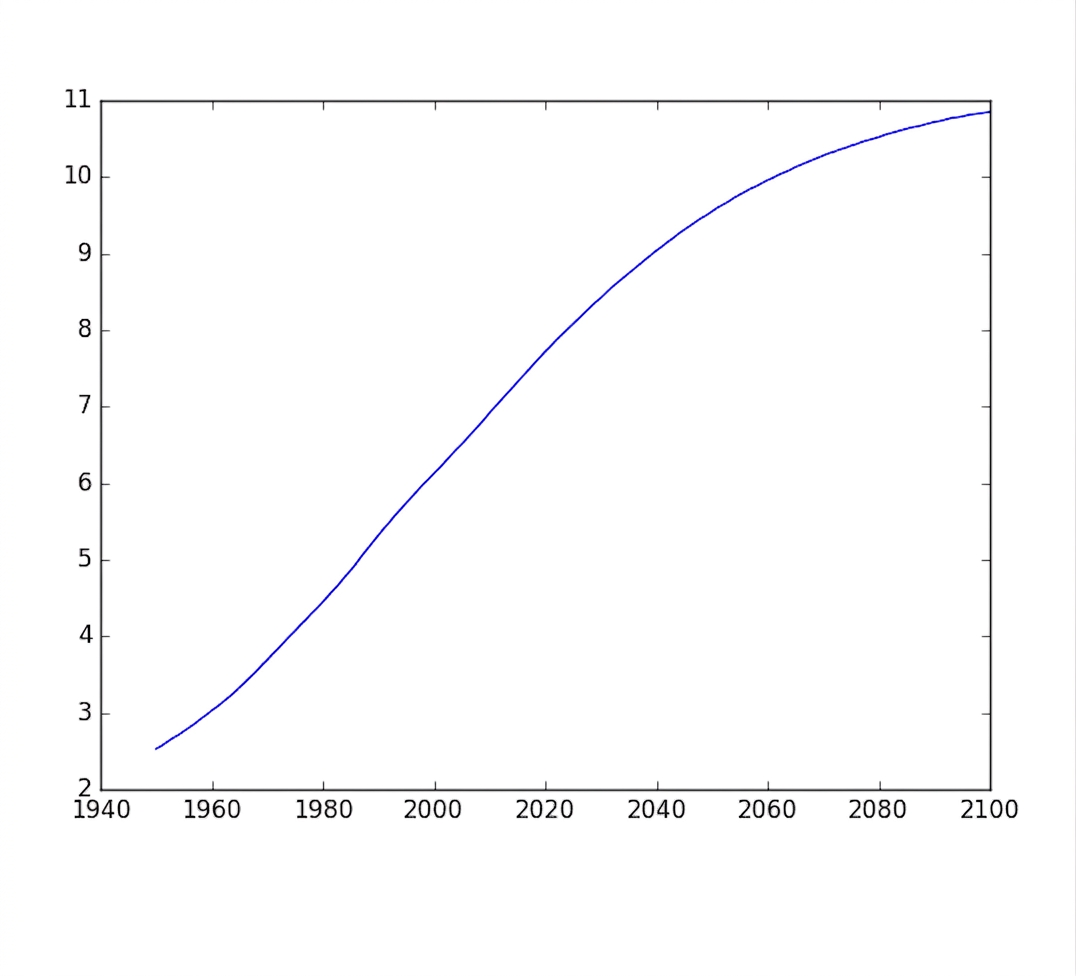

Základní graf

population.py

import matplotlib.pyplot as plt
year = [1950, 1951, 1952, ..., 2100]
pop = [2.538, 2.57, 2.62, ..., 10.85]

plt.plot(year, pop)

plt.show()

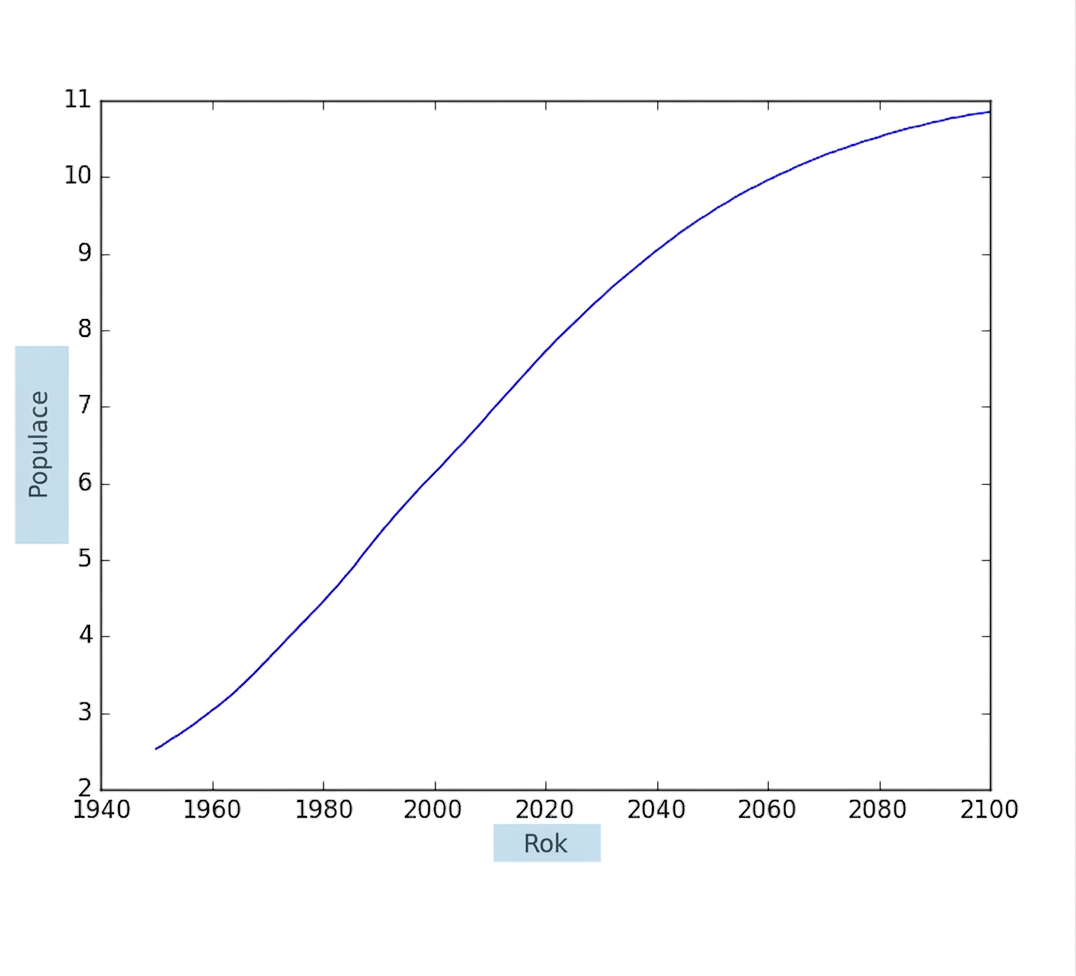

Popisky os

population.py

import matplotlib.pyplot as plt
year = [1950, 1951, 1952, ..., 2100]
pop = [2.538, 2.57, 2.62, ..., 10.85]

plt.plot(year, pop)


plt.xlabel('Year')
plt.ylabel('Population')


plt.show()

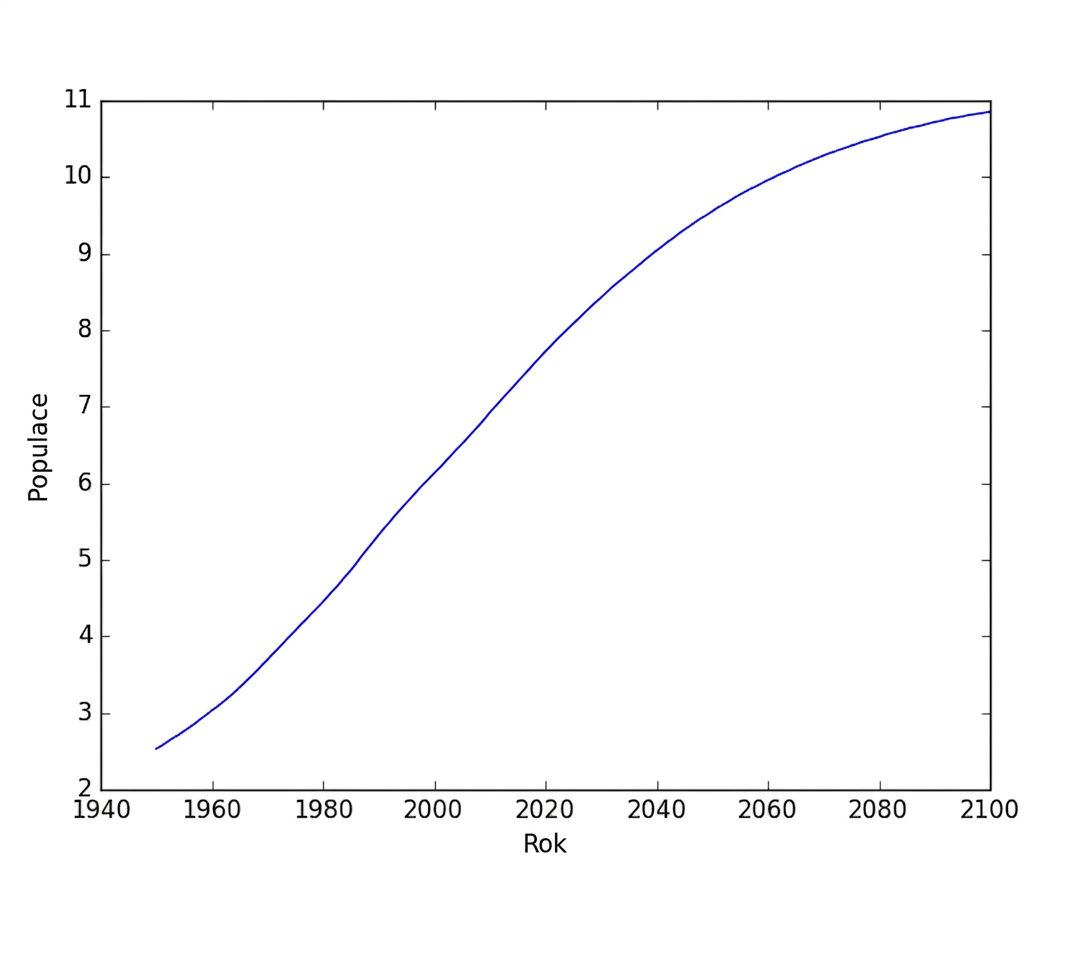

Popisky os

population.py

import matplotlib.pyplot as plt
year = [1950, 1951, 1952, ..., 2100]
pop = [2.538, 2.57, 2.62, ..., 10.85]

plt.plot(year, pop)


plt.xlabel('Year')
plt.ylabel('Population')


plt.show()

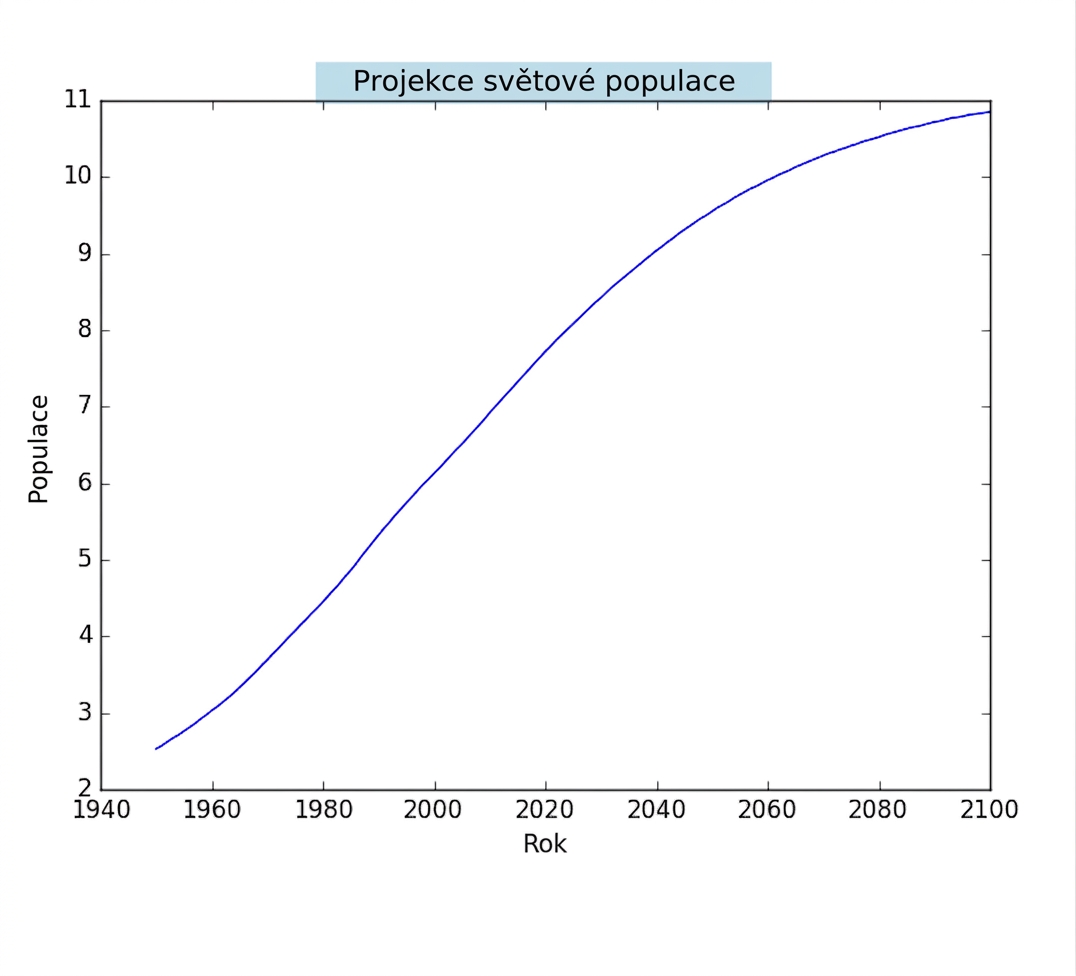

Název

population.py

import matplotlib.pyplot as plt
year = [1950, 1951, 1952, ..., 2100]
pop = [2.538, 2.57, 2.62, ..., 10.85]

plt.plot(year, pop)


plt.xlabel('Year')
plt.ylabel('Population')

plt.title('World Population Projections')


plt.show()

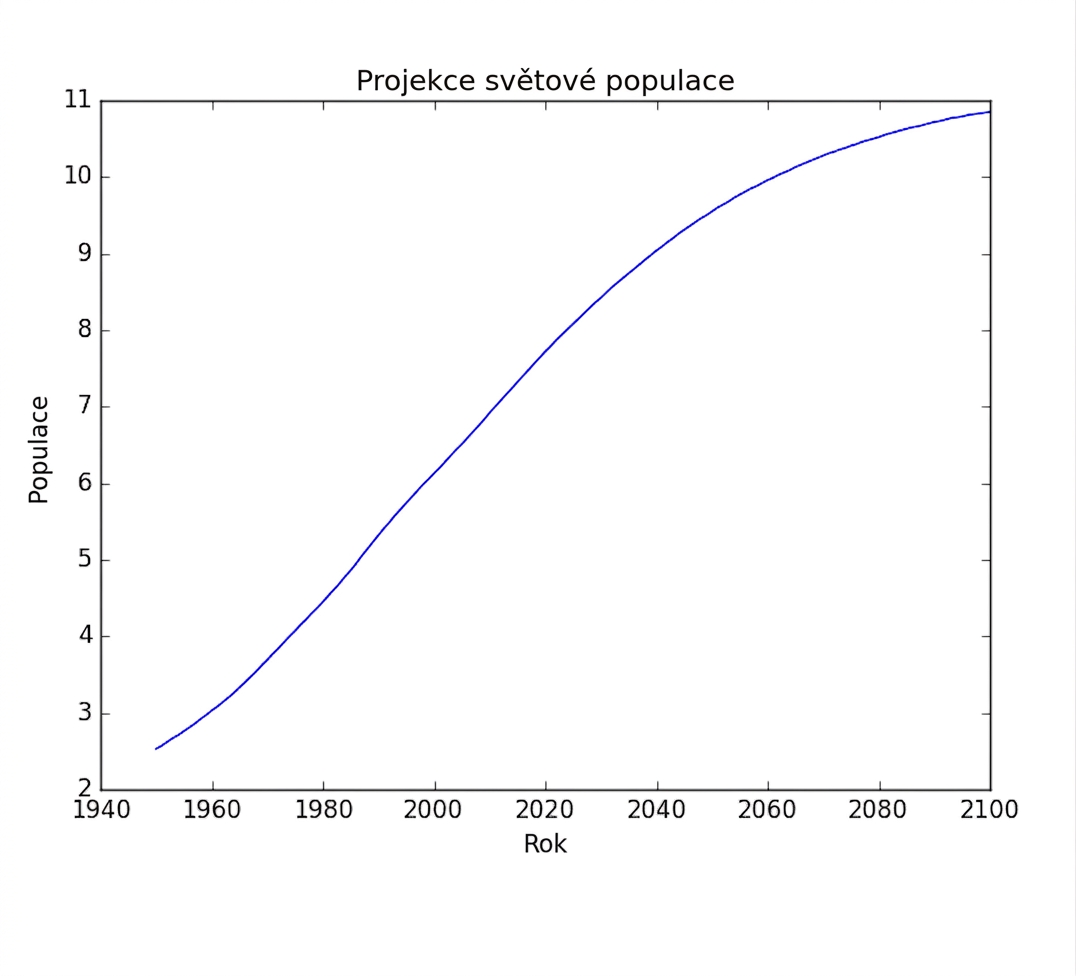

Název

population.py

import matplotlib.pyplot as plt
year = [1950, 1951, 1952, ..., 2100]
pop = [2.538, 2.57, 2.62, ..., 10.85]

plt.plot(year, pop)


plt.xlabel('Year')
plt.ylabel('Population')

plt.title('World Population Projections')


plt.show()

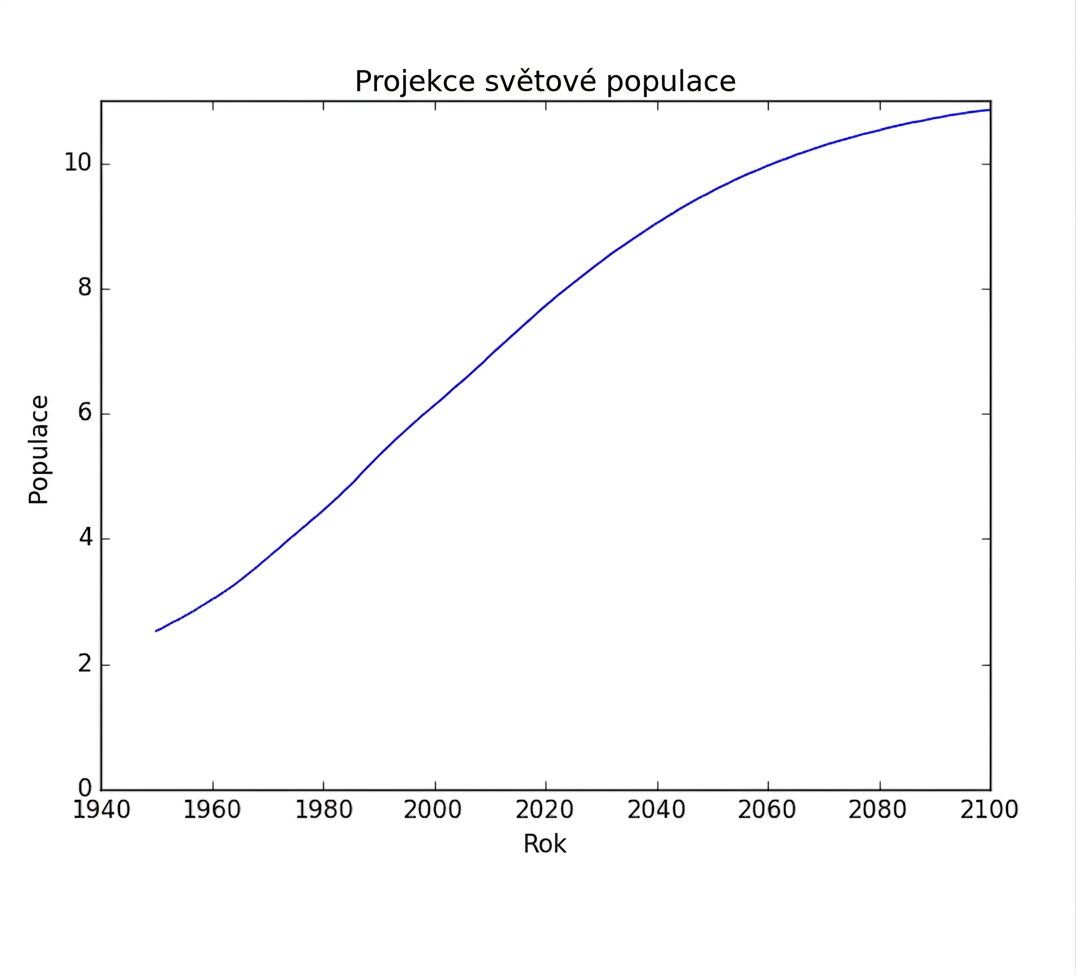

Popisky osy

population.py

import matplotlib.pyplot as plt
year = [1950, 1951, 1952, ..., 2100]
pop = [2.538, 2.57, 2.62, ..., 10.85]

plt.plot(year, pop)


plt.xlabel('Year')
plt.ylabel('Population')

plt.title('World Population Projections')

plt.yticks([0, 2, 4, 6, 8, 10])


plt.show()

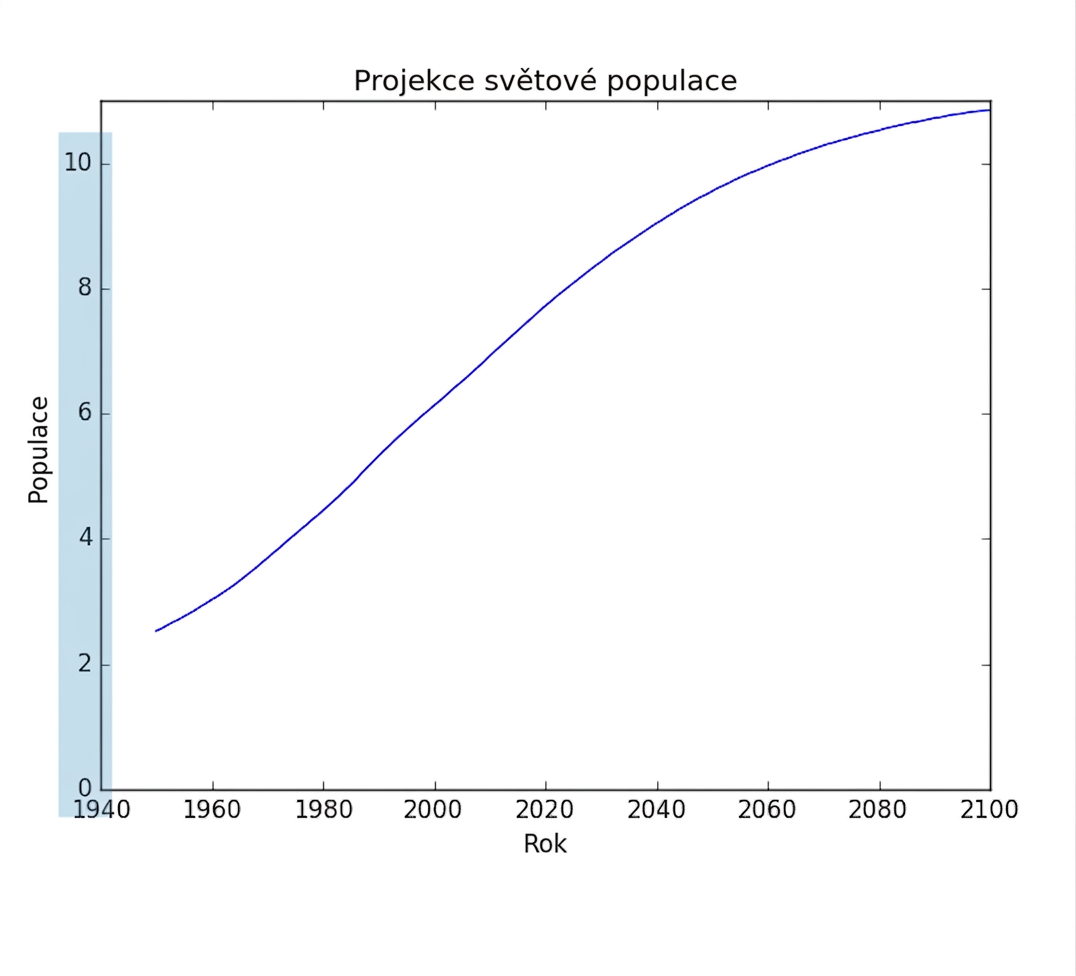

Popisky osy

population.py

import matplotlib.pyplot as plt
year = [1950, 1951, 1952, ..., 2100]
pop = [2.538, 2.57, 2.62, ..., 10.85]

plt.plot(year, pop)


plt.xlabel('Year')
plt.ylabel('Population')

plt.title('World Population Projections')

plt.yticks([0, 2, 4, 6, 8, 10])


plt.show()

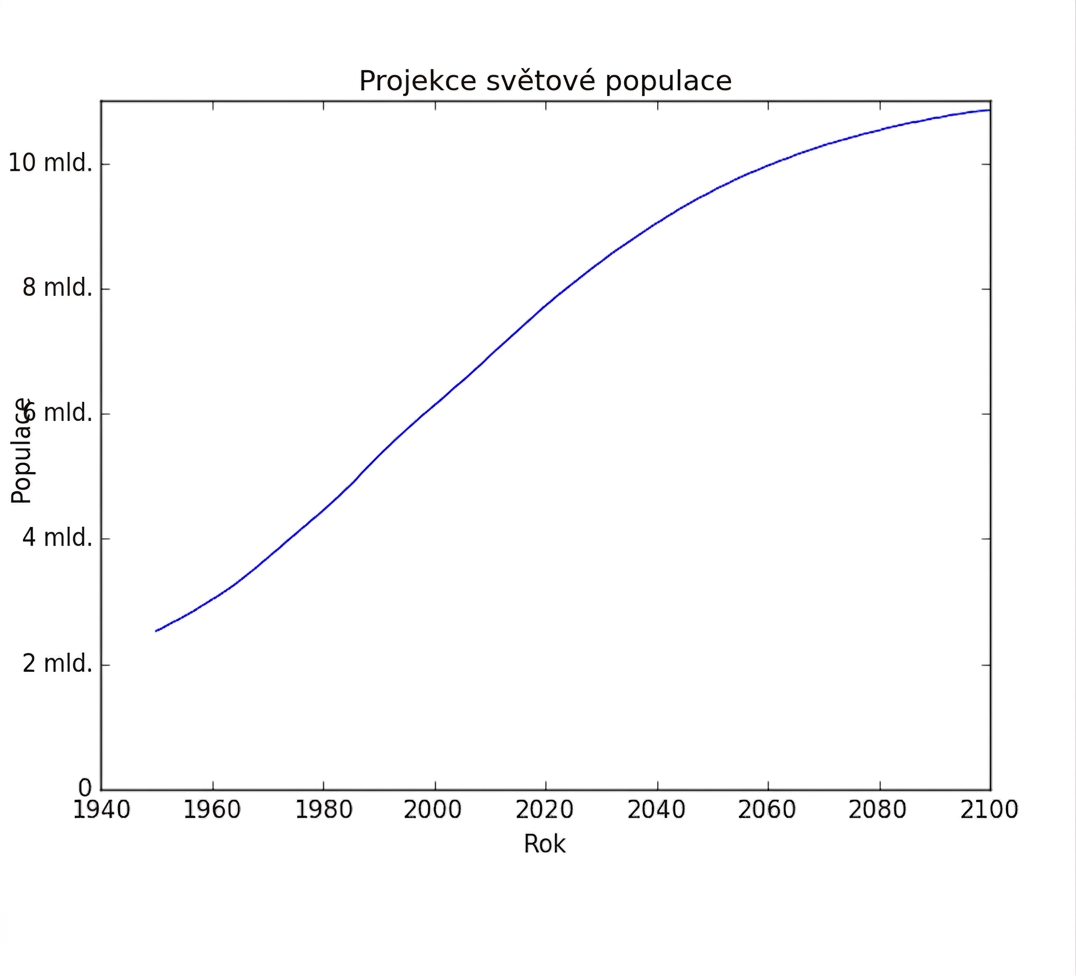

Popisky osy (2)

population.py

import matplotlib.pyplot as plt
year = [1950, 1951, 1952, ..., 2100]
pop = [2.538, 2.57, 2.62, ..., 10.85]

plt.plot(year, pop)


plt.xlabel('Year')
plt.ylabel('Population')

plt.title('World Population Projections')

plt.yticks([0, 2, 4, 6, 8, 10],

           ['0', '2B', '4B', '6B', '8B', '10B'])


plt.show()

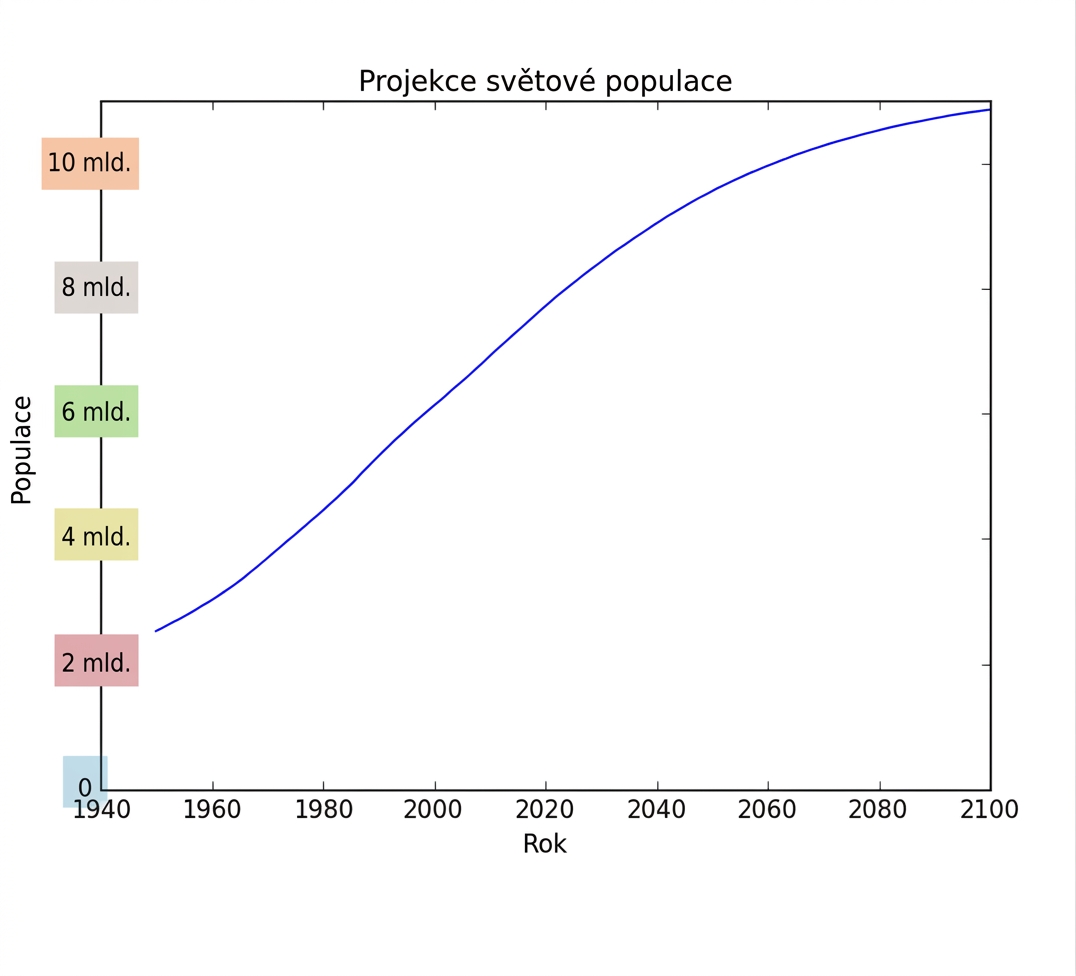

Popisky osy (2)

population.py

import matplotlib.pyplot as plt
year = [1950, 1951, 1952, ..., 2100]
pop = [2.538, 2.57, 2.62, ..., 10.85]

plt.plot(year, pop)


plt.xlabel('Year')
plt.ylabel('Population')

plt.title('World Population Projections')

plt.yticks([0, 2, 4, 6, 8, 10],

           ['0', '2B', '4B', '6B', '8B', '10B'])


plt.show()


Přidání historických dat

population.py

import matplotlib.pyplot as plt
year = [1950, 1951, 1952, ..., 2100]
pop = [2.538, 2.57, 2.62, ..., 10.85]


# Add more data
year = [1800, 1850, 1900] + year
pop = [1.0, 1.262, 1.650] + pop


plt.plot(year, pop)


plt.xlabel('Year')
plt.ylabel('Population')

plt.title('World Population Projections')

plt.yticks([0, 2, 4, 6, 8, 10],

           ['0', '2B', '4B', '6B', '8B', '10B'])


plt.show()

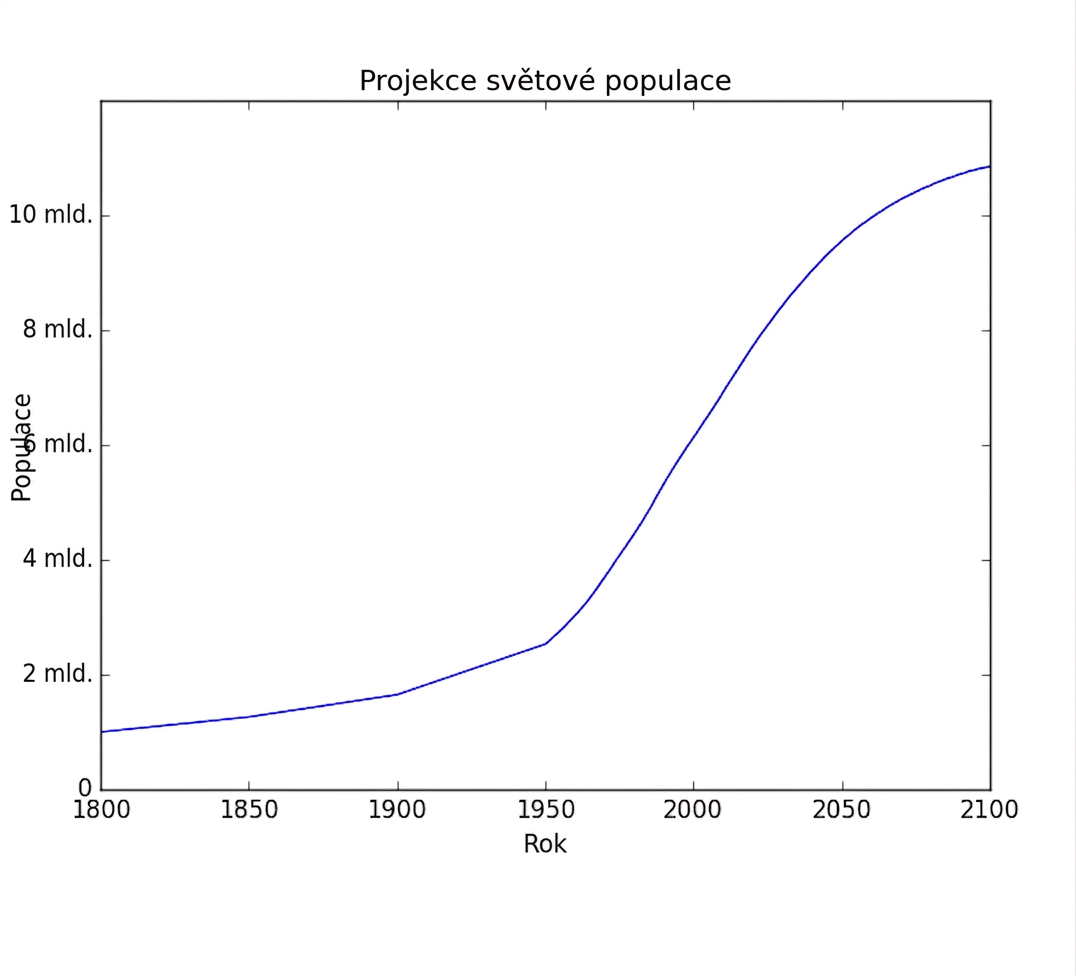

Přidání historických dat

population.py

import matplotlib.pyplot as plt
year = [1950, 1951, 1952, ..., 2100]
pop = [2.538, 2.57, 2.62, ..., 10.85]


# Add more data
year = [1800, 1850, 1900] + year
pop = [1.0, 1.262, 1.650] + pop


plt.plot(year, pop)


plt.xlabel('Year')
plt.ylabel('Population')

plt.title('World Population Projections')

plt.yticks([0, 2, 4, 6, 8, 10],

           ['0', '2B', '4B', '6B', '8B', '10B'])


plt.show()

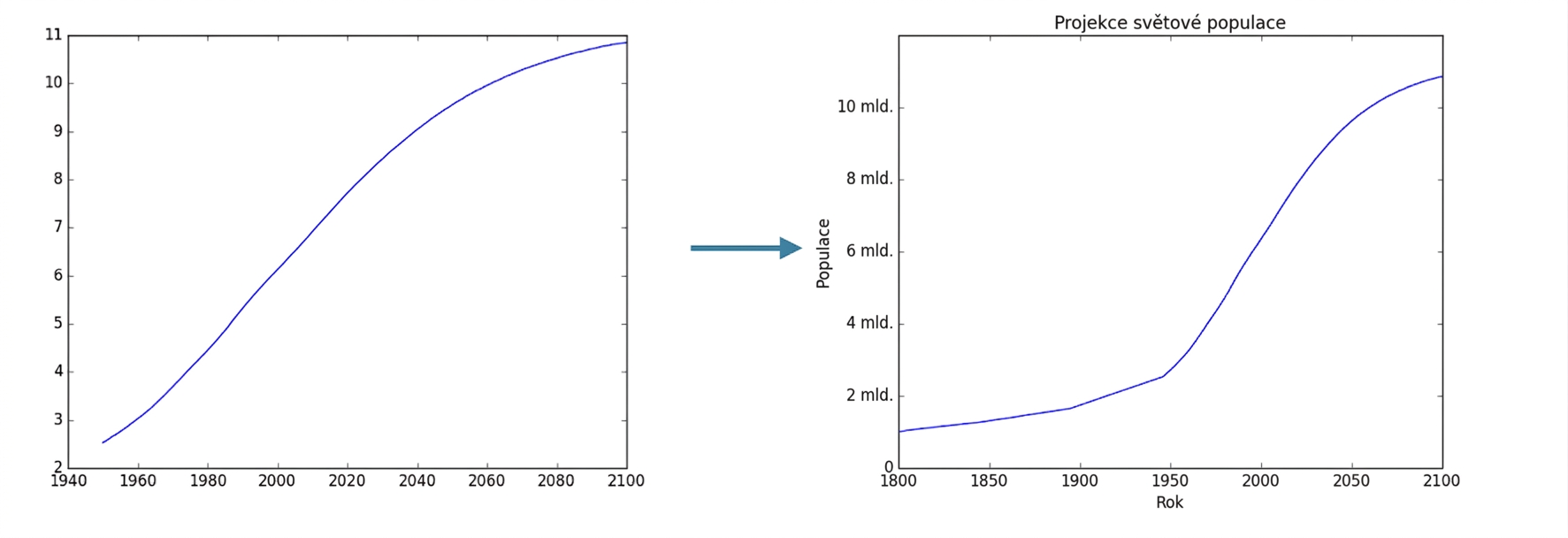

Před a po


Pojďme si procvičit!

Intermediate Python
